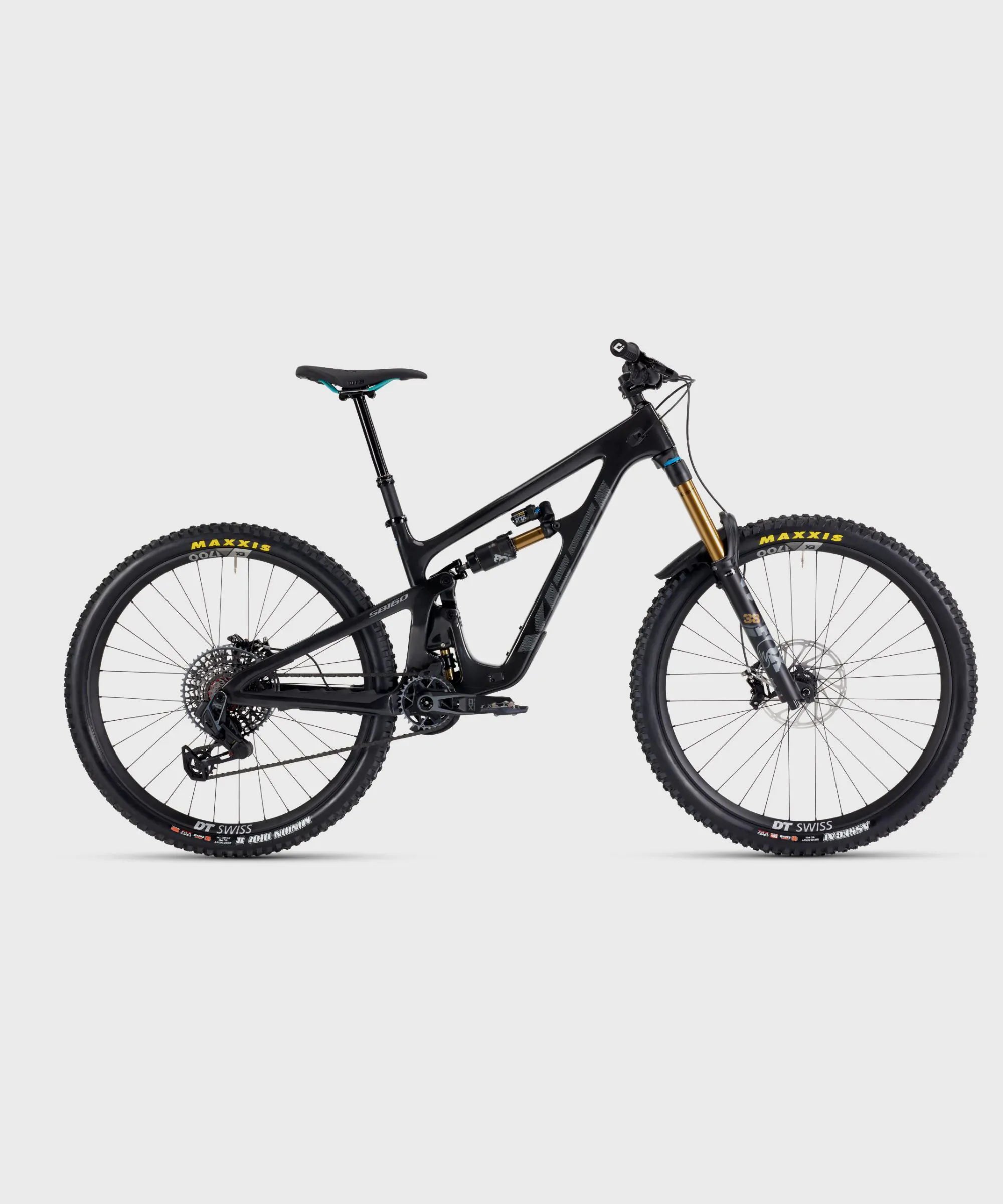

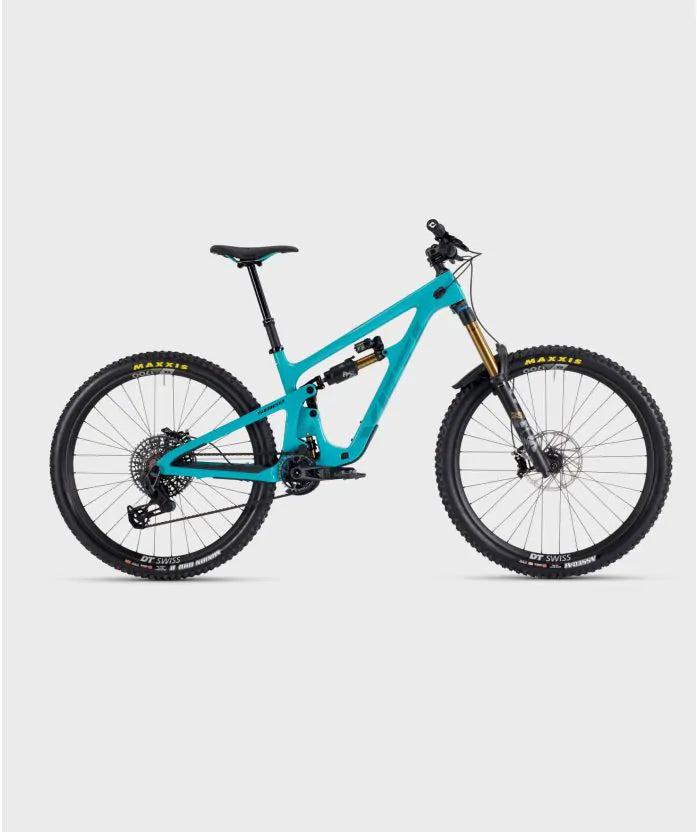

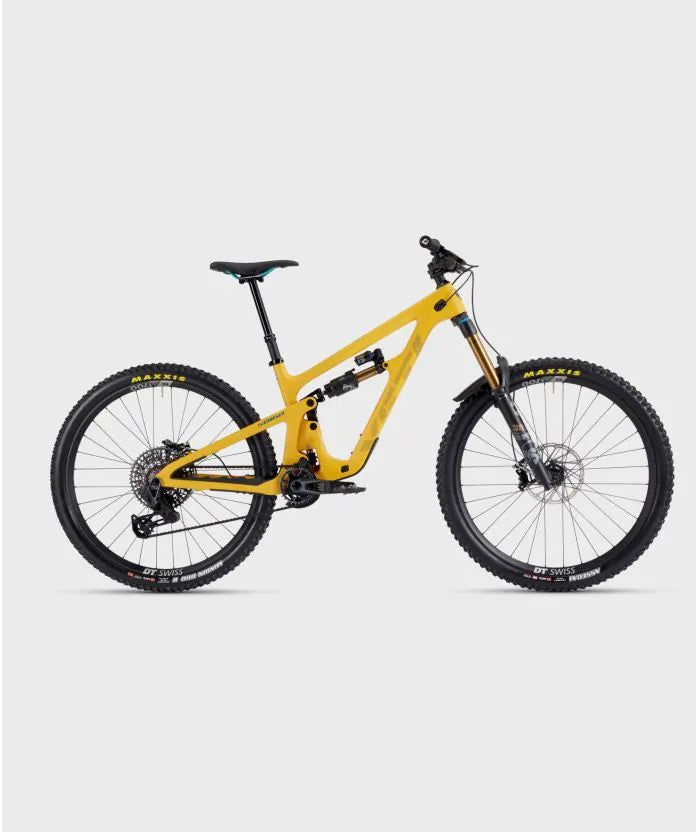

Yeti Cycles SB160 T-Series T3 29" Bike
Yeti Cycles SB160 T-Series T3 29" Bike
Yeti Cycles SB160 T-Series T3 29" Bike
Yeti Cycles SB160 T-Series T3 29" Bike
Yeti Cycles SB160 T-Series T3 29" Bike
Yeti Cycles SB160 T-Series T3 29" Bike

Yeti Cycles SB160 T-Series T3 29" Bike

£9,499.00 GBP
Colour
Size

Upholding a time-tested, race-bred ethos that says nothing should hold a rider back from the sheer joy of untethered speed. Built off one of the most winning race platform in EWS history, the sb160 is pure race machinery. Honed for more. Be fastest.

160MM

FRAME TRAVEL



170MM

FORK TRAVEL



17%

LEVERAGE RATE



29"

WHEEL SIZE



64°

HEAD TUBE ANGLE



77.5°

EFF. SEAT ANGLE

HIGHLIGHTS

  • Fox Factory 38 & Fox Float X2 Shock
  • Fox Transfer dropper post
  • Custom DT Swiss EX1700 wheels
  • 4 piston CODE brakes
  • ODI Elite Pro grips
  • 200mm front and rear rotors
  • Maxxis Assegai 2.5 EXO+ & Minion DHR 2.4 DD casing
  • Downhill tested and used by the Yeti Fox Factory team

FRAME HIGHLIGHTS

  • Switch Infinity assembly on T-Series
  • Threaded bottom bracket
  • High-clearance downtube
  • Dual-density downtube protection
  • Universal Derailleur Hanger (UDH)
  • Secure, fully enclosed internal cable management
  • Compatible with long dropper posts
  • 100% standard sealed Enduro Max bearings
  • Floating collet axle pivot design
  • Compact-wishbone shock extender
  • Downhill tested
  • Yeti/Fox Factory team approved
  • Boost spacing
  • Sizes S-XXL

FROM LEGACY TO DYNASTY

The Yeti/Fox Factory Team won 51 EWS stages, 12 EWS races, and 1 national series championships aboard the SB150. The SB160 builds momentum on this legacy of excellence. Honed. Refined. Even effing faster.

SIZE GUIDE

SMALL 5'1" - 5'7"
MEDIUM 5'5" - 5'11"
LARGE 5'10" - 6'3"
X-LARGE 6'1" - 6'7"
XX-LARGE 6'5" - 6'11"

SPECIFICATION

TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.

FORK FOX FACTORY 38 GRIP X2 / 170MM
SHOCK FOX FACTORY FLOAT X2
TYRE (F) MAXXIS ASSEGAI 2.5 EXO+
TYRE (R) MAXXIS MINION DHR II 2.4 DD
ROTOR (F) SRAM CENTERLINE 200
ROTOR (R) SRAM CENTERLINE 200
HEADSET CANE CREEK 40 INTEGRATED
WHEELSET DT SWISS CUSTOM EX1700 30MM
BB SRAM DUB BSA 73
GRIPS ODI ELITE PRO
BAR YETI CARBON 35X800MM
STEM BURGTEC ENDURO MK3 35X50MM
CRANK SRAM X0 EAGLE TRANSMISSION 30T 170MM
BASH GUARD MRP AMG SL BASH GUIDE
SEAT SILVERADO CUSTOM
BRAKES SRAM CODE RSC
DERAILLEUR SRAM X0 EAGLE AXS TRANSMISSION
CASSETTE SRAM X0 EAGLE TRANSMISSION 10-52
CHAIN SRAM X0 EAGLE TRANSMISSION FLATTOP
SHIFTER SRAM AXS POD CONTROLLER
SEATPOST FOX TRANSFER 31.6MM / 175MM

Please note: Specifications are subject to change without notice.



GEOMETRY

All measurements are shown in millimetres.


SM MD LG XL XXL
A SEAT TUBE LENGTH 365 400 440 470 485
B EFF. TOP TUBE LENGTH 571 602 624 651 670
C HEAD TUBE ANGLE 64 64 64 64 64
D EFF. SEATTUBE ANGLE 77.5 77.5 77.5 77.5 77.5
E ACTUAL SEATTUBE ANGLE 72.1 72.6 72.7 73.1 73.6
F CHAINSTAY LENGTH 437 439 441 443 445
G WHEELBASE 1211 1246 1270 1302 1329
H ESTIMATED BB HEIGHT 353 353 353 353 353
I STANDOVER 735 744 750 756 757
J HEADTUBE LENGTH 95 101 107 118 140
K FORK (AXLE TO CROWN) 588 588 588 588 588
L FORK (OFFSET) 44 44 44 44 44
M STACK 615 620 625 635 655
N REACH 435 465 485 510 525
O FRONT CENTER 774 807 829 859 884
P VERTICAL FORK TRAVEL 153 153 153 153 153
