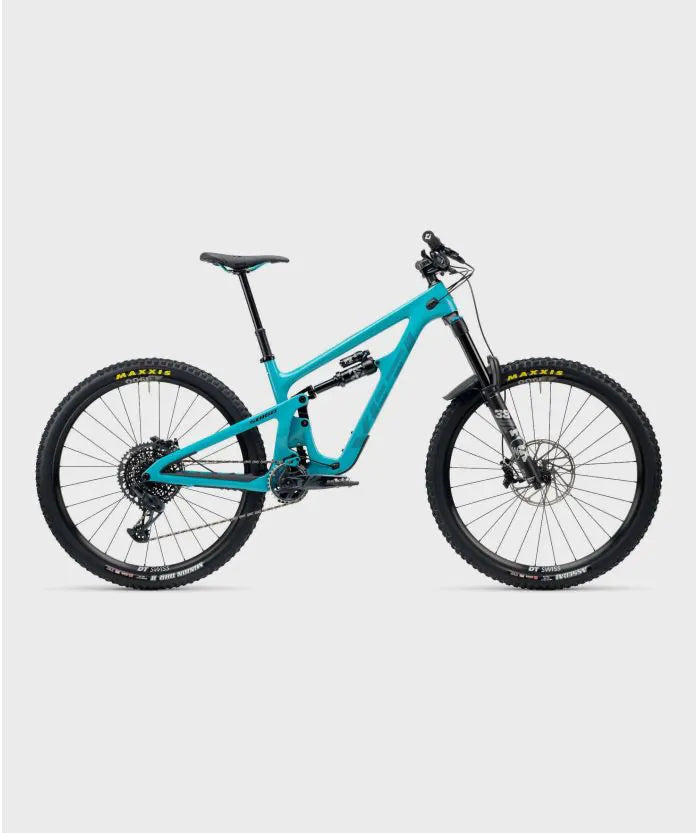

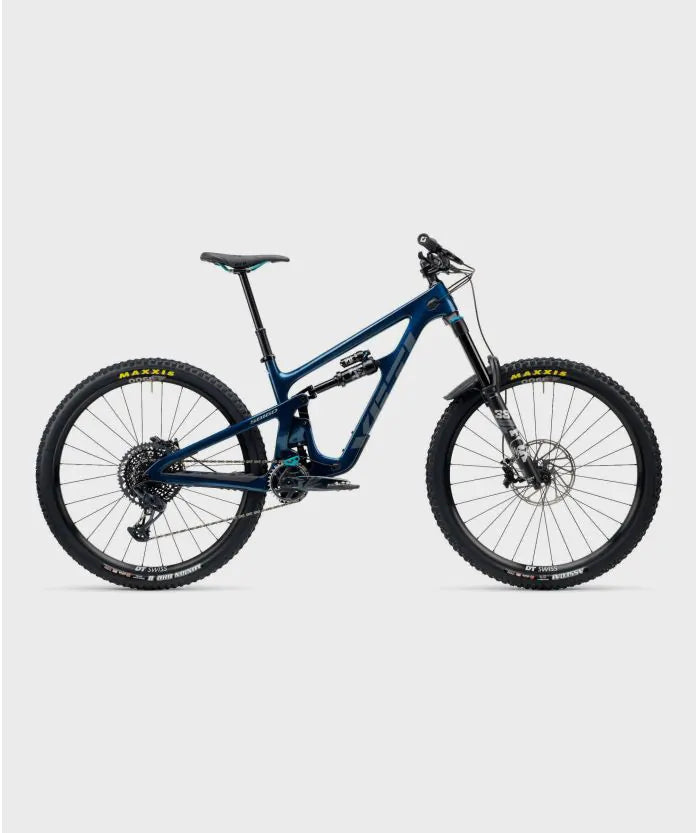

Yeti Cycles SB160 C-Series C2 29" Bike
Upholding a time-tested, race-bred ethos that says nothing should hold a rider back from the sheer joy of untethered speed. Built off one of the most winning race platform in EWS history, the sb160 is pure race machinery. Honed for more. Be fastest.
160MM
FRAME TRAVEL
170MM
FORK TRAVEL
17%
LEVERAGE RATE
29"
WHEEL SIZE
64°
HEAD TUBE ANGLE
77.5°
EFF. SEAT ANGLE
HIGHLIGHTS
- Fox Factory 38 & Fox Float X2 Shock
- Fox Transfer dropper post
- DT Swiss EX Wheels
- 4 piston brakes
- ODI Elite Pro grips
- 220 front and 200 rear rotors for max stopping power
- Maxxis Assegai 2.5 & Minion DHR 2.4 EXO+ casing
- Downhill tested and used by the Yeti Fox Factory team
FRAME HIGHLIGHTS
- NEW Switch Infinity assembly on T-Series
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Downhill tested
- Yeti/Fox Factory team approved
- Boost spacing
- Sizes S-XXL
FROM LEGACY TO DYNASTY
The Yeti/Fox Factory Team won 51 EWS stages, 12 EWS races, and 1 national series championships aboard the SB150. The SB160 builds momentum on this legacy of excellence. Honed. Refined. Even effing faster.
SIZE GUIDE
SMALL | 5'1" - 5'7" | ||||
MEDIUM | 5'5" - 5'11" | ||||
LARGE | 5'10" - 6'3" | ||||
X-LARGE | 6'1" - 6'7" | ||||
XX-LARGE | 6'5" - 6'11" |
SPECIFICATION
C/Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
FORK | FOX PERFORMANCE 38/170MM |
SHOCK | FOX PERFORMANCE FLOAT X |
TYRE (F) | MAXXIS ASSEGAI 2.5 EXO+ |
TYRE (R) | MAXXIS MINION DHR II 2.4 EXO+ |
ROTOR (F) | SRAM CENTERLINE 220 |
ROTOR (R) | SRAM CENTERLINE 200 |
HEADSET | CANE CREEK 40 INTEGRATED |
WHEELSET | DT SWISS E1900 30MM |
BB | SRAM DUB BSA 73 |
GRIPS | ODI ELITE PRO |
BAR | BURGTEC RIDE WIDE ALLOY ENDURO 35X800MM 35MM RISE |
STEM | BURGTEC ENDURO MK3 35X50MM |
CRANK | SRAM GX EAGLE 30T 170MM |
BASH GUARD | ONEUP BASH GUIDE |
SEAT | SILVERADO CUSTOM |
BRAKES | SRAM CODE R |
DERAILLEUR | SRAM GX EAGLE |
CASSETTE | SRAM GX EAGLE 1275 10-52 |
CHAIN | SRAM GX EAGLE |
SHIFTER | SRAM GX EAGLE |
SEATPOST | ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.

SM | MD | LG | XL | XXL | ||
A | SEAT TUBE LENGTH | 365 | 400 | 440 | 470 | 485 |
B | EFF. TOP TUBE LENGTH | 571 | 602 | 624 | 651 | 670 |
C | HEAD TUBE ANGLE | 64 | 64 | 64 | 64 | 64 |
D | EFF. SEATTUBE ANGLE | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 |
E | ACTUAL SEATTUBE ANGLE | 72.1 | 72.6 | 72.7 | 73.1 | 73.6 |
F | CHAINSTAY LENGTH | 437 | 439 | 441 | 443 | 445 |
G | WHEELBASE | 1211 | 1246 | 1270 | 1302 | 1329 |
H | ESTIMATED BB HEIGHT | 353 | 353 | 353 | 353 | 353 |
I | STANDOVER | 735 | 744 | 750 | 756 | 757 |
J | HEADTUBE LENGTH | 95 | 101 | 107 | 118 | 140 |
K | FORK (AXLE TO CROWN) | 588 | 588 | 588 | 588 | 588 |
L | FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
M | STACK | 615 | 620 | 625 | 635 | 655 |
N | REACH | 435 | 465 | 485 | 510 | 525 |
O | FRONT CENTER | 774 | 807 | 829 | 859 | 884 |
P | VERTICAL FORK TRAVEL | 153 | 153 | 153 | 153 | 153 |
