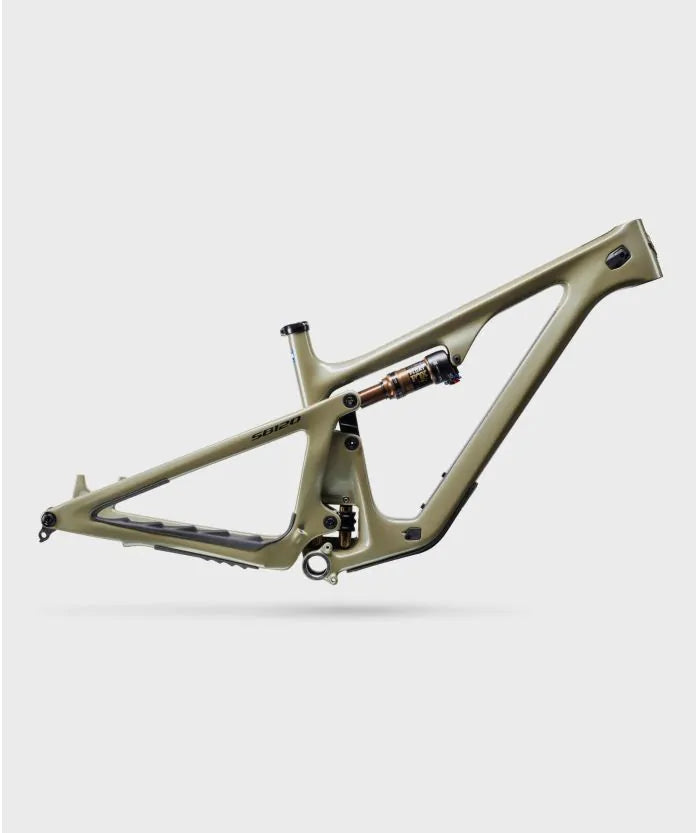

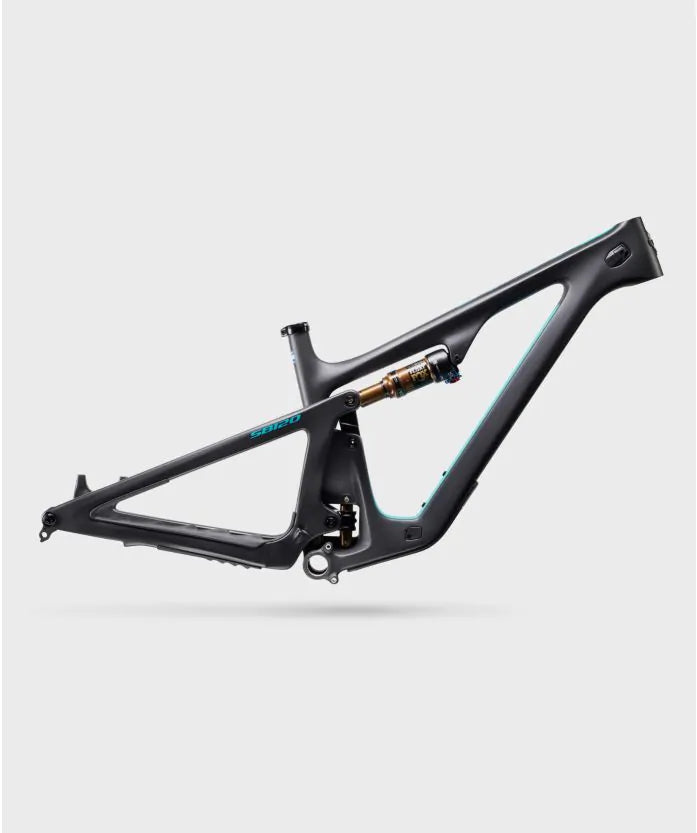

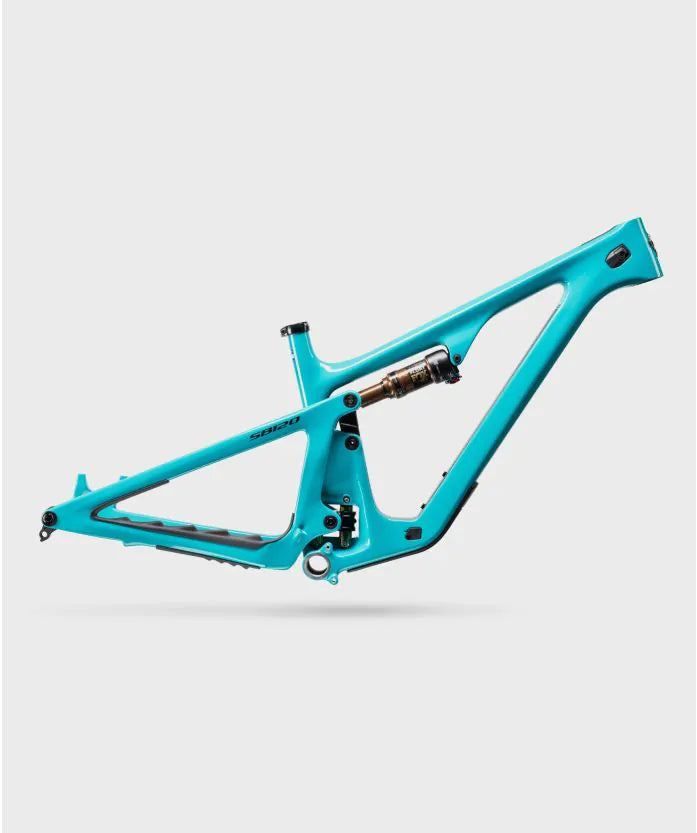

Yeti Cycles SB120 T-Series 29" Frame
Yeti Cycles SB120 T-Series 29" Frame
Yeti Cycles SB120 T-Series 29" Frame
Yeti Cycles SB120 T-Series 29" Frame
Yeti Cycles SB120 T-Series 29" Frame
Yeti Cycles SB120 T-Series 29" Frame

Yeti Cycles SB120 T-Series 29" Frame

£4,299.00 GBP
Colour
Size

SB120


Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for "Cross Country". Steer clear of pigeon holes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the sb120 means to you. And you alone. Definition ready.

120MM

FRAME TRAVEL



11%

LEVERAGE RATE



29"

WHEEL SIZE



66.5°

HEAD TUBE ANGLE



76.5°

EFF. SEAT ANGLE

FRAME HIGHLIGHTS

  • NEW short travel trail frame platform
  • NEW Switch Infinity assembly on T-Series
  • NEW Threaded bottom bracket
  • NEW High-clearance downtube
  • NEW Dual-density downtube protection
  • Universal Derailleur Hanger (UDH)
  • Secure, fully enclosed internal cable management
  • Compatible with long dropper posts
  • 100% standard sealed Enduro Max bearings
  • Floating collet axle pivot design
  • Ultra-compact shock extender
  • Boost spacing
  • Sizes XS-XXL

TRAIL. CHECK MATE.

Crushing souls on the descent is more than half the fun. And a hell of a lot more than half the point. The SB120 is wicked quick in your direction of choice.

SIZE GUIDE

X-SMALL 4'10" - 5'3"
SMALL 5'1" - 5'7"
MEDIUM 5'5" - 5'11"
LARGE 5'10" - 6'3"
X-LARGE 6'1" - 6'7"
XX-LARGE 6'5" - 6'11"

SPECIFICATION

TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.

SHOCK FOX FACTORY FLOAT

Please note: Specifications are subject to change without notice.



GEOMETRY

All measurements are shown in millimetres.


130MM FORK XS SM MD LG XL XXL
A SEAT TUBE LENGTH 345 365 400 440 470 485
B EFF. TOP TUBE LENGTH 540 571 603 625 652 672
C HEAD TUBE ANGLE 66.5 66.5 66.5 66.5 66.5 66.5
D EFF. SEAT TUBE ANGLE 76.5 76.5 76.5 76.5 76.5 76.5
E ACTUAL SEATTUBE ANGLE 71.1 71.5 71.9 72.3 72.7 73.2
F CHAINSTAY LENGTH 433 435 437 439 441 443
G WHEELBASE 1122 1157 1191 1217 1249 1274
H ESTIMATED BB HEIGHT 335 335 335 335 335 335
I STANDOVER 699 709 714 718 720 725
J HEAD TUBE LENGTH 92 98 104 115 126 147
K FORK (AXLE TO CROWN) 544 544 544 544 544 544
L FORK (OFFSET) 44 44 44 44 44 44
M STACK 604 610 615 625 635 655
N REACH 395 425 455 475 500 515
O FRONT CENTER 689 722 754 778 808 831
P VERTICAL FORK TRAVEL 119 119 119 119 119 119
