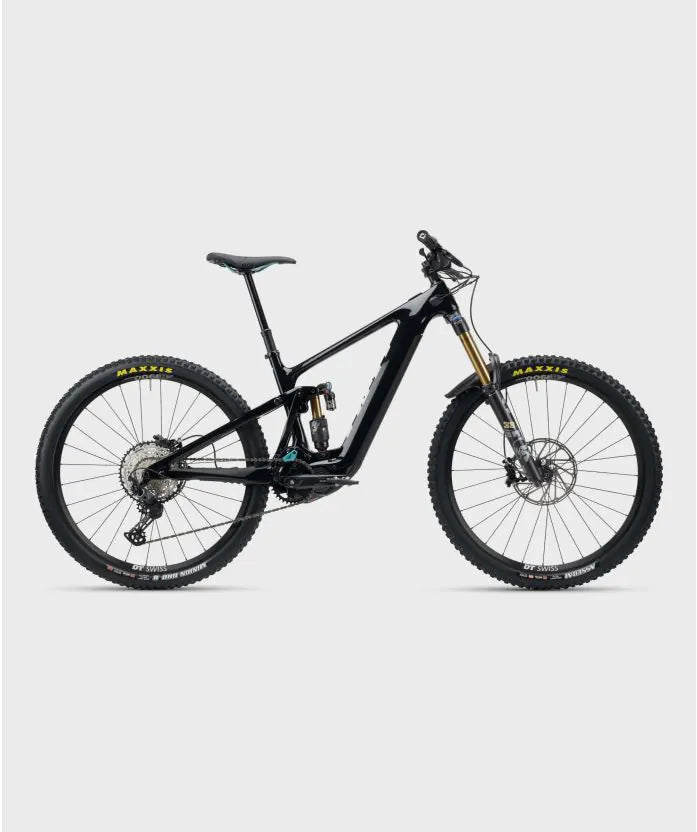

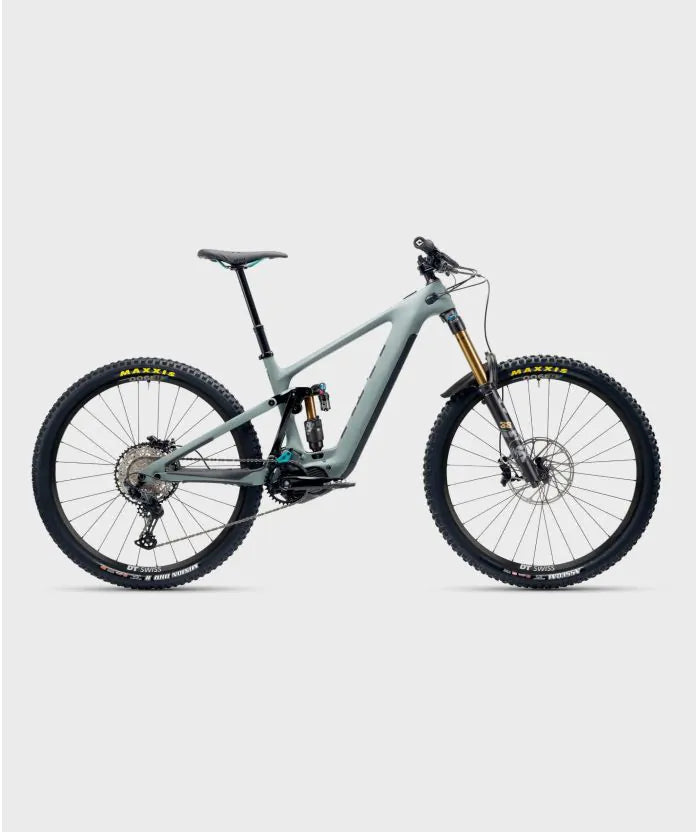

Yeti Cycles 160E C-Series C1 Factory 29" Bike
160E
WE DON'T PARTY UNTIL THE RACE IS OVER. SO WE TOOK OUR TIME TO DESIGN AN E-MTB THE WAY A YETI E-MTB HAS TO BE DESIGNED: READY TO TOE THE LINE AT EWS-E RACES.MEET THE 160E: THE WORLD'S FIRST RACE SPECIFIC E-MTB..
160MM
FRAME TRAVEL
170MM
FORK TRAVEL
35%
LEVERAGE RATE
29"
WHEEL SIZE
64.5°
HEAD TUBE ANGLE
78°
EFF. SEAT ANGLE
HIGHLIGHTS
- Yeti patented Sixfinity™ suspension system
- 446mm chain stays with dual 29er wheels
- Floating collet axles and pinch bolts on the
linkage extend bearing life and ensure
optimal, consistent alignment - Stock Shimano 630-Watt hour
battery is semi-integrated for hassle
free off the bike charges or with remote
charging port on non-drive side - Boost spacing and SRAM UDH hanger
- Custom OneUp chain guide mount
- MD thru XL Mainframes accommodate a
standard water bottle while our
“hot lap” bottle will fit in a SM frame - Custom cable ports, captured hoses
and housing and ribbed chainstay guards
provide a silent ride - “Moto” brake compatible routing
- Rear mud fender protects motor and linkage
- ASTM 4 rating and tested to Yeti Downhill
testing standards
SIXFINITY
- Sixfinity™ suspension platform,
Patent pending 6-Bar linkage - Lower link switches direction similar
to Switch Infinity - We’re able to tune Sixfinity to have our
desired ride characteristics while
accommodating the weight and speed that
comes with a motor and battery - The Sixfinity suspension layout allows
for a stiff supportive chassis for the
added E-MTB mass - First Sixfinity platform prototype
developed in 2016
IT’S
ABOUT
TIME.
SIZE GUIDE
| SMALL | 5'1" - 5'7" | |||
| MEDIUM | 5'5" - 5'11" | |||
| LARGE | 5'10" - 6'3" | |||
| X-LARGE | 6'1" - 6'7" |
SPECIFICATION
TURQ Series carbon fibre frame, Sixfinity suspension technology, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
| FRAME MATERIAL | TURQ SERIES |
| FORK | FOX FACTORY 38 GRIP 2/170MM |
| SHOCK | FOX FACTORY FLOAT X2 |
| WHEELSET | DT SWISS H1900 30MM |
| REAR DER | SHIMANO SLX |
| SHIFT | SHIMANO SLX |
| CRANK | SHIMANO EM600 160MM |
| CASSETTE | SHIMANO SLX 10-51 |
| CHAIN | SHIMANO SLX |
| BRAKES | SRAM CODE R |
| ROTOR F/R | SRAM CENTERLINE 220/SRAM CENTERLINE 220 |
| POST | ONEUP DROPPER POST 31.6MM / SM: 180MM, MD: 210MM, LG-XL: 240MM |
| TYRE F/R | MAXXIS ASSEGAI 2.5 EXO+ / MAXXIS MINION DHR II 2.4 DD |
| HEADSET | CANE CREEK 40 INTEGRATED |
| BAR | YETI CARBON 35X800MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| GRIPS | ODI ELITE PRO |
| SADDLE | SILVERADO CUSTOM |
| BASH GUARD | N/A |
| BATTERY | SHIMANO 630WH INTERNAL BATTERY |
| DRIVE UNIT | SHIMANO EP801 |
| DISPLAY | SHIMANO EM800 |
| ASSIST SWITCH | SHIMANO EM800L |
| CHARGER | SHIMANO E6002 |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 170MM FORK | SM | MD | LG | XL | |
| A | SEAT TUBE LENGTH | 380 | 410 | 450 | 495 |
| B | EFF. TOP TUBE LENGTH | 561 | 592 | 613 | 642 |
| C | HEAD TUBE ANGLE | 64.5 | 64.5 | 64.5 | 64.5 |
| D | EFF. SEAT TUBE ANGLE | 78 | 78 | 78 | 78 |
| E | CHAINSTAY LENGTH | 446 | 446 | 446 | 446 |
| F | WHEELBASE | 1209 | 1240 | 1262 | 1292 |
| G | ESTIMATED BB HEIGHT | 350 | 350 | 350 | 350 |
| H | STANDOVER | 754 | 754 | 754 | 754 |
| I | HEADTUBE LENGTH | 95 | 98 | 104:root { --loader-image: var(--loading-svg); } | 115 |
| J | FORK (AXLE TO CROWN) | 584 | 584Close | 584 | 584 Home |
| LTrek | STACK | Kona635 | Equipment|||
| M | REACHWorkshop | 430See More | 460 | 480 | Workshop Prices505 |
| N | FRONT CENTER | Cycle to Work Schemes762 | See More794 | 816 | 846Cycle to Work Scheme Calculator |
| O | VERTICAL FORK TRAVEL | 153 Contact | 153Log in | 153Create account | Search153 |
