Trek Verve+ 4

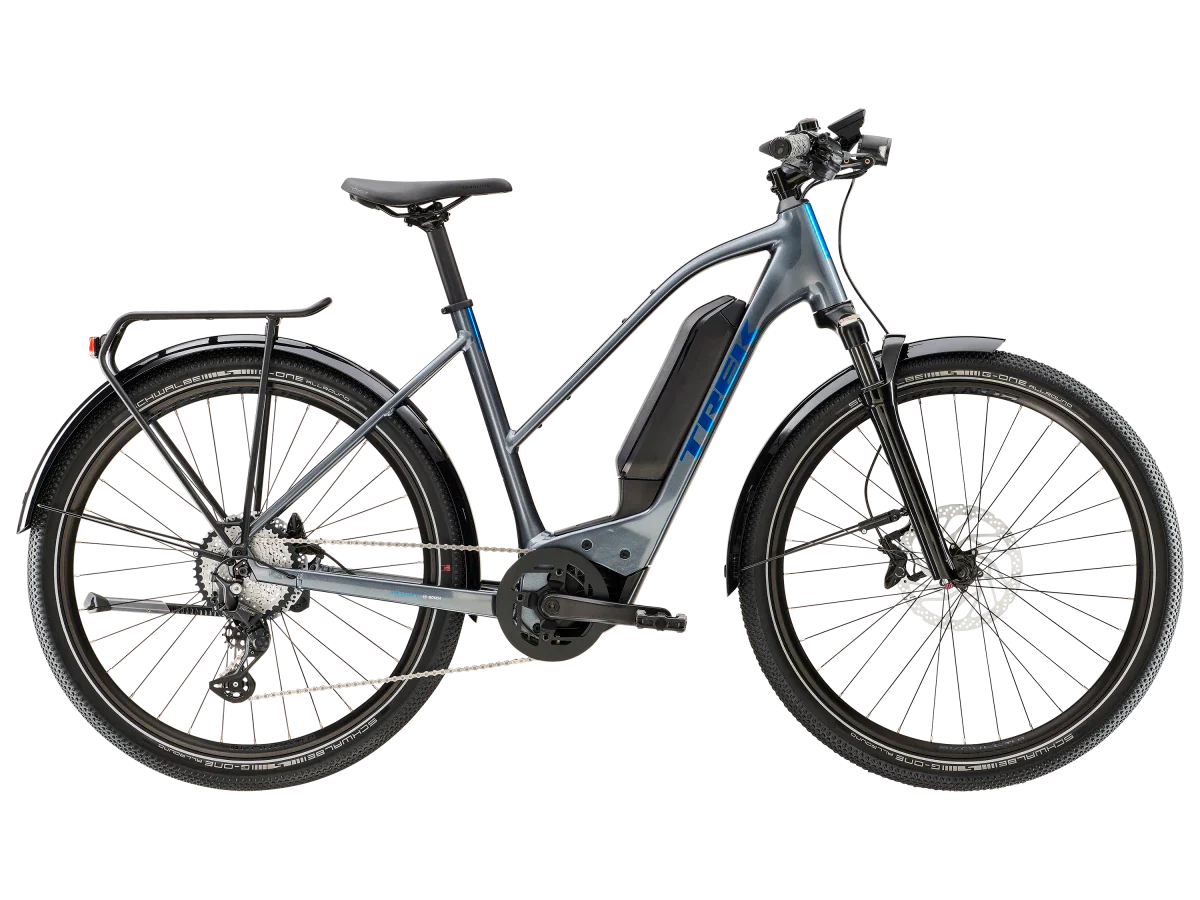

The Allant+ 6 Stagger is a deluxe e-bike for soaring through commutes and exploring gravel paths. It's equipped with the new Bosch Smart System motor that offers more connectivity than ever before. Pair your smartphone with your bike to log activities, plan routes and more. Available with your choice of battery size, ranging from 400 Wh to 800 Wh, so you can cruise comfortably the whole way home. Plus, it's topped off with upgraded components where it matters most.
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR |
|---|---|
| Fork | SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel |
| Max compatible fork travel | 63mm |
Wheels
| Hub front | Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle |
|---|---|
| Hub rear | Formula CL-52 alloy, 135x5 mm QR |
| Skewer rear | 148x5 mm bolt-on |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584 |
| Max tyre size | 27.5 x 2.40" |
E-system
| Charger | Bosch standard 4A, 230V, smart system |
|---|---|
| *Computer |
Size: S, M, L Bosch Kiox 300, smart system |
|
Size: S, M, L Bosch LED remote, smart system |
|
| Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
Drivetrain
| Shifter | Shimano Deore M5130, 10-speed |
|---|---|
| Rear derailleur | Shimano Deore M5130 |
| *Crank |
Size: S, M ProWheel alloy, 170 mm length |
|
Size: L ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LG400, 11-43, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | slip-proof pedals with reflectors |
| Max. chainring size | 1x: 48T |
Components
| Saddle | Bontrager Commuter Comp |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Bontrager XR Endurance Elite |
| *Stem |
Size: S, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
| Brake | Shimano MT401 / MT420 hydraulic disc, 180 mm rotor |
| *Brake rotor |
Size: S, M, L Shimano RT30, CentreLock, 203 mm |
|
Size: S, M, L Shimano EM300, CentreLock, 180 mm |
|
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
Accessories
| *Light |
Size: S, M, L Spanninga SOLO for e-bike |
|---|---|
|
Size: S, M, L Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight |
|
| Kickstand | Pletscher Comp Flex 18 |
| Cargo rack | MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard |
Size: S, M, L SKS plastic, rear |
|
Size: S, M, L SKS plastic, front |
Weight
| Weight | M – 23.10 kg / 50.93 lb (with 545 Wh battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
*Please note – spec applies to all sizes unless listed separately
Frameset
| *Frame |
Size: M, L, XL Alpha Platinum Aluminium, Removable Integrated Battery (RIB), smooth welds, rack & mudguard mounts, internal routing, kickstand mount, 135x5 mm QR |
|---|---|
|
Size: M, L, XL Alpha Smooth Aluminium, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR |
|
| Fork | Forklight 3.0 with integrated 50LUX lighting, 40 mm travel |
Wheels
| Hub front | Shimano TX505, CenterLock |
|---|---|
| Hub rear | Shimano |
| Rim | Alex Rims DP23, alloy, 36-hole, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 700x50 mm |
| Max tyre size | 700x50mm with or without mudguards |
E-system
| Battery | Bosch PowerTube 500 Wh |
|---|---|
| Charger | Bosch standard 4A, 220-240 V |
| Computer | Bosch Intuvia |
| Motor | Bosch Performance Line Cruise, 250 watt, 65 Nm, 20 mph (25 km/h in Europe) |
Drivetrain
| Shifter | Shimano Alivio M3100, 9-speed |
|---|---|
| Rear derailleur | Shimano Alivio M3100, long cage |
| Crank | ProWheel alloy, 170 mm length |
| Chainring | ProWheel 38T narrow/wide steel, w/alloy guard |
| Cassette | Shimano Sora HG400, 11-32, 9-speed |
| Chain | KMC E9S, 9-speed |
| *Pedal |
Size: M, L, XL Bontrager City pedals |
|
Size: M, L, XL Wellgo C157, boron axle, plastic body |
Components
| Saddle | Bontrager Boulevard |
|---|---|
| Seatpost | Alloy, suspension, 31.6 mm, 300 mm length |
| *Handlebar |
Size: M, L, XL Bontrager aluminium touring, 31.8 mm clamp, 25 mm rise, 630 mm width |
|
Size: M, L, XL Bontrager aluminium touring |
|
| Grips | Bontrager Satellite Elite, alloy lock-on |
| *Stem |
Size: M Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length |
|
Size: L, XL Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length |
|
| Head set | VP sealed cartridge, 1-1/8", threaded |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor |
Size: M, L, XL Shimano EM300, CenterLock, 160 mm |
|
Size: M, L, XL Shimano RT10, CenterLock, 160 mm |
|
| *Brake Set |
Size: M, L, XL Tektro HD-M275 hydraulic disc, 160 mm rotor |
|
Size: M, L, XL Tektro HD-M275 hydraulic disc |
Accessories
| *Light |
Size: M, L, XL Spanninga SOLO for e-bike |
|---|---|
|
Size: M, L, XL Forklight 3.0 with integrated 50LUX lighting |
|
| Kickstand | Pletscher Comp Flex 18 |
| *Cargo rack |
Size: M, L, XL MIK-compatible alloy rear rack, maximum load 25 kg |
|
Size: M, L, XL Alloy rear rack, 25 kg max weight |
|
| *Mudguard |
Size: M, L, XL SKS Wide |
|
Size: M, L SKS wide |
Weight
| Weight | L - 23.80 kg / 52.48 lbs (excluding battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
