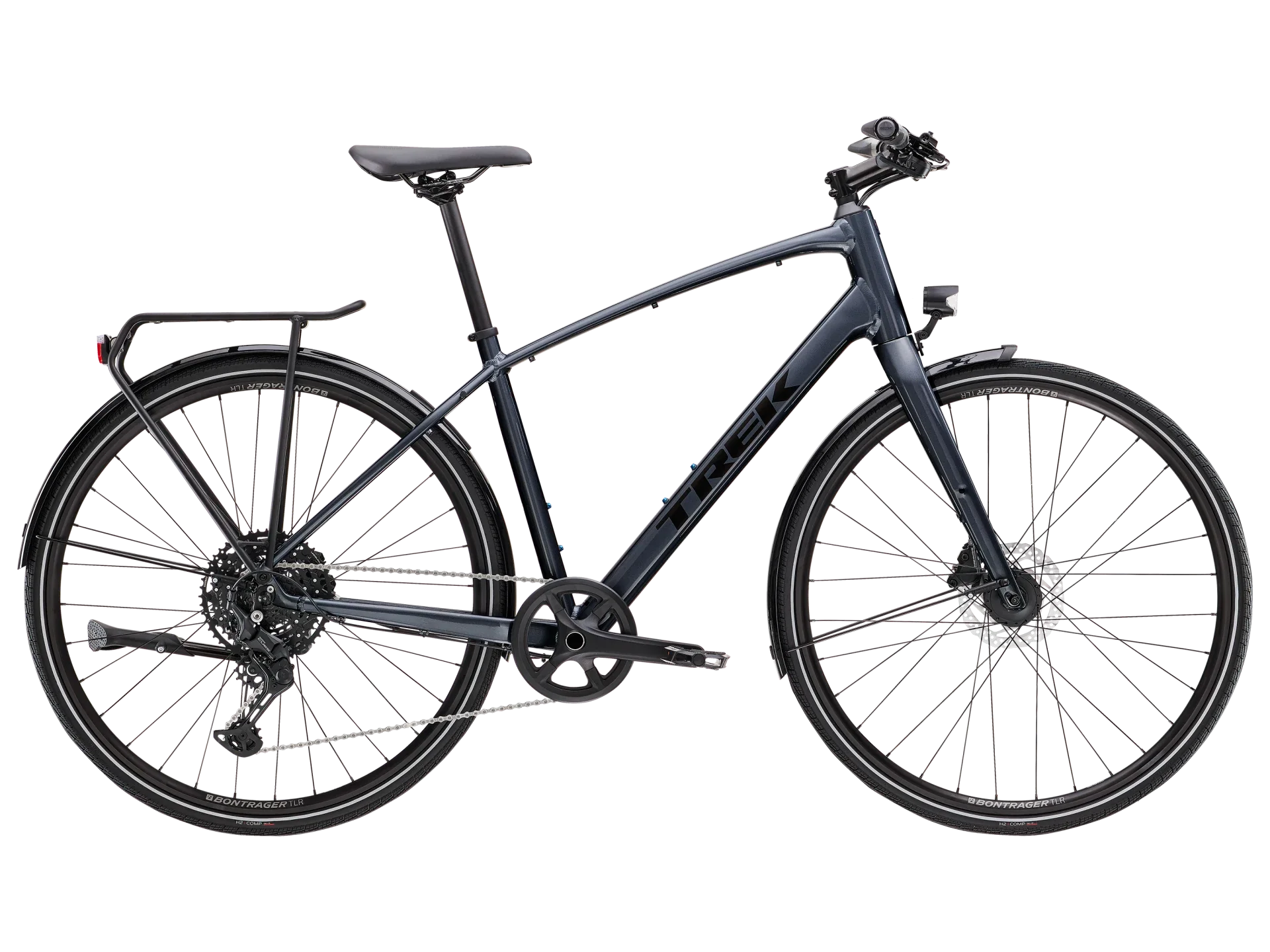

Trek FX 3 Equipped
The FX 3 Equipped is a stylish and versatile hybrid bike that comes with all the accessories you need to get out and ride more. The included lights, mudguards and rear rack make it perfect for commuting, and the powerful disc brakes and performance 1x drivetrain deliver speed and confidence whether you're working out or running errands.
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | FX carbon, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR |
Wheels
| Hub front | Dynamo, 6V 3.0 W, 100x5 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Tubeless Ready Disc, 32-hole, Presta valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
| Max tyre size | 700x40 mm |
Drivetrain
| Shifter | Shimano CUES U6000 w/optical gear display, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |
Size: S, M ProWheel alloy, 40T narrow-wide ring, 170 mm length |
|
Size: L, XL ProWheel alloy, 40T narrow-wide ring, 175 mm length |
|
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | Bontrager City pedals |
| Max. chainring size | 1x: 44T, 2x: 46/32 |
Components
| Saddle | Bontrager H1 |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: S, M Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
Size: L, XL Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
| Grips | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
Size: M, L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
| Brake | Shimano hydraulic disc, MT201 lever, UR300 calliper |
| Brake rotor | Shimano RT26, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Accessories
| *Light |
Size: S, M, L, XL Herrmans H-Trace ECO dynamo LED |
|---|---|
|
Size: S, M, L, XL Herrmans MR4, 100-lumen LED |
|
| Kickstand | Alloy, rear-mount kickstand |
| Cargo rack | MIK-compatible alloy rear rack |
| Mudguard | SKS plastic, rear |
Weight
| Weight | L - 13.40 kg / 29.55 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
