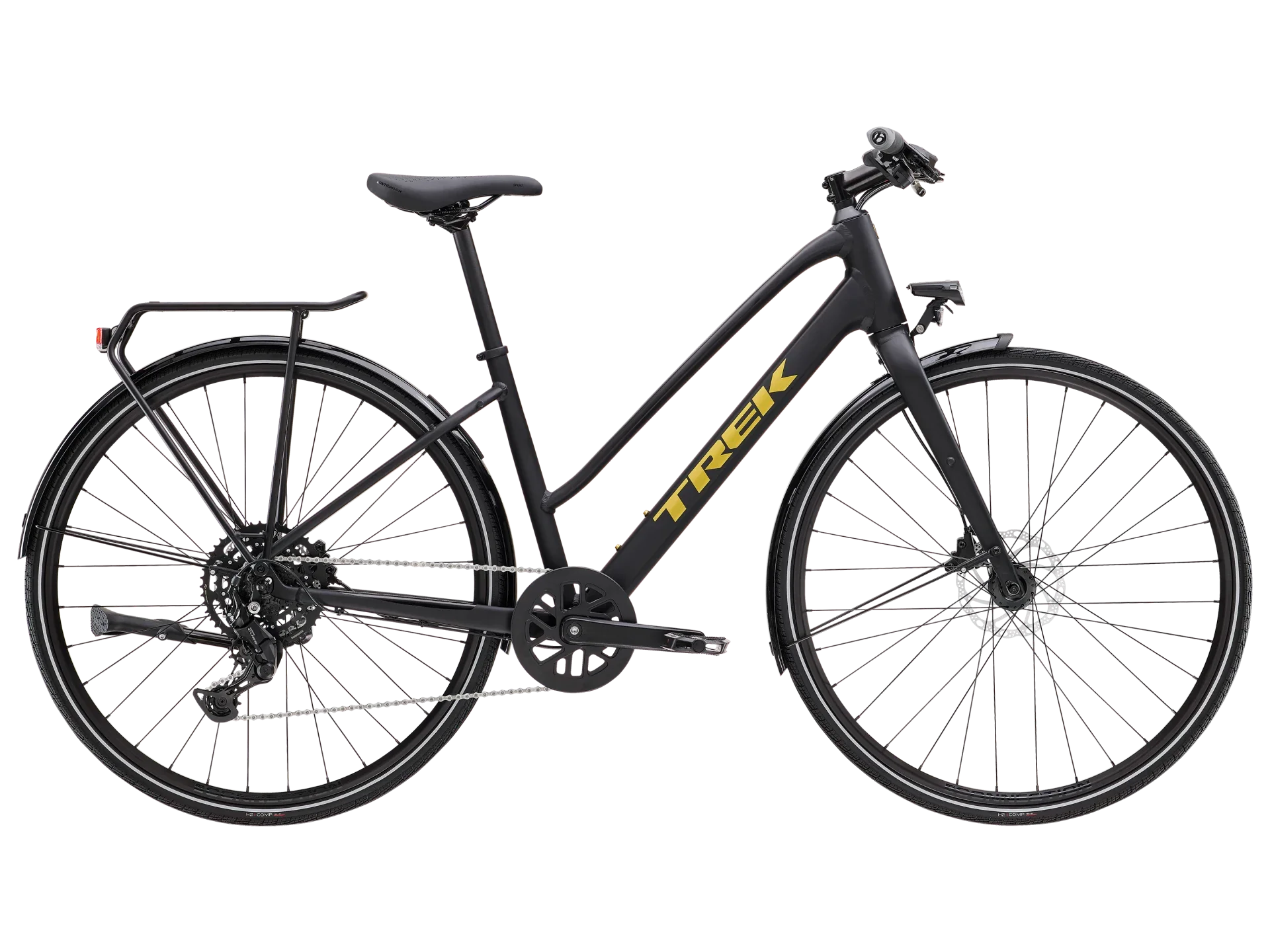

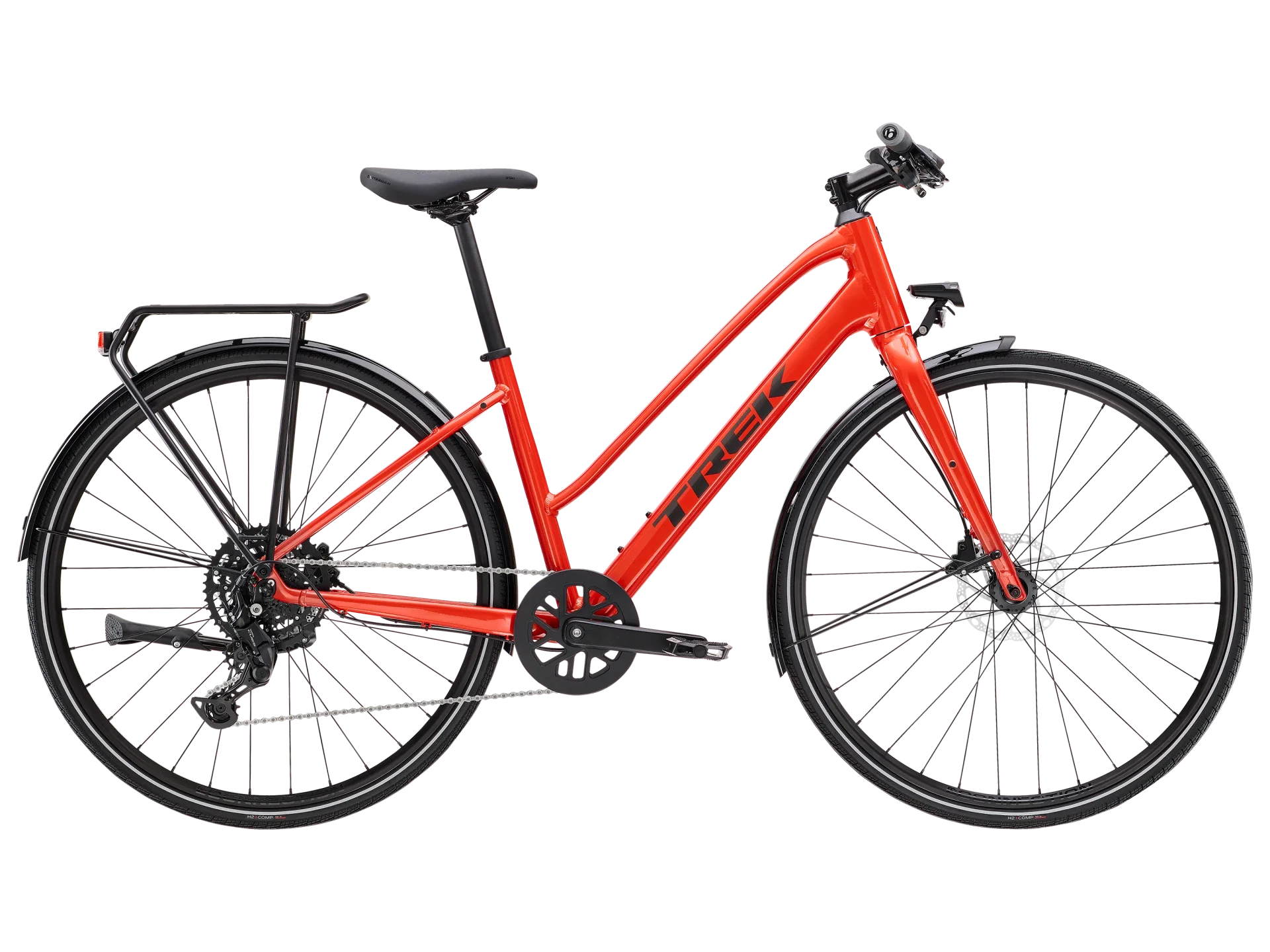

Trek FX 2 Equipped Stagger
The FX 2 Equipped Stagger is a stylish and versatile hybrid bike with a classic step-through frame geometry that's easier to mount and dismount. Exercise, commute or ride for fun with the wide range of speeds, reliable disc brakes and a whole suite of ride-ready accessories
*Please note – spec applies to all sizes unless listed separately
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | FX alloy, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
|---|---|
| Max tyre size | 700x40 mm |
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| Crank | ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | Bontrager City pedals |
| Max. chainring size | 1x: 44T, 2x: 46/32 |
| Saddle | Bontrager Sport Women's |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: S, M Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
Size: L Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
| Grips | Bontrager Satellite |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
Size: M, L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Brake Set | Tektro HD-R280 hydraulic disc, 160 mm rotor |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| *Light |
Size: S, M, L Spanninga SOLO |
|---|---|
|
Size: S, M, L AXA Greenline 35, USB rechargeable |
|
| Kickstand | Alloy, rear-mount kickstand |
| Cargo rack | MIK-compatible alloy rear rack |
| *Mudguard |
Size: S, M, L SKS plastic, front |
|
Size: S, M, L SKS plastic, rear |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
|---|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
