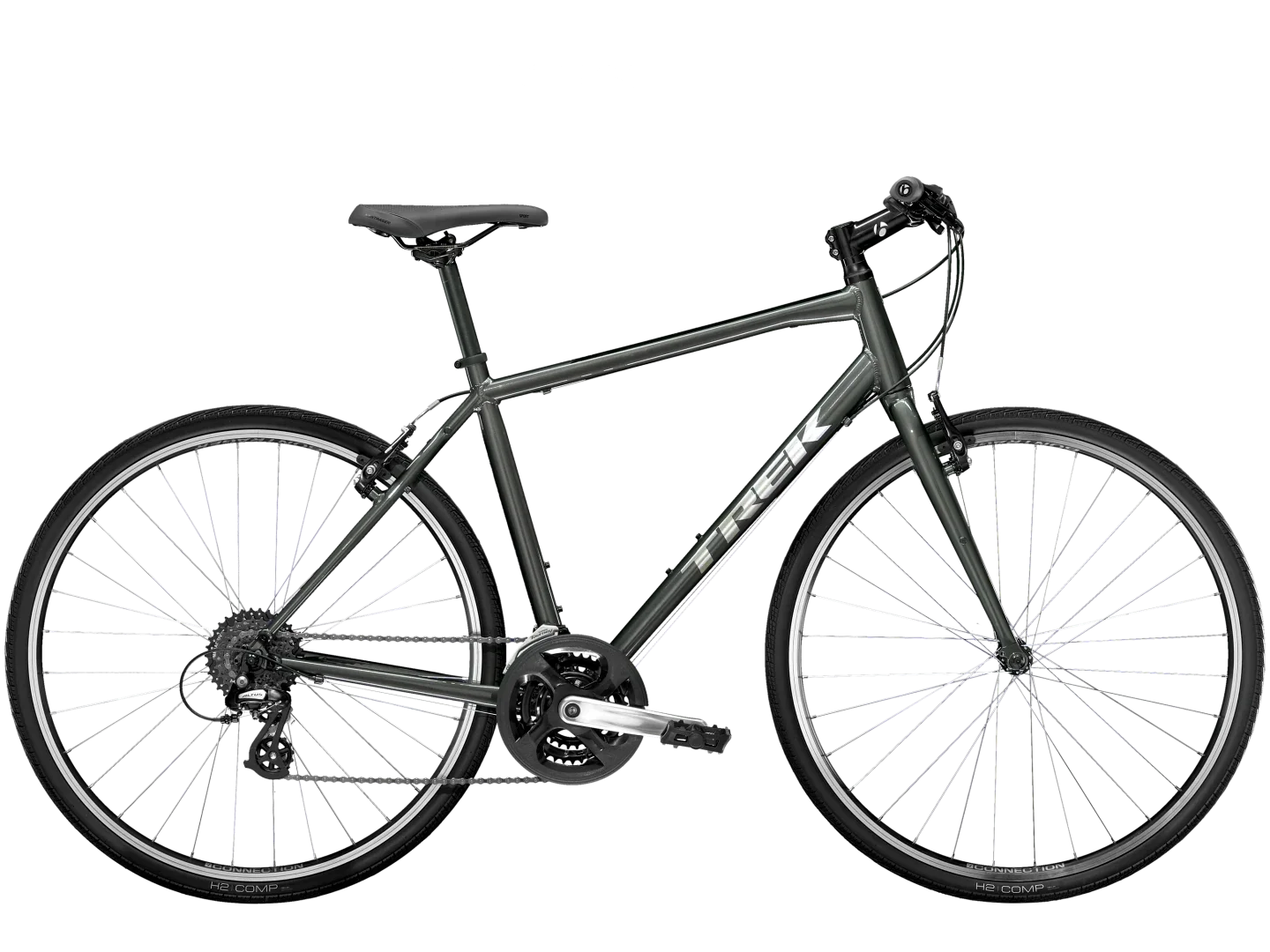

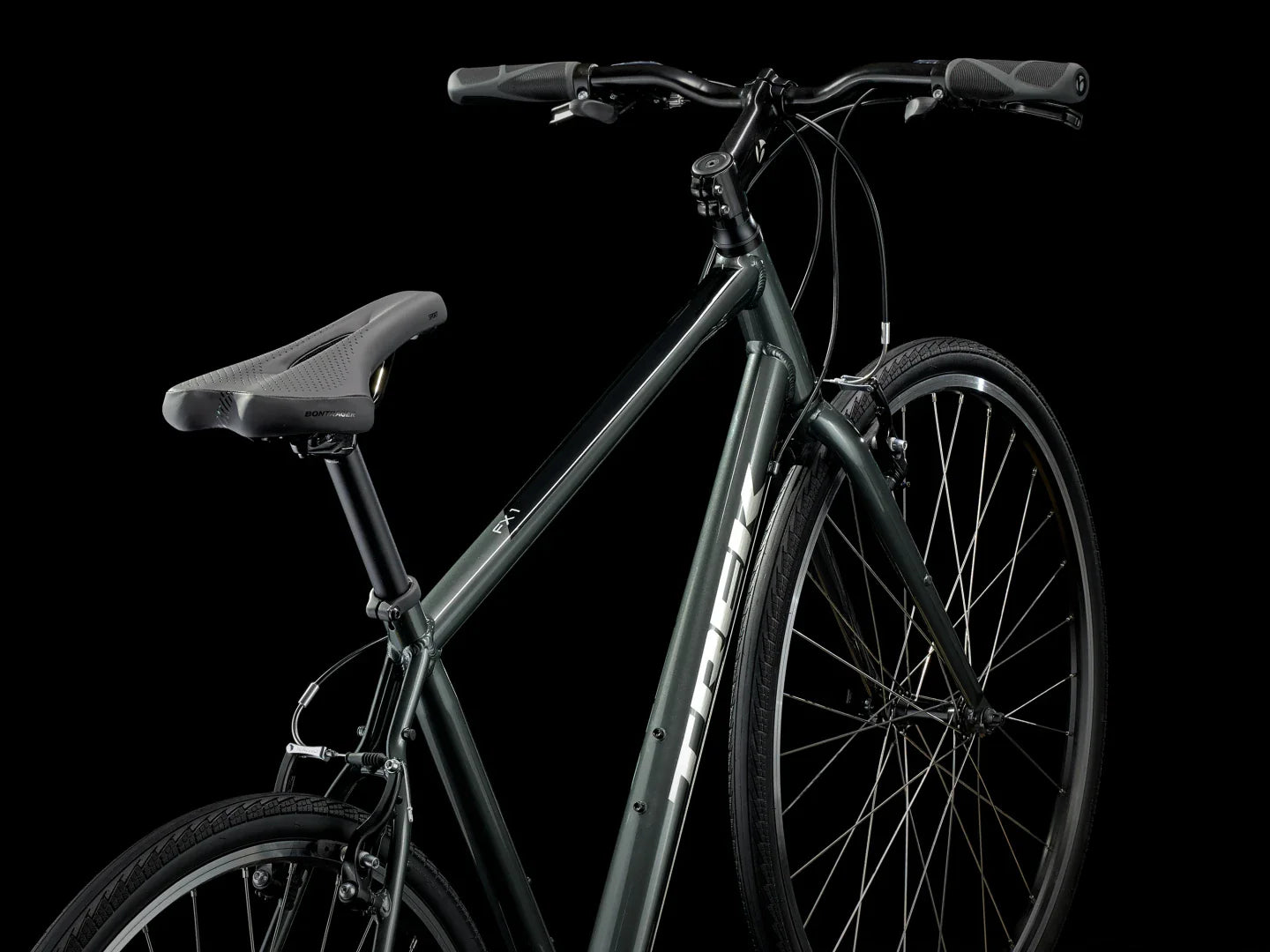

Trek FX 1 Gen 3
FX 1 is a hybrid bike with a lightweight aluminium frame and quality parts that perform wherever you like to ride. It's perfect for anyone looking to get out more, ride as a family, do a bit of exercise or commute to work on a versatile bike backed by a lifetime warranty.
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | Alpha Gold Aluminium, rack and mudguard mounts, DuoTrap S-compatible, cantilever-brake mount, 135x5 mm QR |
|---|---|
| Fork | FX Steel, threadless steel steerer, rack mounts, cantilever-brake mount, 405 mm axle-to-crown, 5x100 mm QR |
Wheels
| Hub front | Formula FM21 alloy, 100x5 mm QR |
|---|---|
| Skewer front | Formula QR22 |
| Hub rear | Formula FM31 alloy, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |

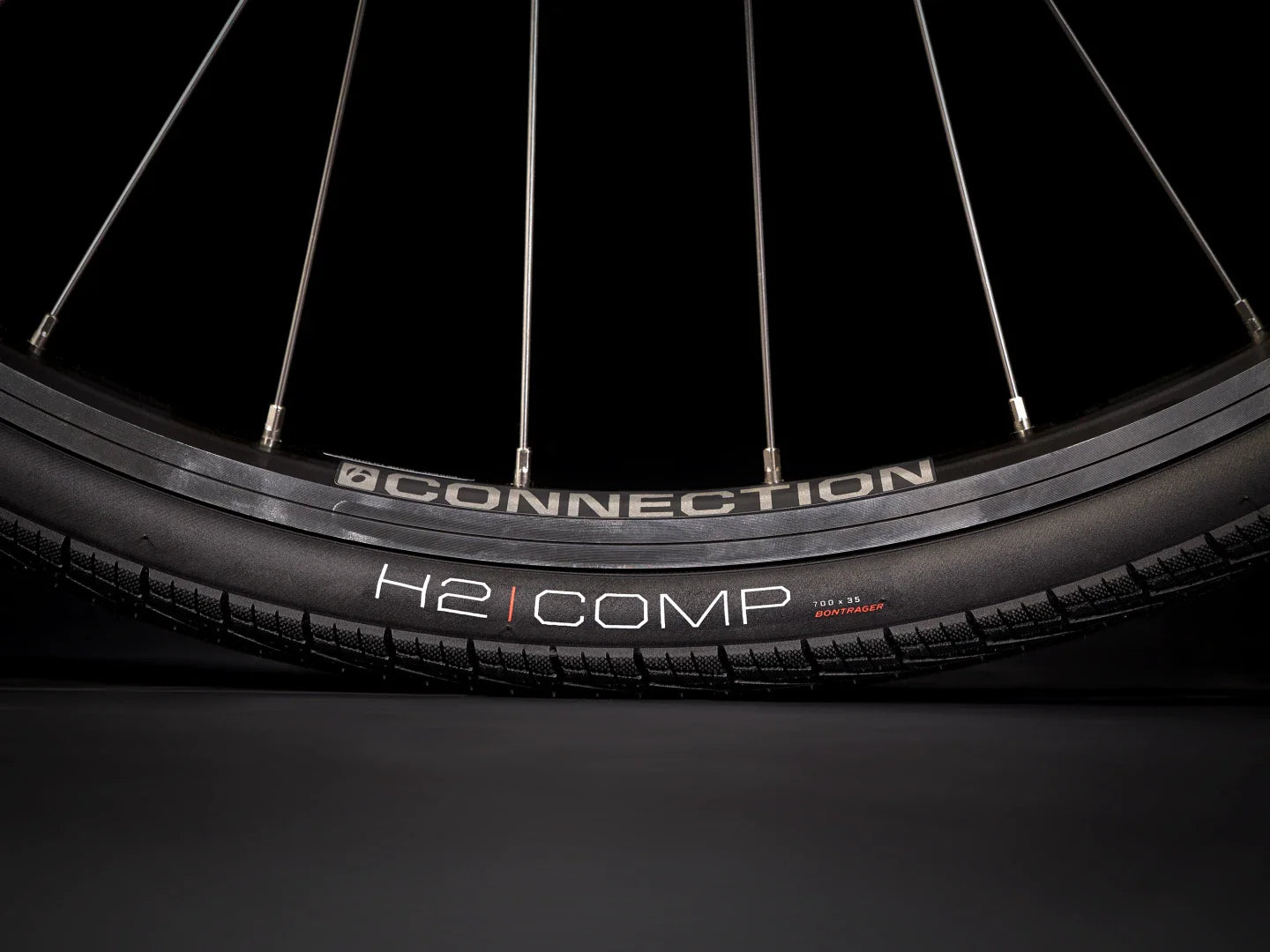

| Rim | Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
| Max tyre size | 700x38mm without mudguards, 700x35mm with mudguards |
Drivetrain
| *Shifter |
Size: S, M, L, XL, XXL Shimano Altus EF500, 7-speed |
|---|---|
|
Size: S, M, L, XL, XXL Shimano Altus EF500, 3-speed |
|
| Front derailleur | Shimano Tourney TY510, 34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| Crank | Forged alloy, 48/38/28, chain guard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | 14-34t, 7-speed freewheel |
| Chain | KMC Z7 |
| Pedal | Wellgo nylon platform |
Components
| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: S, M, L Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
|
Size: XL, XXL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |
|
| Grips | Bontrager Satellite |
| *Stem |
Size: S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
|
Size: L, XL, XXL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
|
| Head set | 1 1/8" steel threadless |
| Brake | Tektro alloy linear-pull |
Weight
| Weight | M - 12.57 kg / 27.72 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
