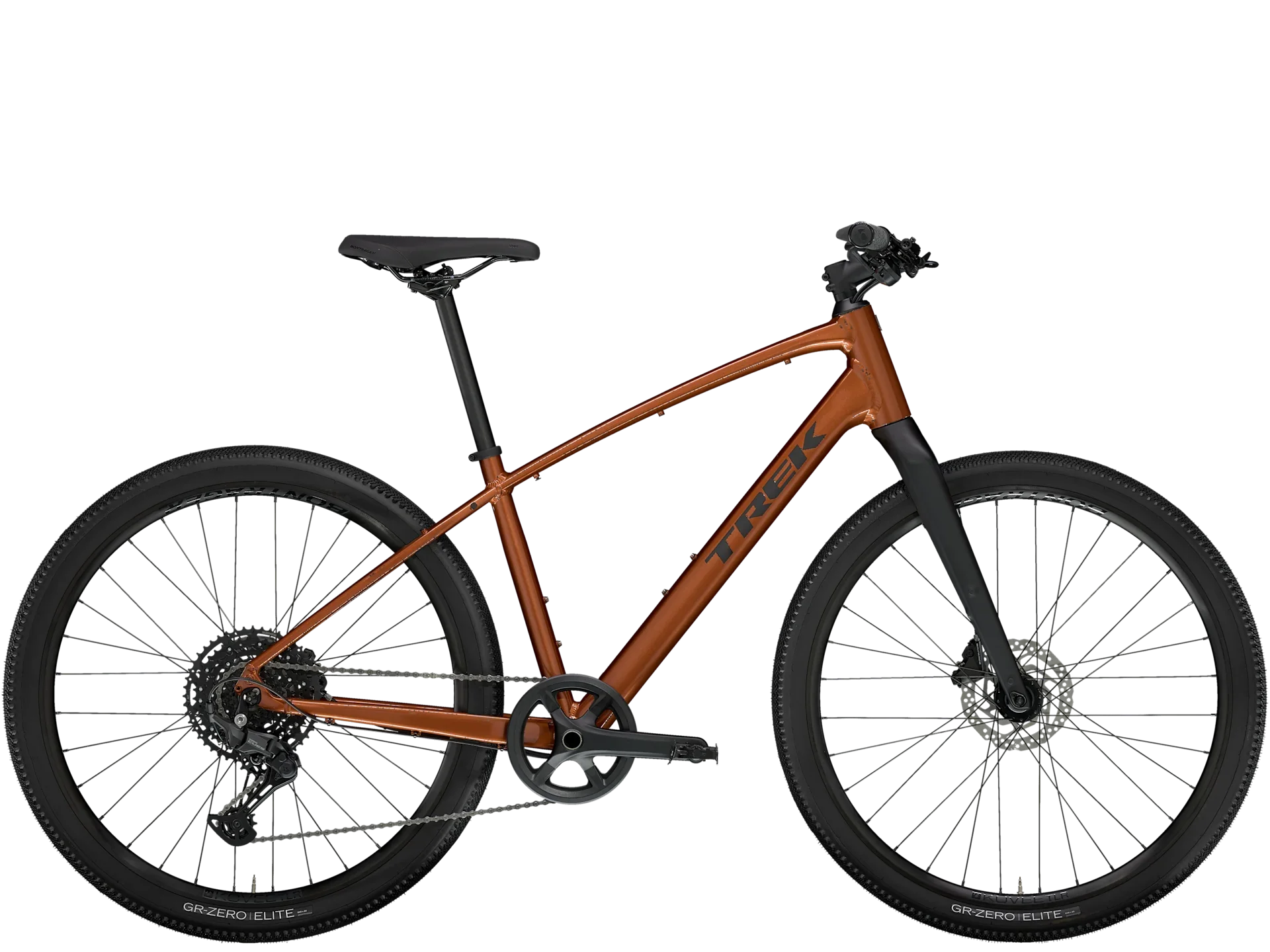

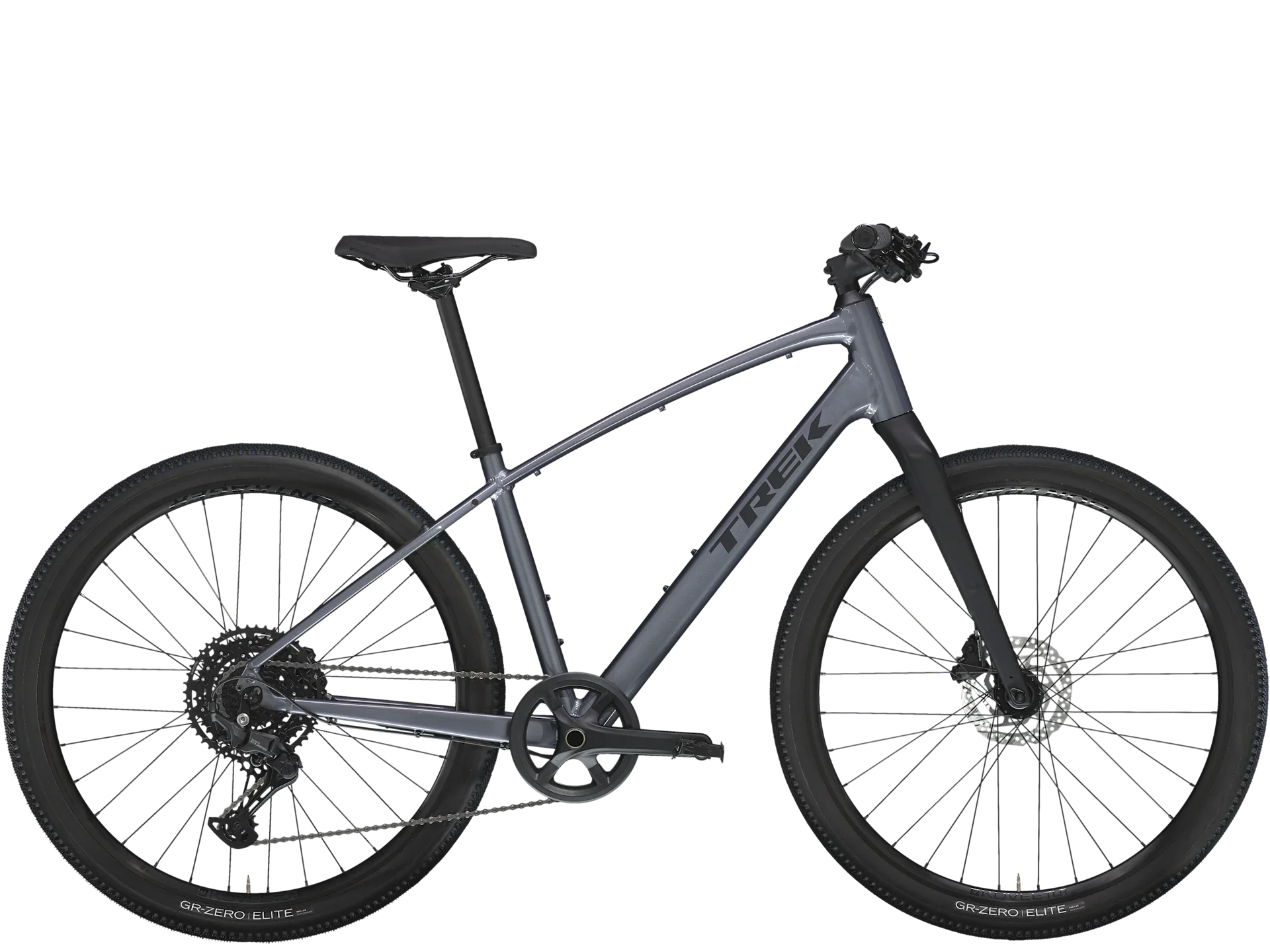

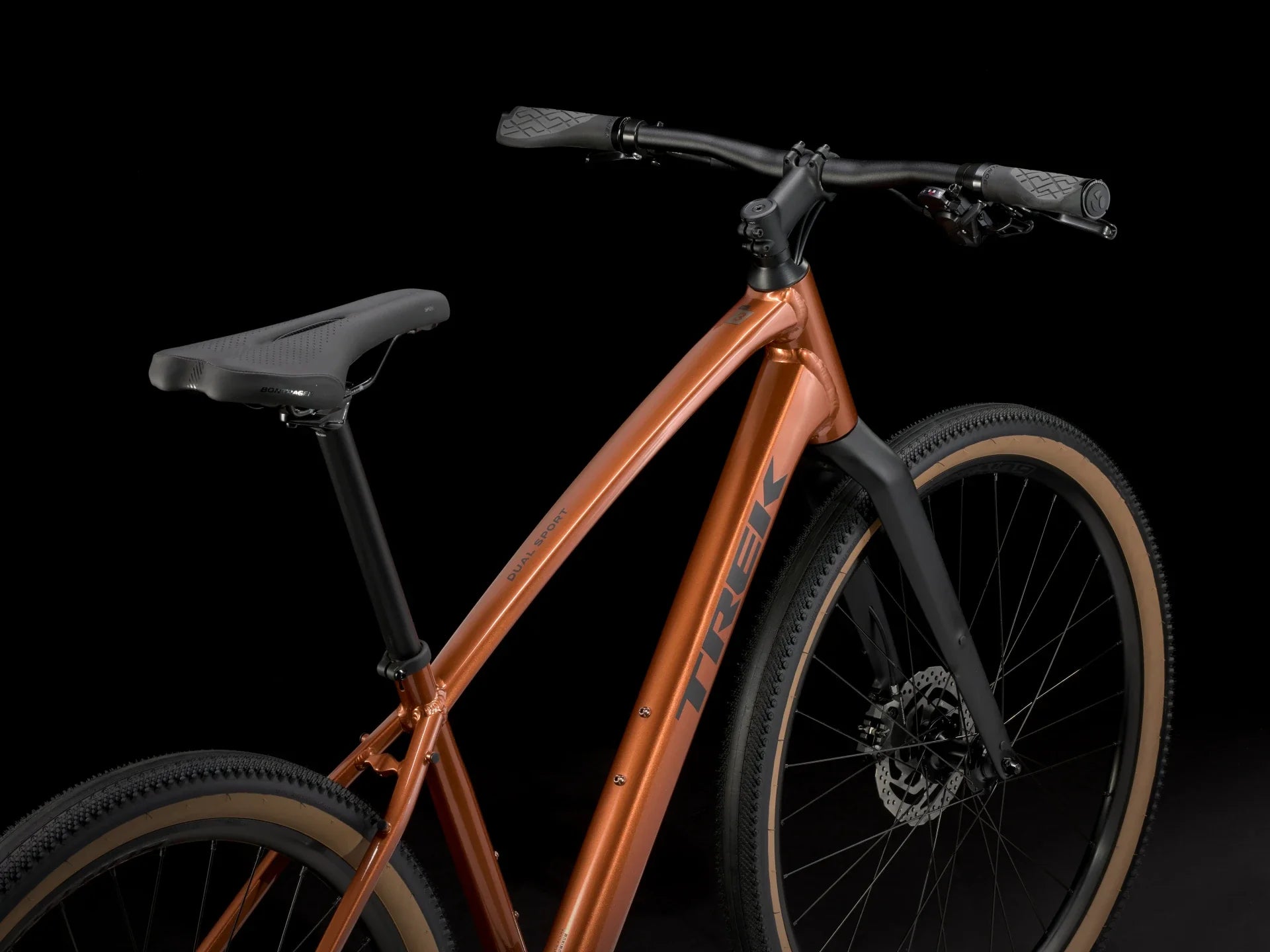

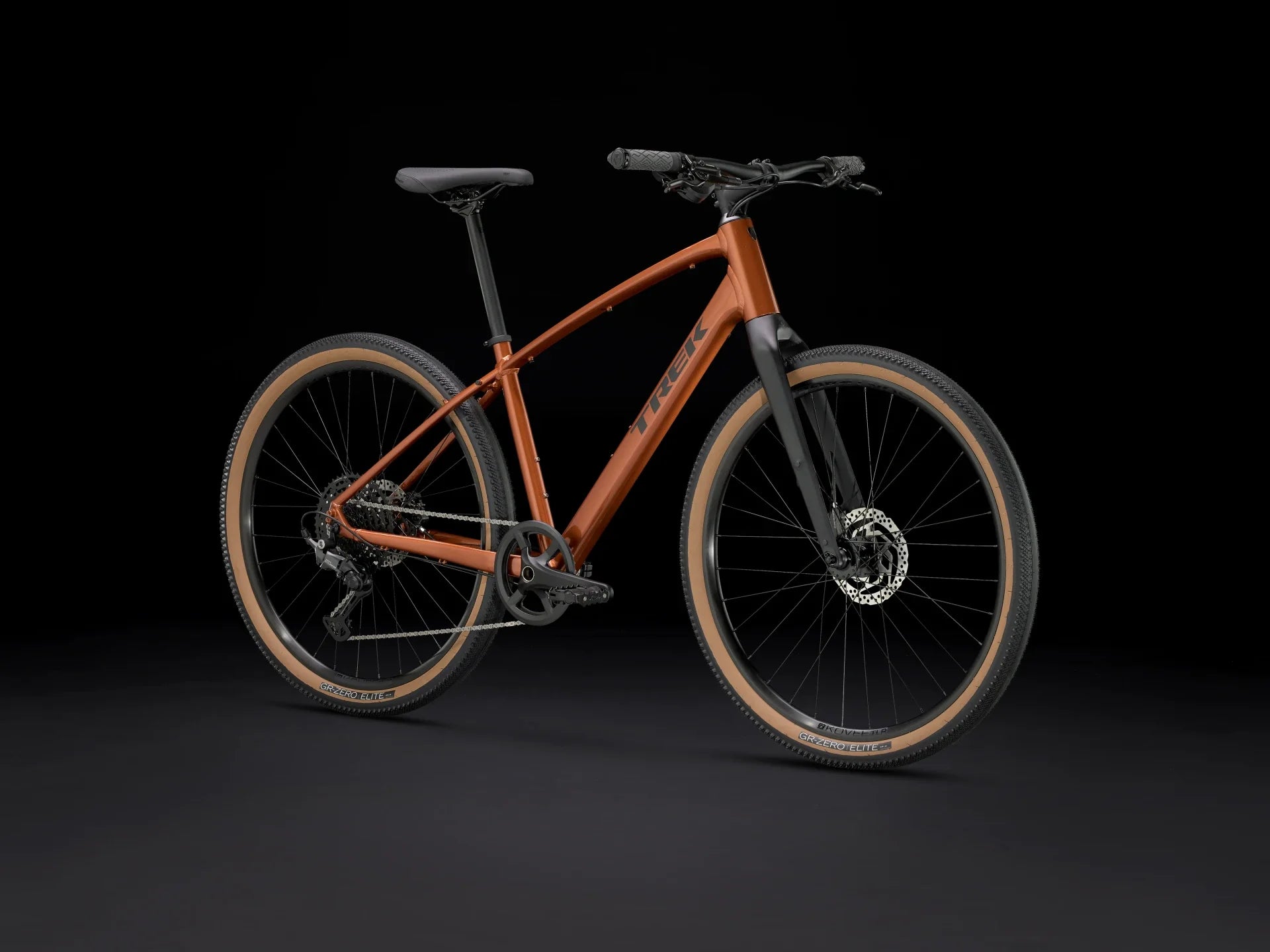

Trek Dual Sport 3 Gen 5
The Dual Sport 3 is a high-performance, go-anywhere hybrid bike that transitions from the road to rougher terrain with ease. It has a light frame and a simple 1x Shimano CUES drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and wide gravel tyres soak up bumps and rough-terrain for a comfortable, confident ride on roads, rail trails and light dirt paths.
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | Dual Sport carbon, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |
Drivetrain
| Shifter | Shimano CUES U6000 w/optical gear display, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |
Size: XS, S, M Prowheel alloy, 40T narrow-wide ring, 170 mm length |
|
Size: L, XL Prowheel alloy, 40T narrow-wide ring, 175 mm length |
|
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | Wellgo nylon body, alloy cage |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components
| Saddle | Bontrager H1 |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: XS, S Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
Size: M, L Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
|
Size: XL Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width |
|
| Grips | Bontrager XR Endurance Elite |
| *Stem |
Size: XS, S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
Size: M, L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
|
Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|

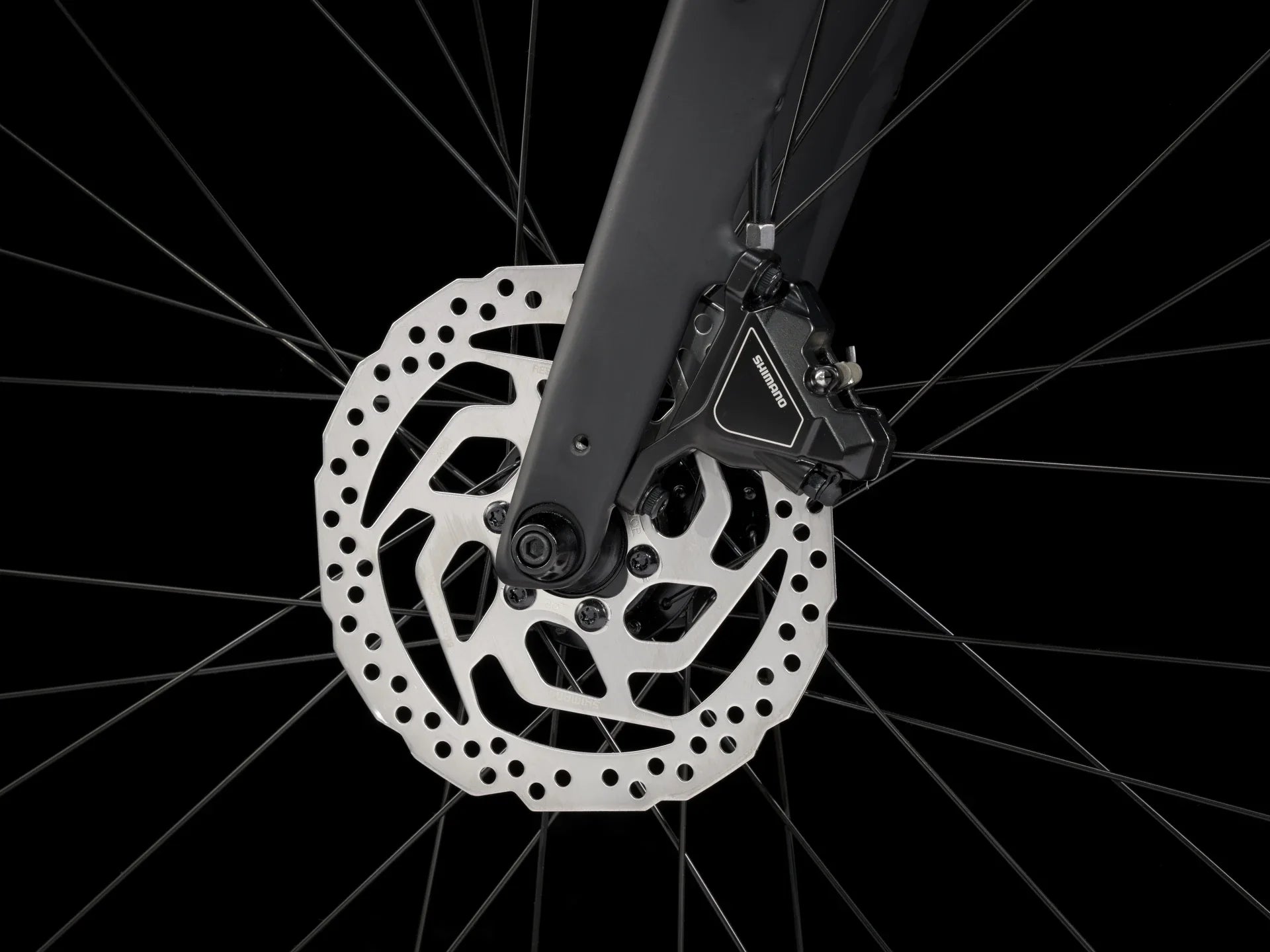

| Brake | Shimano hydraulic disc, MT201 lever, UR300 calliper |
| *Brake rotor |
Size: XS, S, M, L, XL Shimano RT26, 6-bolt,160 mm |
|
Size: XS, S, M, L, XL Shimano RT26, 6-bolt, 160 mm |
|
| Rotor size | :root { --loader-image: var(--loading-svg); }Max brake rotor sizes: 160 mm front and rear |
Weight
Close
Home
Shop
Trek| WeightSee More | M - 12.05 kg/26.57 lb |
|---|---|
| Weight limit | See MoreThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
lours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
