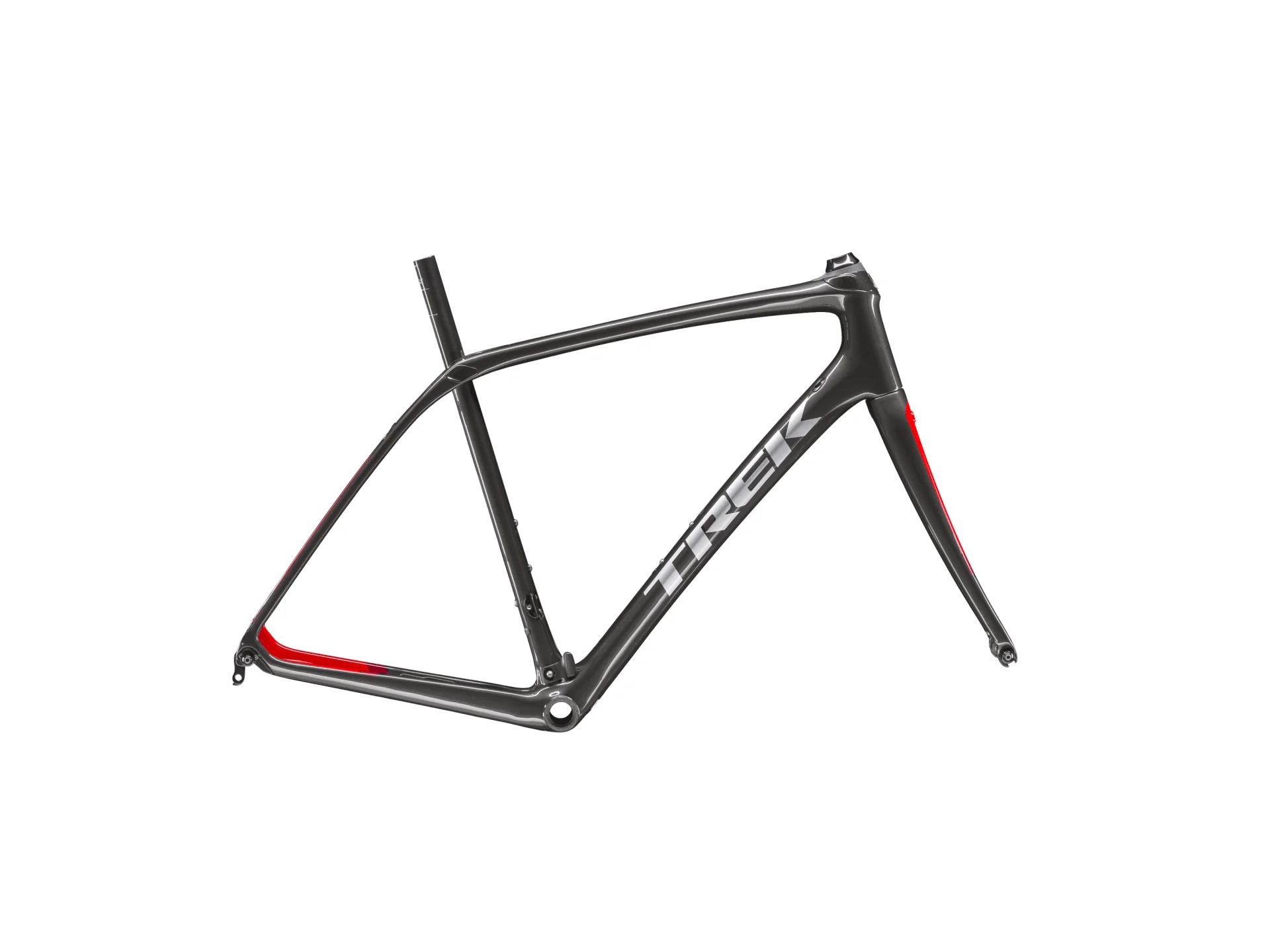

The lightweight Domane SL Frame set is built with 500 Series OCLV Carbon and includes both Front and Rear IsoSpeed to smooth out rough roads so you can stay stronger for longer. This carbon endurance road frame is designed for direct mount rim brakes, and includes a headset and a Domane full carbon fork.

Frameset
Frame
500 Series OCLV Carbon, front and rear IsoSpeed, tapered head tube, internal cable routing, Ride Tuned seat mast, 3S chain keeper, direct-mount rim brakes, DuoTrap S compatible, mudguard mounts, 130x5 mm QR
Frame fit
Endurance
Fork
Domane SL carbon, tapered carbon steerer, mudguard mounts, direct-mount rim brake, 5x100 mm QR

Wheels

Max tyre size
28 c Bontrager tyres (with at least 4 mm of clearance to frame)
Drivetrain
Front derailleur
Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
Components
Head set
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

Weight

Weight
56 cm – 1.56 kg/3.43 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
