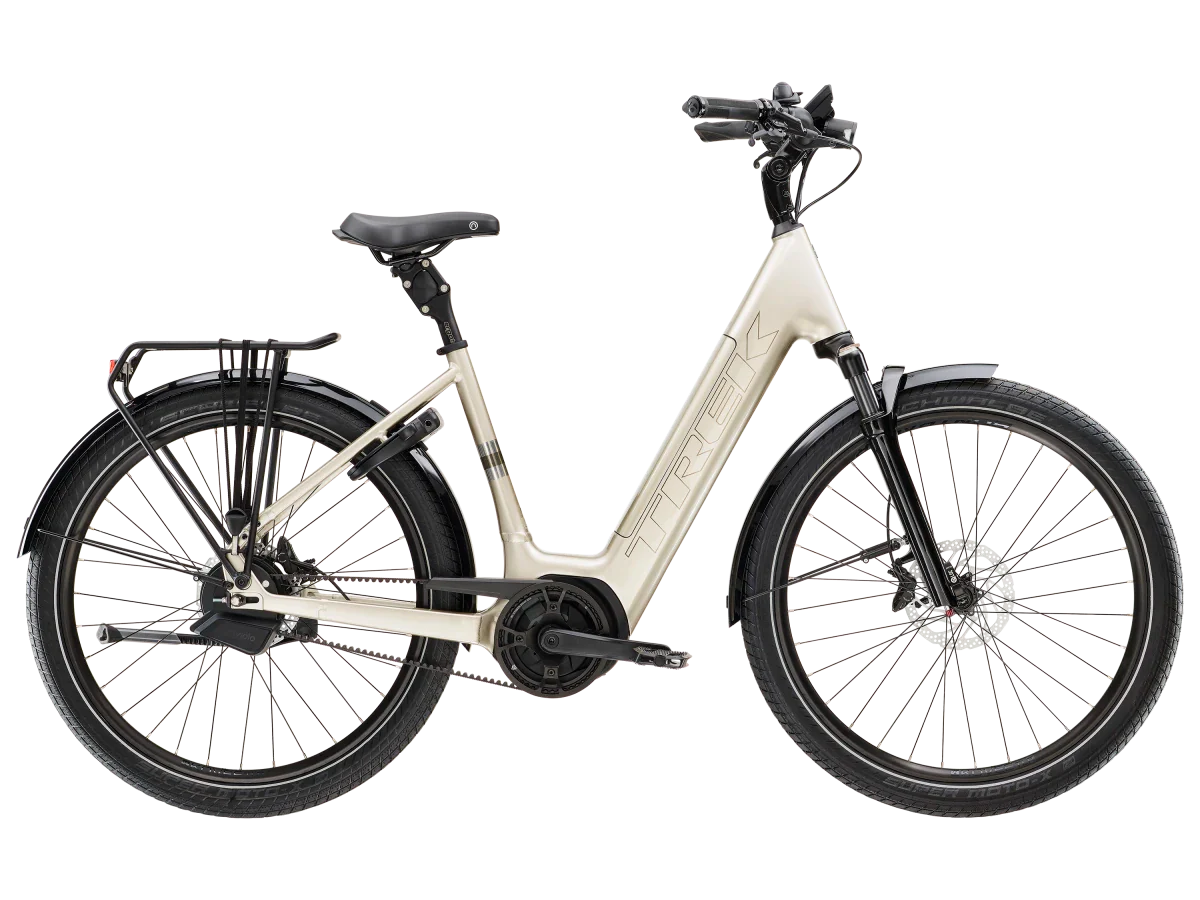

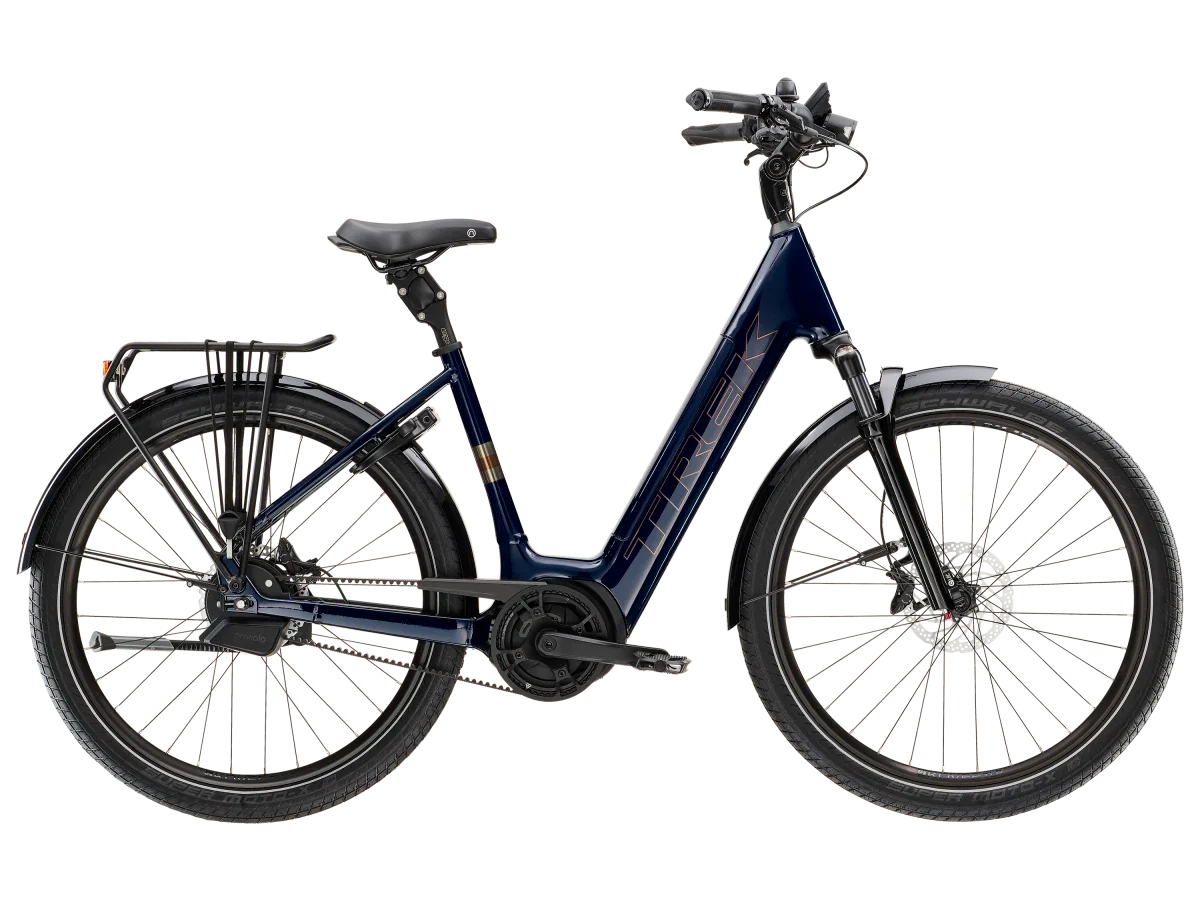

Trek District+ 5 Lowstep
The District+ 5 is a rugged city e-bike packed with comfort and features that streamline every cruise through your city. Its all-new lowstep frame design leads to sleek battery integration inside the down tube. And with three size options at 400 Wh, 545 Wh and 725 Wh, you can choose the right amount of juice for your commute. Bosch's BES3 smart system motor propels you and allows for smart connectivity. A durable belt drive keeps maintenance low and Enviolo's AUTOMATIQ hub does the shifting for you.
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | Alpha Smooth Aluminium, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR |
|---|---|
| Fork | SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel |
| Max compatible fork travel | 63mm |
Wheels
| Hub front | Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle |
|---|---|
| Hub rear | Enviolo Trekking, 32-hole, 6-bolt disc, 44T |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Schwalbe Super Moto-X, reflective, wire bead, GreenGuard protection, 650x62 mm |
| Max tyre size | 27.5x2.40" |
E-system
| Charger | Bosch standard 4A, 230V, smart system |
|---|---|
| Controller | Bosch Intuvia 100, smart system |
| Computer | Bosch LED remote, smart system |
| Motor | Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe) |
Drivetrain
| Shifter | Enviolo Automatic Controller |
|---|---|
| *Crank |
Size: S ProWheel alloy, 170 mm length |
|
Size: M, L, XL ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 50T narrow/wide steel, w/alloy guard |
| Cassette | Gates CDX, 22 T, steel |
| Pedal | Bontrager City pedals |
| Max. chainring size | 50T (Gates belt sprocket) |
Components
| Saddle | Selle Royal ON relaxed |
|---|---|
| Seatpost | Ergotec PM705-N suspension |
| Handlebar | Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width |
| Grips | Bontrager Satellite Elite, alloy lock-on |
| *Stem |
Size: S, M adjustable aluminium, 31.8 mm, 90 mm length, |
|
Size: L, XL Alloy adjustable stem, 110 mm length |
|
| Brake | Shimano MT401/MT420 hydraulic disc |
| *Brake rotor |
Size: S, M, L, XL Shimano RT30, CentreLock, 180 mm |
|
Size: M, L, XL Shimano RT26, 6-bolt, 180 mm |
|
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
Accessories
| *Light |
Size: S, M, L, XL Spanninga SOLO for e-bike |
|---|---|
|
Size: S, M, L, XL Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight |
|
| Kickstand | Pletscher Comp Flex 18 |
| Cargo rack | Alloy rear rack, 25 kg max weight |
| *Mudguard |
Size: S, M, L, XL SKS plastic, rear |
|
Size: S, M, L, XL SKS plastic, front |
Weight
| Weight | M - 26.70 kg / 58.87 lb (excluding battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 160 kg (352 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
