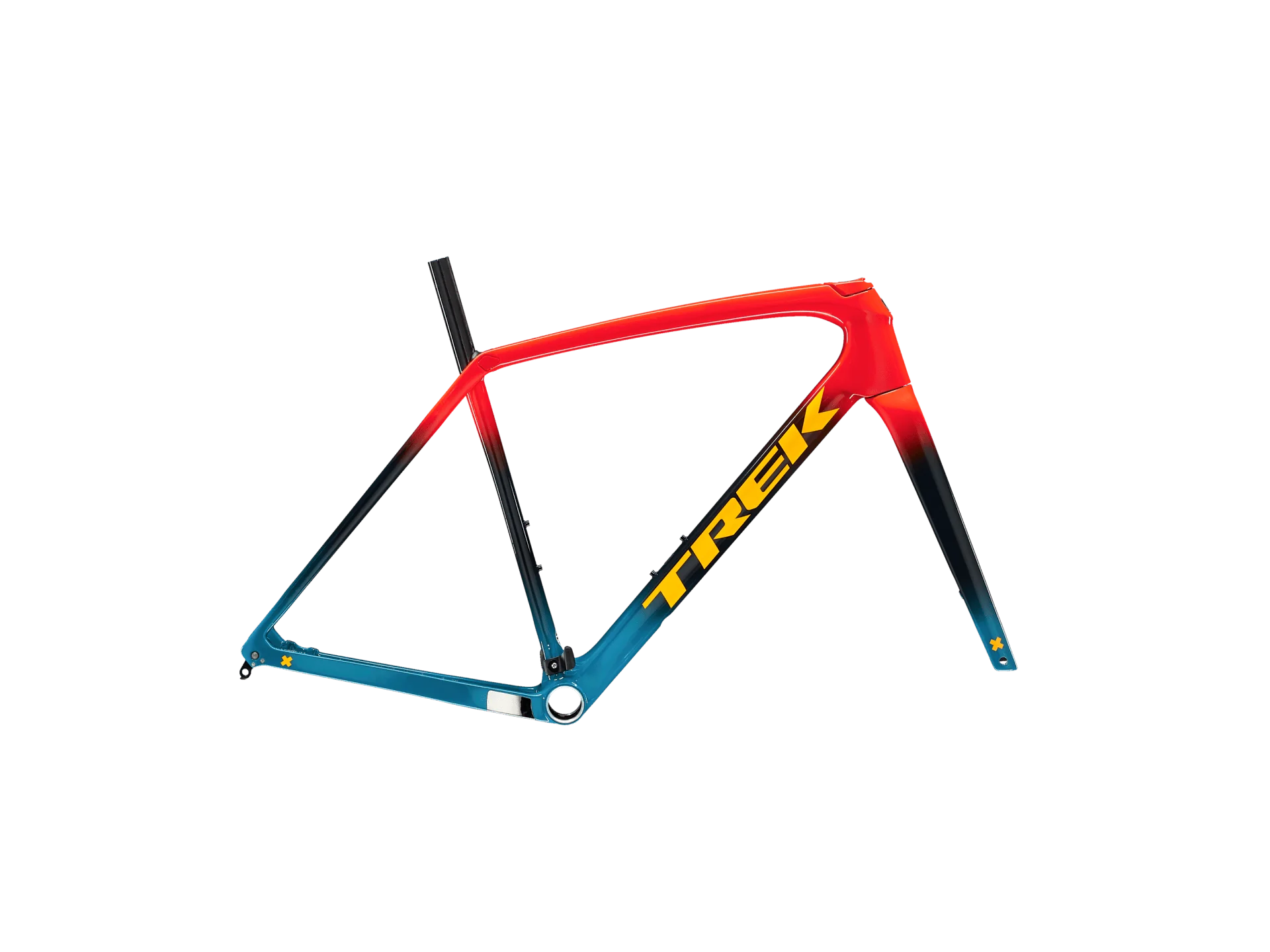

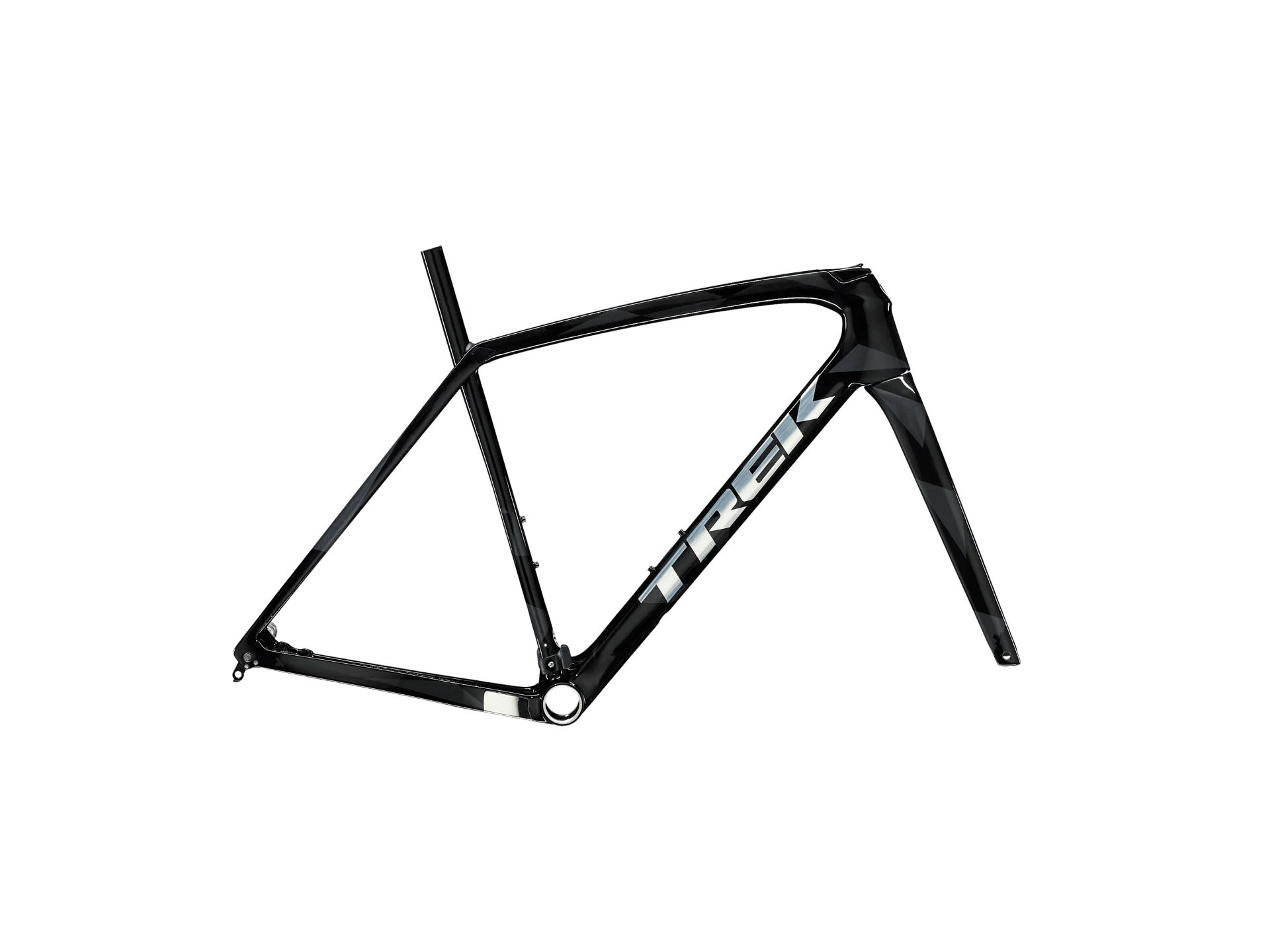

Ready to build your dream 'cross bike? The Boone Disc frame set is built with ultra-light 600 Series OCLV Carbon. It features a cyclocross-specific geometry, Rear IsoSpeed to smooth rough courses, and front and rear 12 mm thru axle dropouts for better stiffness and handling.

*Please note – spec applies to all sizes unless listed separatelyOpen image lightbox

Frameset
Frame    600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seat mast, 3S chain keeper, T47 BB, flat-mount disc, 142x12 mm thru-axle
Fork    Trek Cross, full carbon, tapered carbon steerer, flat-mount disc, 12x100 mm thru-axle
Frame fit    CX Race

Weight
Weight    56 - 1.50 kg
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain
Max. chainring size    See service manual

Wheels
Skewer front    Bontrager Switch thru axle, removable lever
Skewer rear    Bontrager Switch thru-axle, removable lever
Max tyre size    38mm

Components
Rotor size    Max brake rotor sizes: 160mm front & rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
