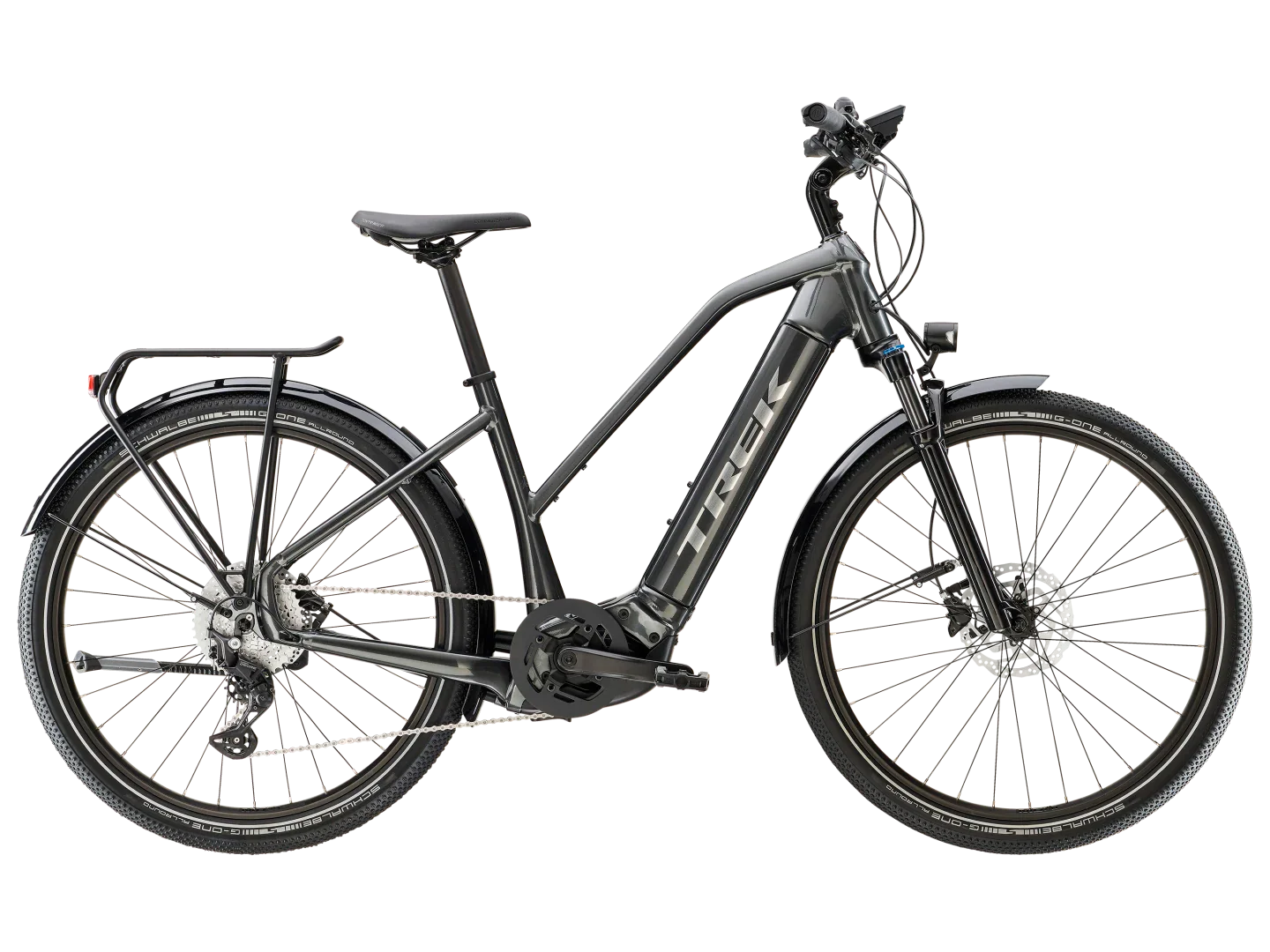

Trek Allant+ 7 Stagger
The Allant+ 7 Stagger is an award-winning e-bike built for riders and commuters who want a stylish, durable e-bike with the added road-smoothing benefits of a suspension fork. The powerful and connected Bosch smart system, quality parts and a wealth of thoughtful design details make this electric bike a smart solution for getting around town every day.
Specs
*Please note – spec applies to all sizes unless listed separately
Frameset
| Fork | SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel |
|---|---|
| Max compatible fork travel | 63mm |
Wheels
| Hub front | Shimano TX505, CenterLock |
|---|---|
| Hub rear | Shimano TX505, CenterLock |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve |
| Tyre | Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584 |
| Max tyre size | 27.5x2.40" |
E-system
| Battery | Bosch PowerTube 625Wh, smart system |
|---|---|
| Charger | Bosch standard 4A, 230V, smart system |
| *Computer |
Size: S, M, L Bosch Kiox 300, smart system |
|
Size: S, M, L Bosch LED remote, smart system |
|

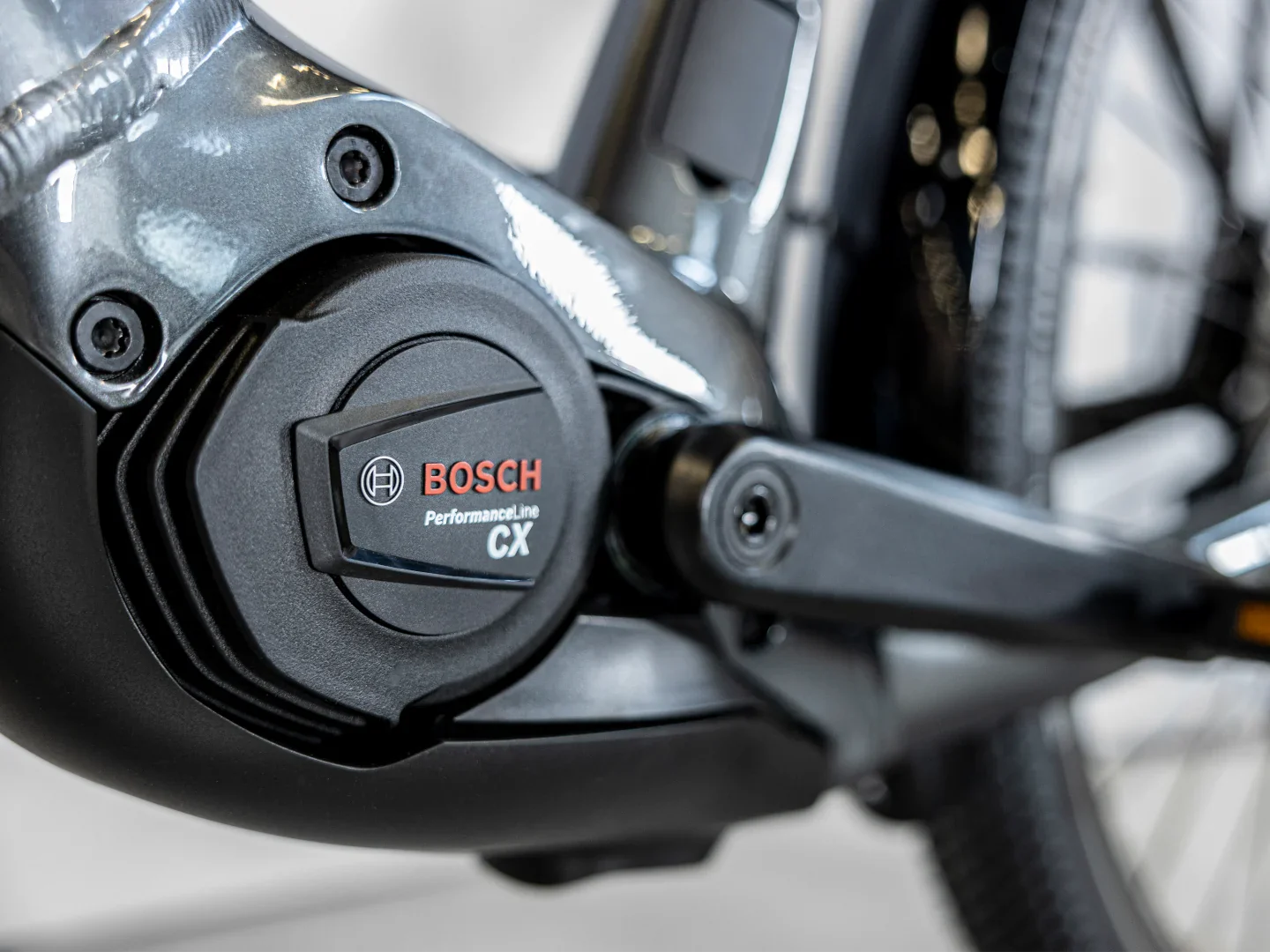

| Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm |
Drivetrain
| Shifter | Shimano Deore M5130, 10-speed |
|---|---|
| Rear derailleur | Shimano Deore M5130 |
| *Crank |
Size: S, M ProWheel alloy, 170 mm length |
|
Size: L ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LG400, 11-43, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | slip-proof pedals with reflectors |
| Max. chainring size | 1x: 48T |
Components
| Saddle | Bontrager Commuter Comp |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Herrmans Clik, ergonomic, lock-on |
| *Stem |
Size: S, M Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length |
|
Size: L Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length |
|
| Head set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| *Brake rotor |
Size: S, M, L Shimano RT30, CentreLock, 180 mm |
|
Size: S, M, L Shimano EM300, CentreLock, 180 mm |
|
| Brake Set | Tektro HD-M275 hydraulic disc |
| Rotor size | Max brake rotor sizes: 180mm front & rear |
Accessories
| *Light |
Size: S, M, L Spanninga SOLO for e-bike |
|---|---|
|
Size: S, M, L Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight |
|
| Kickstand | Pletscher Comp Flex 18 |

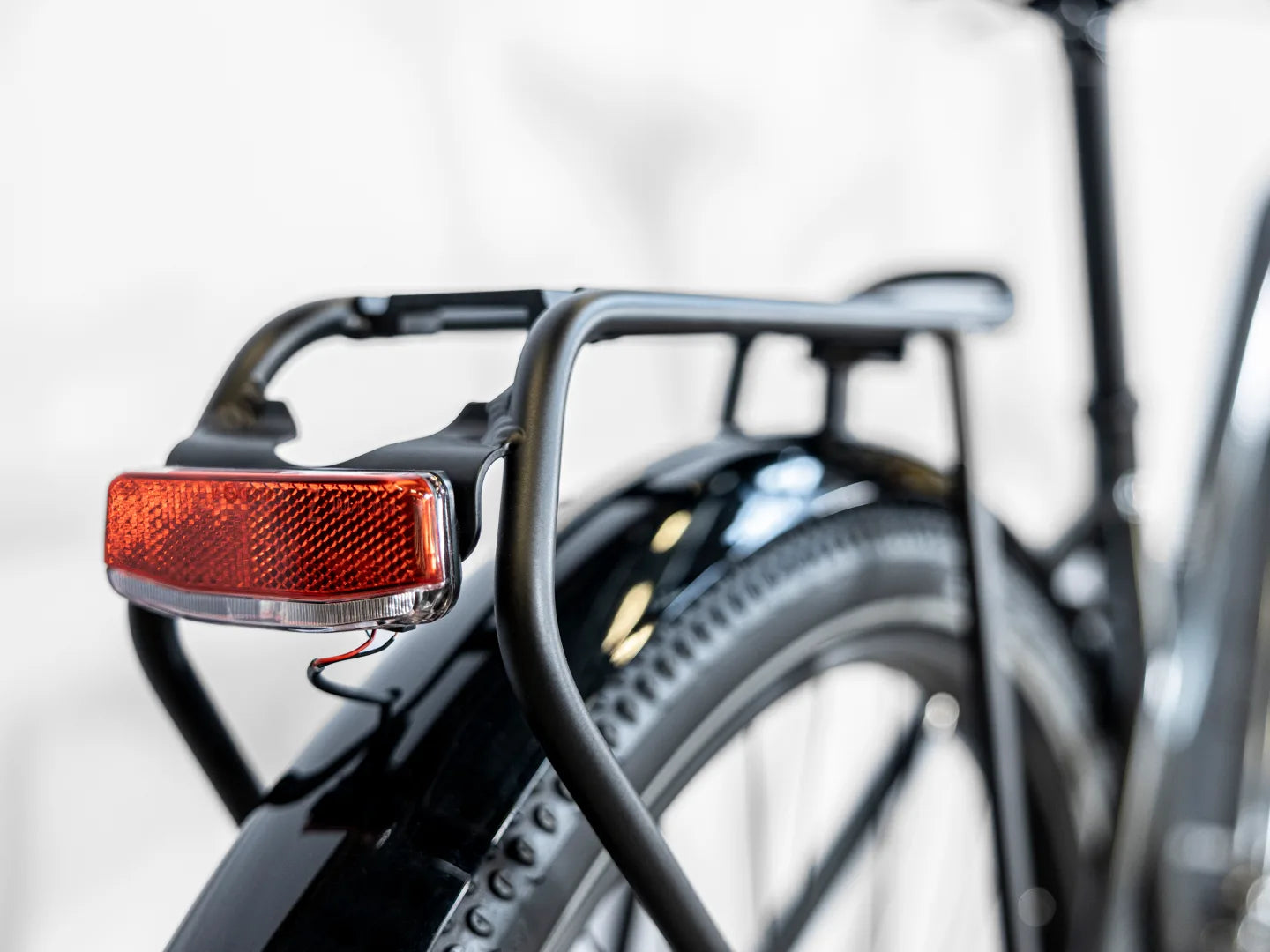

| Cargo rack | MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard |
Size: S, M, L SKS plastic, front |
|
Size: S, M, L SKS plastic, rear |
Weight
| Weight | M - 23.20 kg / 51.15 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
