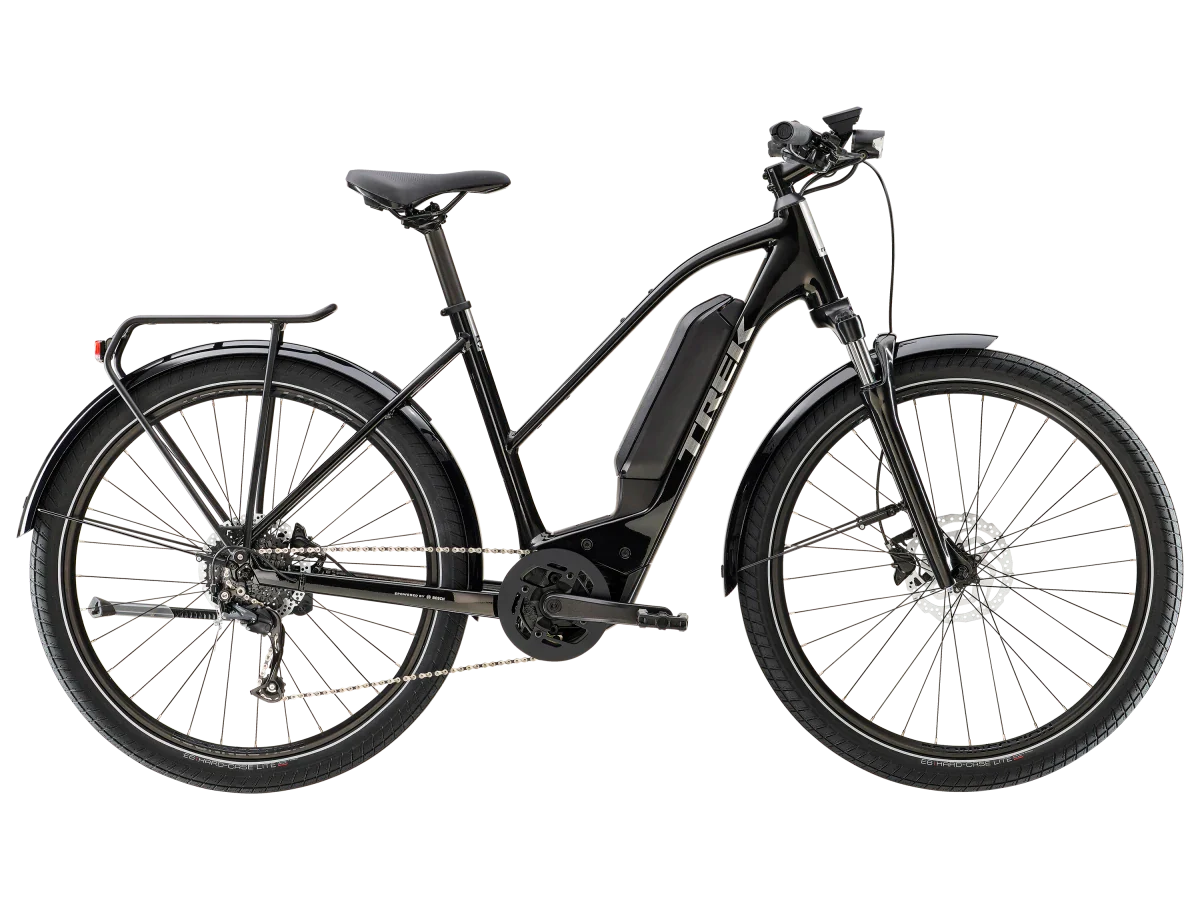

Trek Allant+ 5 Stagger
The Allant+ 5 Stagger is the ultimate e-bike for riders looking to accelerate their commute. The frame is designed with a staggered profile that simplifies getting on and off, and a new Bosch smart system motor that offers more connectivity than ever before. Easily pair your smartphone with your bike to log distances and plan routes. Available with your choice of battery size, ranging from 400 Wh to 800 Wh, so you can cruise comfortably the whole way home.
*Please note – spec applies to all sizes unless listed separately

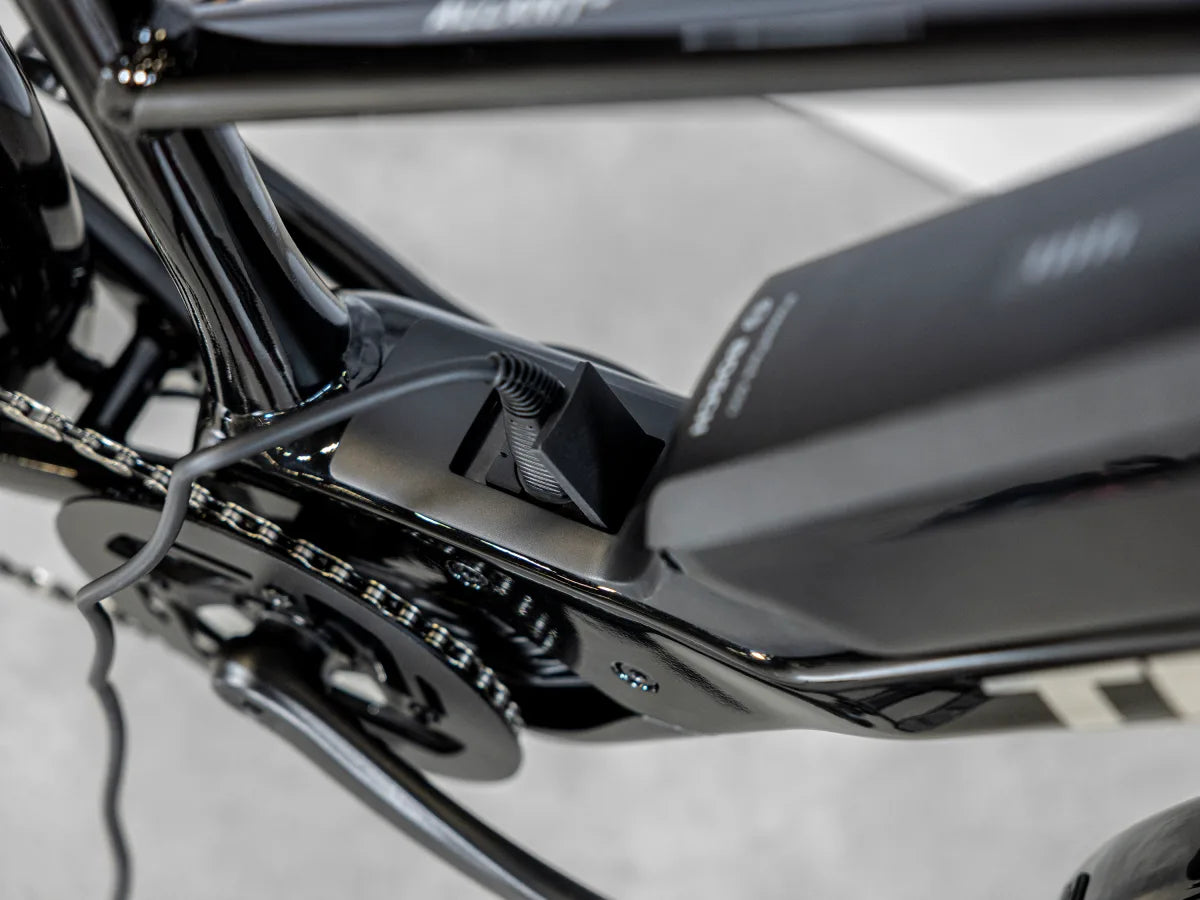

| Frame | High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR |
|---|---|
| Fork | SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel |
| Max compatible fork travel | 63mm |
| Hub front | Shimano TX505, CenterLock |
|---|---|
| Hub rear | Shimano TX505, CenterLock |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Tyre | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40" |
| Max tyre size | 27.5 x 2.40" |
| Charger | Bosch standard 4A, 230V, smart system |
|---|---|
| Controller | Bosch Intuvia 100, smart system |
| Computer | Bosch LED remote, smart system |

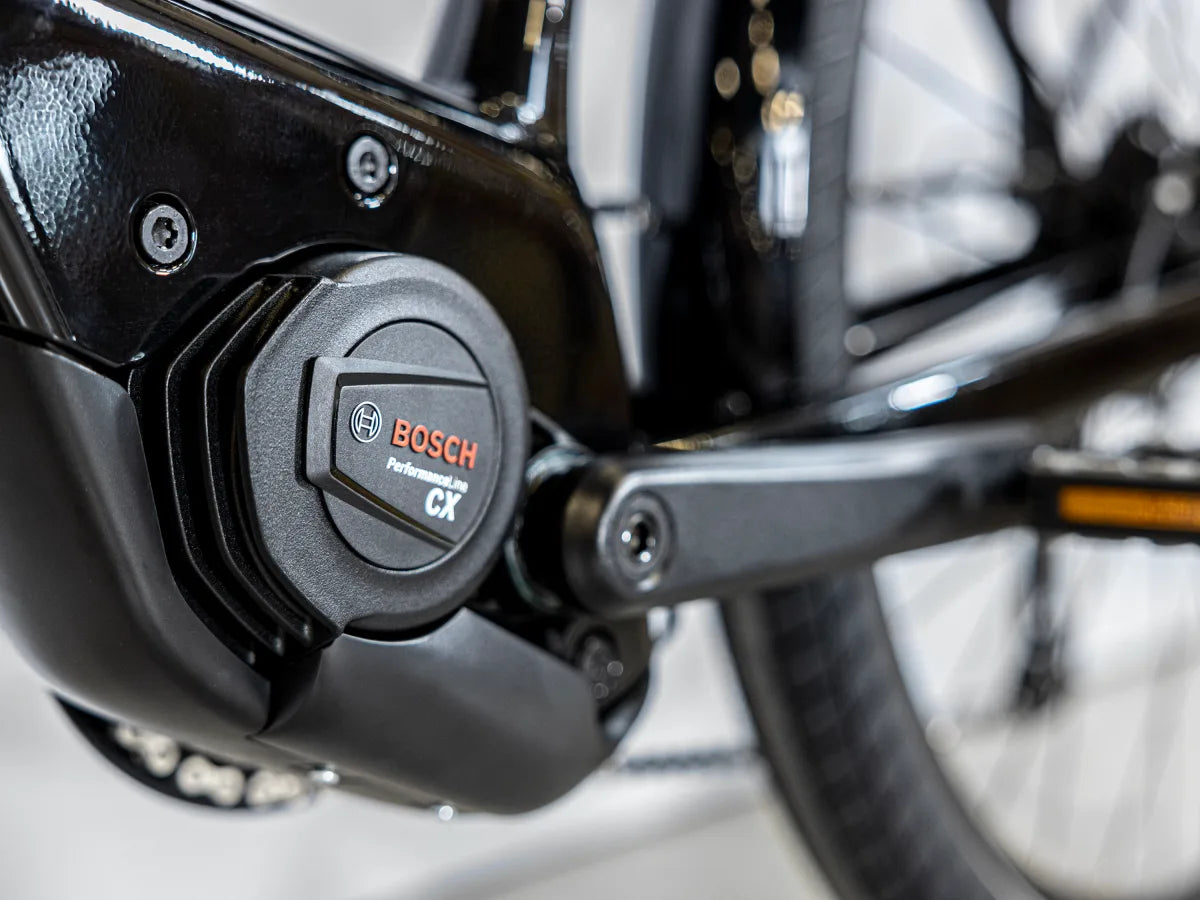

| Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
| Shifter | Shimano Altus M2010, 9-speed |
|---|---|
| Rear derailleur | Shimano Altus M2000, long cage |
| *Crank |
Size: S, M ProWheel alloy, 170 mm length |
|
Size: L ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC E9S, 9-speed |
| Pedal | slip-proof pedals with reflectors |
| Max. chainring size | 1x: 48T |
| Saddle | Selle Royal Vivo Moderate Ergo |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Herrmans Clik, ergonomic, lock-on |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
|
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
| *Brake rotor |
Size: S, M, L Shimano RT10, CenterLock, 180 mm |
|
Size: S, M, L Shimano EM300, CentreLock, 180 mm |
|
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
| *Light |
Size: S, M, L Spanninga SOLO for e-bike |
|---|---|
|

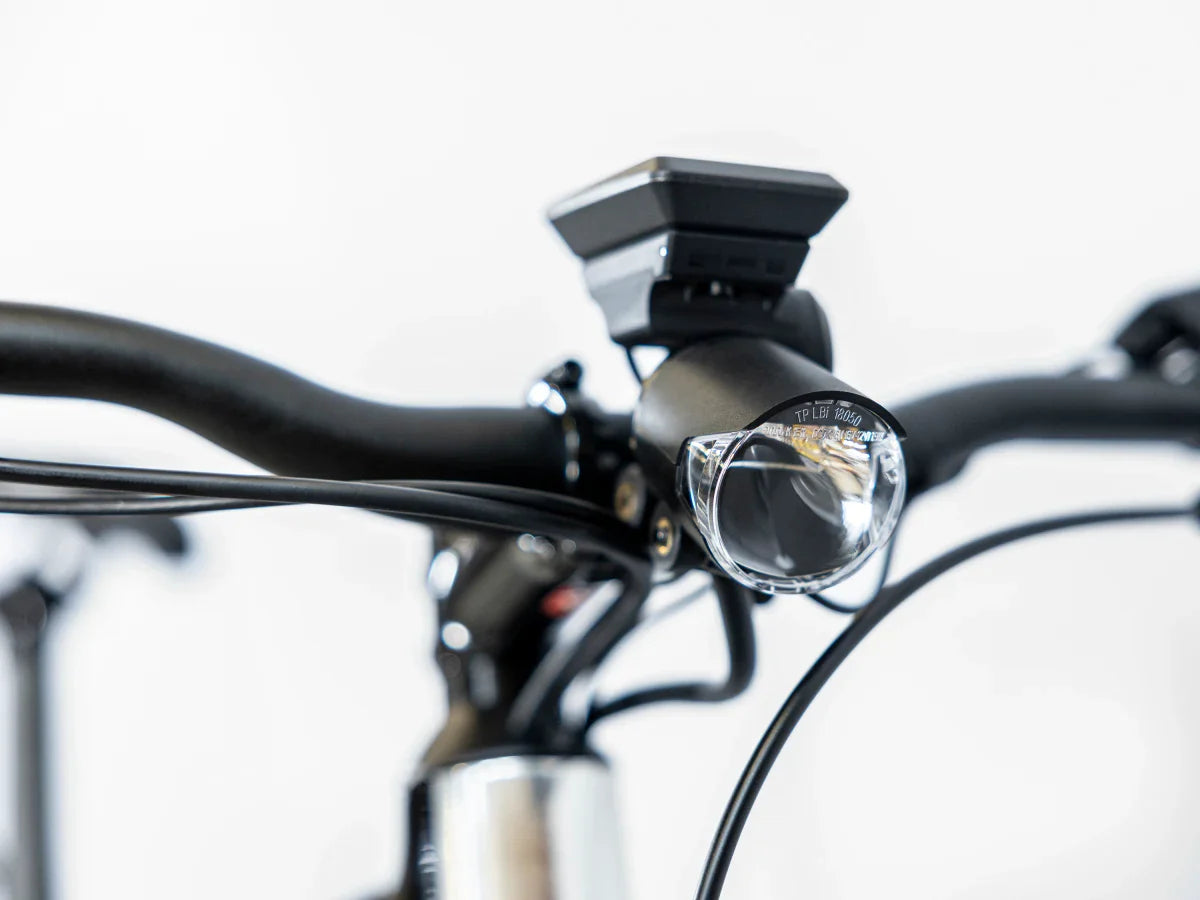

Size: S, M, L Herrmans MR4, 120-lumen LED |
|
| Kickstand | Pletscher Comp Flex 18 |
| Cargo rack | MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard |
Size: S, M, L SKS plastic, rear |
|
Size: S, M, L SKS plastic, front |
| Weight | M – 24.50 kg / 54.02 lb (with 545 Wh battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
