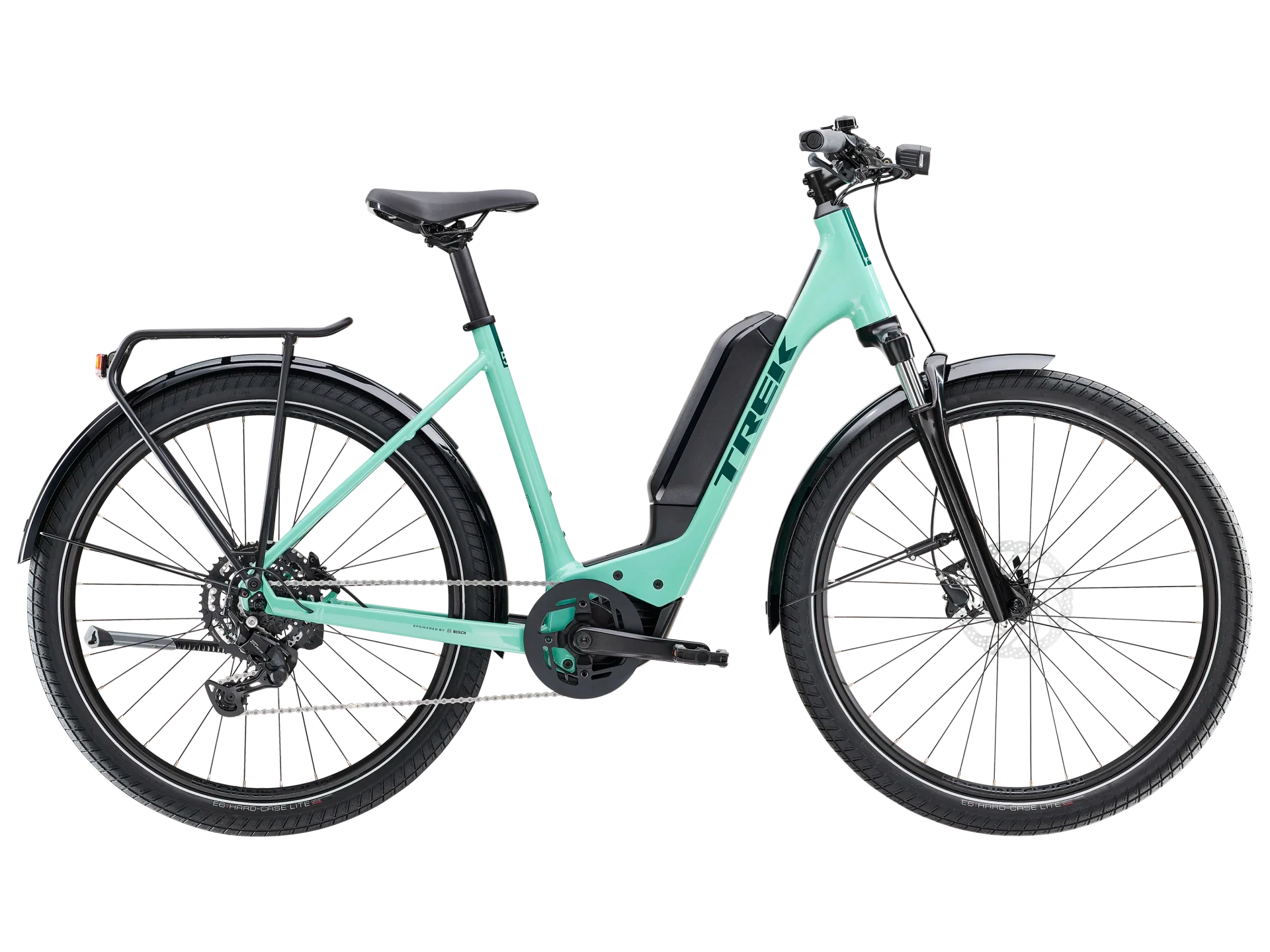

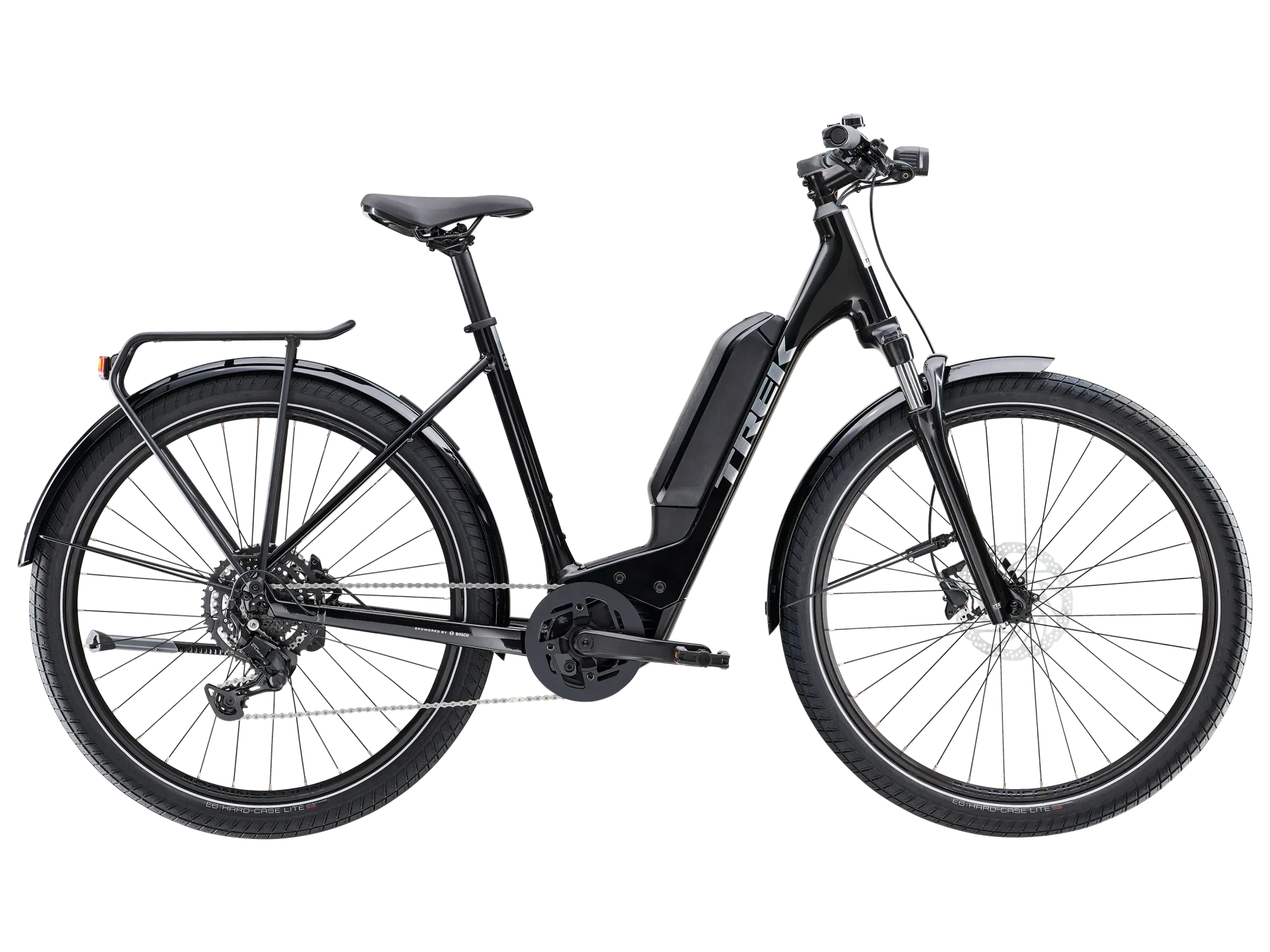

Trek Allant+ 5 Lowstep
The Allant+ 5 Lowstep is the ultimate electric city bike for riders looking to accelerate their commute. The frame features a step-thru design that simplifies getting on- and- off and the Bosch smart system offers more connectivity than ever before, so your smart phone can communicate with your bike to log distances and plan routes. It's available with your choice of battery size, ranging from 400- to 800-watt hours, so you can take control of your commute and cruise comfortably all the whole way home
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR |
|---|---|
| Fork | SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel |
Wheels
| Hub front | Shimano Tourney HB-QC300, centerlock |
|---|---|
| Hub rear | Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Tyre | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40" |
E-system
| Charger | Bosch standard 2A, 230V, smart system |
|---|---|
| Computer | Bosch Purion 200 |
| Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
Drivetrain
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank |
Size: S, M ProWheel alloy, 170 mm length |
|
Size: L, XL ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | slip-proof pedals with reflectors |
Components
| Saddle | Selle Royal Vivo Moderate Ergo |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L, XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Herrmans Clik, ergonomic, lock-on |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
|
Size: L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor |
Size: S, M, L, XL Shimano RT30, CentreLock, 180 mm |
| Skip to contenS, M, L, XLt Shimano EM300, CentreLock, 180 mm |
Accessories
Home
See More
See More
| *Light | Bikes
Size:See More
S, M, L, XL
Spanninga SOLO for e-bike Deviate |
|---|---|
|
Size:
KonaS, M, L, XL
Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight |
Ridgeback|
| KickstandFrog | Pletscher Comp Flex 18 | Genesis
| Cargo rackMarin | MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard |
Size:Workshop
S, M, L, XLSee More SKS plastic, rear |
|
Size:
Book a serviceS, M, L, XL
SKS plastic, front |
Cycle to Work Scheme Calculator
Weight
About Cycle to Work Scheme| WeightLog in | M - 24.30 kg / 53.58 lbs (with 545Wh battery)Create account | Search
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).Cart | 0 items
more for FREE shipping.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.FREE shipping will be applied at checkout
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
