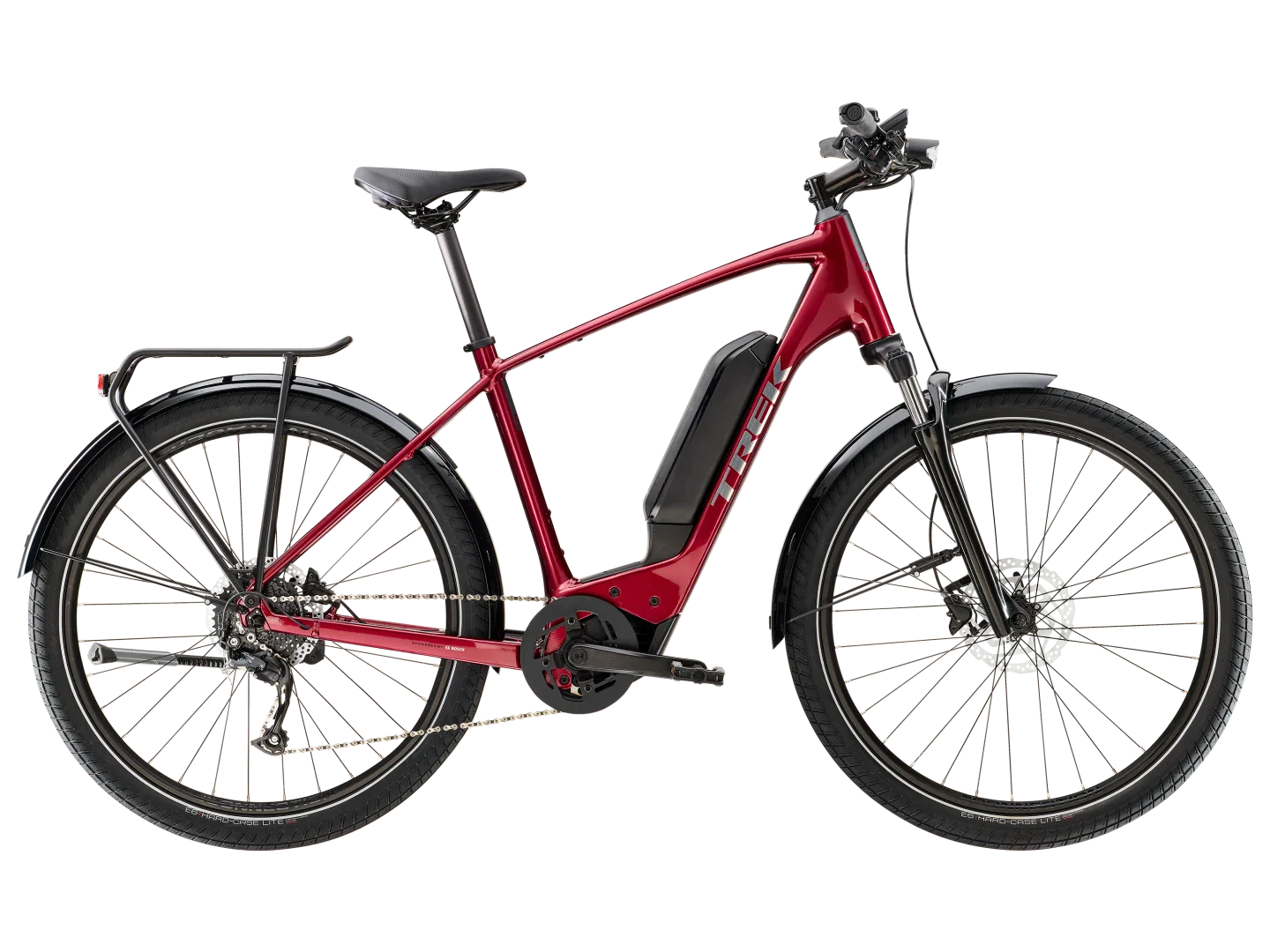

Trek Allant+ 5
Trek Allant+ 5
Trek Allant+ 5
Trek Allant+ 5

Trek Allant+ 5

£2,400.00 GBP

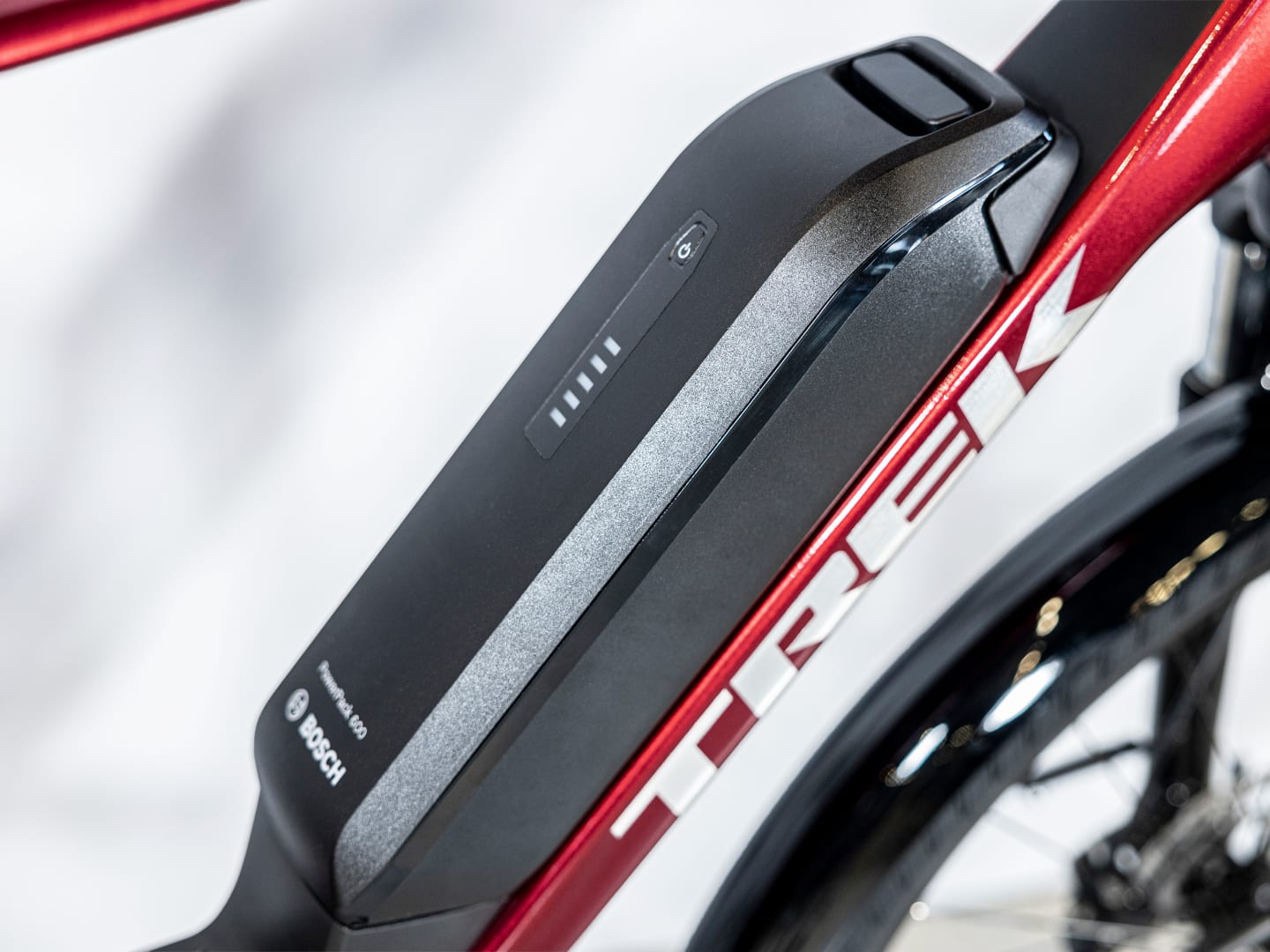

Battery
Size

The Allant+ 5 is the ultimate e-bike for riders looking to accelerate their commute. The new Bosch smart system motor offers more connectivity than ever before, so your smartphone can communicate with your bike to log distances and plan routes. It's available with your choice of battery size, ranging from 400 Wh to 800 Wh, so you can take control of your commute and cruise comfortably the whole way home.

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR
Fork SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
Max compatible fork travel 63mm
Wheels
Hub front Shimano TX505, CenterLock
Hub rear Shimano TX505, CenterLock
Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tyre Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Max tyre size 27.5x2.40"
E-system
Charger Bosch standard 4A, 230V, smart system
Controller Bosch Intuvia 100, smart system
Computer Bosch LED remote, smart system
Motor Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Drivetrain
Shifter Shimano Altus M2010, 9-speed
Rear derailleur Shimano Altus M2000, long cage
*Crank Size: M
ProWheel alloy, 170 mm length
Size: L, XL
ProWheel alloy, 175 mm length
Chainring ProWheel 40T narrow/wide steel, w/alloy guard
Cassette Shimano HG200, 11-36, 9-speed
Chain KMC E9S, 9-speed
Pedal slip-proof pedals with reflectors
Max. chainring size 1x: 48T
Components
Saddle Selle Royal Vivo Moderate Ergo
*Seatpost Size: M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: L, XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips Herrmans Clik, ergonomic, lock-on
*Stem Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Size: L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
*Brake rotor Size: M, L, XL
Shimano RT10, CenterLock, 180 mm
Size: M, L, XL
Shimano EM300, CentreLock, 180 mm
Rotor size Max brake rotor sizes: 180 mm front and rear
Accessories
*Light Size: M, L, XL
Spanninga SOLO for e-bike
Size: M, L, XL
Herrmans MR4, 120-lumen LED
Kickstand Pletscher Comp Flex 18
Cargo rack MIK-compatible alloy rear rack, maximum load 25 kg
*Mudguard Size: M, L, XL
SKS plastic, rear
Size: M, L, XL
SKS plastic, front
Weight
Weight L - 24.60 kg / 54.24 lb (with 545 Wh battery)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).



We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
