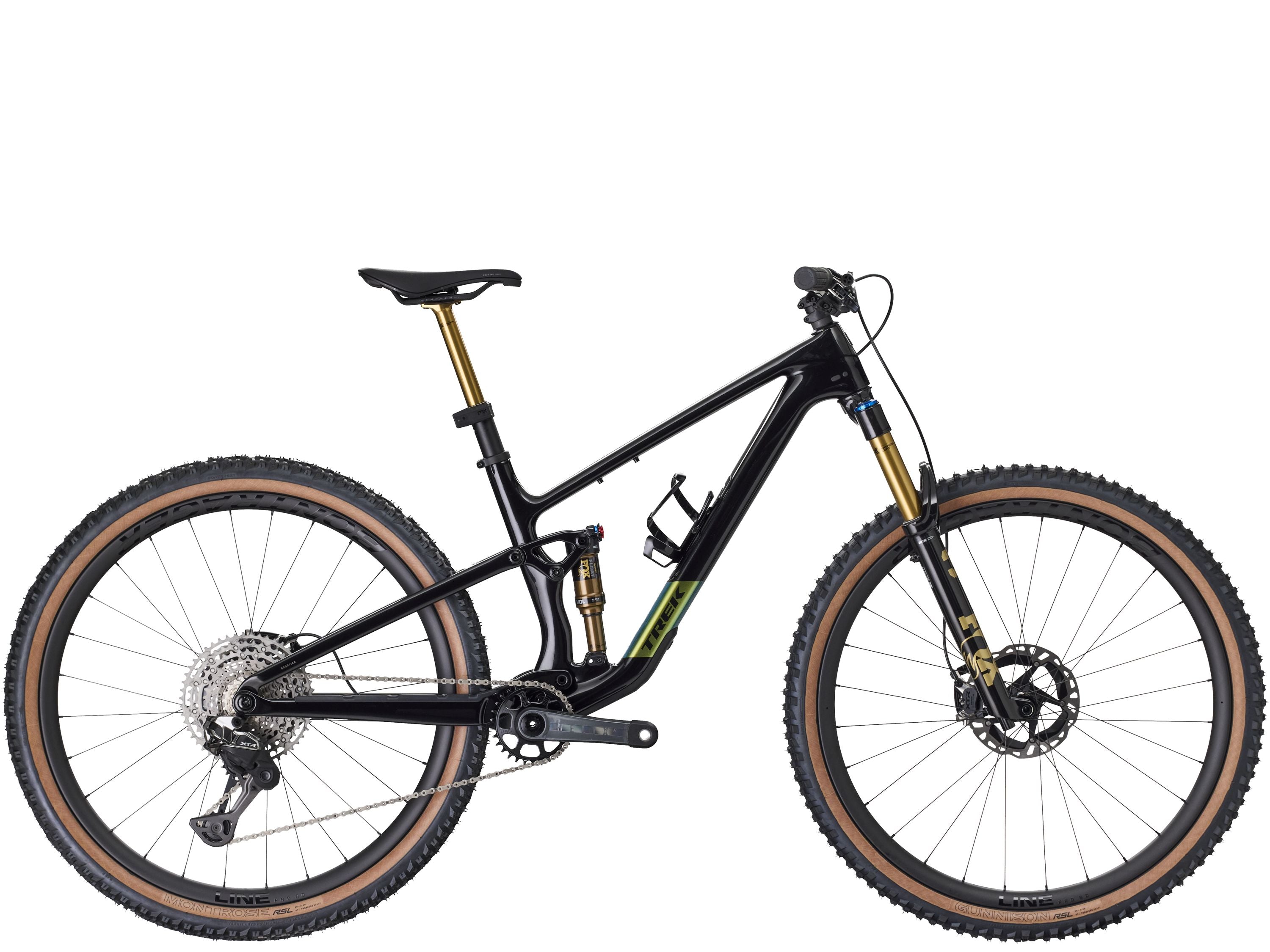

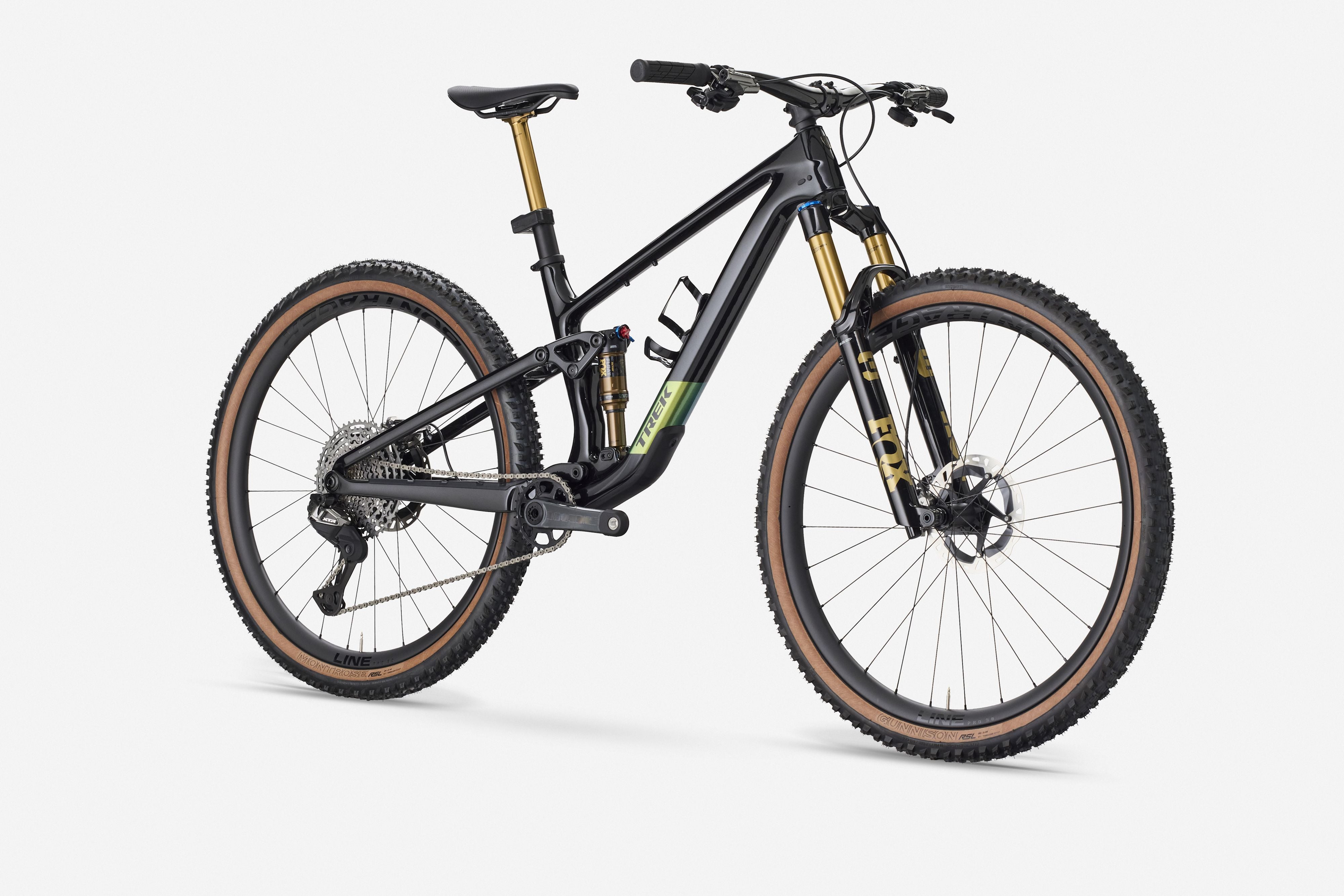

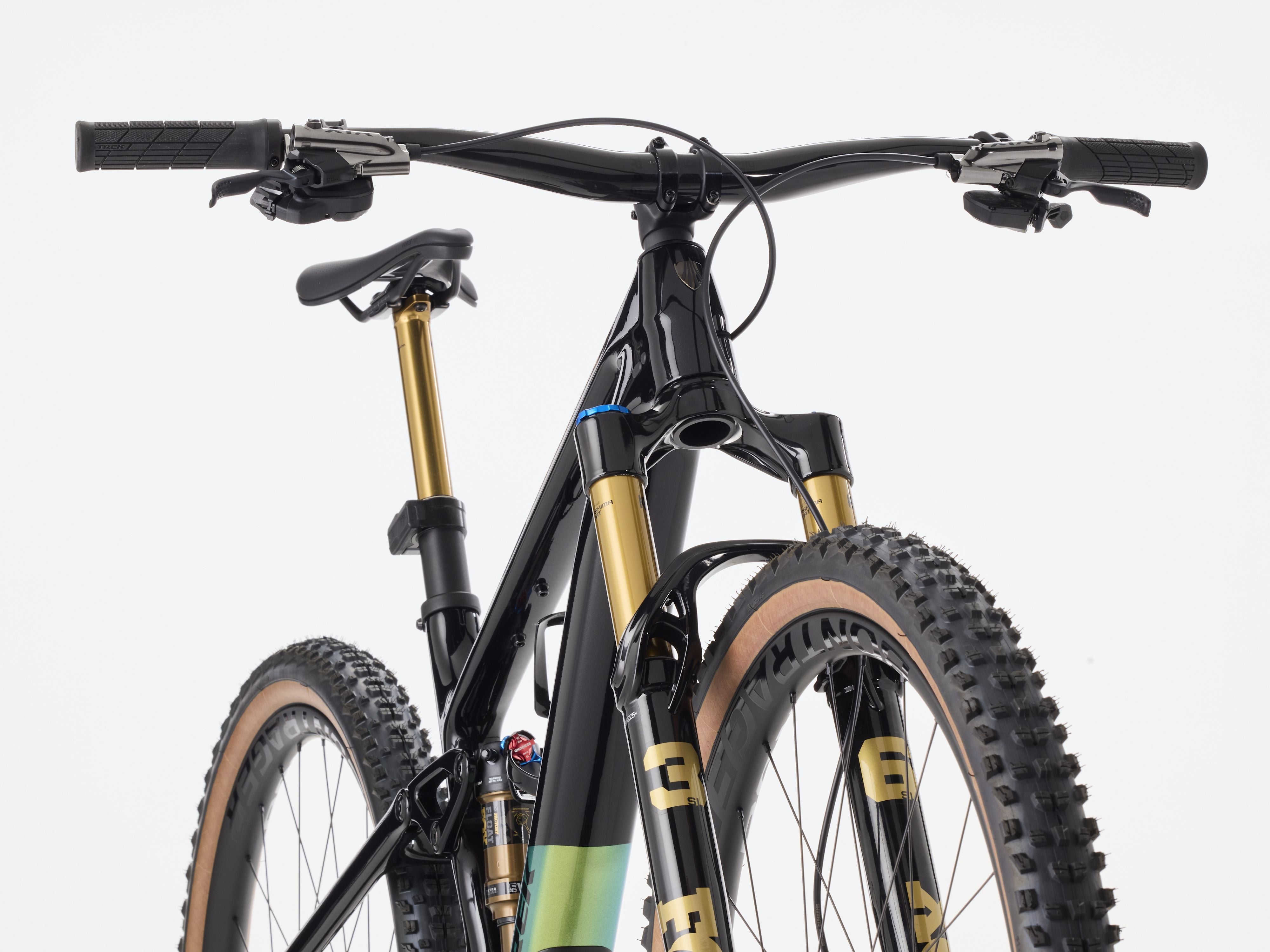

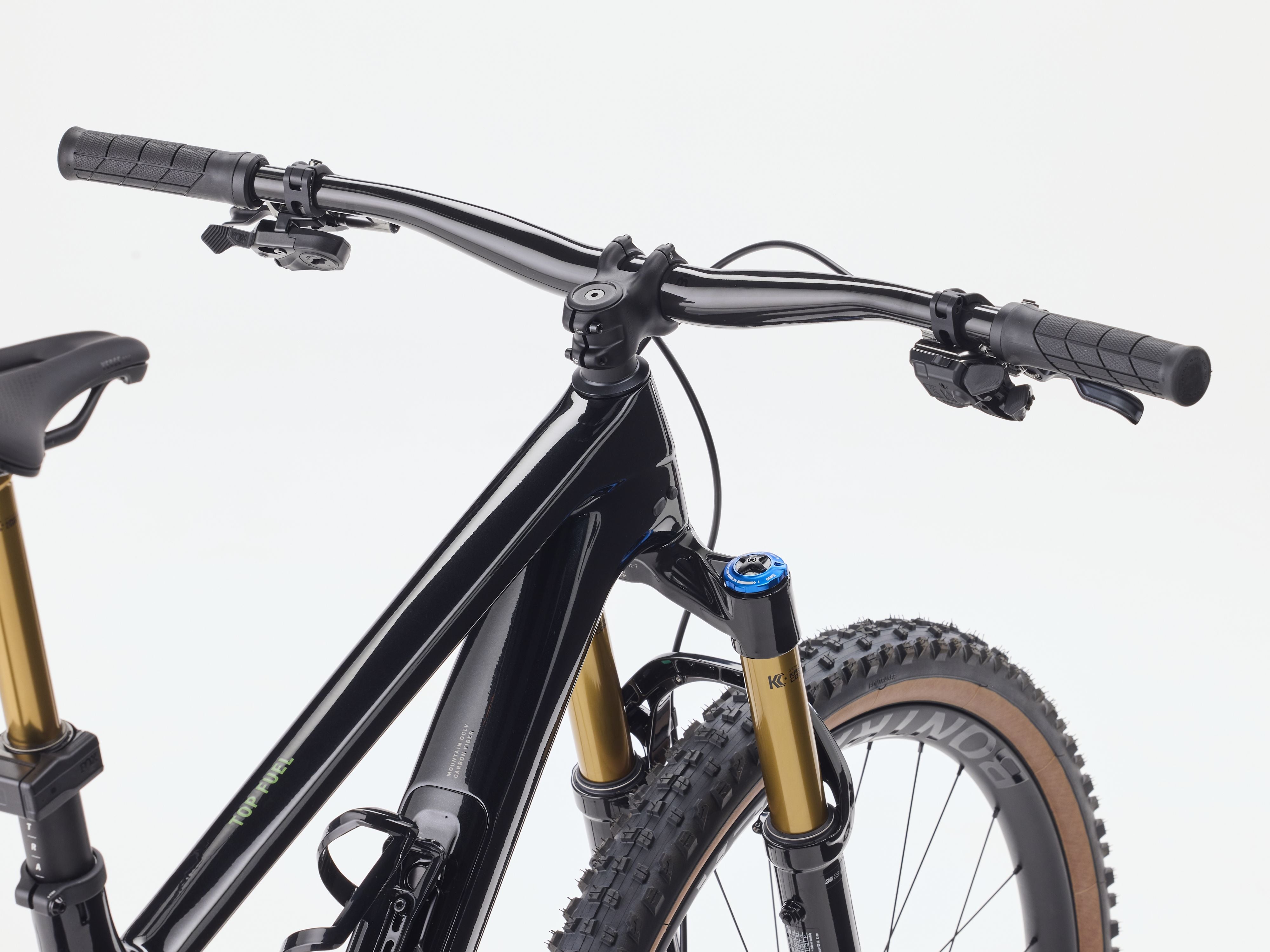

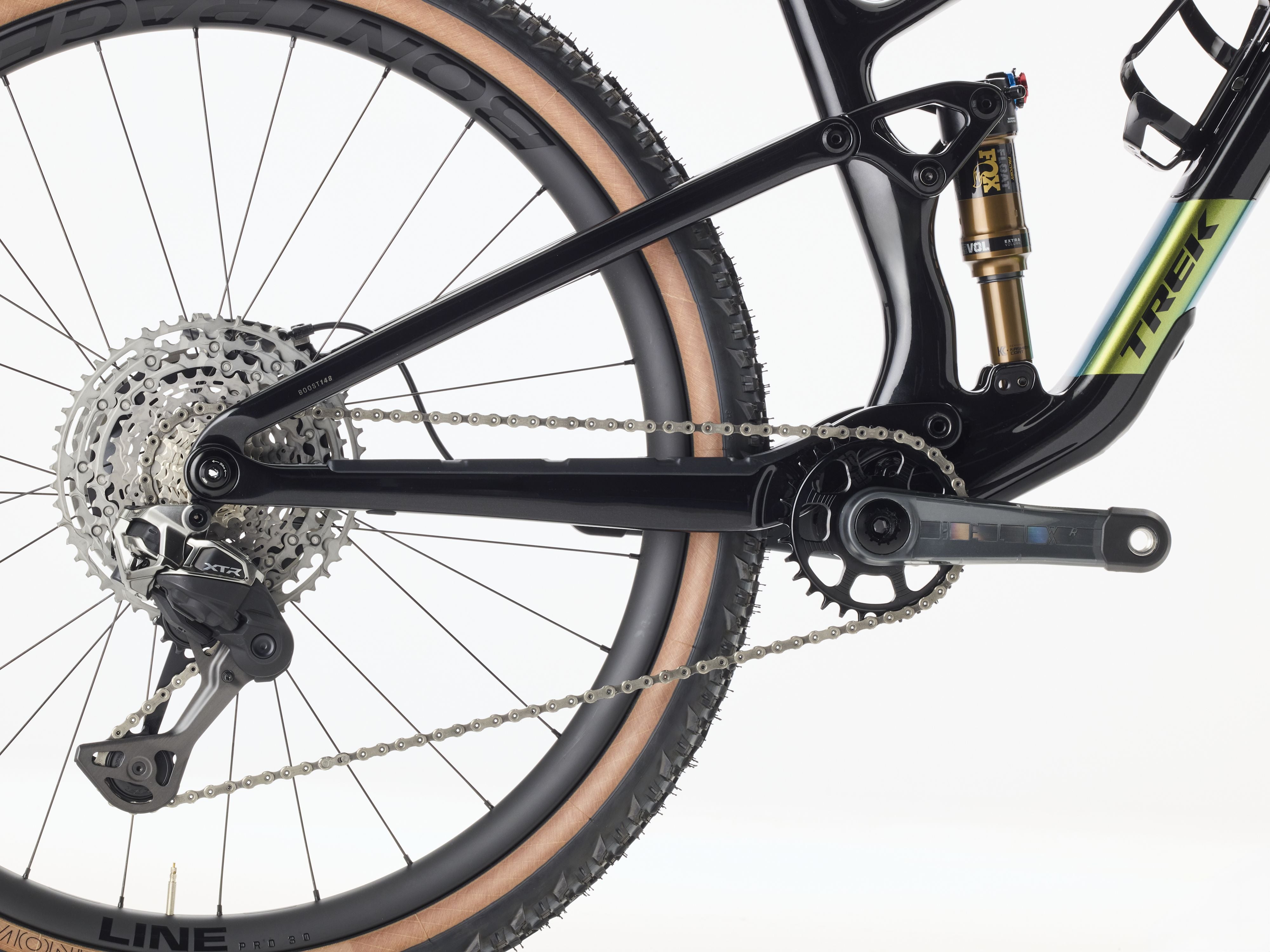

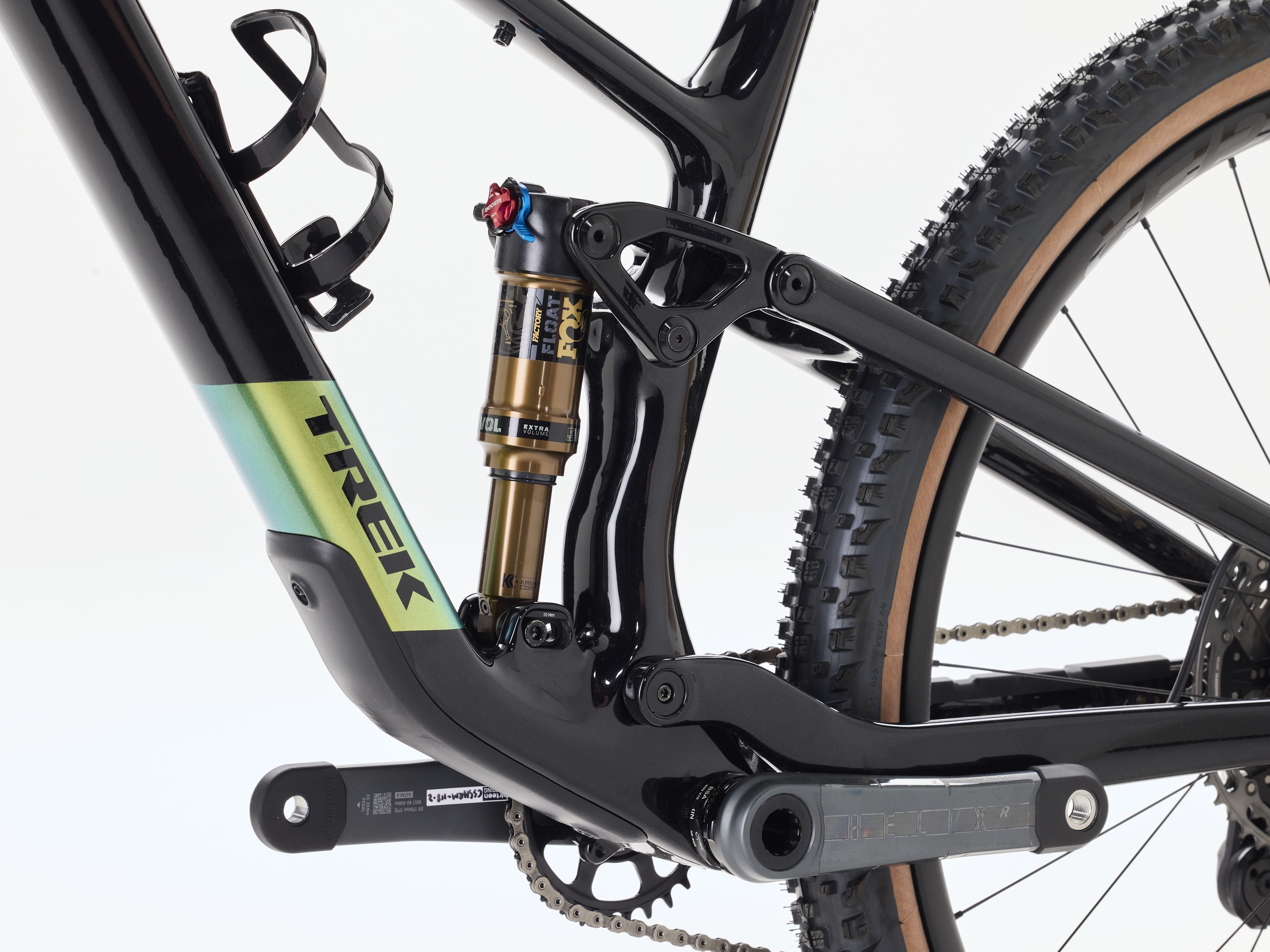

Top Fuel 9.9 XTR Di2 Gen 4
Top Fuel 9.9 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks thanks to a 120 mm/130 mm (rear/front) suspension package with Fox Factory Float shock. Plus, you get confident lightning-fast shifting from Shimano’s all-new, iconic XTR Di2 wireless drivetrain.
Technology
Make the Top Fuel yours - Opt for light parts and a 120 mm fork for a featherweight Top Fuel, or a 140 mm fork and longer-stroke 130 mm rear shock for extra versatility. Room for a longer dropper and MX wheels lets you customise the Top Fuel into an ultimate playful trail whip.
Specification
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm - 130 mm travel OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, |
|---|---|
| Frame Material | CARBON |
| Rim Size | 27.5 |
| Fork | RockShox |
| Fork | RockShox Pike Ultimate, DebonAir spring, Charger 3.1 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 130 mm travel RockShox Pike Ultimate, DebonAir spring, Charger 3.1 RC2 damper, 44mm offset, Boost110, Maxle Ste |
| Rearsuspension | Fox |
| Suspension Rear | Fox Factory Float, 2-position damper, 185 mm x 50 mm |
| Wheels | Bontrager Line Pro 30 |
| Tires | Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40" |
| Shifter | Shimano |
| Derailleur Rear | Shimano XTR Di2 M9250, long cage |
| Crank | E*thirteen TRS Race Carbon, 30T, 55 mm chain line, 170 mm length |
| Bottom Bracket | E*thirteen BB20-P, BSA threaded, 73 mm width |
| Cassette | Shimano XTR M9200, 10-51, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano XTR M9220 4-piston hydraulic disc // Shimano XTR M9220 4-piston hydraulic disc Shimano XTR M9220 4-piston hydraulic disc // Shimano XTR M9220 4-piston hydraulic disc |
| Brake Rotor | Shimano MT905, 6-bolt, 180 mm |
| Saddle | Verse Short Pro, carbon rails, 145 mm width |
| Seatpost | Fox Transfer NEO, 150 mm travel, 34.9 mm |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length |
| Grips | Trek Line Elite, lock-on |
| Size Chart Rider Height | Rider Height - 155.0 - 165.0 |
| Size Chart Rider Inseam | Inseam - 74.0 - 78.0 |
