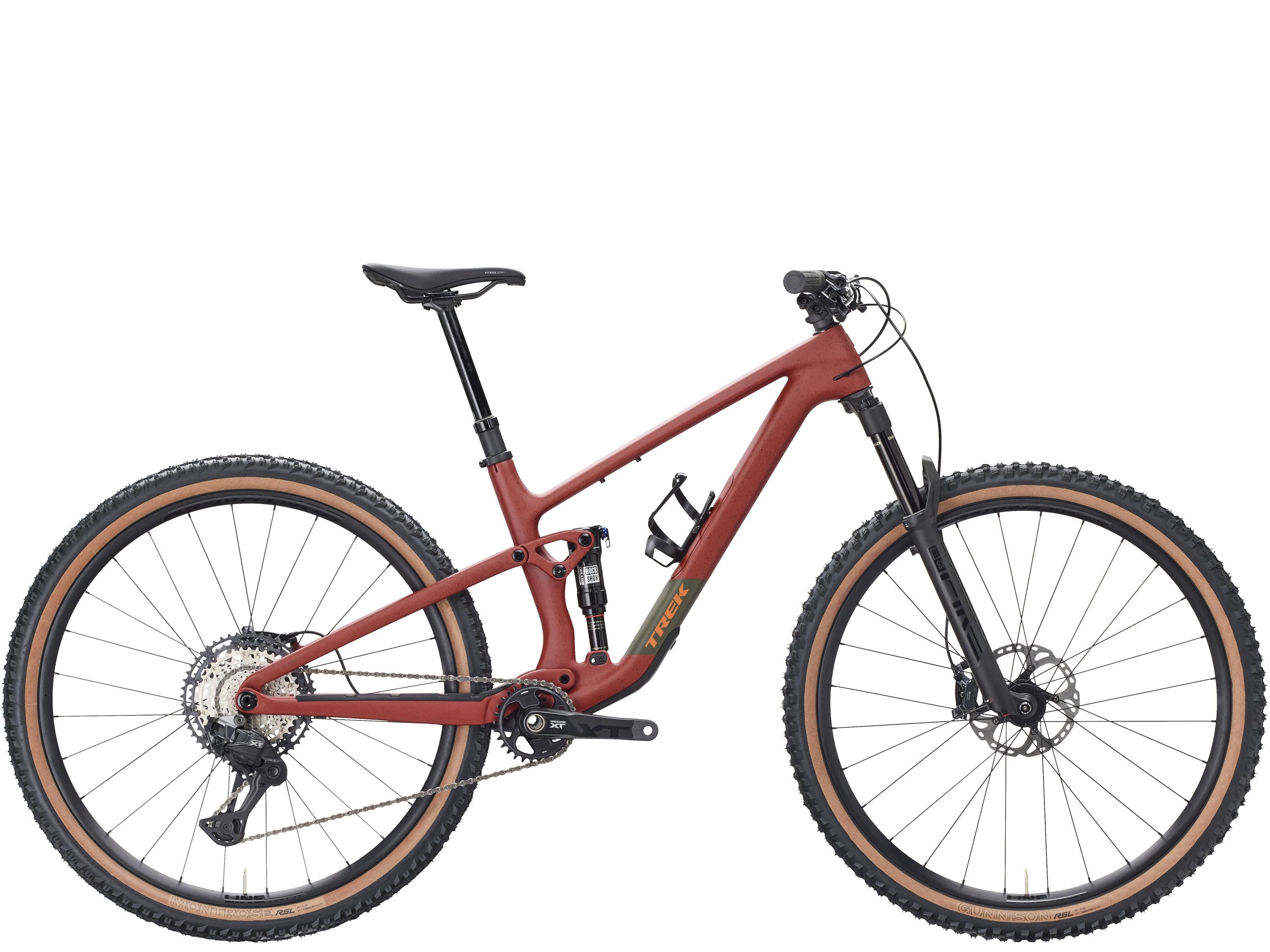

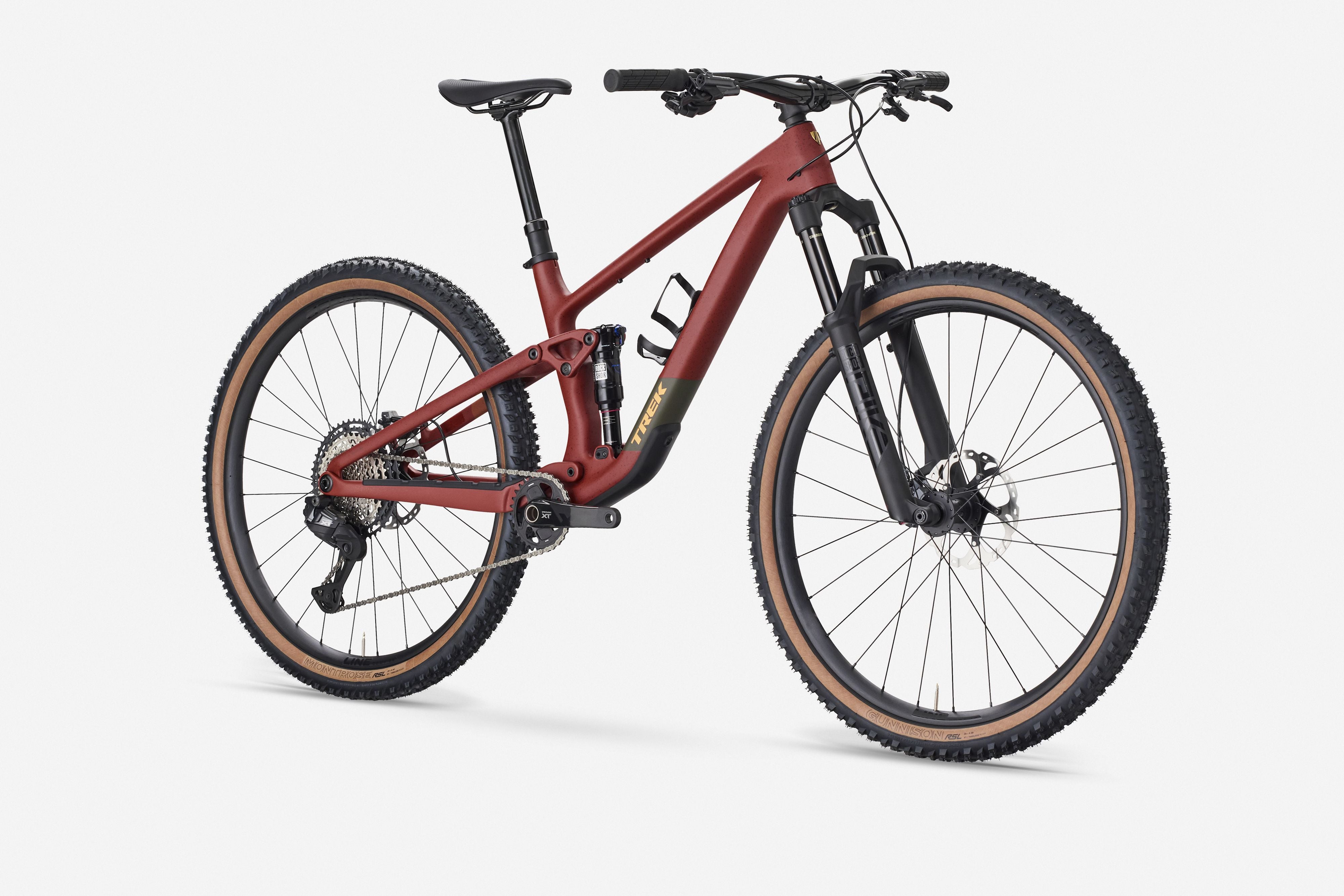

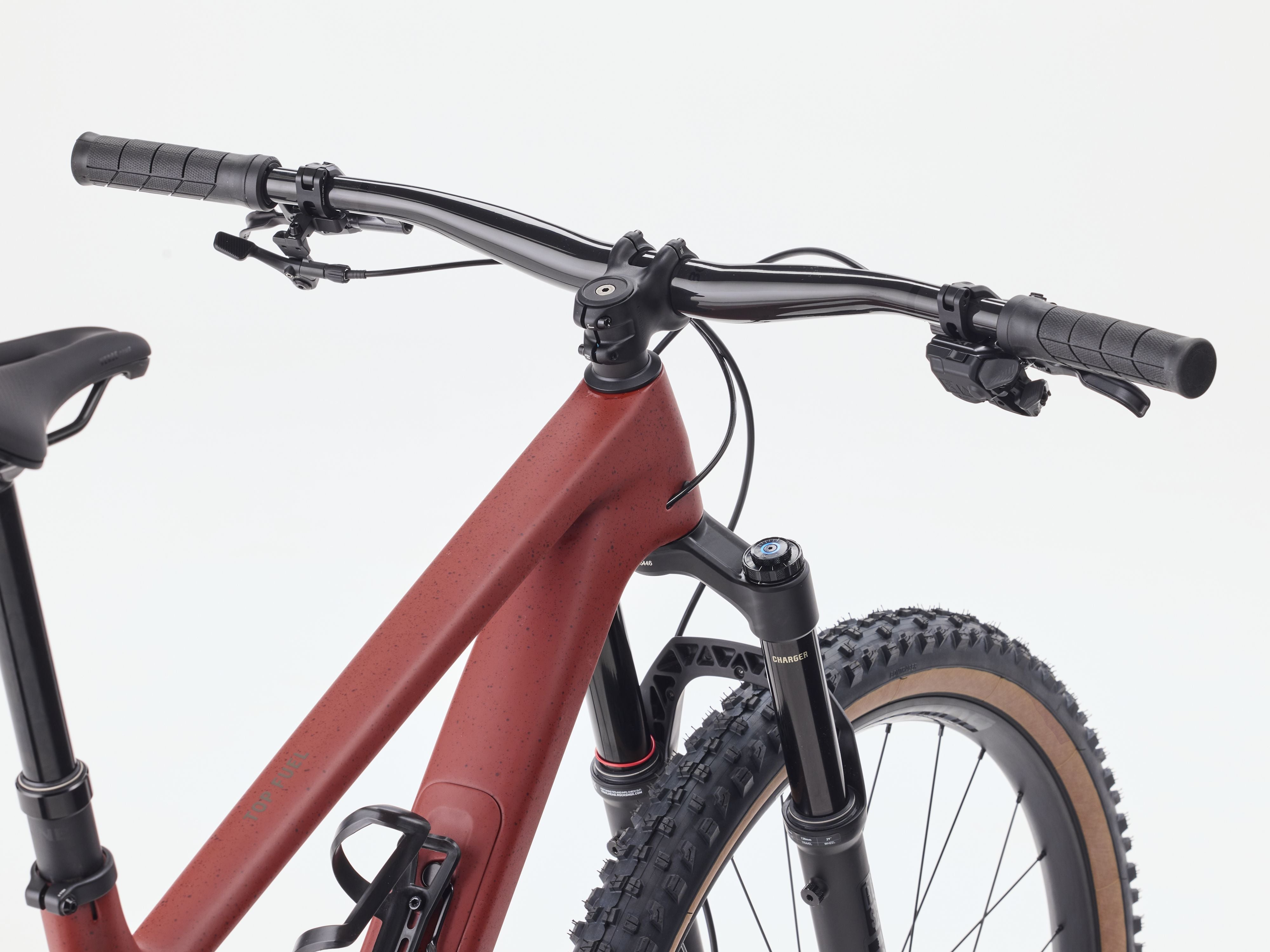

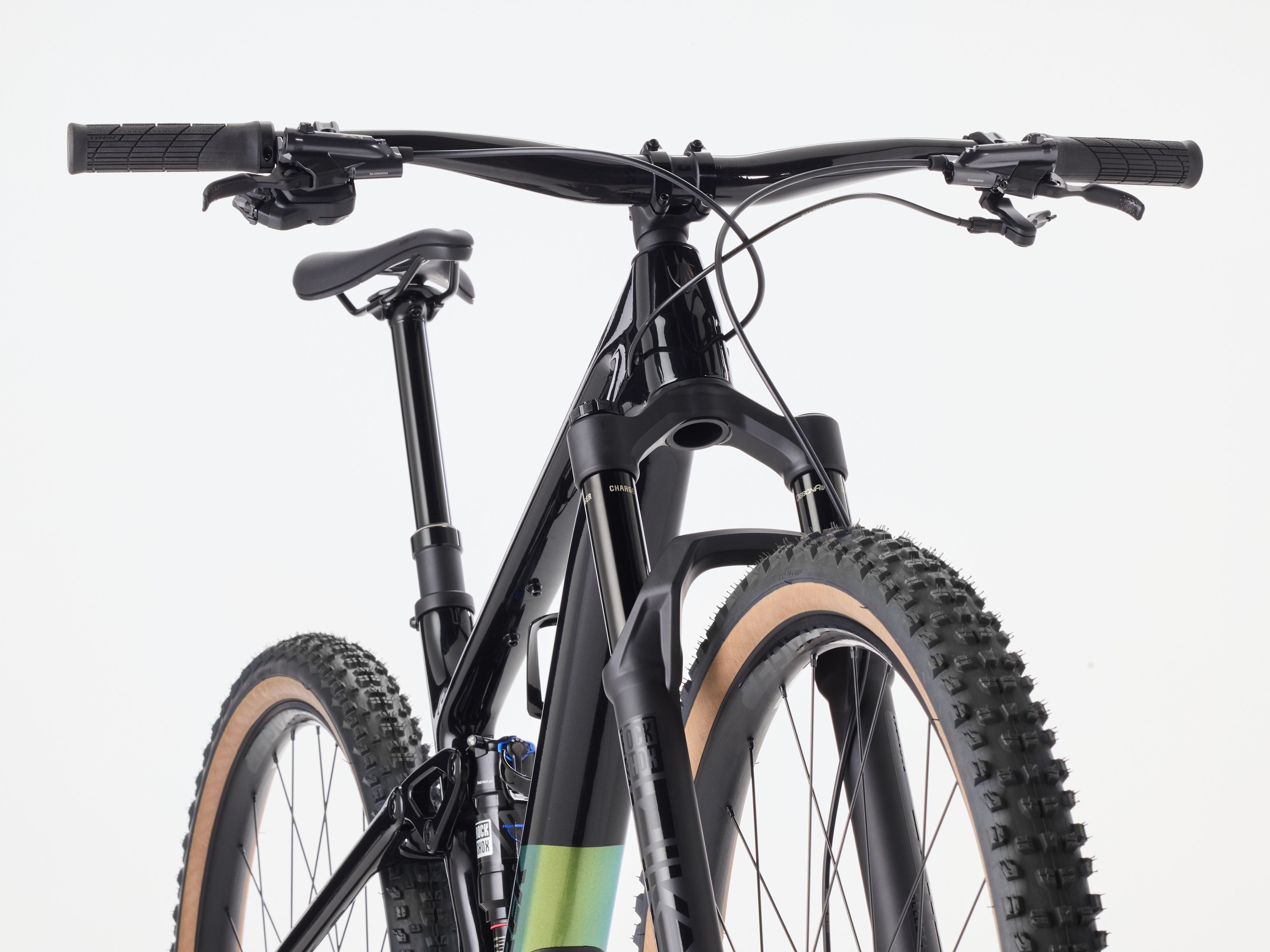

Top Fuel 9.8 XT Di2 Gen 4
The Top Fuel 9.8 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm (rear/front) RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you get ultra-smooth and fast shifts from a 12-speed Shimano XT Di2 wireless drivetrain.
Technology
Make the Top Fuel yours - Opt for light parts and a 120 mm fork for a featherweight Top Fuel, or a 140 mm fork and longer-stroke 130 mm rear shock for extra versatility. Room for a longer dropper and MX wheels lets you customise the Top Fuel into an ultimate playful trail whip.
Specification
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm - 130 mm travel OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, |
|---|---|
| Frame Material | CARBON |
| Rim Size | 29 |
| Fork | RockShox |

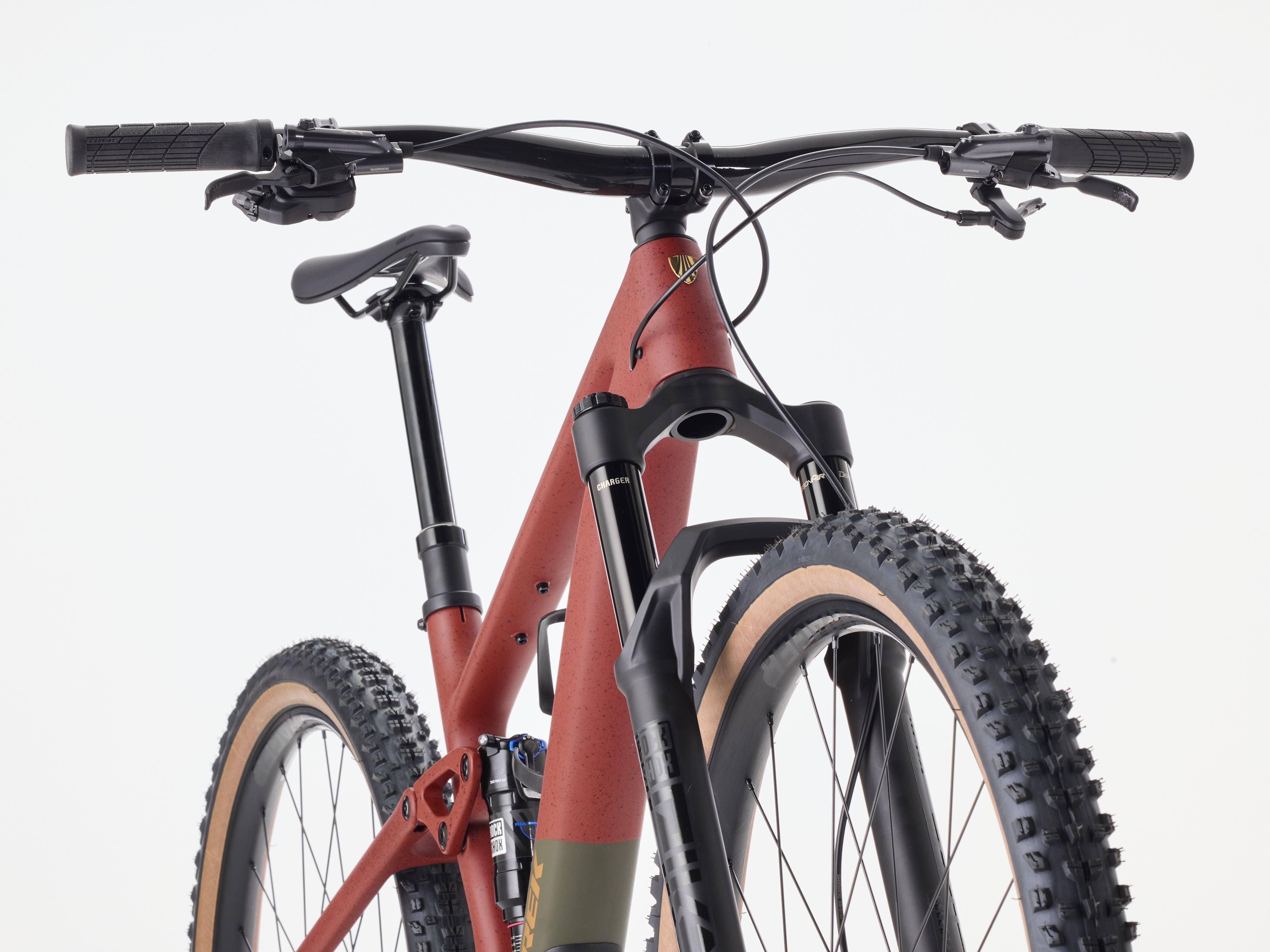

| Fork | RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered ste |
| Rearsuspension | RockShox |

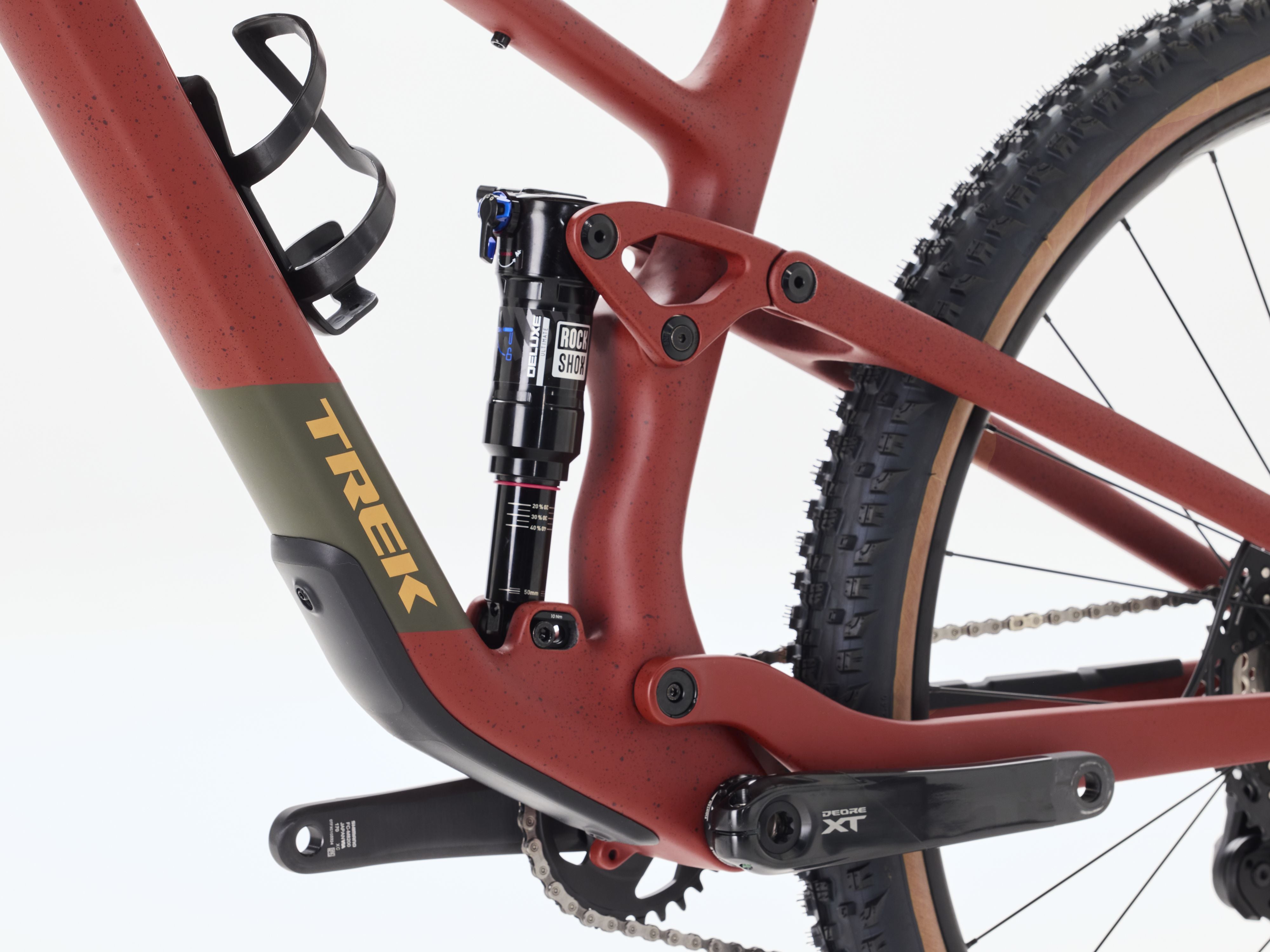

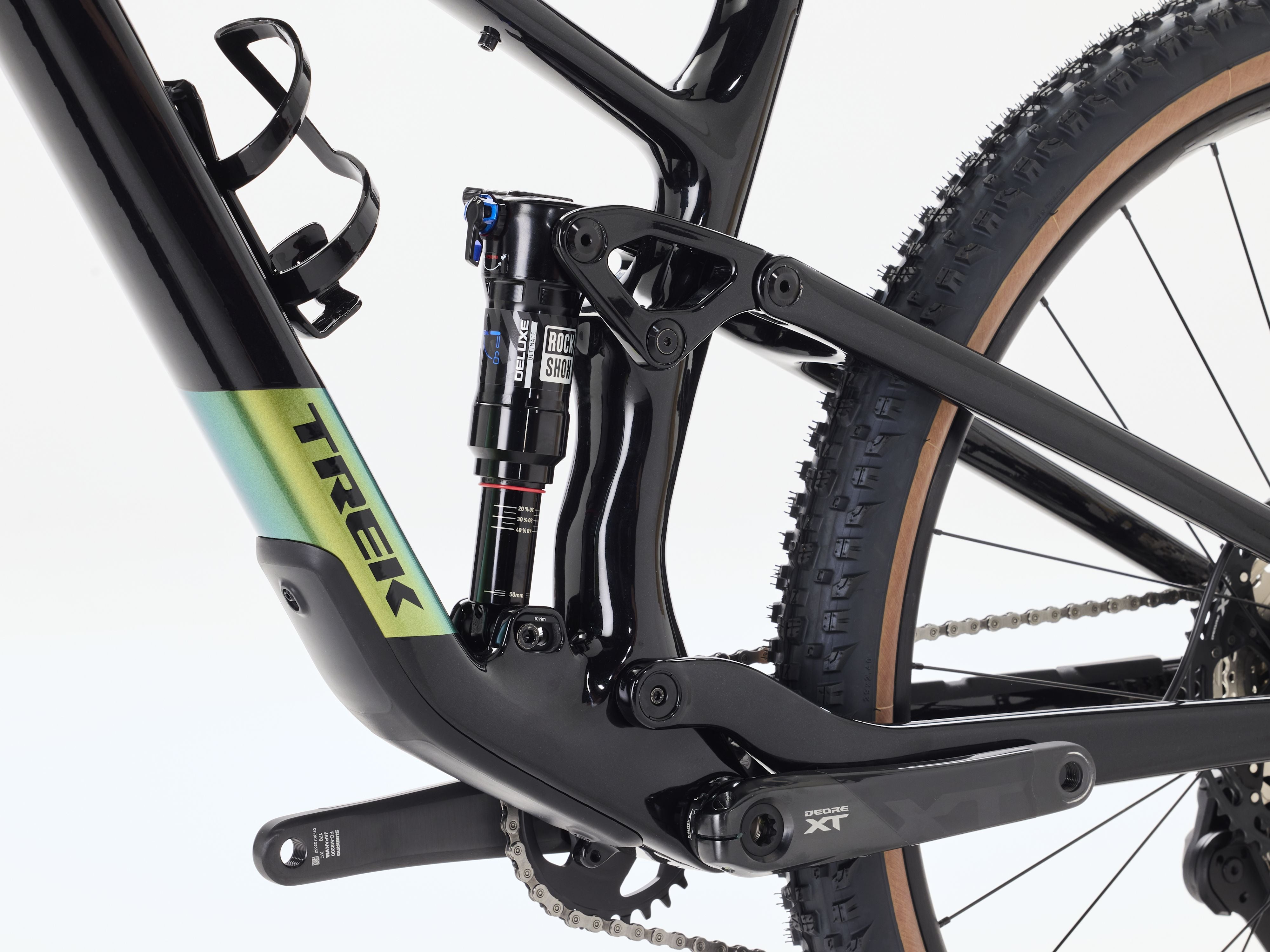

| Suspension Rear | RockShox Deluxe Ultimate RCT, 185 mm x 50 mm |
| Wheels | Bontrager Line Comp 30 |
| Tires | Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" // Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" |
| Shifter | Shimano |

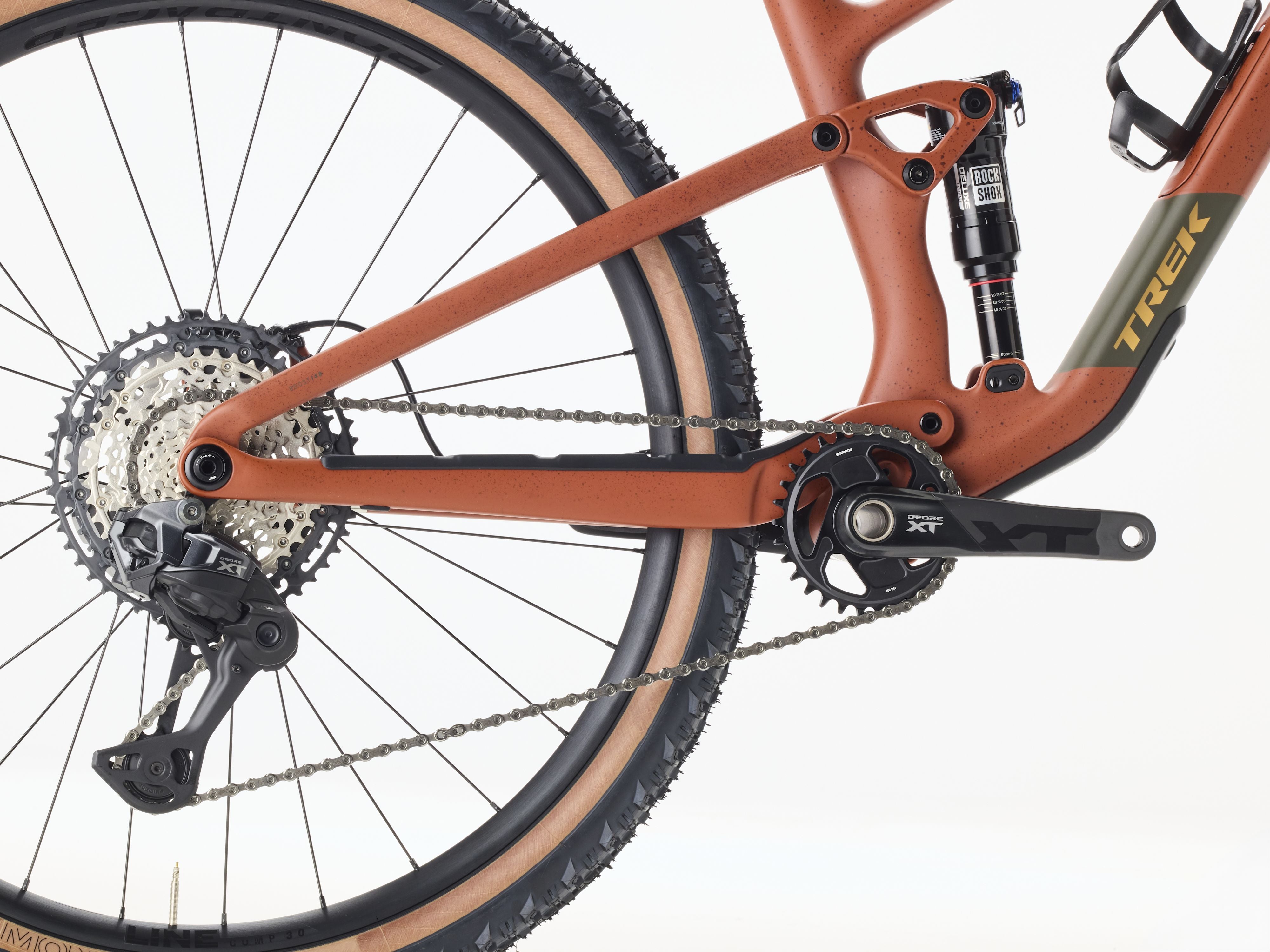

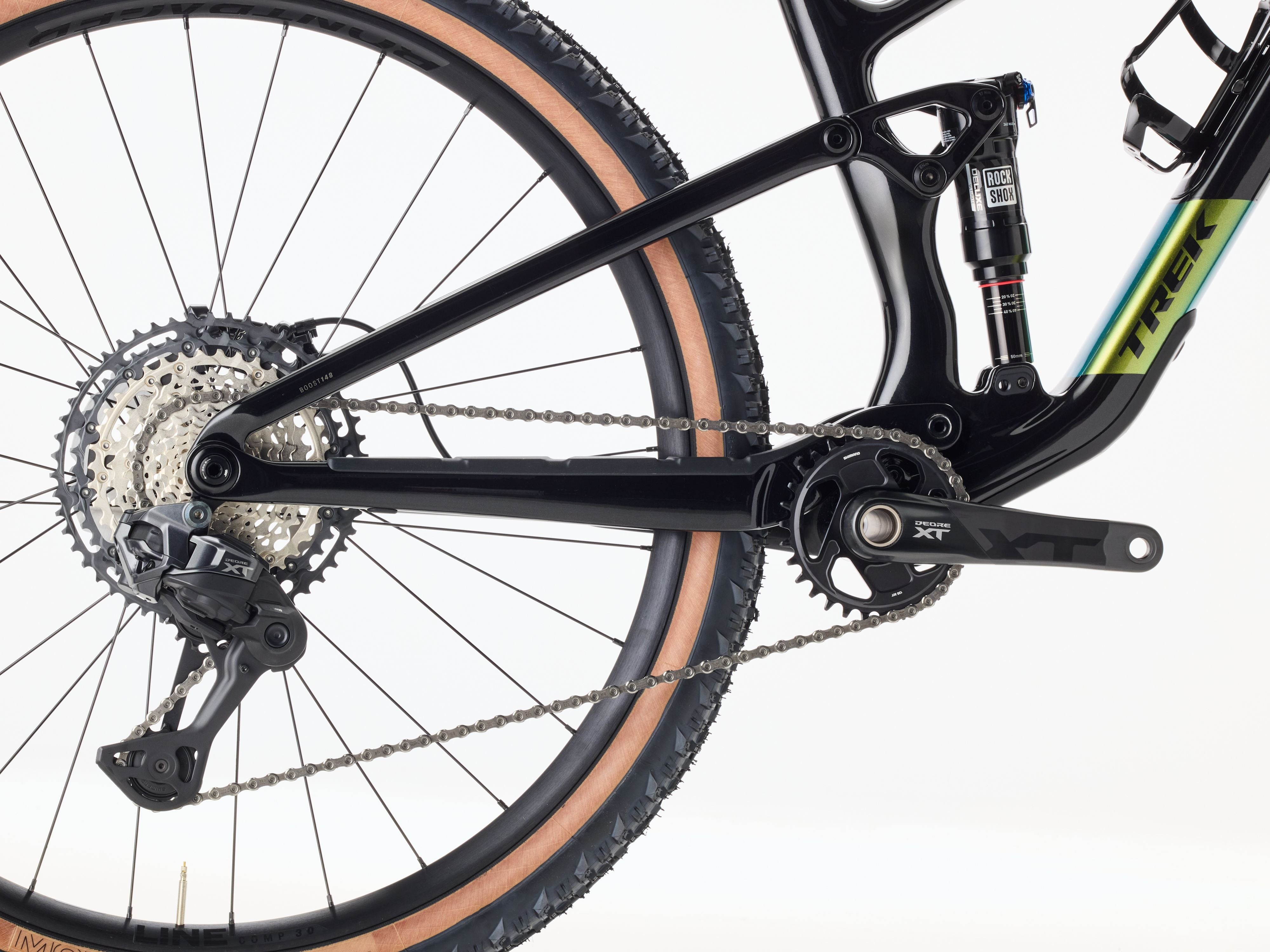

| Derailleur Rear | Shimano XT M8250, long cage |
| Crank | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc |
| Brake Rotor | Shimano RT86, 6-bolt, 180 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |

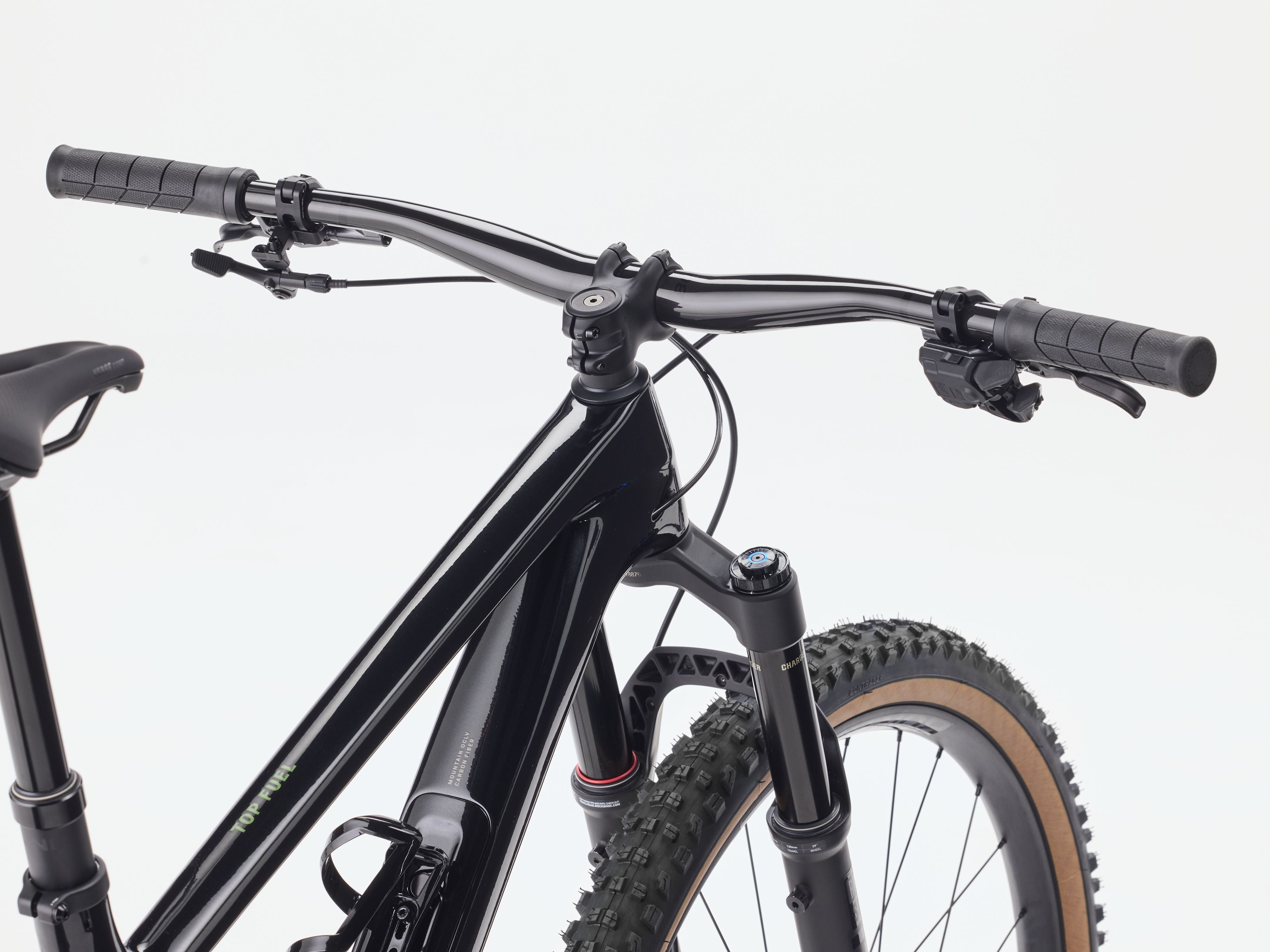

| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | null null |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
