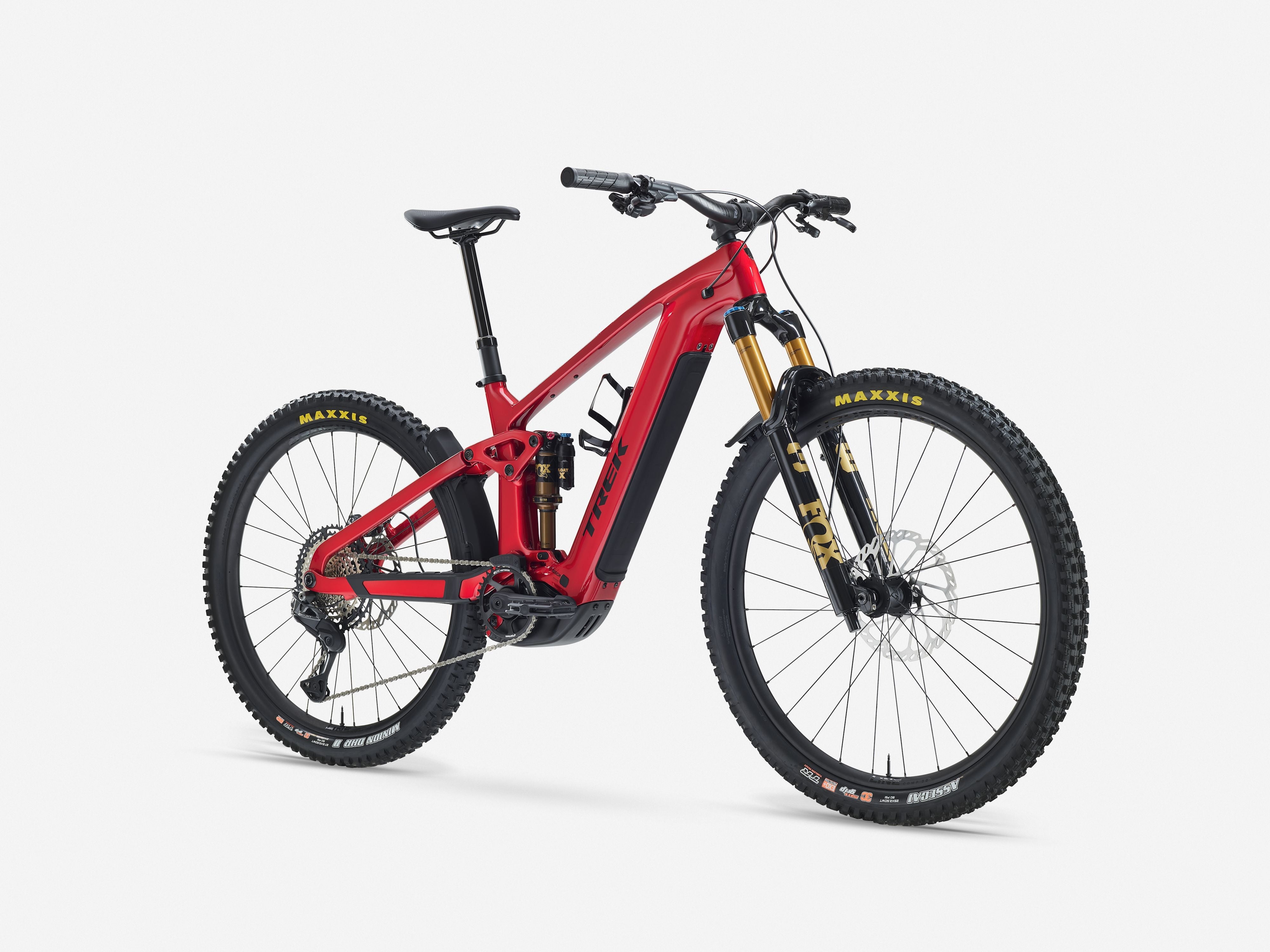

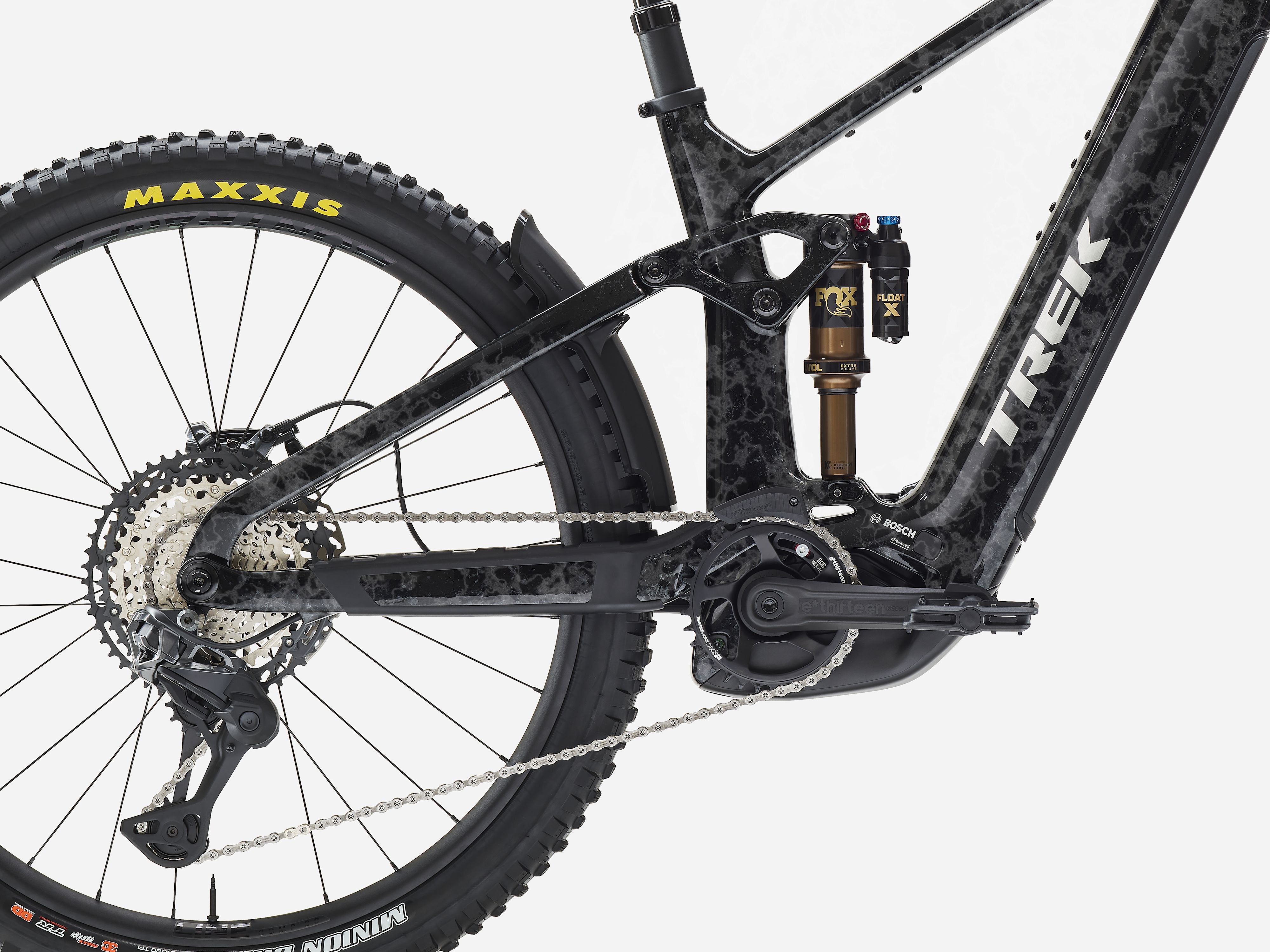

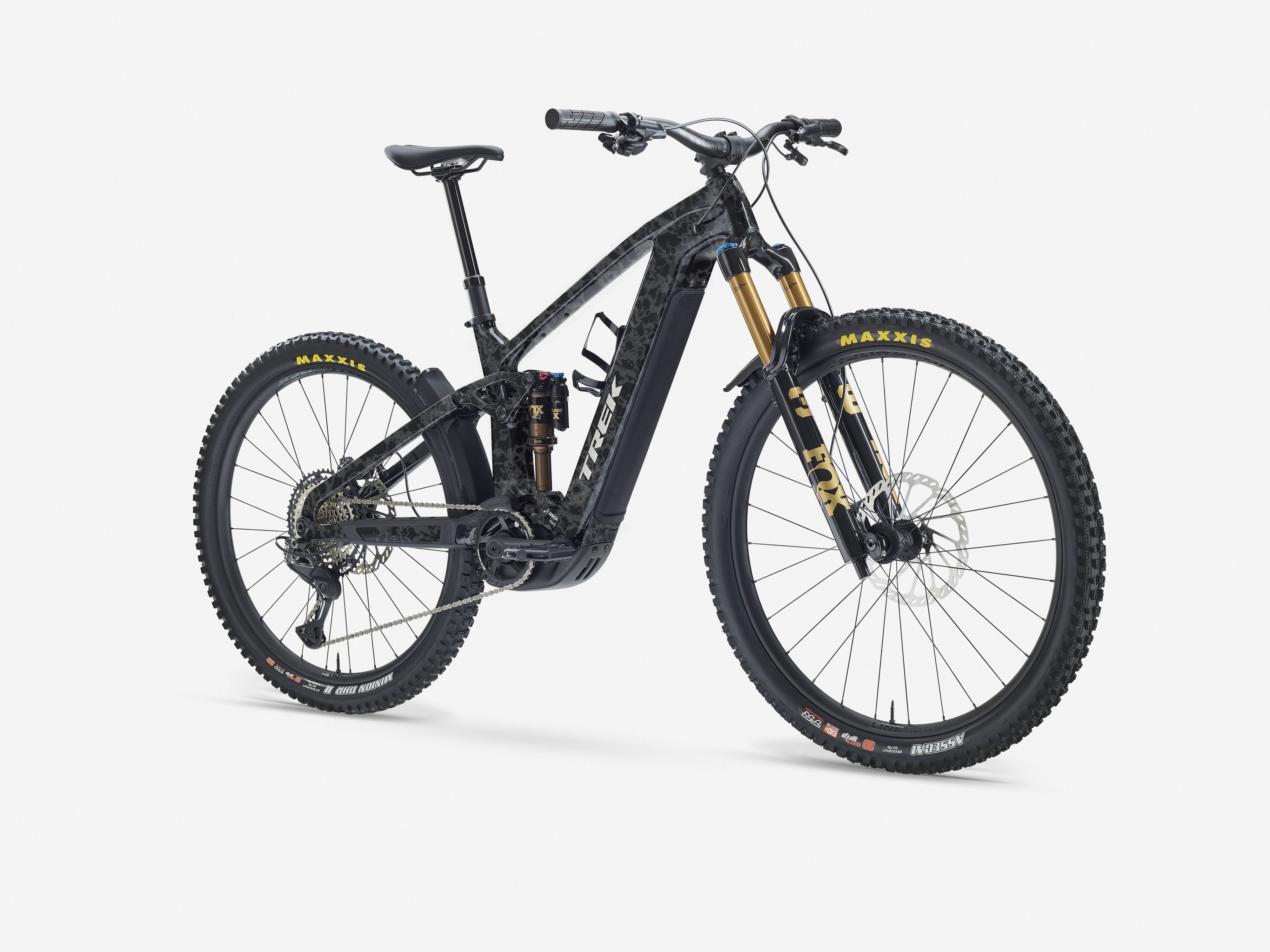

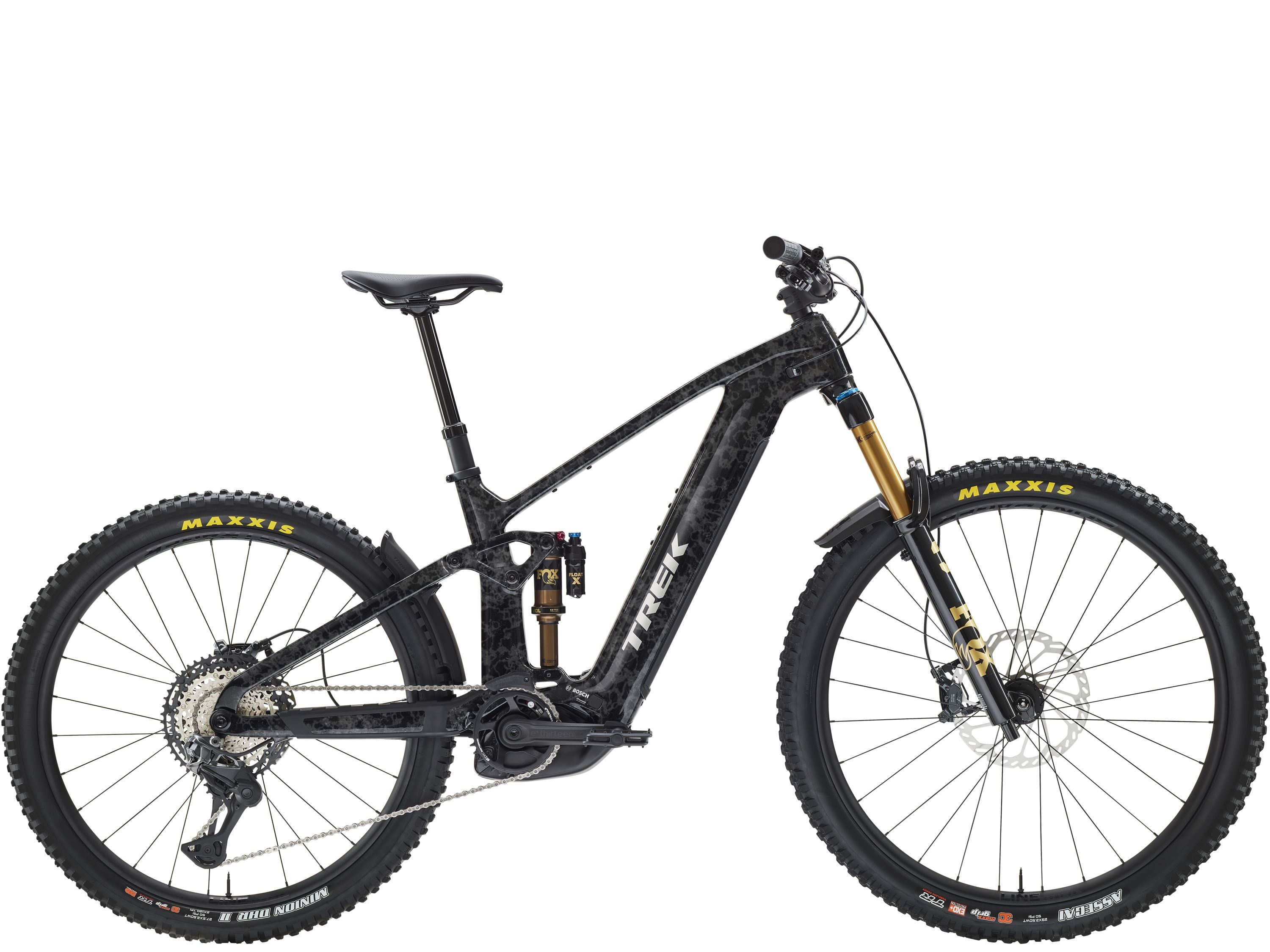

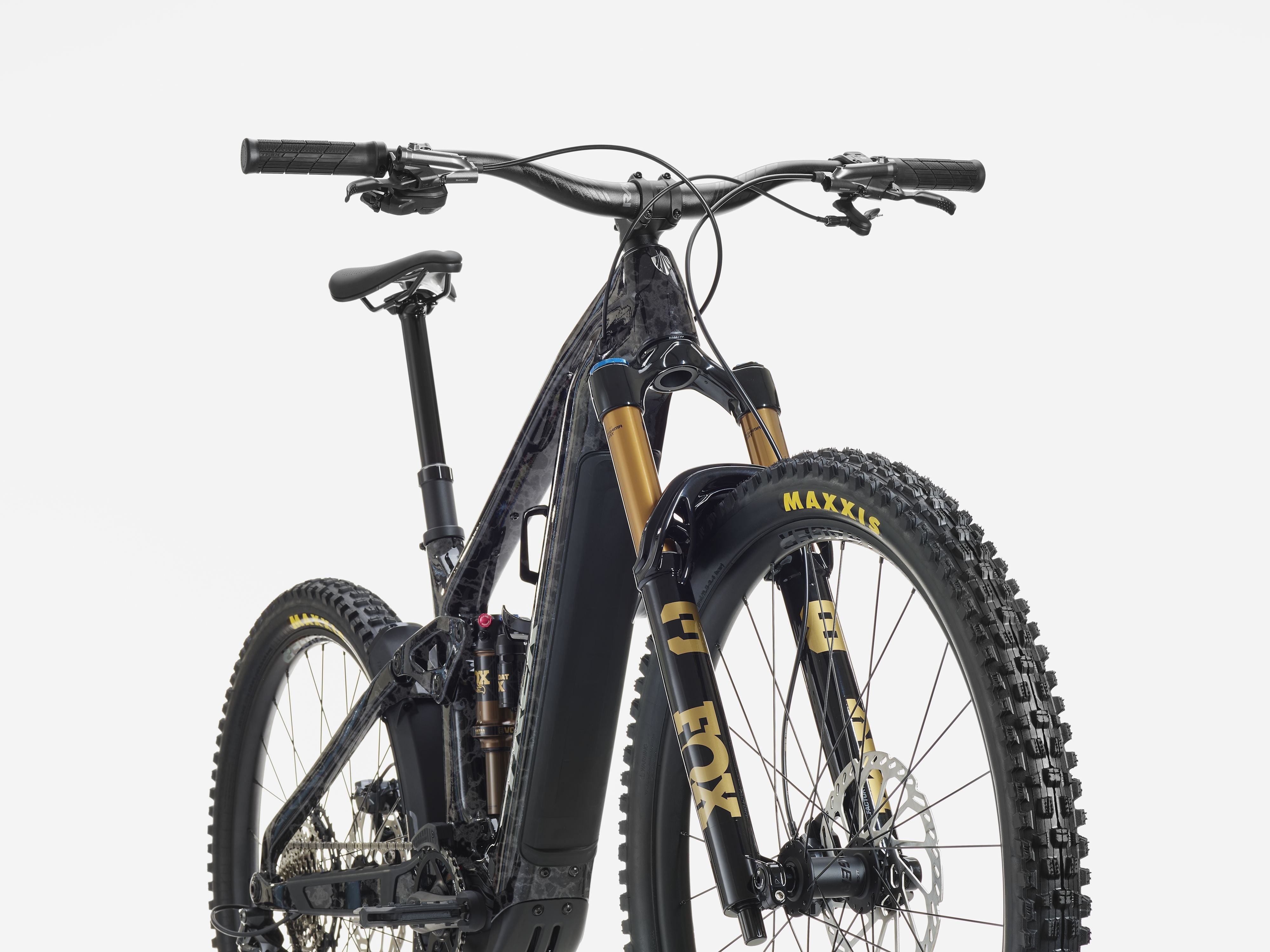

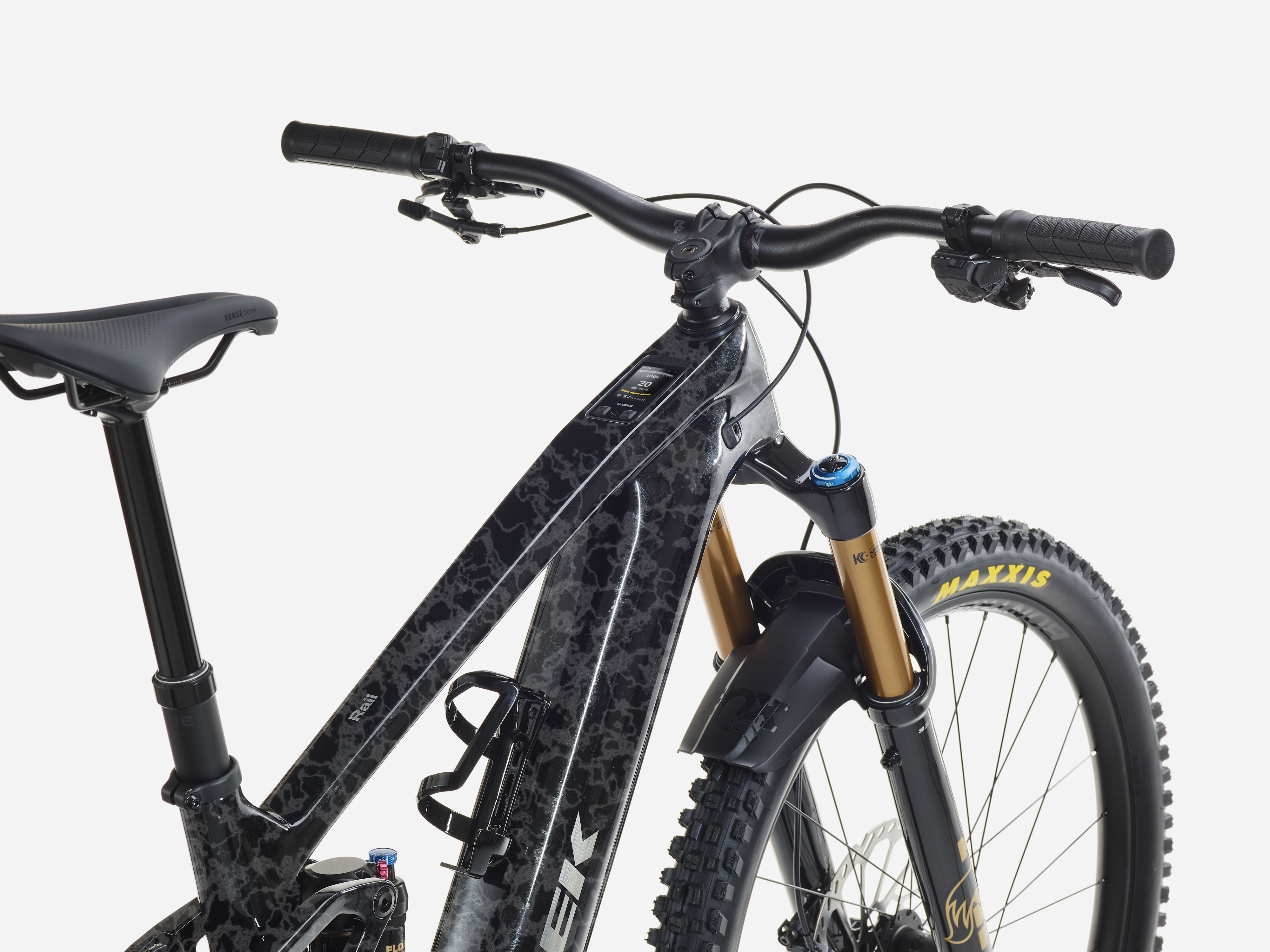

Rail+ 9.8 Gen 5
Rail+ 9.8 is a carbon enduro e-MTB made for chasing distant peaks and hammering out laps. It starts with a hard-hitting OCLV Mountain Carbon frame and 160mm of front and rear travel from a Fox Factory suspension package that devours roots and rock lines. A 12-speed wireless Shimano XT Di2 drivetrain shifts smooth under pressure, and Shimano XT 4-piston brakes bring the bite when you need it.
Technology

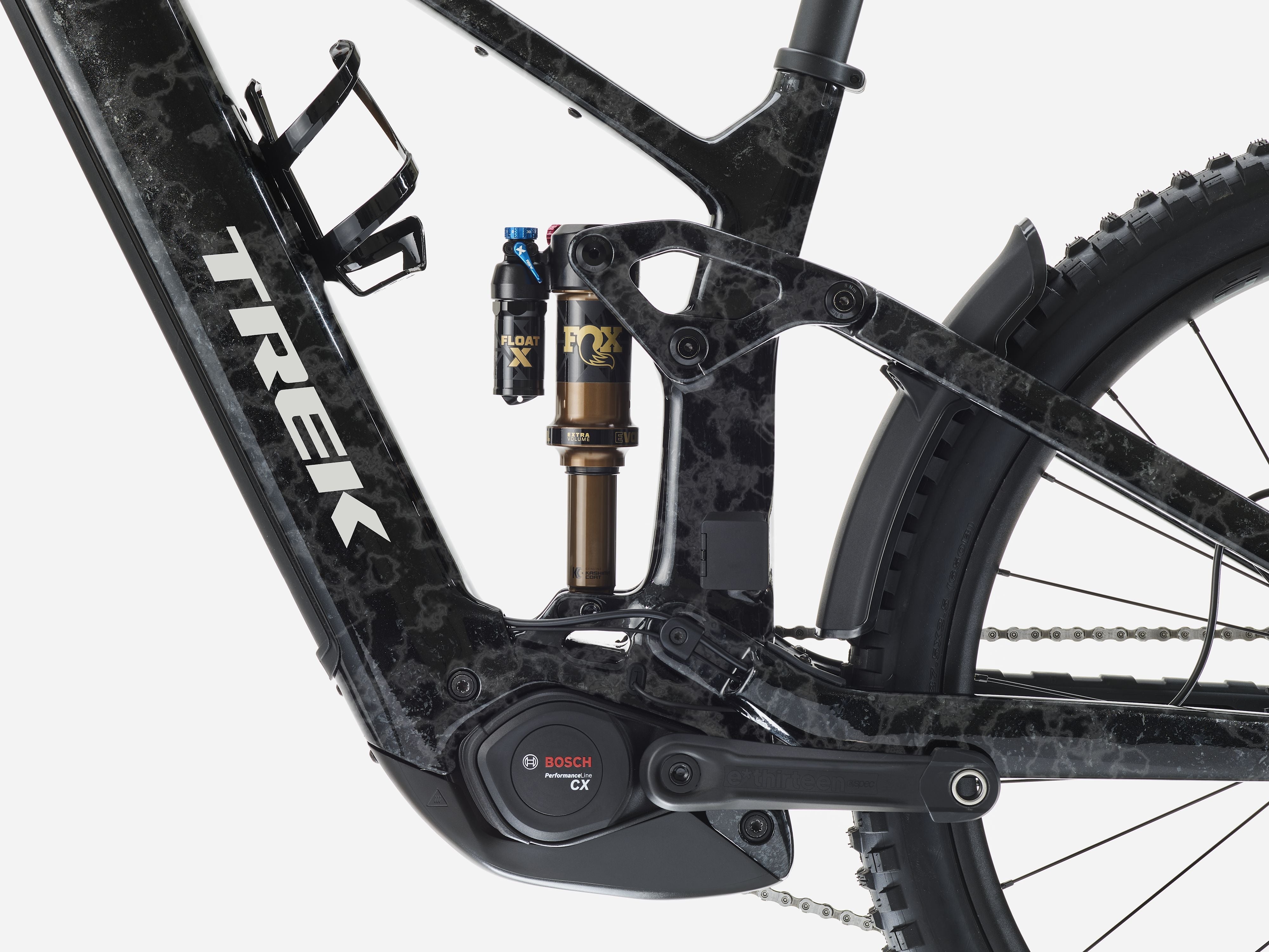

Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
Specification
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel OCLV Mountain C |
|---|---|
| Frame Material | CARBON |
| Rim Size | 27.5 |
| Fork | Fox |
| Fork | Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1 |
| Rearsuspension | Fox |
| Suspension Rear | Fox Factory Float X, 2-position damper, 205 mm x 65 mm |
| Hub Front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle |
| Shifter | Shimano |
| Derailleur Rear | Shimano XT Di2 M8260, 12-speed |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc |
| Brake Rotor | Shimano RT-6B750, 6-bolt, 200 mm // Shimano RT-6B750, 6-bolt, 220 mm |
| Pedals | VP-536 nylon platform |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width // Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | Bosch PowerTube 800 Wh, smart system Bosch PowerTube 800Wh, smart system |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
