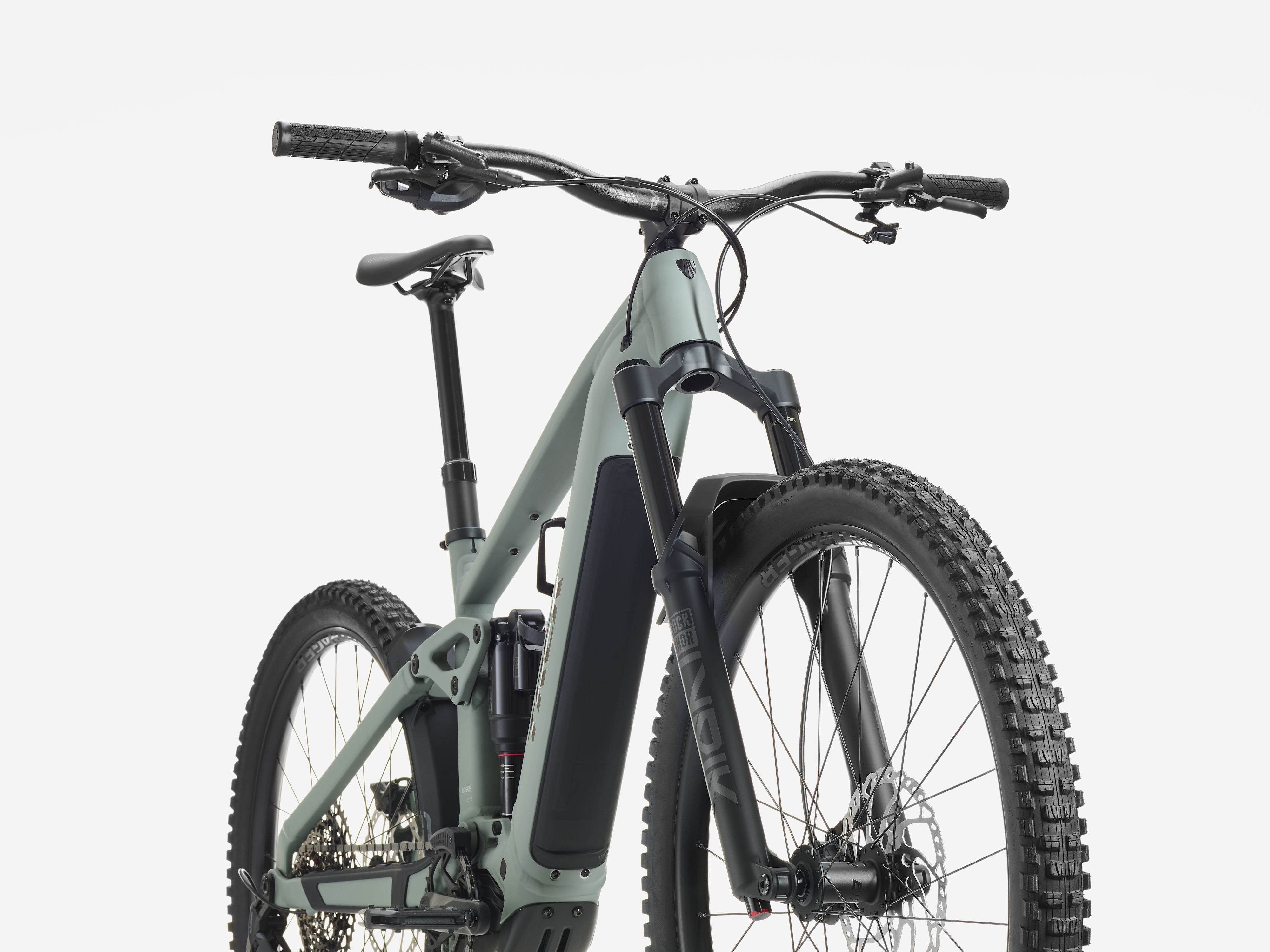

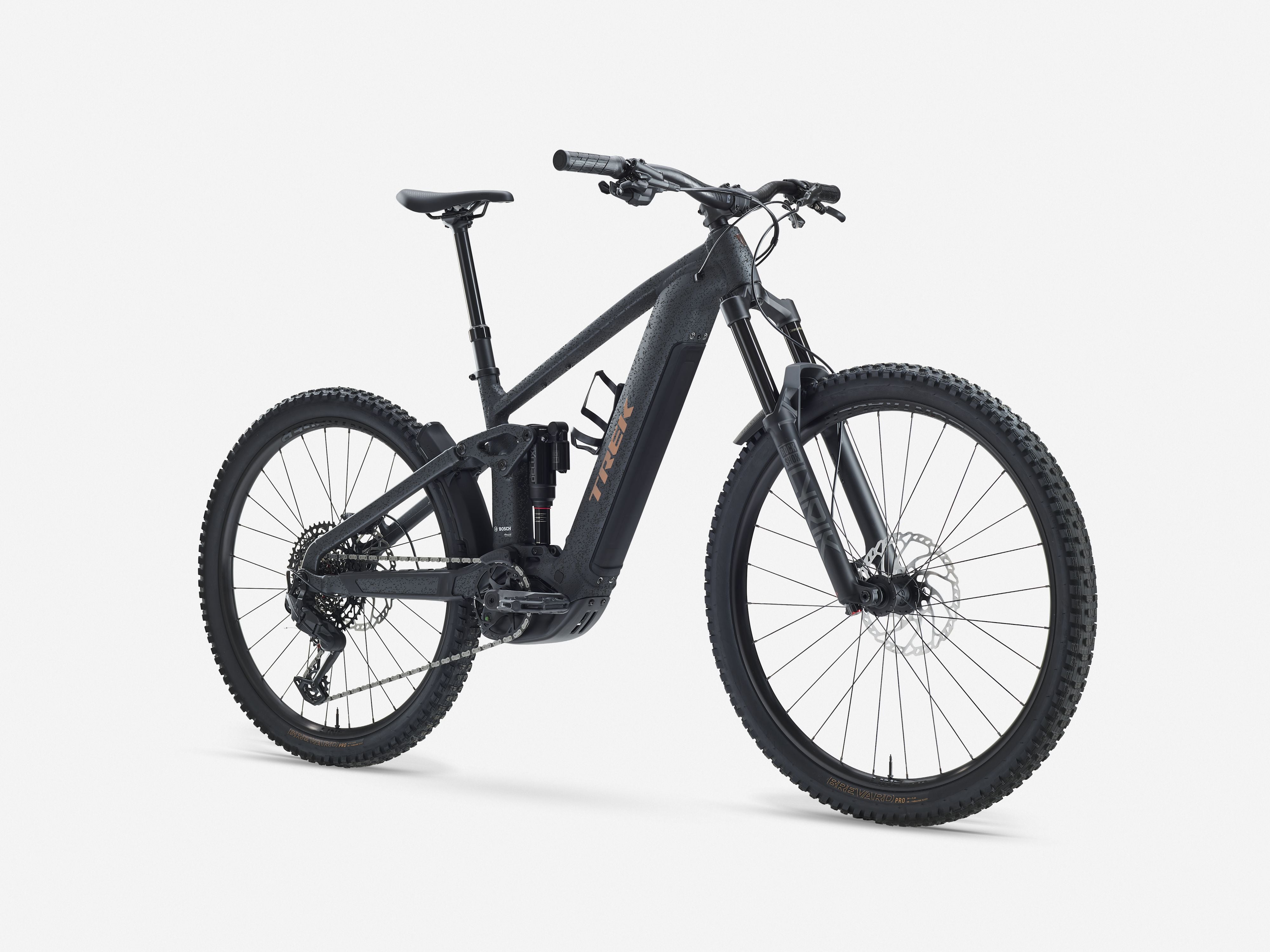

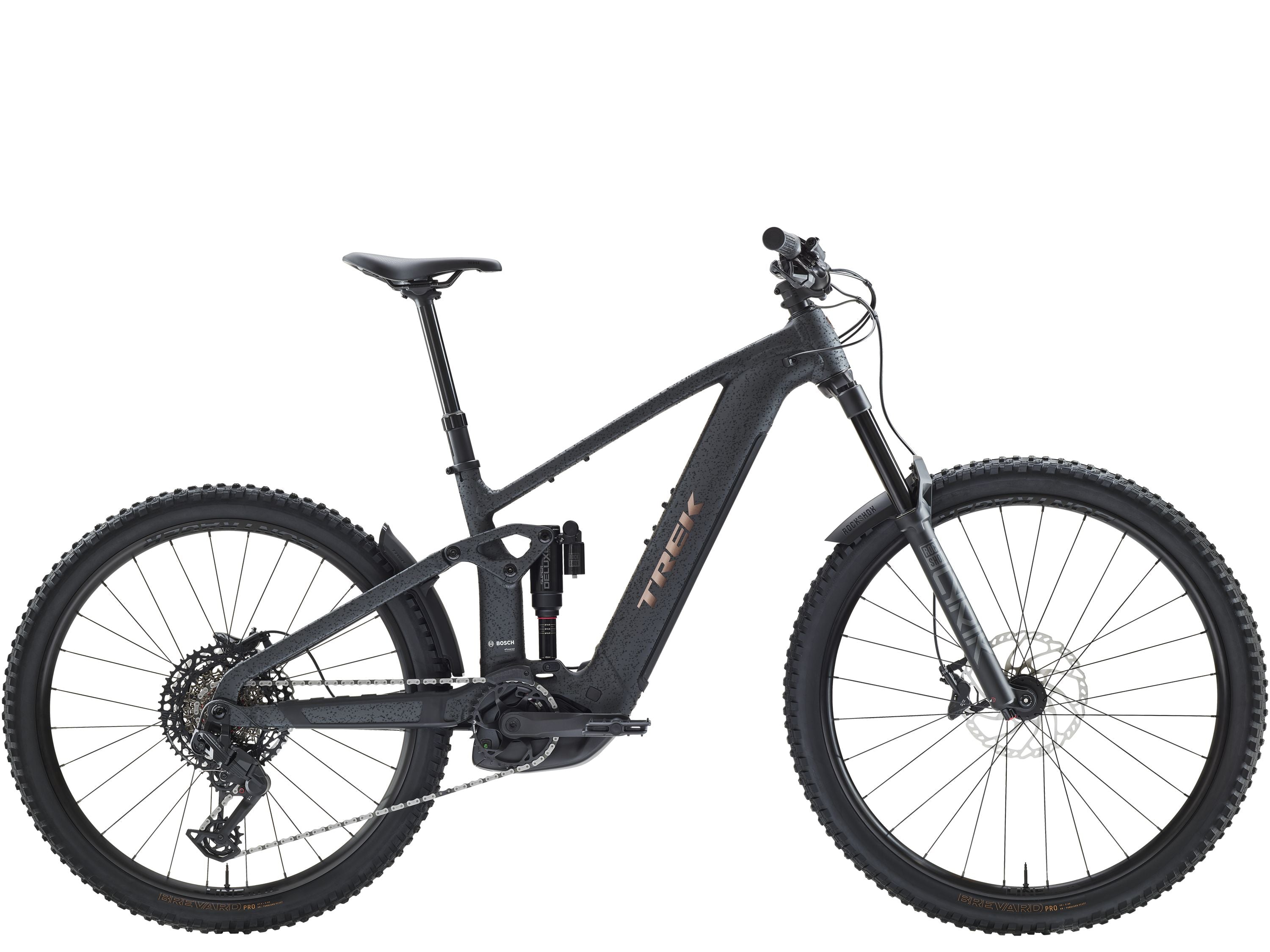

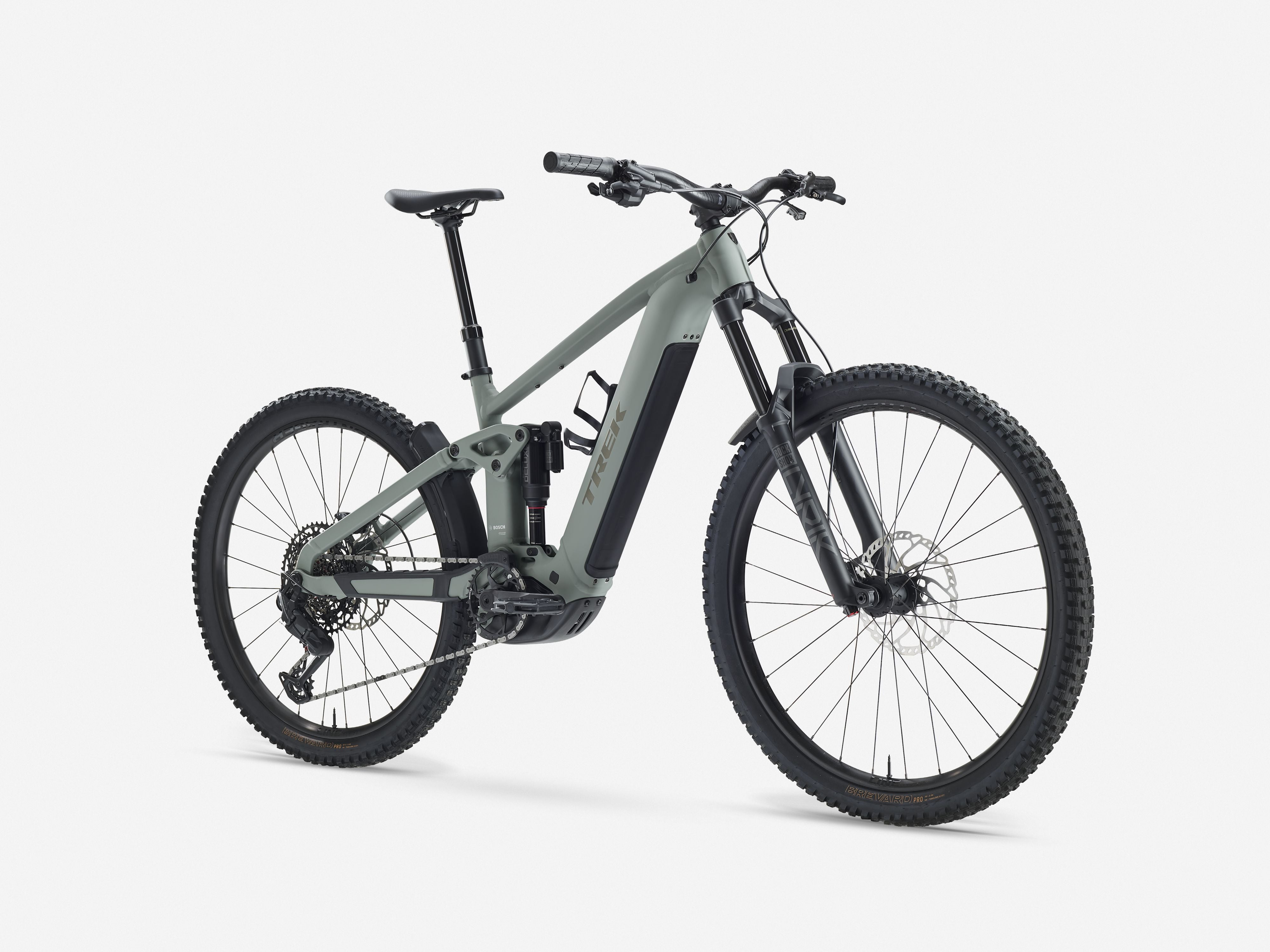

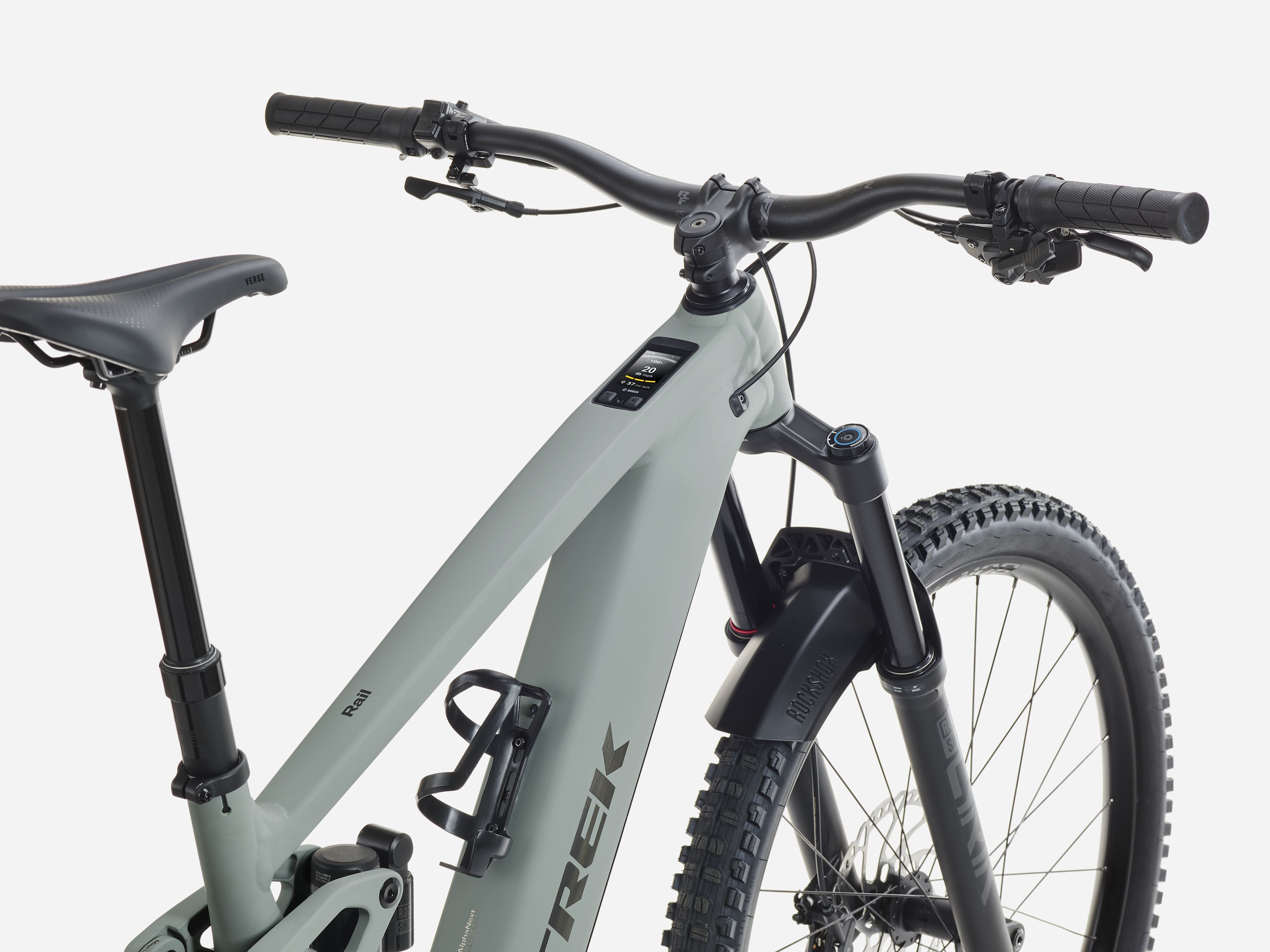

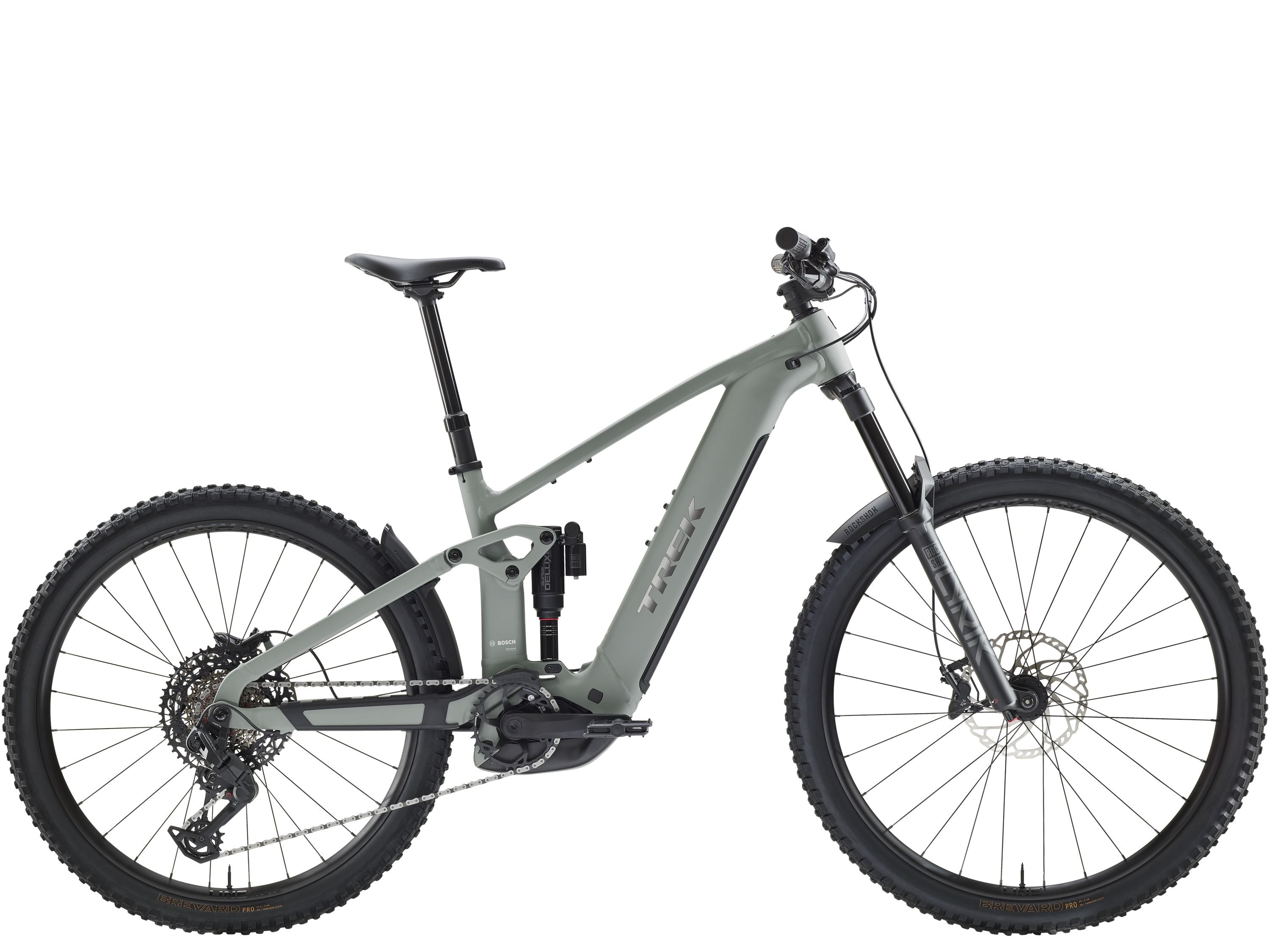

Rail+ 8 Gen 5
Rail+ 8 is an aluminum enduro e-bike with big power and plenty of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminum frame paired with a RockShox Super Deluxe+ shock and Lyrik Select fork (160mm front/rear) to tackle chunky backcountry rock gardens. A smooth-shifting SRAM Eagle 70 drivetrain, fast-stopping Shimano M620 4-piston brakes, Bontrager Line dropper, and Line TLR 30 wheels round out the build.
Technology

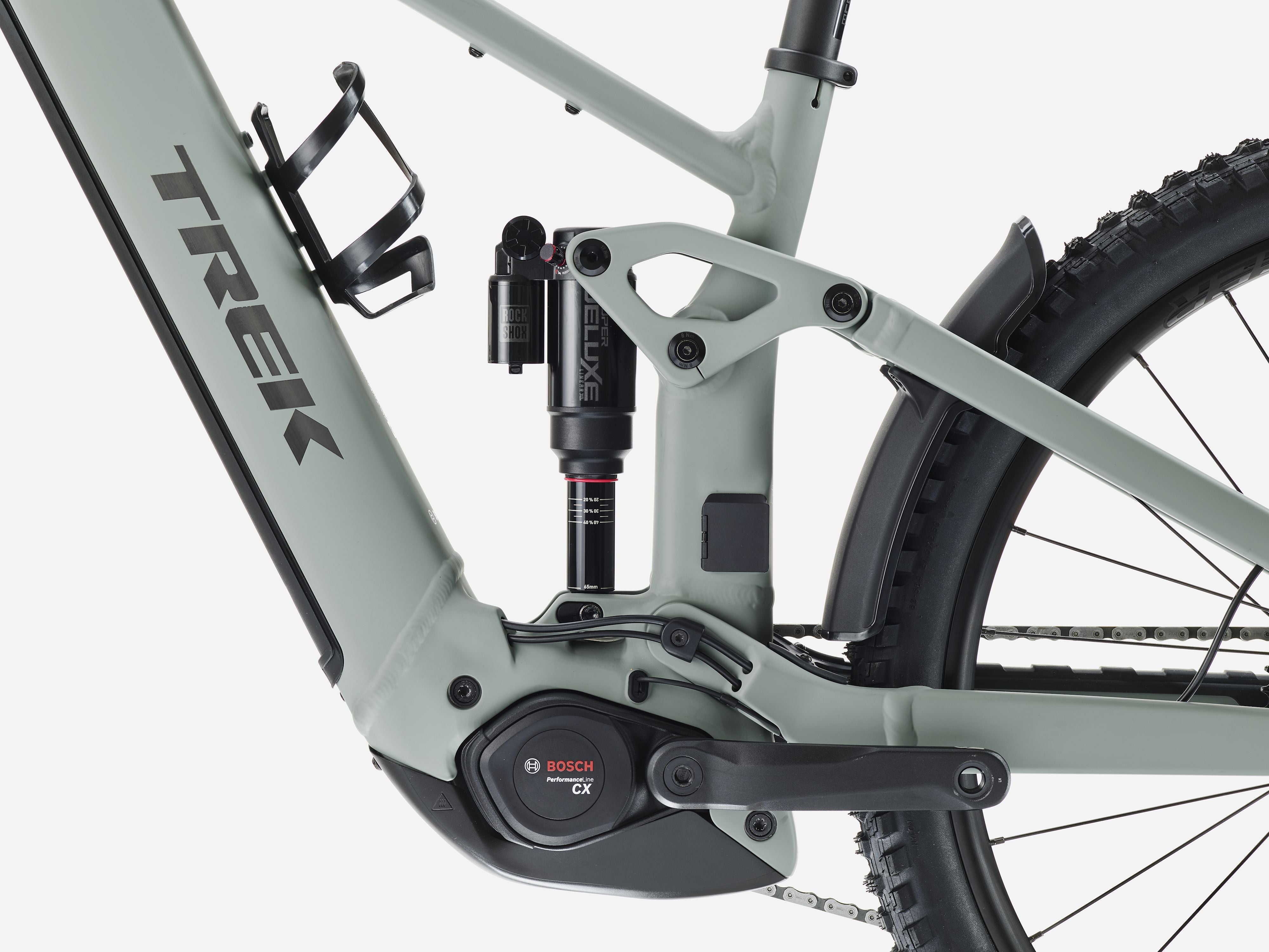

Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
Specification
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 27.5 |
| Fork | RockShox |
| Fork | RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel |
| Rearsuspension | RockShox |
| Suspension Rear | RockShox Super Deluxe, Linear XL, 205 mm x 65 mm |
| Tires | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" |
| Hub Front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| Shifter | SRAM |
| Derailleur Rear | SRAM Eagle 70, T-Type |
| Crank | FSA alloy, 160 mm length |
| Cassette | SRAM Eagle XS-1270, T-Type,10-52, 12-speed |
| Chain | SRAM Eagle 70, T-Type, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc Shimano MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc |
| Brake Rotor | Shimano RT76, 6-bolt, 203 mm |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Trek Line Comp, nylon lock-on |
| Fenders | Trek custom mudguard |
| Battery | Bosch PowerTube 800 Wh, smart system Bosch PowerTube 800Wh, smart system |
| Motor | Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) Bosch Performance Line CX (Europe and APAC: 25 km/h, |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
