Rail+ 8 Gen 5
Rail+ 8 Gen 5
Rail+ 8 Gen 5
Rail+ 8 Gen 5

Rail+ 8 Gen 5

£4,500.00 GBP
Colour
Size

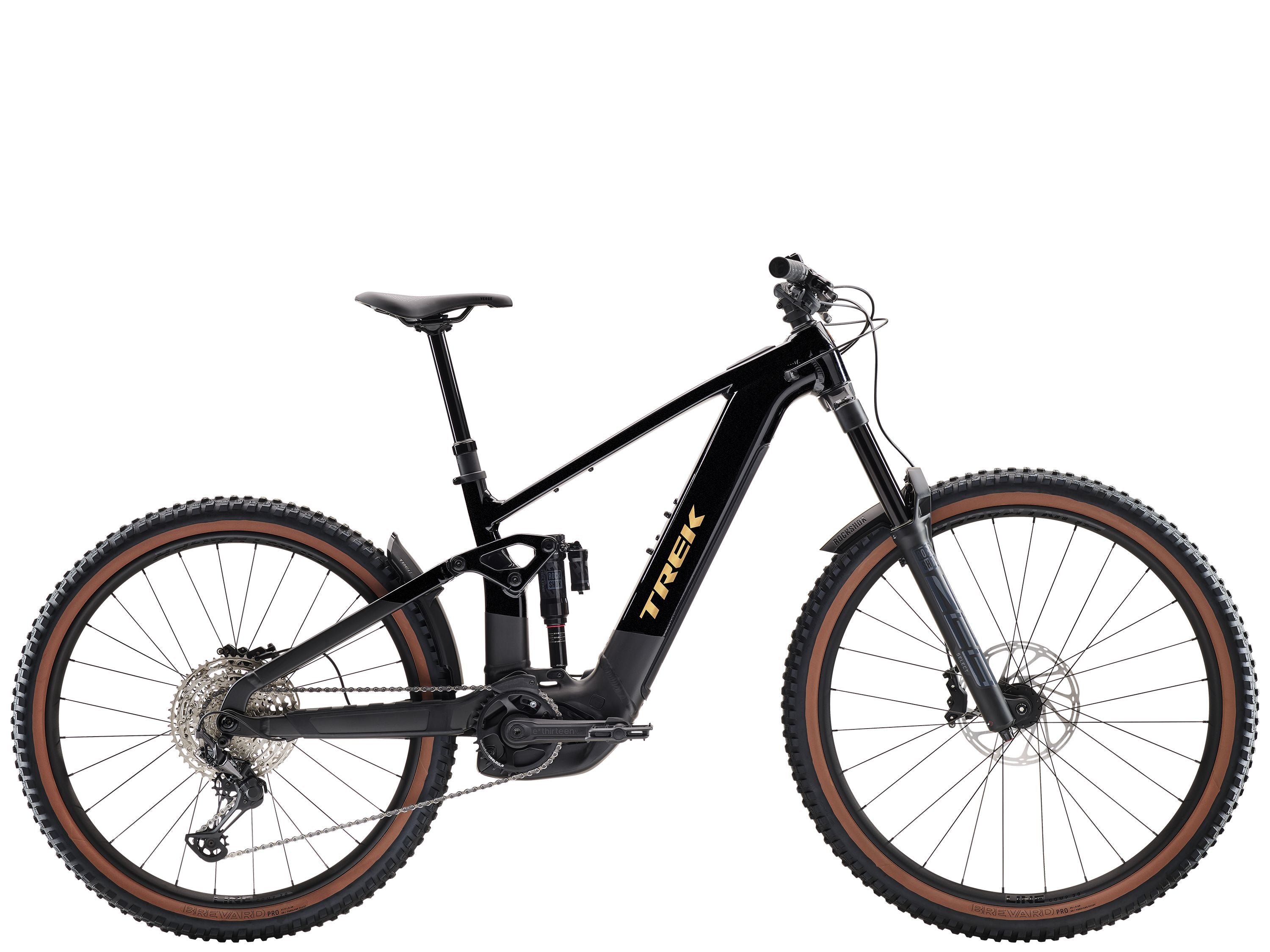

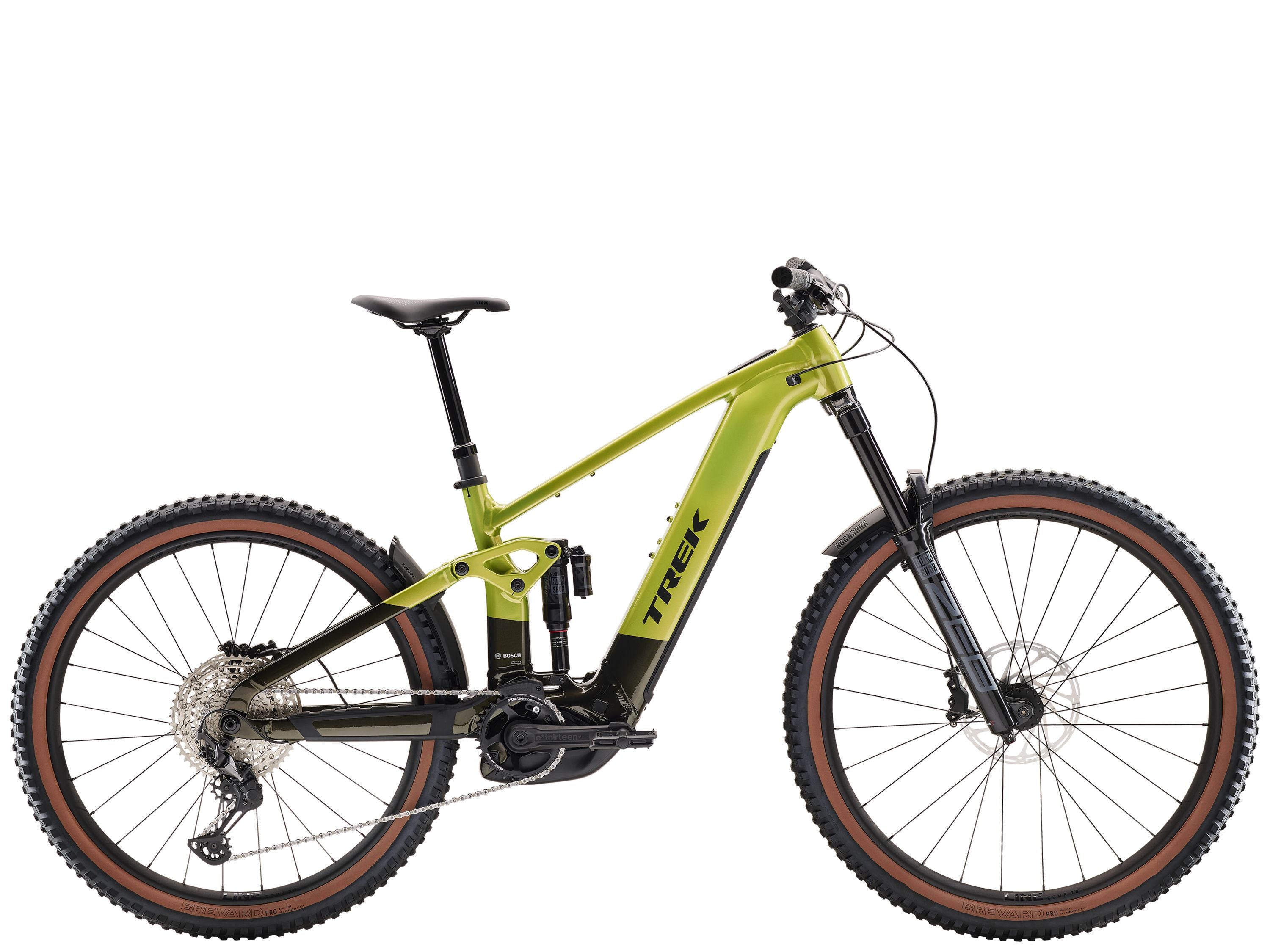

The Rail+ 8 is an aluminium enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminium frame paired with a RockShox Super Deluxe Select+ RT shock and ZEB Select fork (160 mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post and tubeless-ready Bontrager Line TLR 30 wheels.

Technology

Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

Specification

Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
Frame Material ALUMINIUM
Rim Size 27.5
Fork RockShox
Fork RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, B
Rearsuspension RockShox
Suspension Rear RockShox Super Deluxe Select RT, 205mm x 65mm
Wheels Bontrager Line Comp 30
Tires Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Shifter Shimano
Derailleur Rear Shimano XT M8100, long cage
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Brake SRAM
Brakeset SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic disc
Brake Rotor SRAM CentreLine, 6-bolt, round-edge, 200 mm
Saddle Bontrager Verse P3, steel rails
Seatpost Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Handlebar Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Stem Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips Bontrager XR Trail Comp, nylon lock-on
Fenders Trek custom mudguard
Battery Bosch PowerTube 800 Wh, smart system Bosch PowerTube 800Wh, smart system
Controller Bosch System Controller BRC3100, smart system
Motor Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) Bosch Performance Line CX (Europe and APAC: 25 km/h,
Size Chart Rider Height Rider Height - 177.0 - 188.0
Size Chart Rider Inseam Inseam - 84.0 - 89.0
