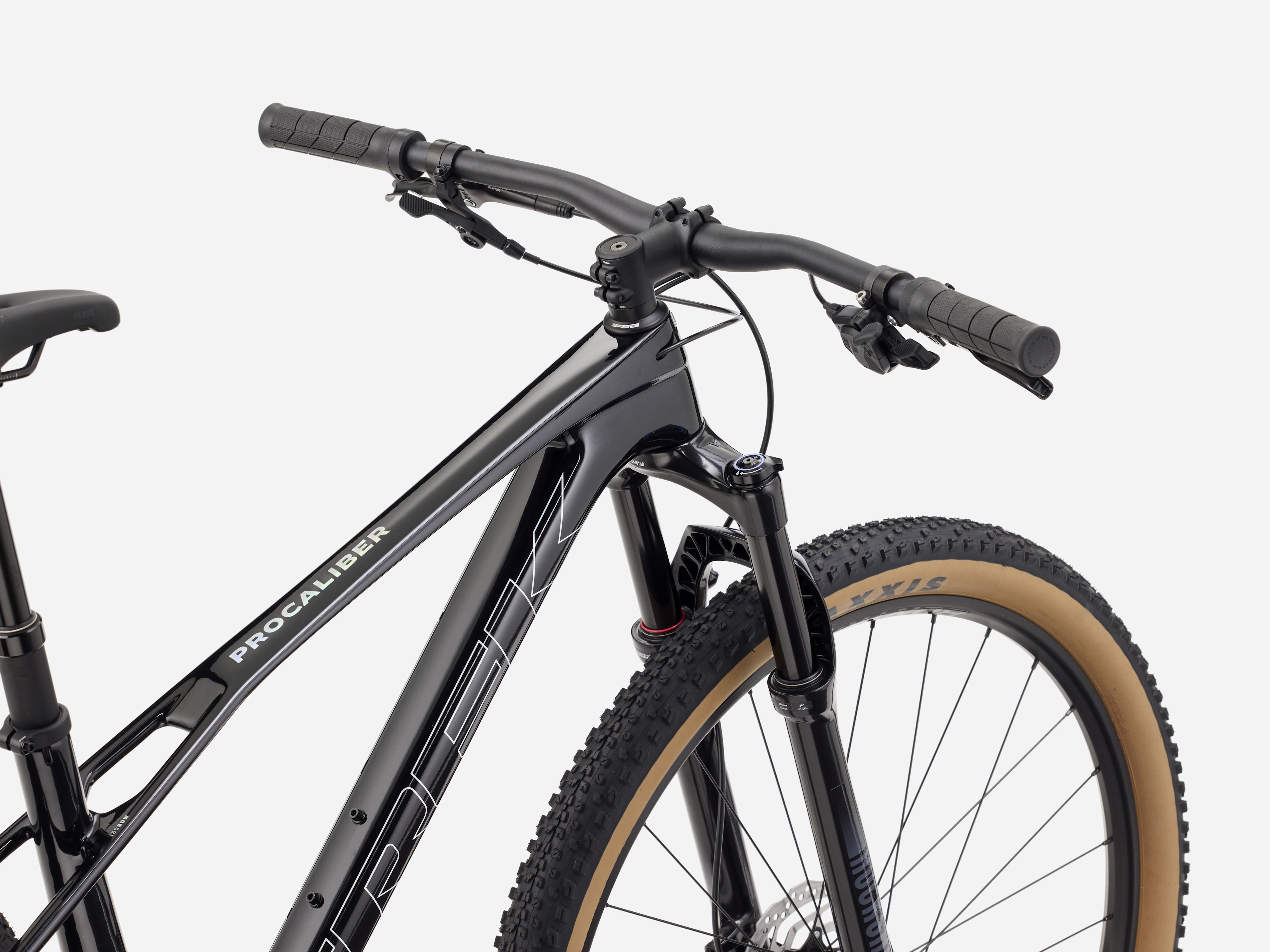

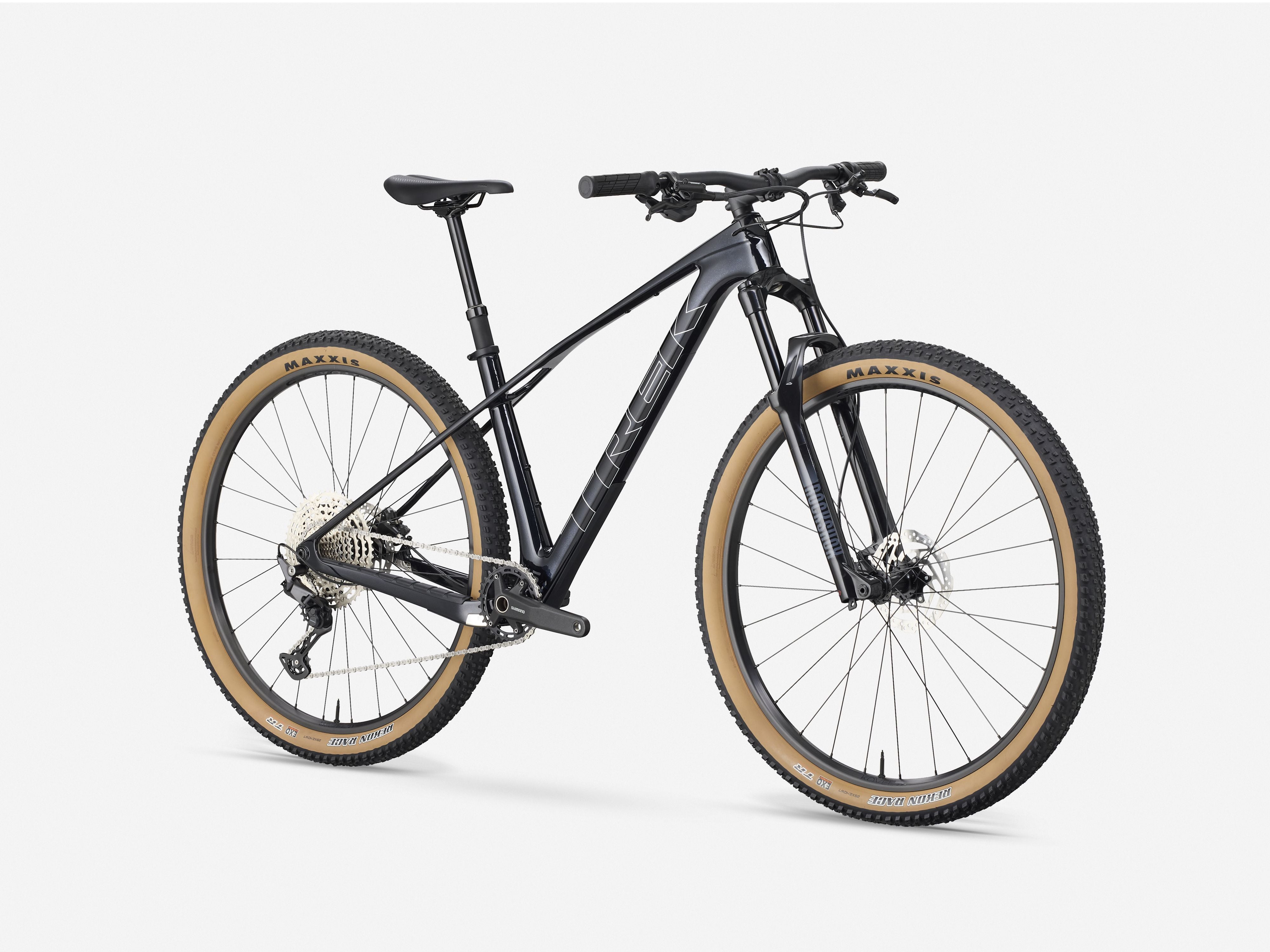

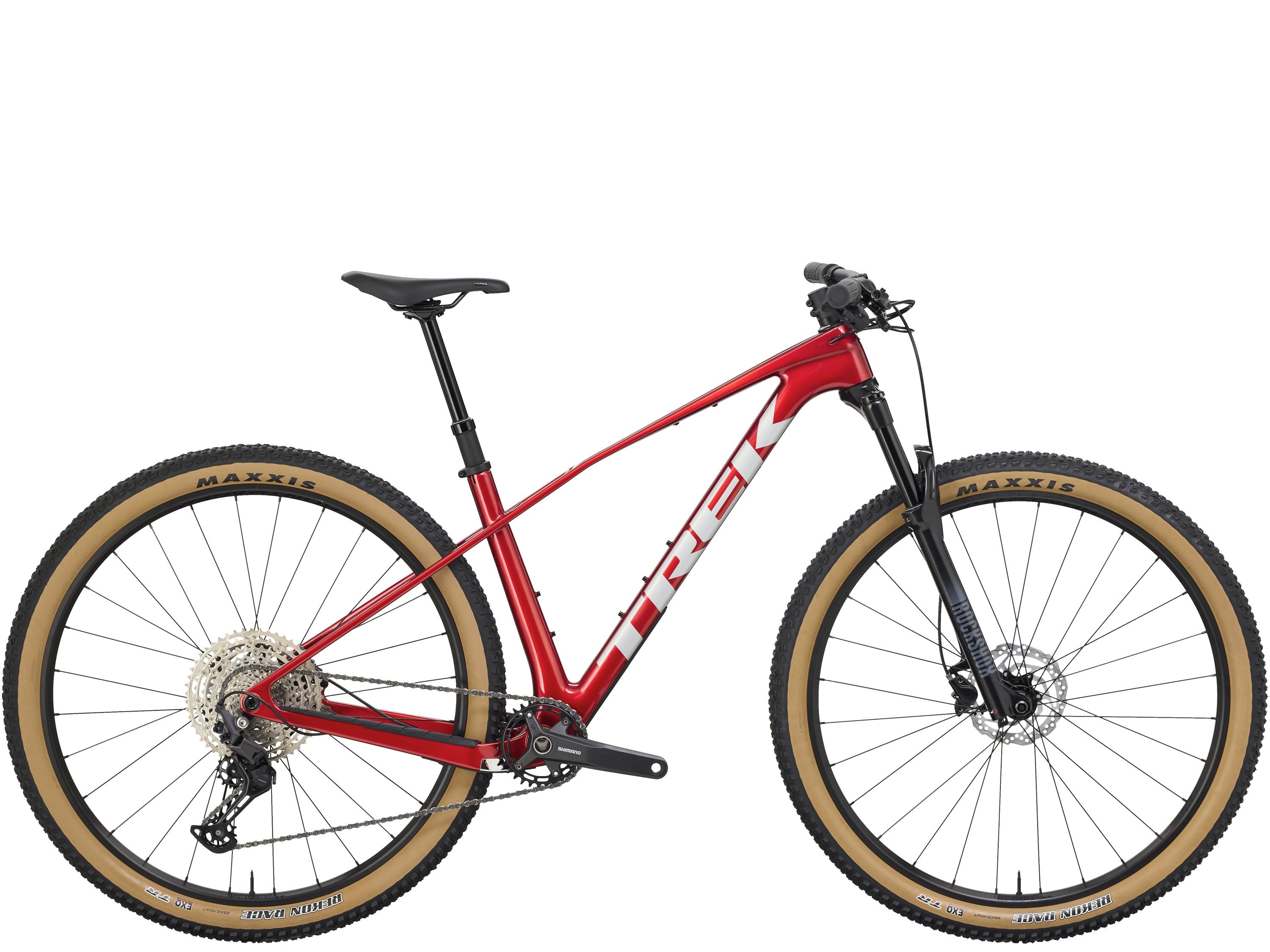

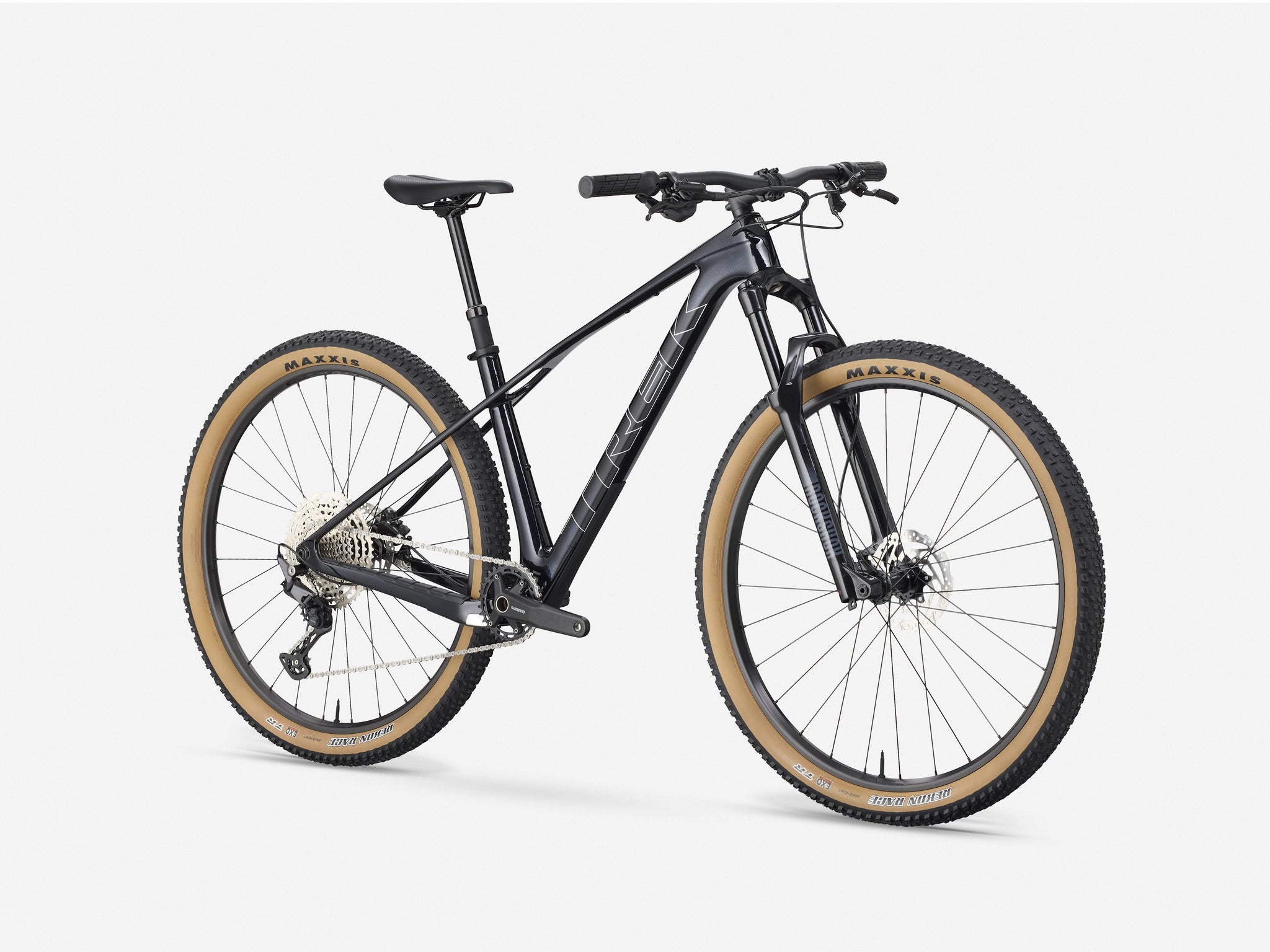

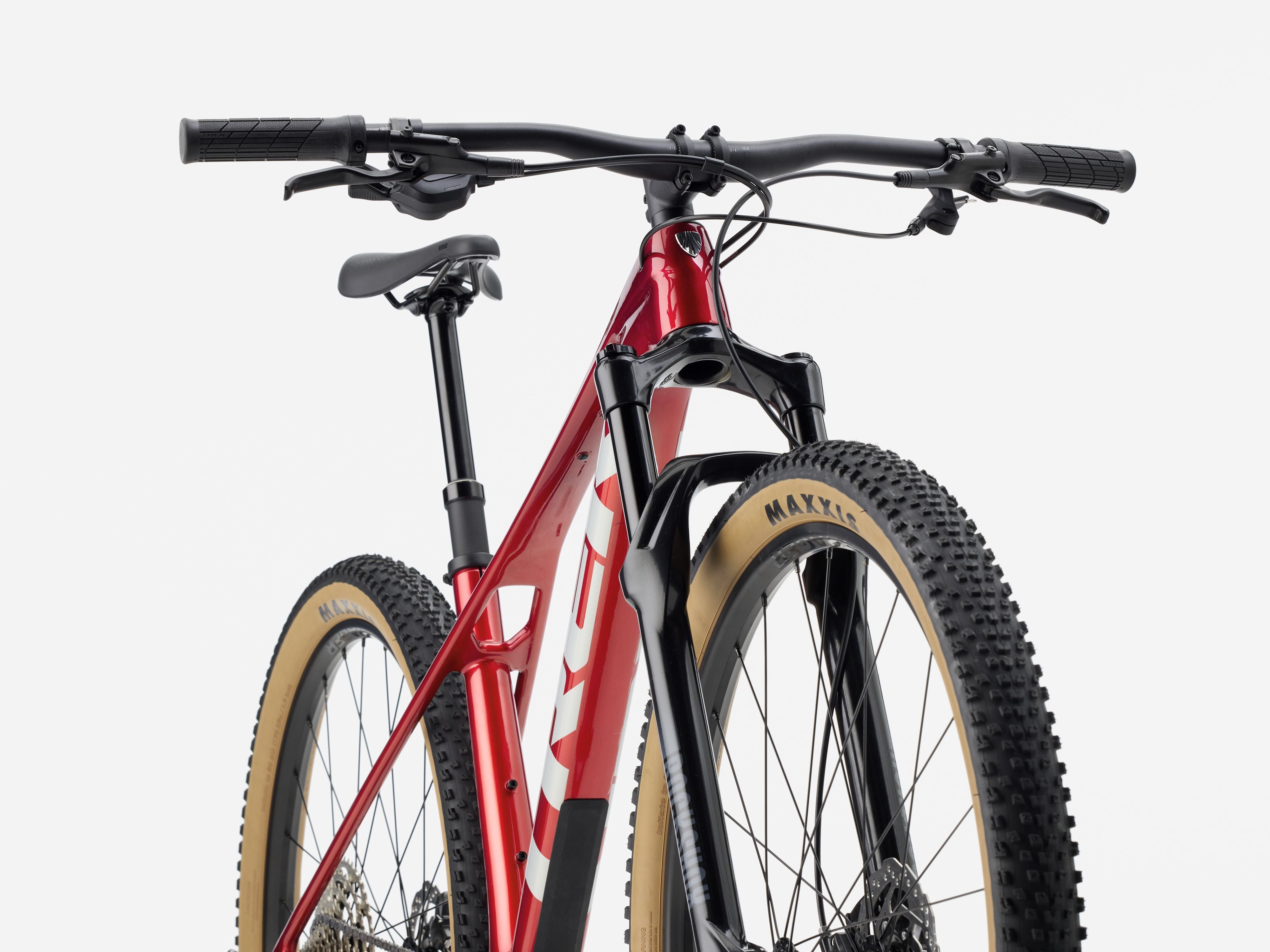

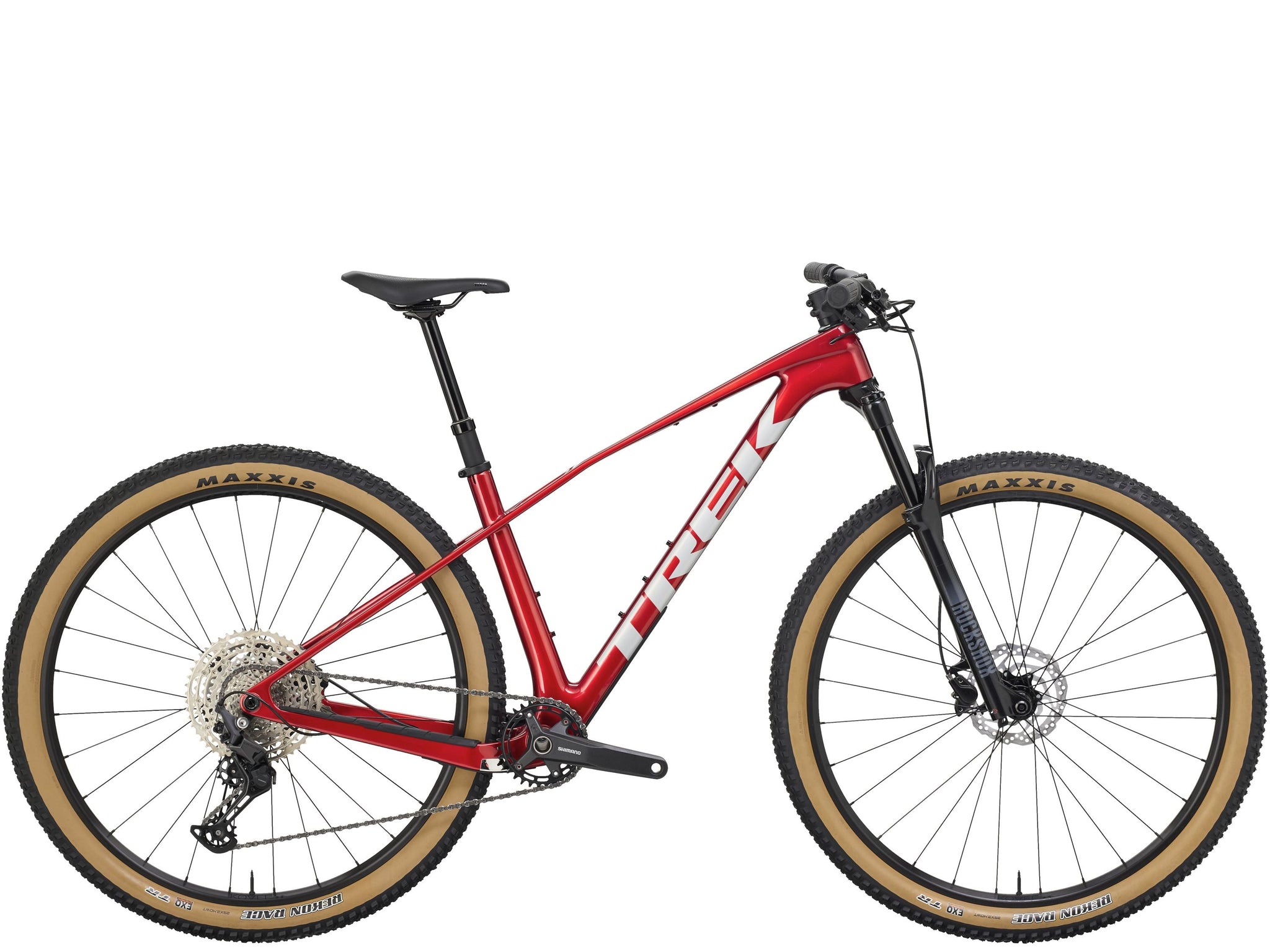

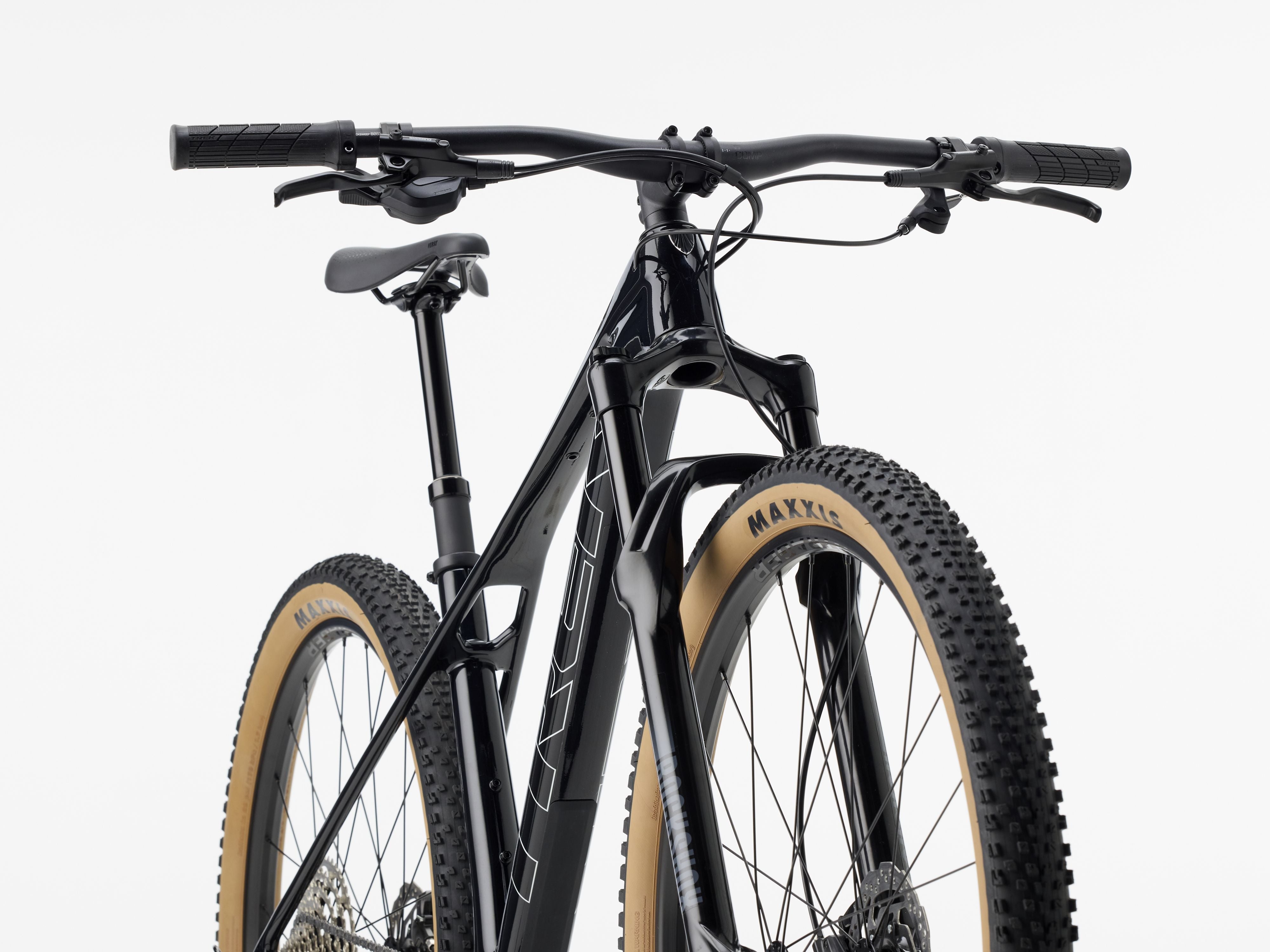

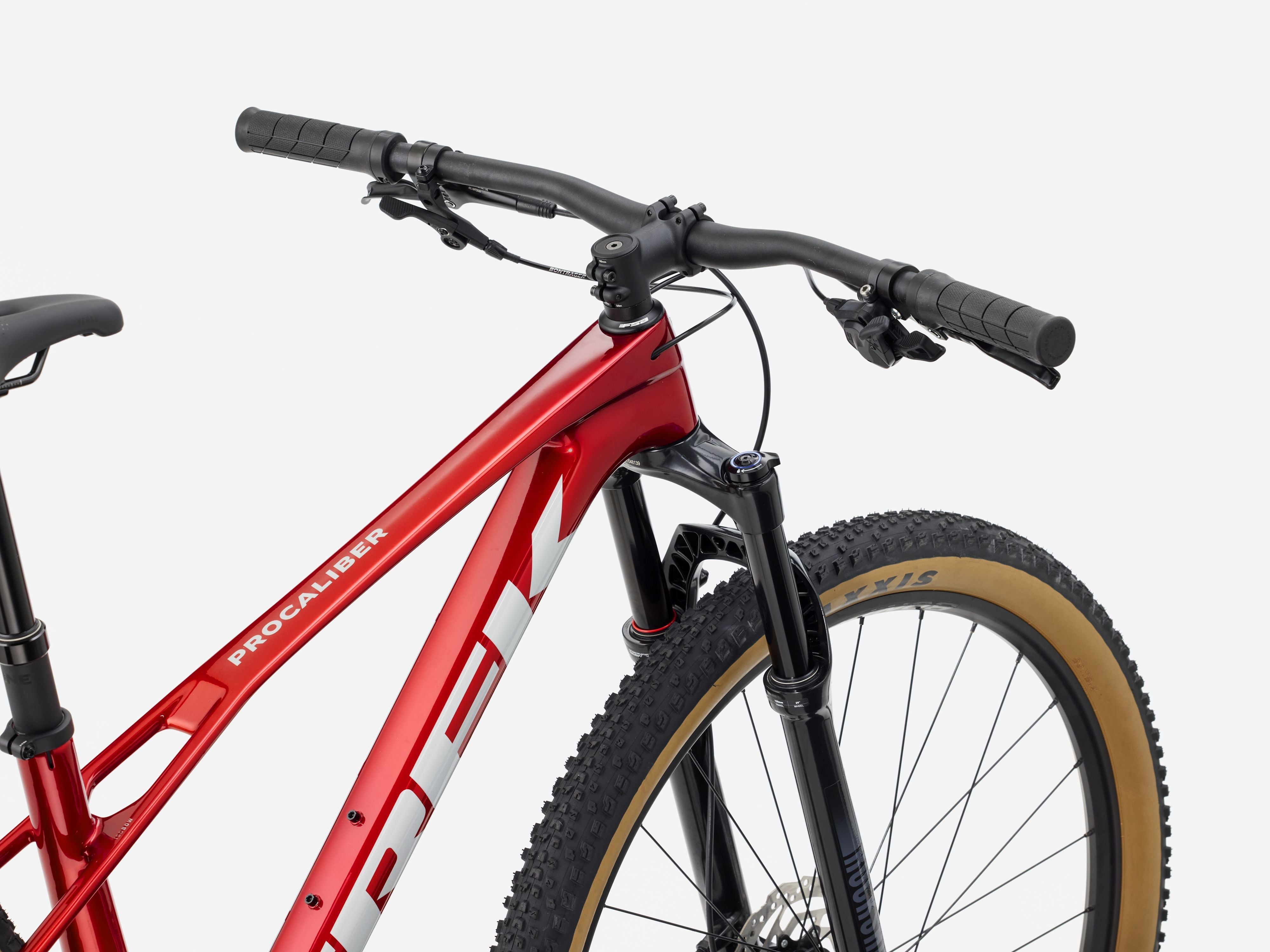

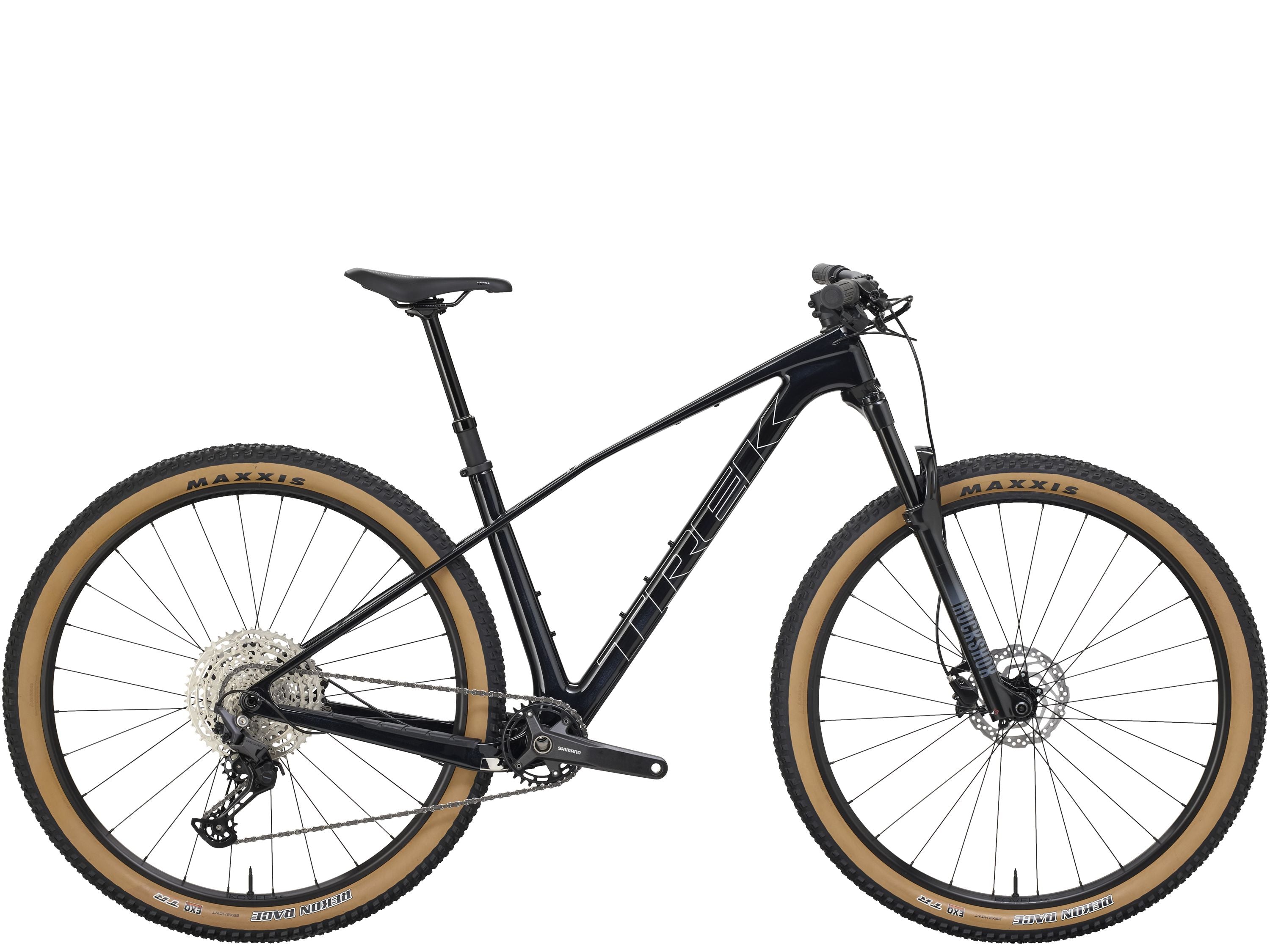

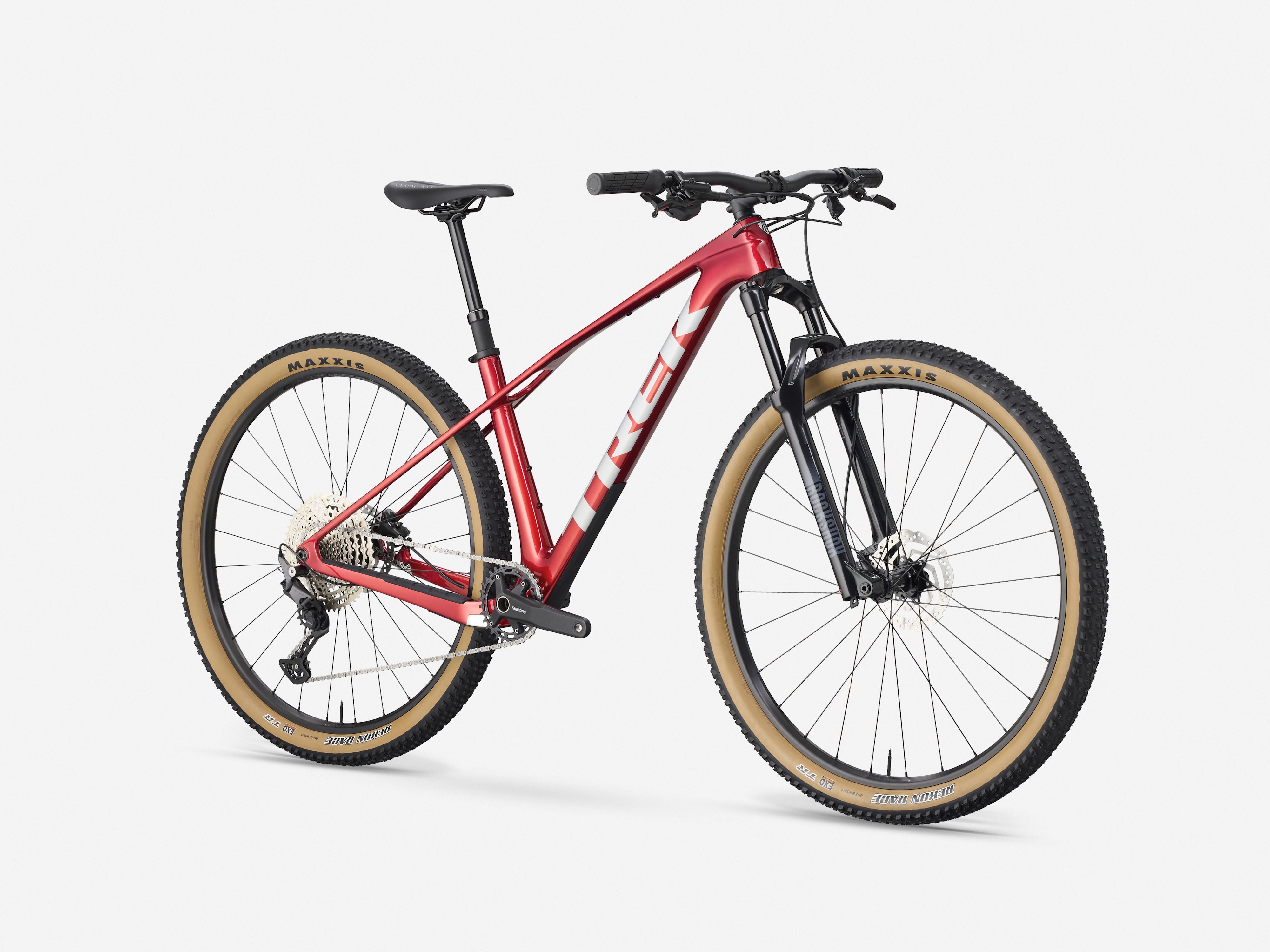

Procaliber 9.5 Gen 3
Procaliber 9.5 is a race-ready carbon hardtail ready to rocket up singletrack climbs. It features IsoBow vibration-damping tech to smooth out trail chatter, paired with aggressive XC geometry that’s confident, capable, and quick. It's all tied together with a Shimano Deore drivetrain, hydraulic disc brakes, and a 120mm RockShox Judy Gold fork.
Technology

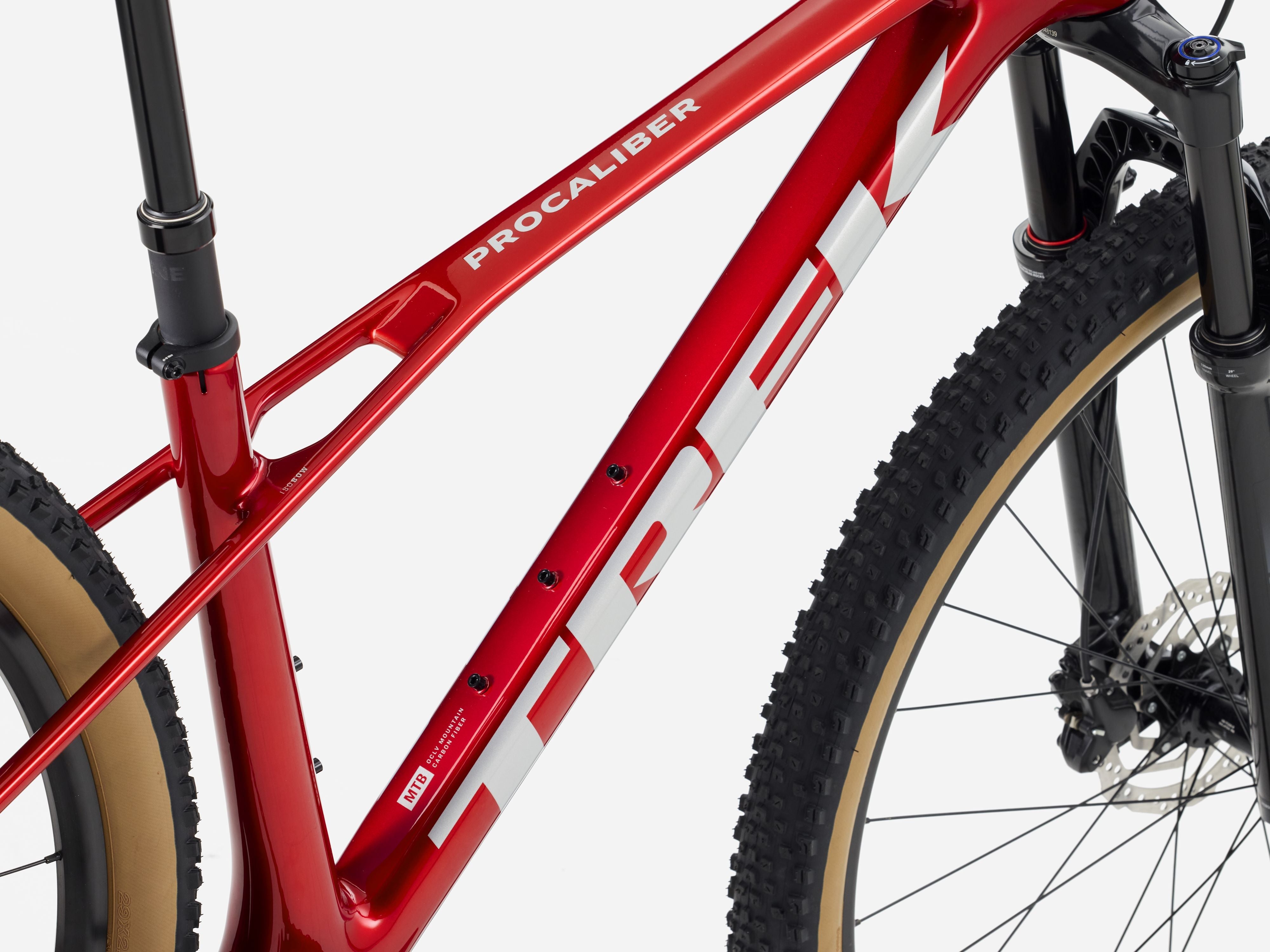

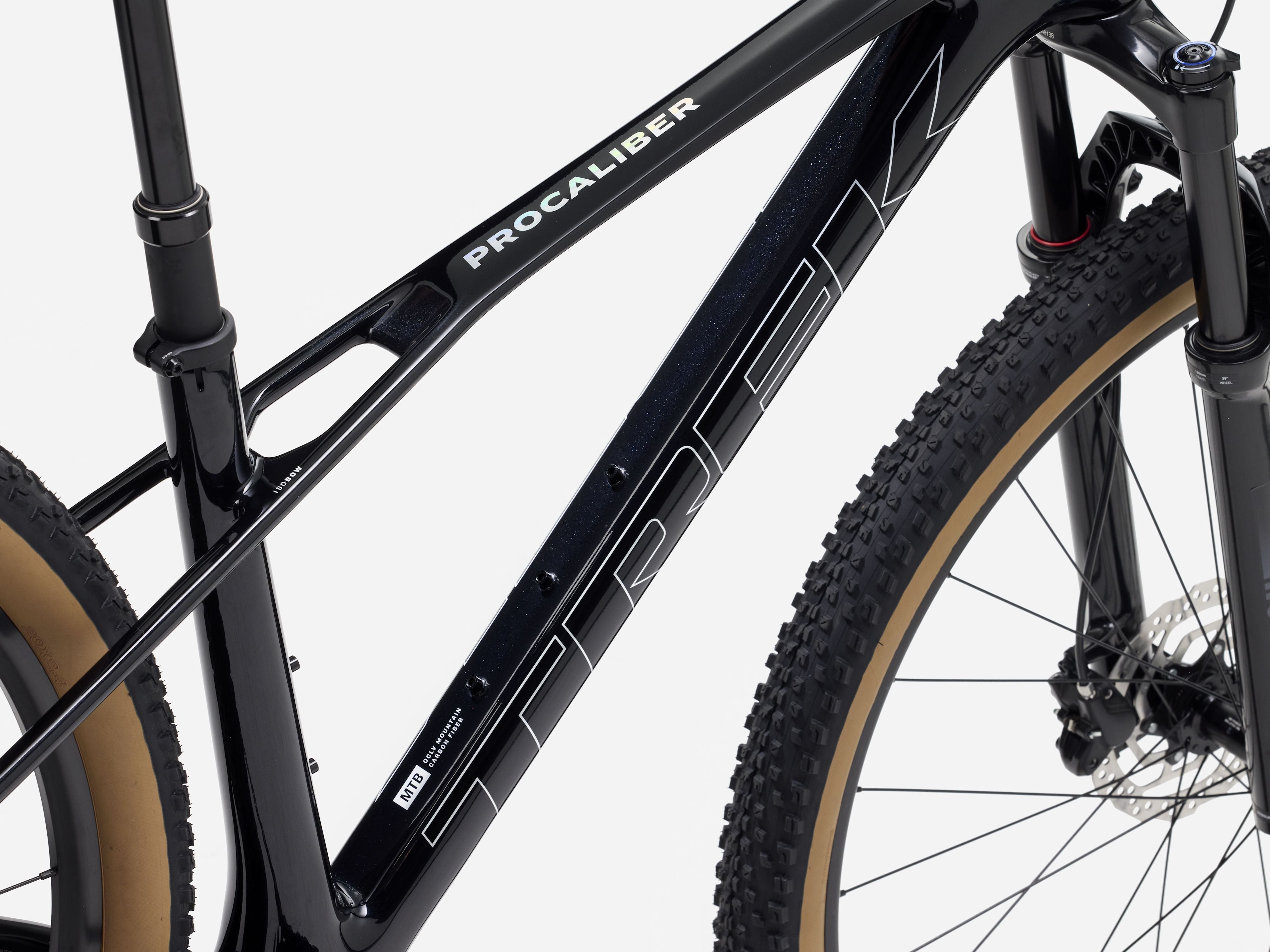

Smooth means fast - Innovative IsoBow frame technology extends Procaliber's seat stays beyond the seat tube, allowing for increased vertical complicane that smooths trail chatter while reducing frame weight.
Specification
| Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, guided internal routing, rack & accessory mounts, balanced post mount brake, UDH, Boost148 |
|---|---|
| Frame Material | CARBON |
| Rim Size | 29 |
| Fork | Fox |
| Fork | Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 120 mm travel |
| Tires | Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40" |
| Hub Front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Hub Rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Rims | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| Shifter | Shimano |

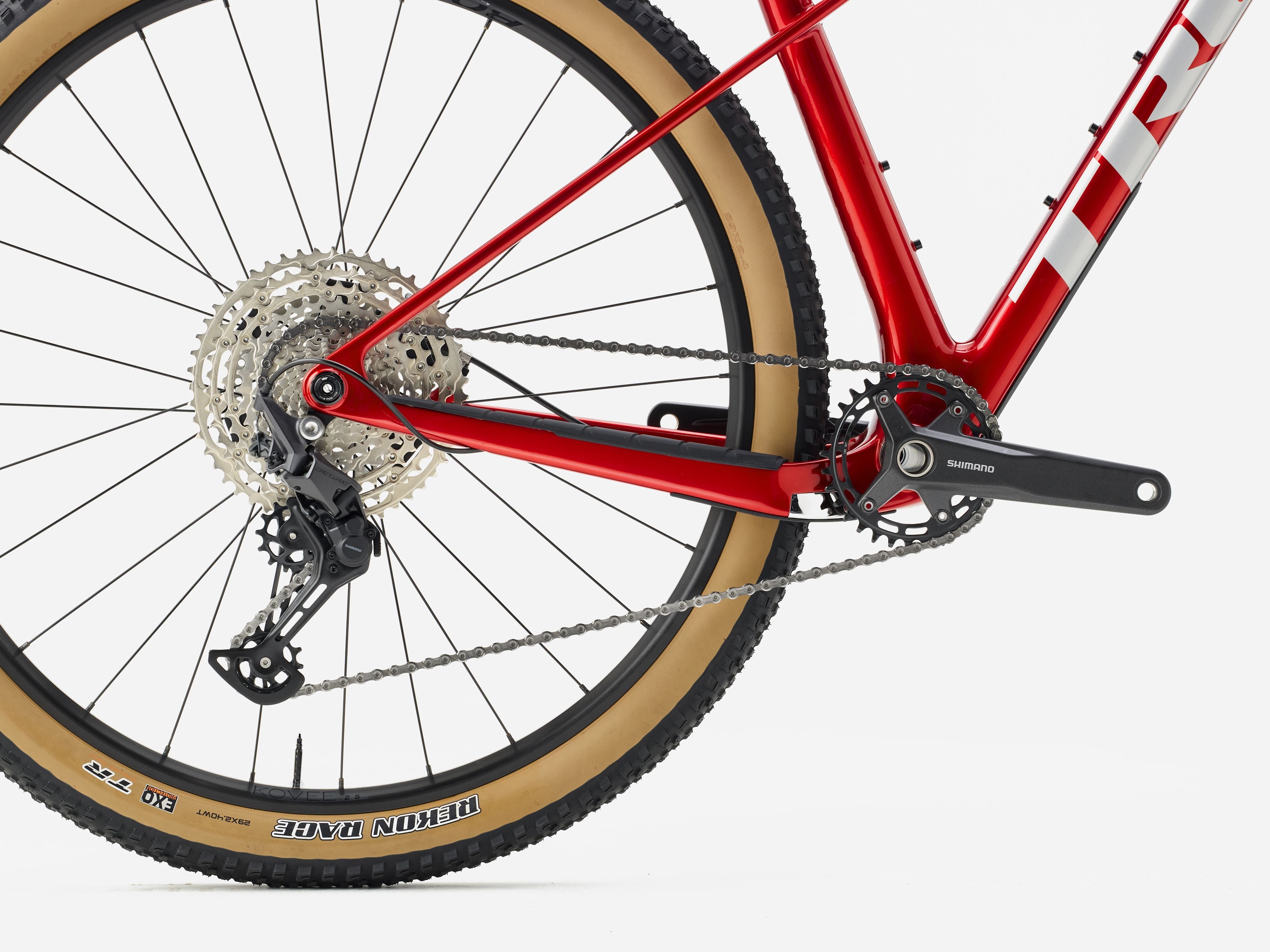

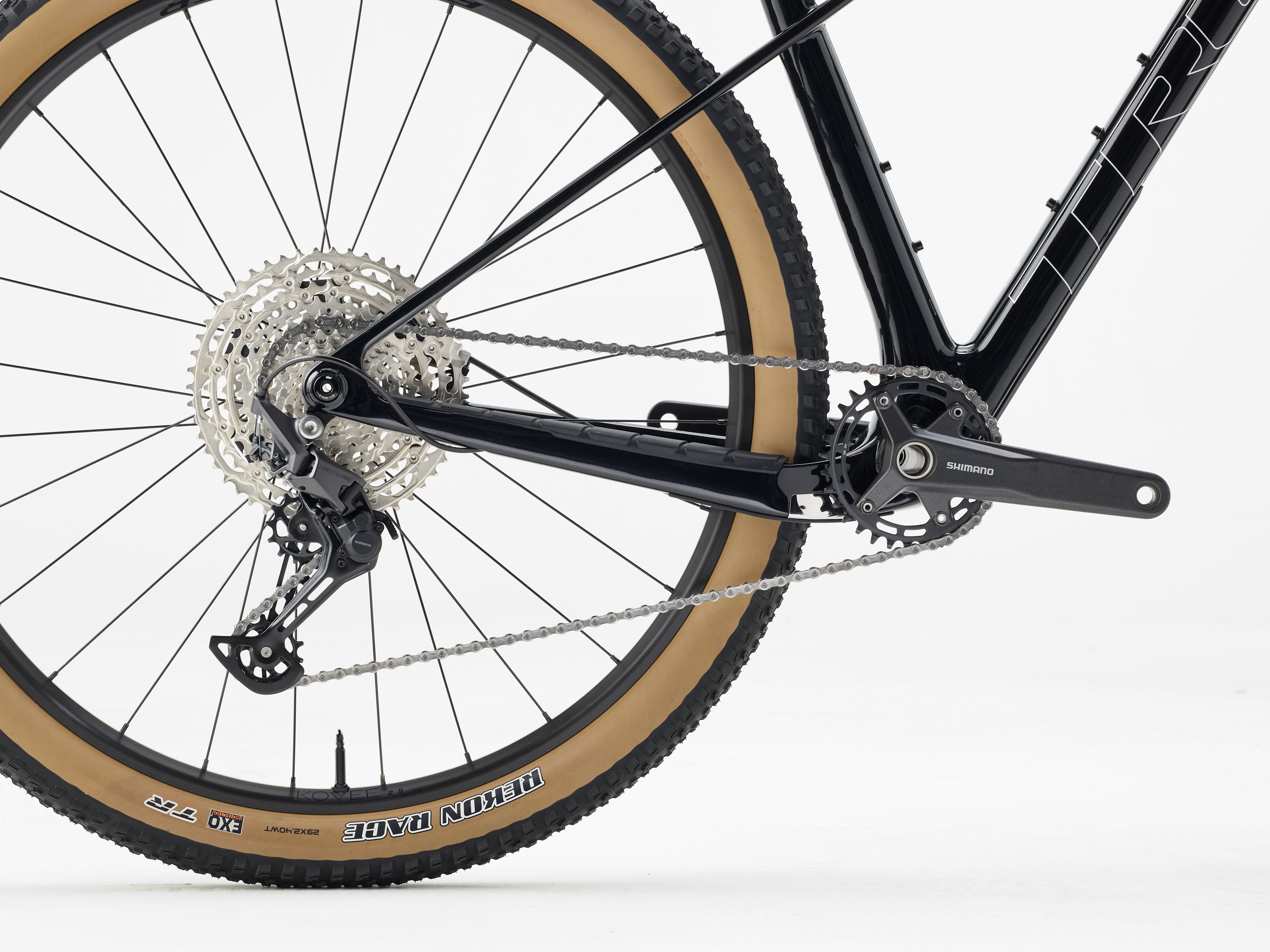

| Derailleur Rear | Shimano Deore M6200, long cage |
| Crank | Shimano MT520, 32T, 55 mm chainline, 175 mm length |
| Bottom Bracket | Shimano MT500, 92 mm, PressFit |
| Cassette | Shimano M6200, 10-51, 12-speed // Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano hydraulic disc, MT4100 lever, MT410 calliper // Shimano hydraulic disc, MT4100 lever, MT410 calliper // Shimano MT200 hydraulic disc // Shimano MT200 hydraulic disc // Shimano hydraulic disc, MT501 lever, MT500 caliper // Shimano hydrau |
| Brake Rotor | Shimano RT10, CenterLock, 160 mm // Shimano RT10, CenterLock, 180 mm // Shimano RT10, CenterLock, 160 mm |
| Saddle | Verse Short, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Grips | Trek Line Comp, nylon lock-on |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
