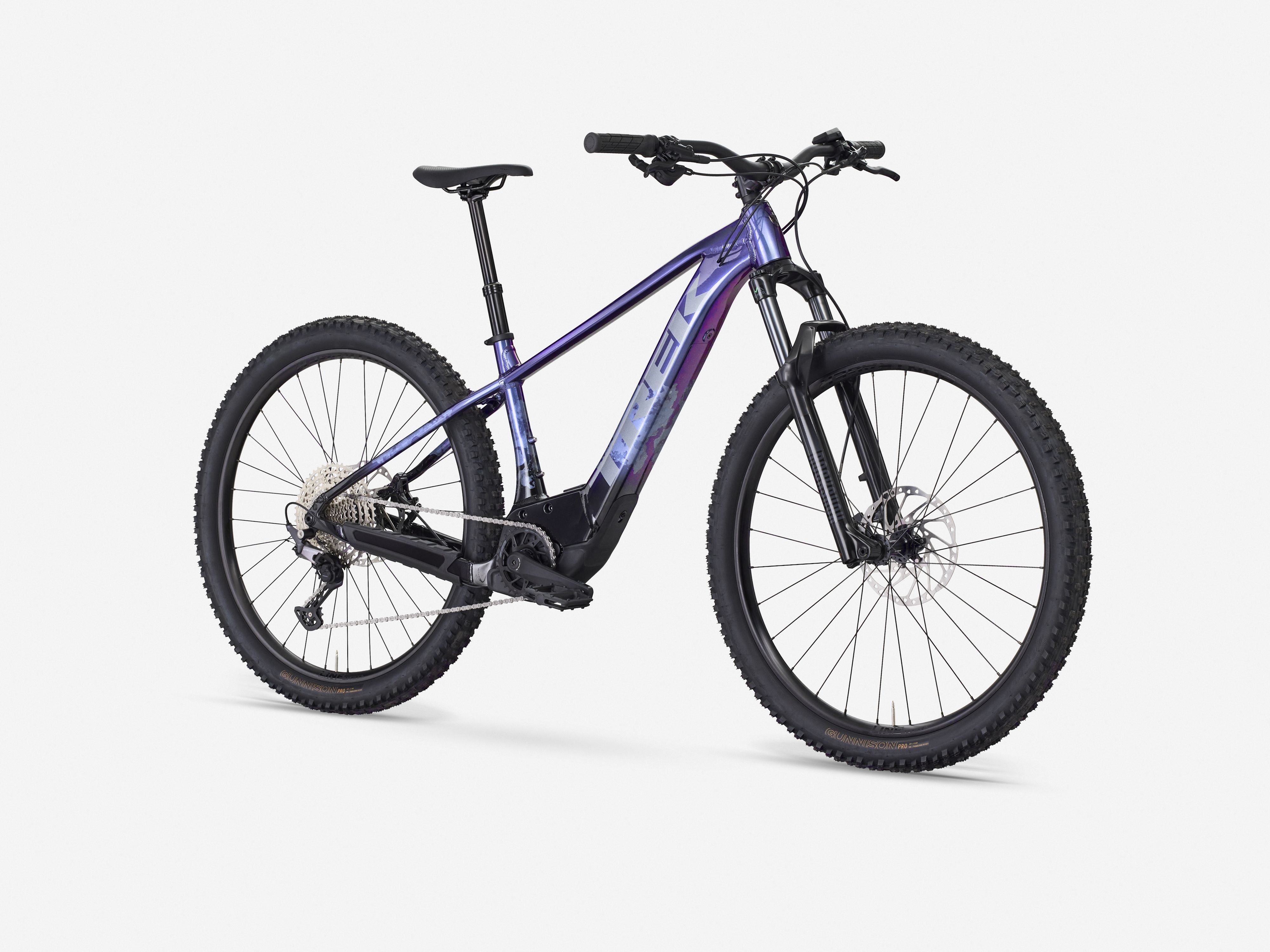

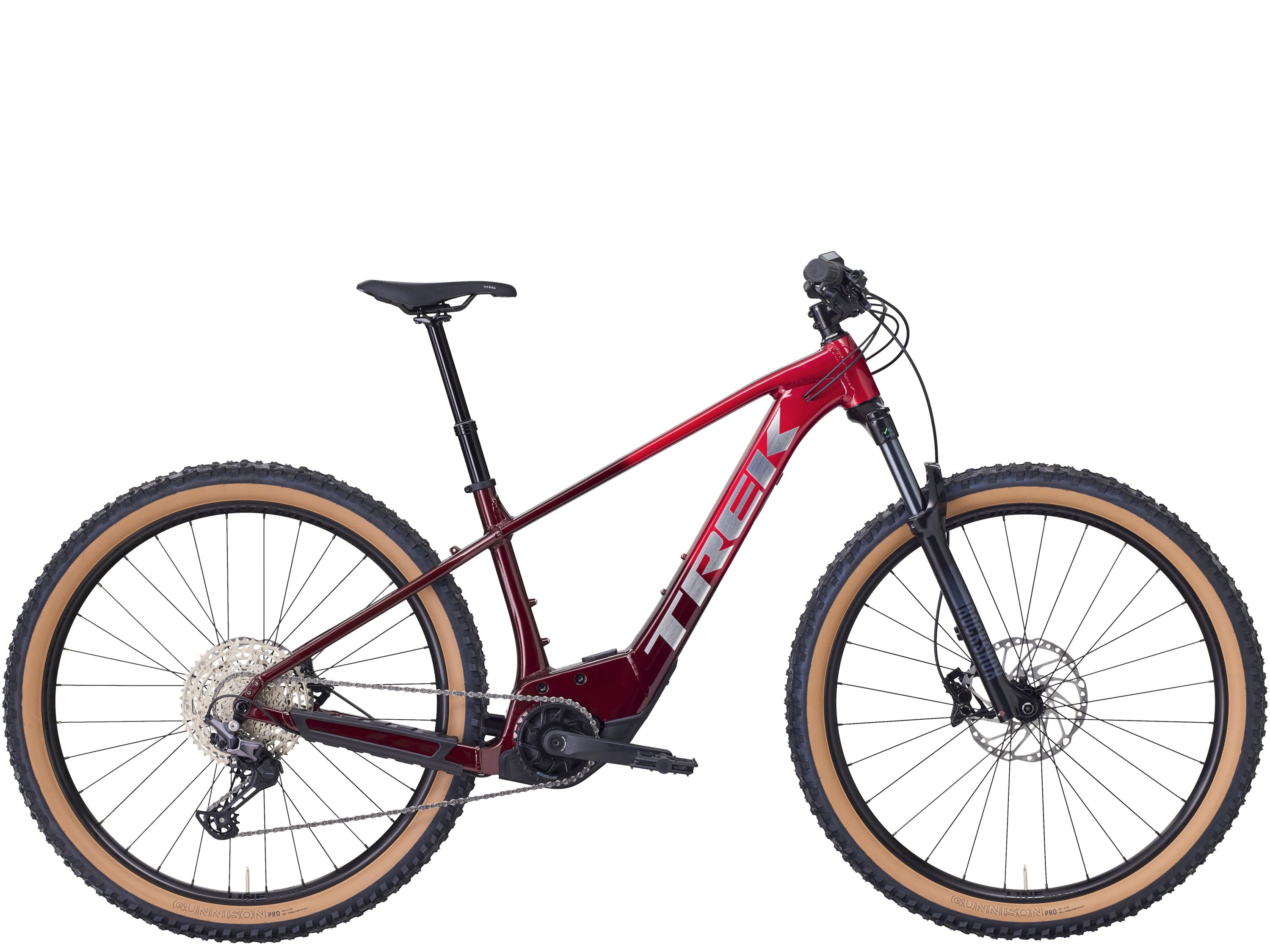

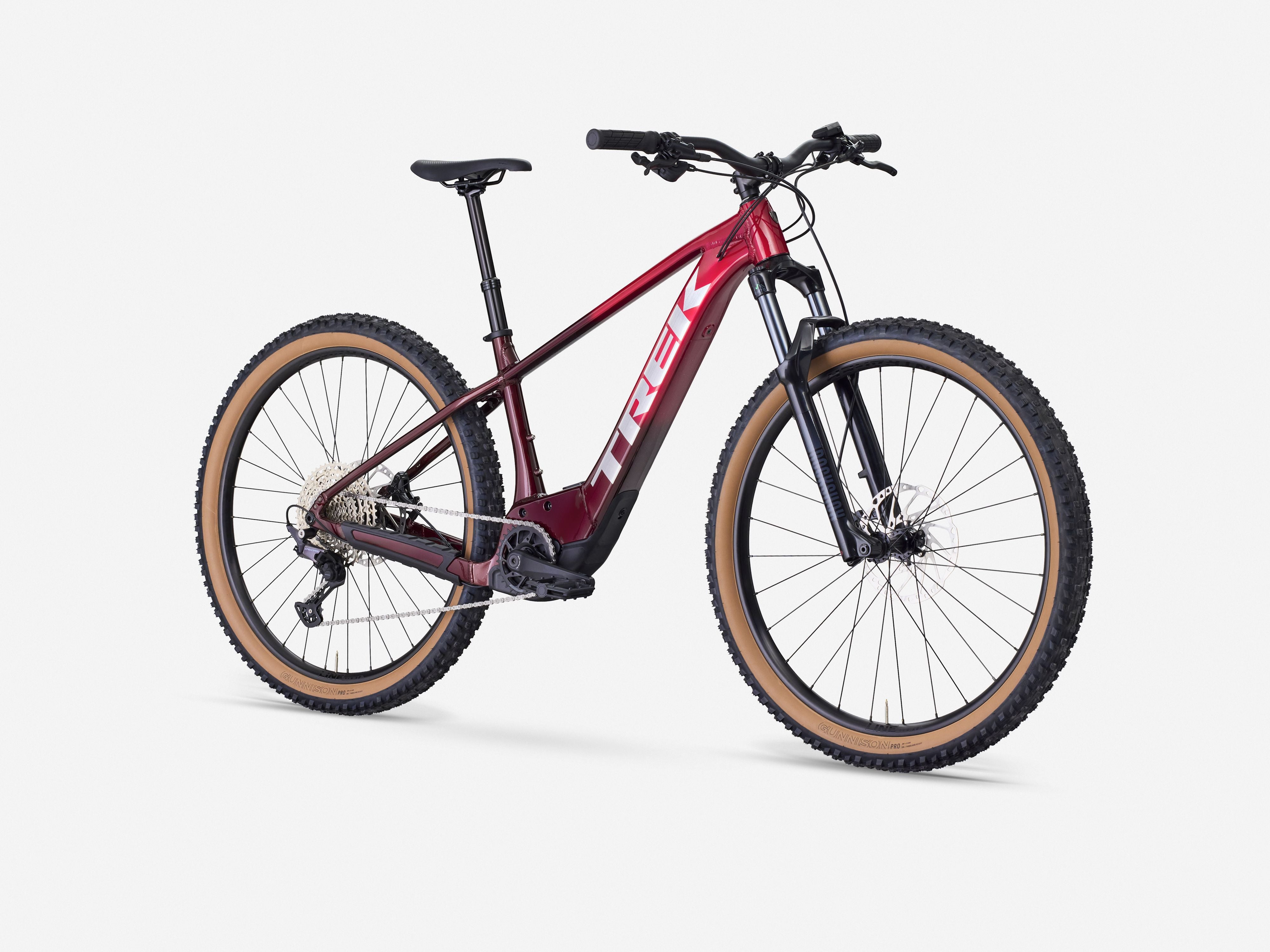

Marlin+ 8
The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.
Technology

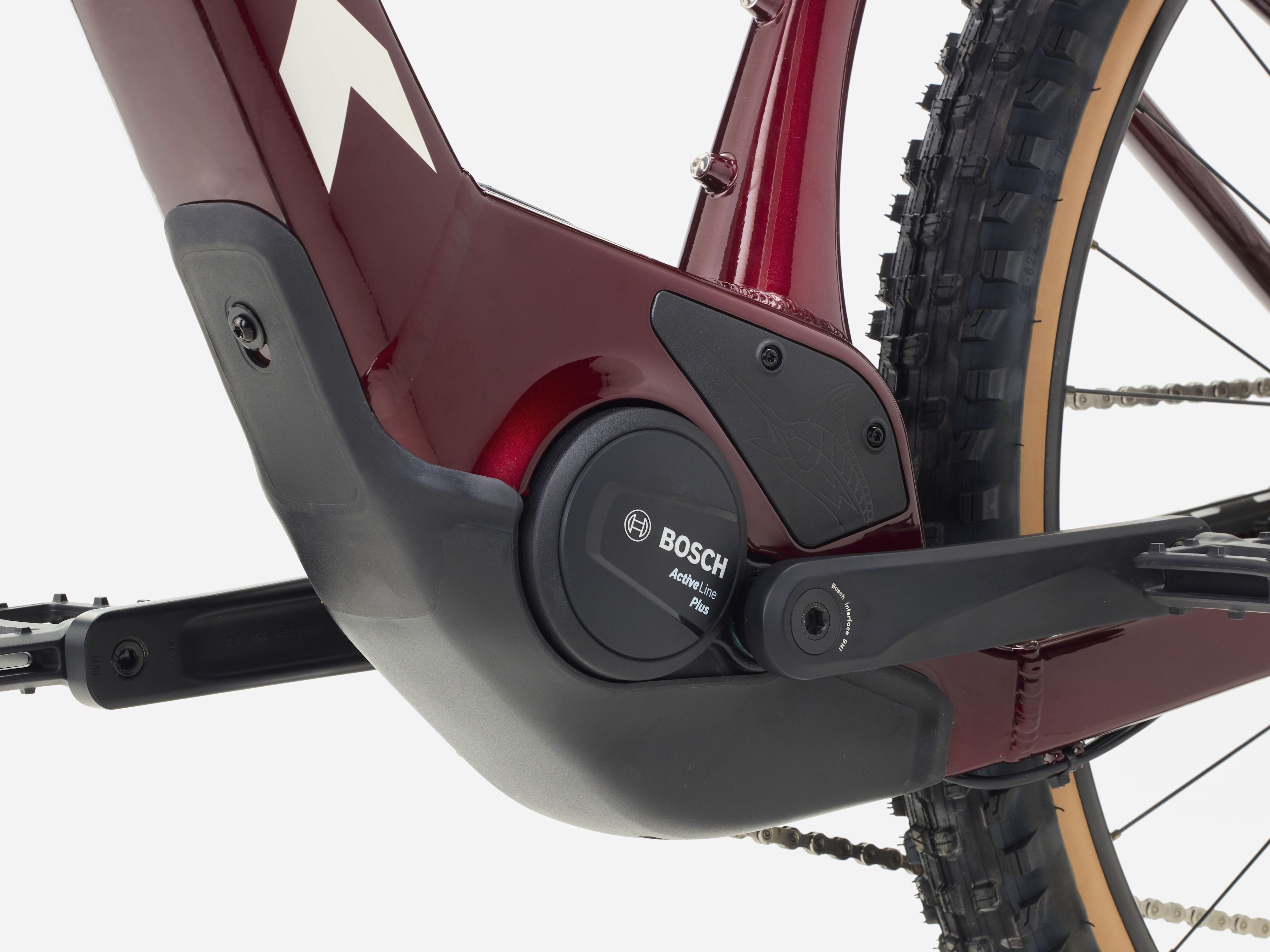

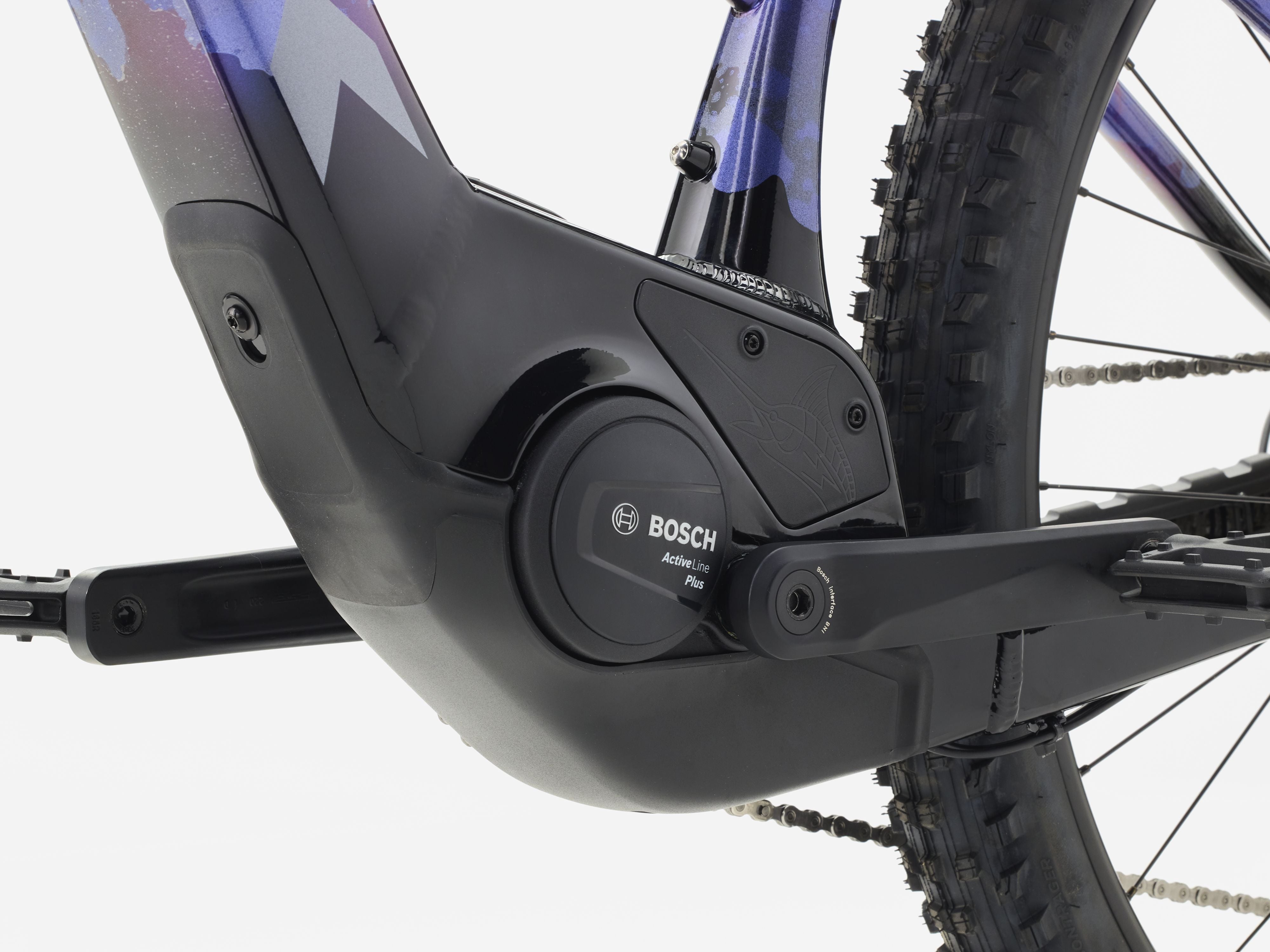

Smooth, quiet support - Bosch Active Line Plus mid-power motor doles out a smooth 50 Nm of torque. Its controlled acceleration, low pedal resistance and super-quiet operation give you a natural-feeling, unobtrusive ride.
Specification
| Frame | Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |

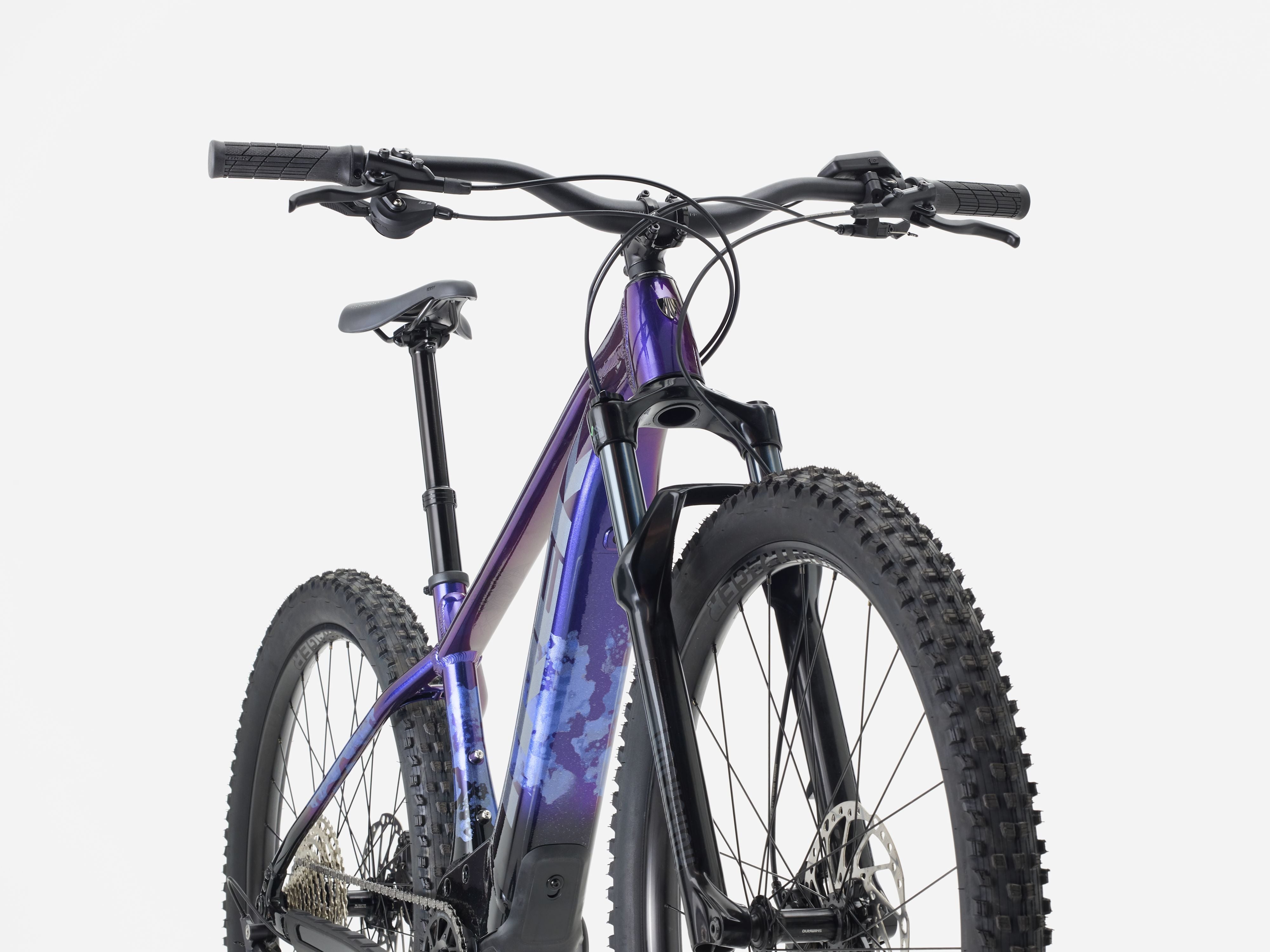

| Fork | RockShox |

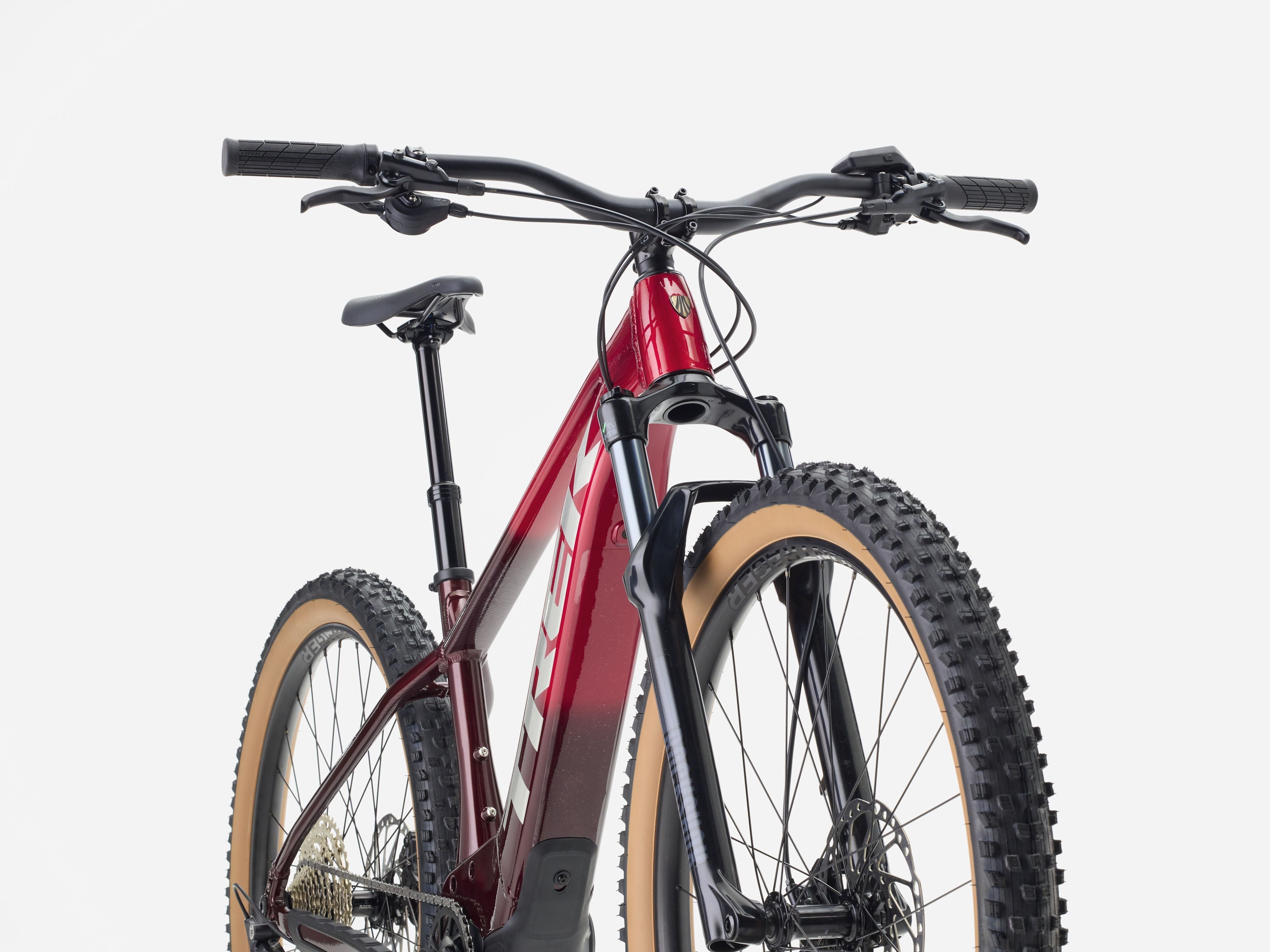

| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tap |
| Tires | Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60" |
| Hub Front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Hub Rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Shifter | Shimano |

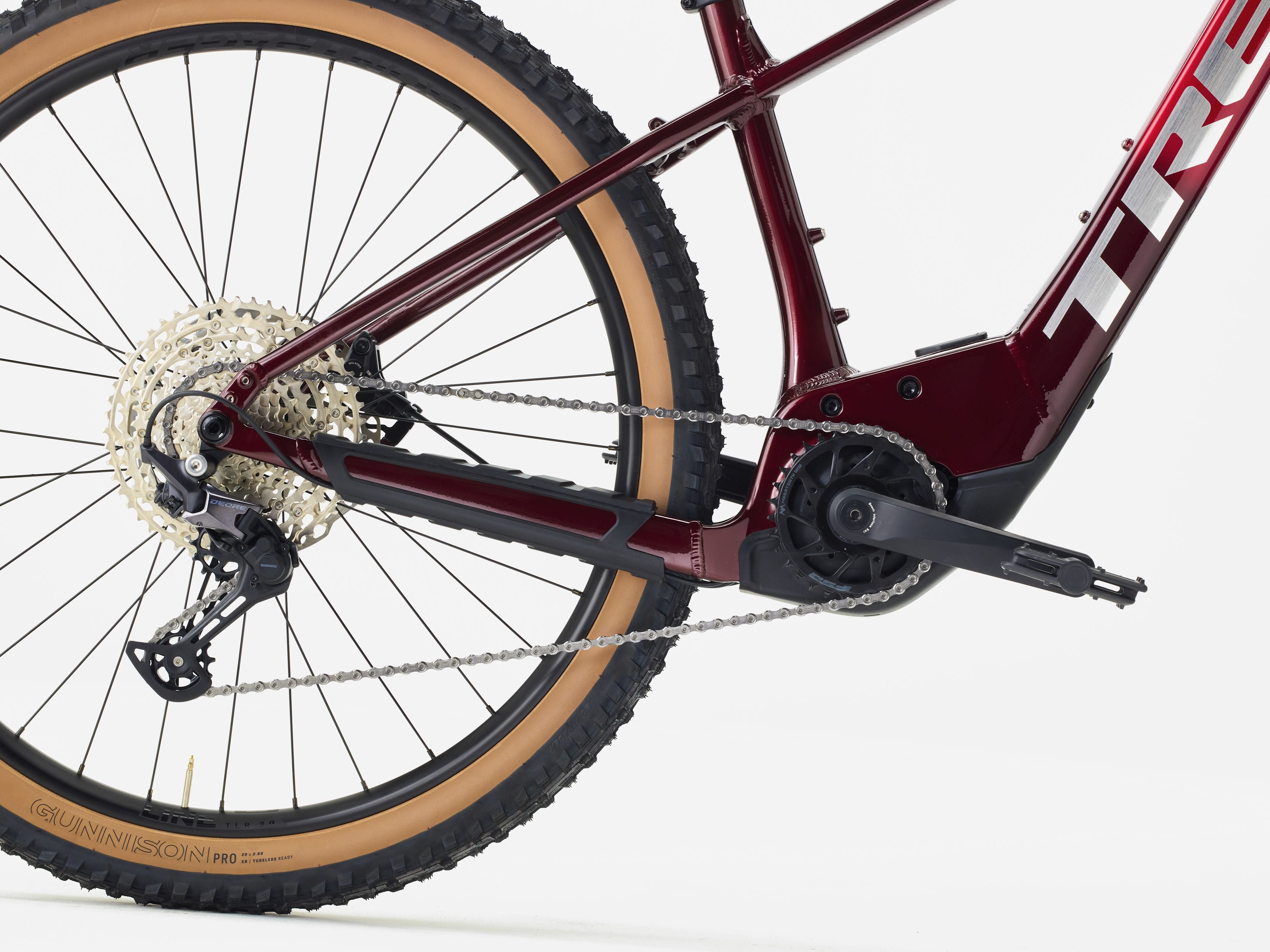

| Derailleur Rear | Shimano Deore M6100, long cage |
| Crank | FSA CK-220, 165 mm length |

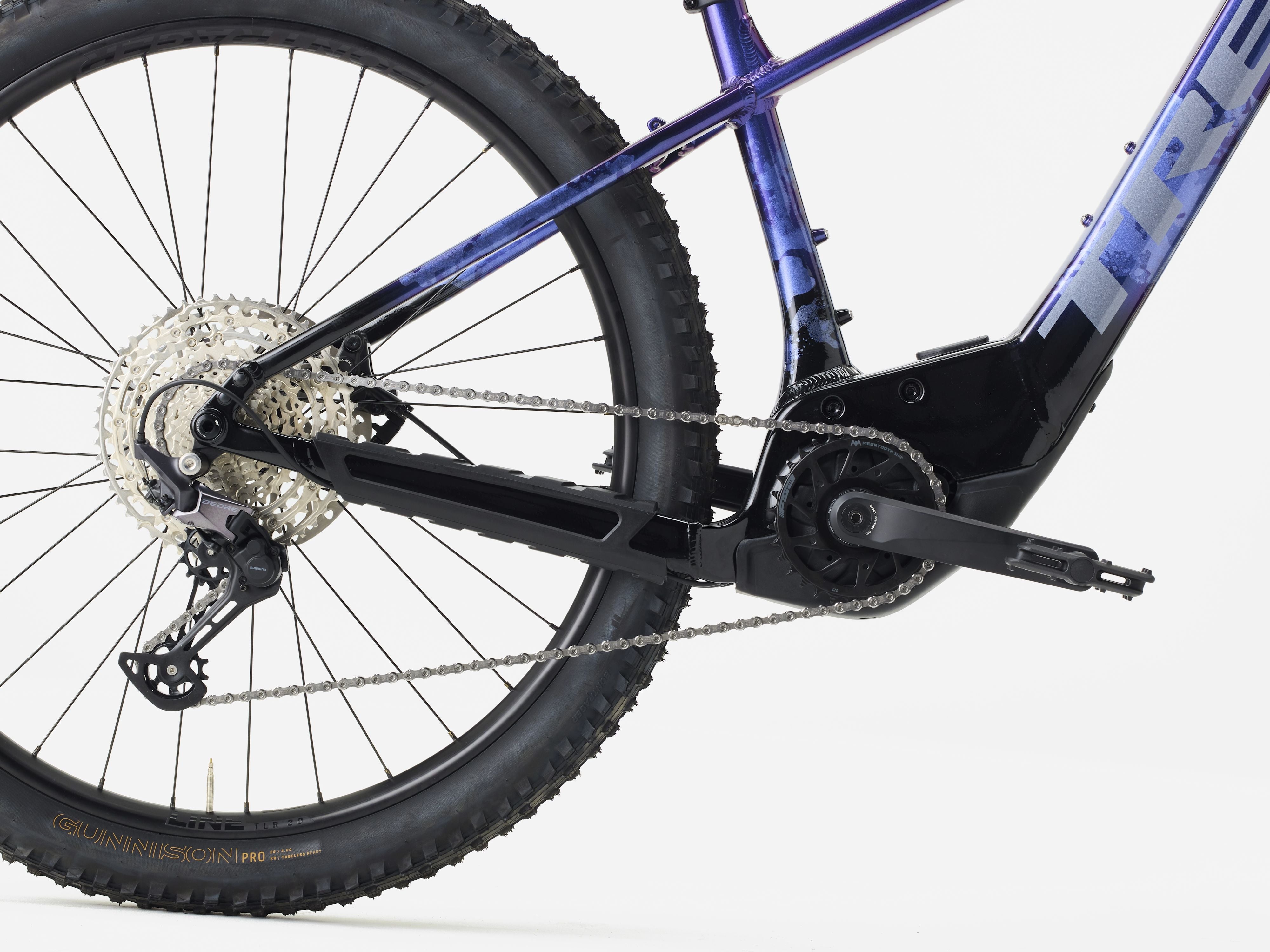

| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 |
| Brake Rotor | Shimano RT64, CentreLock, 203 mm // Shimano RT64, CentreLock, 203 mm |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length |

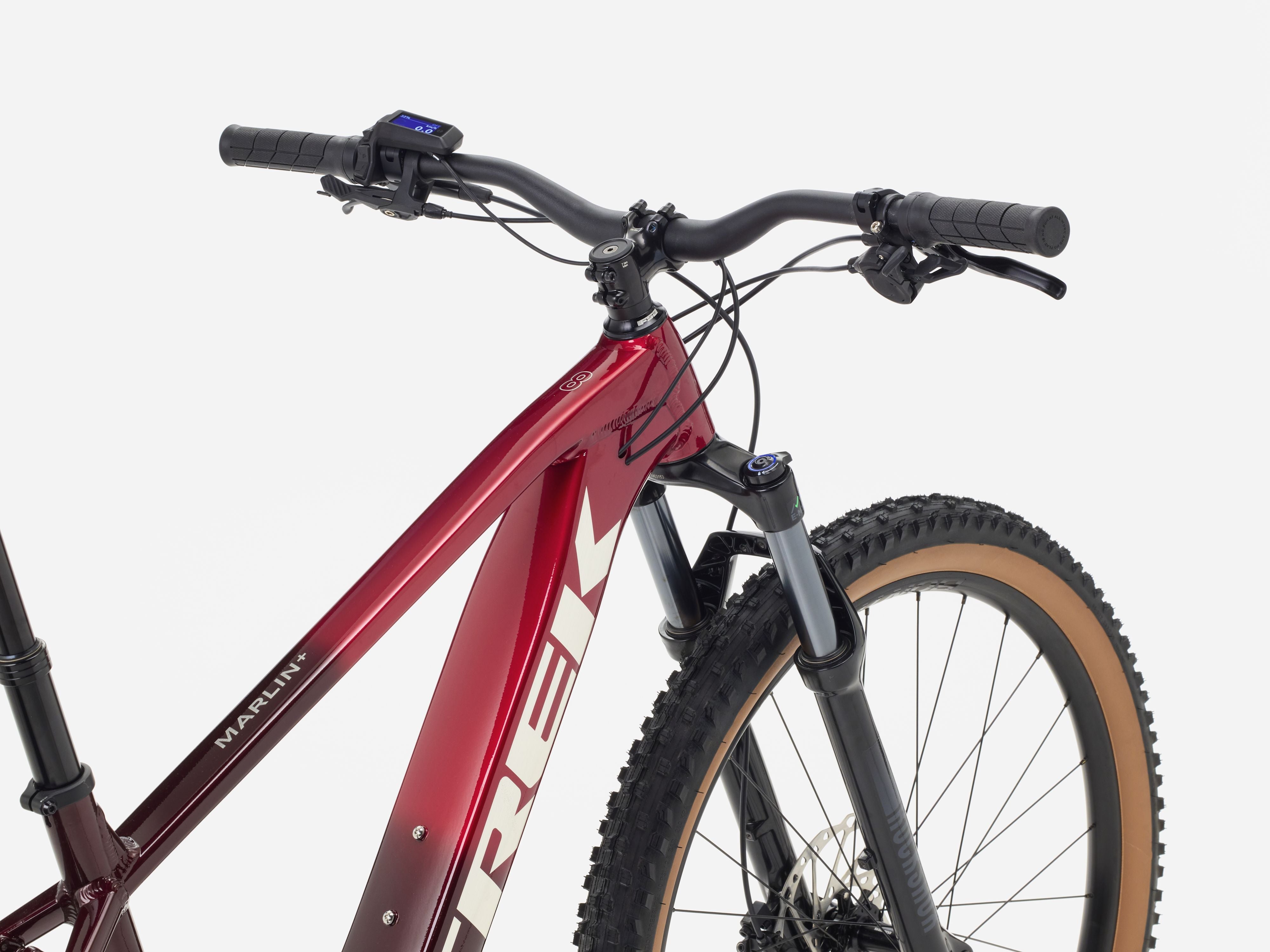

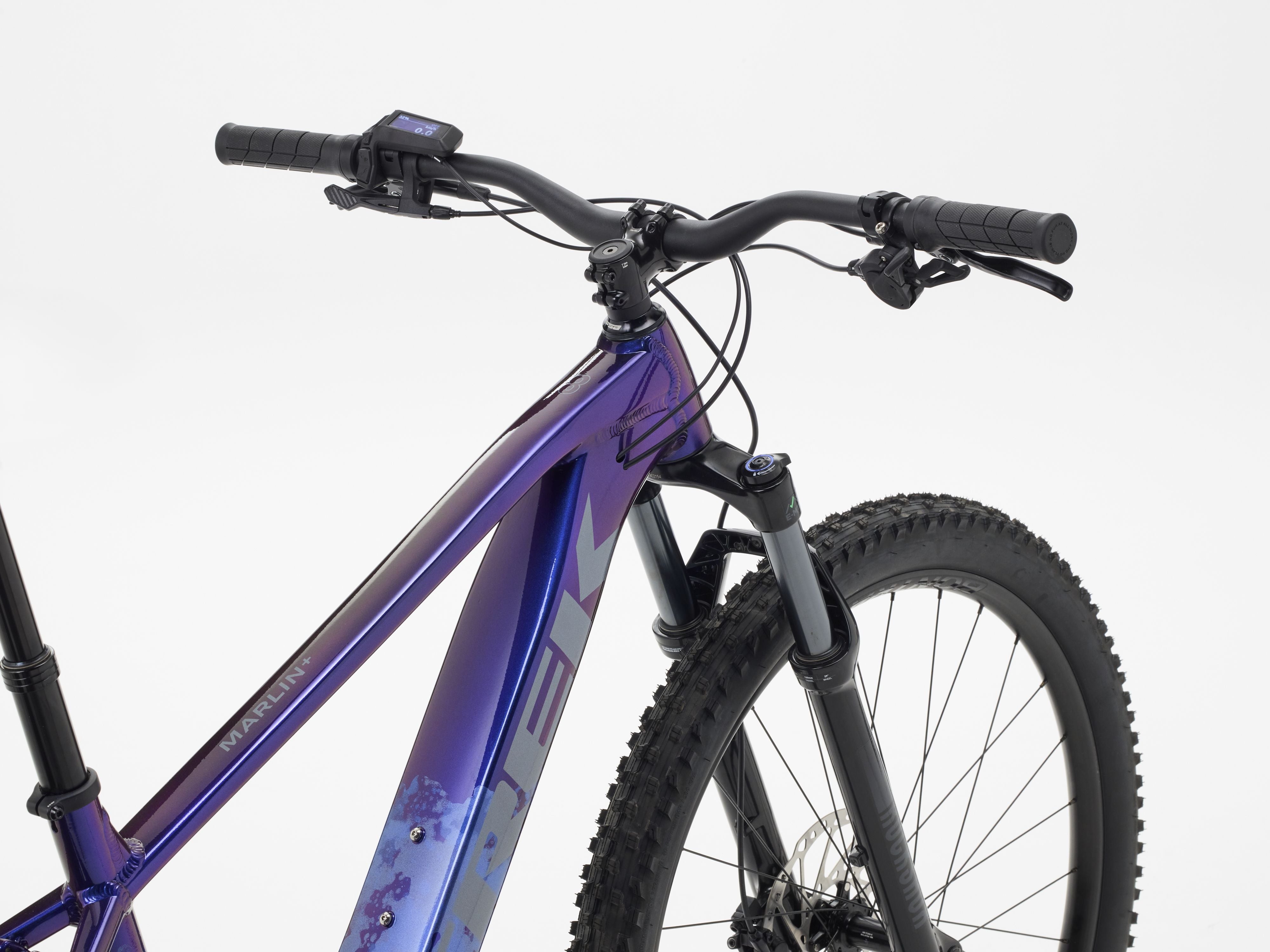

| Handlebar | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Headset | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom |
| Grips | Trek Line Comp, nylon lock-on |
| Battery | Bosch CompactTube 400 Wh Bosch CompactTube 400Wh |
| Controller | Bosch Purion 200 |
| Motor | Bosch Active Line Plus, 50 Nm Bosch Active Line Plus |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
