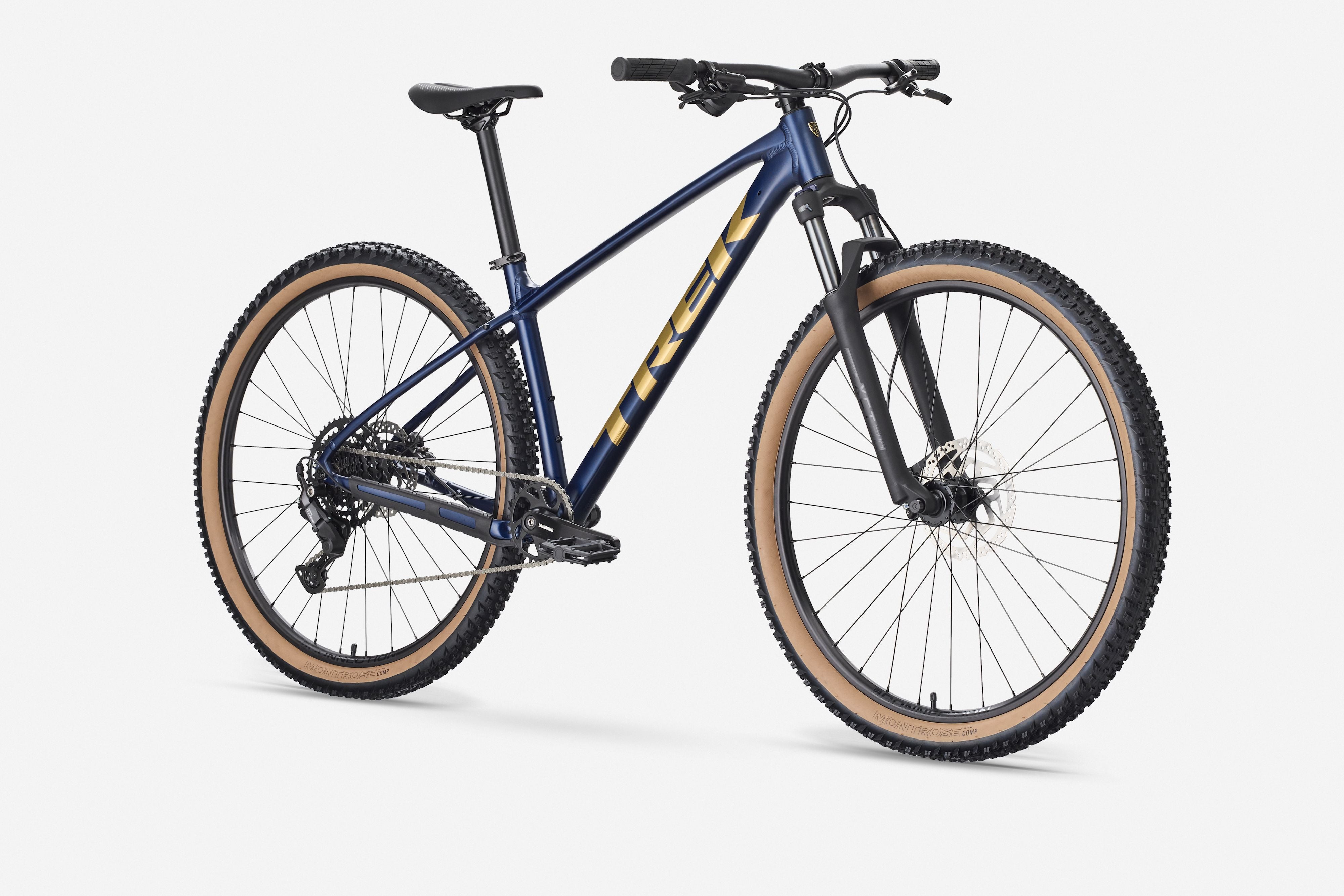

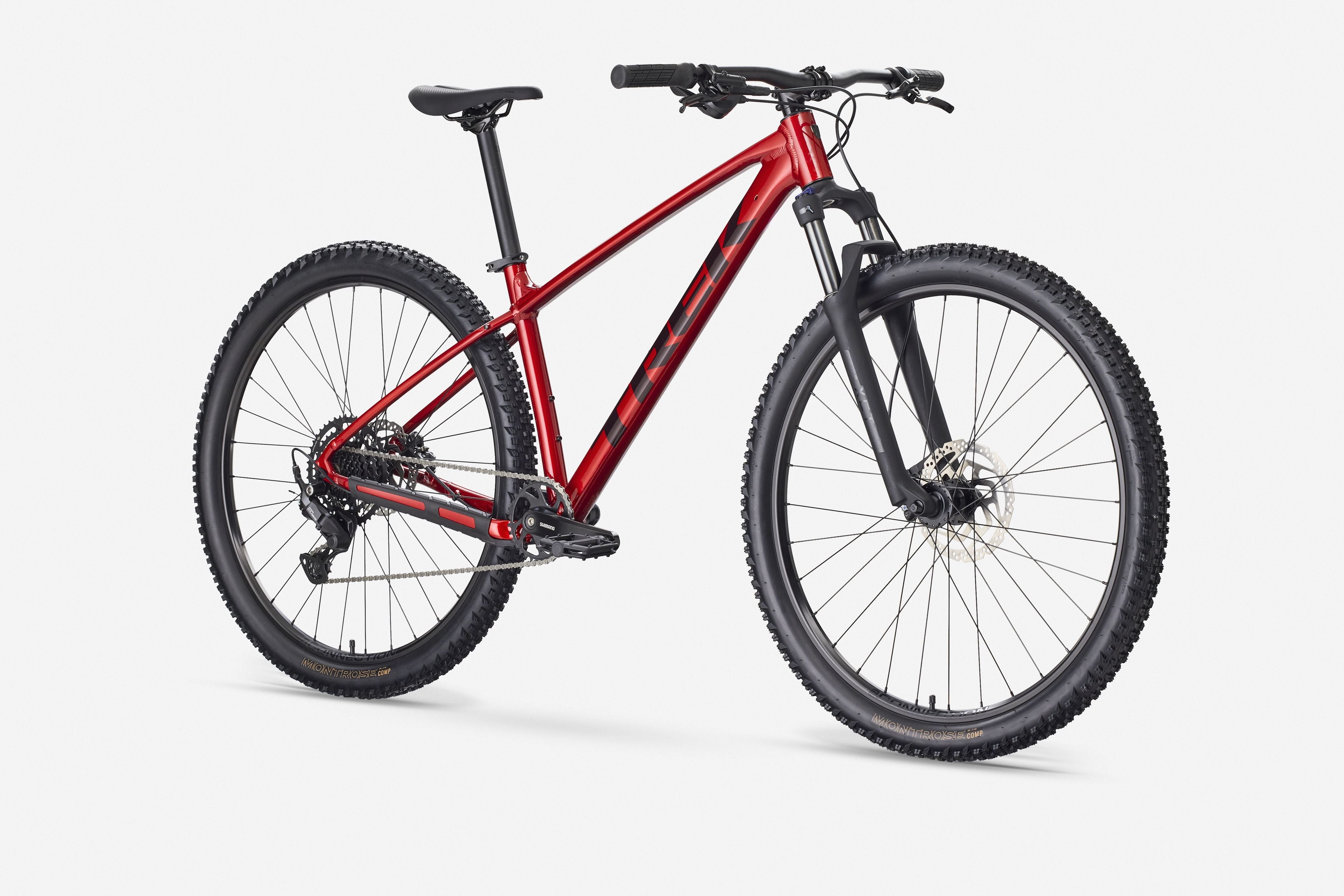

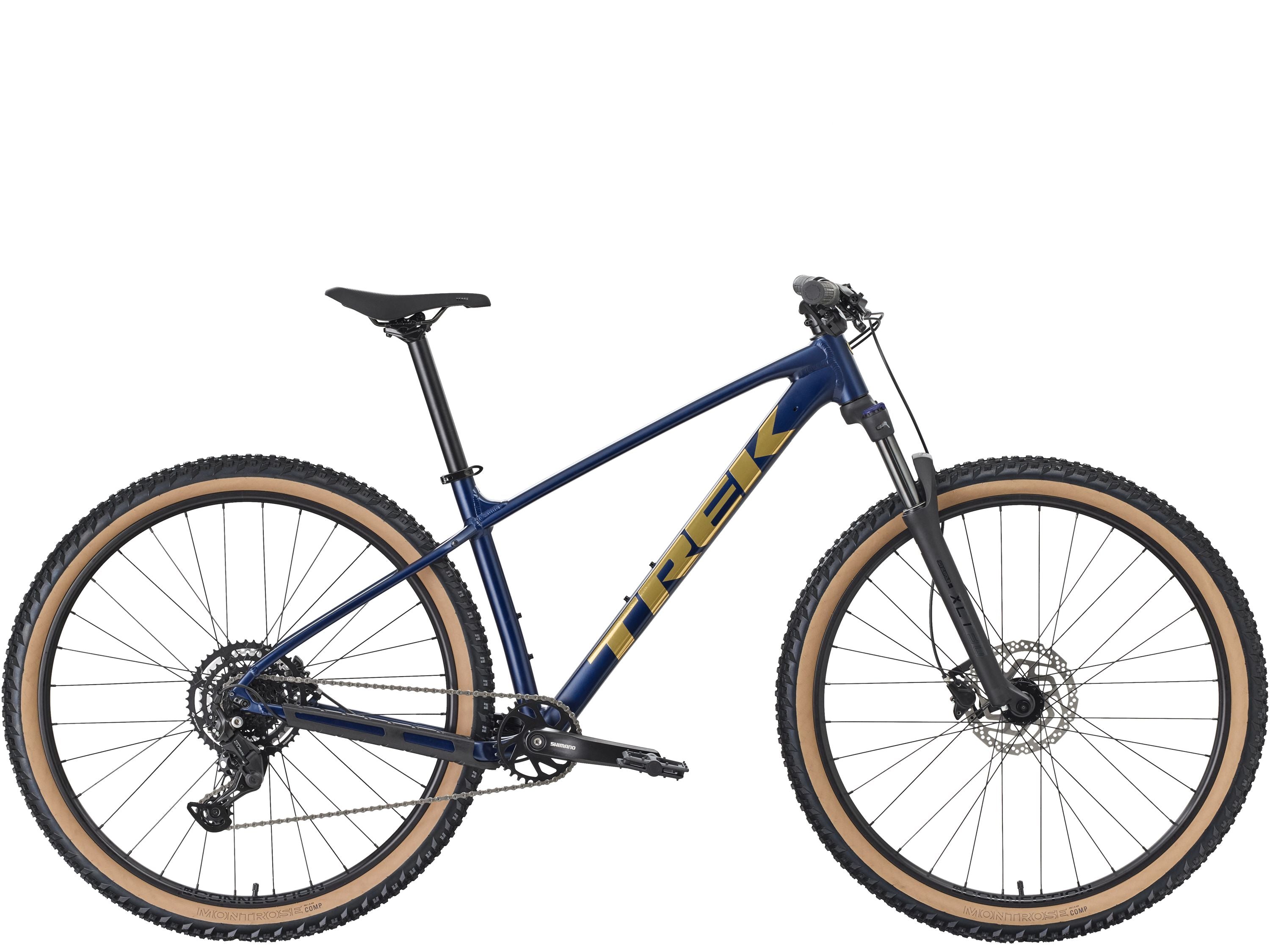

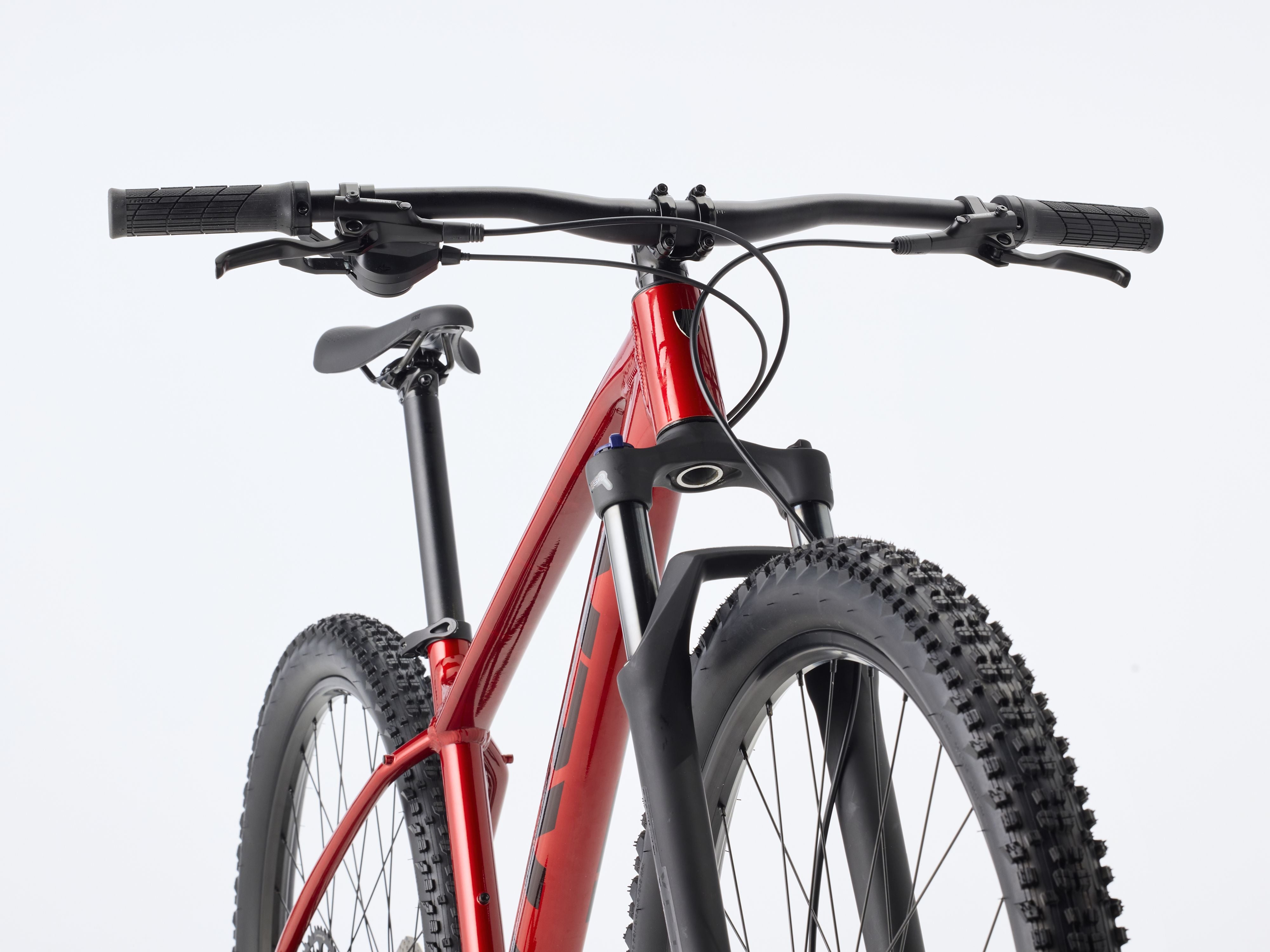

Marlin 5 Gen 3

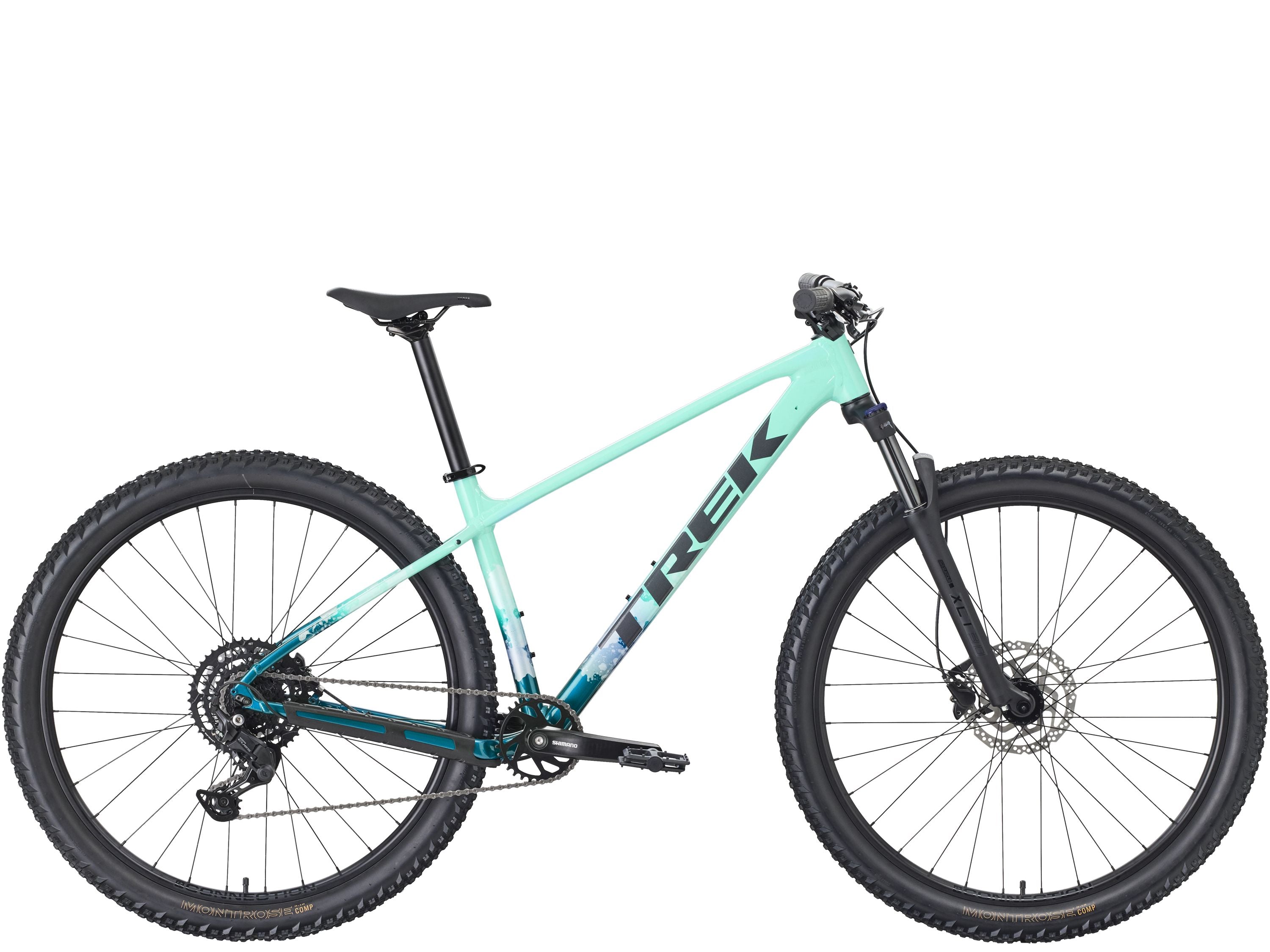

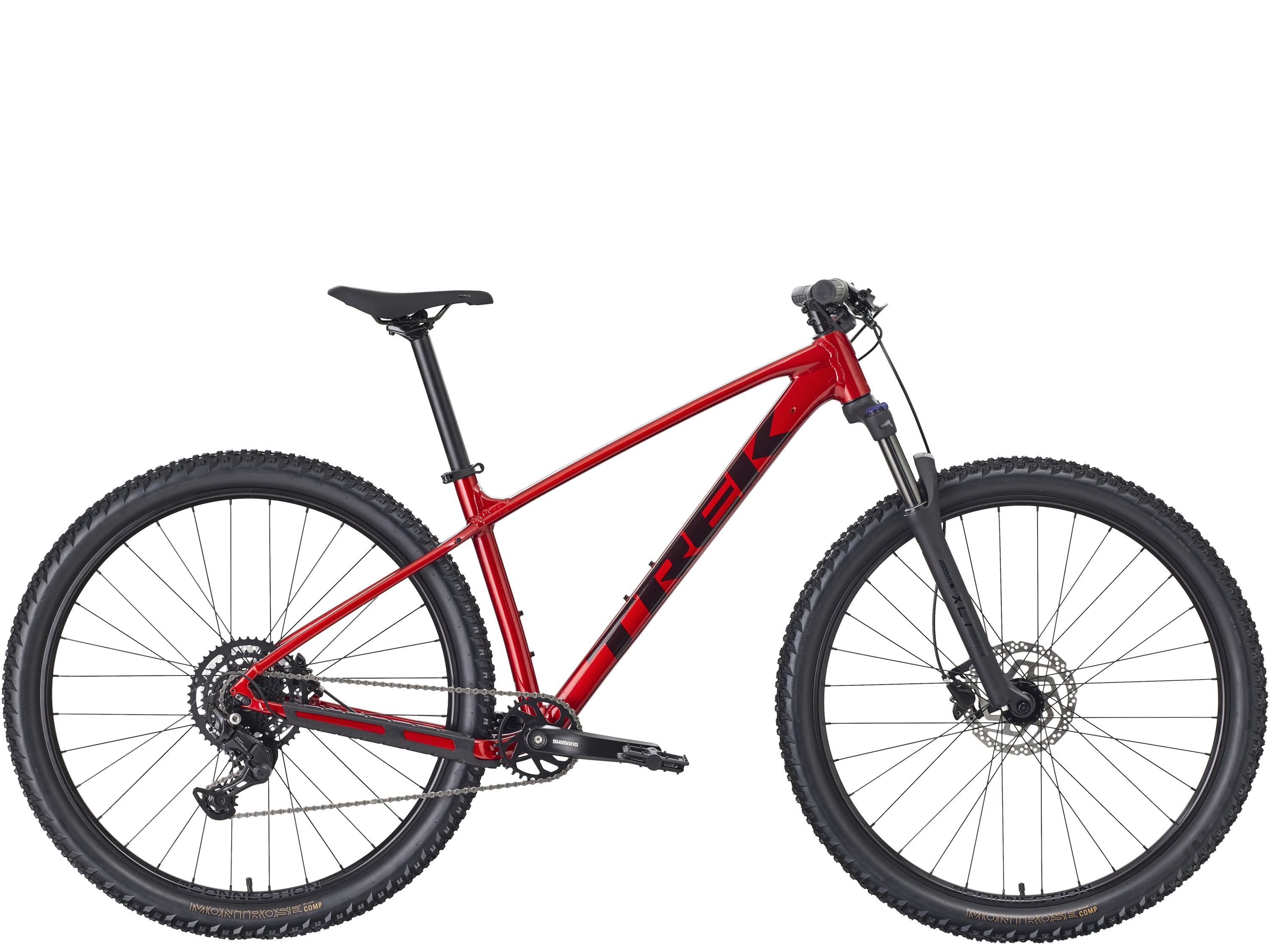

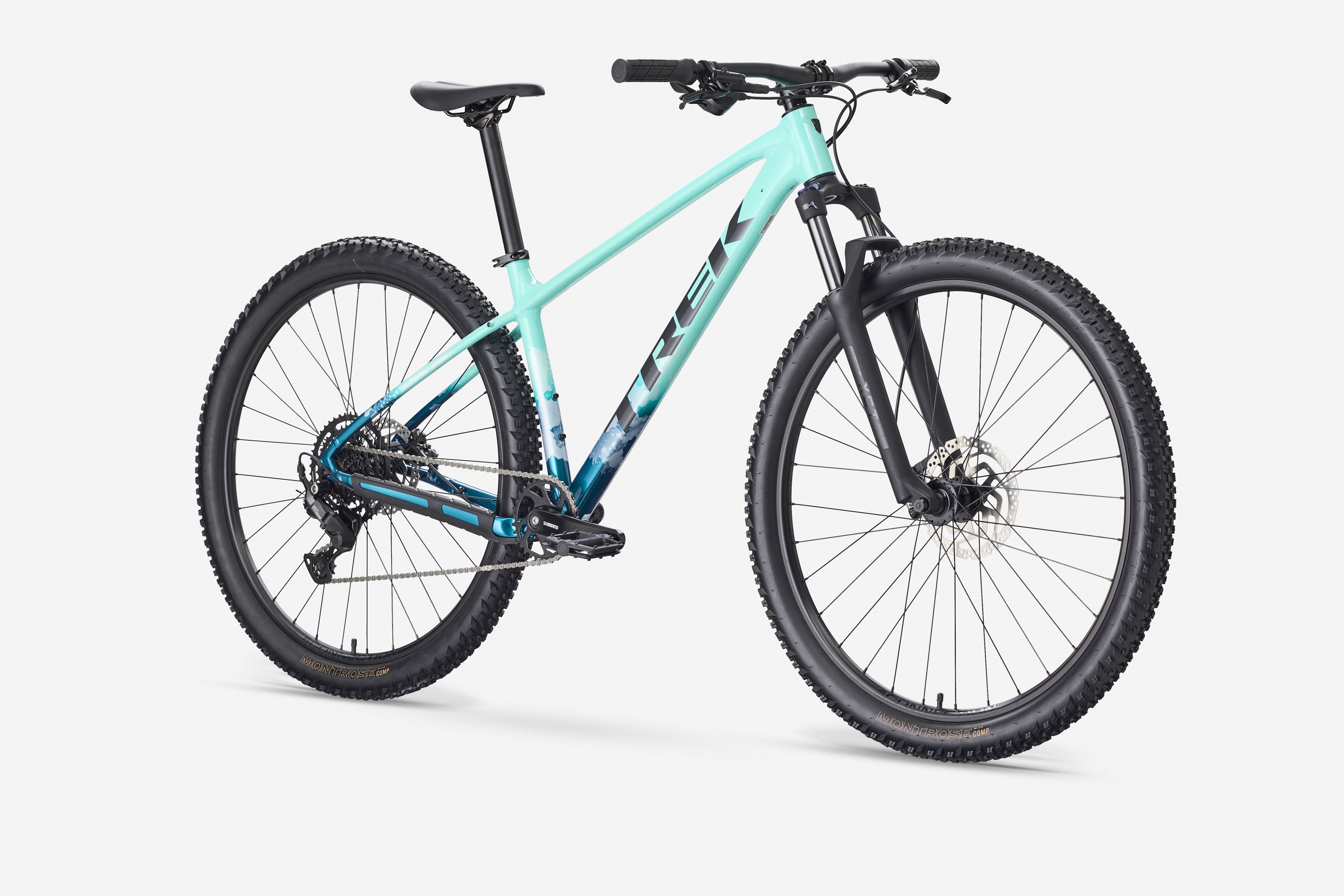

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Technology

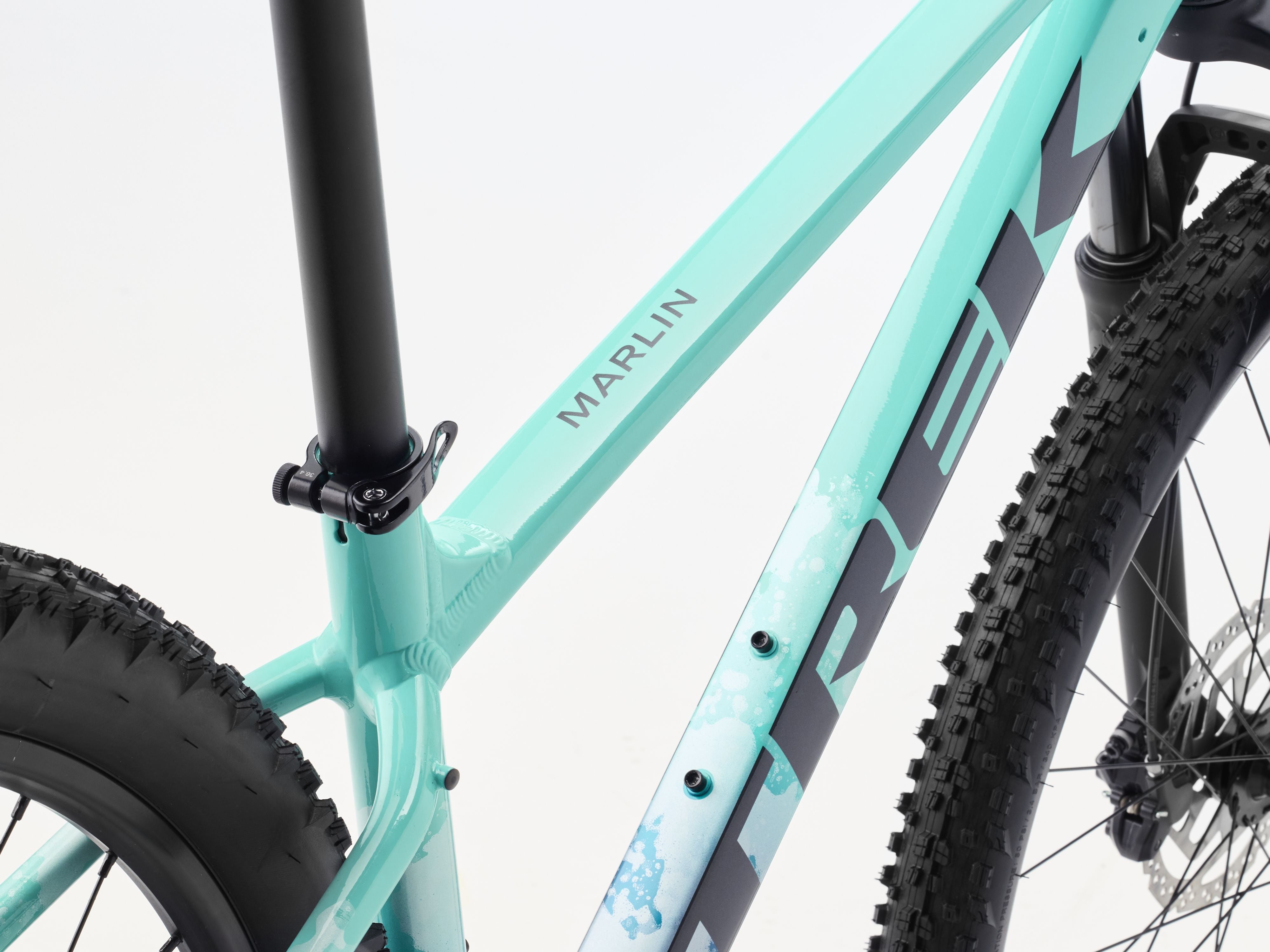

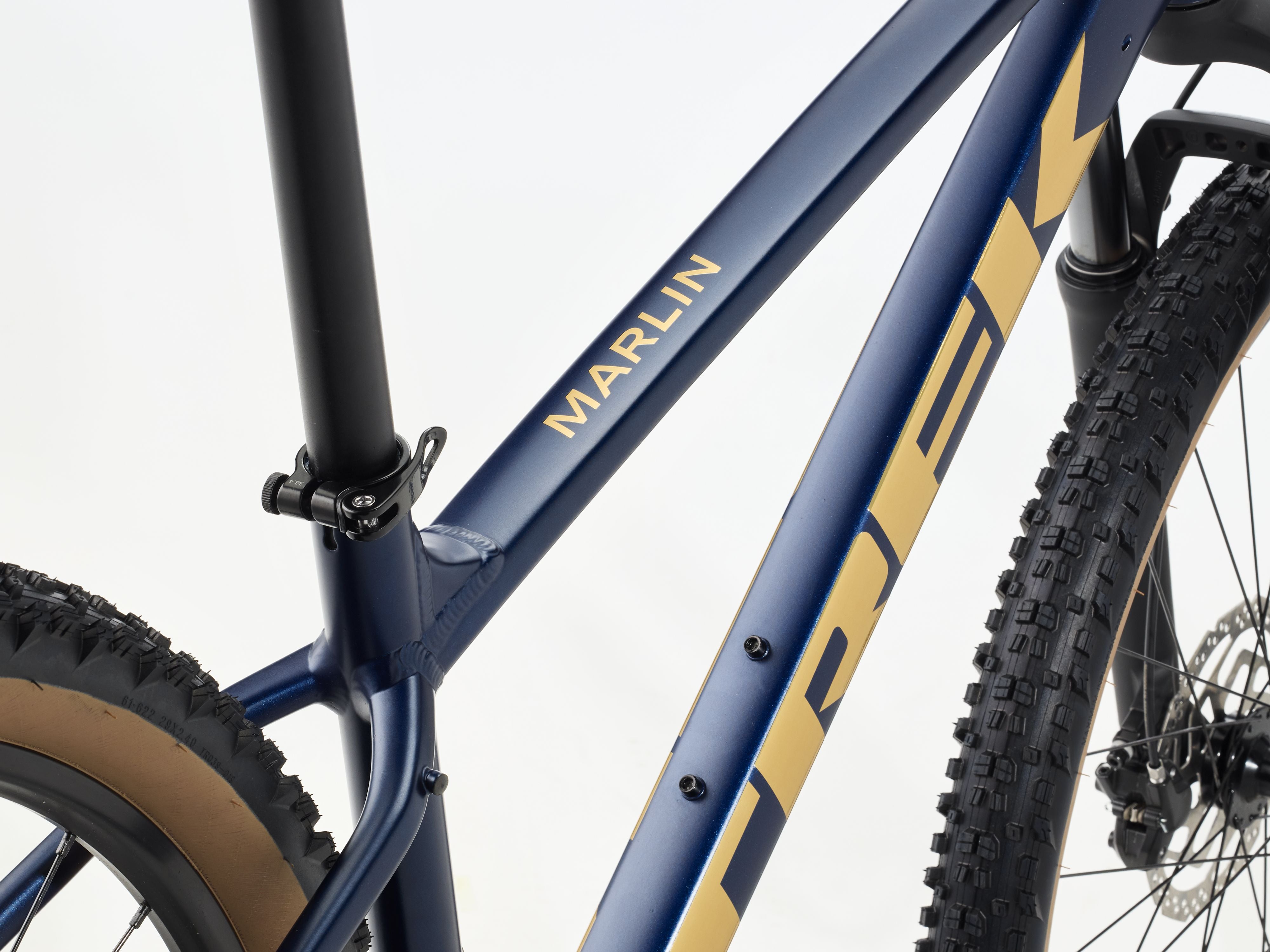

Will my bike have a curved top tube? - Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Specification

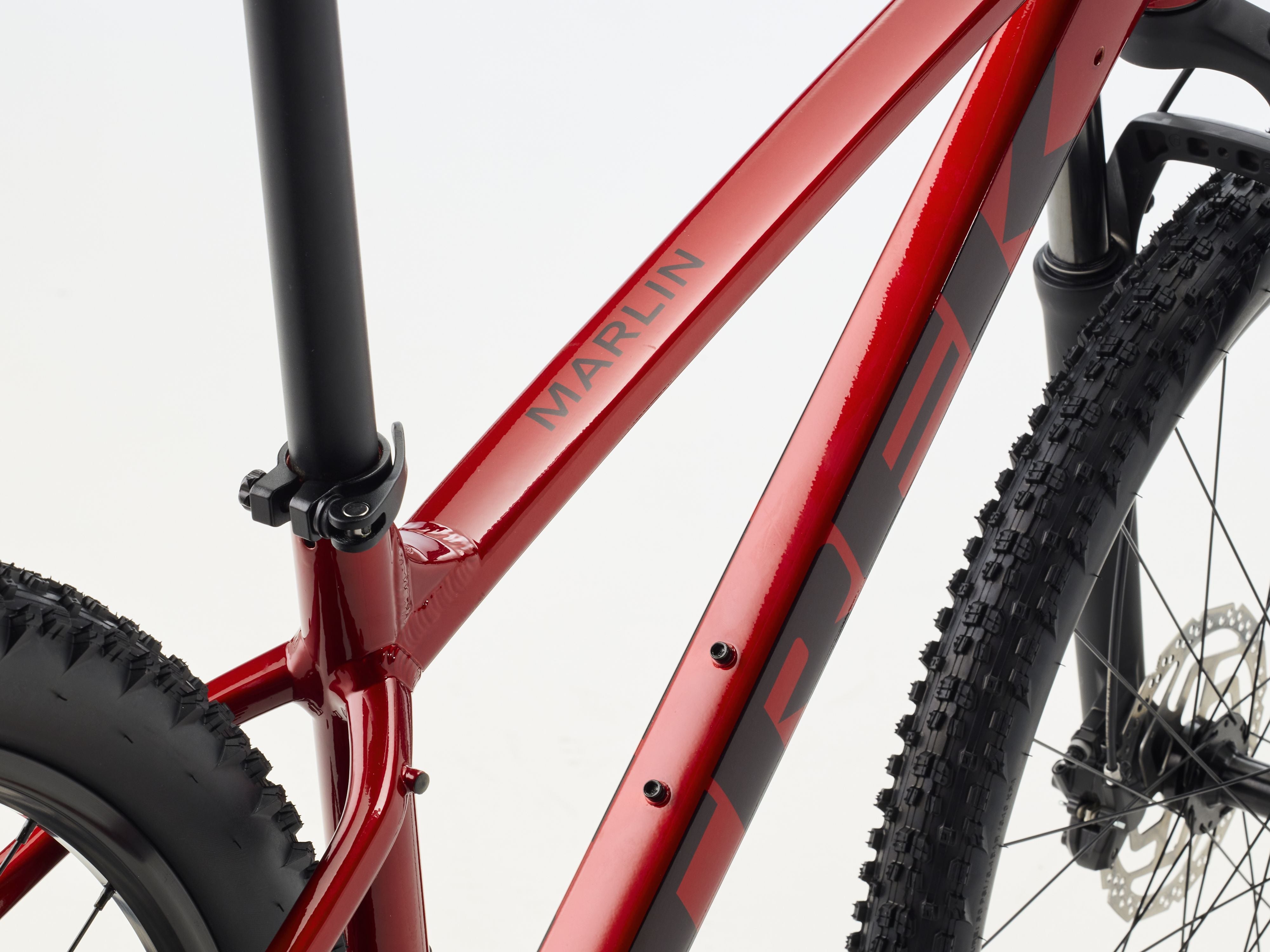

| Frame | Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | SR Suntour |

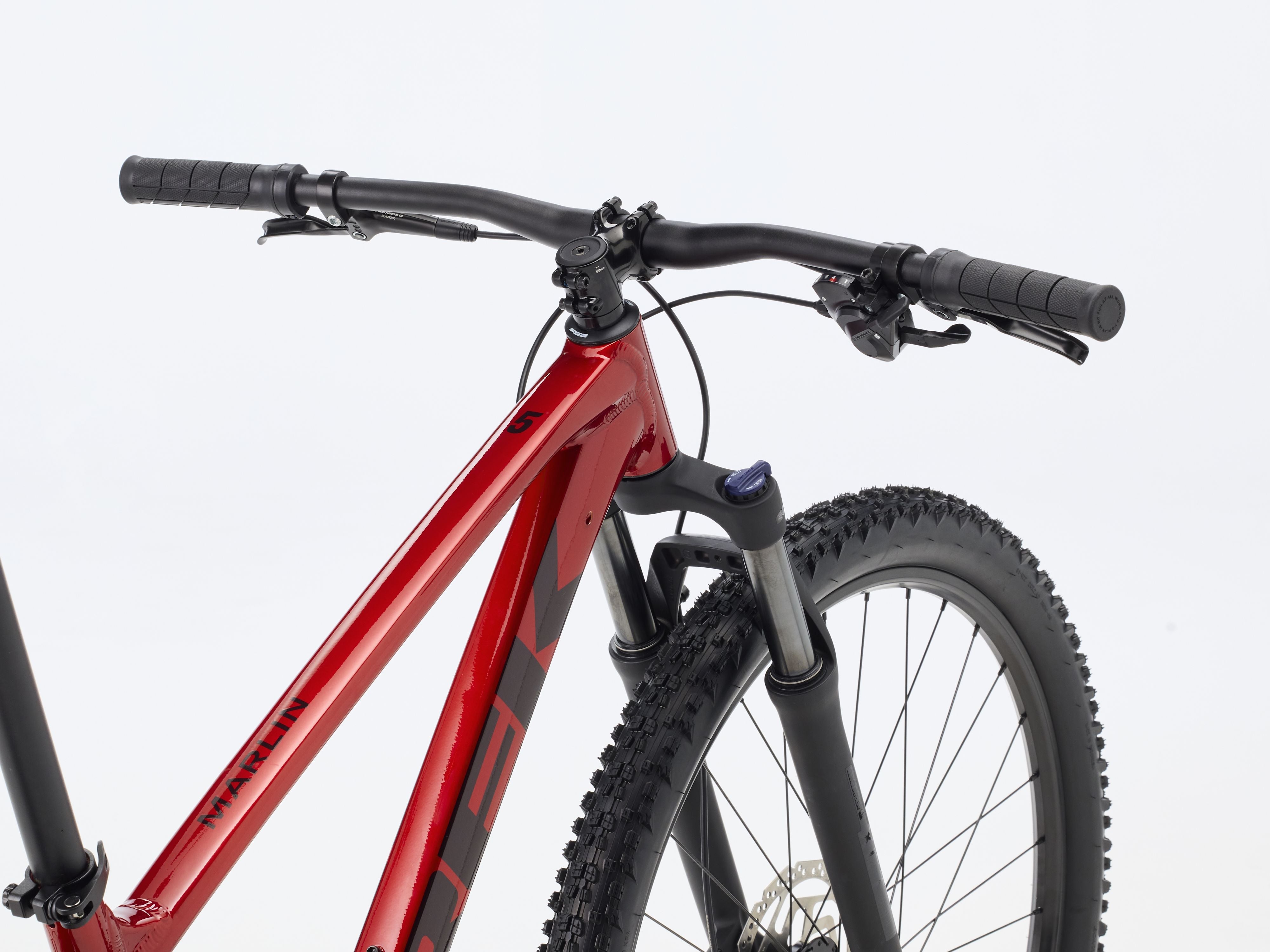

| Fork | SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29'' wheel, 100 mm QR, 10 |
| Tires | Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40" |
| Hub Front | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Shifter | Shimano |

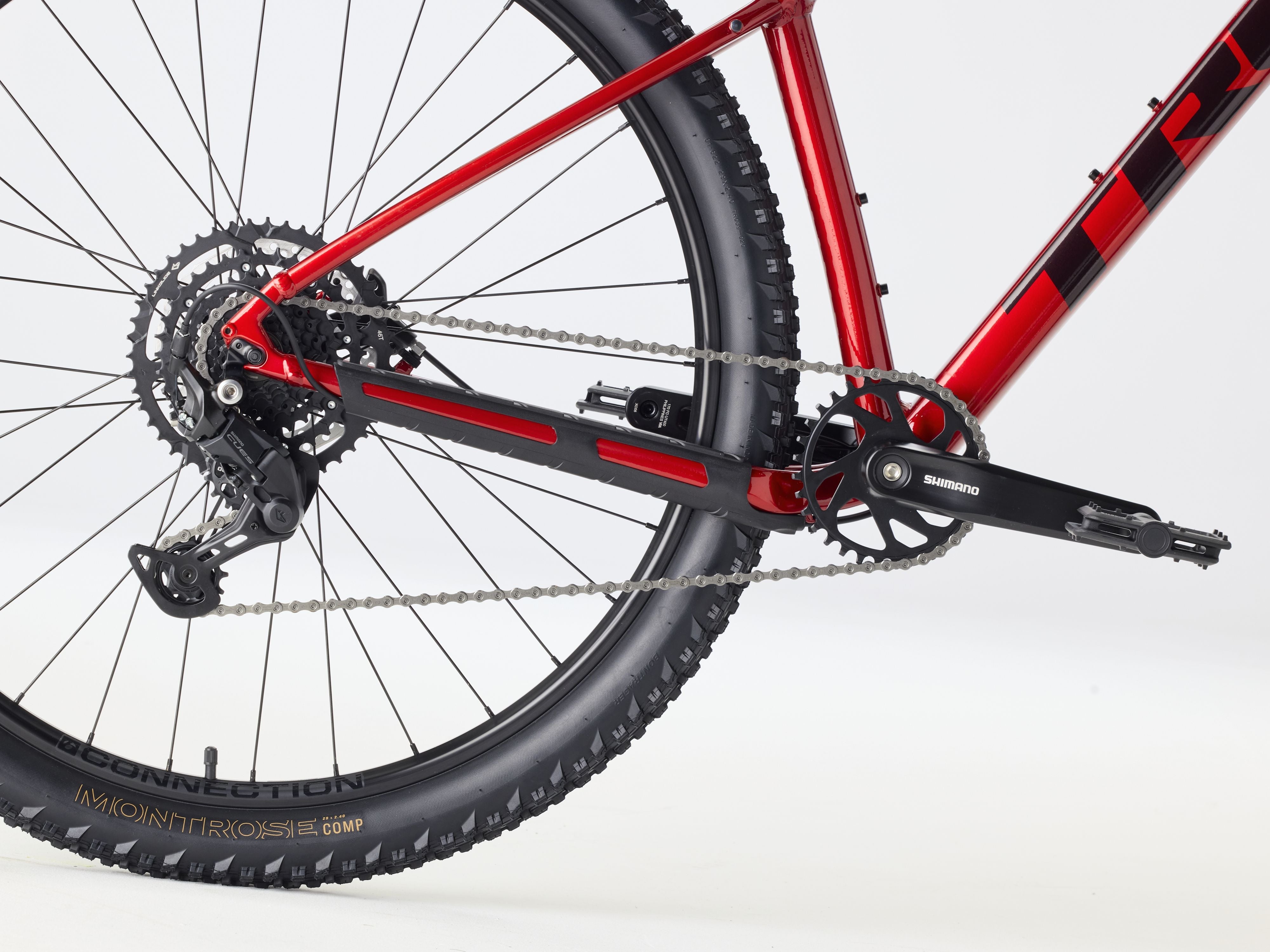

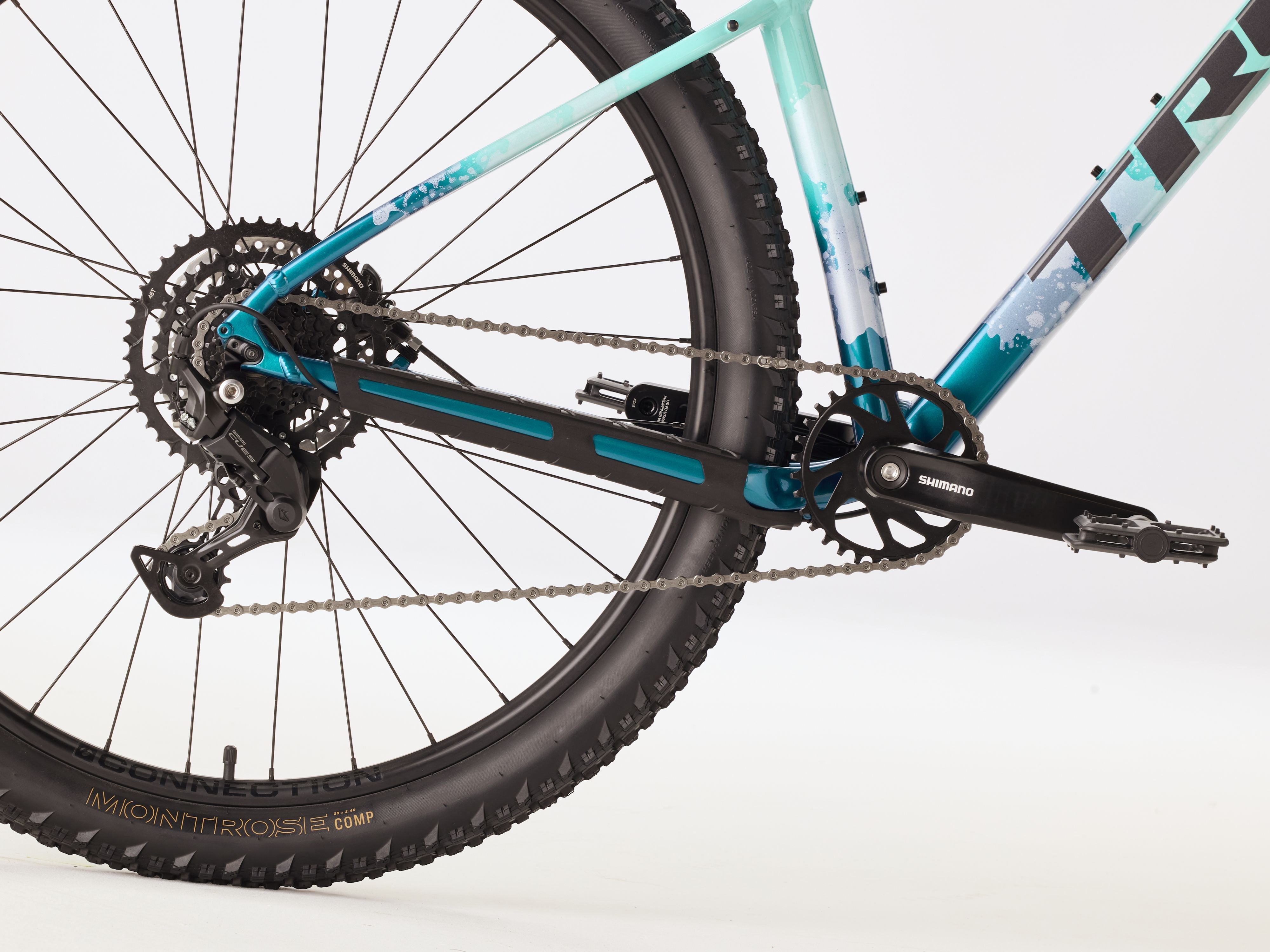

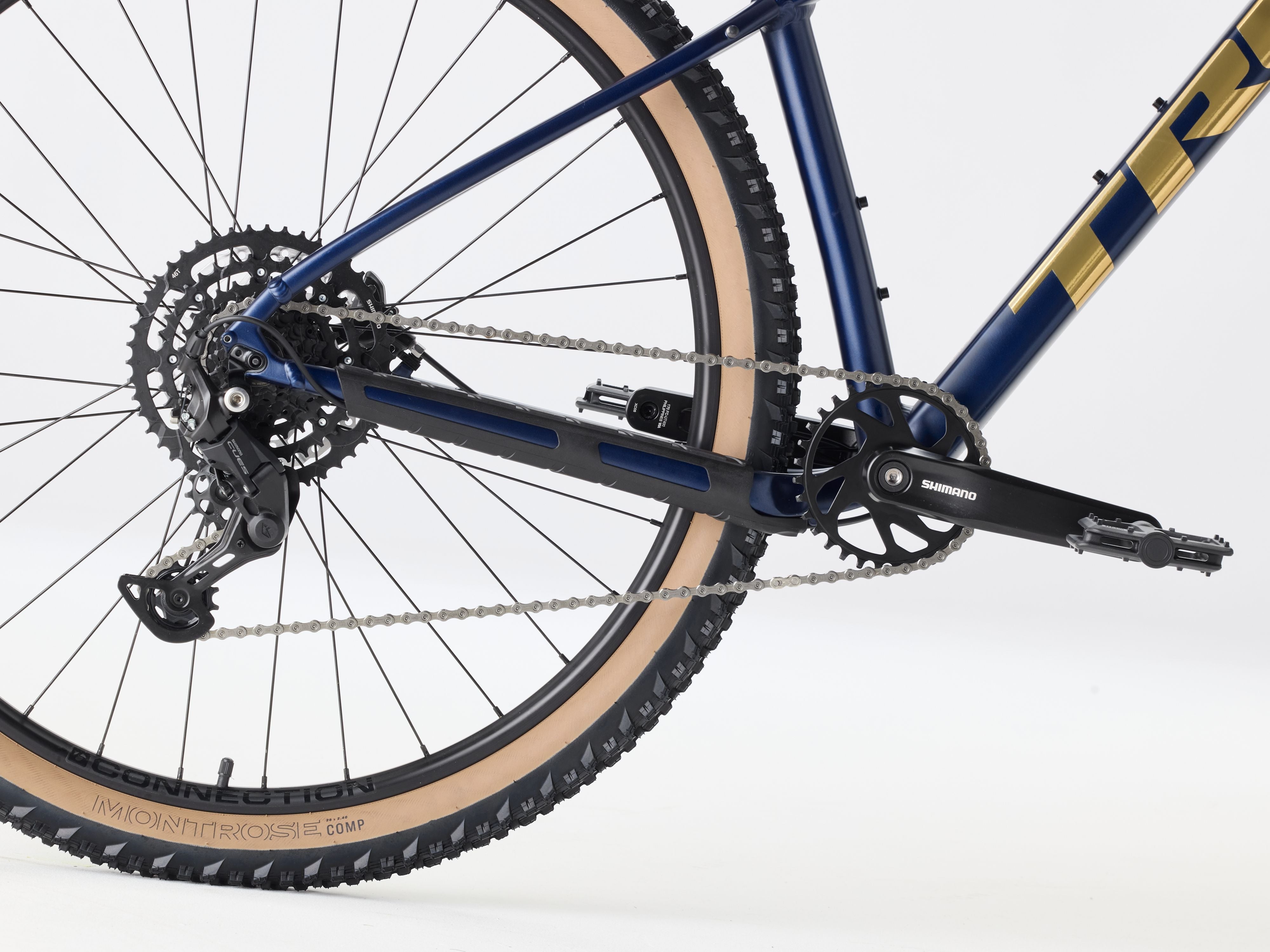

| Derailleur Rear | Shimano CUES U4000 |
| Crank | Shimano CUES U4001, 32T, 52mm chain line, 175mm length |
| Bottom Bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Brake Rotor | Shimano RT26, 6-bolt, 180 mm // Shimano RT26, 6-bolt, 160 mm |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |

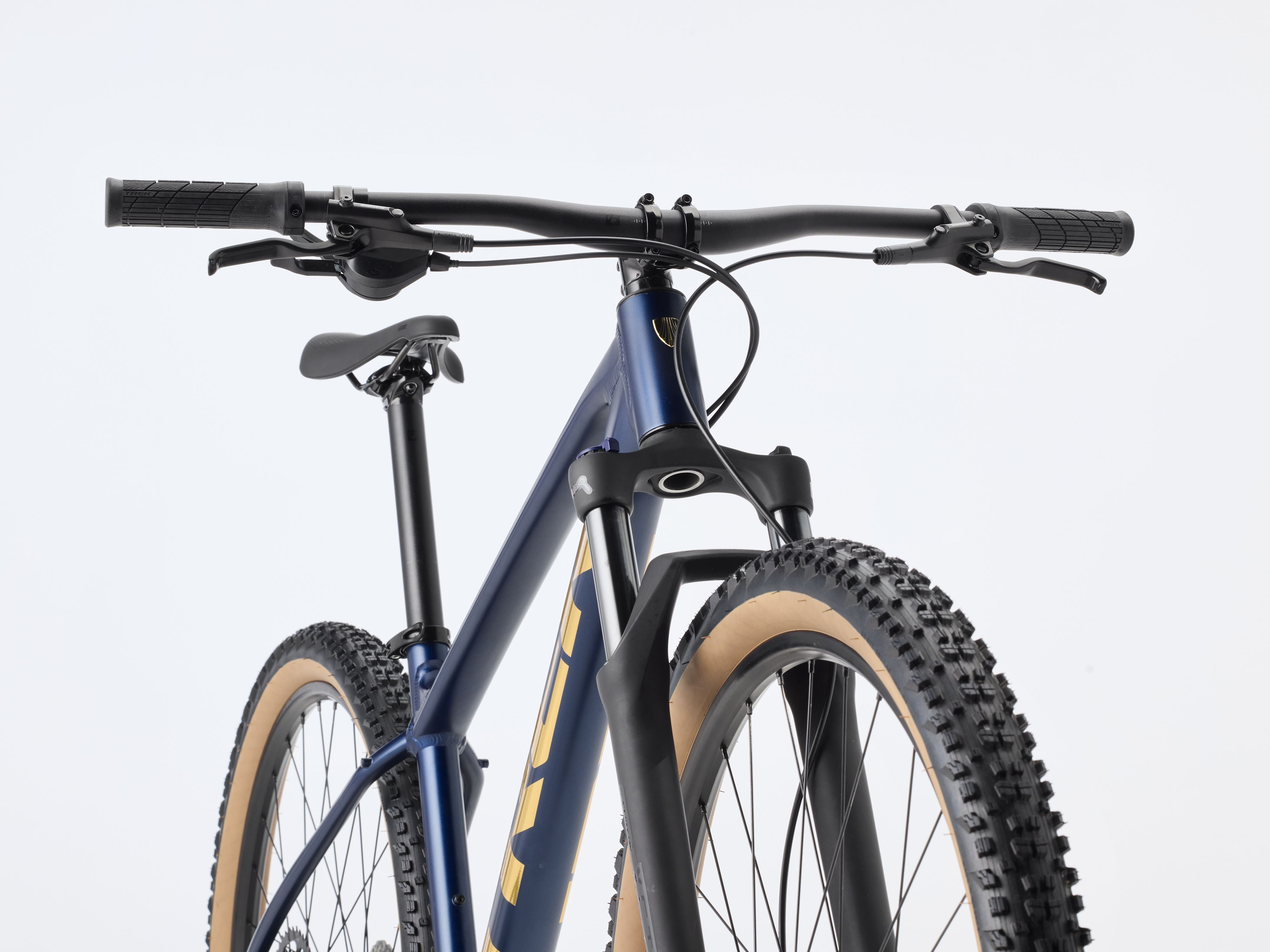

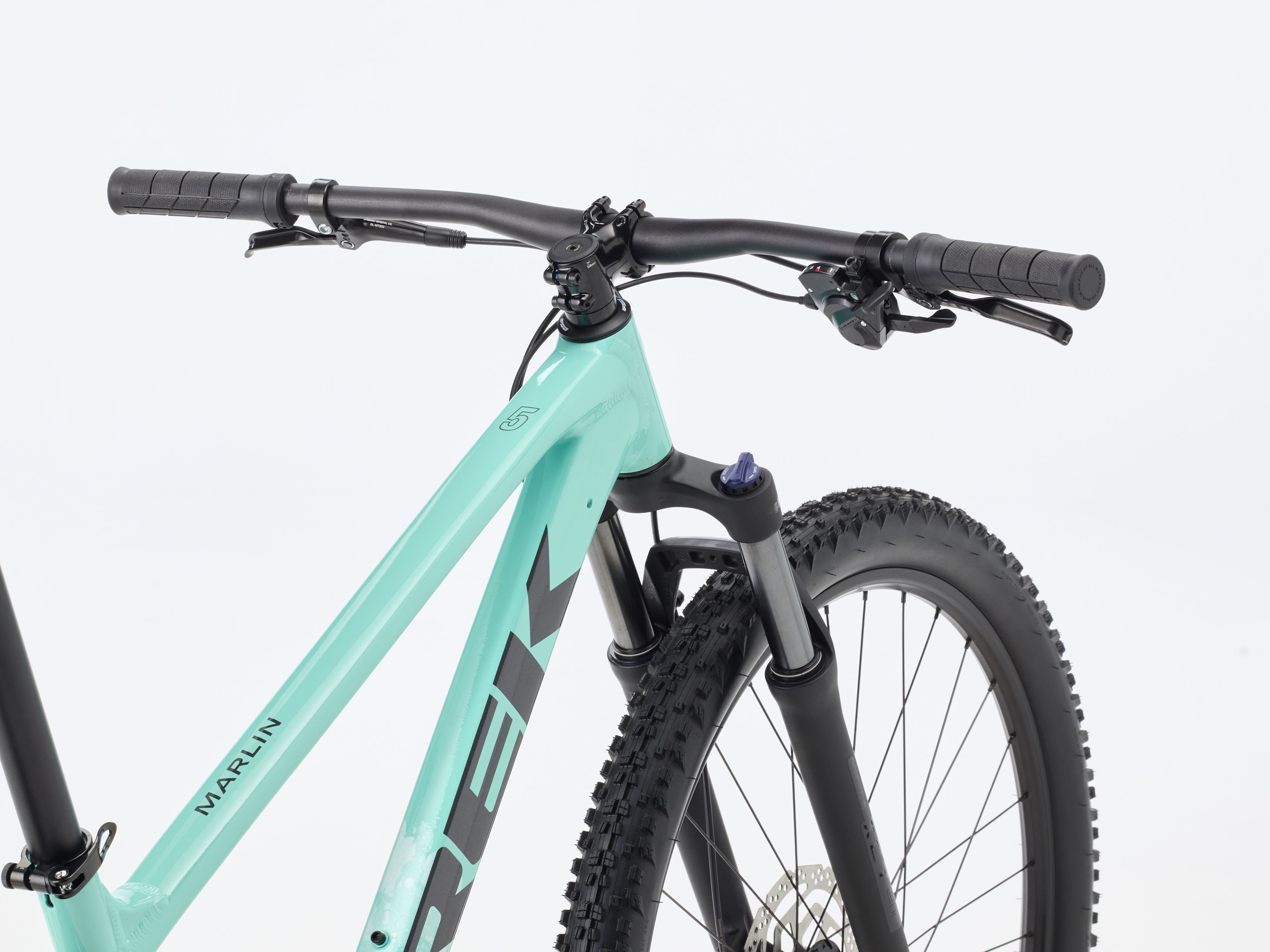

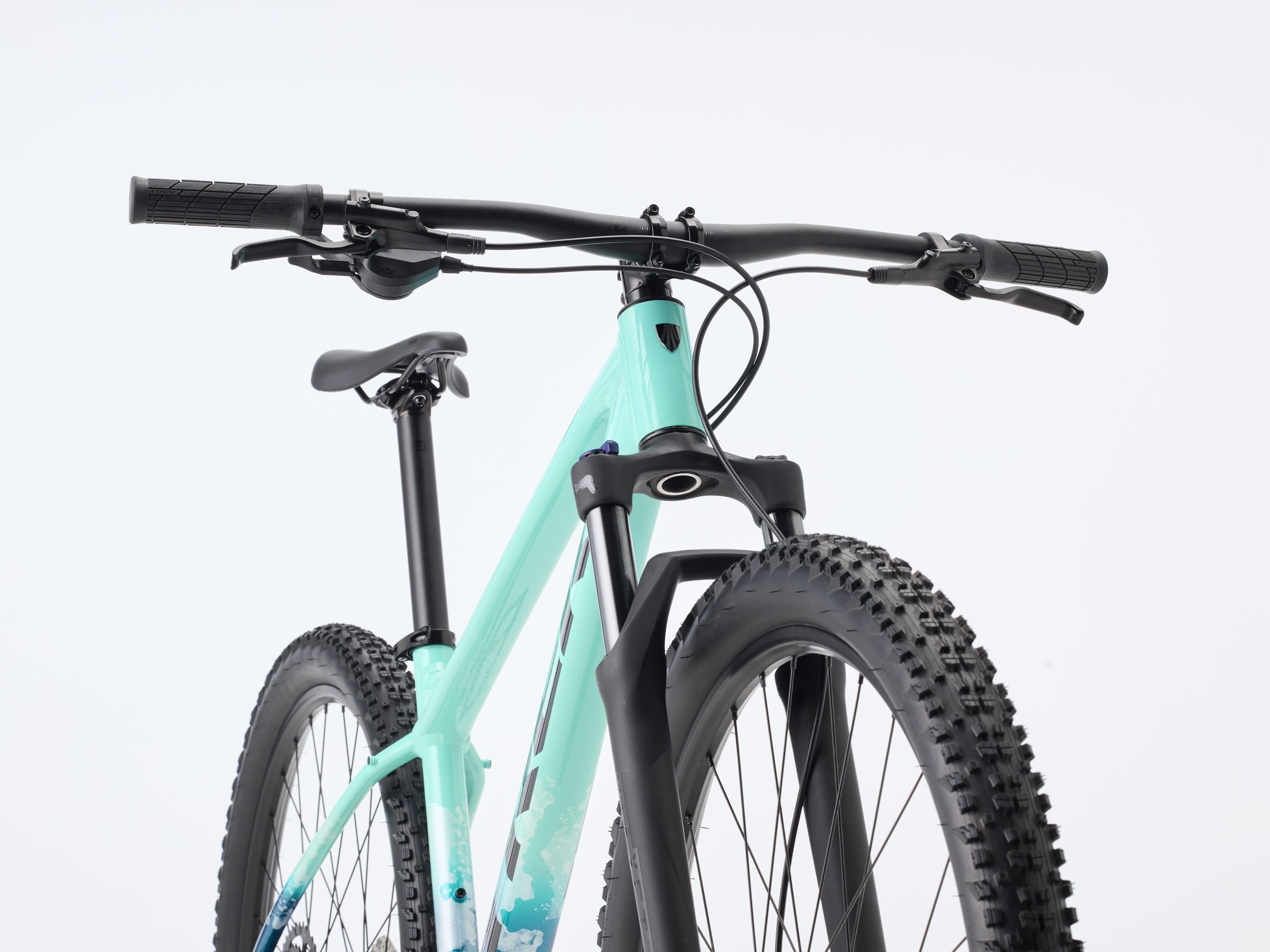

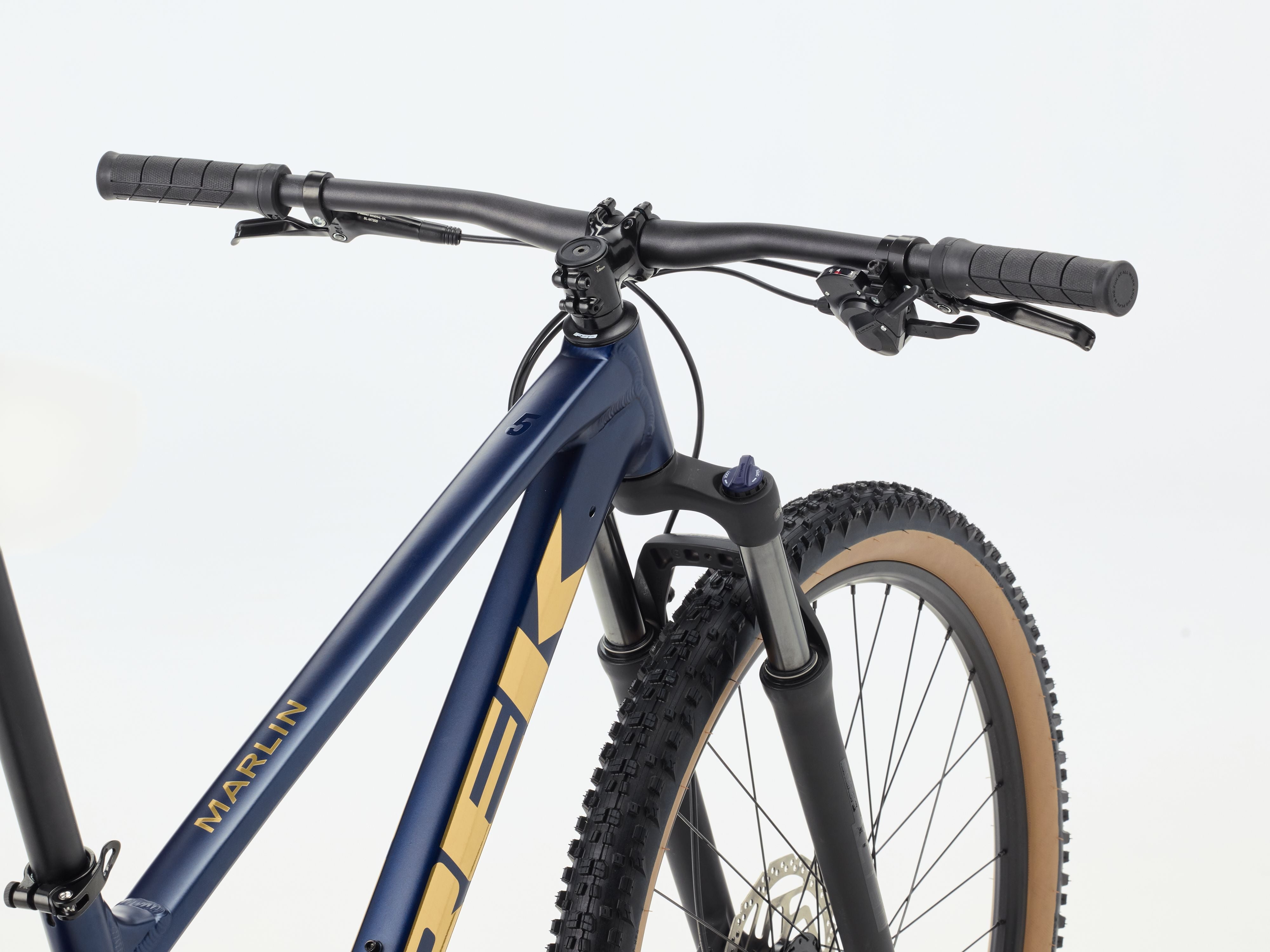

| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Headset | Semi-integrated, 1-1/8" |
| Grips | Trek Line Comp, nylon lock-on |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
