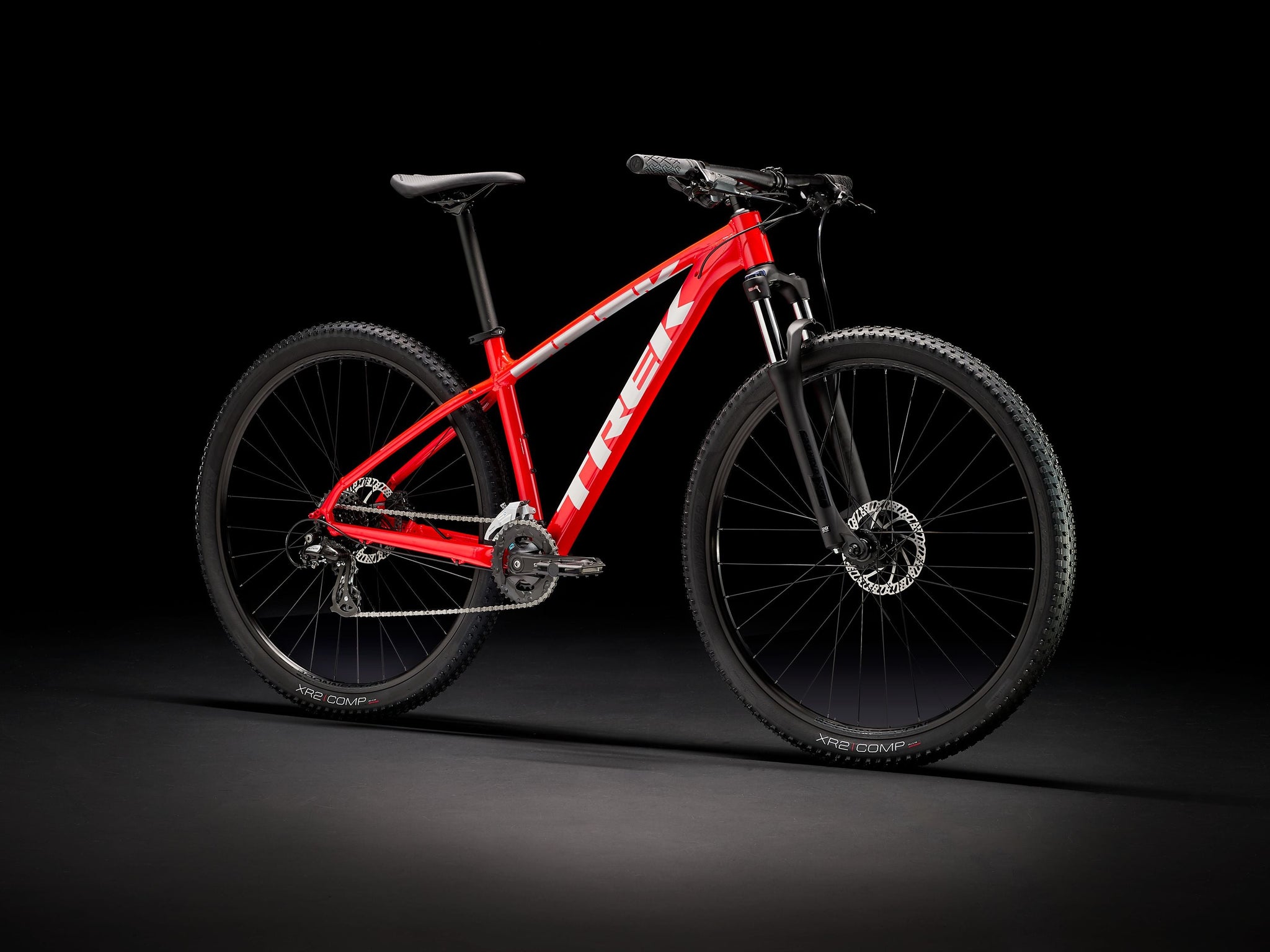

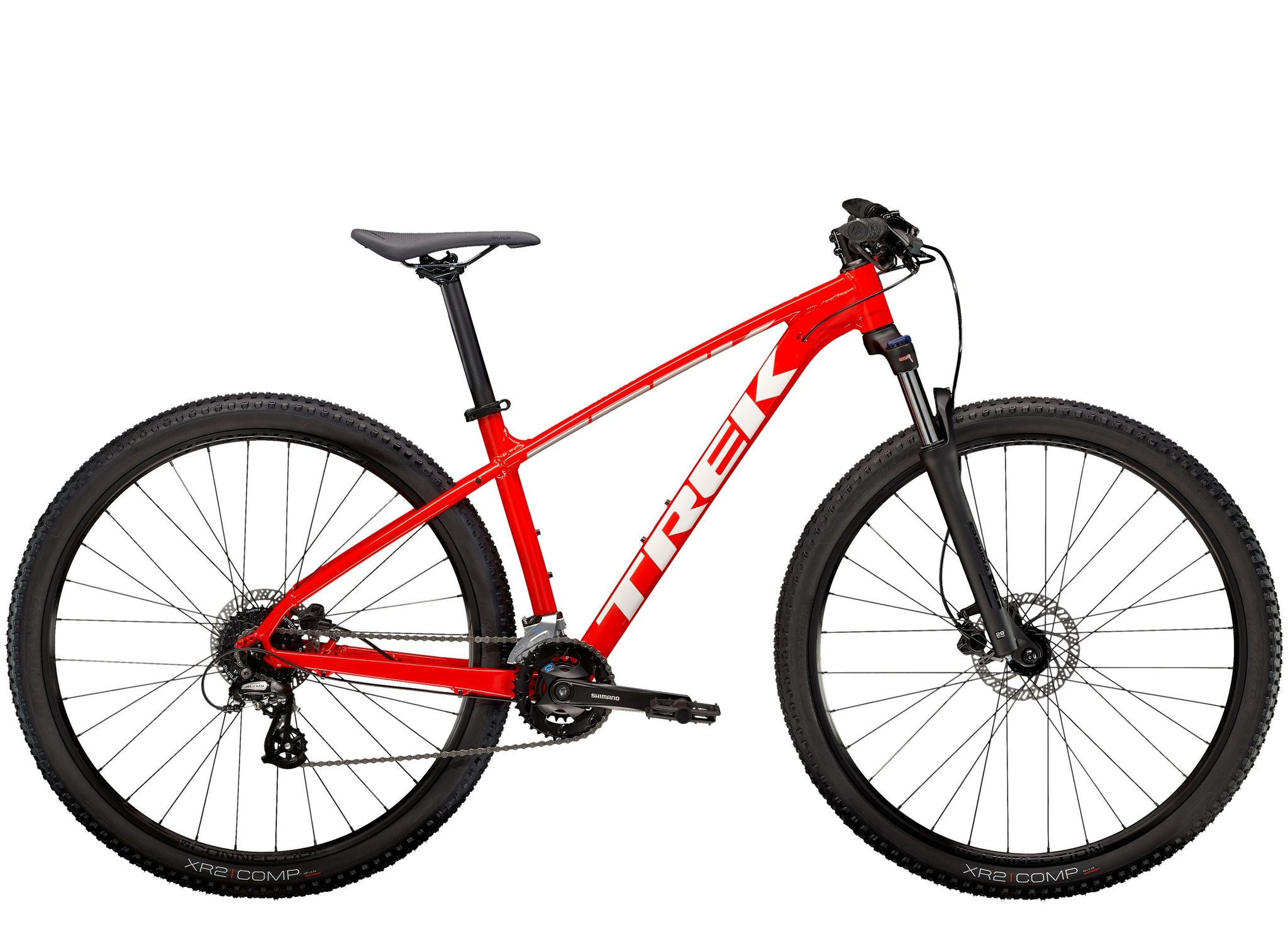

Marlin 5 Gen 2
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Technology

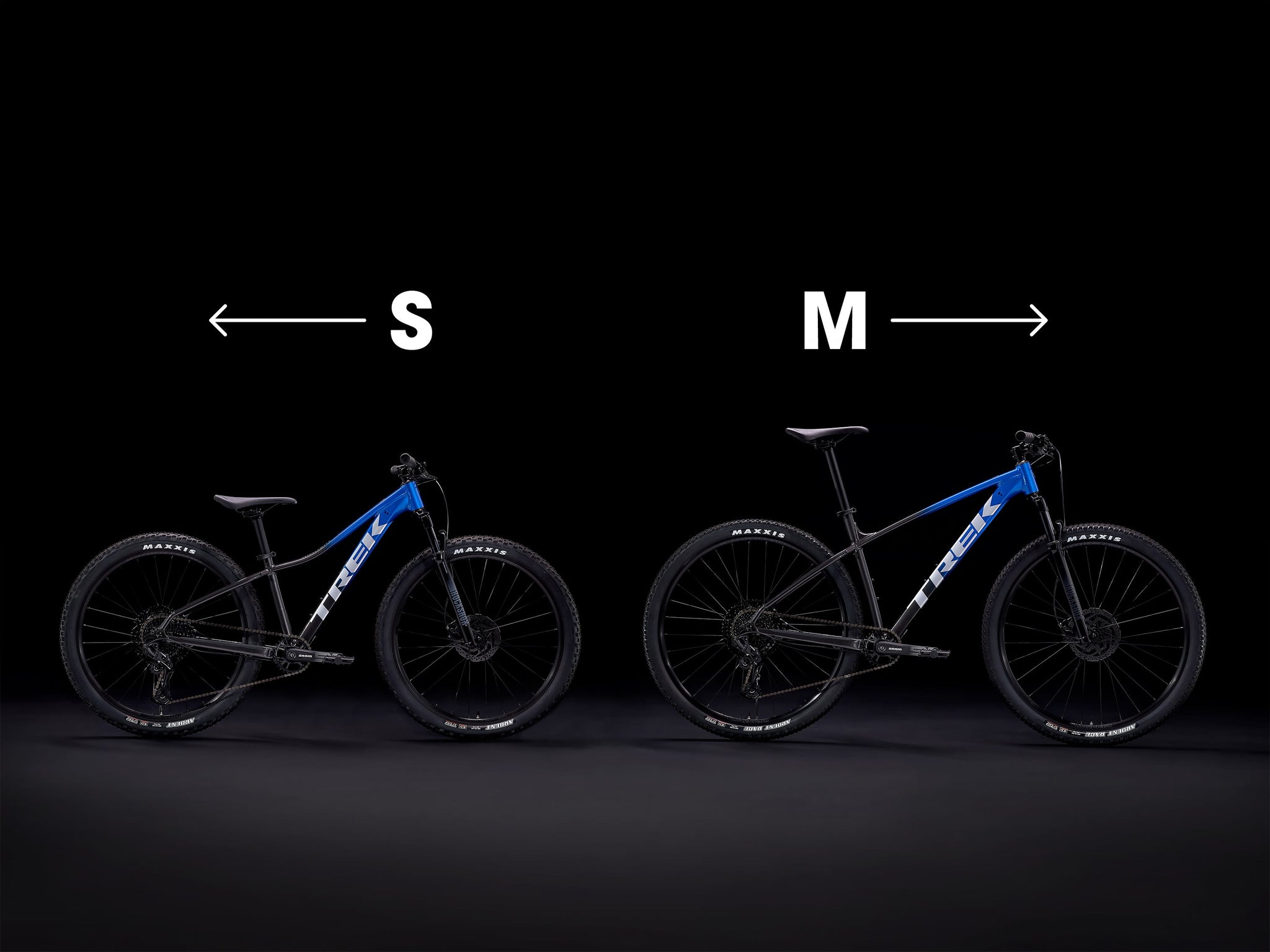

Will my bike have a curved top tube? - Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Specification
| Frame | Alpha Silver Aluminium Alpha Silver Aluminum |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 27.5 |
| Fork | SR Suntour |

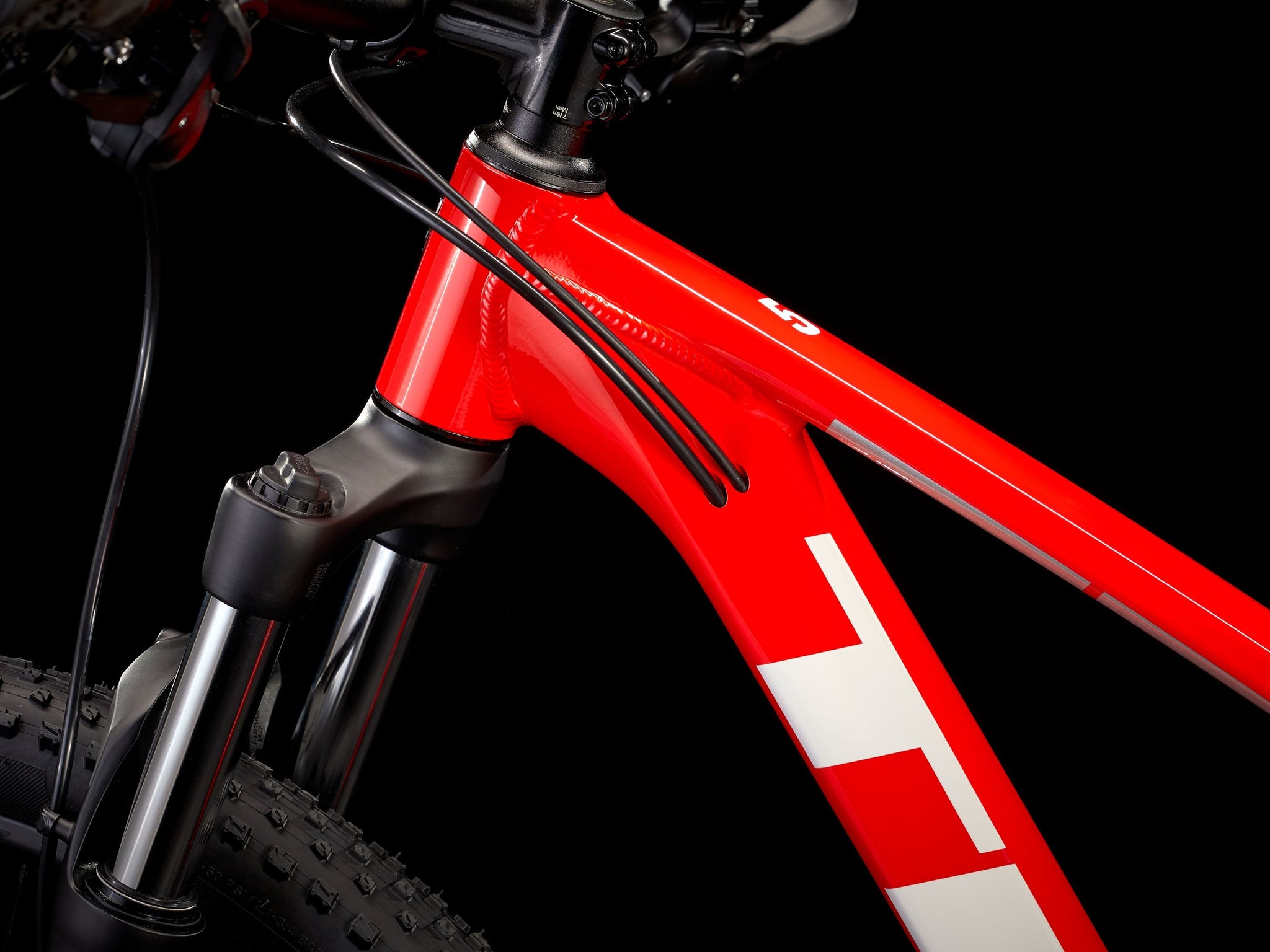

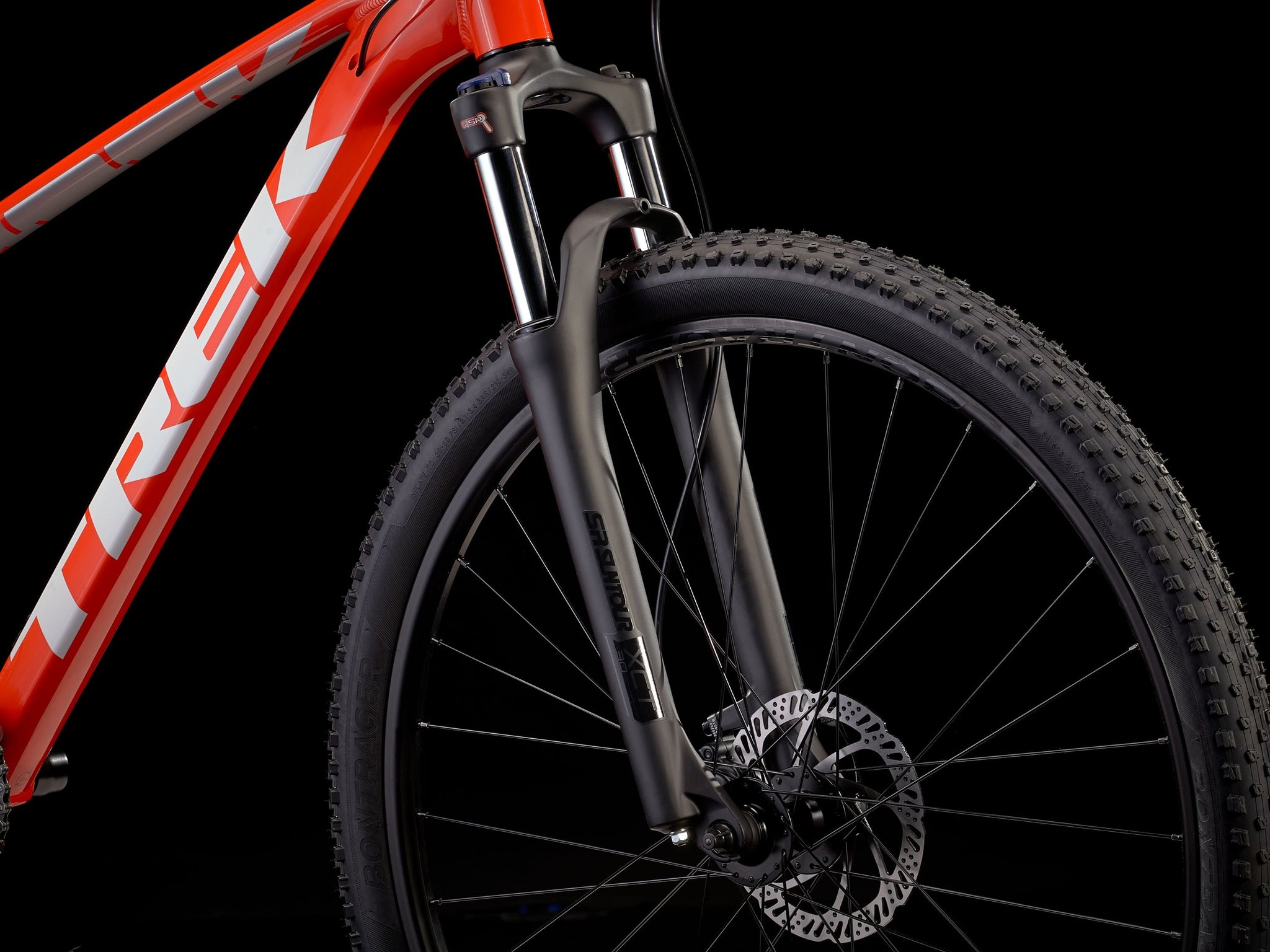

| Fork | SR Suntour XCT 30, lockout SR Suntour XCT 30, lockout |
| Wheels | Formula alloy hubs, Bontrager Connection rims |

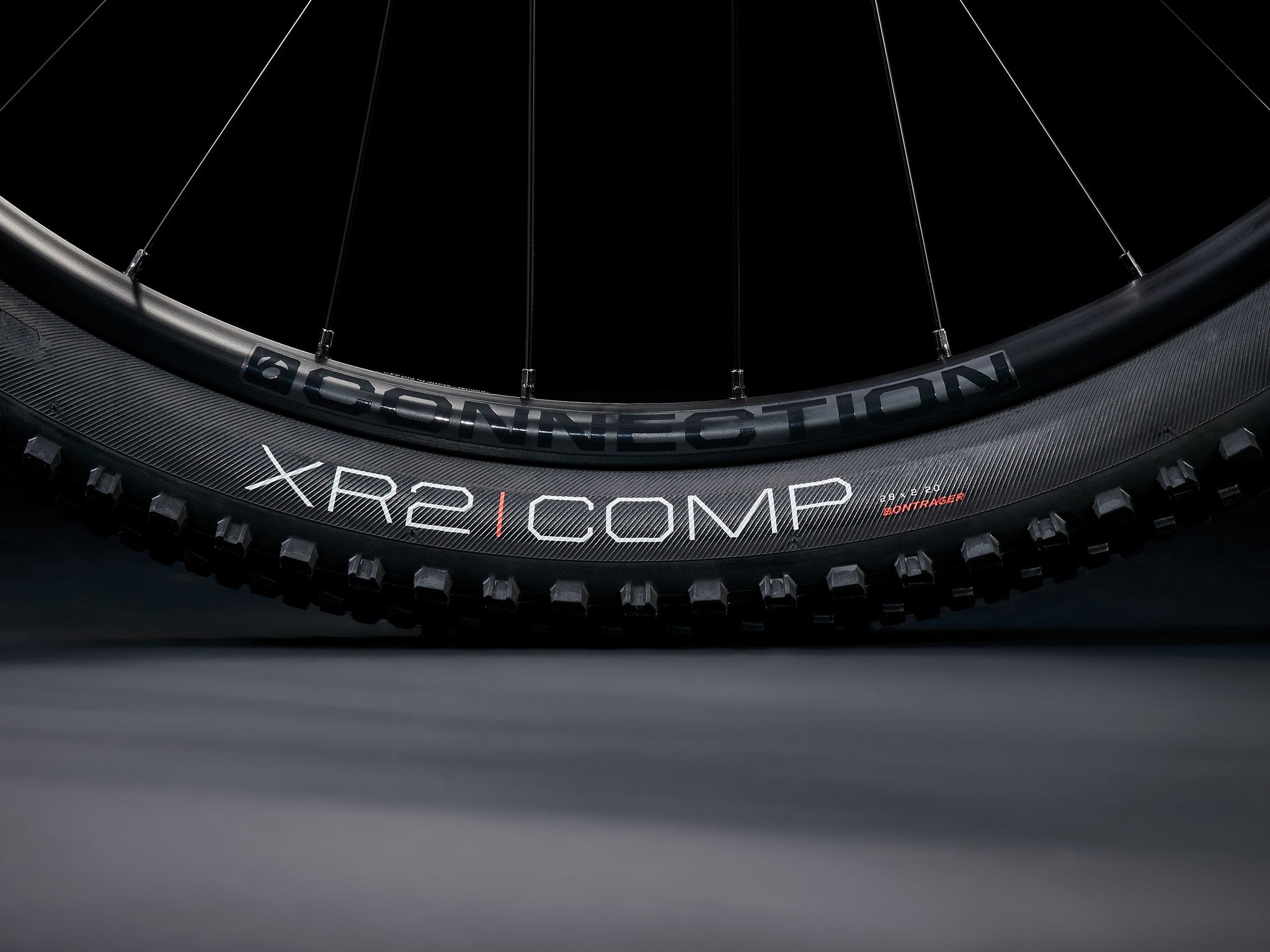

| Tires | Bontrager XR2 Comp, 29x2.20" (XS & S: 27.5x2.20") |
| Hub Front | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Shifter | Shimano |
| Derailleur Front | Shimano Altus M315, 34.9 mm clamp, top swing, dual pull |

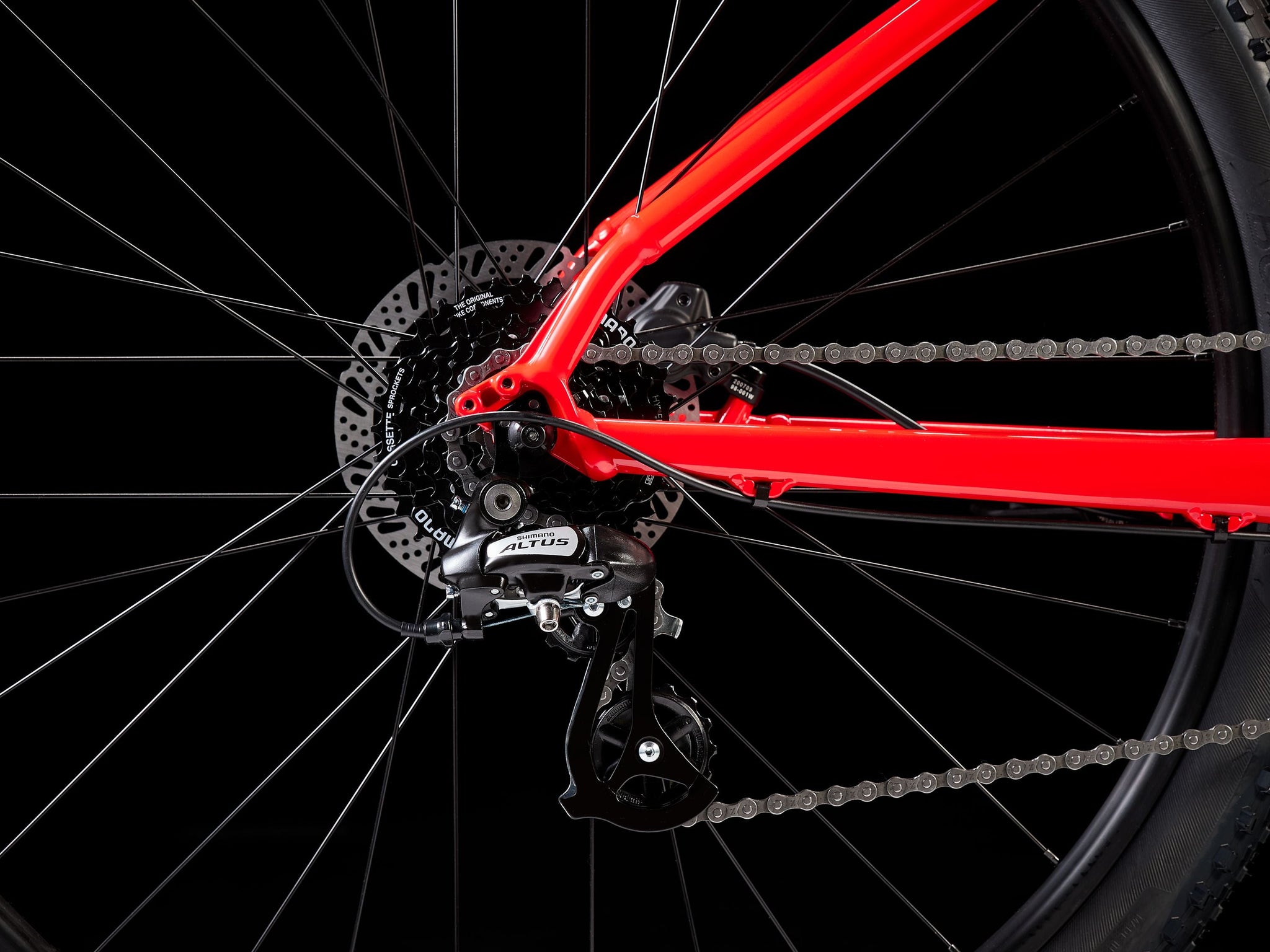

| Derailleur Rear | Shimano Altus, 2x8-speed |

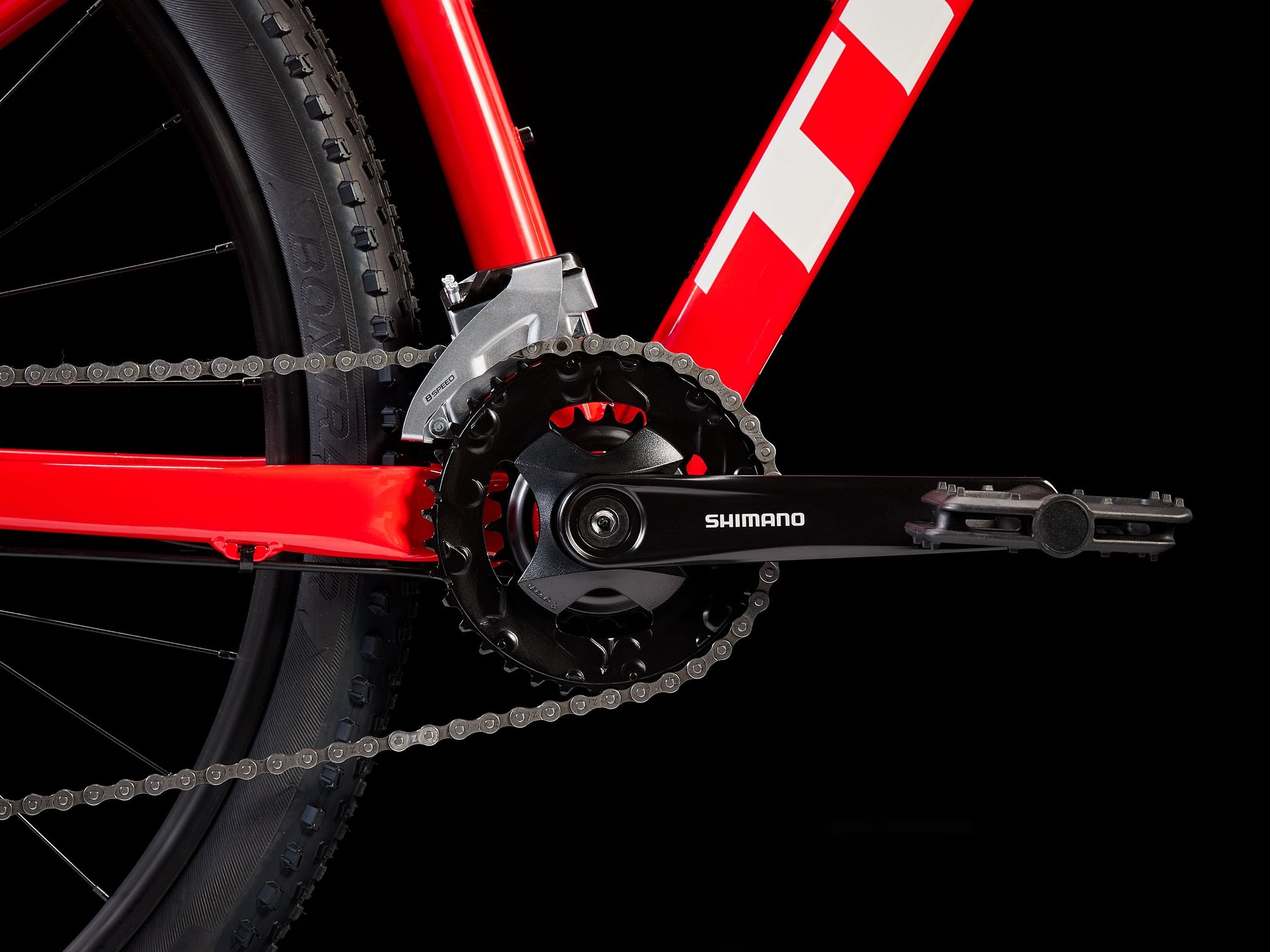

| Crank | Shimano M315, 36/22, 170 mm length |
| Bottom Bracket | Sealed cartridge, 73mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3, 8 speed |
| Brake | Tektro |

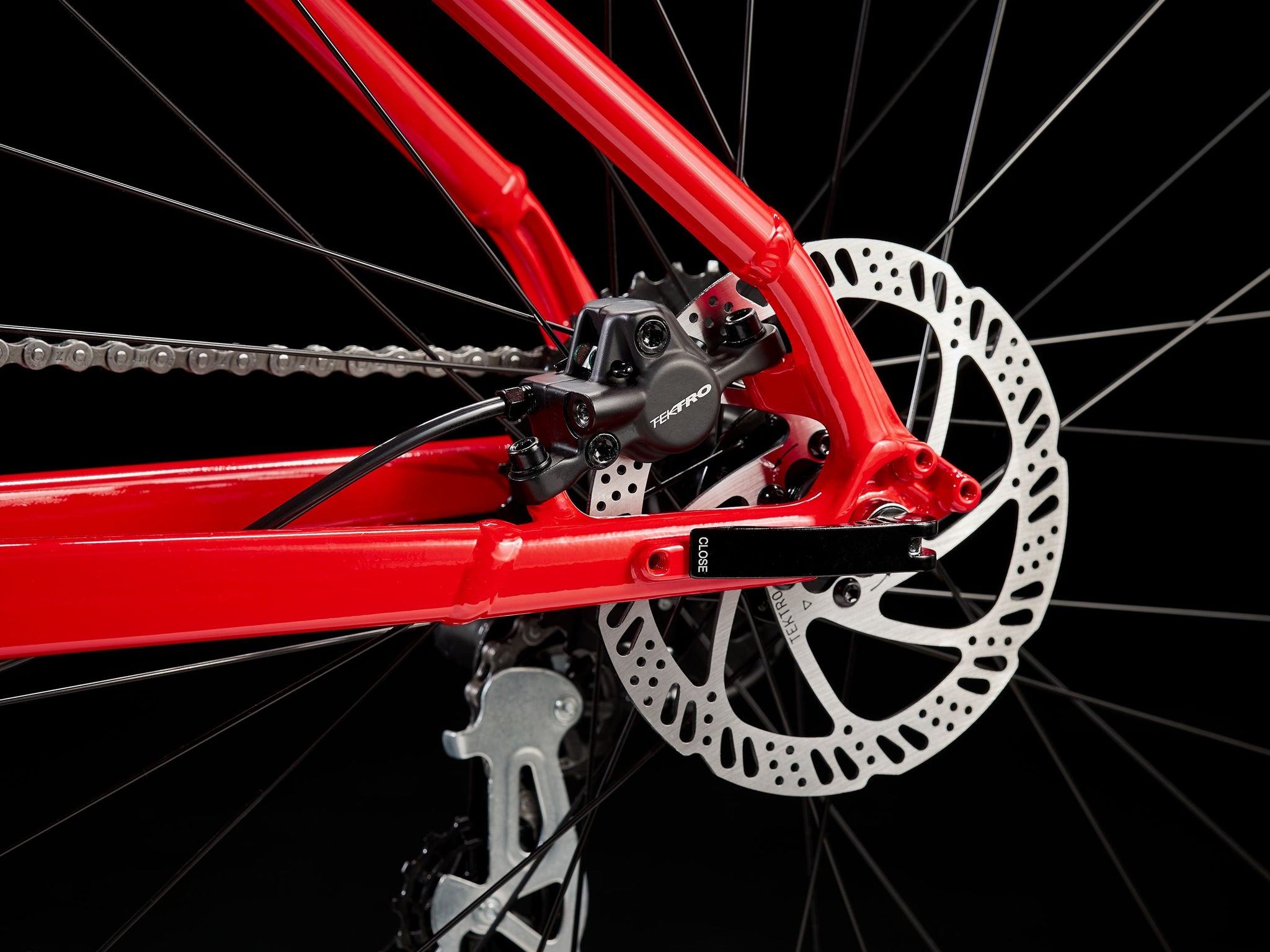

| Brakeset | Tektro HD-M275 hydraulic disc Tektro HD-M275 hydraulic disc |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |

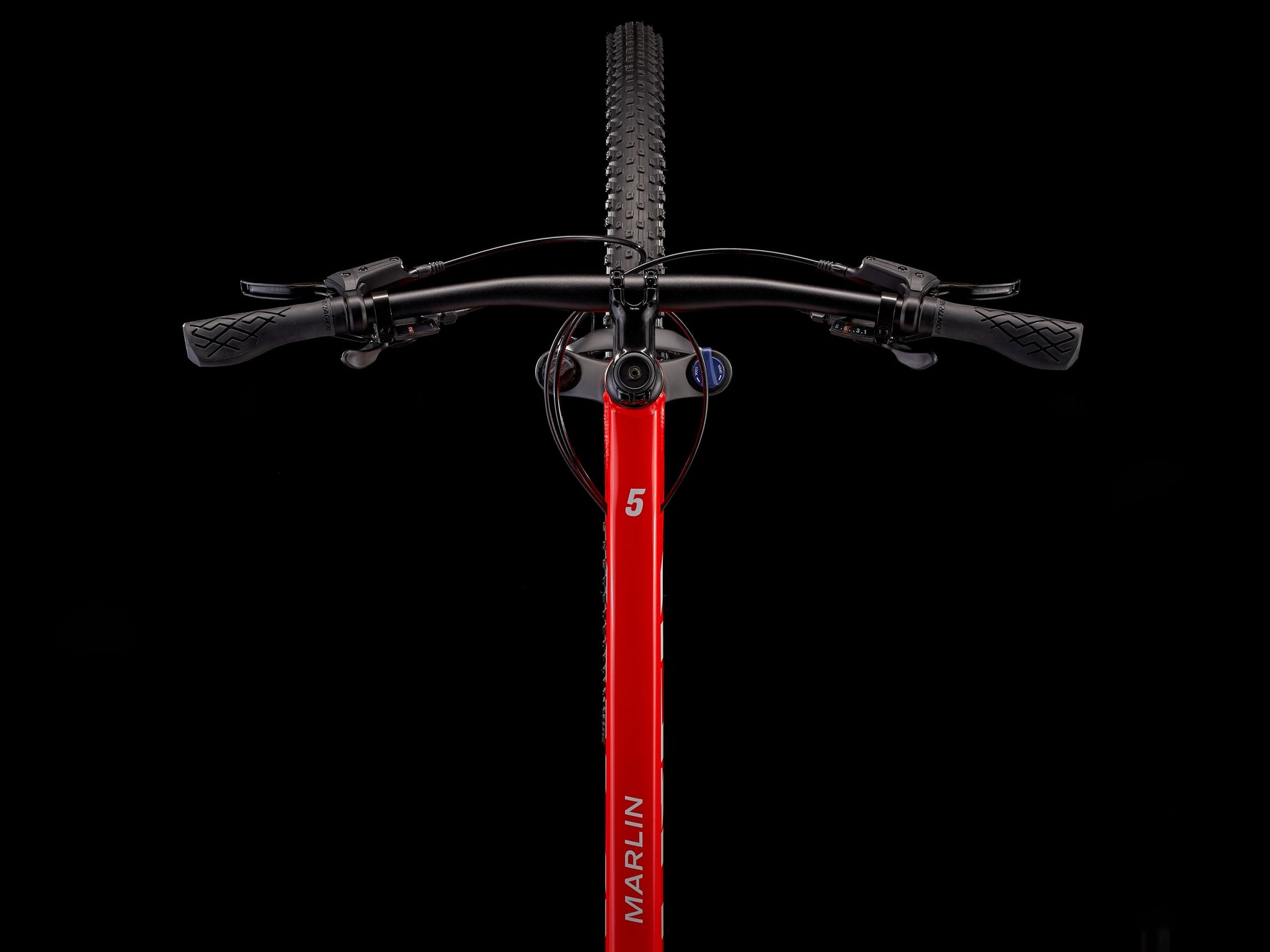

| Handlebar | Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
| Headset | Semi-integrated, 1-1/8" |
| Size Chart Rider Height | Rider Height - 155.0 - 165.0 |
| Size Chart Rider Inseam | Inseam - 74.0 - 78.0 |
