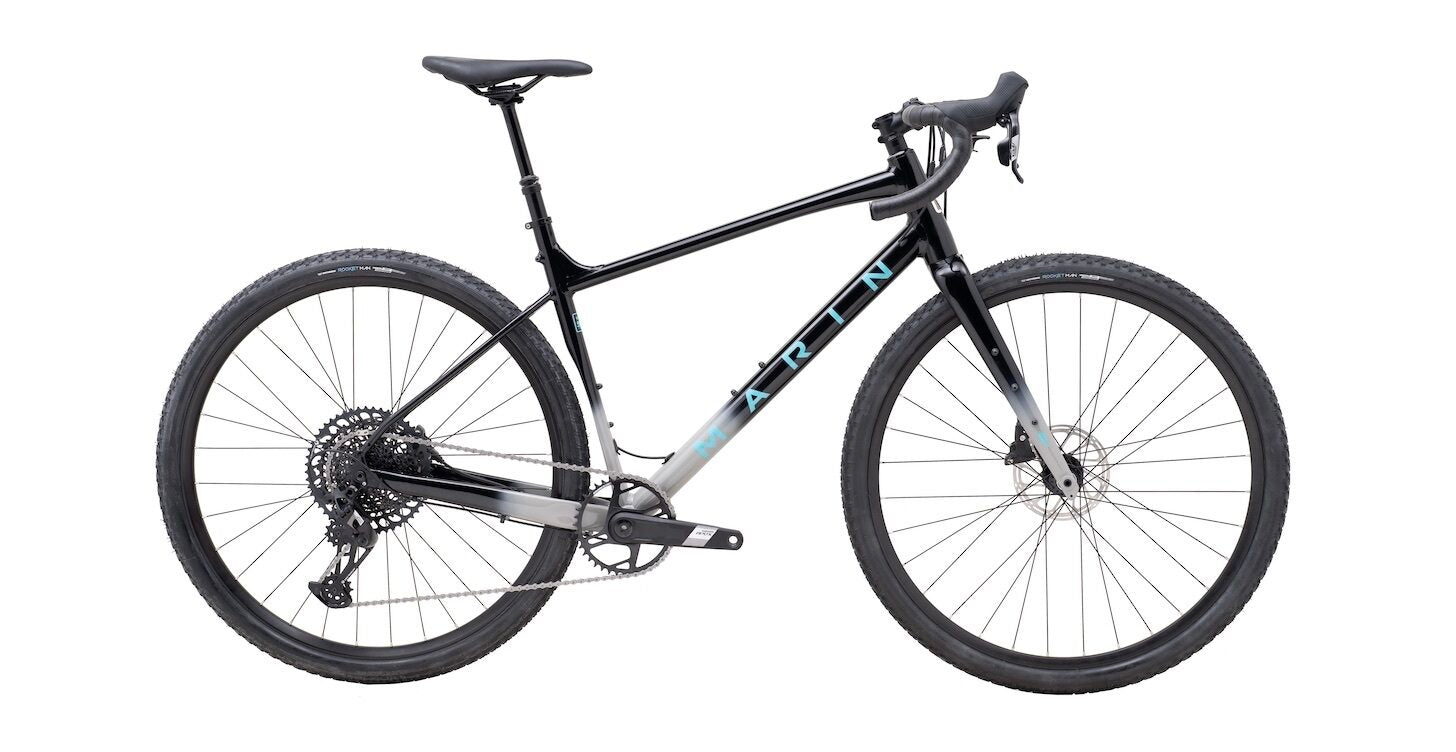

Marin Gestalt XR
ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.
The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.
The Gestalt XR takes gravel to the next level. XR brings our MTB-inspired, Series 3 aluminum Gestalt X frame and adds a gravel-specific SRAM Apex 12-speed drivetrain, Apex hydraulic disc brakes, a TranzX dropper post, cushy and grippy 45mm wide Vee Tire Rubber and heaps of our own bespoke Marin components.
Specifications
Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Rim
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Hub Rear
Forged Aluminum Alloy, 142x12mm, Disc, 32H
Hub Front
Forged Aluminum Alloy, 100x12mm, Disc, 32H
Spokes Nipples
14g Black Stainless Steel
Tires
Vee Tire Co., Quikstyk, 700x45, Folding Bead, Tubeless Compatible
Derailleur Rear
SRAM Apex 1 12-Speed
Derailleur Front
-
Shift Lever
SRAM Apex 1 1x12-Speed
Crankset
SRAM Apex 1, 40T
Bottom Bracket
SRAM DUB BSA
Chain
SRAM NX
Cassette
SRAM CS-XG-1275, 10-52T
Brakes Front
SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
Brakes Rear
SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers
SRAM Apex 1 Hydraulic Disc
Handlebar
Marin Butted Alloy, Compact 16º Flared Drop
Stem
Marin 3D Forged Alloy
Grips
Marin Shock Absorbing Perforated Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost
TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm
Saddle
Marin Beyond Road Concept Elite
Pedals
-
Extras
Bolt-On Thru-Axles F and R
