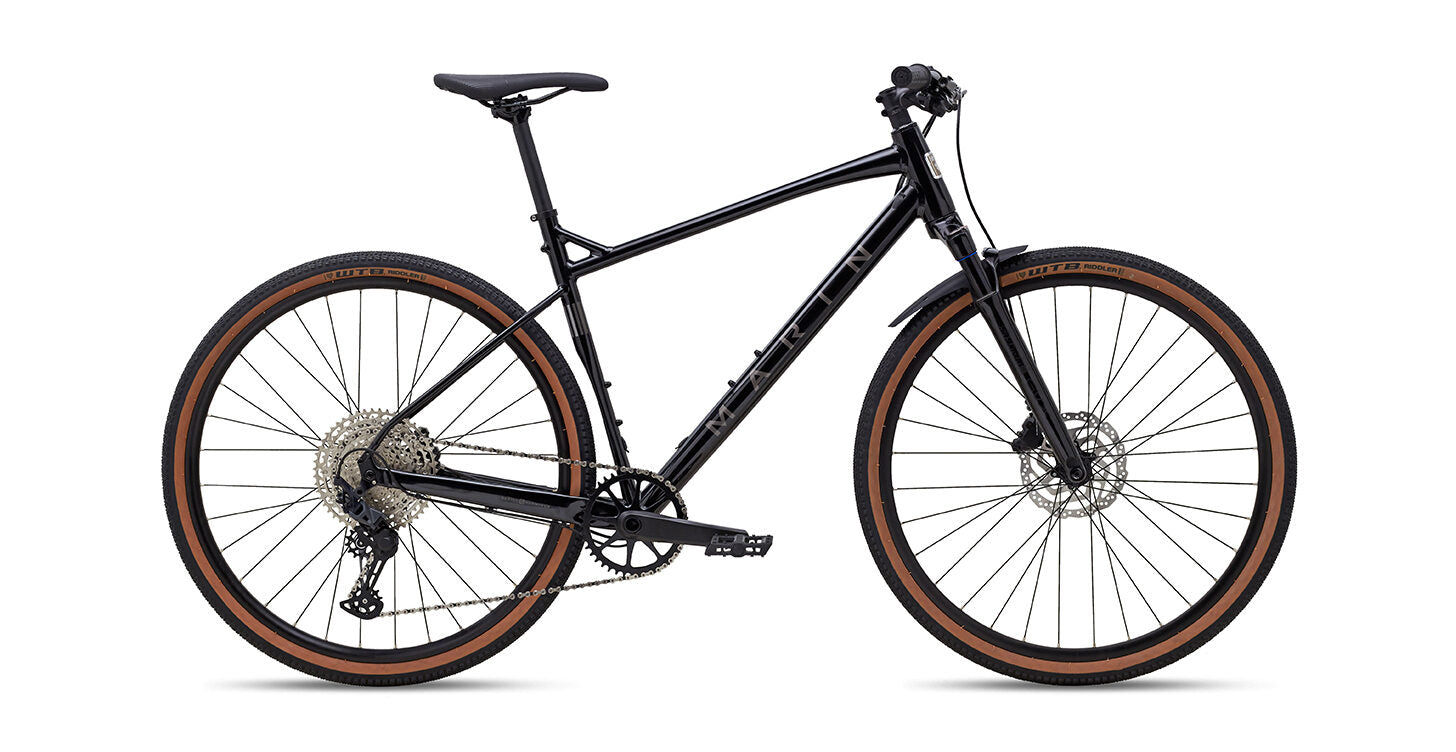

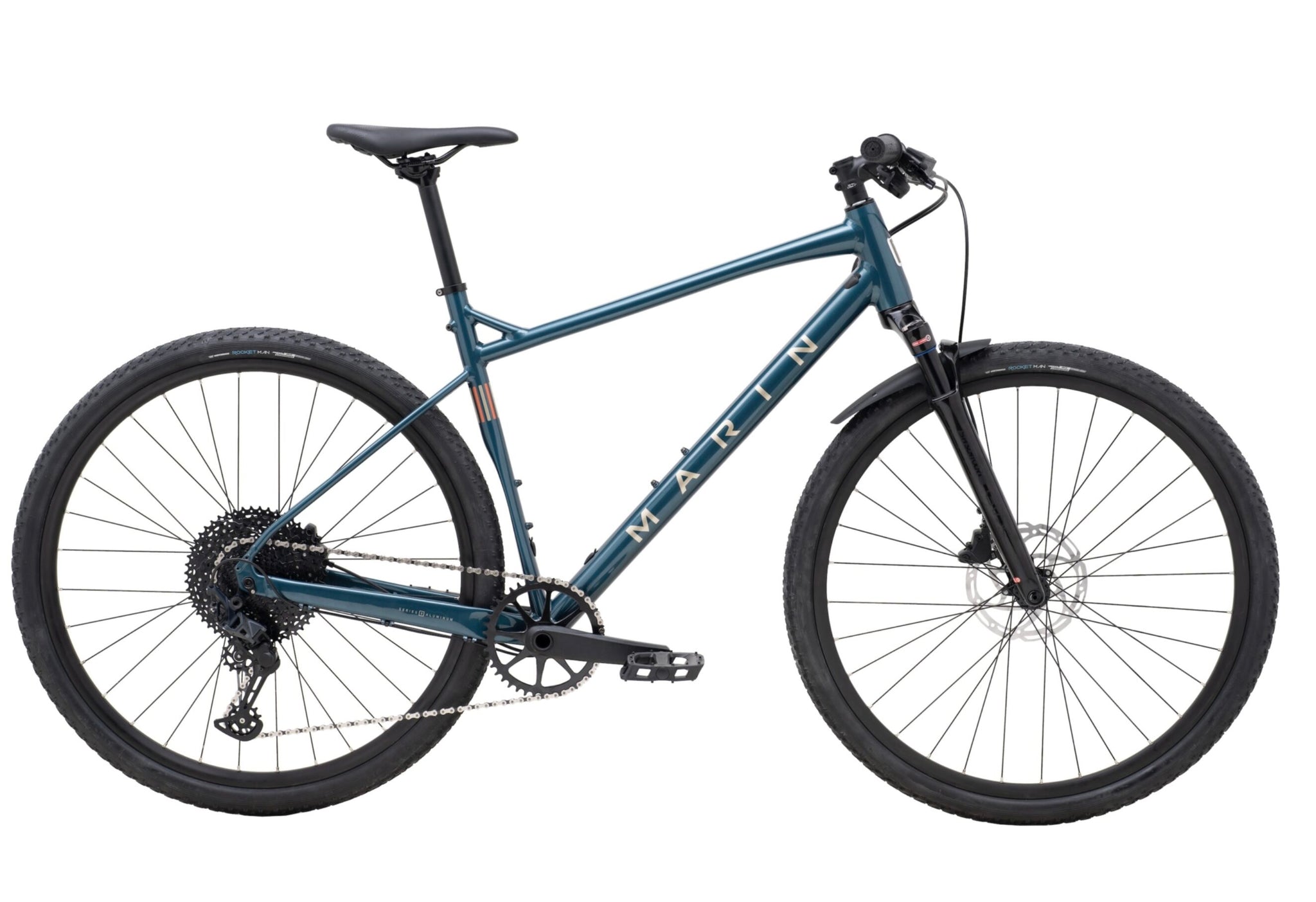

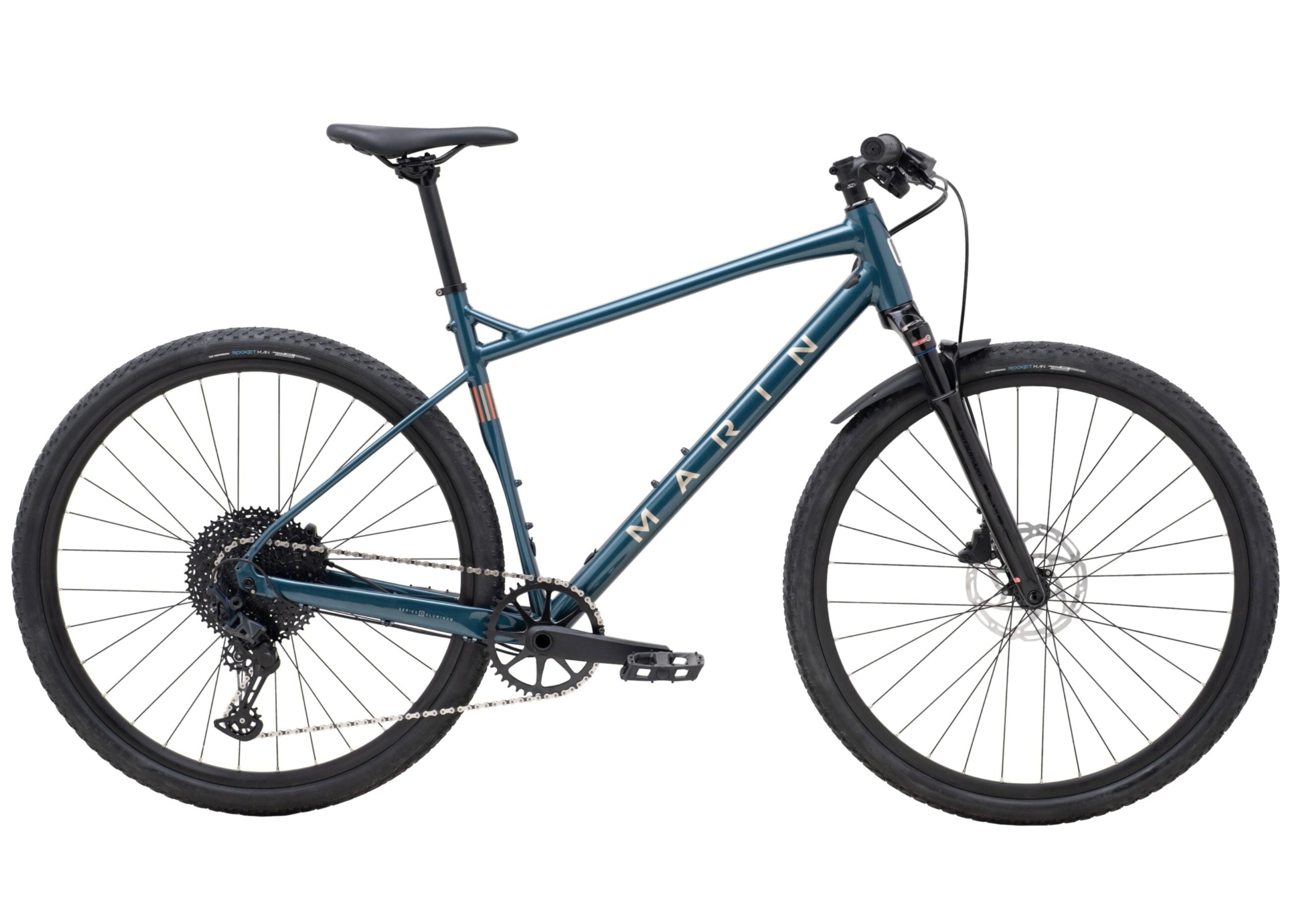

Marin DSX FS
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
Specifications

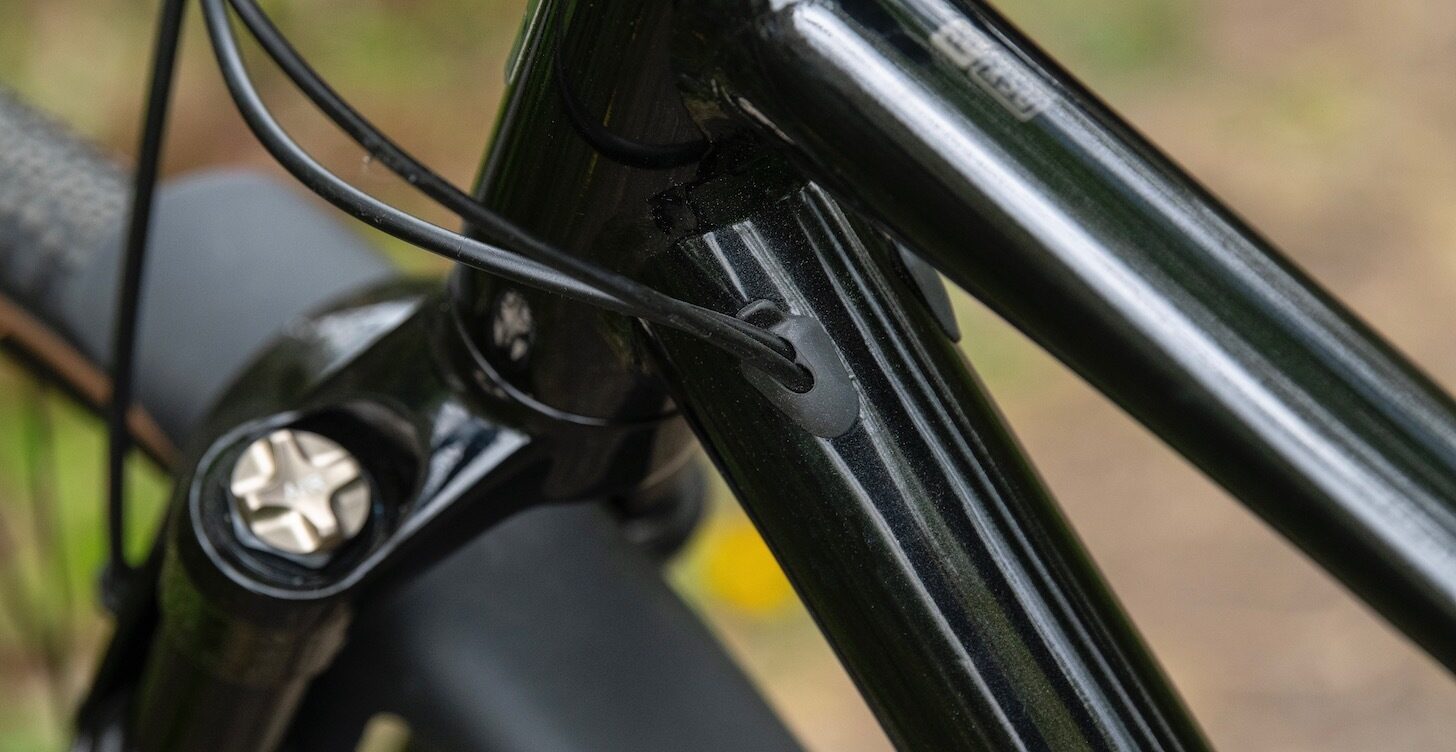

Frame
Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork
SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Rims
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hub, Rear
Forged Aluminum, 142x12mm, Disc Specific, 32H
Hub, Front
Forged Aluminum, 100x12mm, Disc, 32H
Spoke, Nipples
14g Black Stainless Steel
Tires
Vee Tire Co. Rocket Man, 700Cx44mm

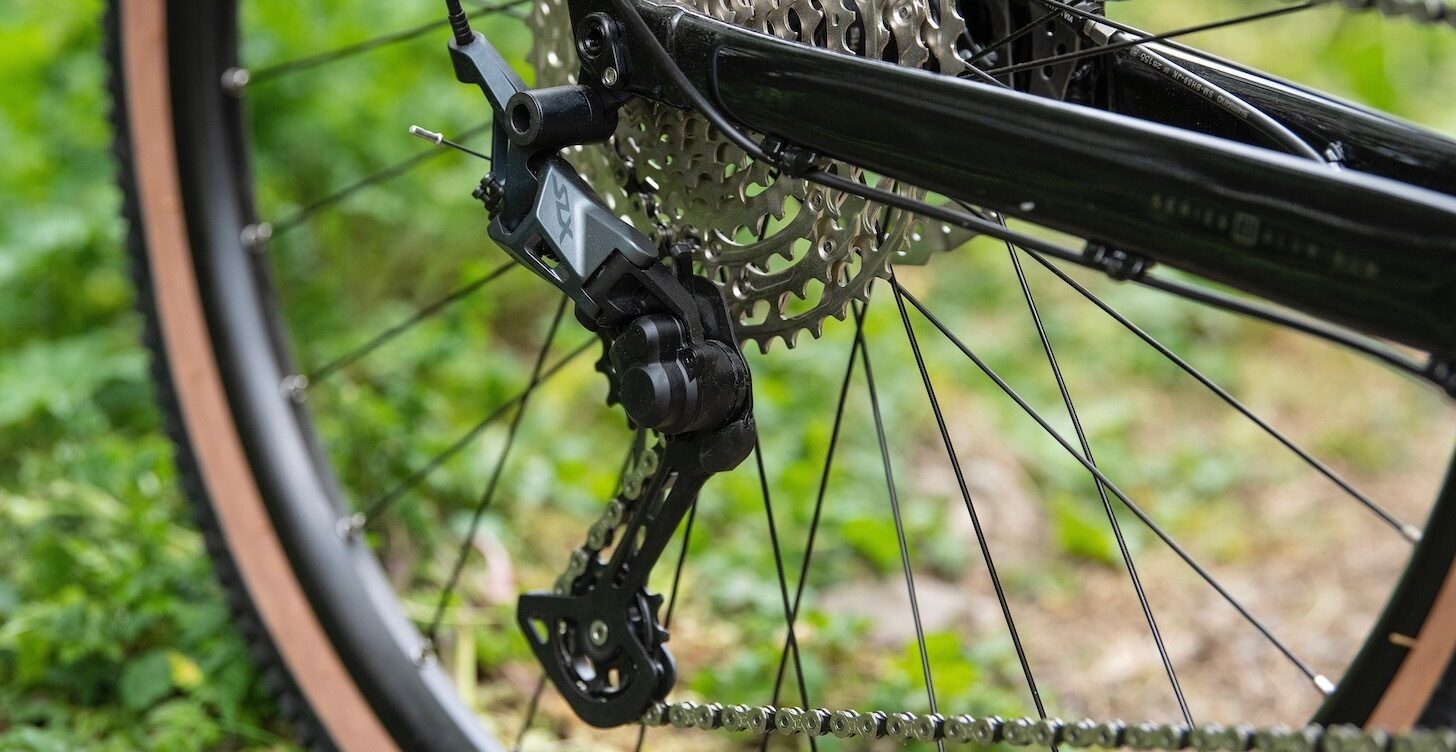

Derailleur, Rear
Shimano SLX, RD7100, 12-Speed
Derailleur, Front
-
Shift Lever
Shimano Deore, SLM6100, 12-Speed
Crankset
Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket
Sealed Outboard Bearing
Chain
KMC X12
Cassette
SunRace, 12-Speed, 11-51T
Brake, Front
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Brake, Rear
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
Brake Levers
Tektro Hydraulic
Handlebar
Marin Mini Riser
Stem
Marin 3D Forged Alloy
Grips
Marin MTB
Headset
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost
Marin Alloy
Saddle
Marin DSX
Pedals
Nylon Platform
Extras
Bolt-On Thru-Axles F and R
