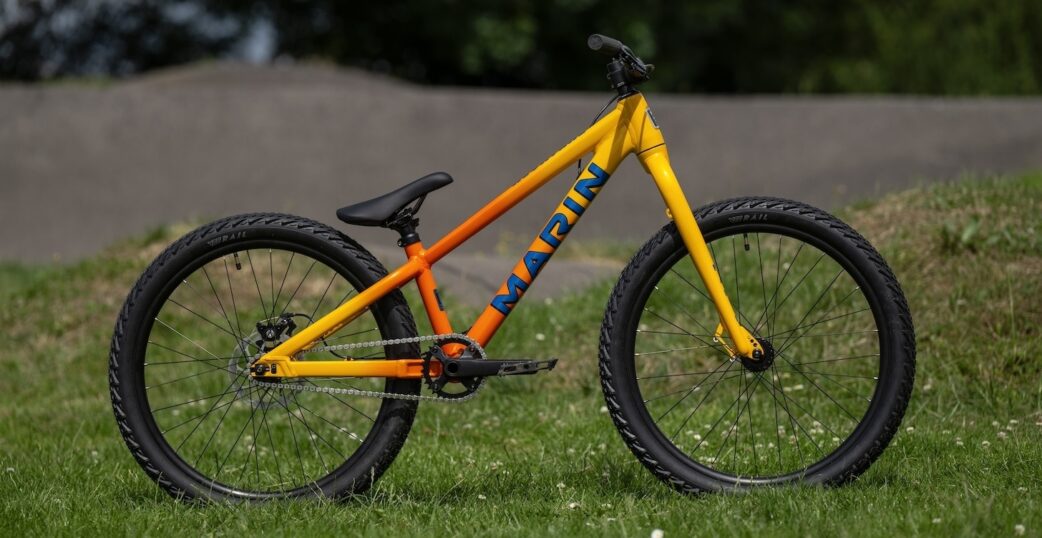

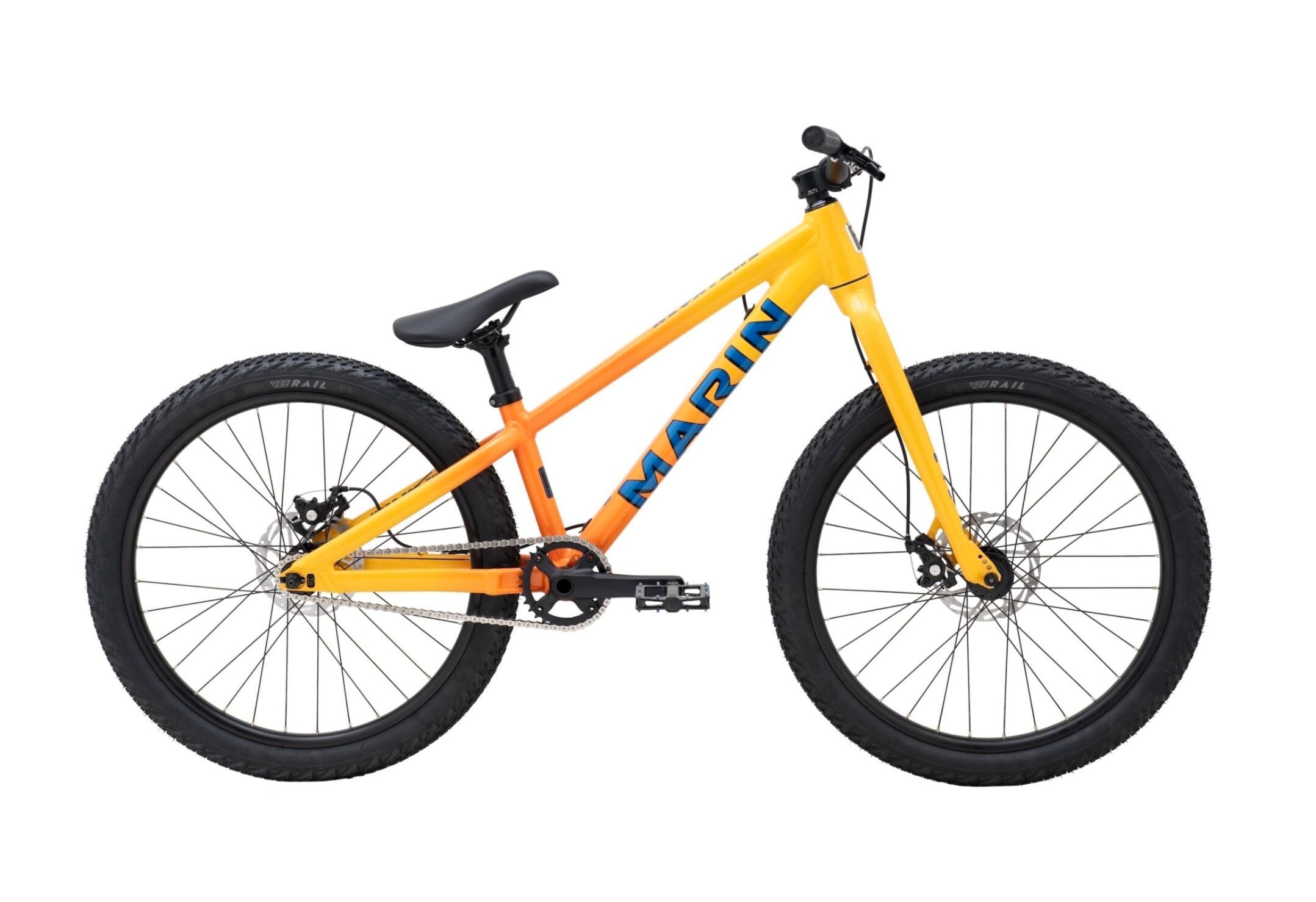

Marin Alcatraz 24"
We've taken the Alcatraz 1 and scaled it down for smaller riders. Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.
Specifications
-
Frame
Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
-
Front Suspension
Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts
-
Rear Suspension
-
-
Rims
Marin Custom Extrusion, 27mm Inner, Pinned Joint
-
Hub, Rear
Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
-
Hub, Front
Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing
-
Spokes
14g Black Stainless Steel
-
Tires
Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead
-
Derailleur, Rear
-
-
Derailleur, Front
-
-
Shift Lever
-
-
Crankset
Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length
-
Bottom Bracket
External Sealed Cartridge Bearings
-
Chain
KMC HL-1
-
Cassette
14T Single Speed Cog
-
Brake, Front
Tektro MD-M280 Mechanical Disc 160mm Rotor
-
Brake, Rear
Tektro MD-M280 Mechanical Disc 160mm Rotor
-
Brake Levers
Tektro CL-330TS Alloy
-
Handlebar
Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back
-
Stem
Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension
-
Grips
Marin MTN, Closed End
-
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
Seatpost
Marin Alloy, 30.9mm
-
Saddle
Marin DJ Saddle
-
Pedals
Alloy Platform
-
Extras
Marin Chain Tension Device
