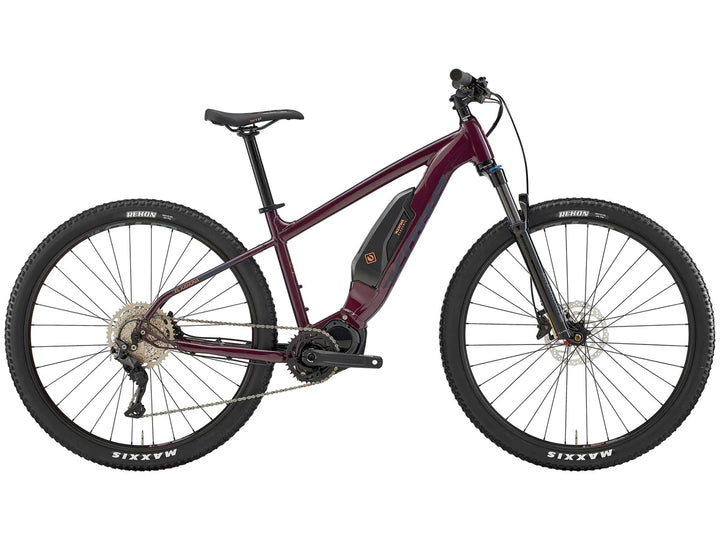

Kona El Kahuna
SPECS & GEOMETRY
SPECIFICATIONS
FRAME MATERIAL | Kona 6061 Aluminum Butted |
SIZES | S, M, L, XL |
REAR SHOCK | n/a |
FORK | Suntour XCR34 Air 100mm Tapered 110 Spacing |
CRANKARMS | FSA E-Bike |
CHAINRINGS | 36t |
B/B | n/a |
PEDALS | n/a |
CHAIN | Shimano HG54 |
CASSETTE | Shimano Deore 11-46t 10spd |
CHAINGUIDE | n/a |
F/D | n/a |
R/D | Shimano Deore |
SHIFTERS | Shimano Deore |
BRAKE CALIPERS | Shimano MT410 |
FRONT BRAKE ROTOR | Shimano RT10 180mm (centerlock) |
REAR BRAKE ROTOR | Shimano RT10 160mm (centerlock) |
BRAKE LEVERS | Shimano MT401 |
HEADSET | FSA No.57BP |
HANDLEBAR | Kona XC/BC Riser |
STEM | Kona XC |
SEATPOST | Kona Thumb w/Offset 31.6mm |
SEAT CLAMP | Kona QR |
GRIPS | Kona Key Grip |
SADDLE | WTB Volt |
FRONT HUB | Shimano 110x15mm |
REAR HUB | Shimano 135x10mm |
SPOKES | Stainless 14g |
RIMS | WTB ST i27 TCS 2.0 |
FRONT TIRE | WTB Trail Boss 29x2.25" |
REAR TIRE | WTB Trail Boss 29x2.25" |

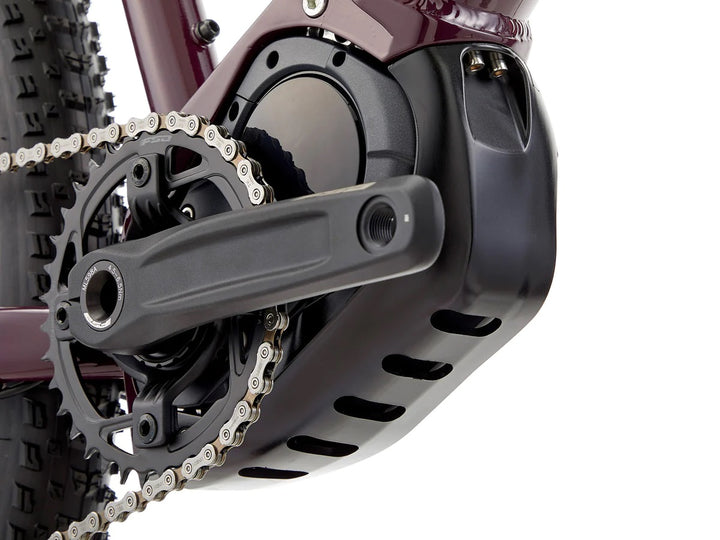

DRIVEUNIT | Shimano E6100 20MPH |
BATTERY | Shimano 504Wh |

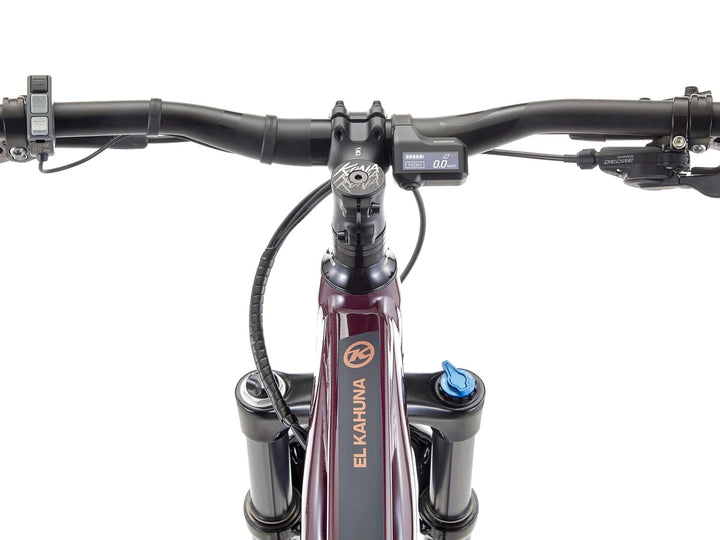

DISPLAY | Shimano SC-E7000 Display |
CHARGER | Shimano STEPS 2A |
BATTERYLOCK | Abus |
PAINT COLOR | Gloss Plum w/ Metallic Brass & Matte Ink Decals |
EXTRAS | n/a |
GEOMETRY
SIZE | S | M | L | XL | |
1 | ST LENGTH | 370 | 420 | 470 | 530 |
2 | TT LENGTH | 581 | 607 | 633 | 665 |
3 | REACH | 404 | 428 | 453 | 484 |
4 | STACK | 619 | 623 | 628 | 633 |
5 | STANDOVER | 738 | 742 | 747 | 766 |
6 | HT ANGLE | 69.0 | 69.0 | 69.0 | 69.0 |
7 | HT LENGTH | 110 | 115 | 120 | 125 |
8 | ST ANGLE | 74.0 | 74.0 | 74.0 | 74.0 |
9 | CS LENGTH | 465 | 465 | 465 | 465 |
10 | BB DROP | 60 | 60 | 60 | 60 |
11 | BB HEIGHT | 315 | 315 | 315 | 315 |
12 | WHEELBASE | 1134 | 1160 | 1187 | 1220 |
13 | FRONT CENTER | 676 | 701 | 728 | 761 |
14 | FORK LENGTH | 506 | 506 | 506 | 506 |
15 | FORK OFFSET | 51 | 51 | 51 | 51 |
