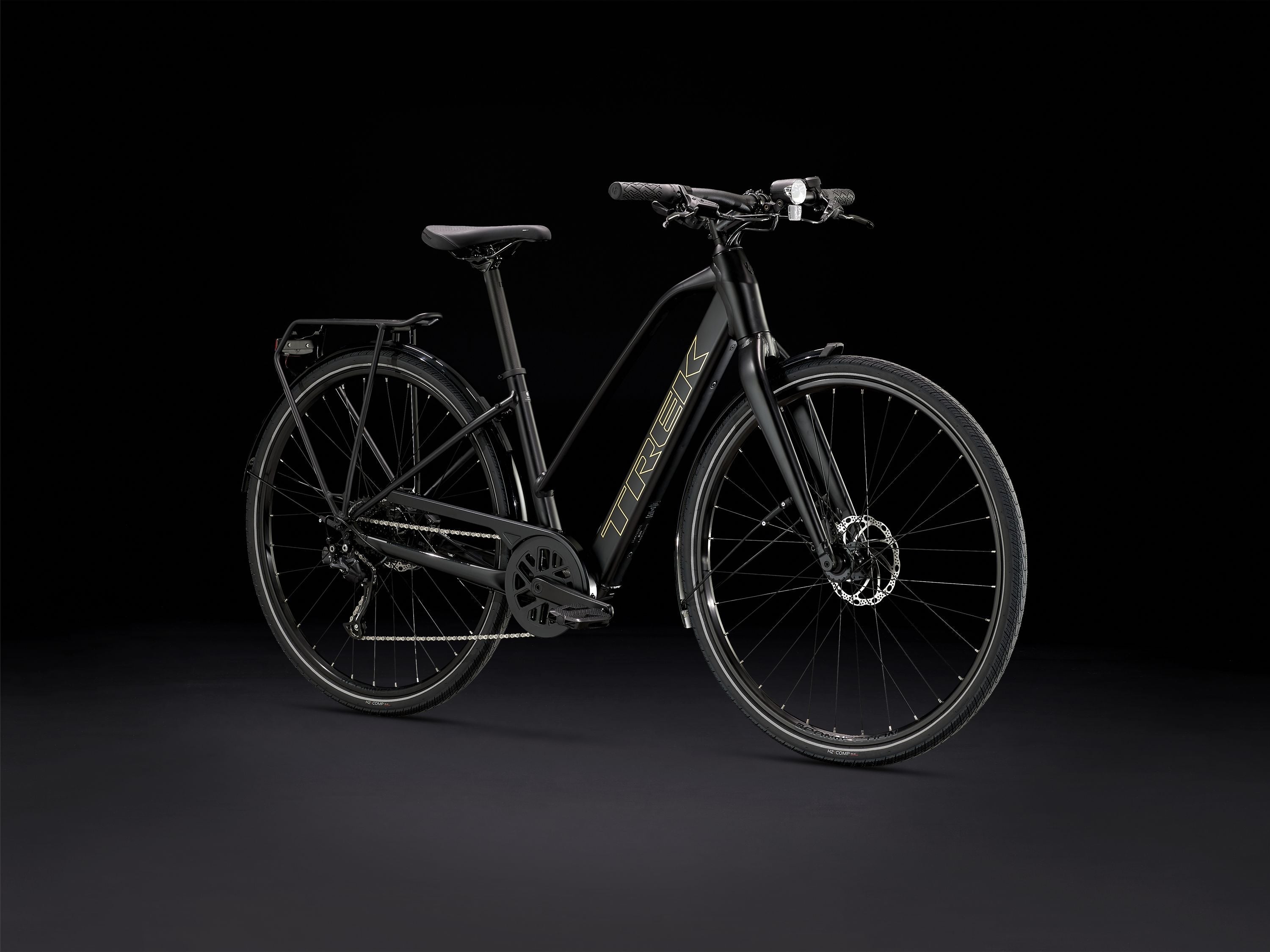

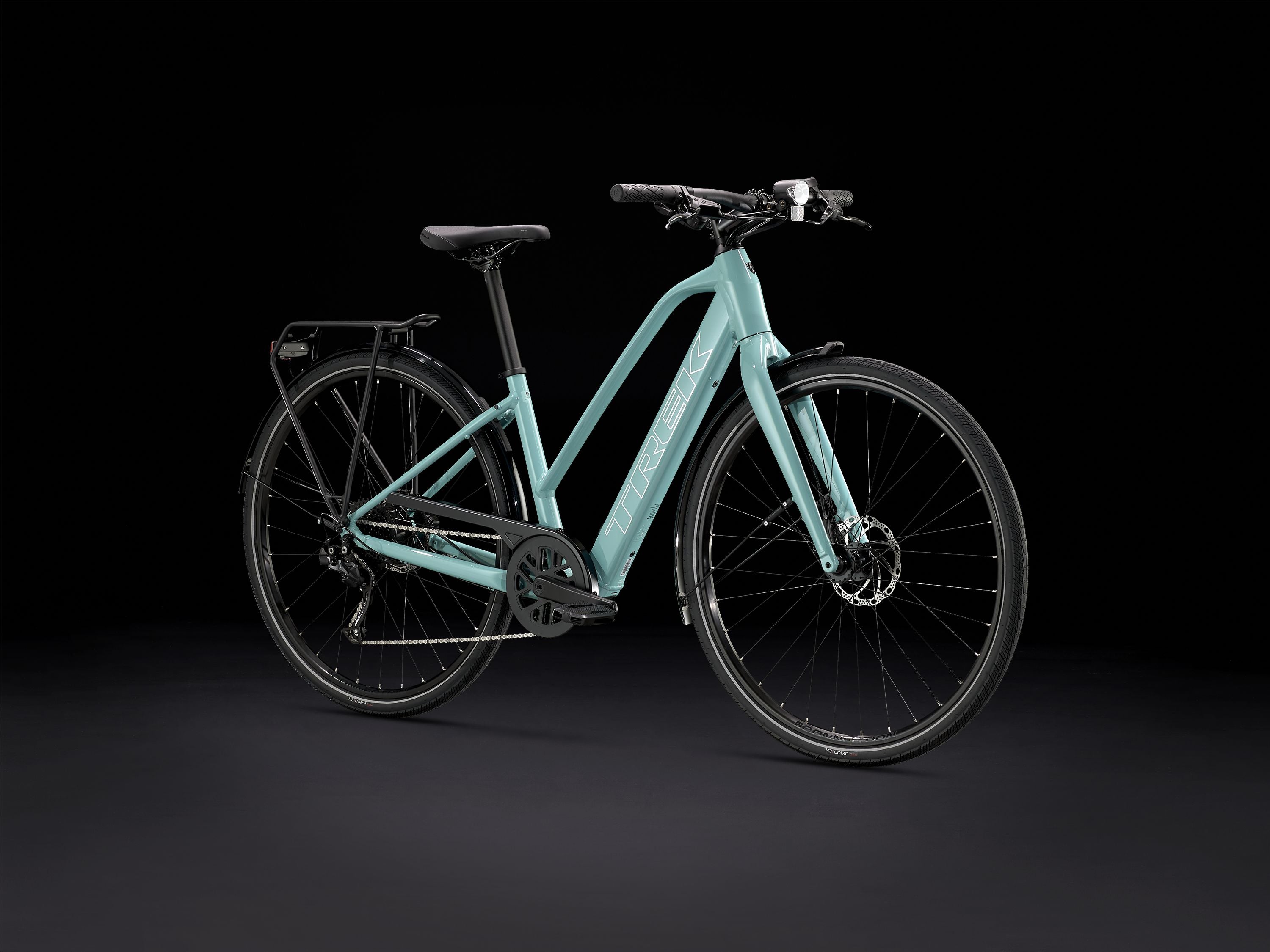

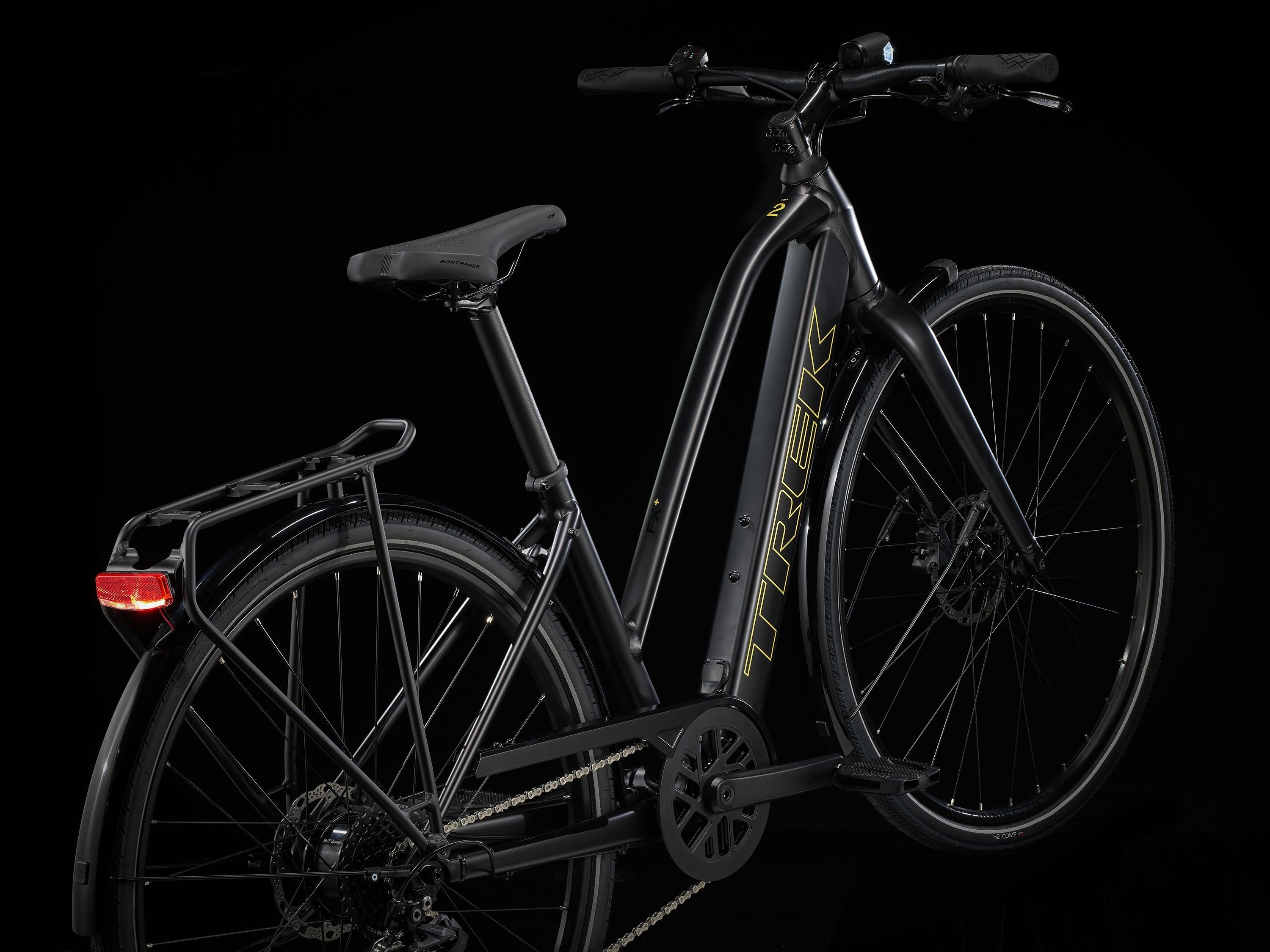

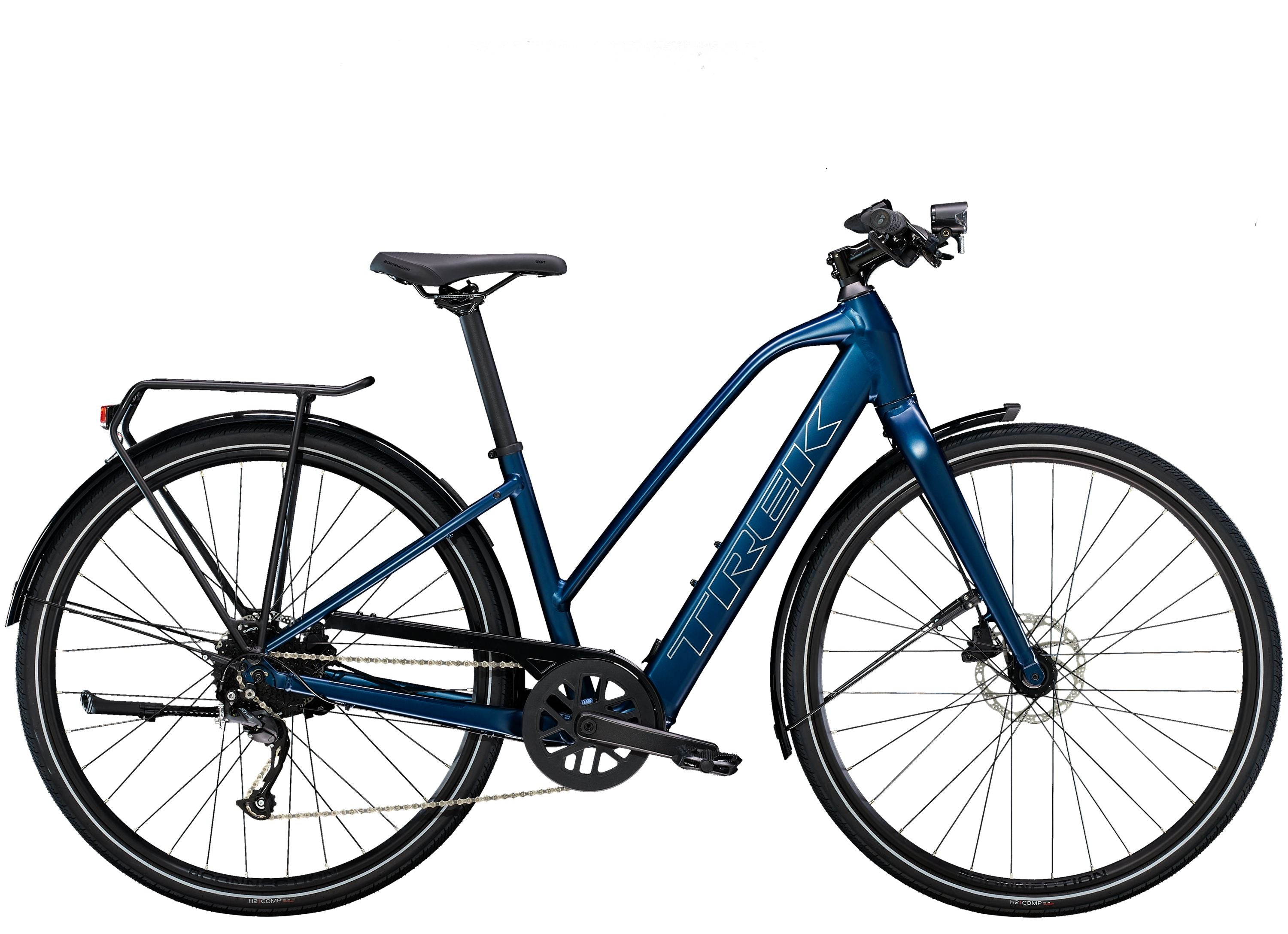

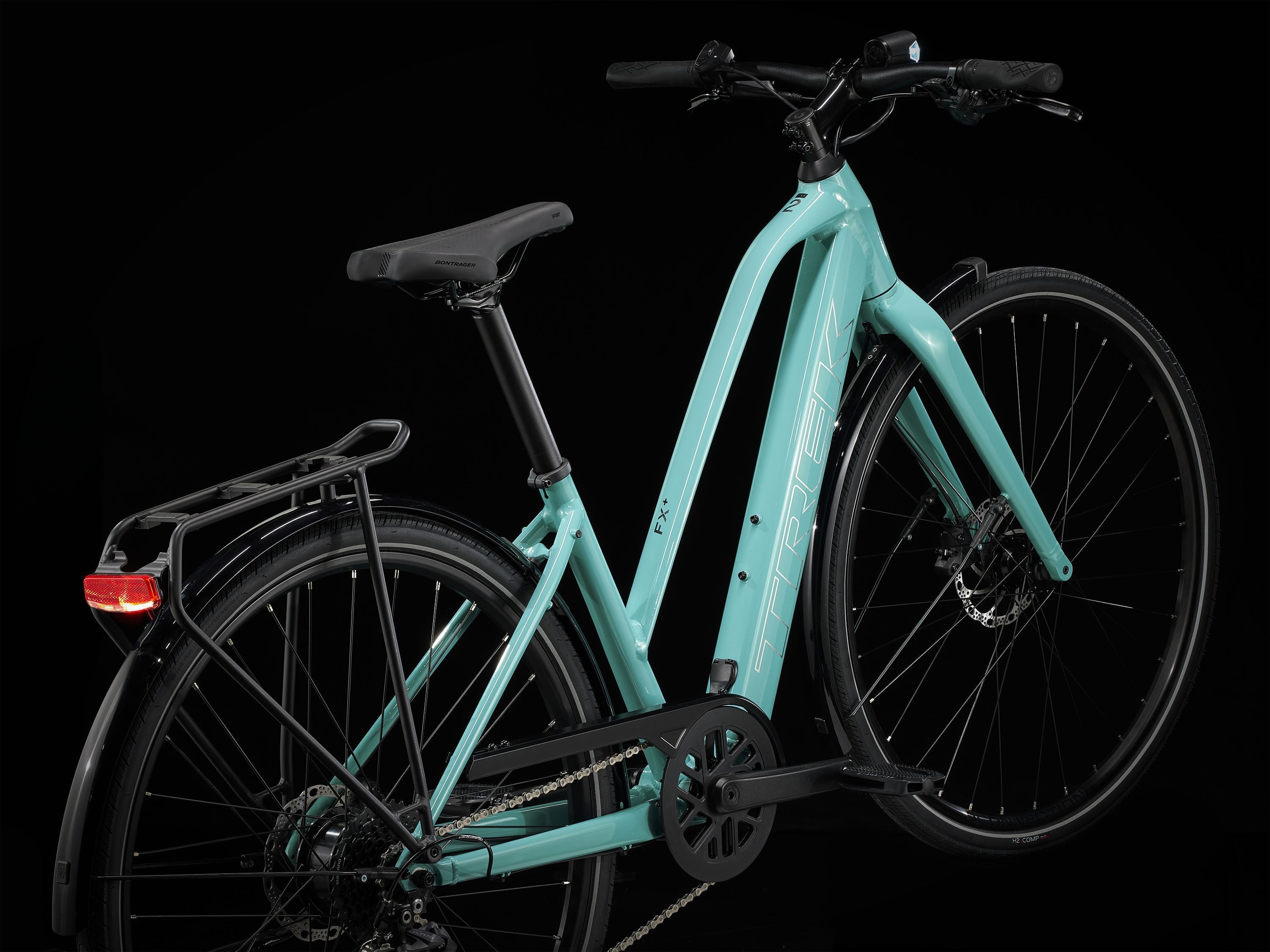

FX+ 2 Stagger

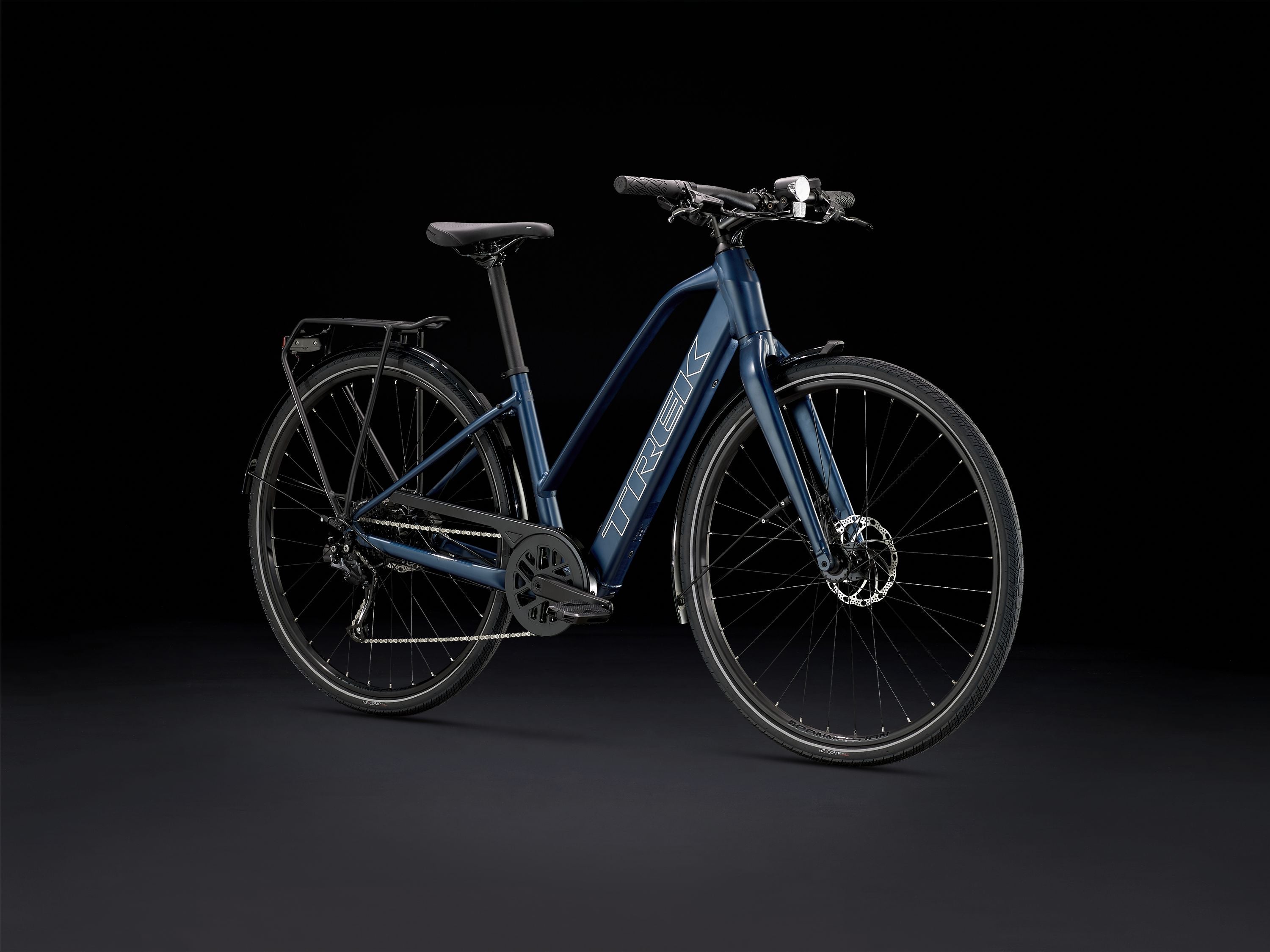

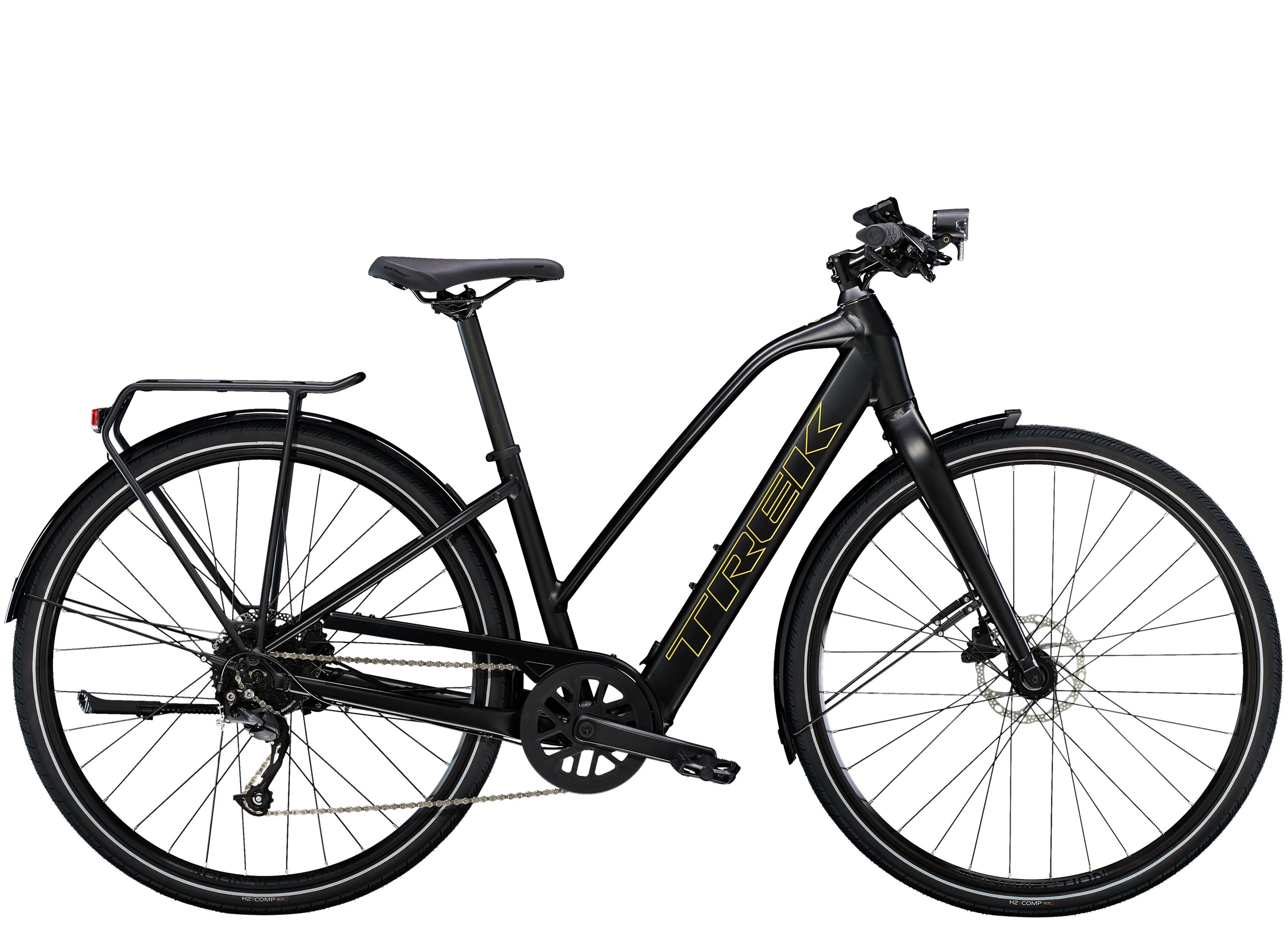

The FX+ 2 Stagger is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal-assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and mudguards add even more versatility to this bike.
Technology

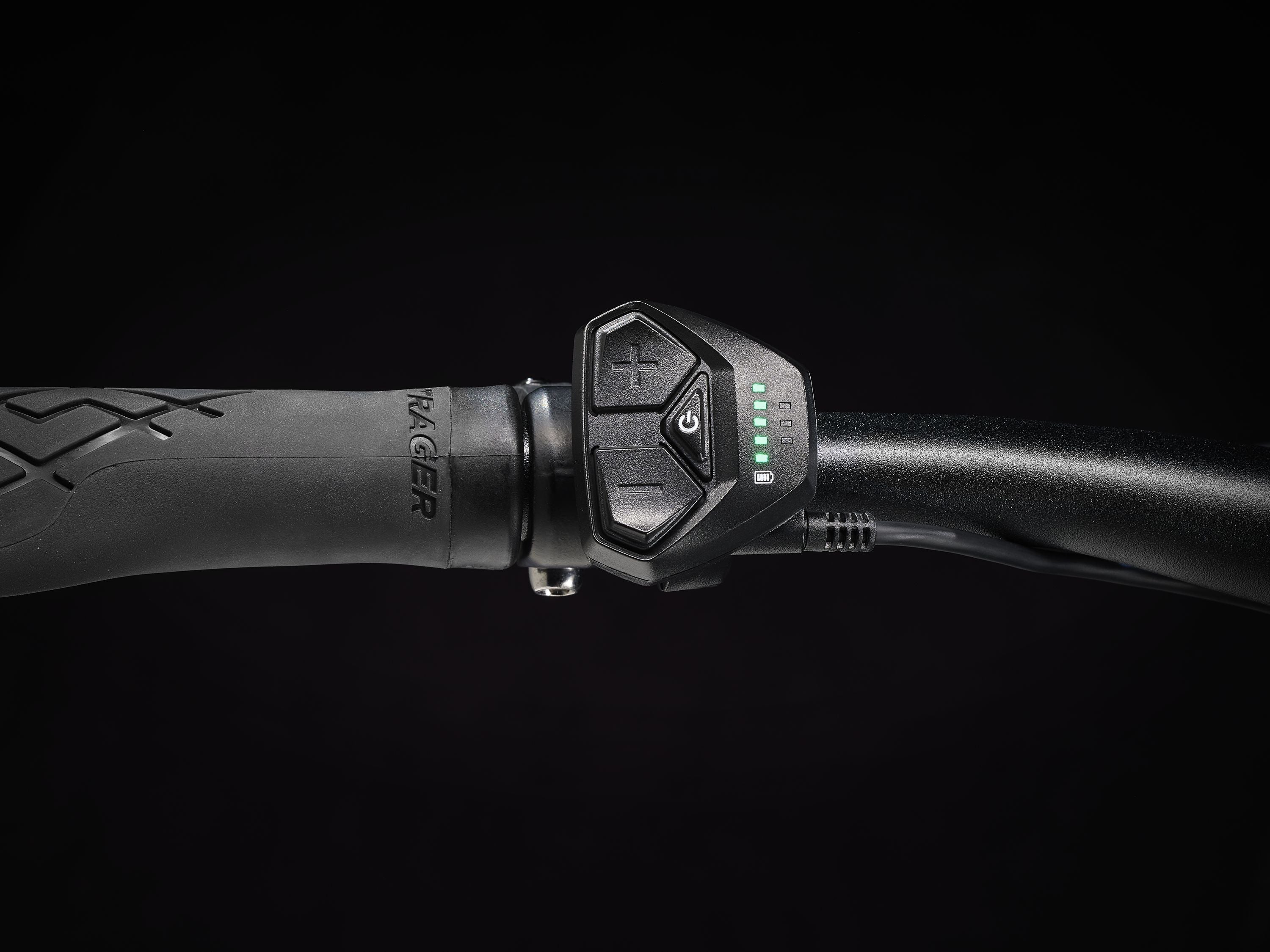

Powerful drive system - A lightweight and powerful 40 Nm rear hub drive offers confident handling and uninterrupted power.
Specification
| Frame | Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |
| Fork | FX+ alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm bolt-on skewer FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Tires | Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm |

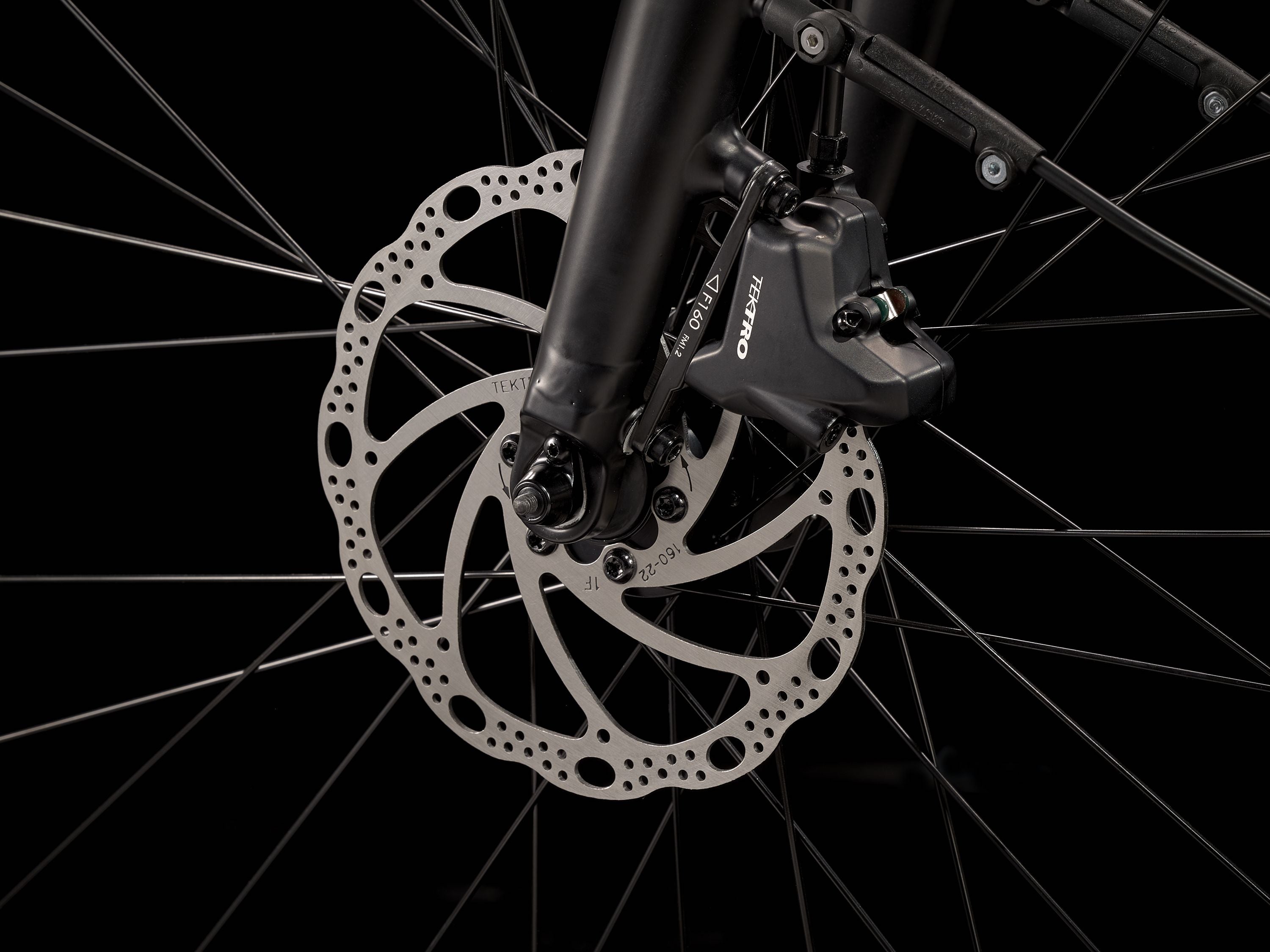

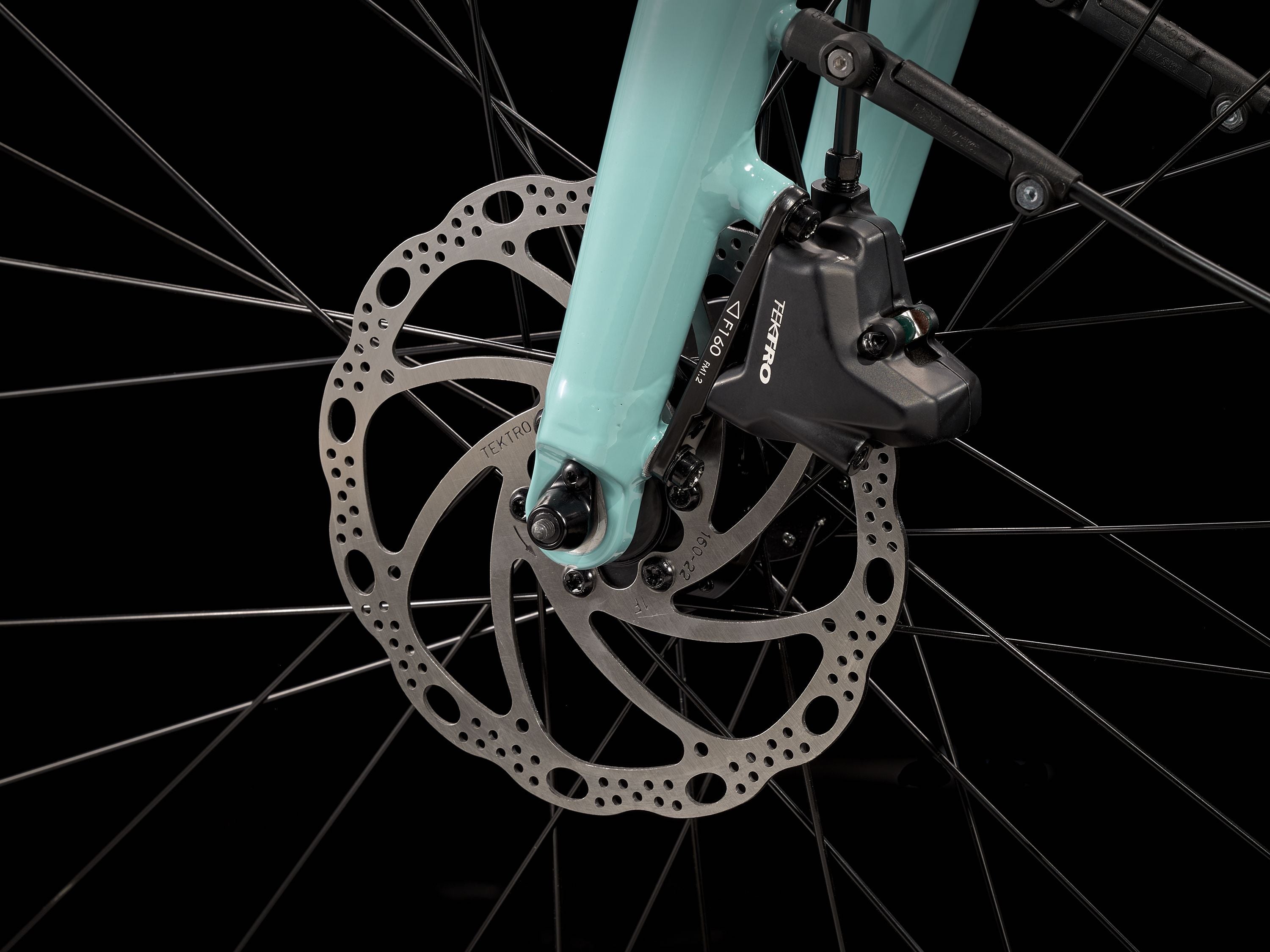

| Hub Front | Formula DC-20, alloy, 6-bolt, 100x5 mm |

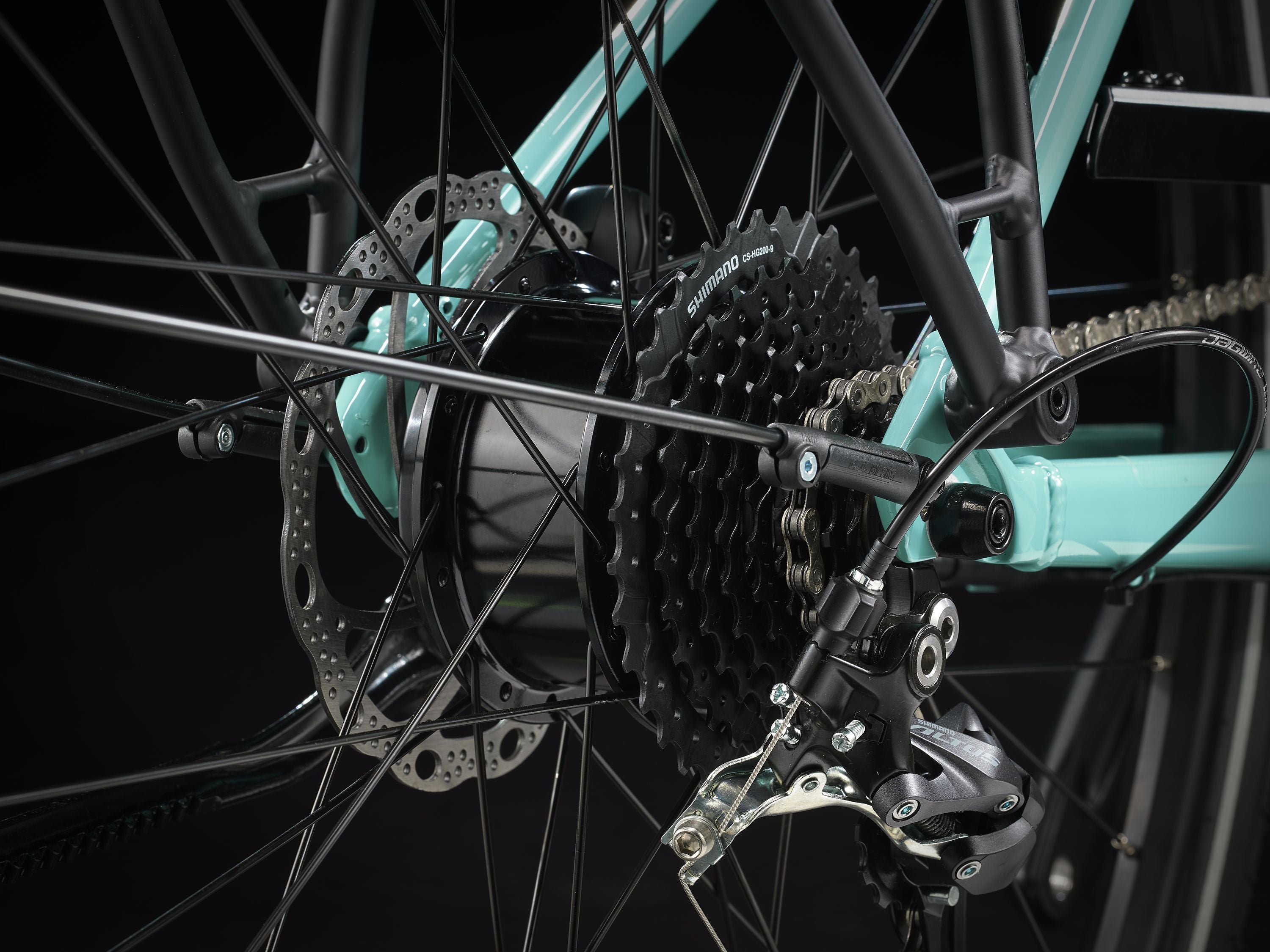

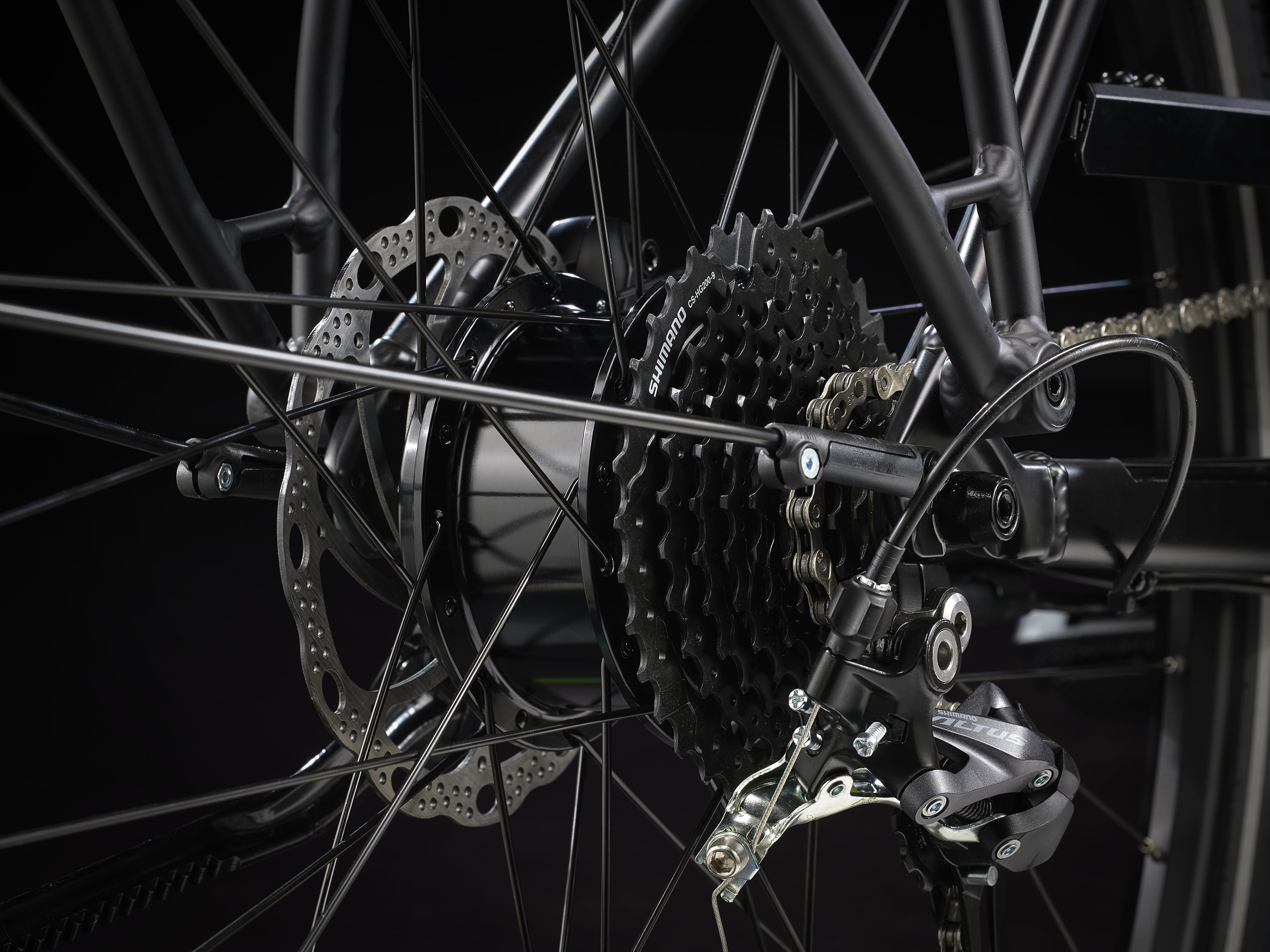

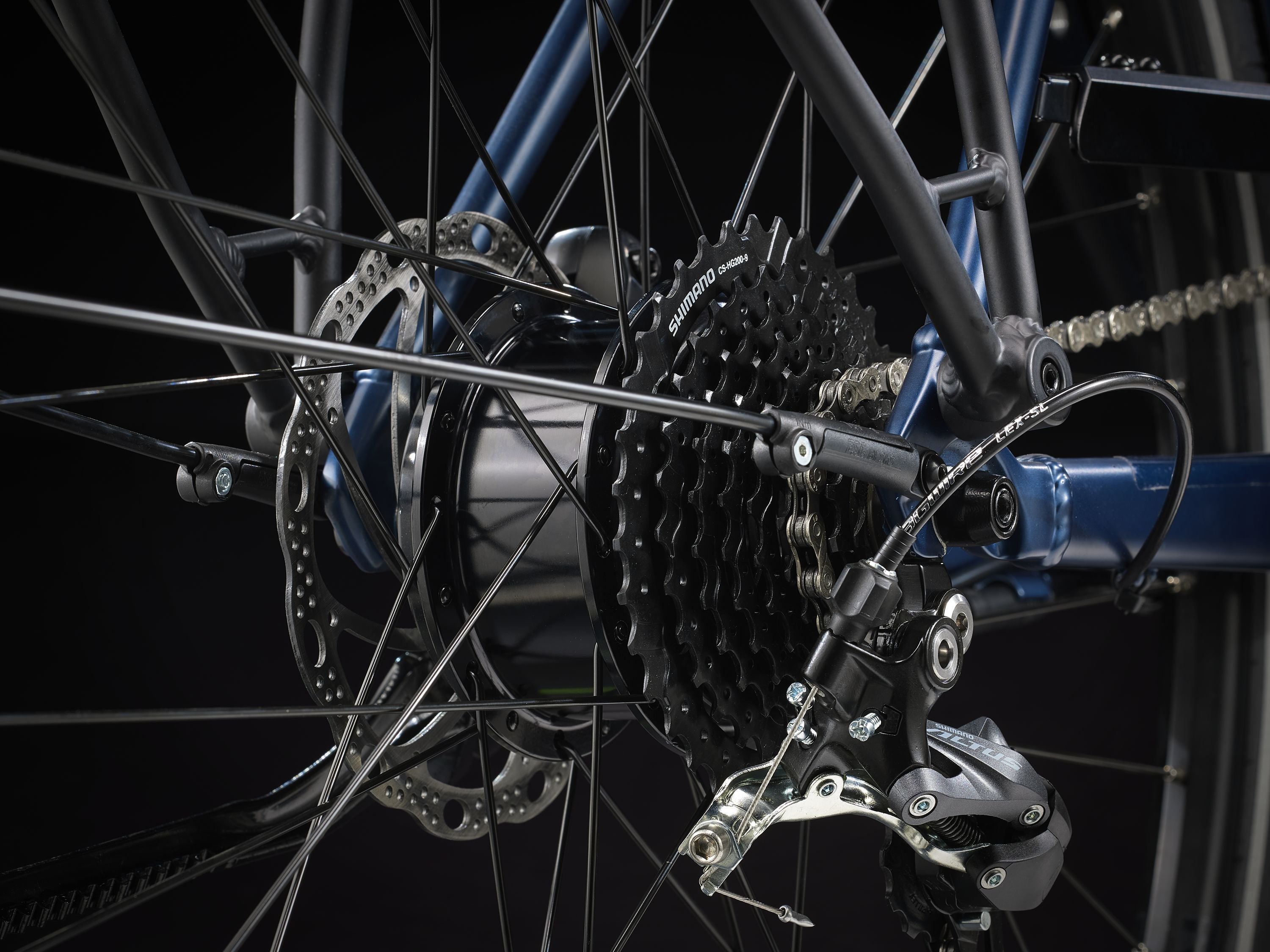

| Hub Rear | Hyena hub drive motor, 40 Nm, 250 W |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Shifter | Shimano |

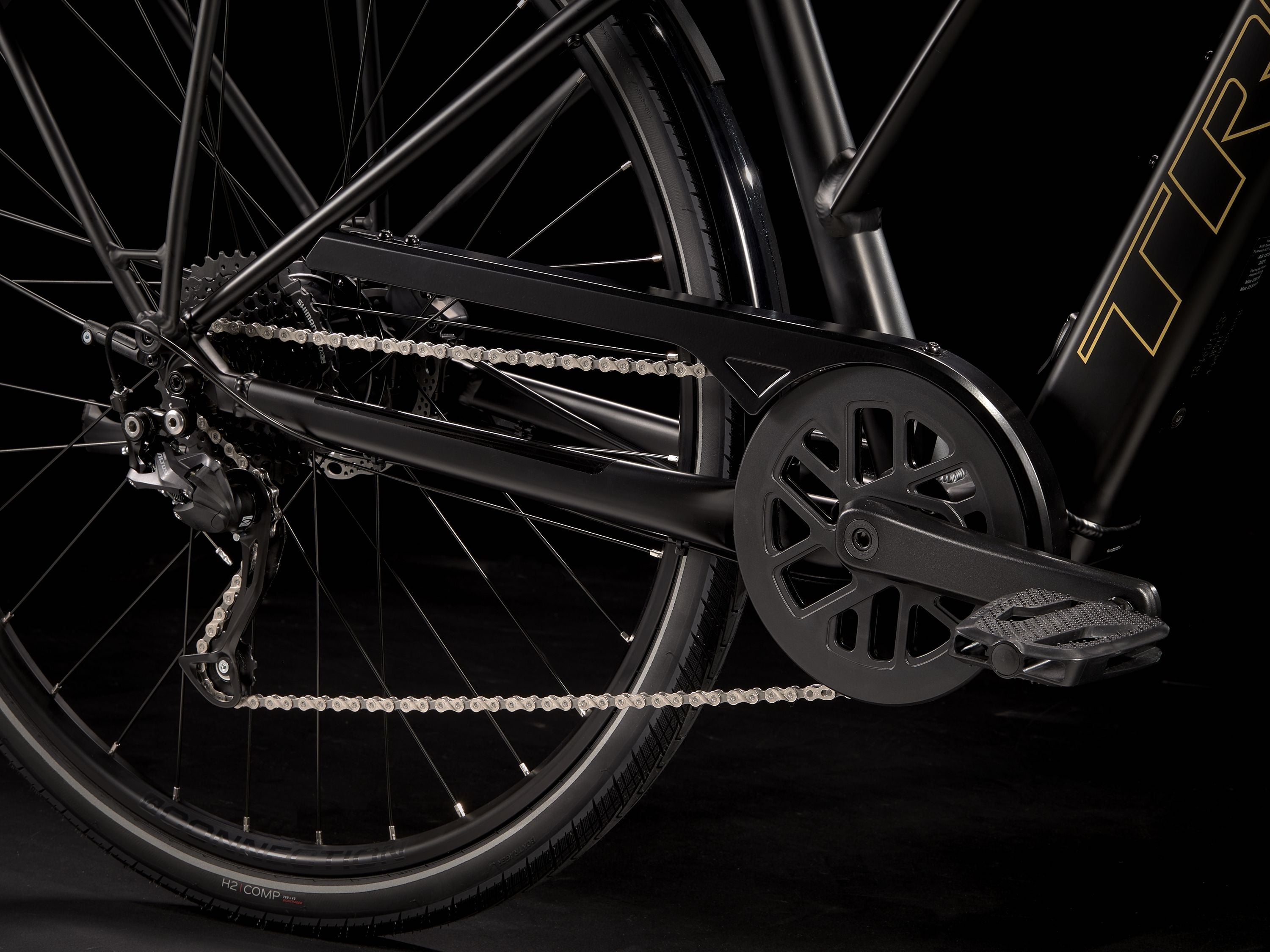

| Derailleur Rear | Shimano Altus M2000, long cage |

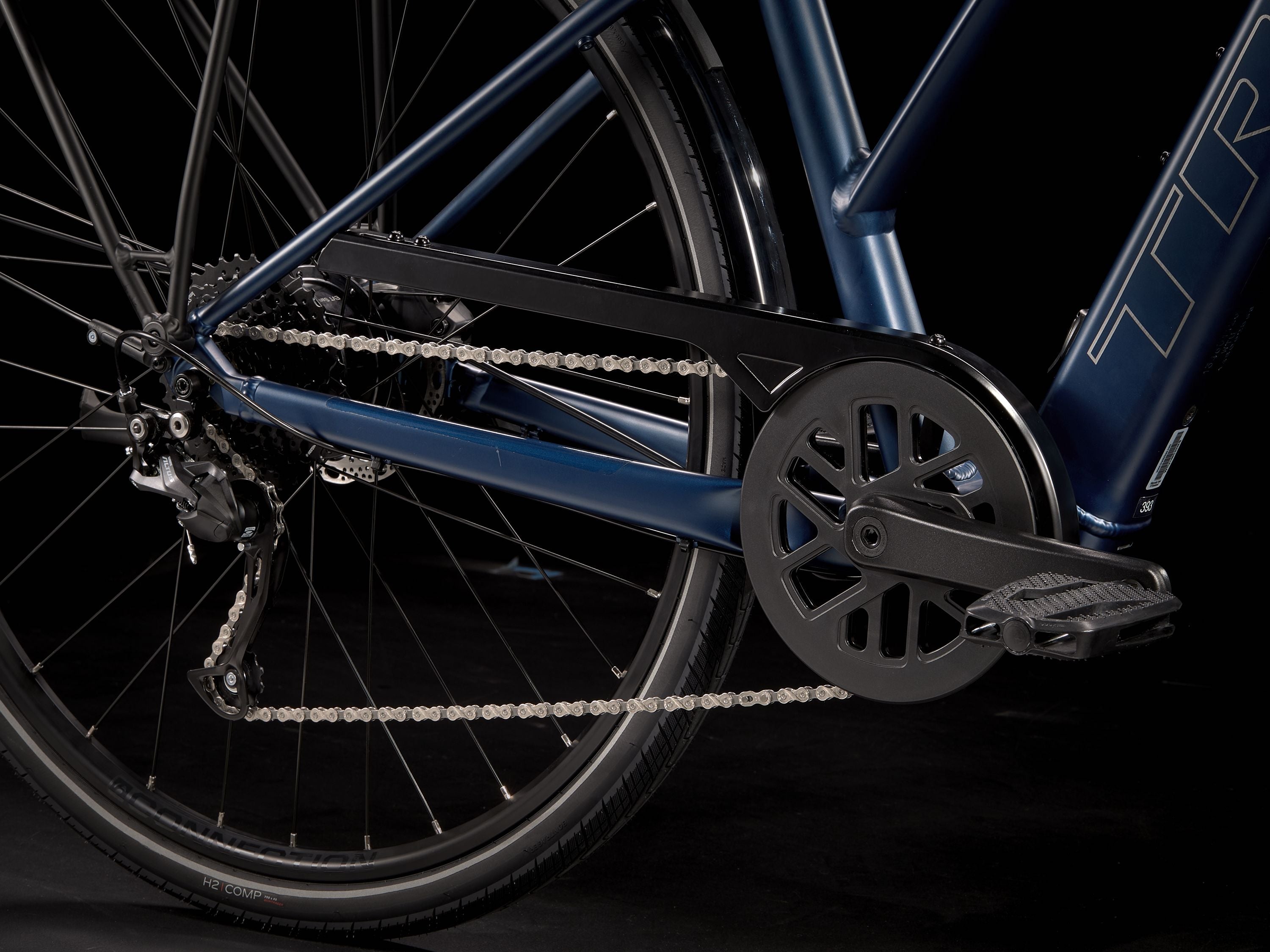

| Crank | ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length |
| Bottom Bracket | Torque sensor, threaded, 122.5 mm spindle |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC E9S, 9-speed |
| Pedals | slip-proof pedals with reflectors |
| Saddle | Bontrager Sport Women's |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |

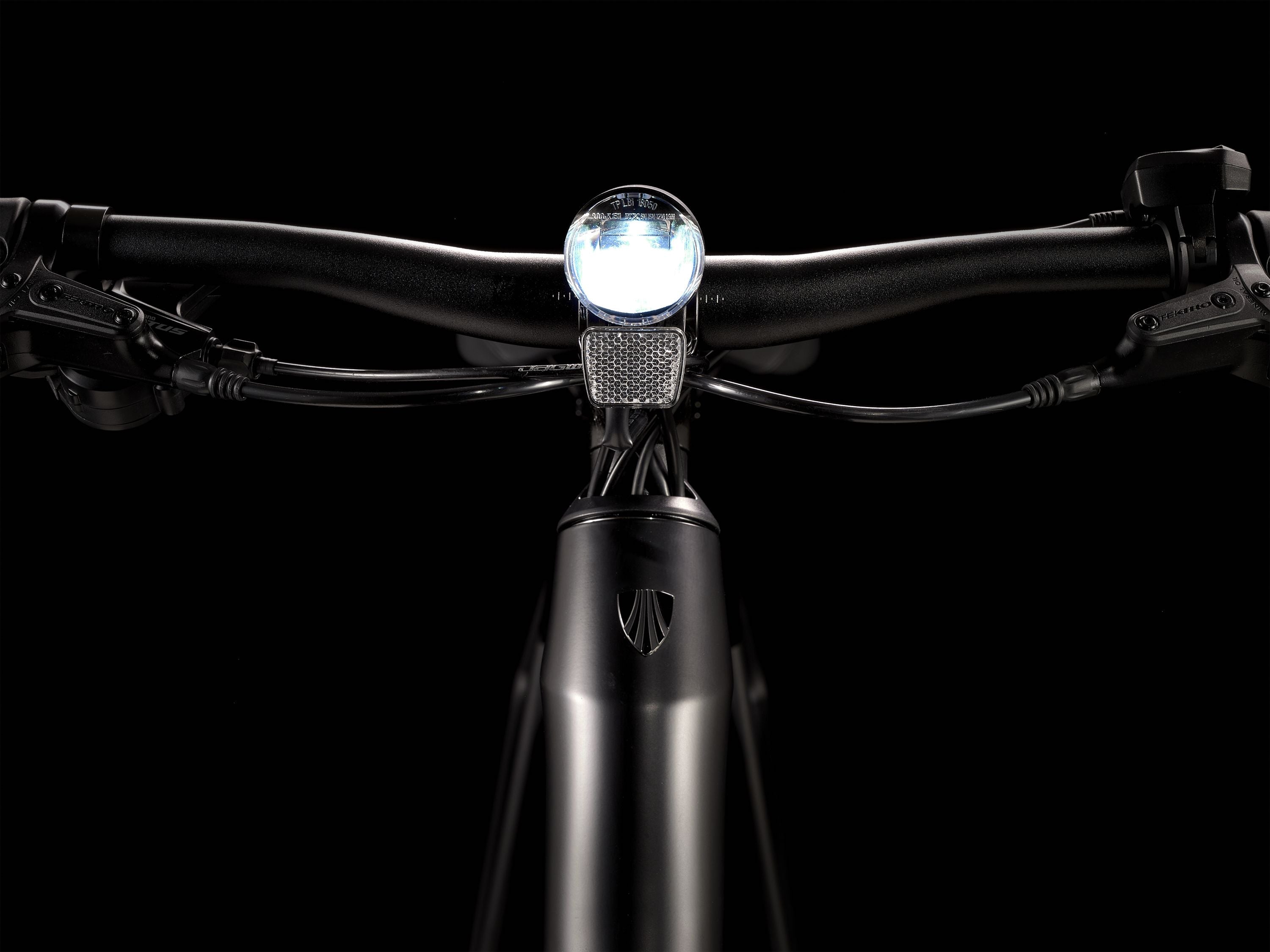

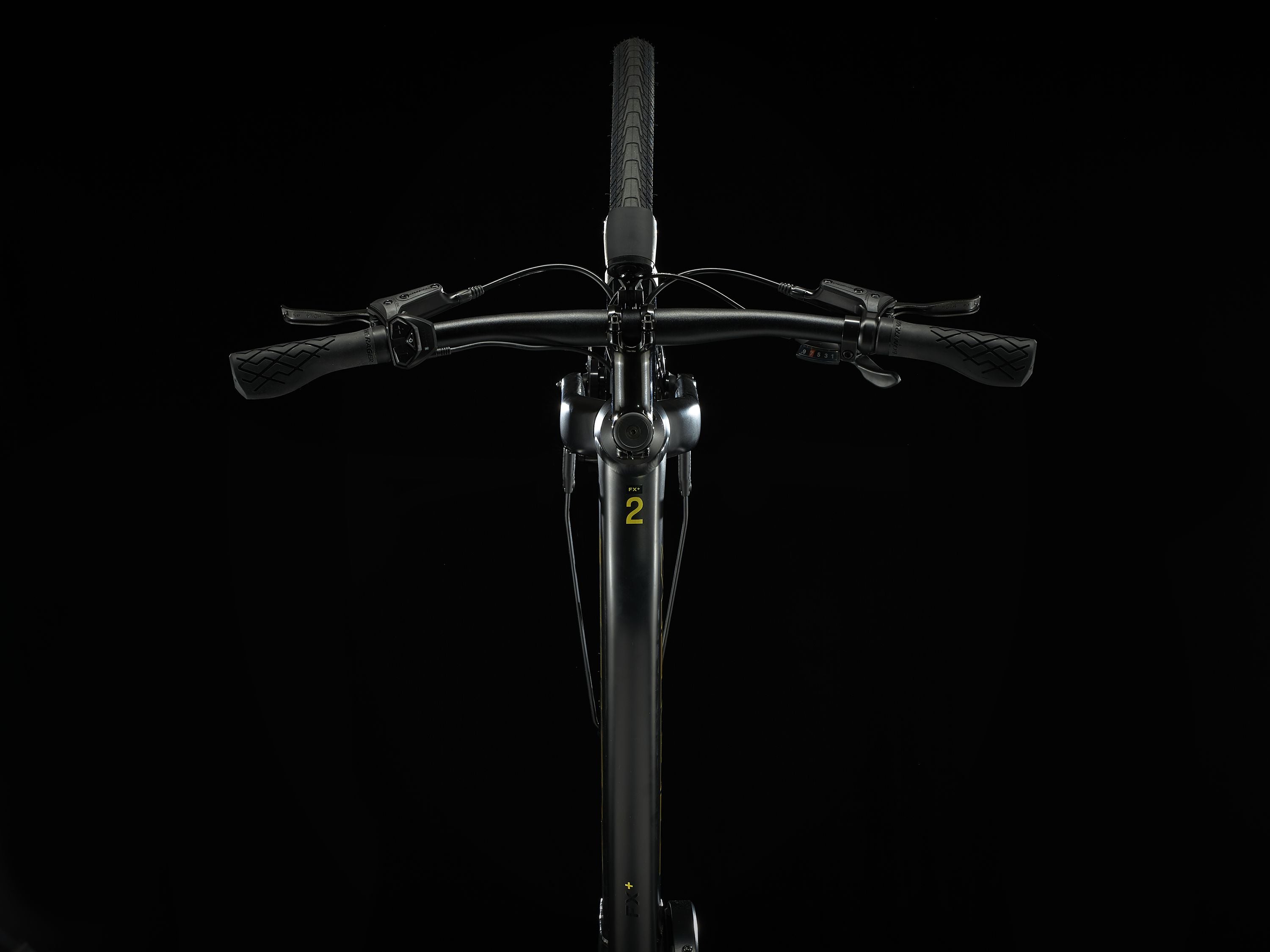

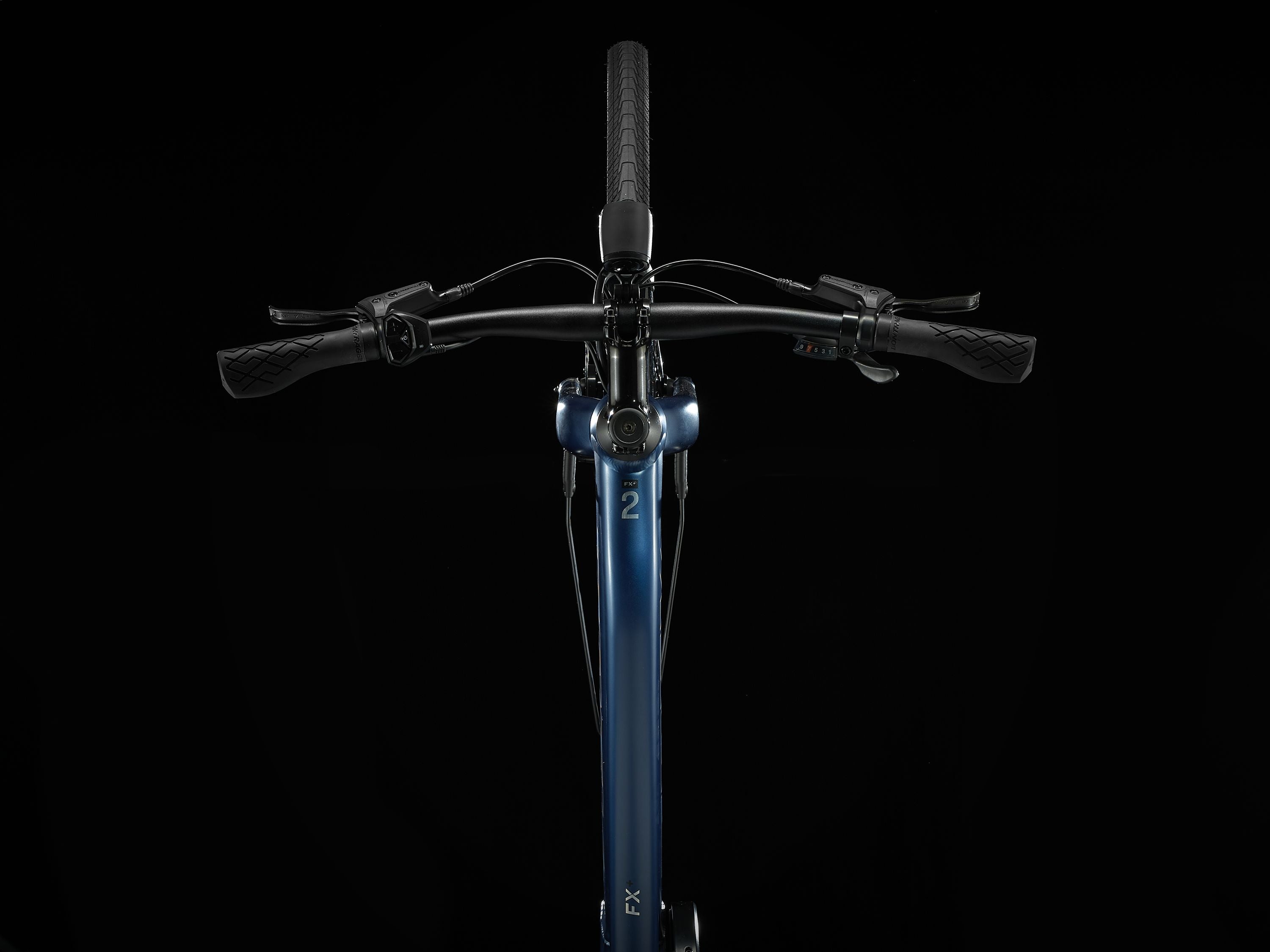

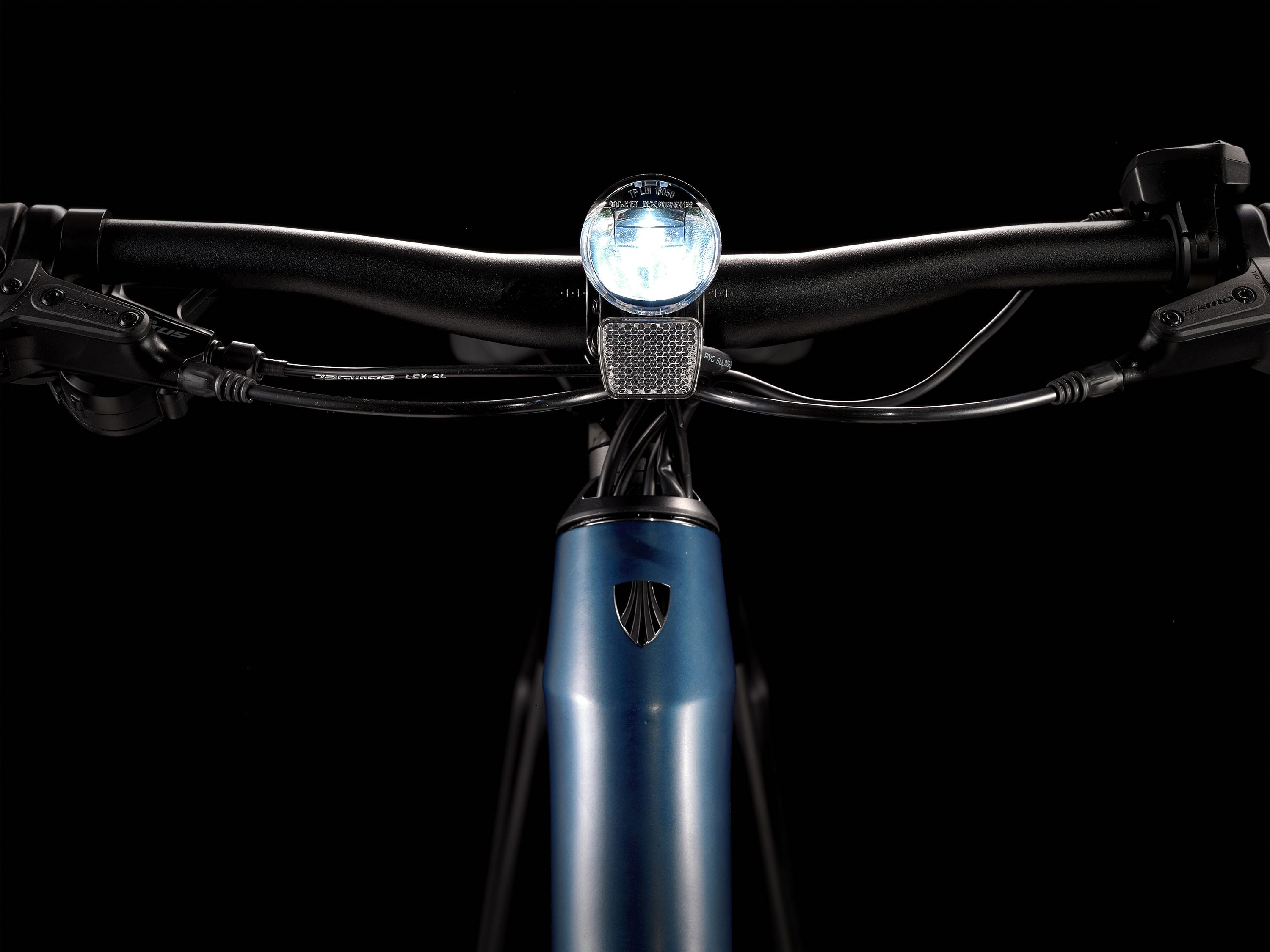

| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Fenders | SKS plastic, rear // SKS plastic, front |

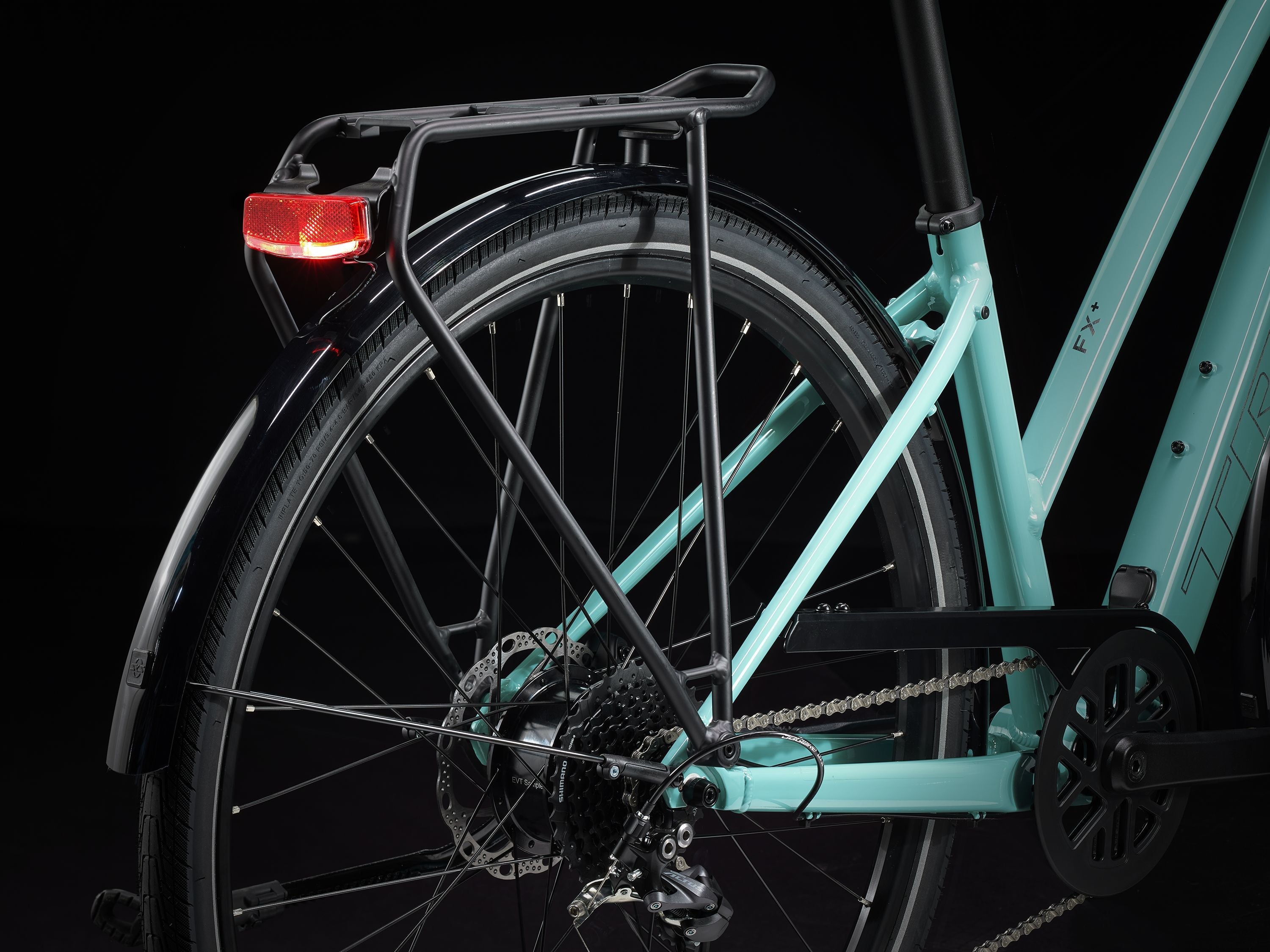

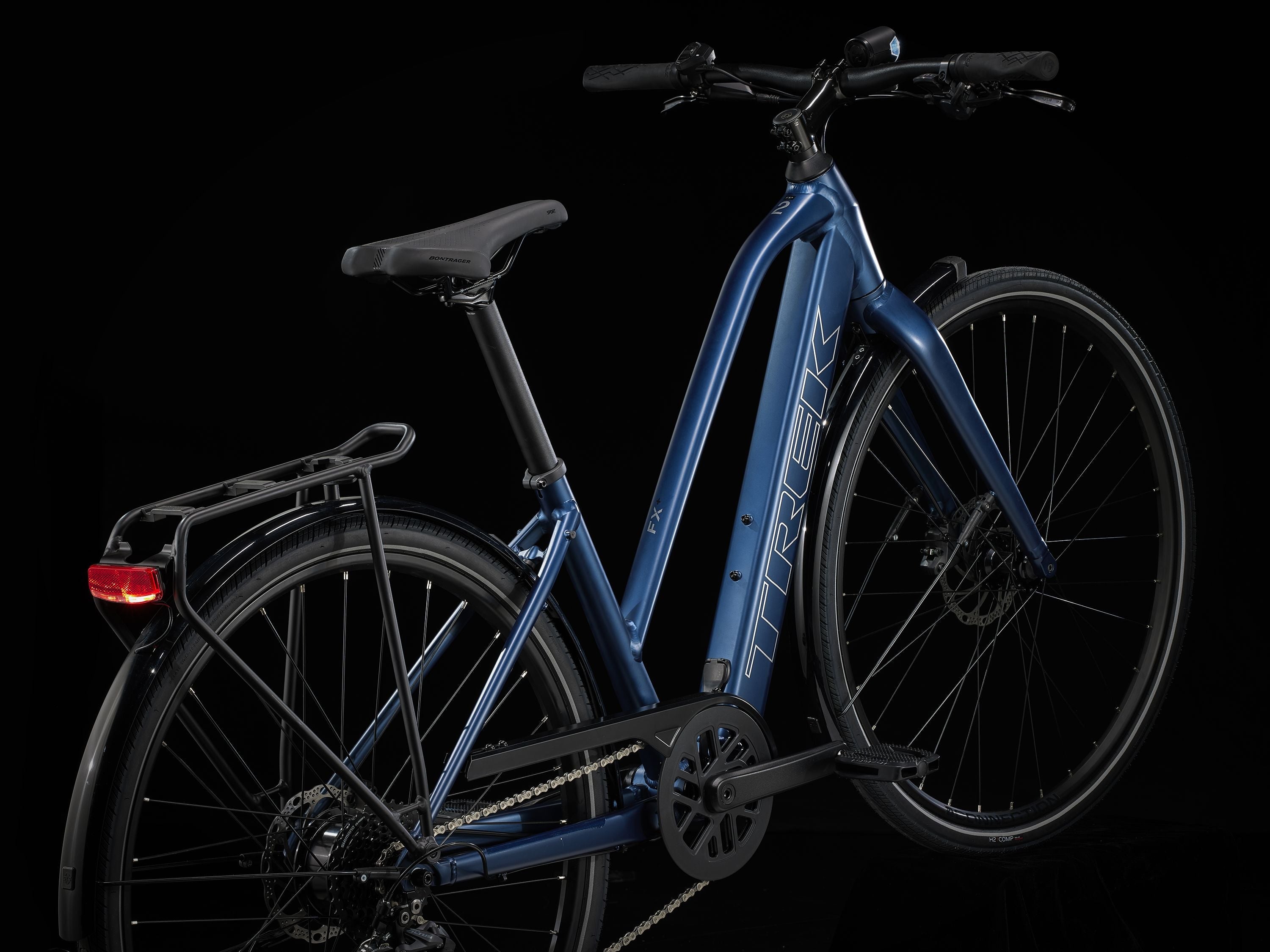

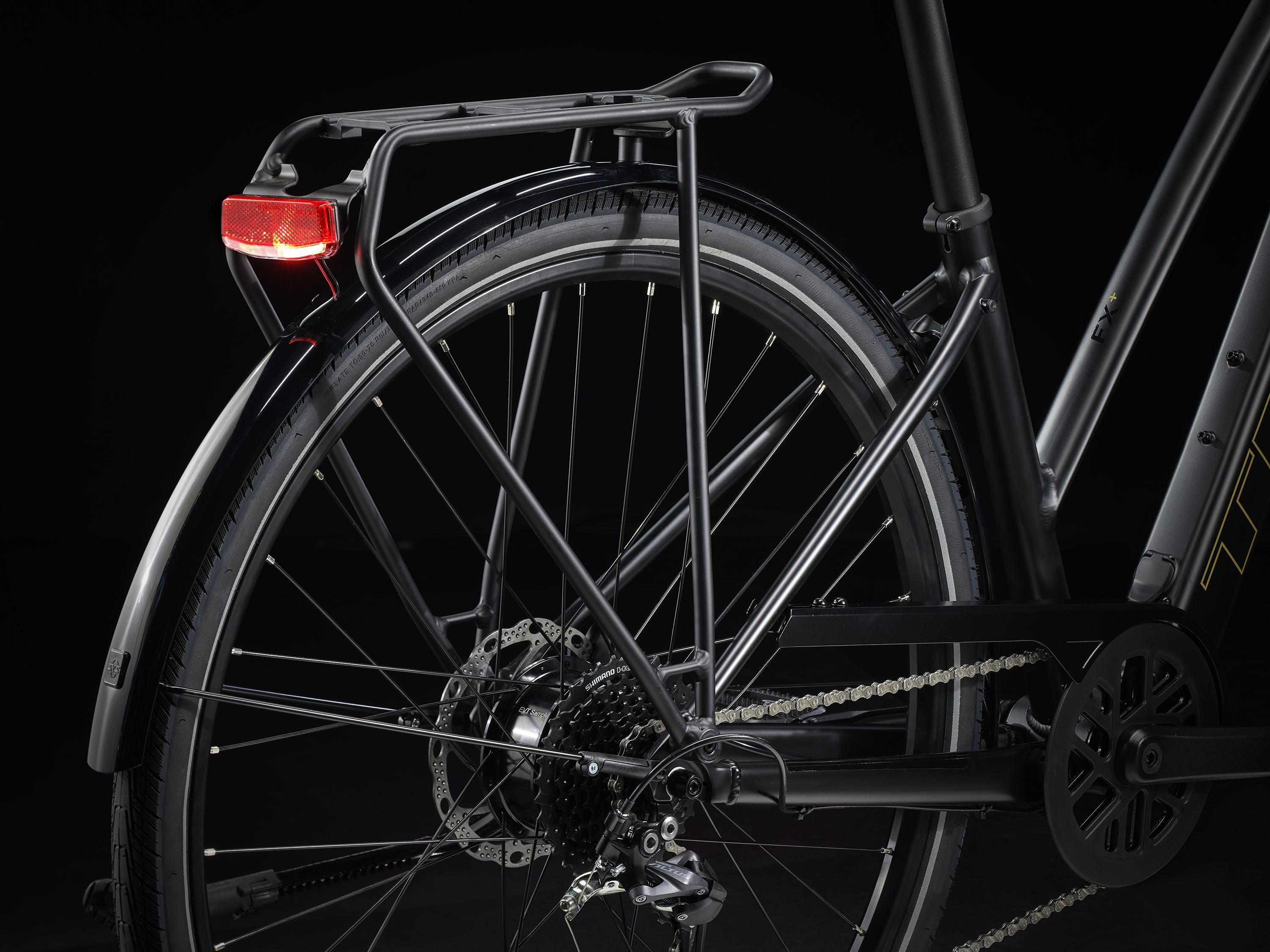

| Carrier Rear | MIK-compatible alloy rear rack, maximum load 25 kg |
| Kickstand | Pletscher Comp 18 |

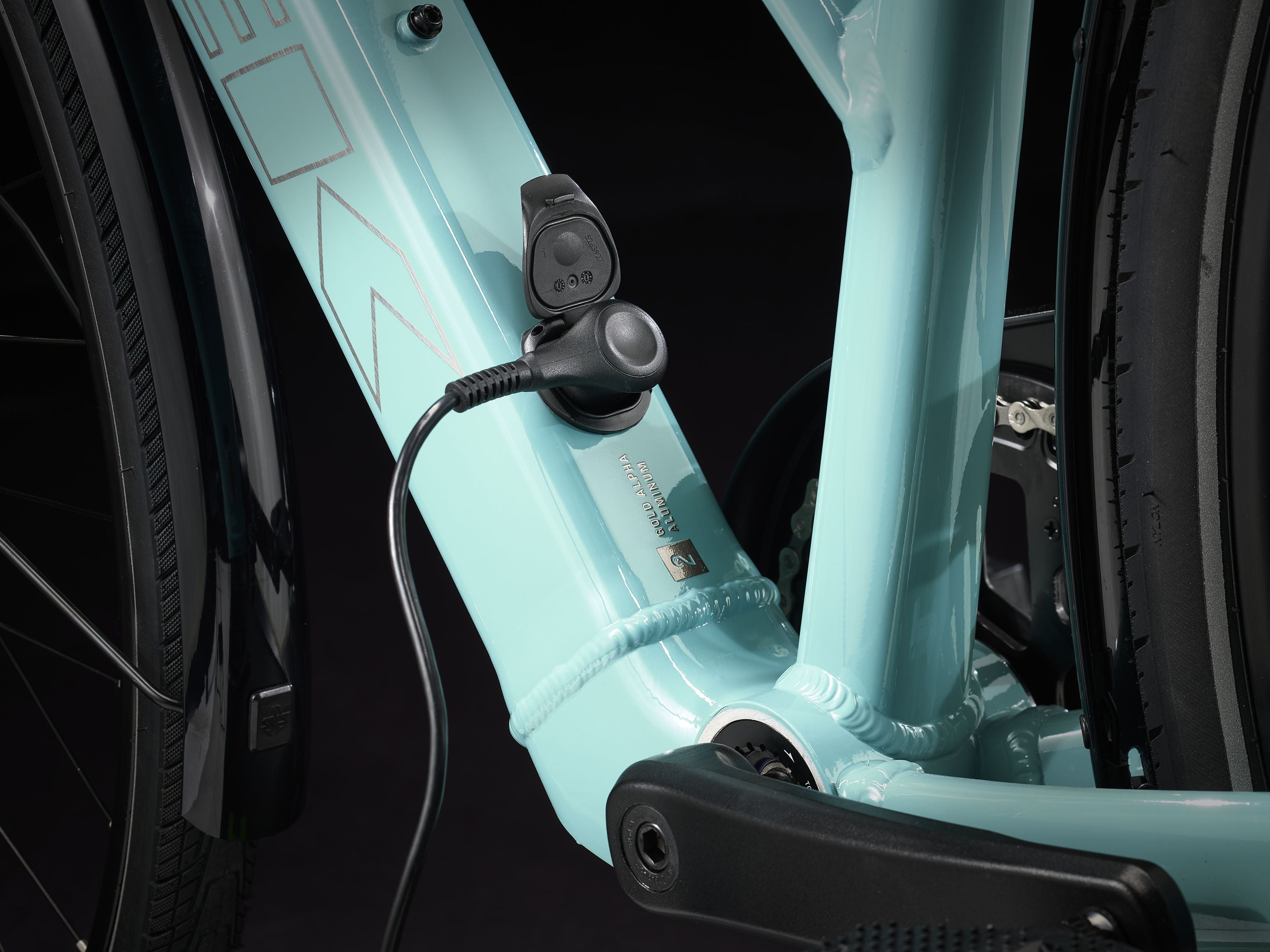

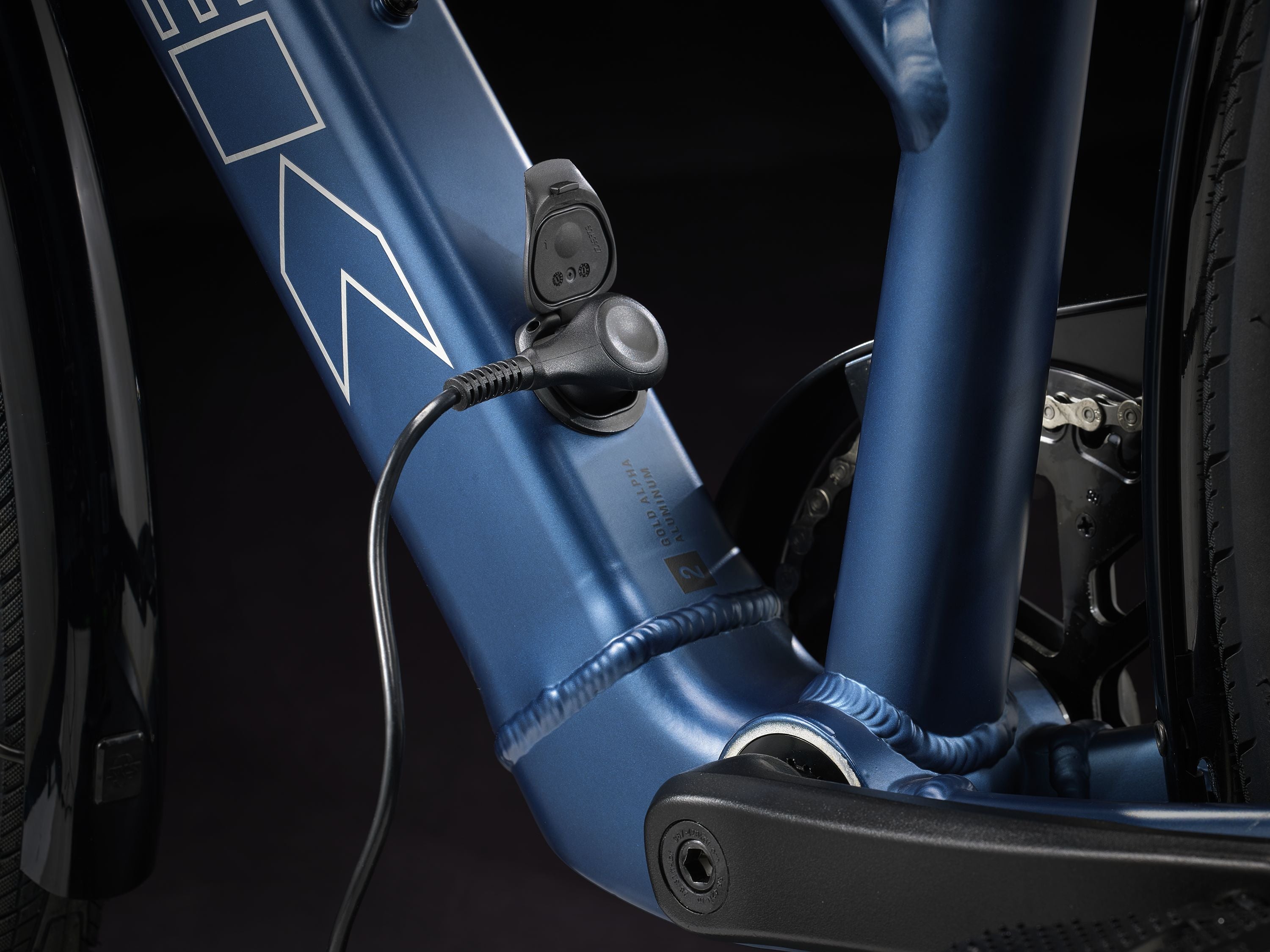

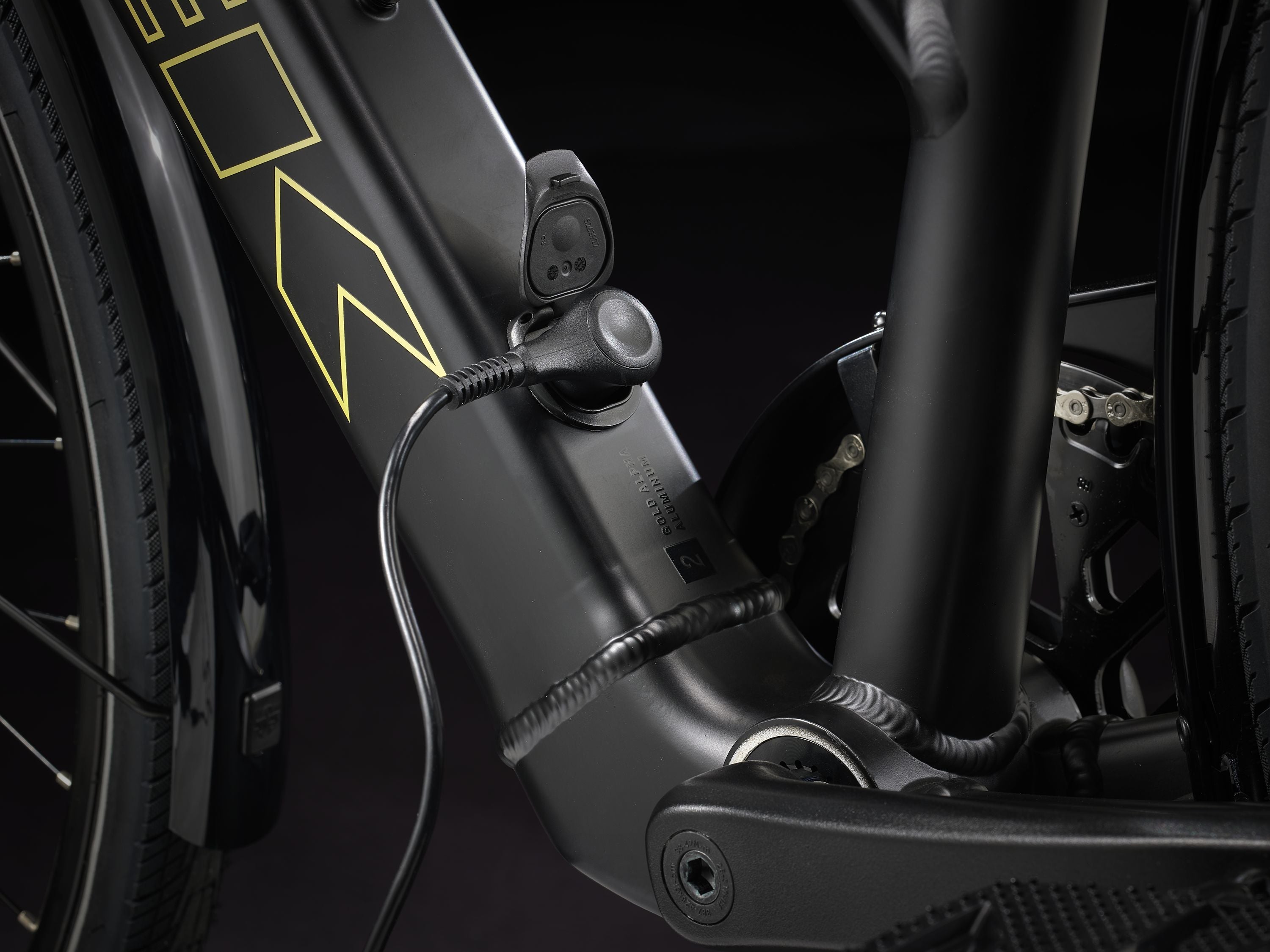

| Battery | 250 Wh, integrated in down tube 250Wh, integrated in down tube |
| Size Chart Rider Height | Rider Height - 186.0 - 197.0 |
| Size Chart Rider Inseam | Inseam - 87.0 - 93.0 |
