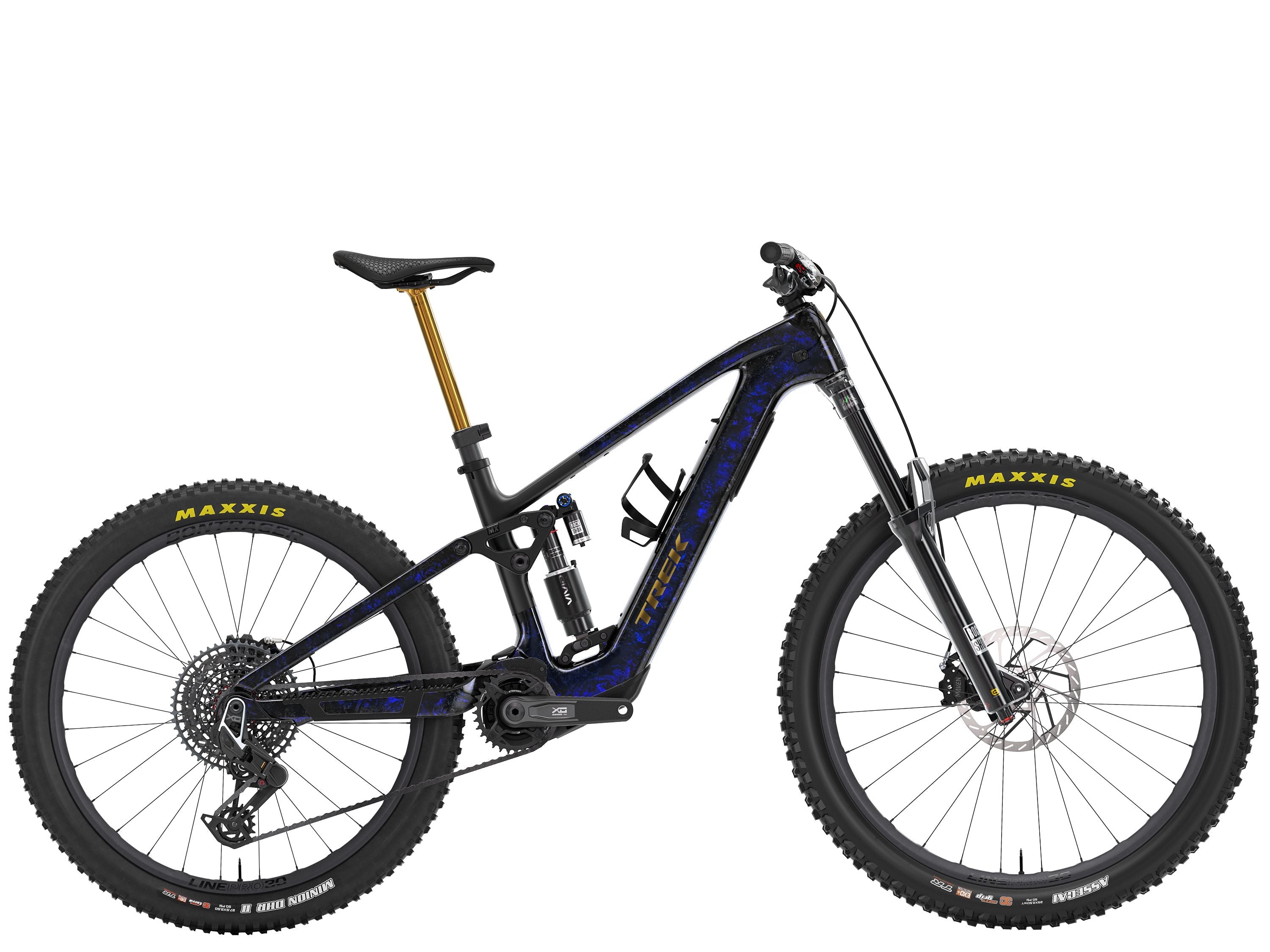

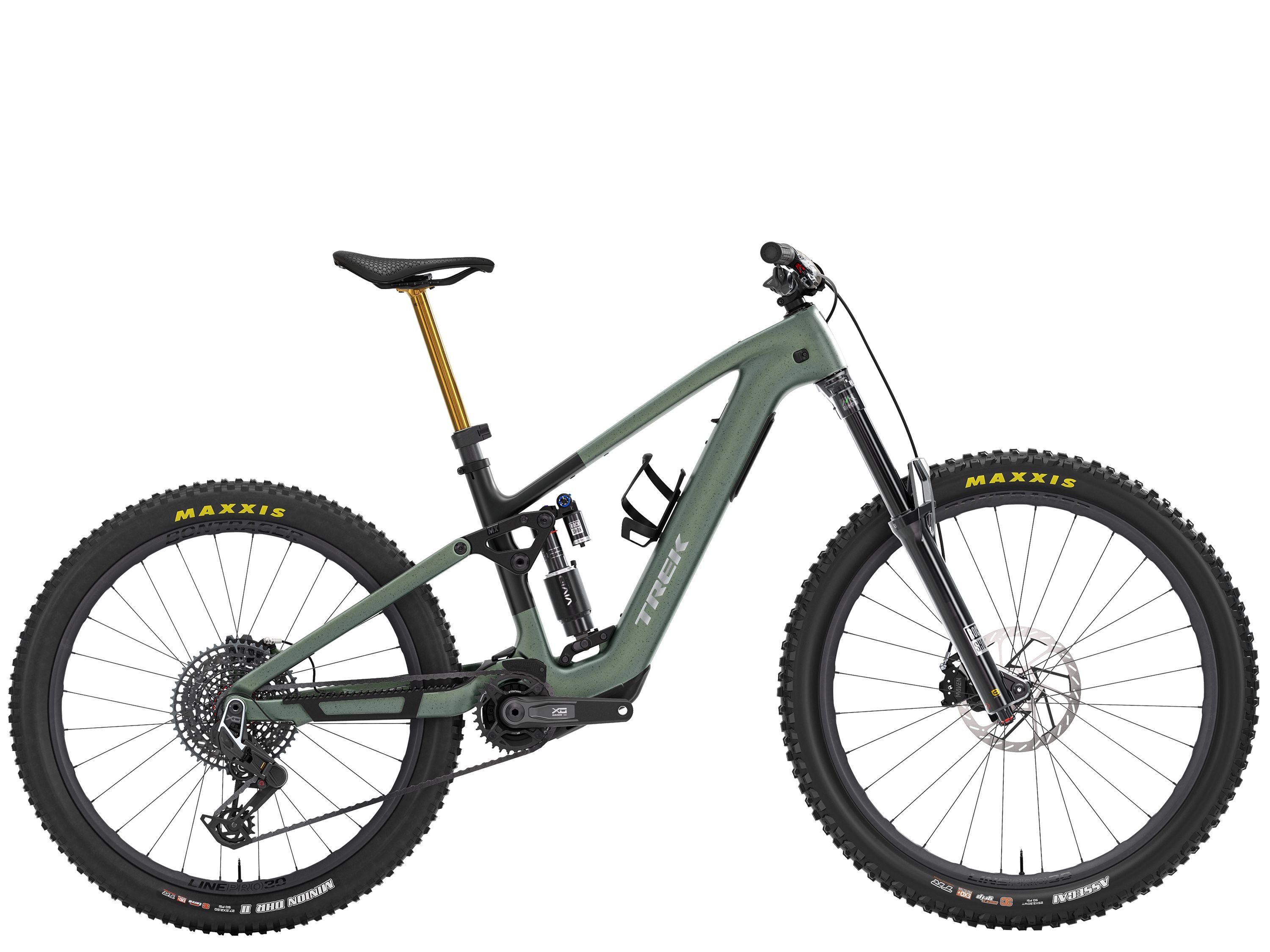

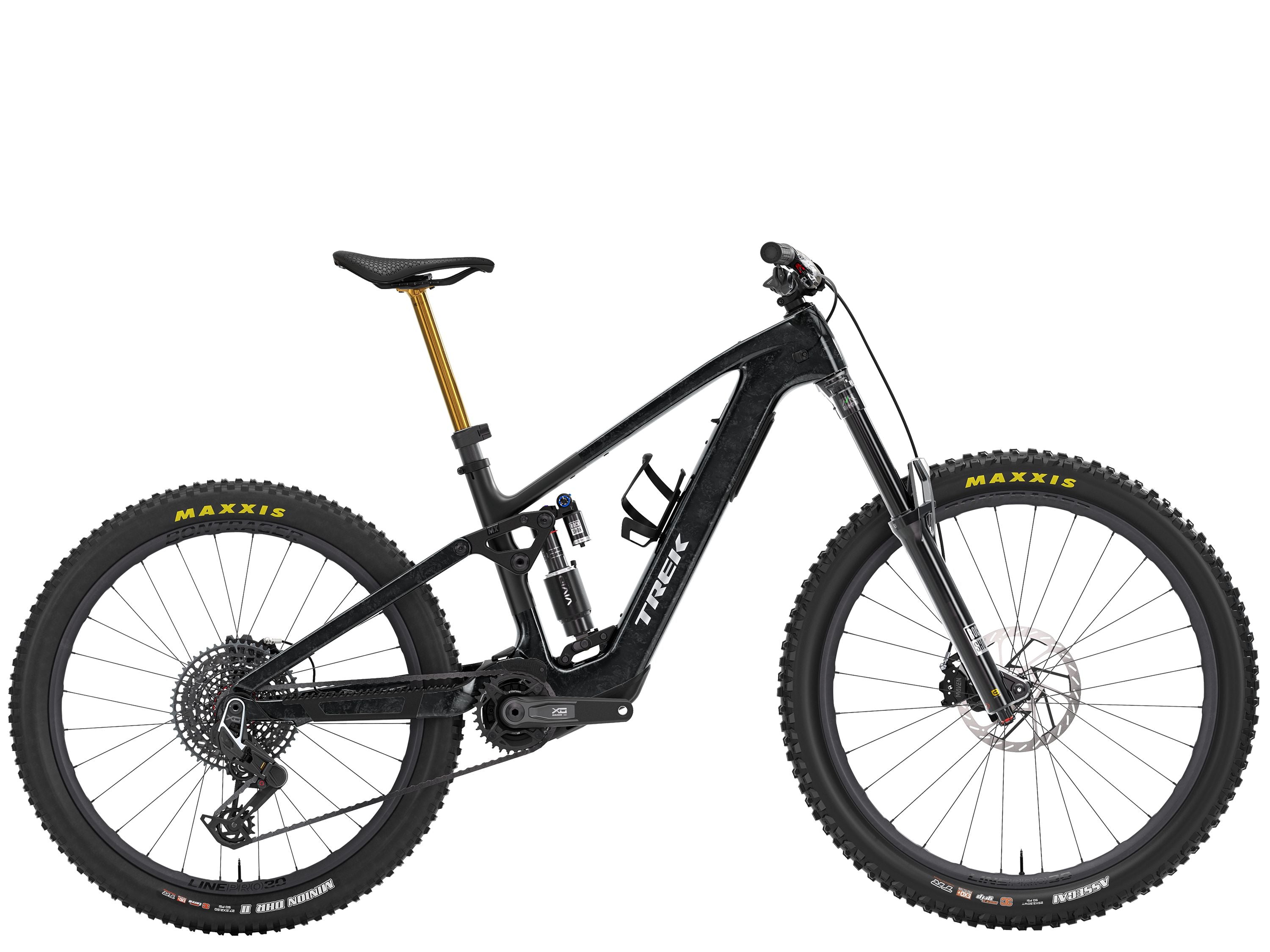

Fuel+ MX 9.9 X0 AXS Gen 2
Fuel+ MX 9.9 X0 AXS is our top-tier chaos-loving e-MTB for chasing the wild beyond the beaten path. It starts off with an OCLV Mountain Carbon frame with TQ's HPR60 motor, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting rowdy on the trail. You get all the best components, including SRAM's wireless X0 AXS transmission, SRAM Maven Silver 4-piston brakes, a Fox Transfer NEO dropper post, and carbon Bontrager Line Pro 30 wheels.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm OCLV Mountain Carbon, remo |
|---|---|
| Frame Material | CARBON |
| Rim Size | 27.5 |
| Fork | RockShox |
| Fork | Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 |
| Rearsuspension | RockShox |
| Suspension Rear | RockShox Vivid Ultimate D1, 205x65mm |
| Wheels | Bontrager Line Pro 30 |
| Tires | Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5x2.5" |
| Shifter | SRAM |
| Derailleur Rear | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM XX, 165 mm length // SRAM X0 Eagle, 160 mm length |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 200mm |
| Saddle | Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width |
| Seatpost | Fox Transfer NEO, 200 mm travel, 34.9 mm |
| Handlebar | Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| Stem | Race Face Turbine R, 35mm, 0 degree, 40mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | TQ 580Wh TQ 580Wh |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
