£5,175.00 GBP£6,000.00 GBP
Colour
Size

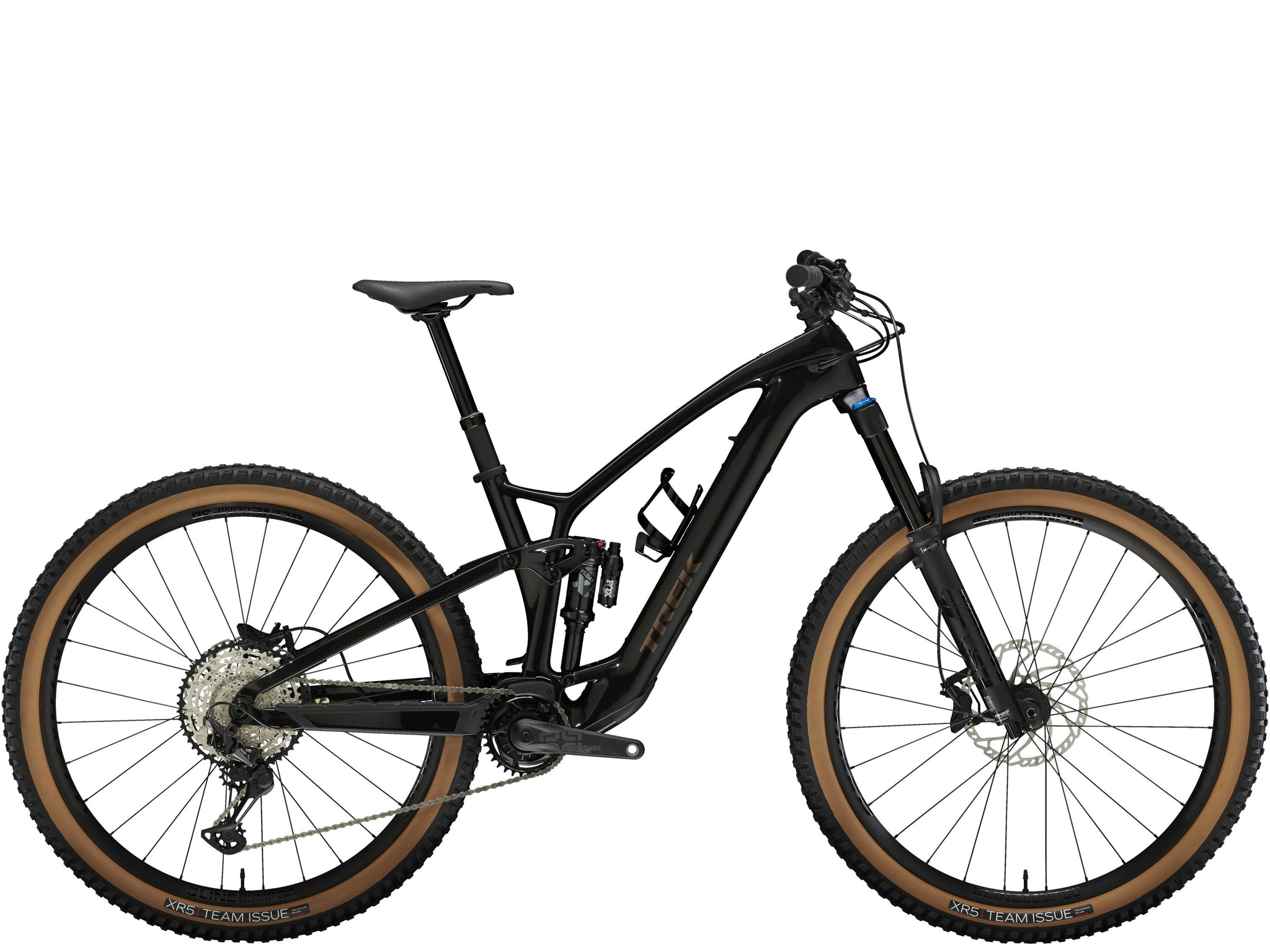

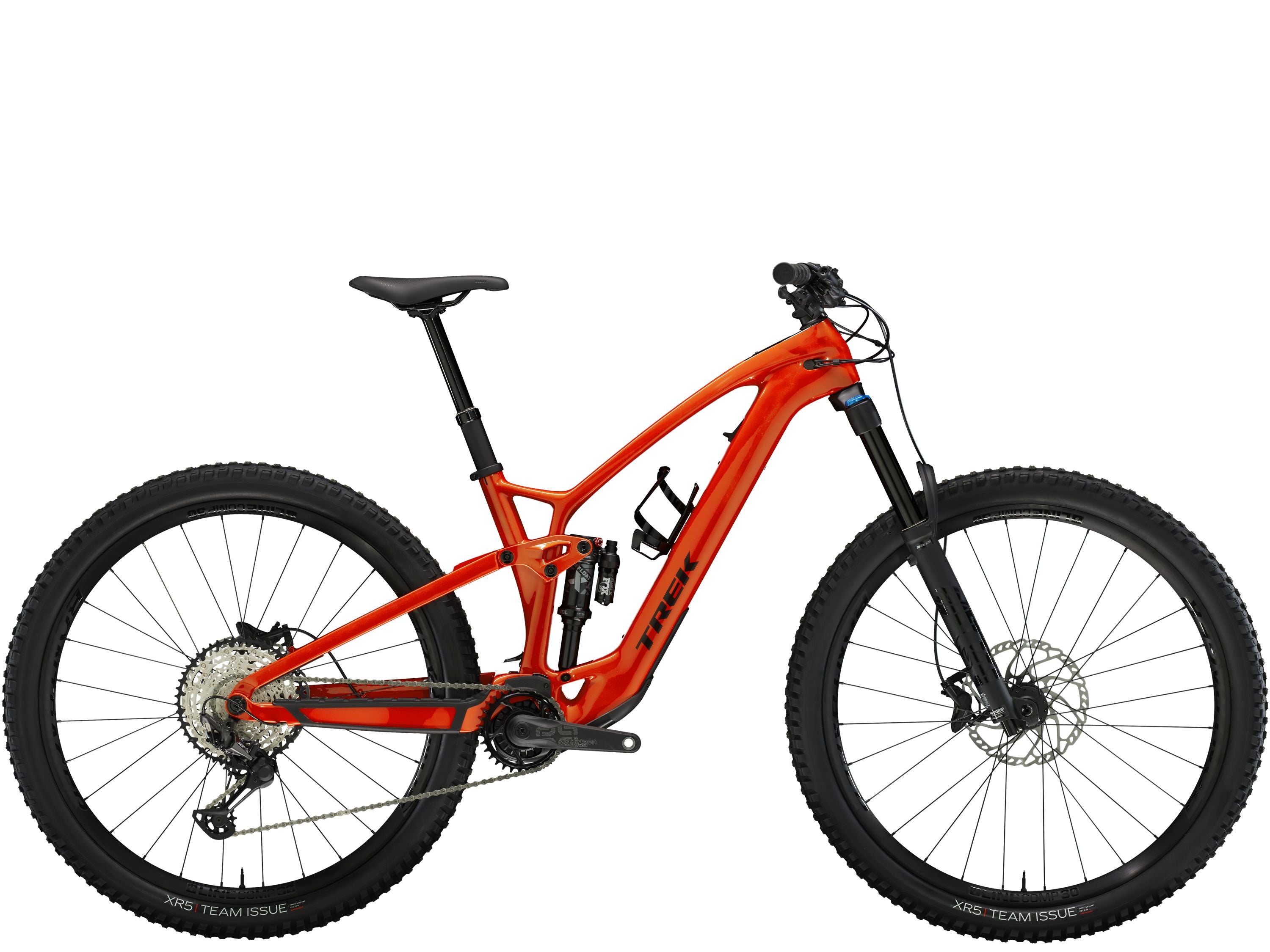

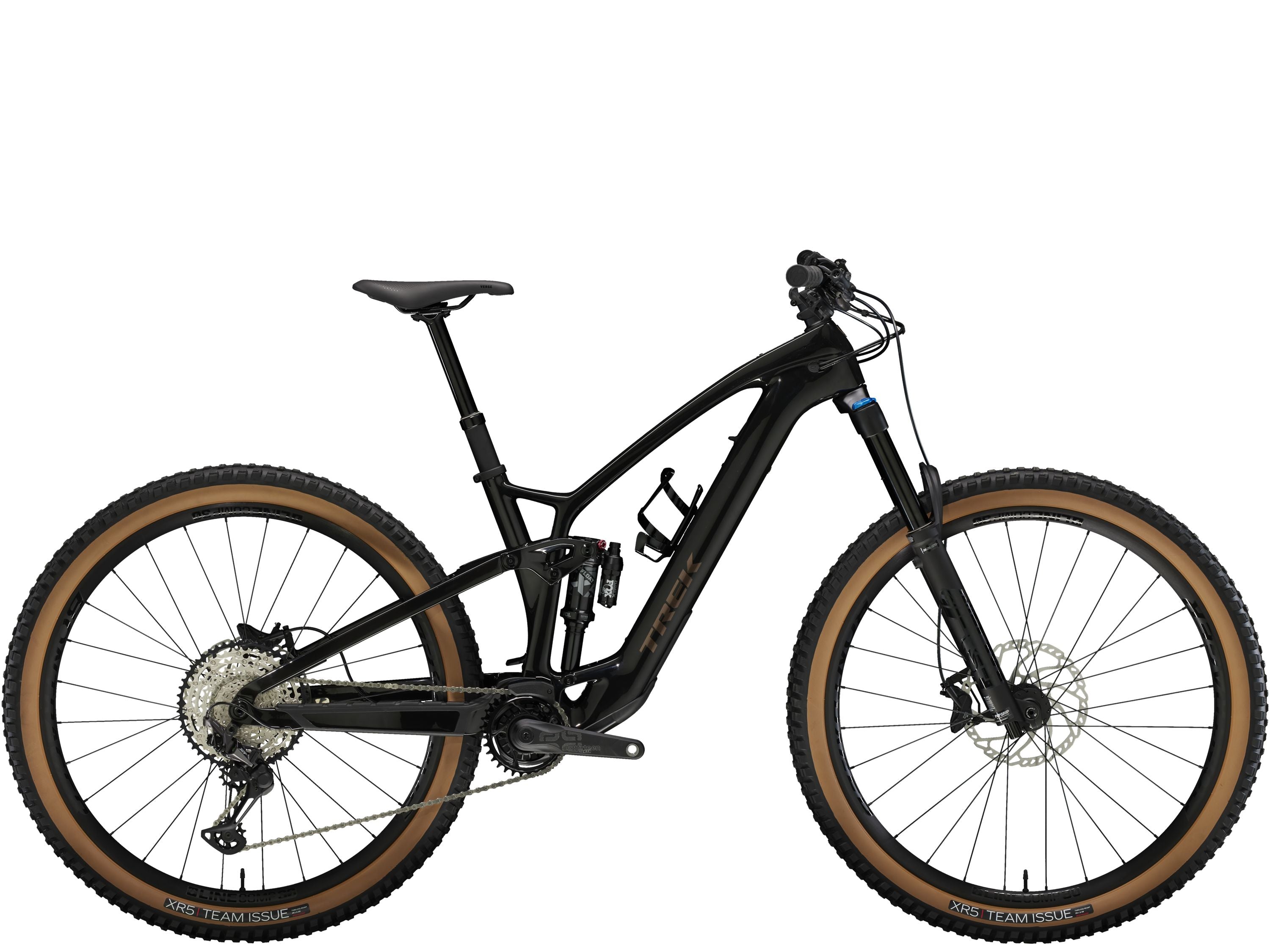

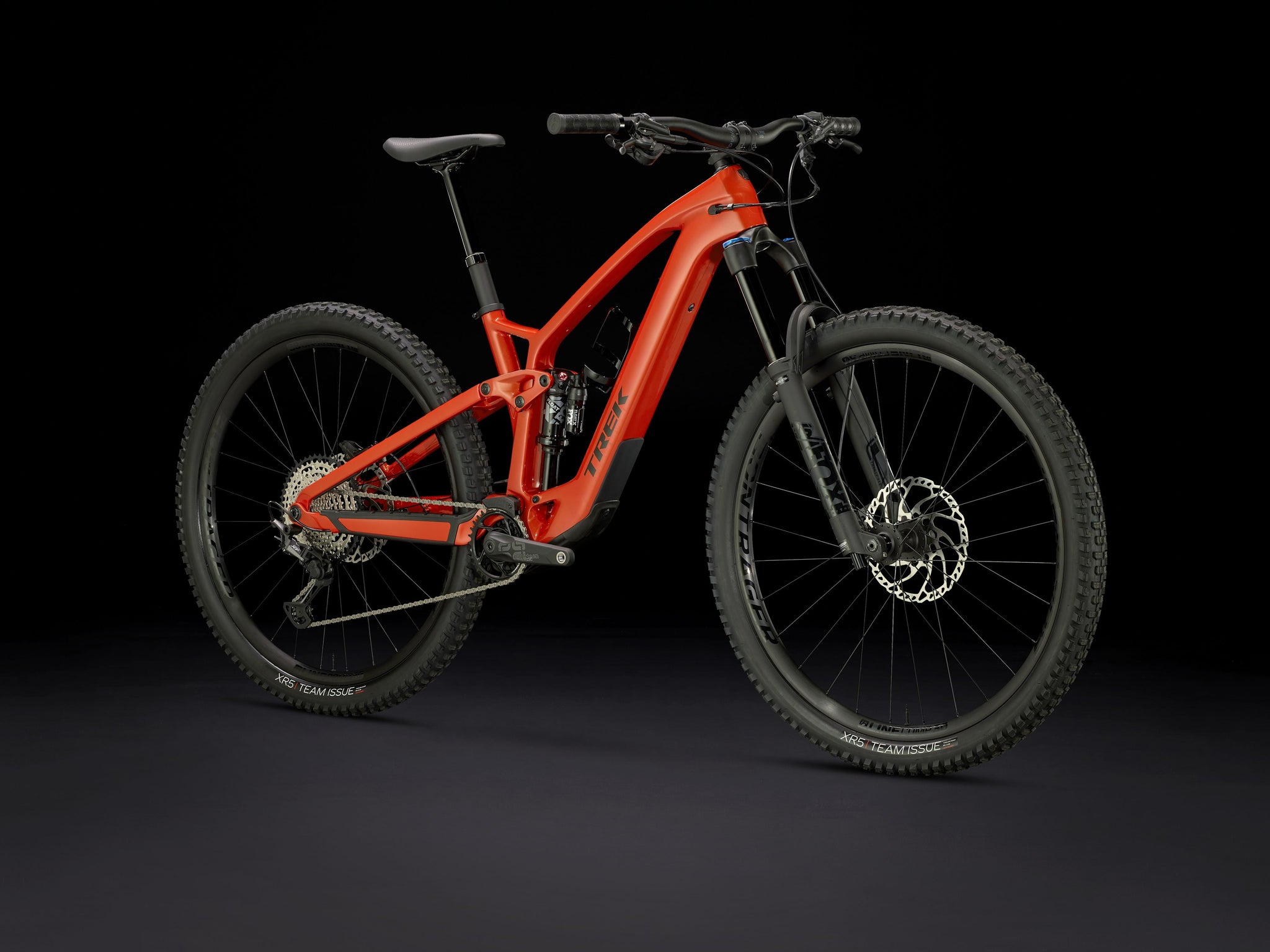

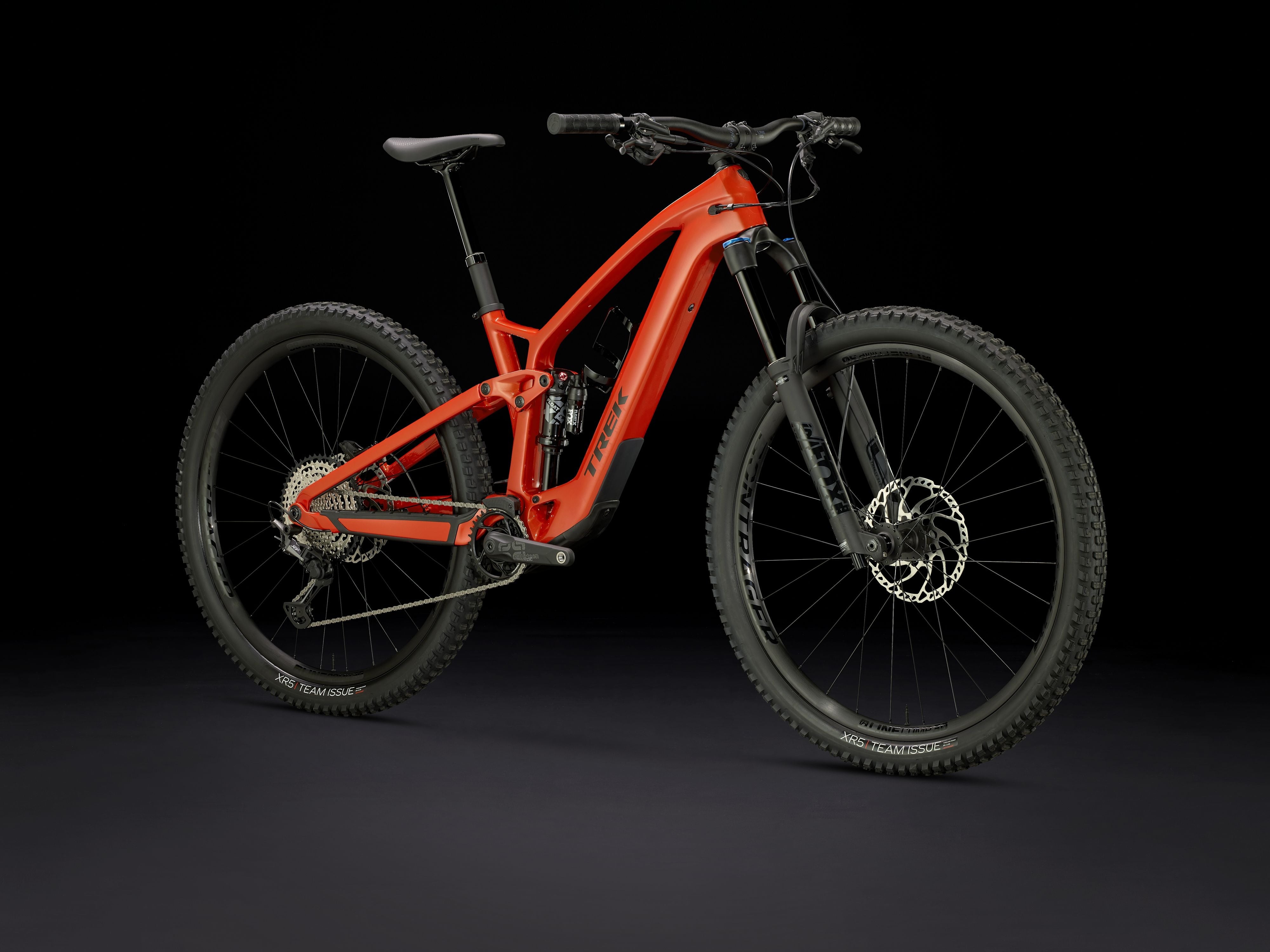

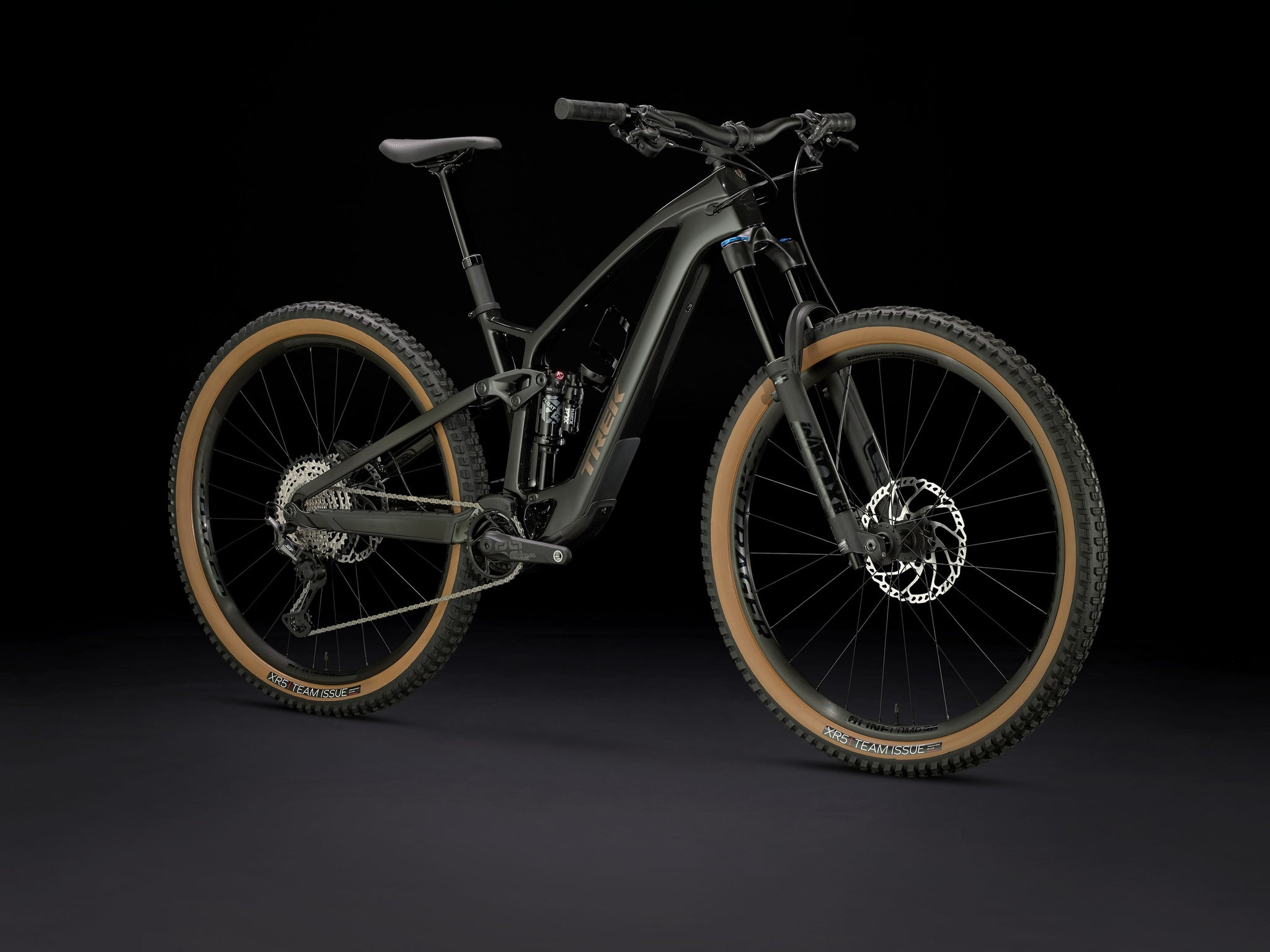

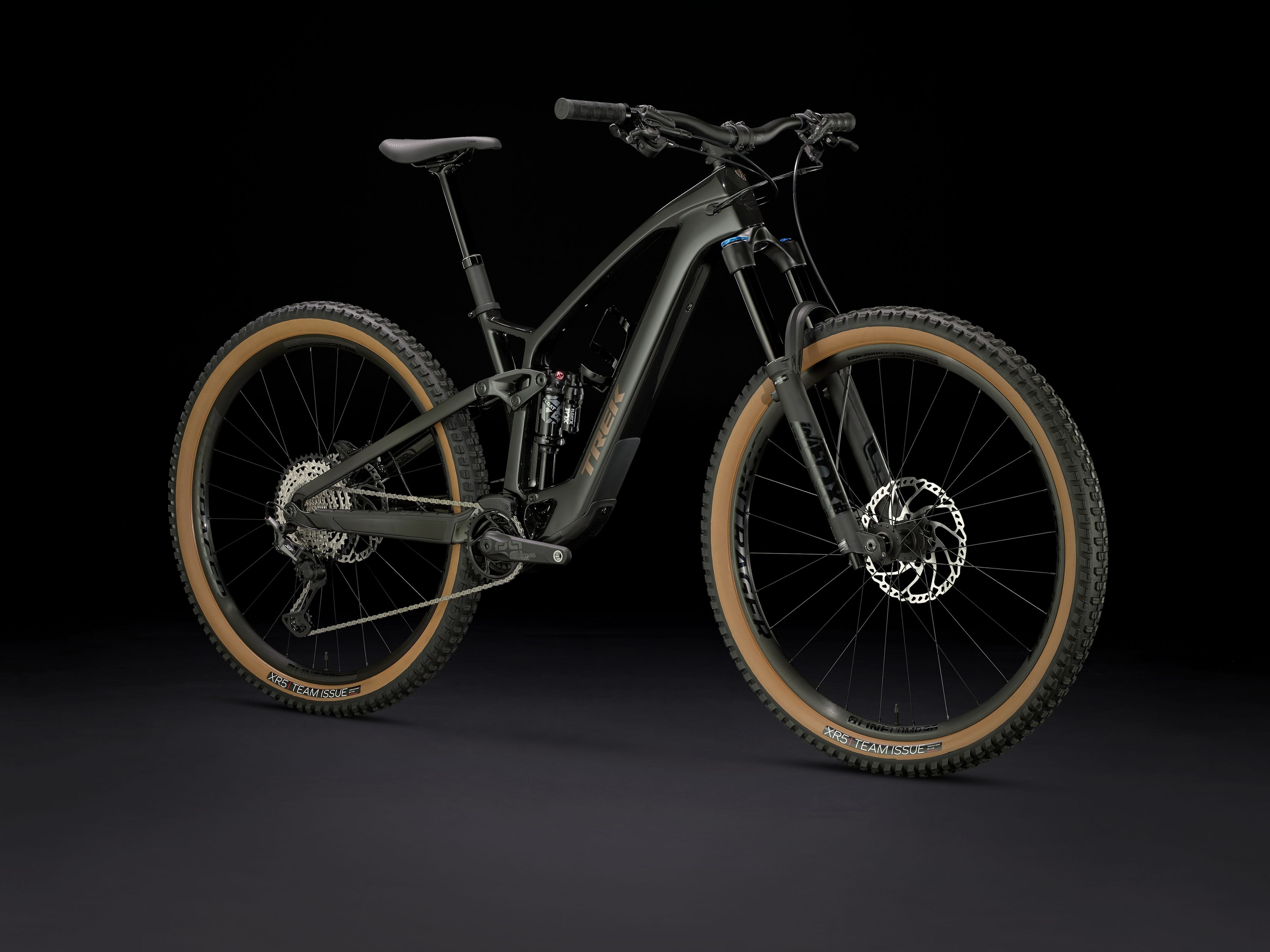

The Fuel EXe 9.7 redefines e-mountain biking with a revolutionary motor that tucks away neatly for a ride that's light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal assist to help you crush climbs. An upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail. All that, and a lightweight carbon chassis to keep your ride nimble and stiff with just the right amount of vibration-damping goodness for when the trail gets rowdy.

Technology

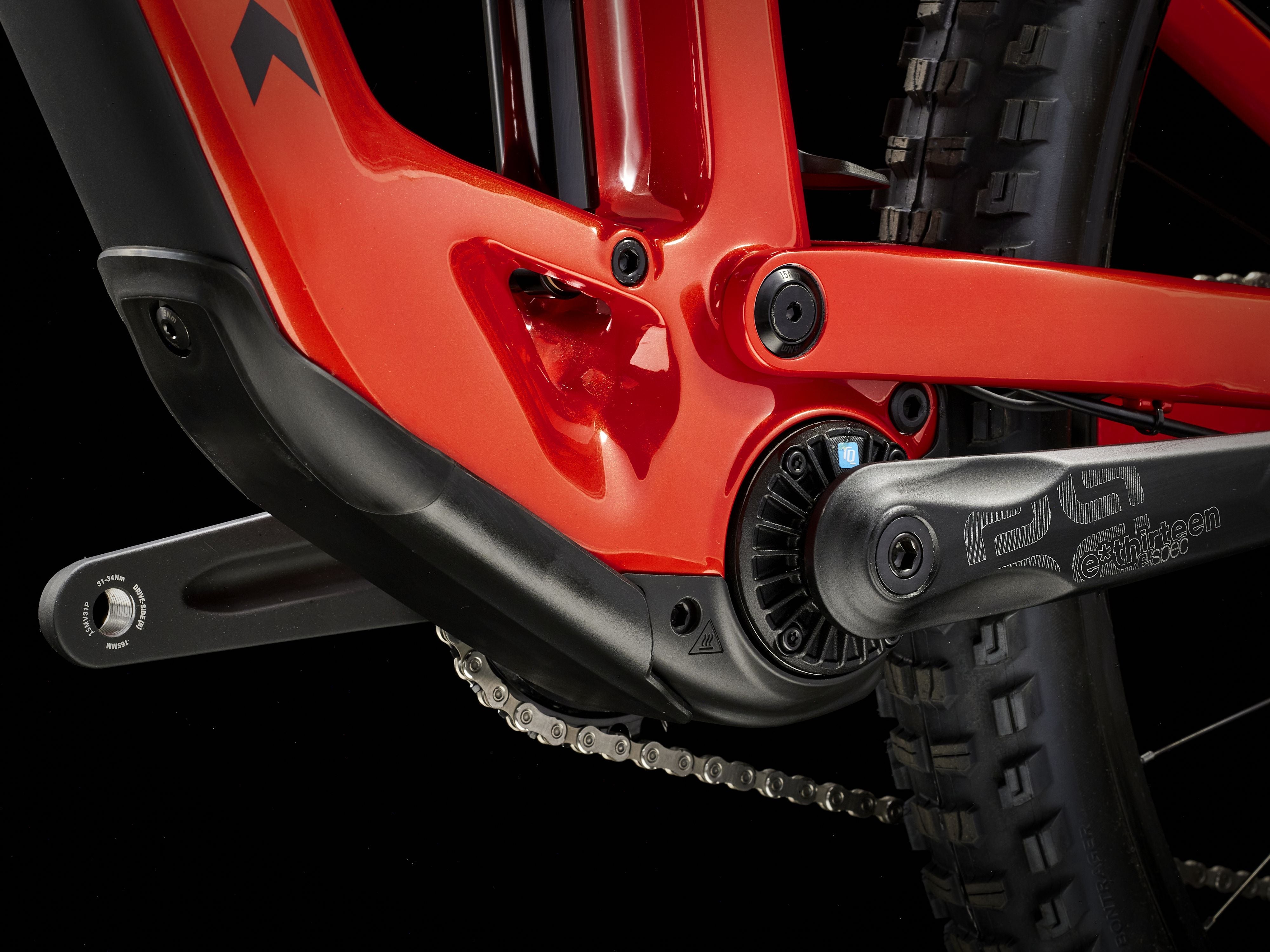

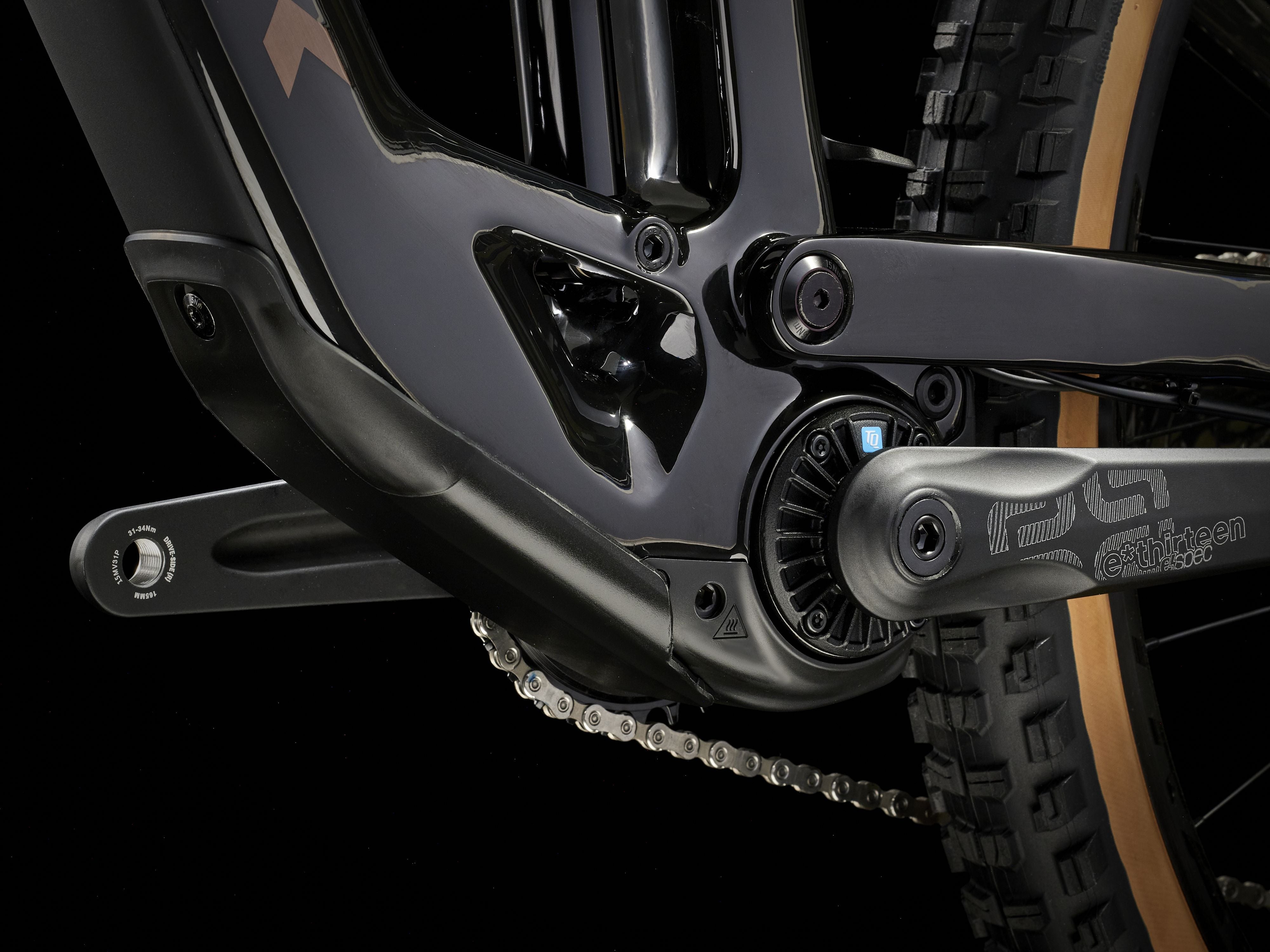

TQ-HPR50 – small, quiet, mighty - The TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet and unbelievably natural-feeling.

Specification

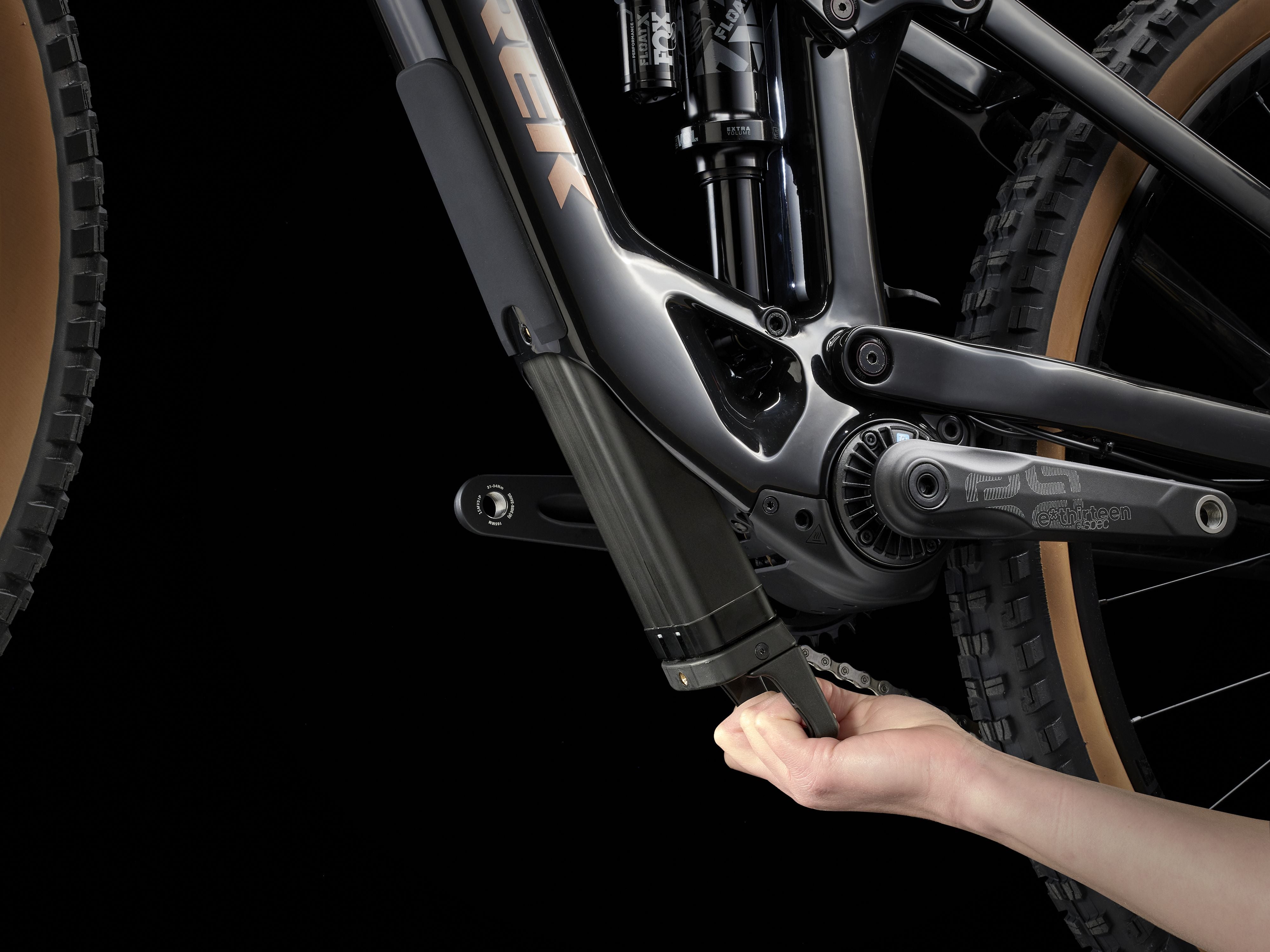

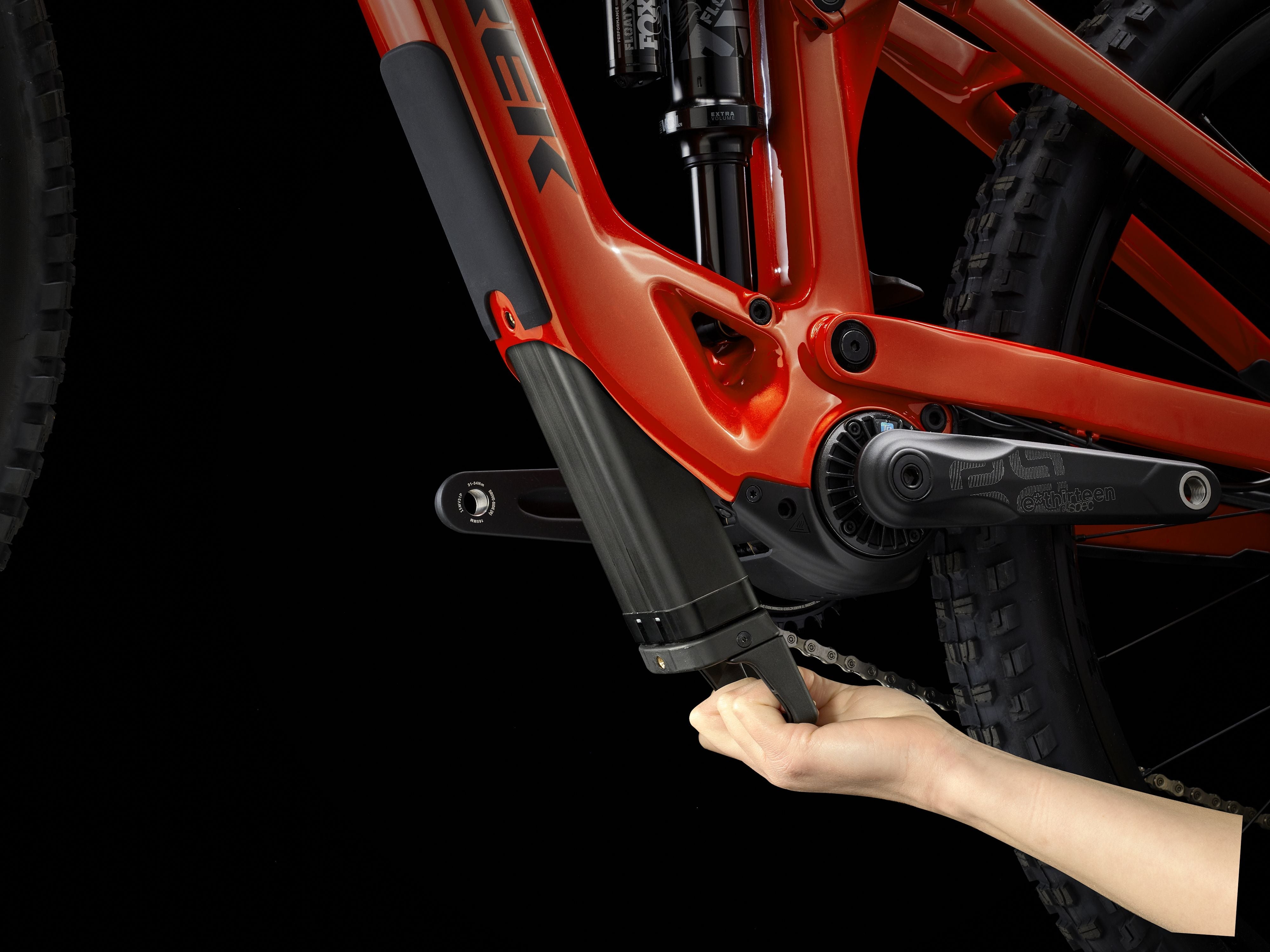

Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain g
Frame Material CARBON
Rim Size 29
Fork Fox
Fork Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
Rearsuspension Fox

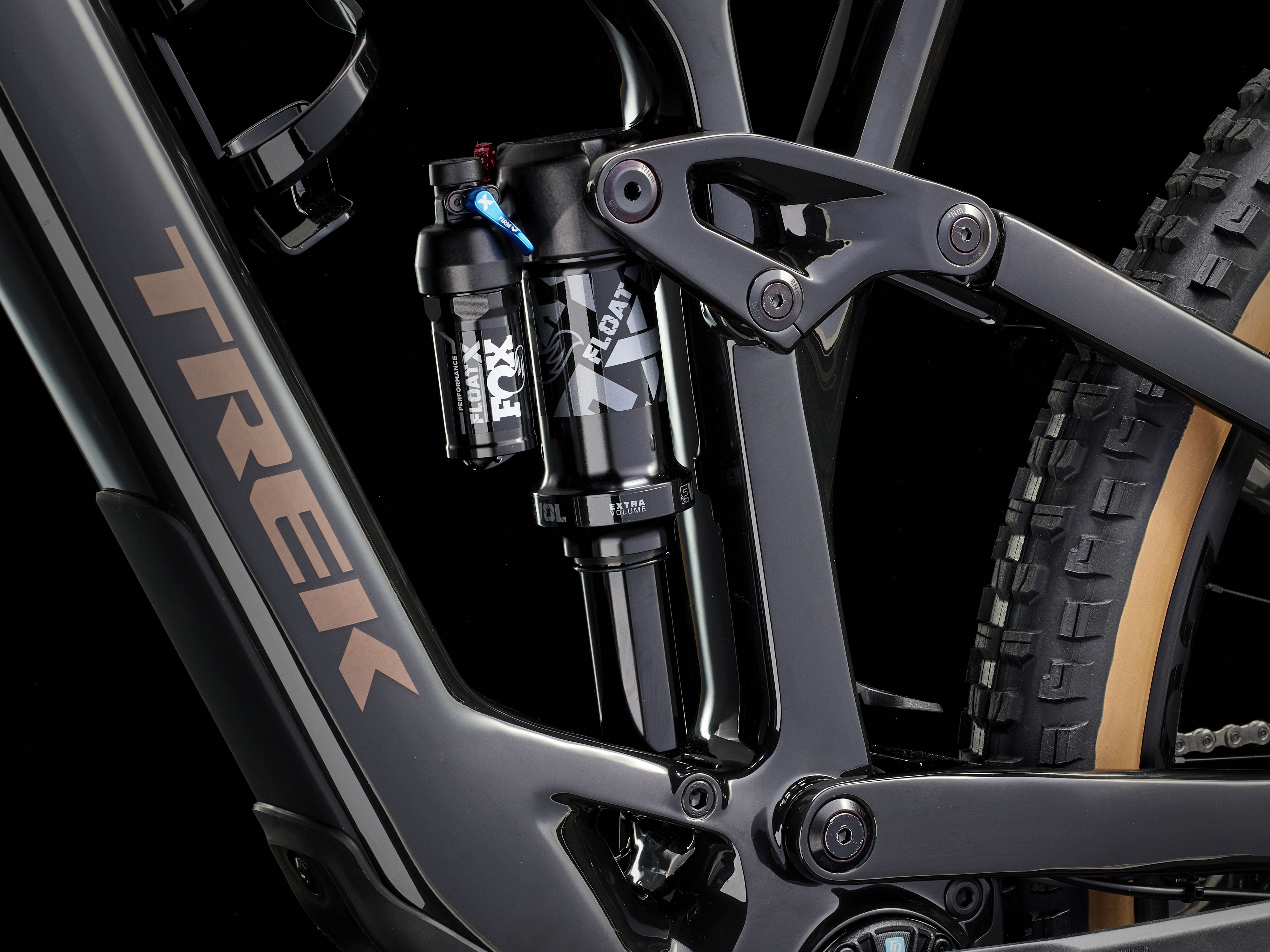

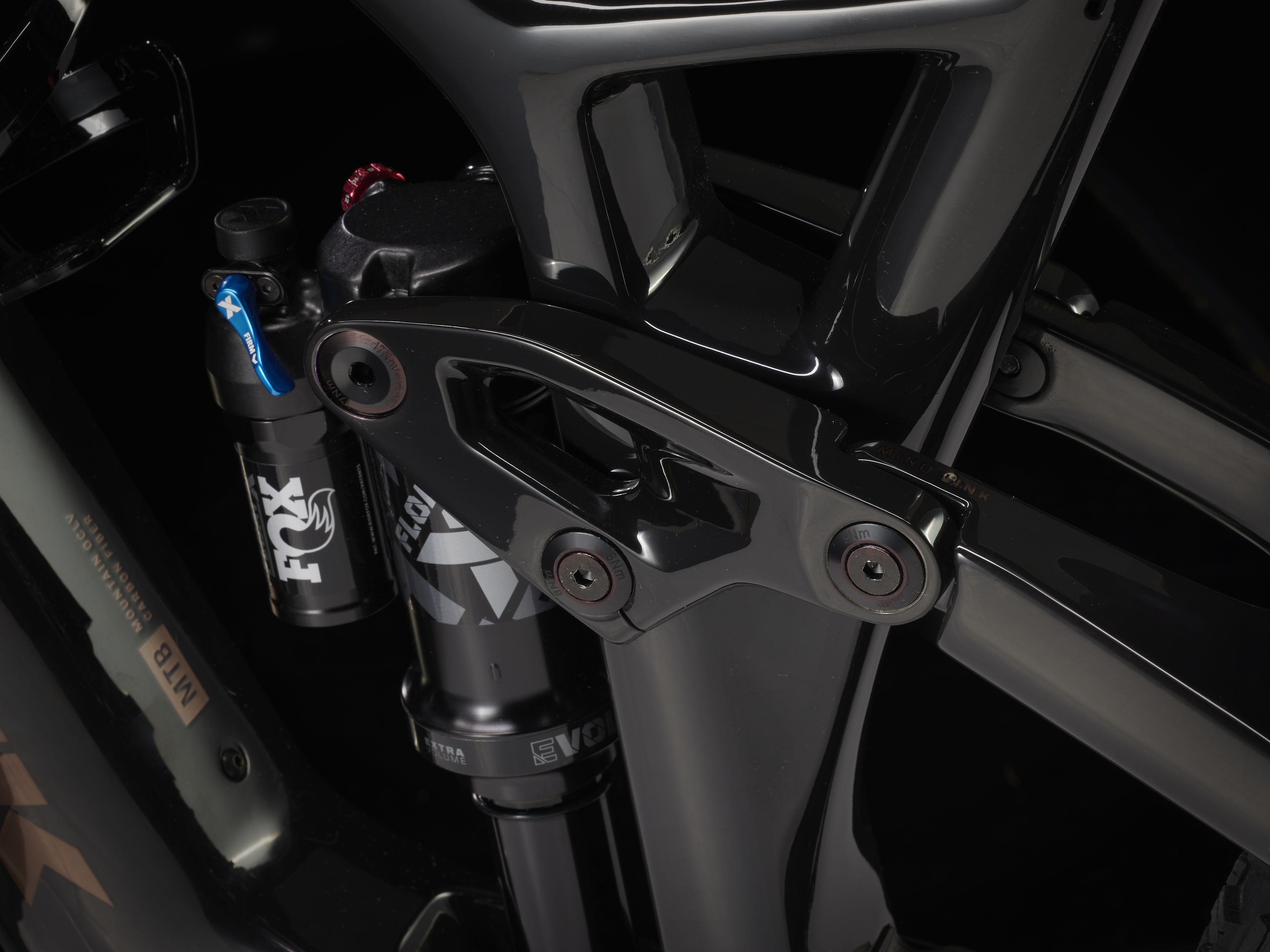

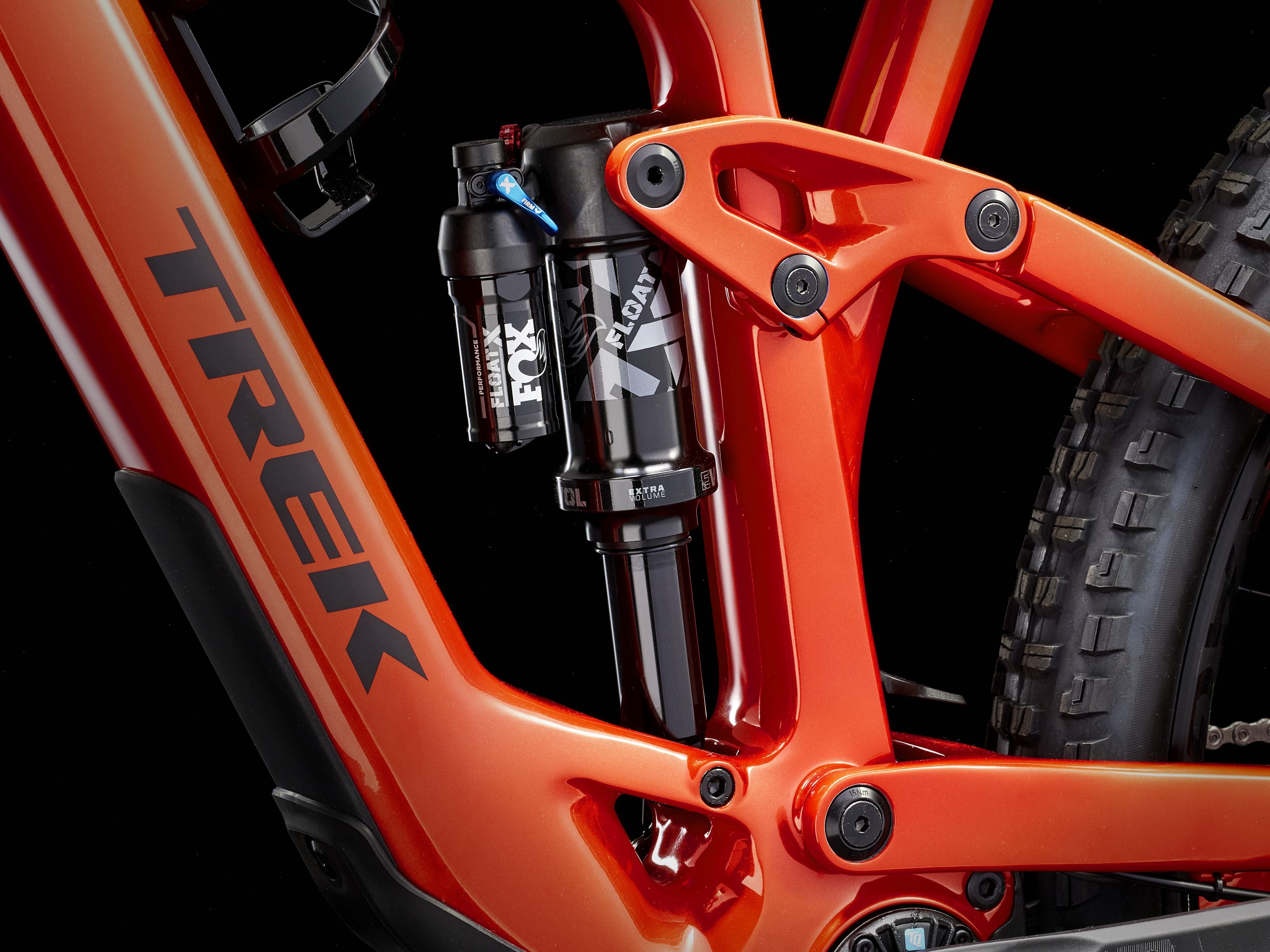

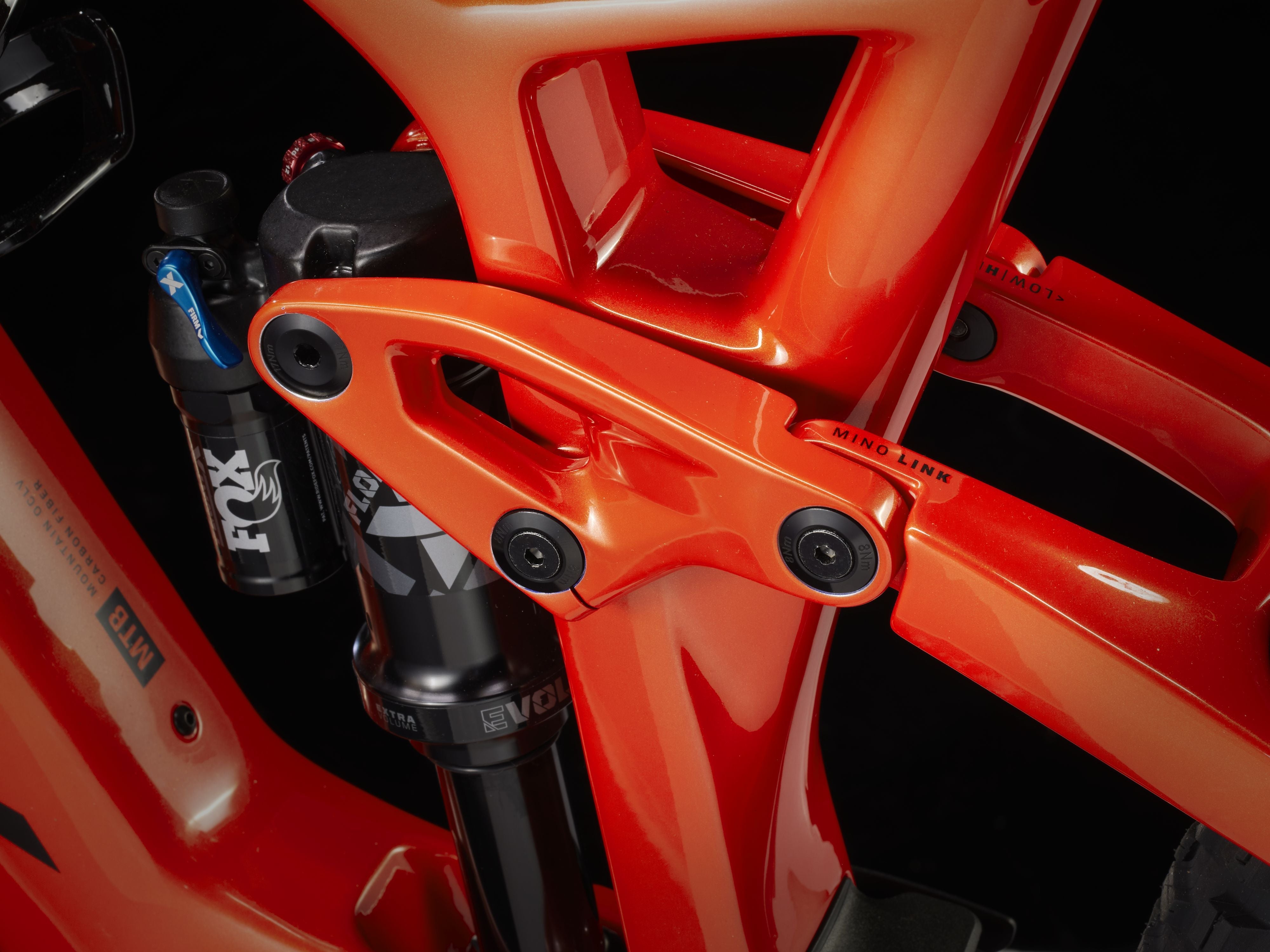

Suspension Rear Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Wheels Bontrager Line Comp 30
Tires Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Shifter Shimano
Derailleur Rear Shimano XT M8100, long cage
Crank E*thirteen E*spec Plus, 165 mm length
Cassette Shimano SLX M7100, 10-51T, 12-speed
Chain Shimano SLX M7100, 12-speed
Brake Shimano

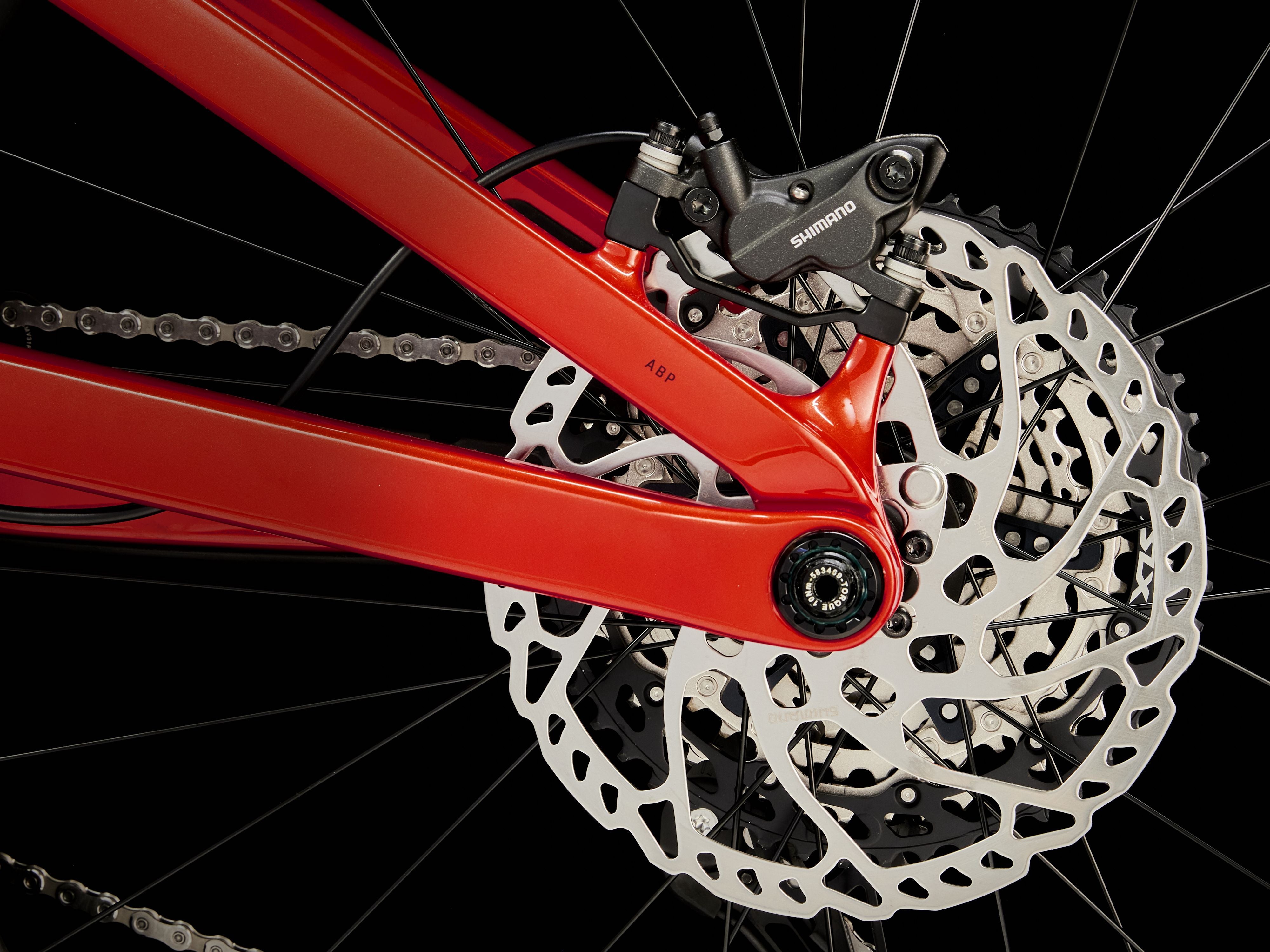

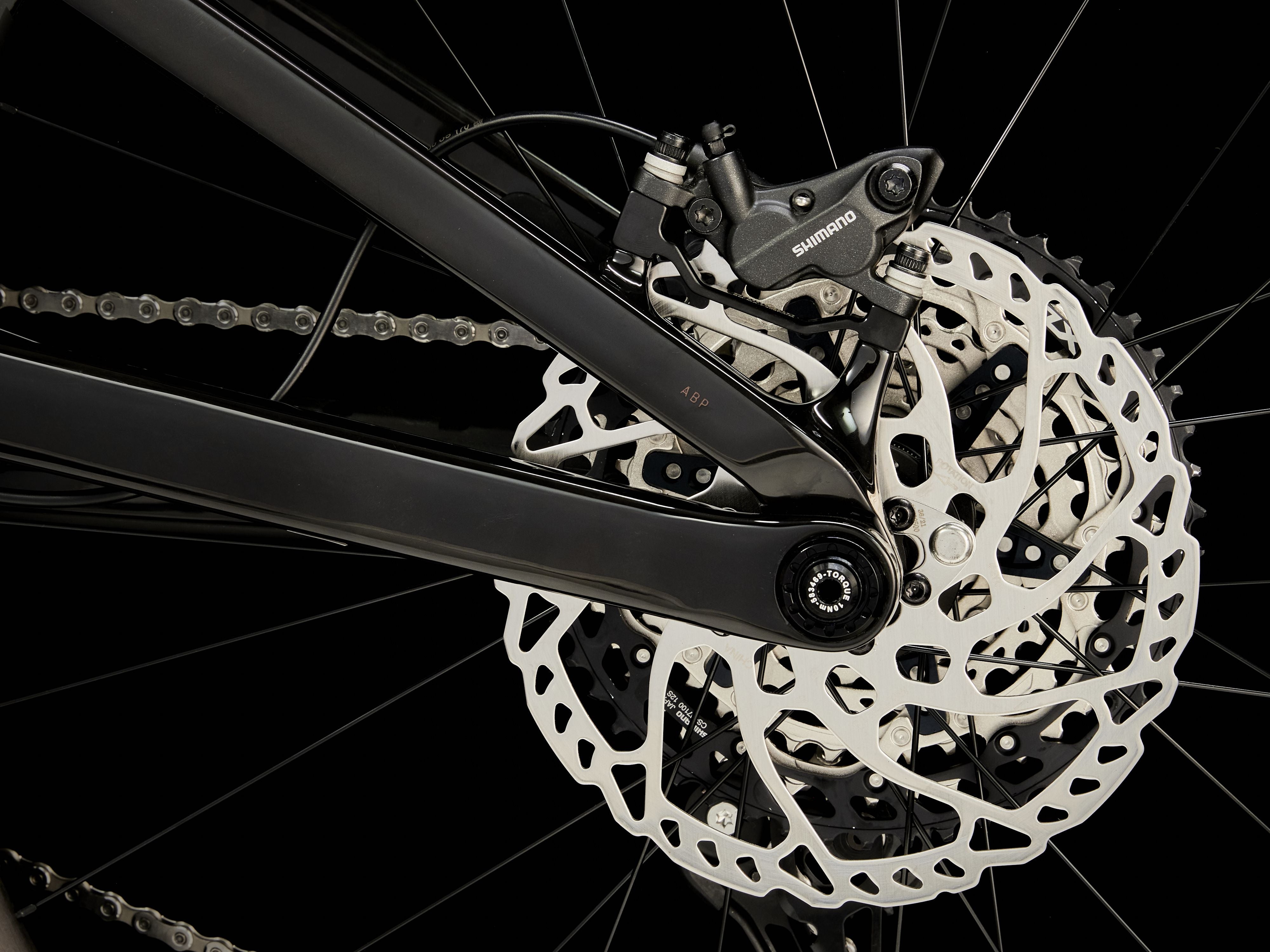

Brakeset Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper // Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper // Shimano 4-piston hydraulic disc, M6100 lever, M6120 cali
Brake Rotor Shimano RT66, 6-bolt, 203 mm // Shimano RT66, 6-bolt, 203 mm
Saddle Bontrager Arvada, hollow chromoly rails, 138 mm width // Bontrager Verse P3, chromoly rails

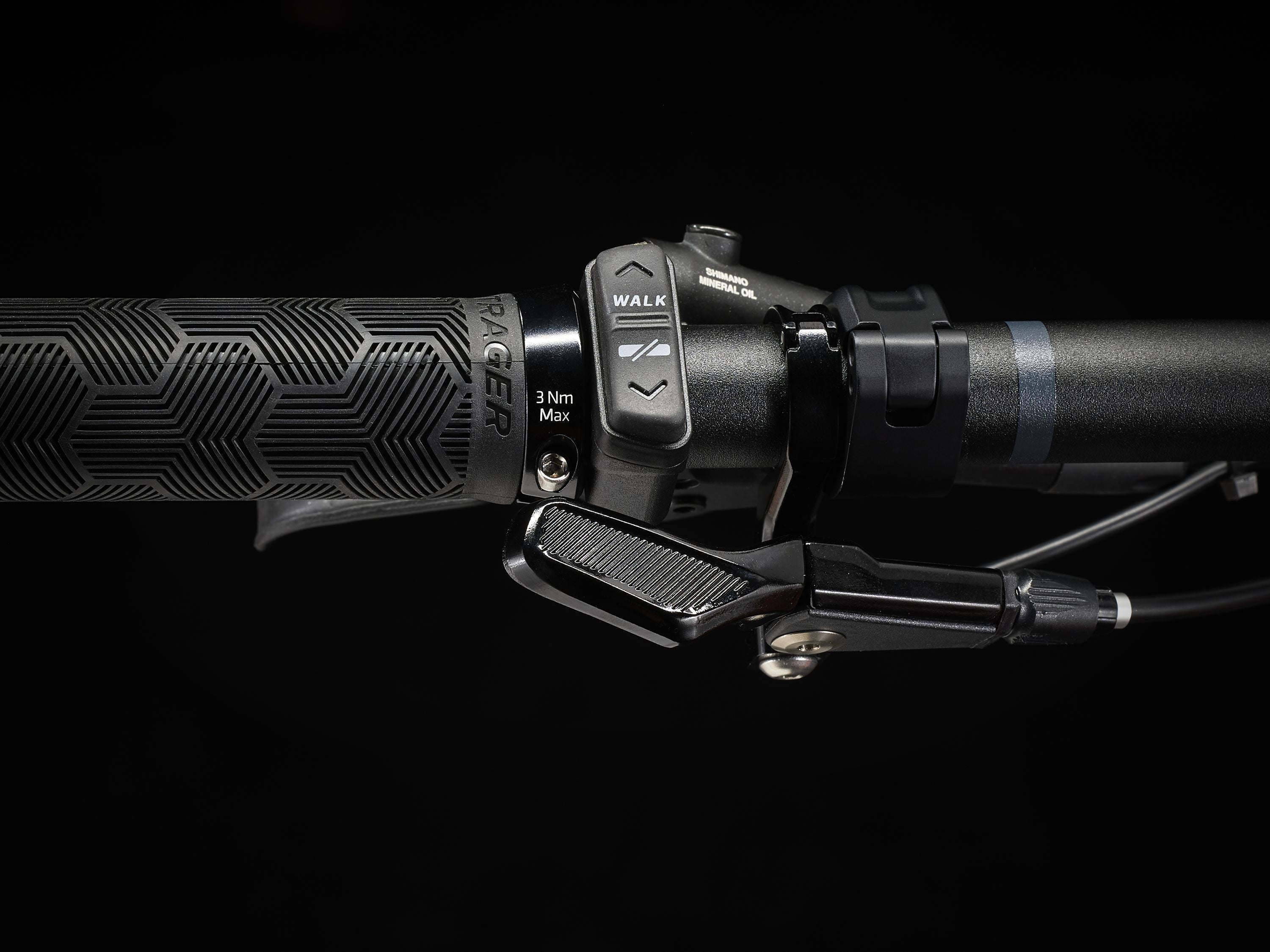

Seatpost TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm // Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Handlebar Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width // Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Stem Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips Bontrager XR Trail Elite, nylon lock-on
Battery TQ 360Wh TQ 360Wh
Size Chart Rider Height Rider Height - 177.0 - 188.0
Size Chart Rider Inseam Inseam - 84.0 - 89.0
