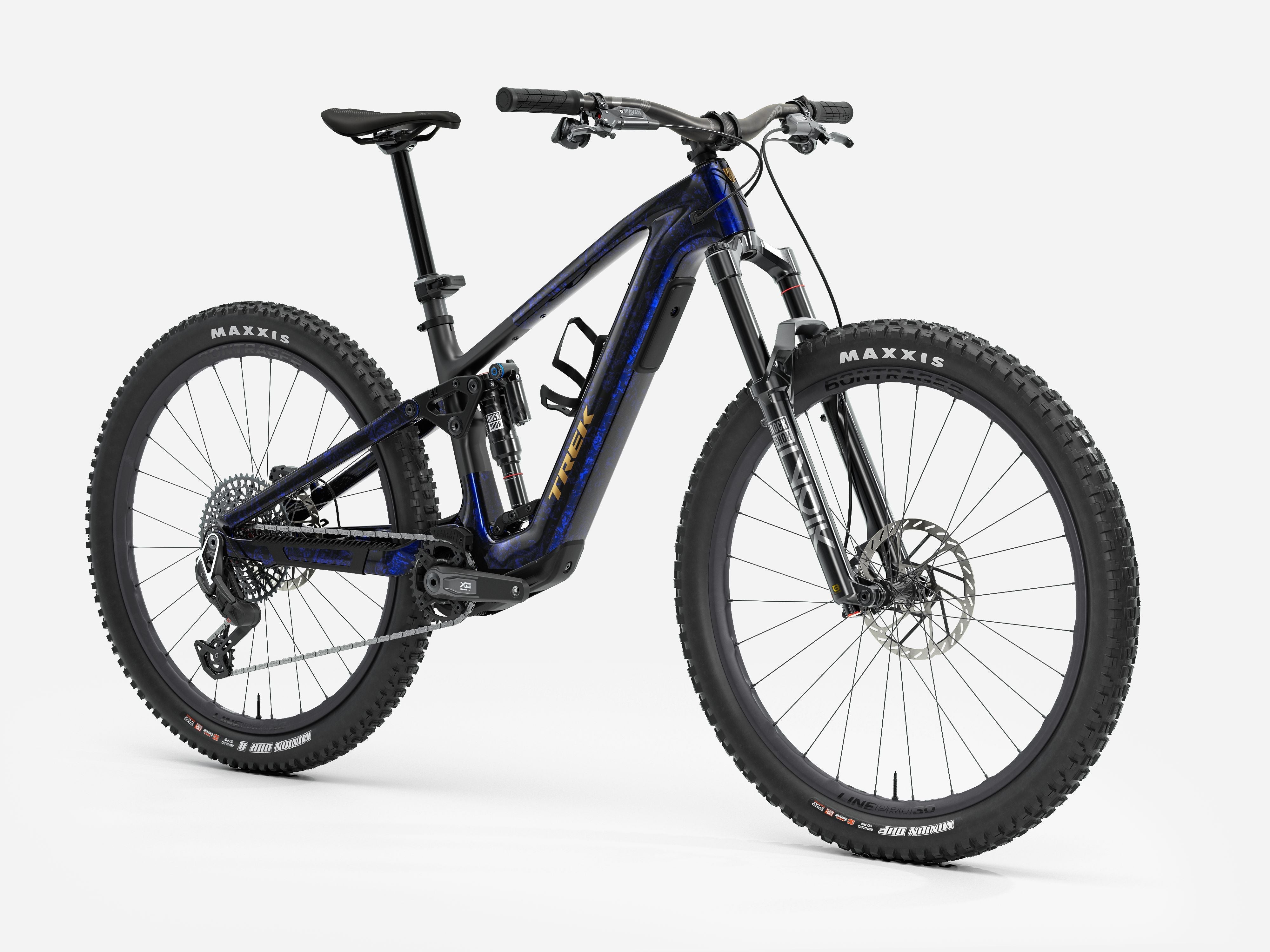

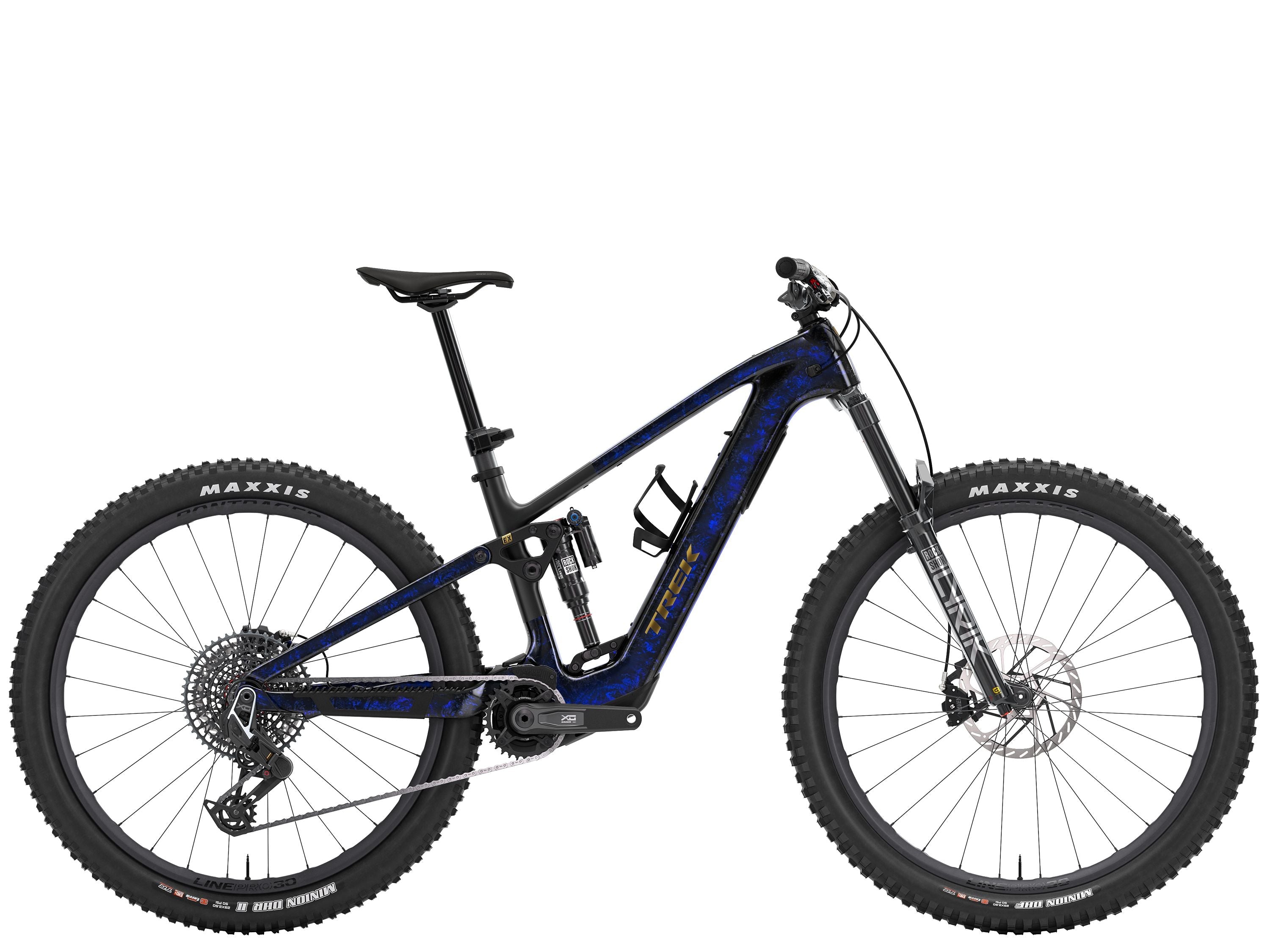

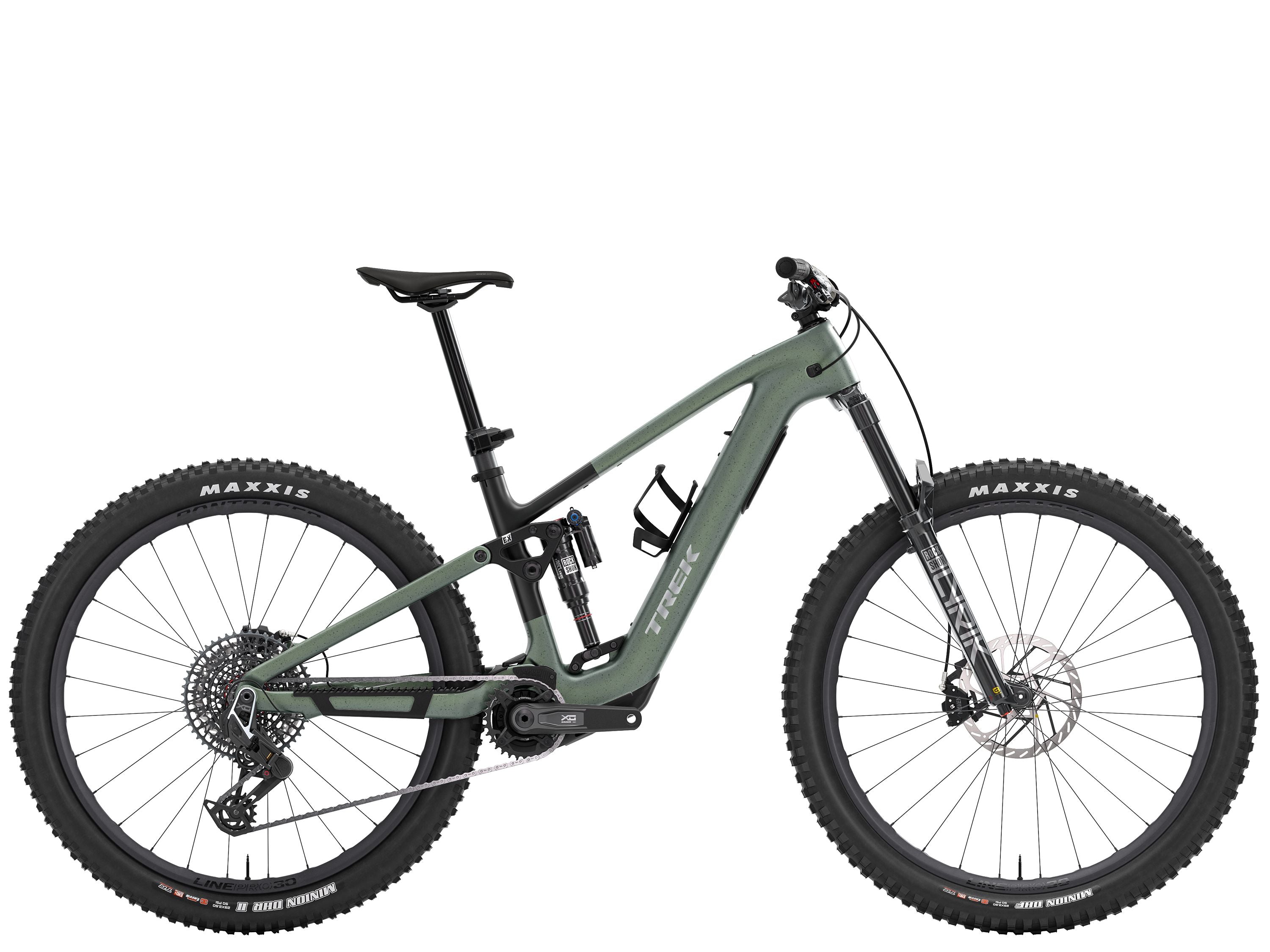

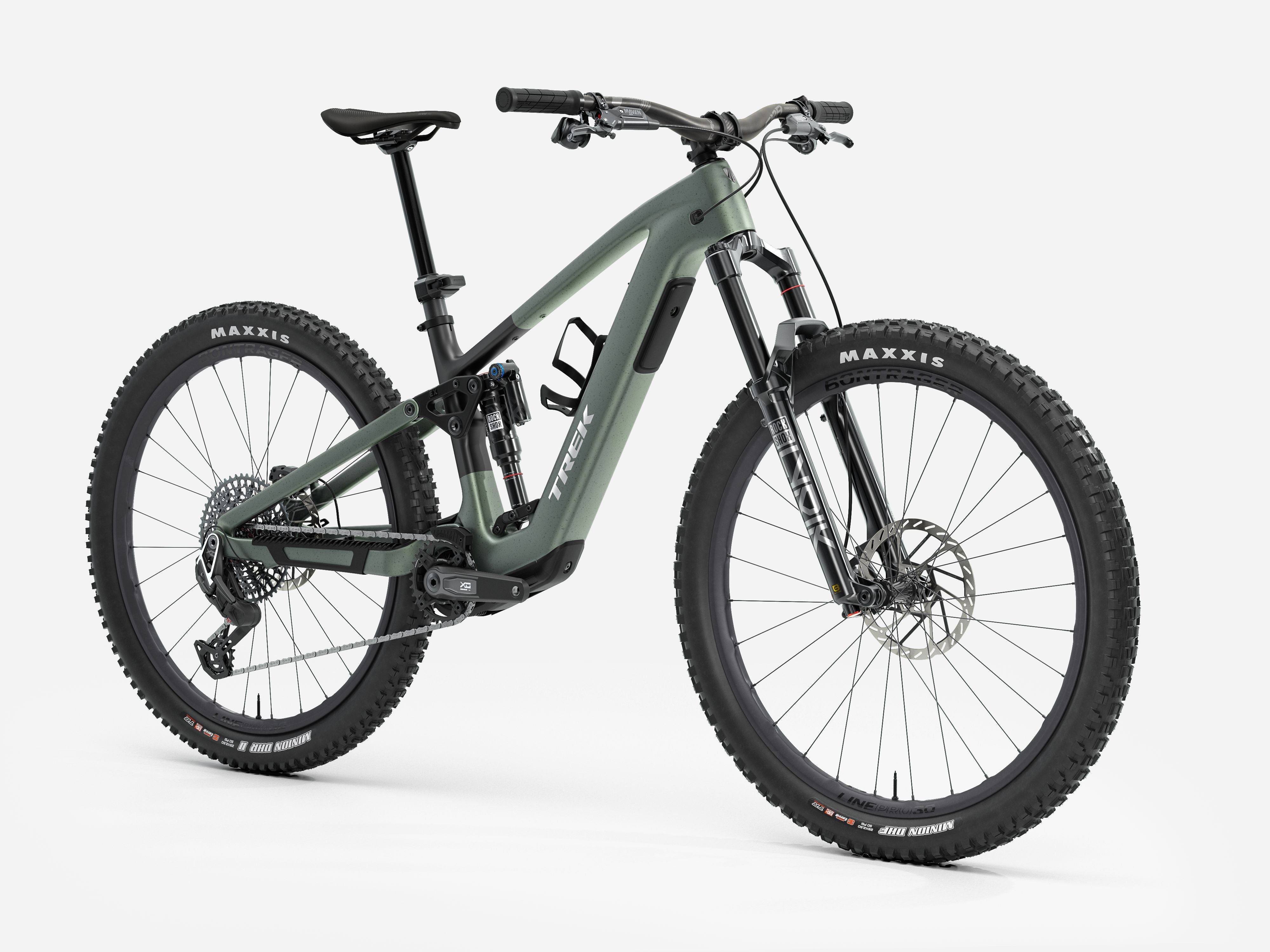

Fuel+ EX 9.9 X0 AXS Gen 2

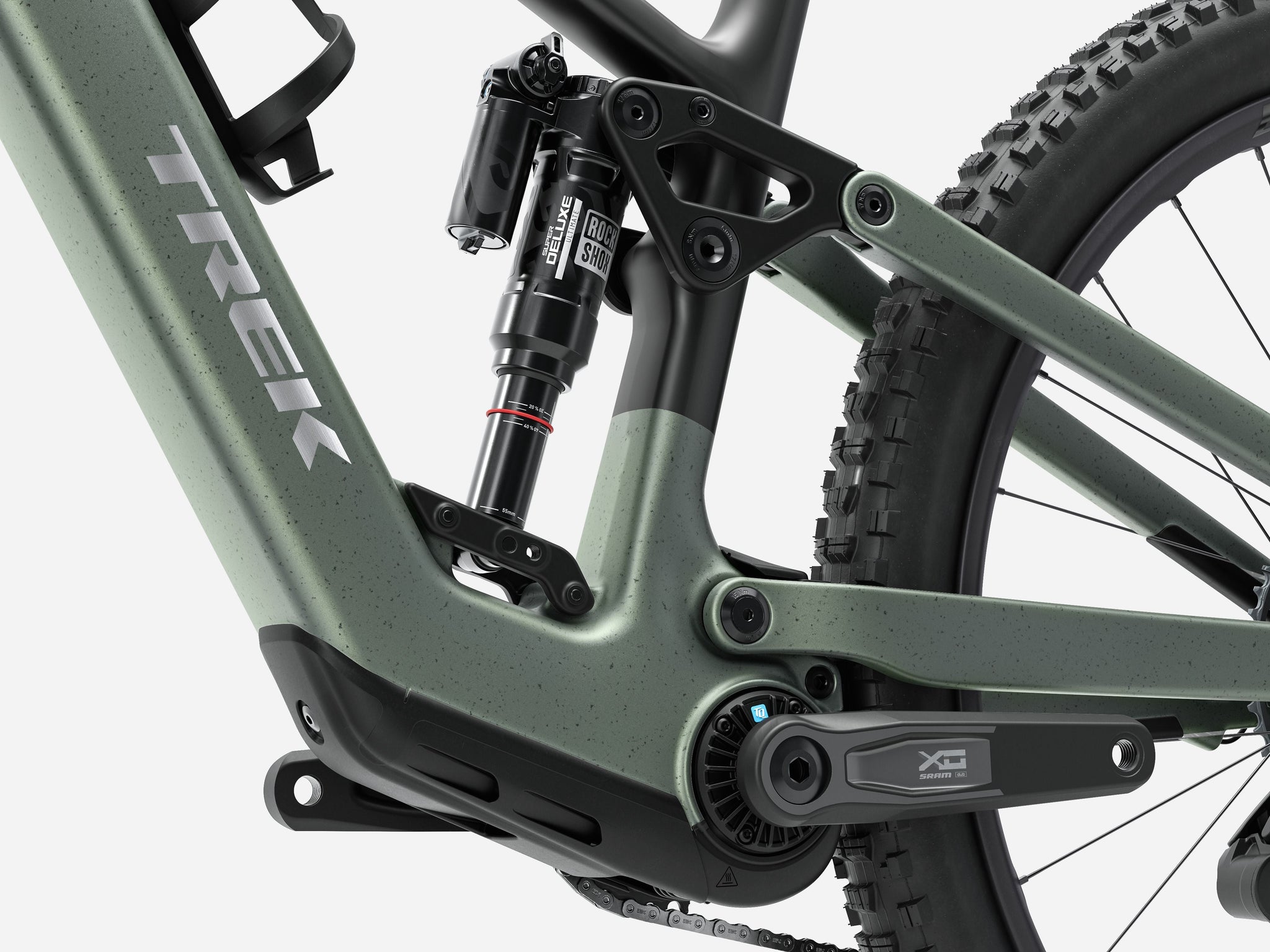

The Fuel+ EX 9.9 X0 AXS is the pinnacle of e-MTB performance, with versatile handling and smooth support for any trail. It starts with an OCLV Mountain Carbon frame and TQ HPR60 motor for a quiet, natural boost. A RockShox Lyrik Ultimate fork and Deluxe Ultimate RCT2 shock (145 mm rear, 150 mm front) give you confident handling anywhere and SRAM's X0 AXS wireless transmission keeps shifting precise under load. It's topped off with a RockShox Reverb wireless dropper post and Bontrager Line Pro 30 carbon wheels.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm OCLV Mountain Carbon, remo |
|---|---|
| Frame Material | CARBON |
| Rim Size | 29 |
| Fork | RockShox |
| Fork | RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC d |
| Rearsuspension | RockShox |

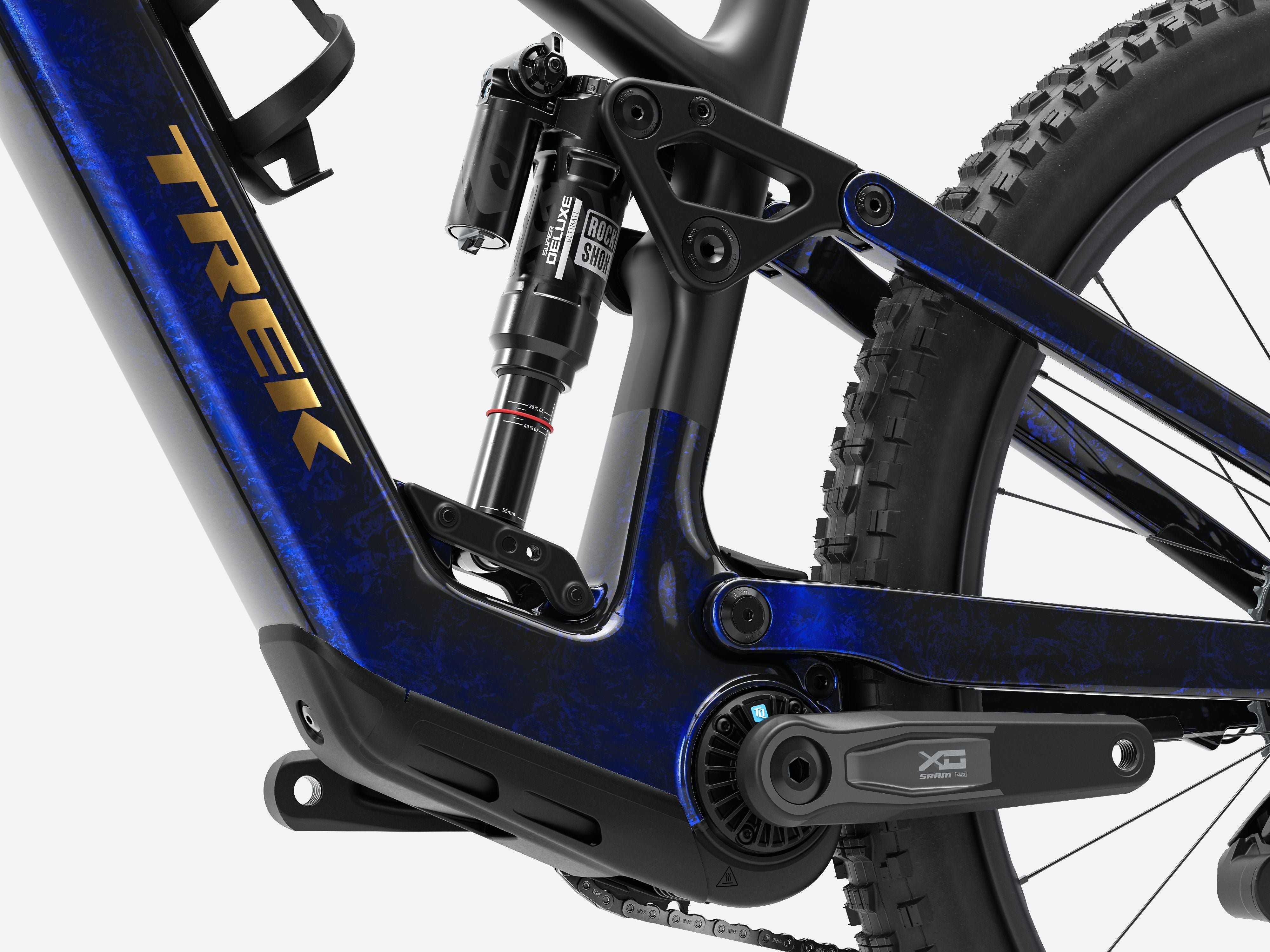

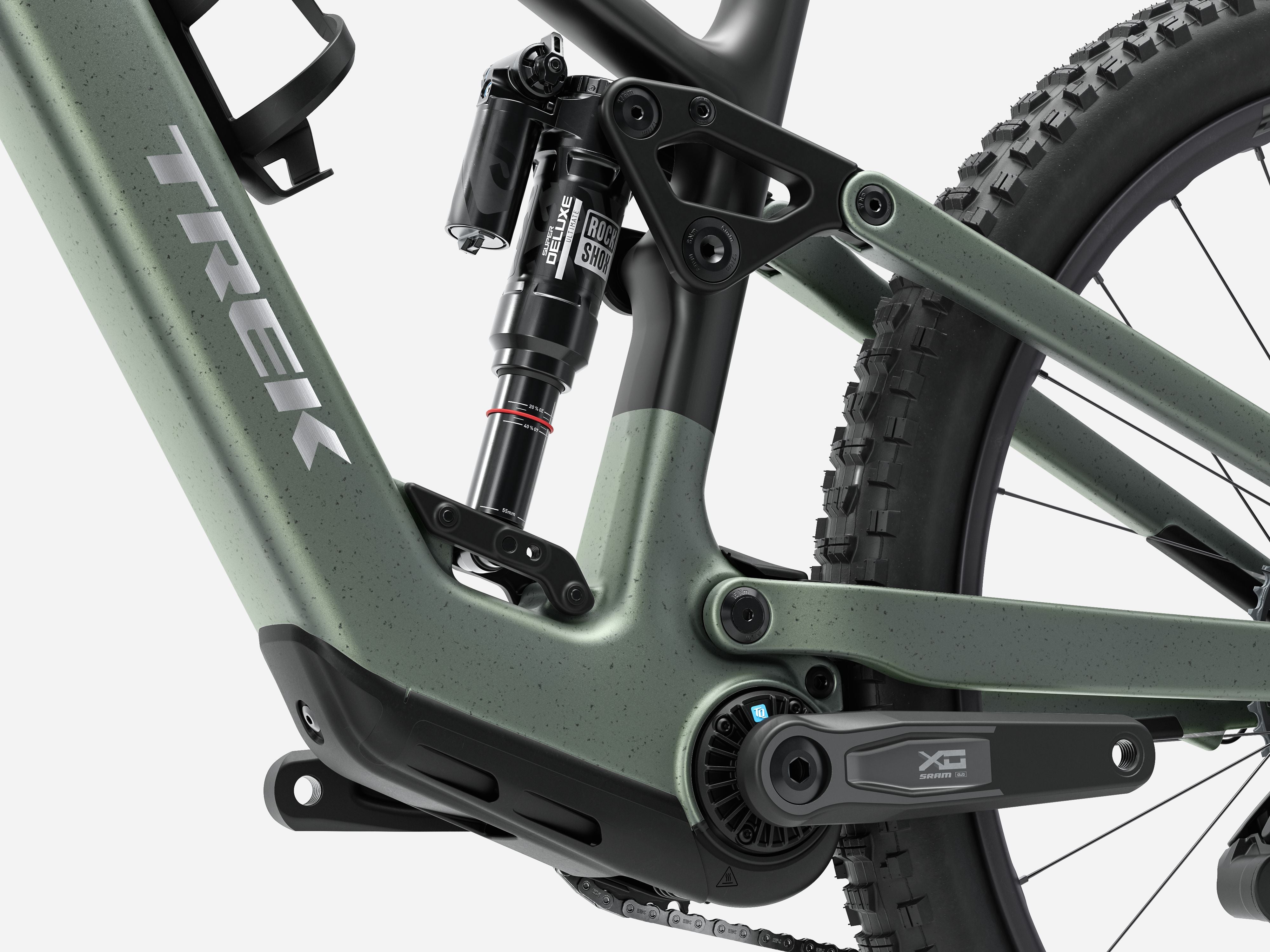

| Suspension Rear | RockShox Deluxe Ultimate RC2T, 205 mm x 60 mm |
| Wheels | Bontrager Line Pro 30 |
| Tires | Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'' |
| Shifter | SRAM |

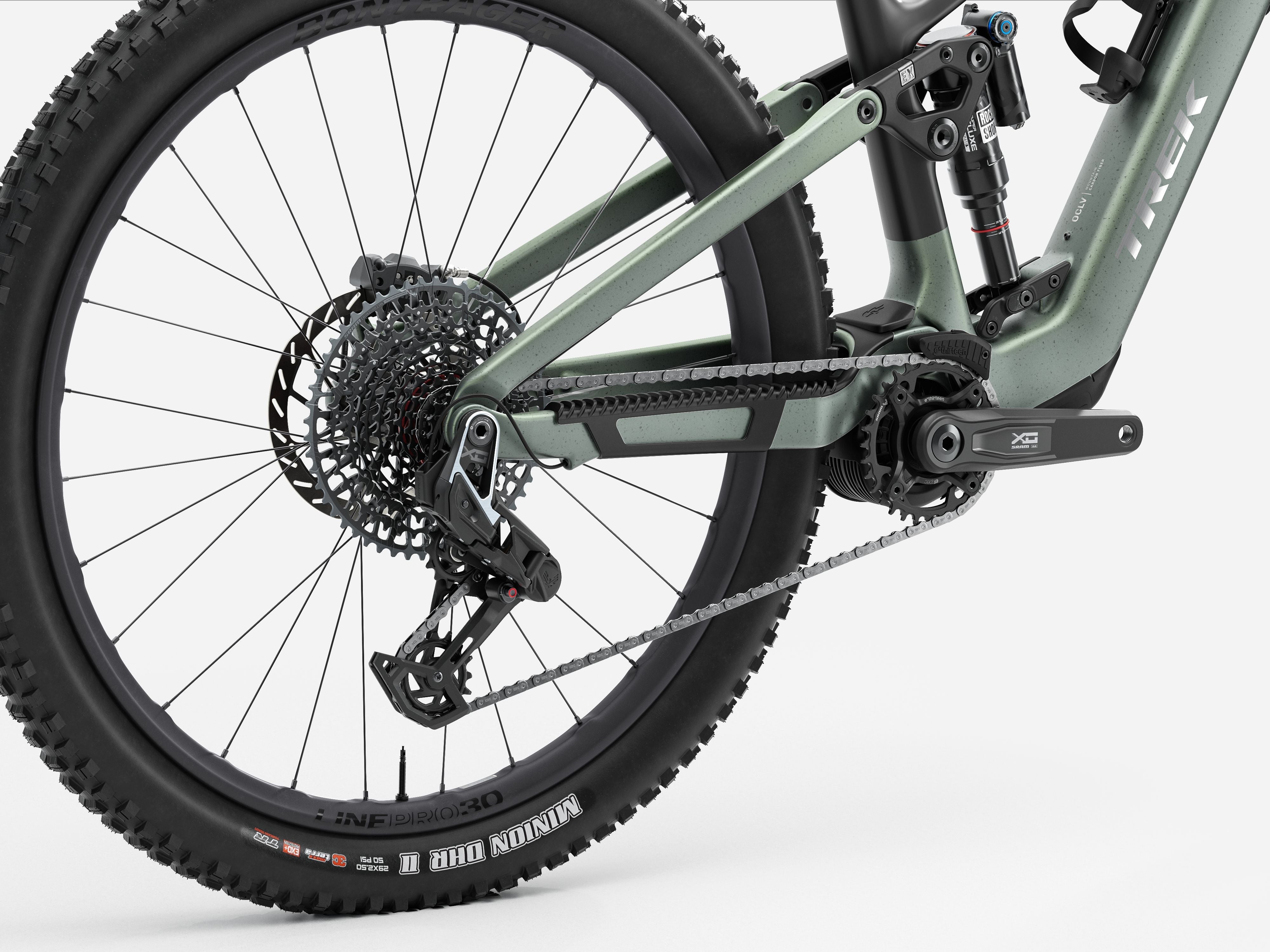

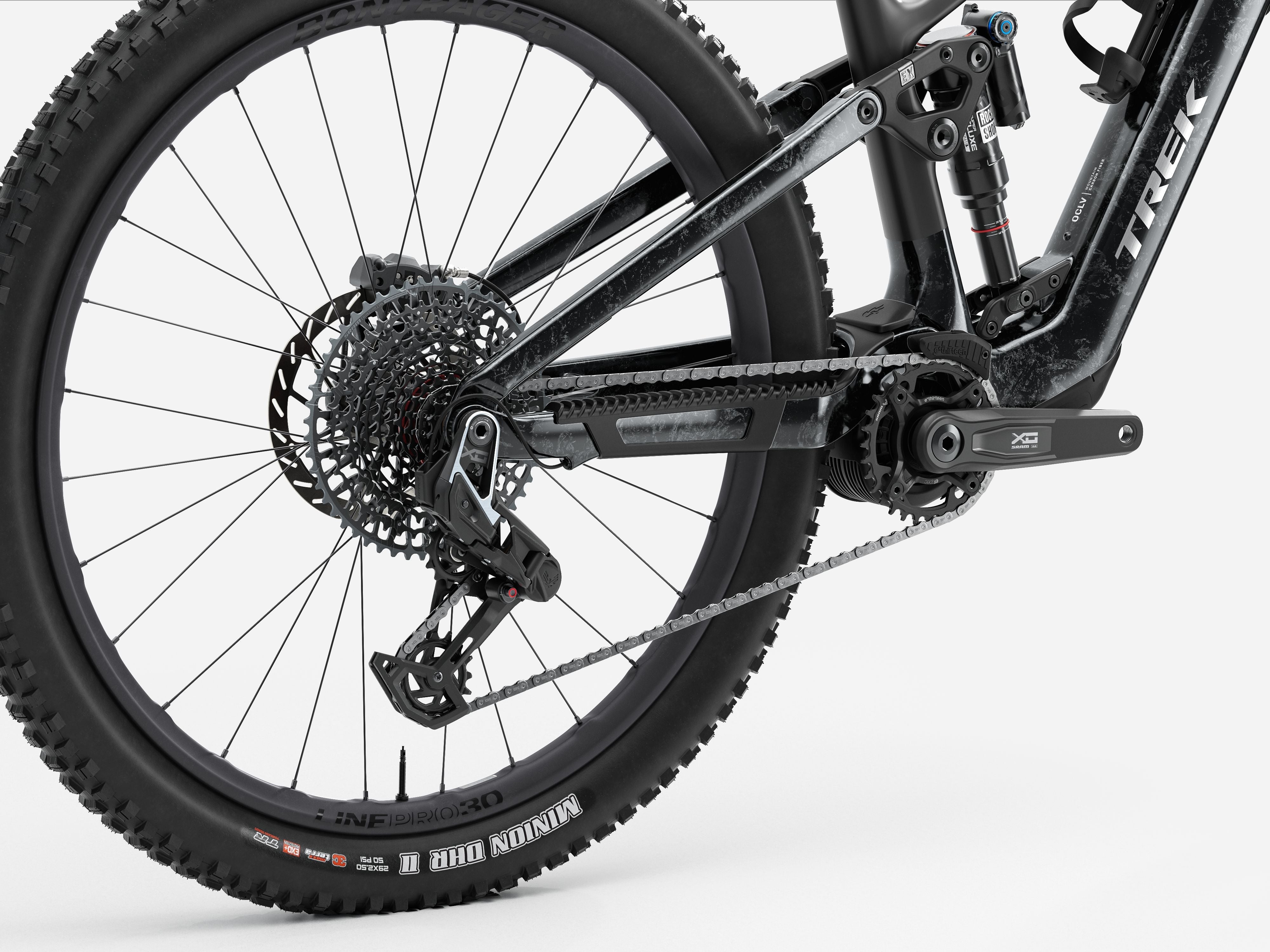

| Derailleur Rear | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, 160 mm length |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 200mm |
| Saddle | Verse Short Pro, carbon rails, 145 mm width |
| Seatpost | RockShox Reverb AXS, 200 mm travel, wireless, 34.9 mm, 542 mm length |
| Handlebar | Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| Stem | Race Face Turbine R, 35mm, 0 degree, 40mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | TQ 580Wh // SRAM AXS battery pack (with charger) TQ 580Wh // SRAM AXS battery pack (with charger) |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
