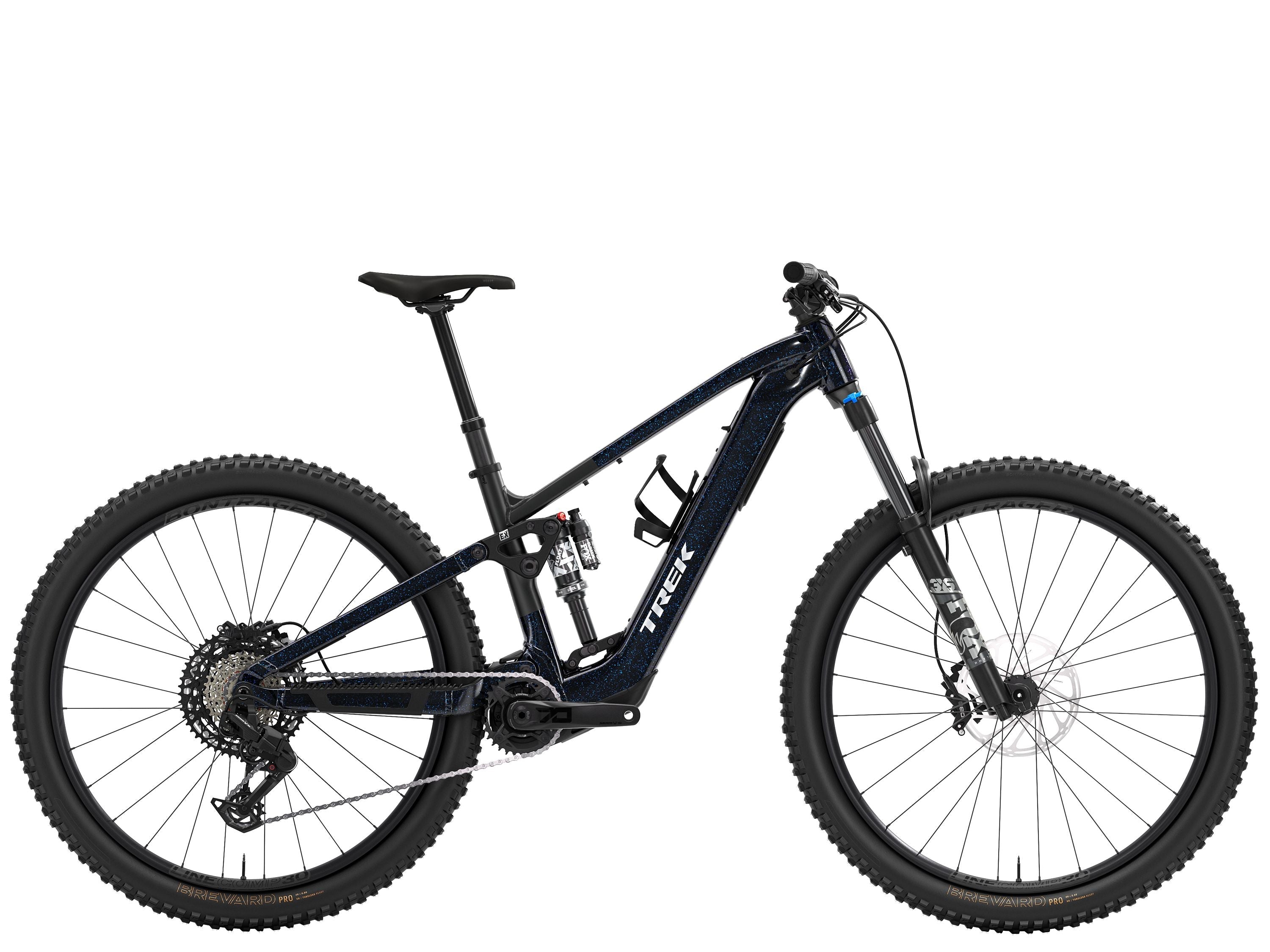

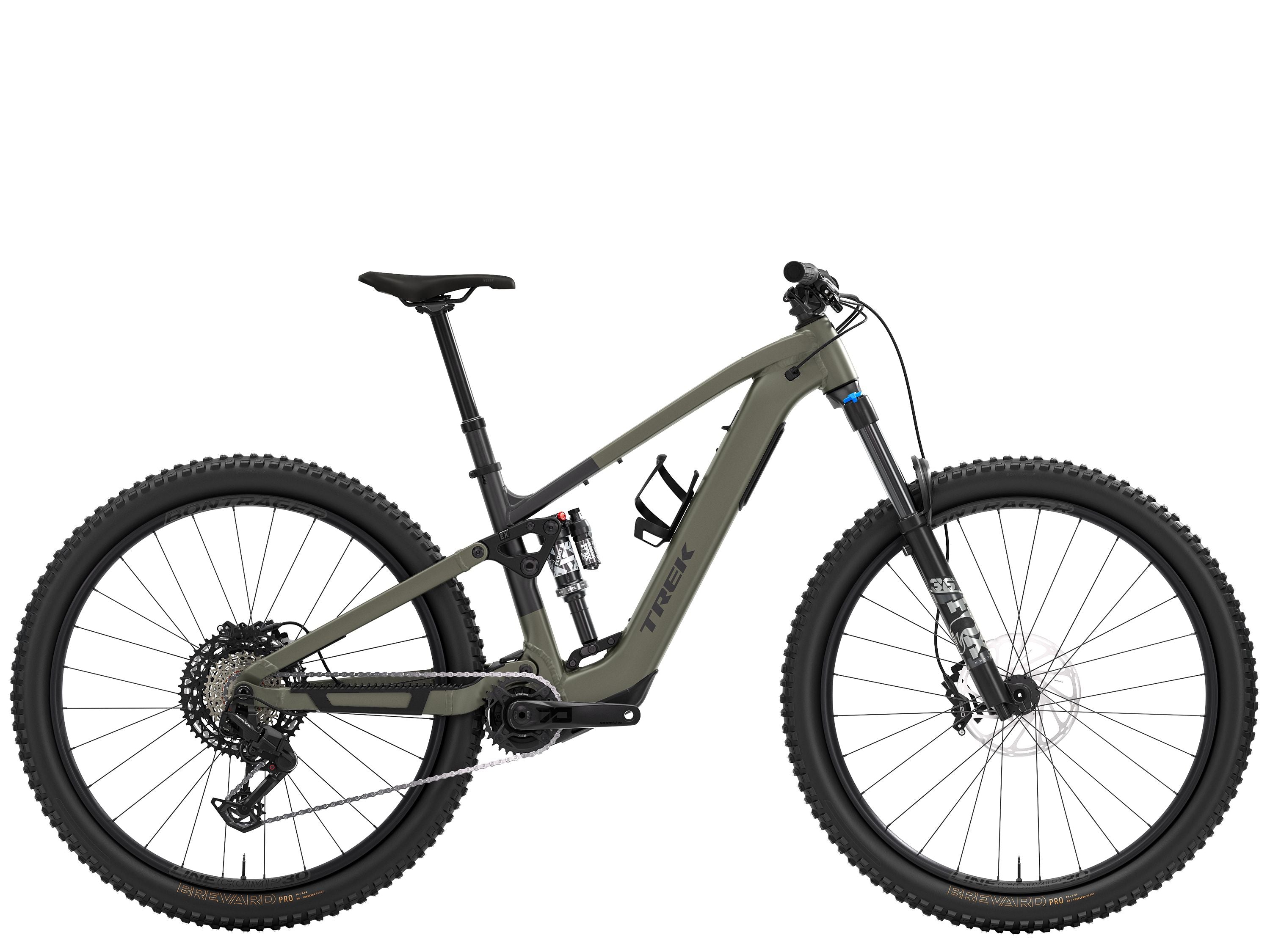

Fuel+ EX 8 Gen 2
The Fuel+ EX 8 is a quiet and composed electric mountain bike built for tackling any trail. It all starts out with an Alpha NEXT Platinum aluminium frame that gives you a smooth boost thanks to TQ's HPR-60 motor. A Fox Performance suspension package (145 mm rear, 150 mm front) keeps handling confident in the rough, while SRAM's Eagle 70 transmission delivers the smooth-shifting advantage of T-Type at a pocket-friendly price. It's all wrapped up with 4-piston SRAM DB 8 hydraulic disc brakes for stopping power on the steeps.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT Platinum aluminum |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | Trek |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, |
| Rearsuspension | Fox |
| Suspension Rear | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Tires | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
| Hub Front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| Shifter | SRAM |
| Derailleur Rear | SRAM Eagle 70, T-Type |
| Crank | SRAM EAGLE 70, 160 mm length |
| Cassette | SRAM Eagle XS-1270, T-Type,10-52, 12-speed |
| Chain | SRAM Eagle 70, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic disc |
| Brake Rotor | SRAM CenterLine 2.0, 6-bolt, 200 mm // SRAM CentreLine, 6-bolt, round-edge, 200 mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Grips | Trek Line Comp, nylon lock-on |
| Battery | TQ 580Wh TQ 580Wh |
| Controller | TQ LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
