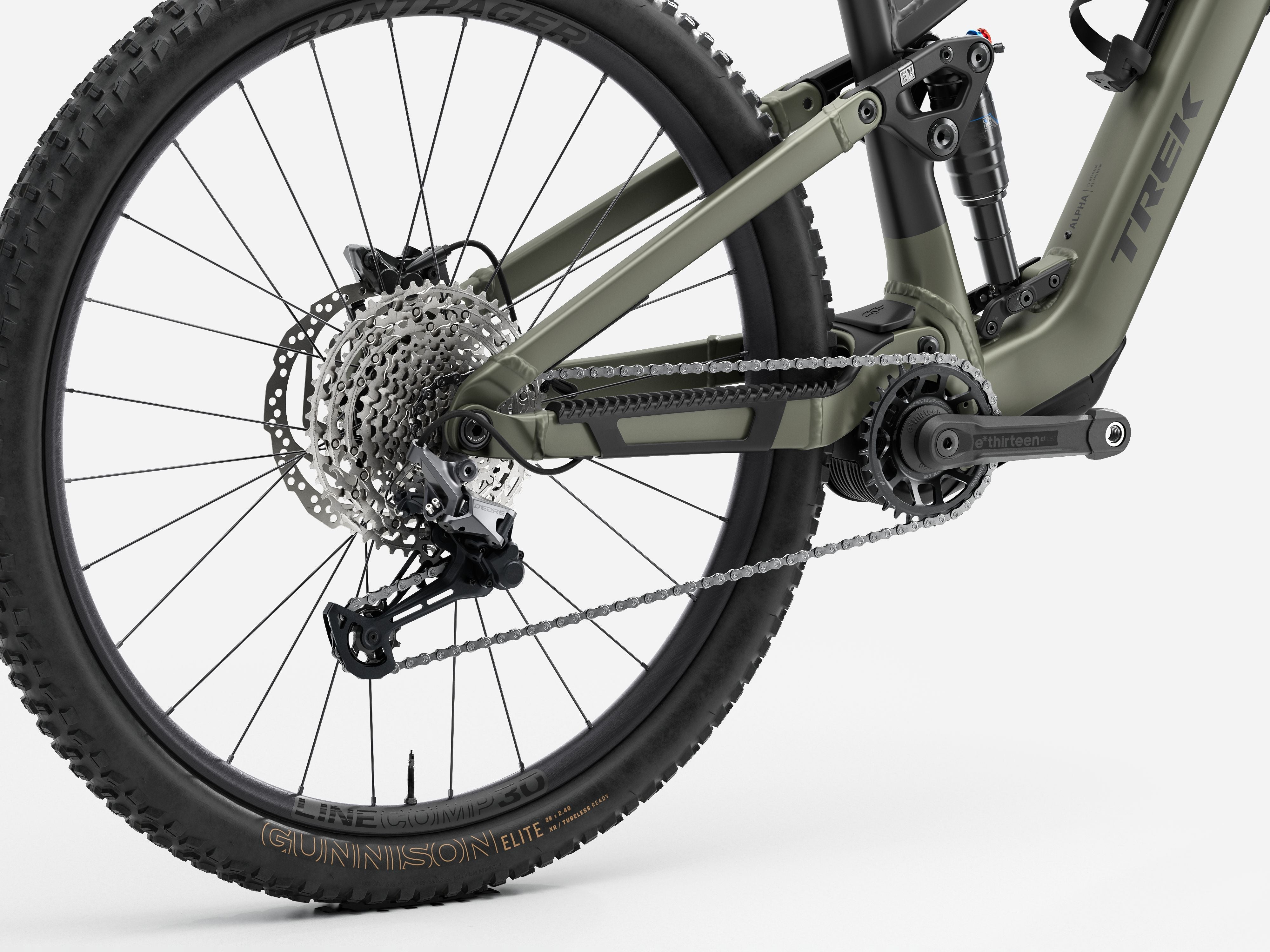

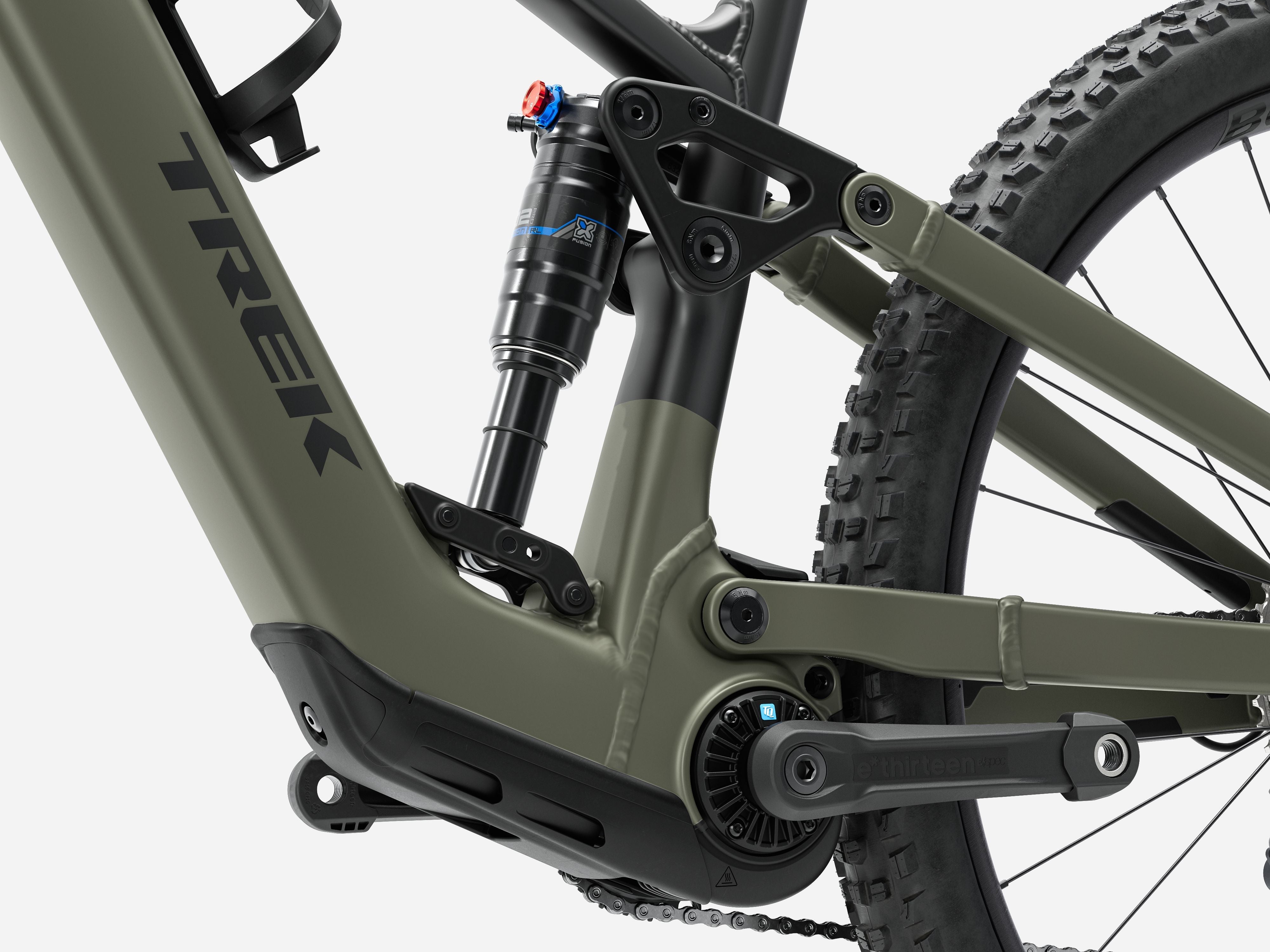

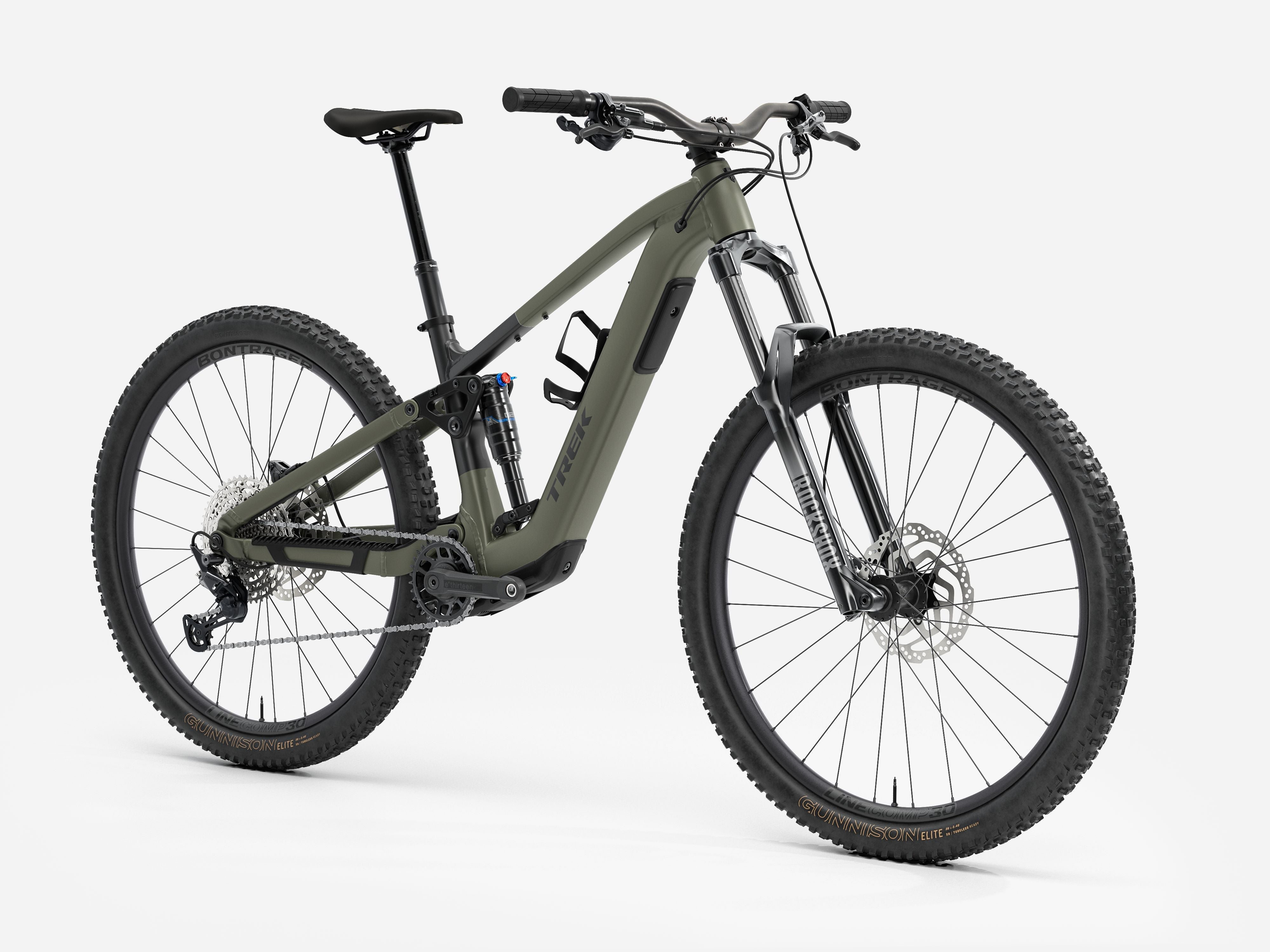

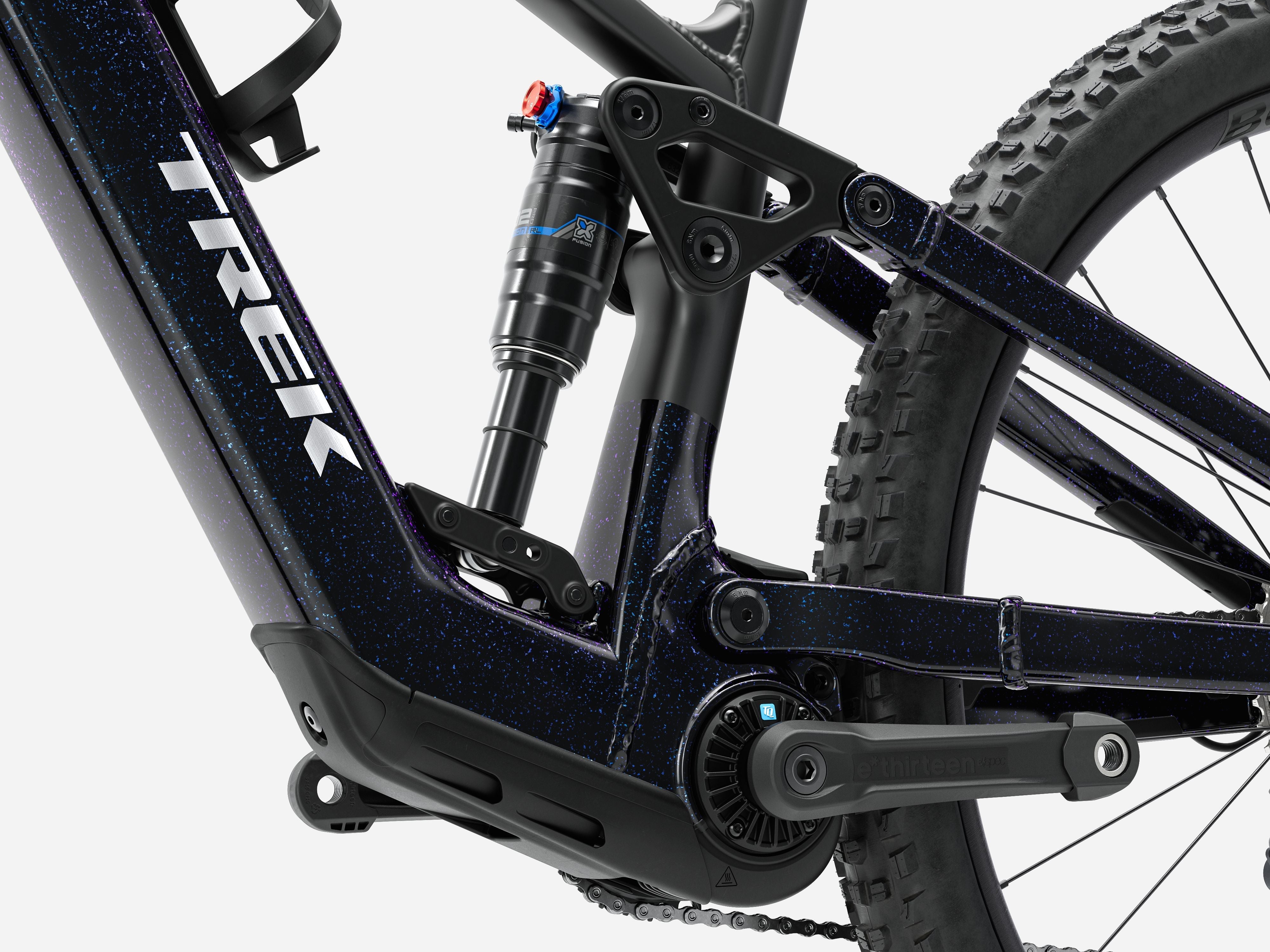

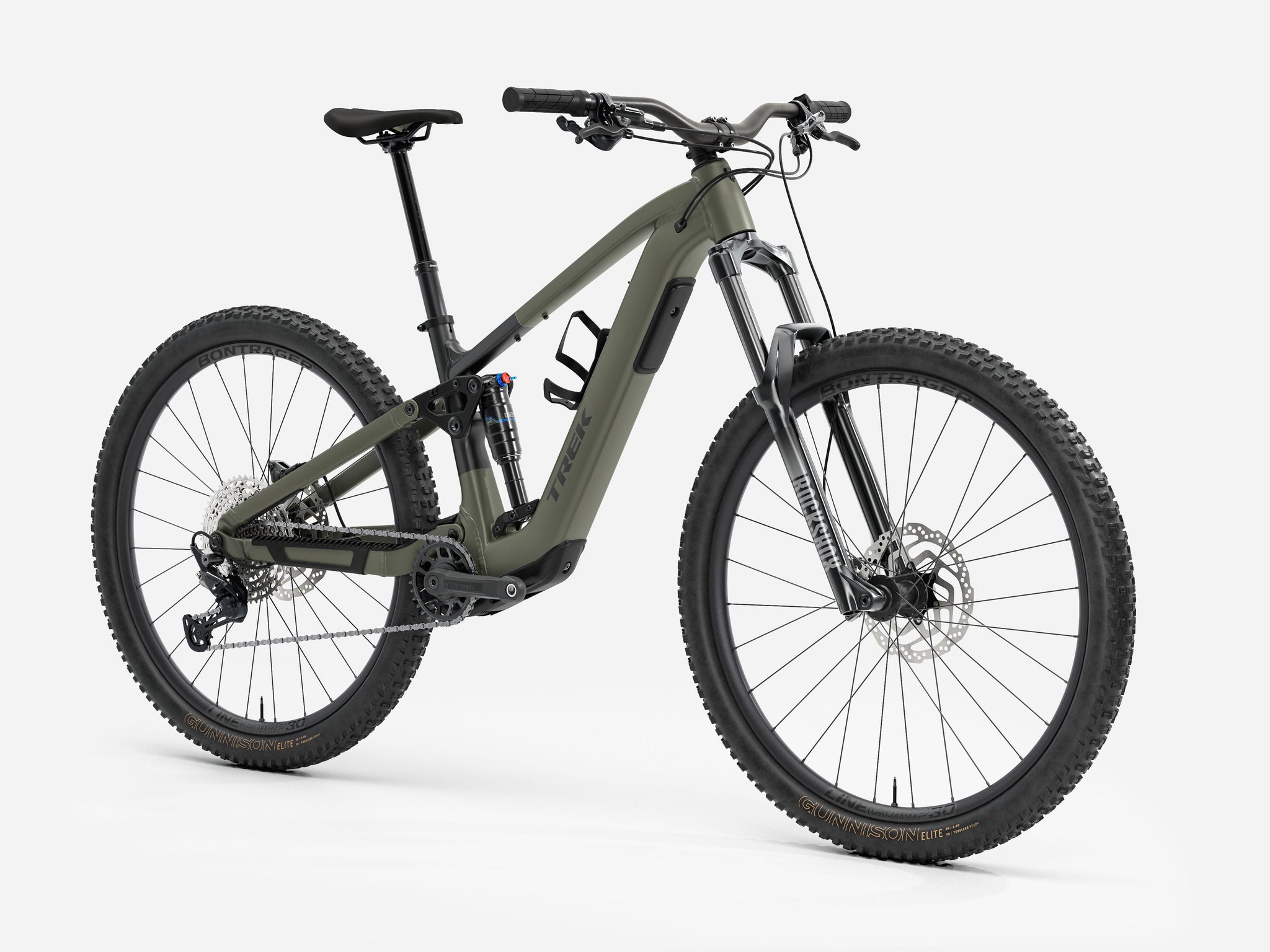

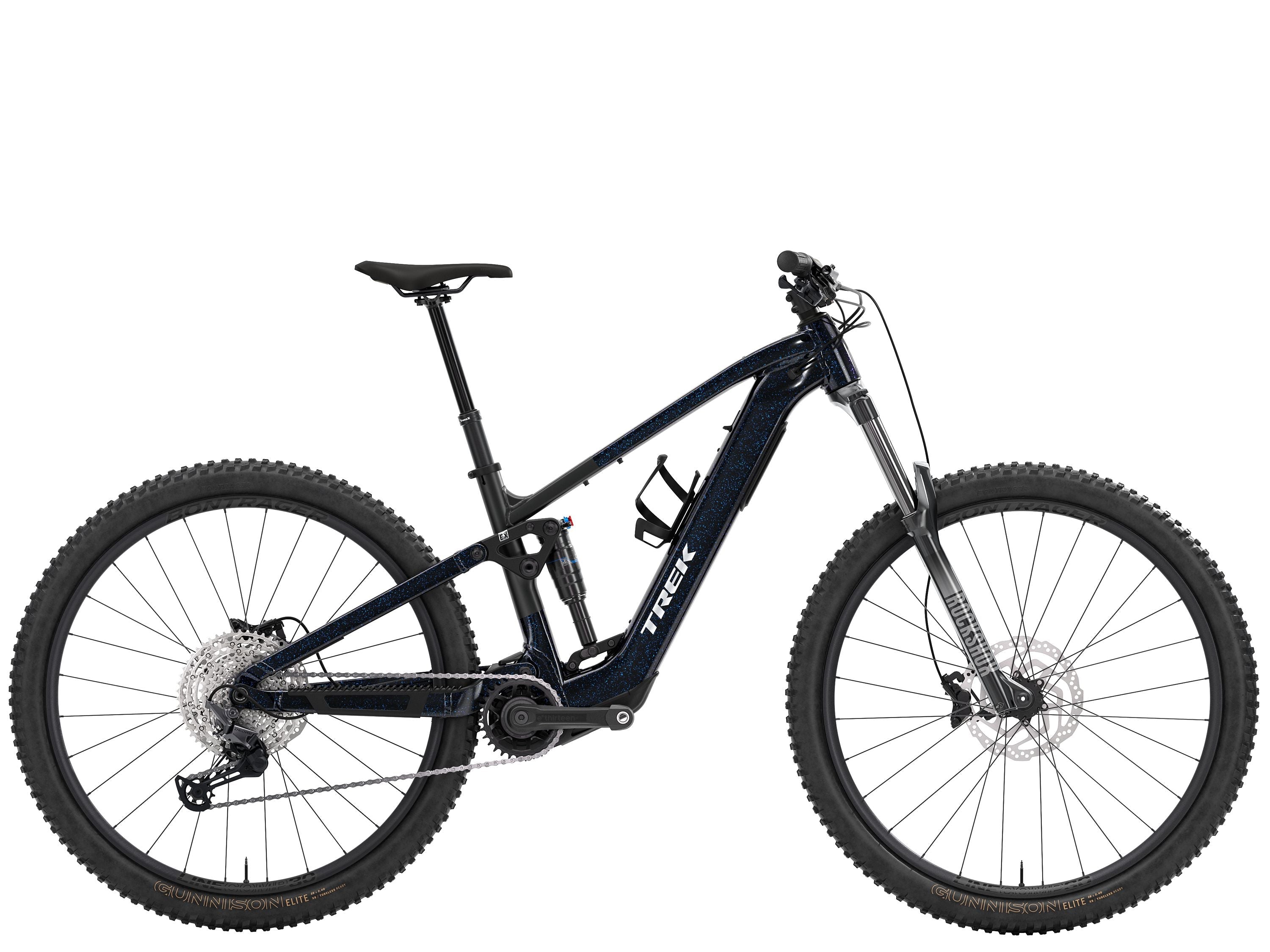

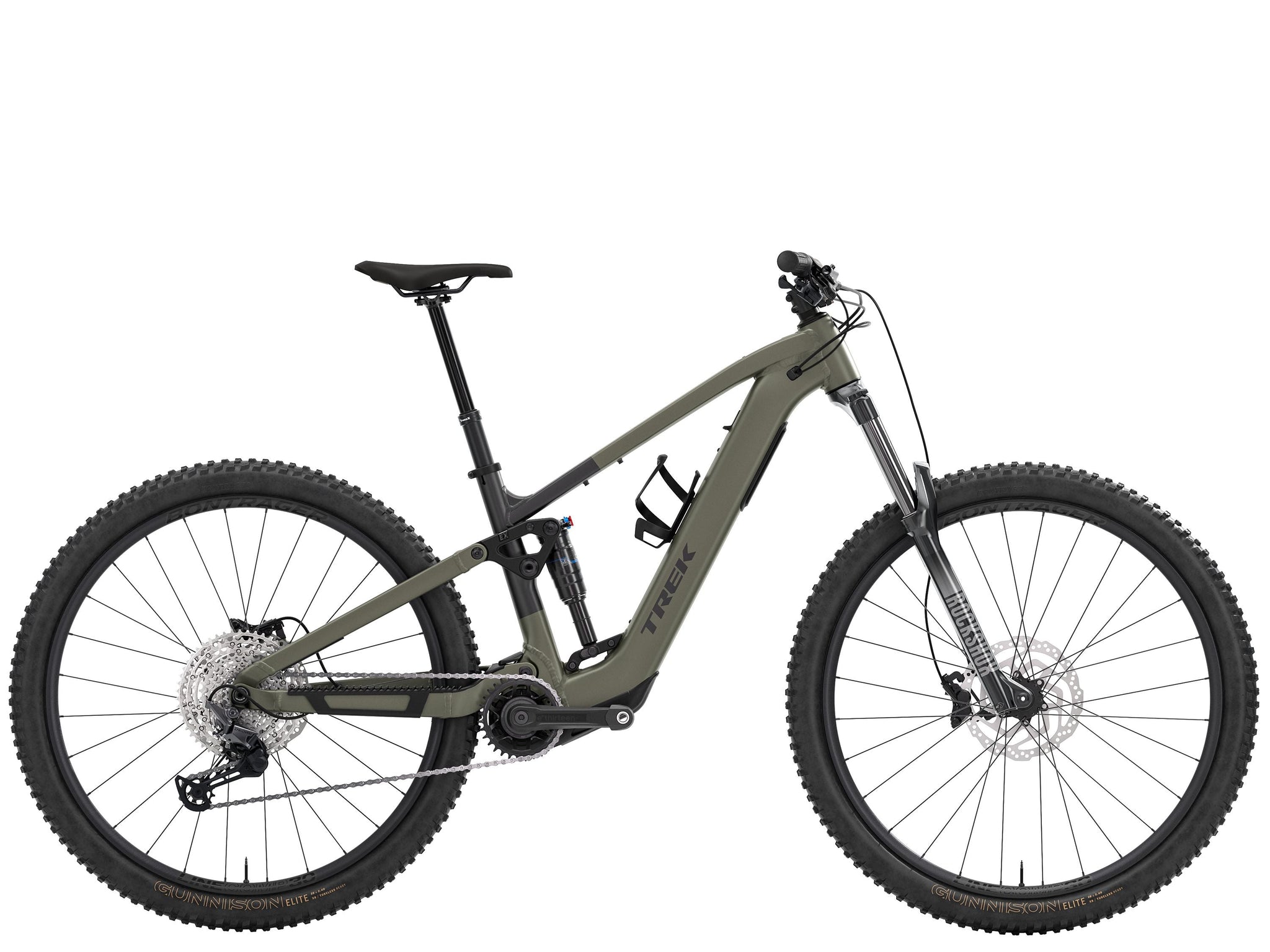

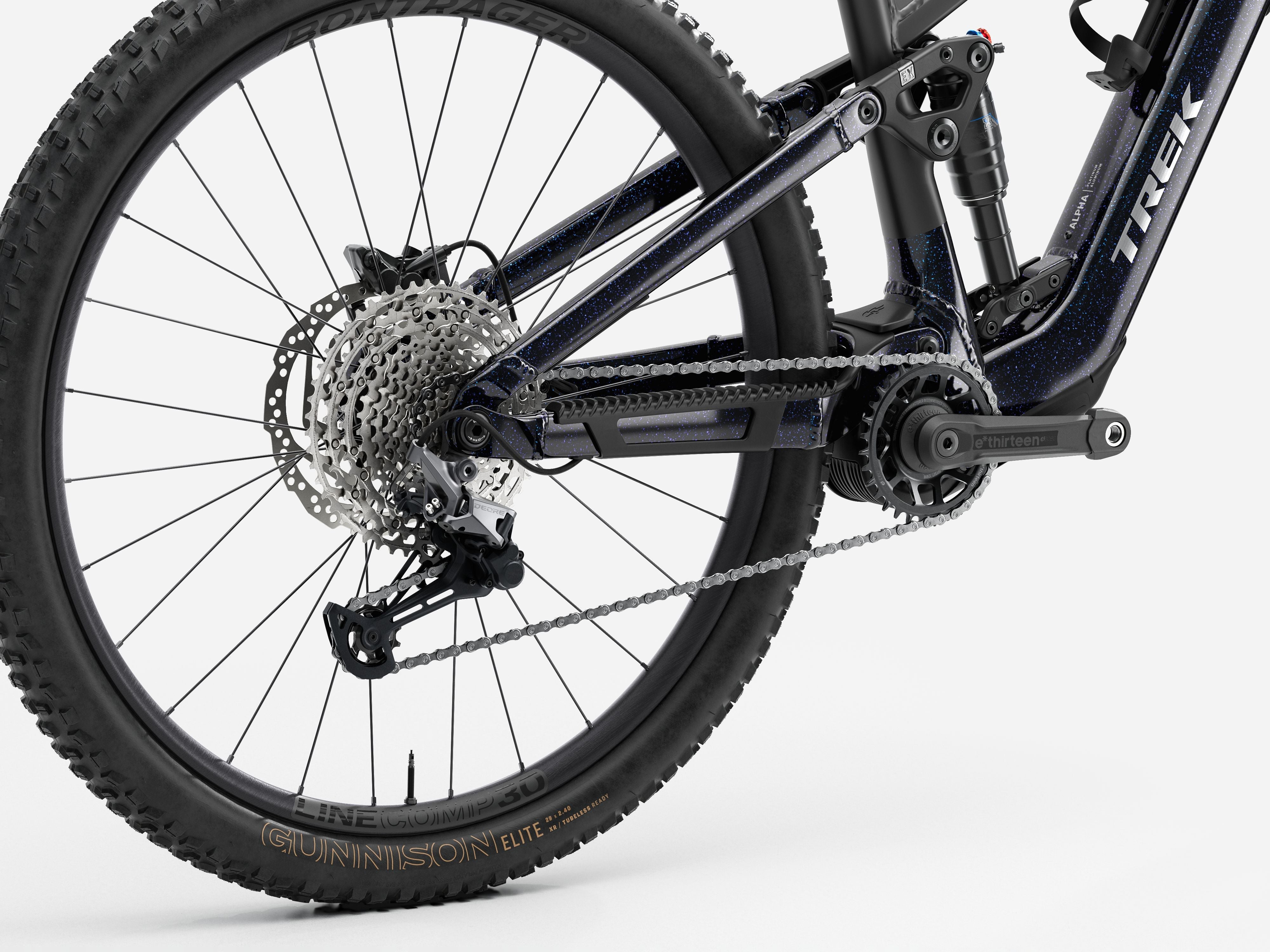

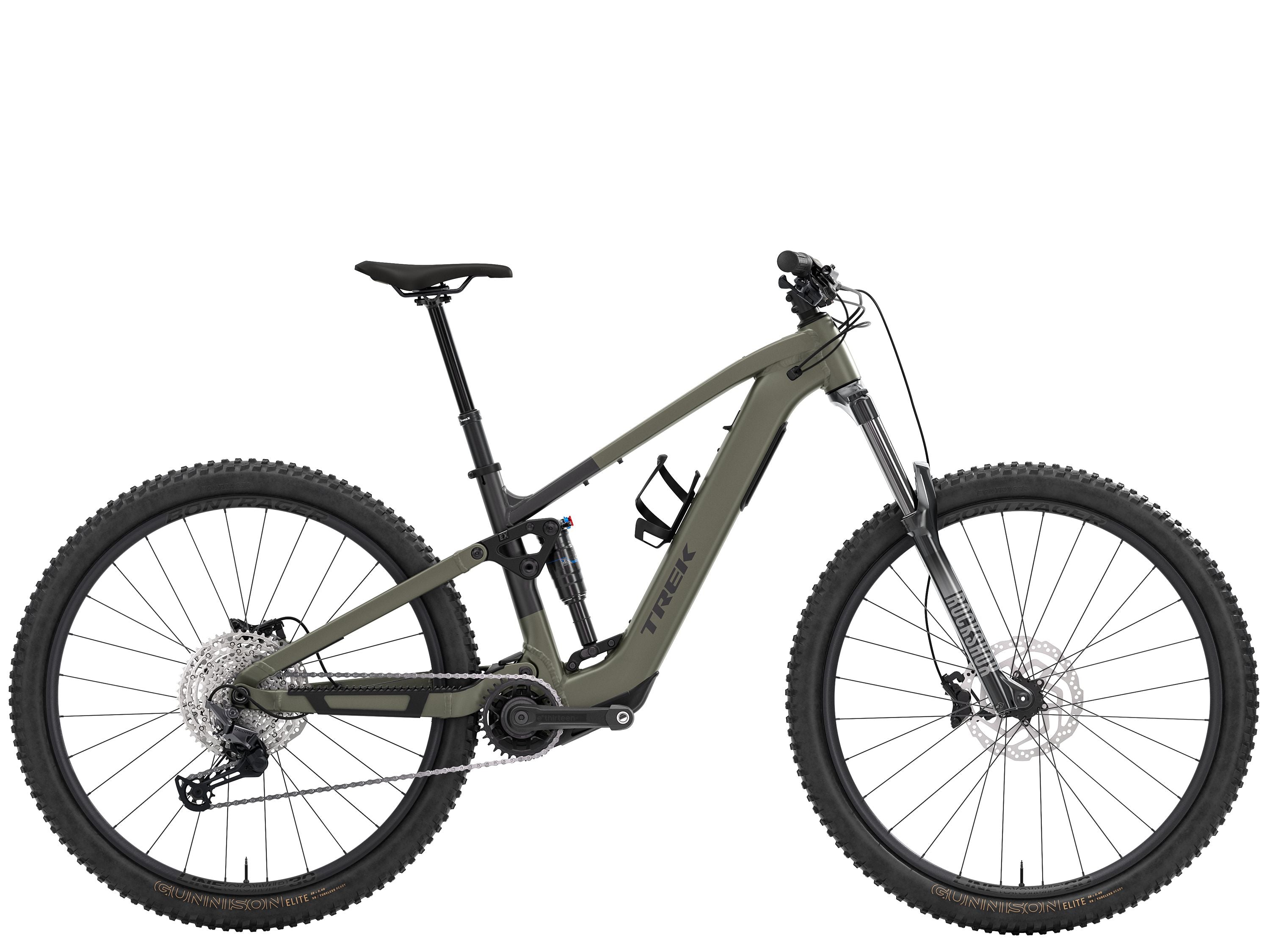

Fuel+ EX 5 Gen 2
The Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, at any time. Its Alpha NEXT Platinum aluminium frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145 mm rear, 150 mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT Platinum aluminum |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | Trek |
| Fork | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, l |
| Rearsuspension | X-Fusion |
| Suspension Rear | X-Fusion Pro 2, 2-position damper, 205 mm x 60mm |
| Tires | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Hub Front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Hub Rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Shifter | Shimano |
| Derailleur Rear | Shimano Deore M6100, long cage |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 |
| Brake Rotor | Shimano RT64, CentreLock, 203 mm // Shimano RT64, CentreLock, 203 mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Grips | Trek Line Comp, nylon lock-on |
| Battery | TQ 580Wh TQ 580Wh |
| Controller | TQ LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
