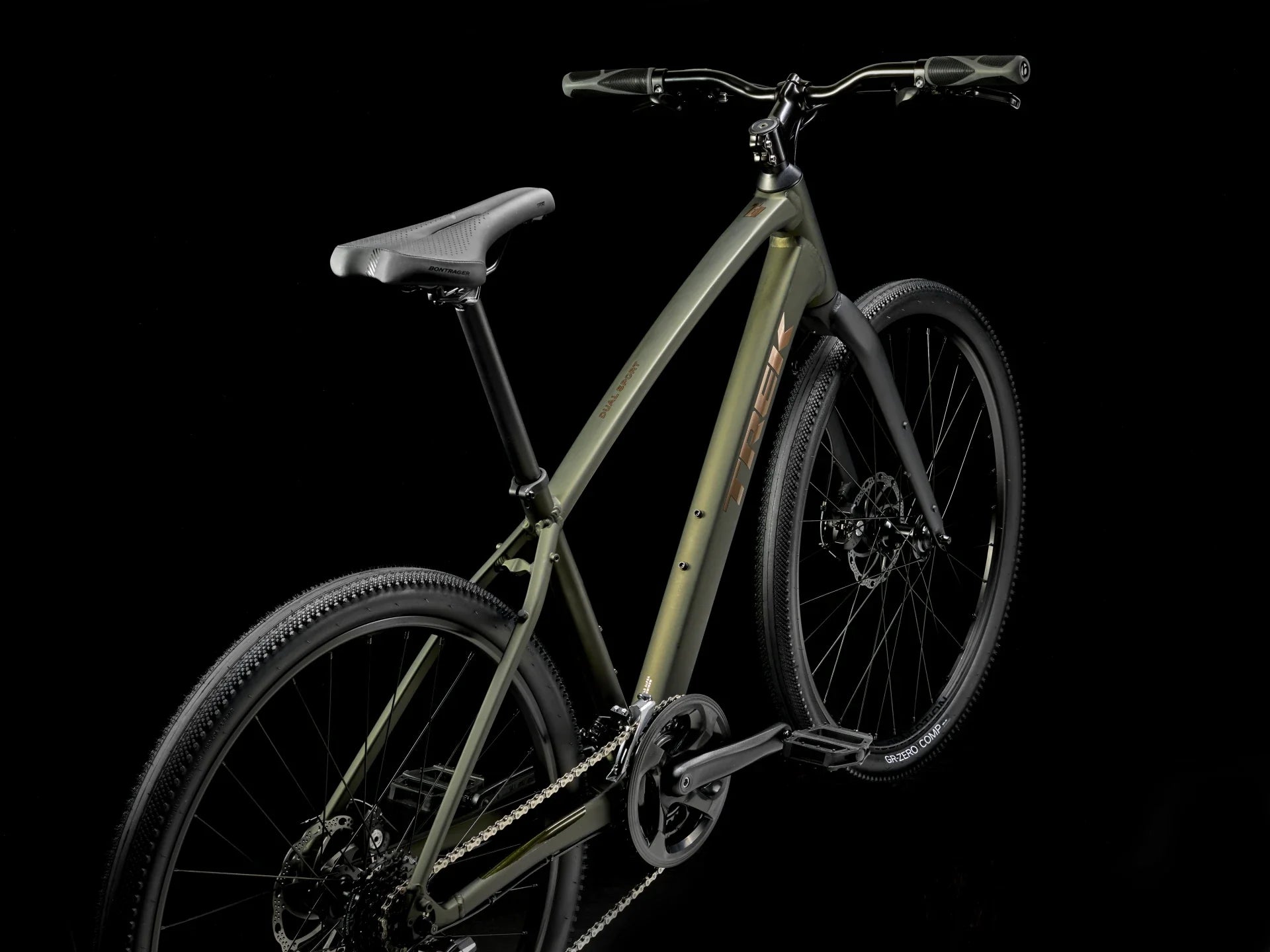

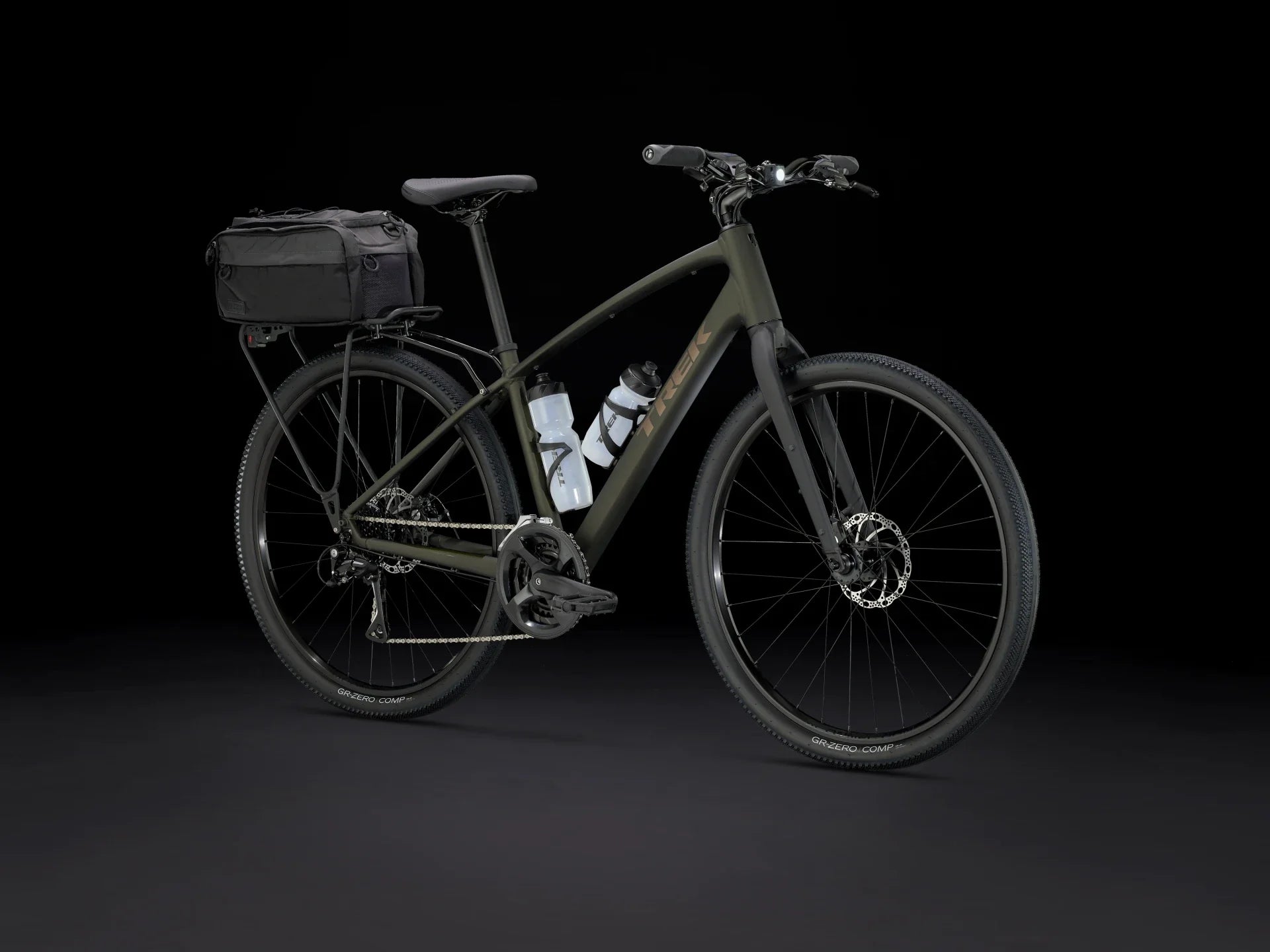

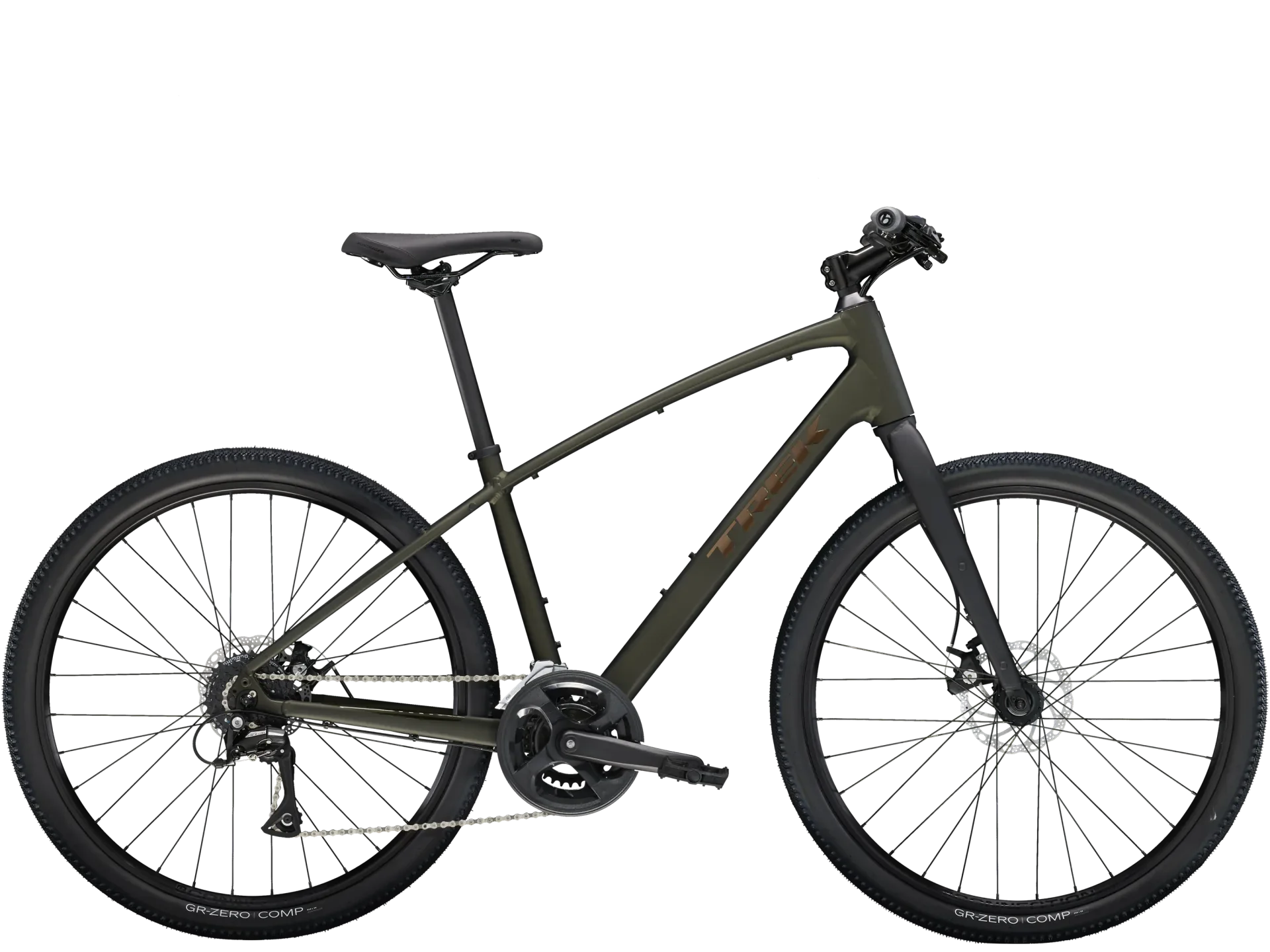

Dual Sport 1 Gen 5
The Dual Sport 1 is a go-anywhere hybrid bike that's fun to ride on a variety of surfaces. It has a light frame, a sturdy drivetrain and powerful brakes. Its wide wheels and tyres soak up bumps and rough-terrain for a comfortable, confident ride on the road, light gravel trails, bike paths and more
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | Dual Sport steel, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |
Drivetrain
| *Shifter |
Size: XS, S, M, L, XL Shimano EF500, 2-speed |
|---|---|
|
Size: XS, S, M, L, XL Shimano EF500, 8-speed |
|
| Front derailleur | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components
| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: XS, S, M Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
|
Size: L, XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |
|
| Grips | Bontrager Satellite |
| *Stem |
Size: XS, S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
|
Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
|

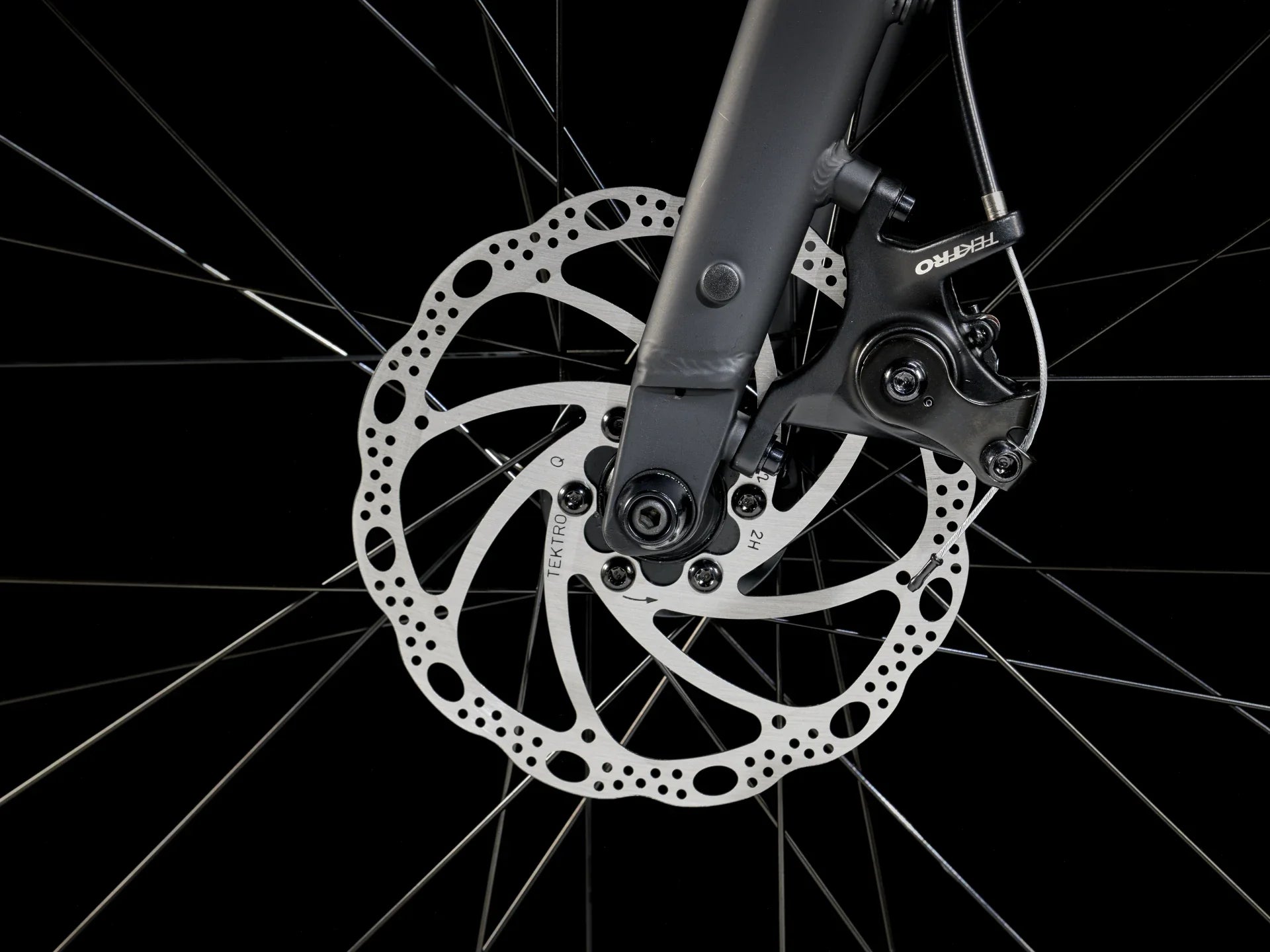

| Brake | Tektro MD-U310 mechanical disc |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Weight
| Weight | M - 14.05 kg / 30.98 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
