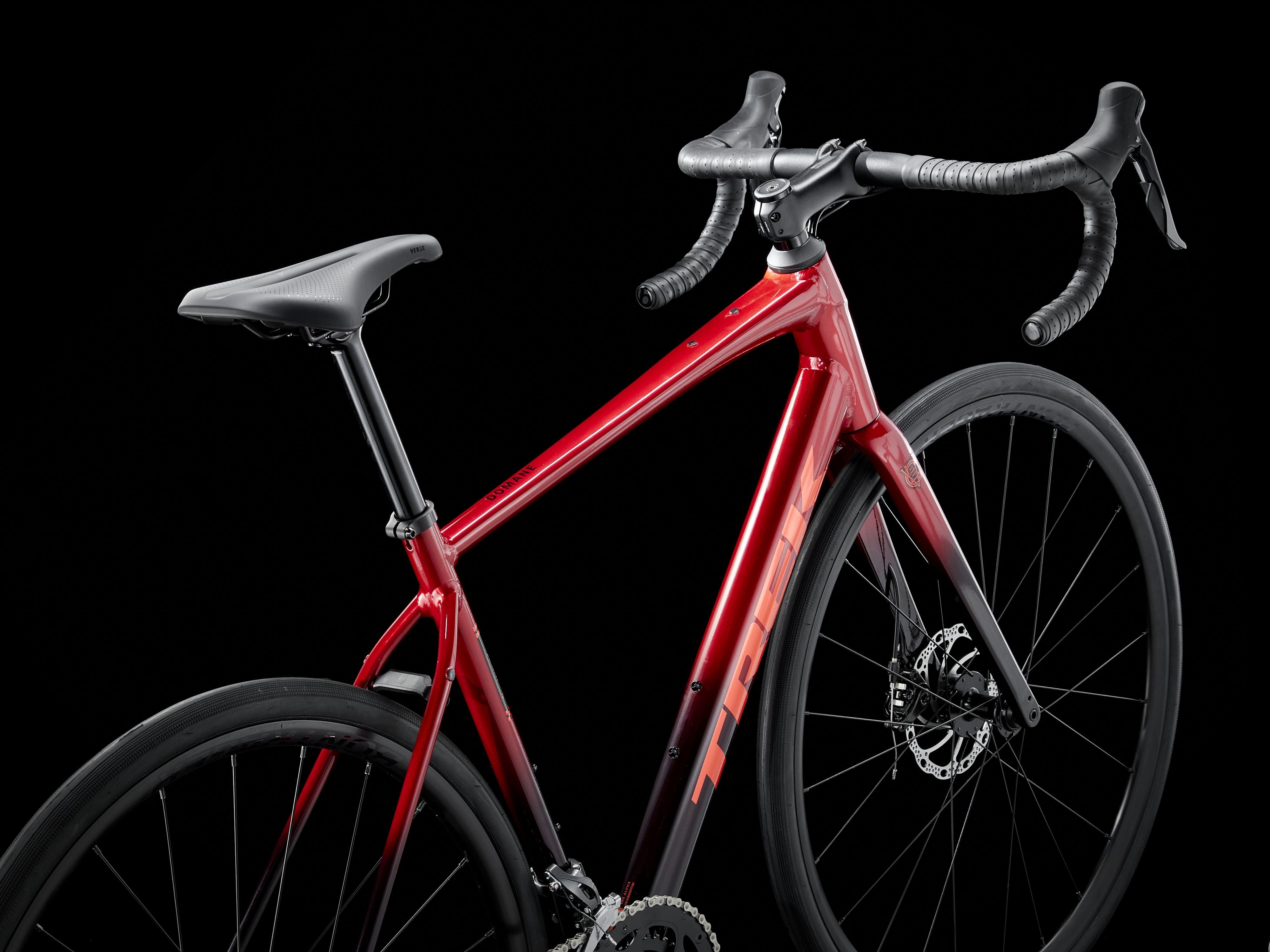

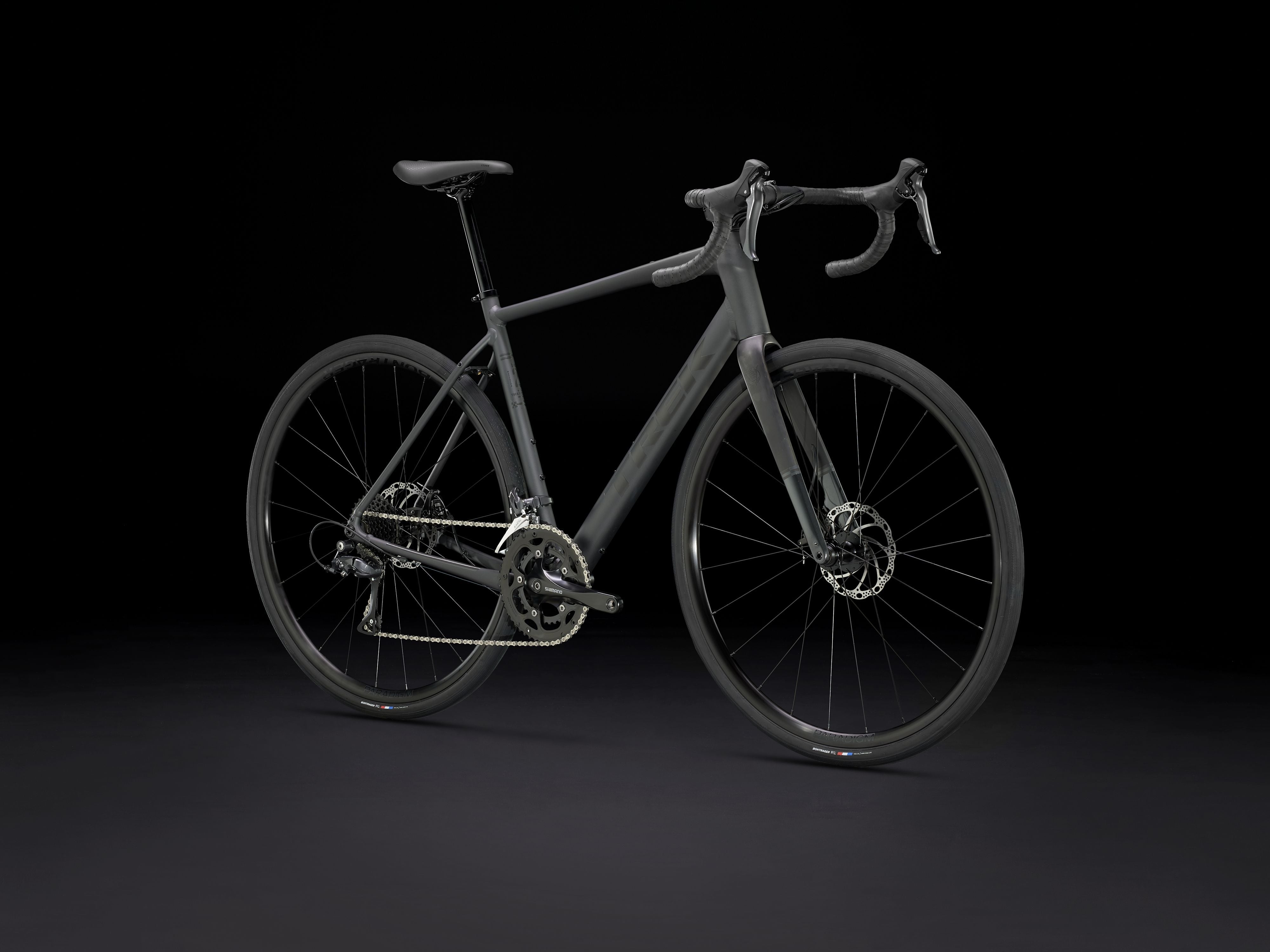

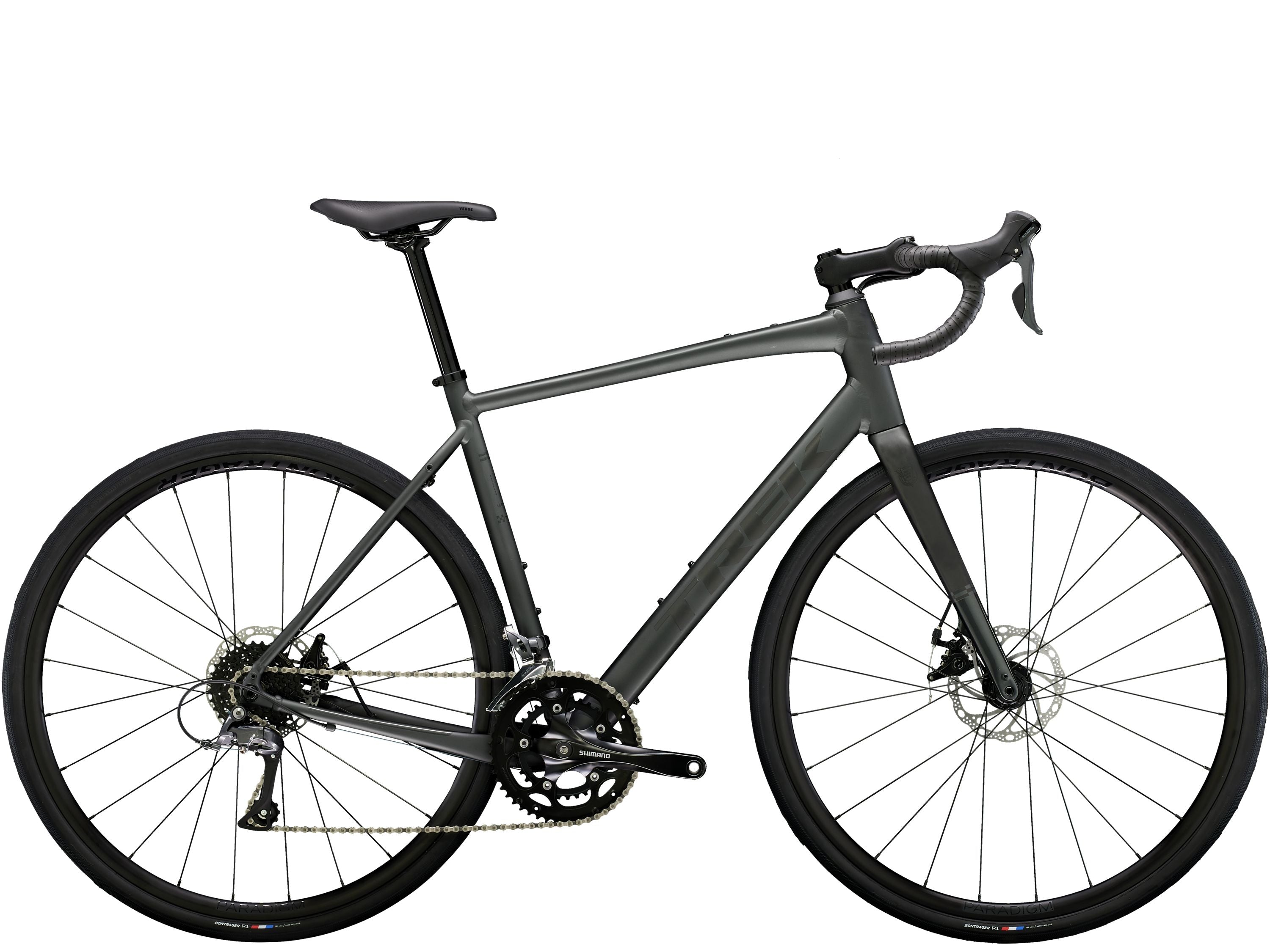

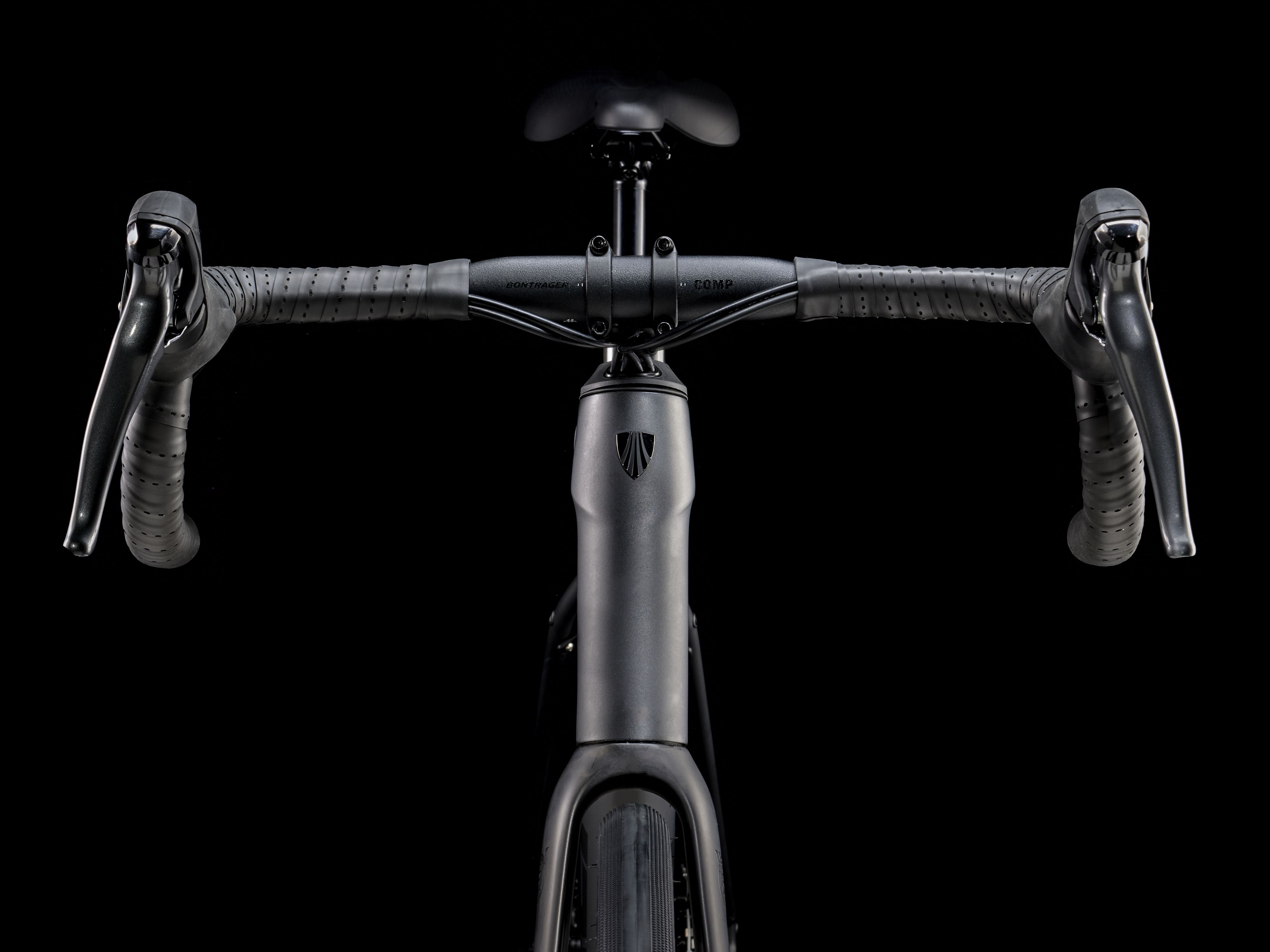

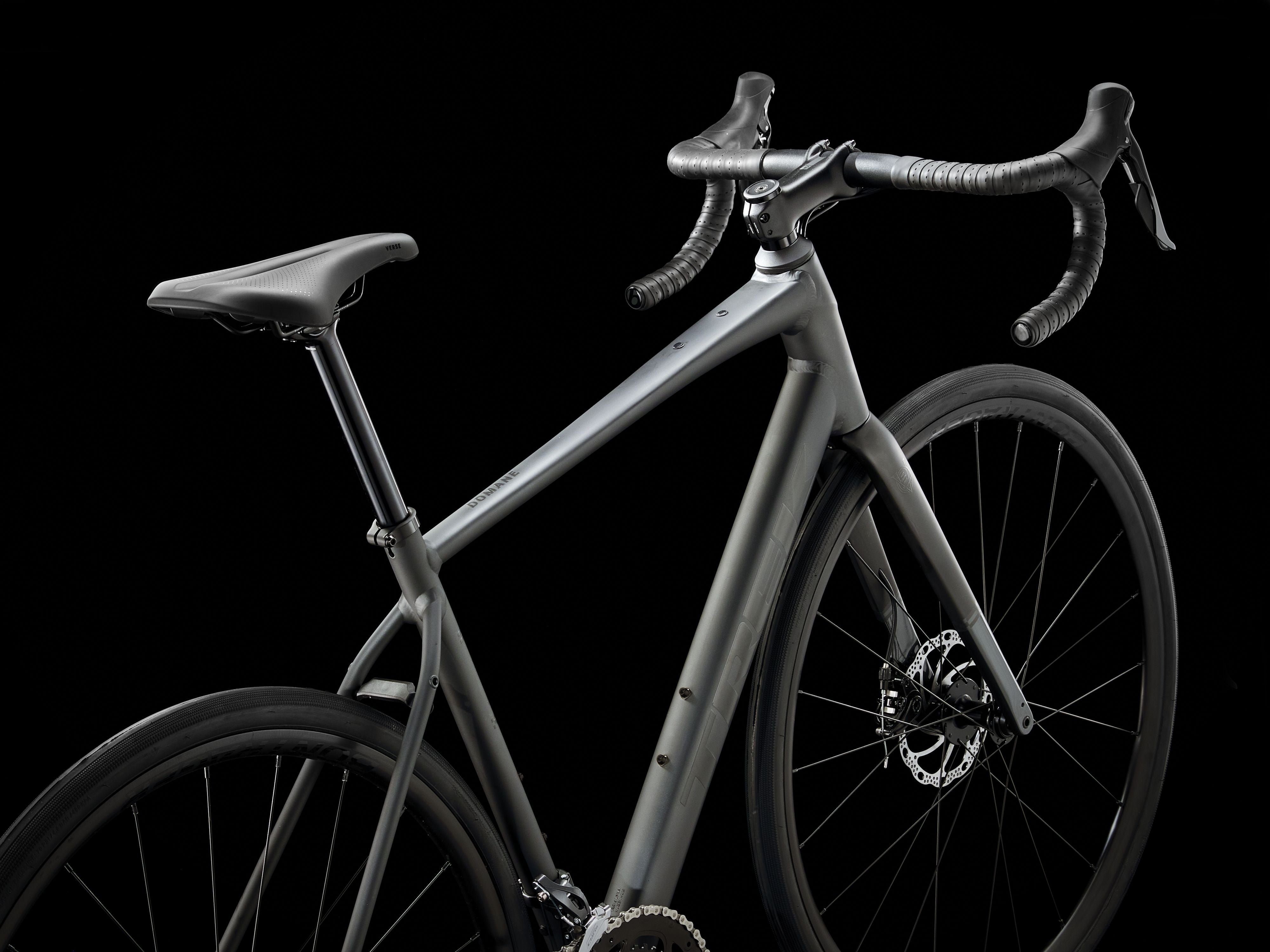

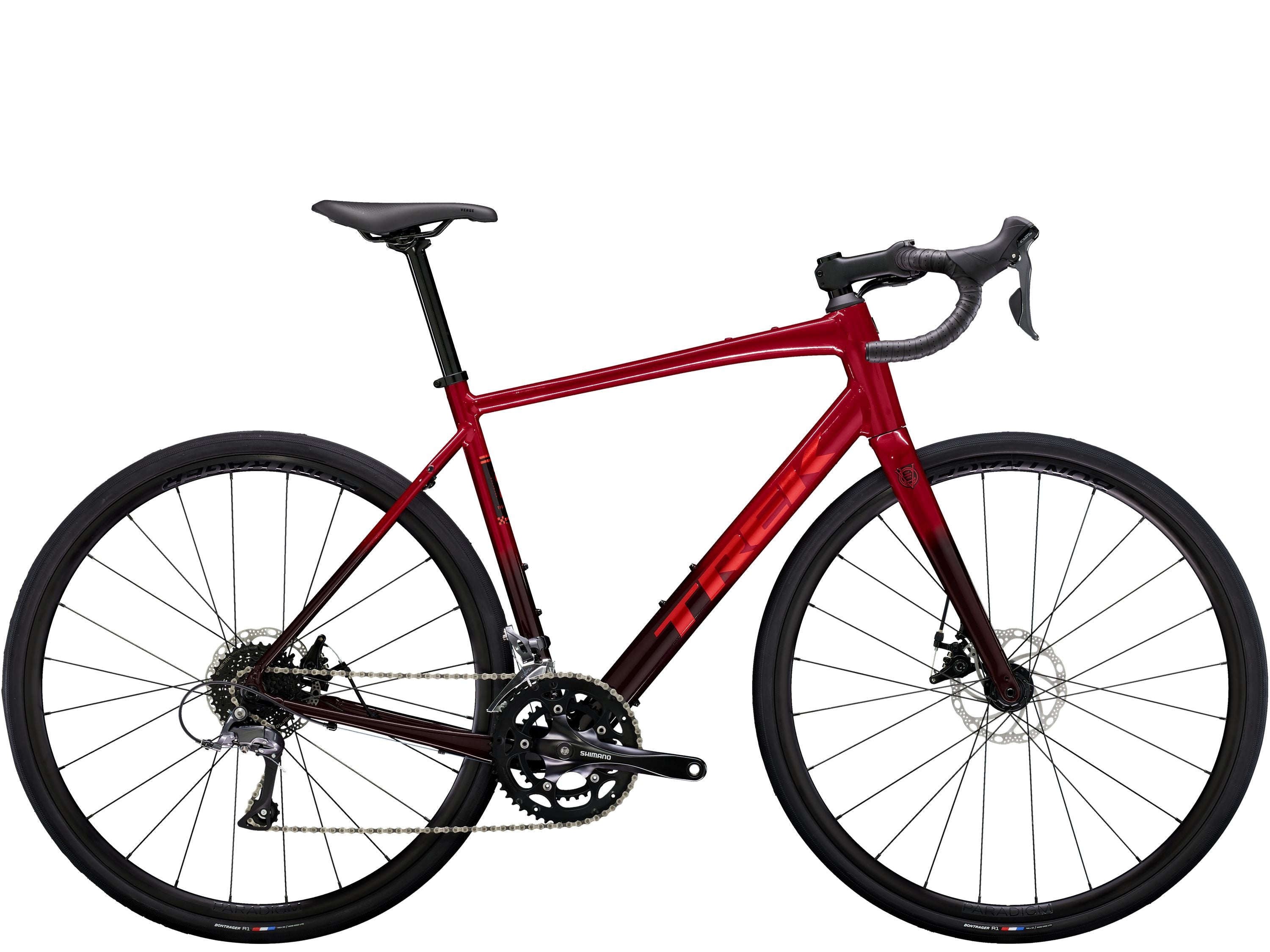

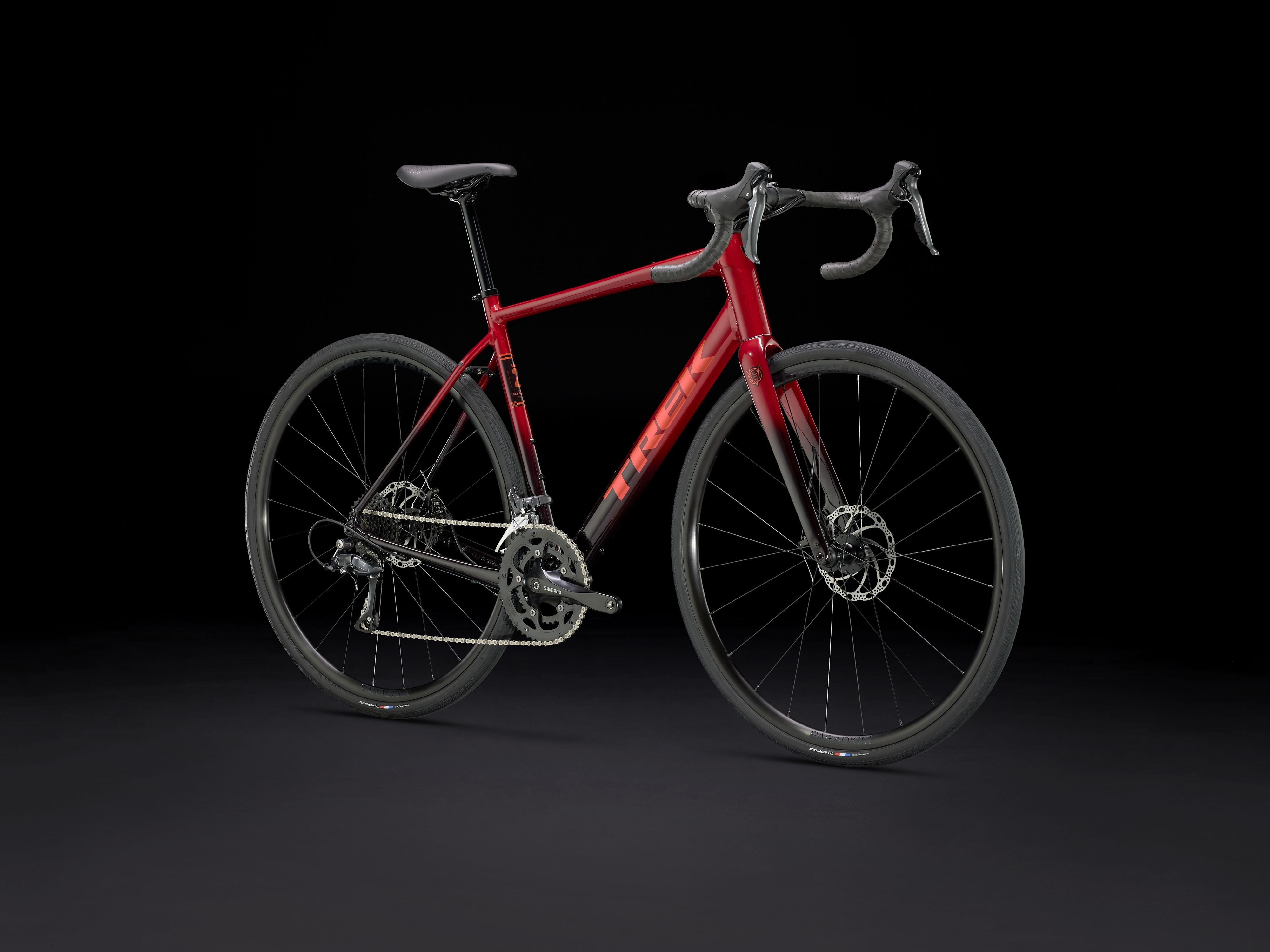

Domane AL 2 Gen 4
The Domane AL 2 is a speedy and versatile performance road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, an 8-speed Shimano Claris drivetrain, rack, mudguard and top tube mounts, and a comfortable all-day riding position – the Domane AL 2 is perfect for group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.
Technology
Lightweight design - A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.
Specification

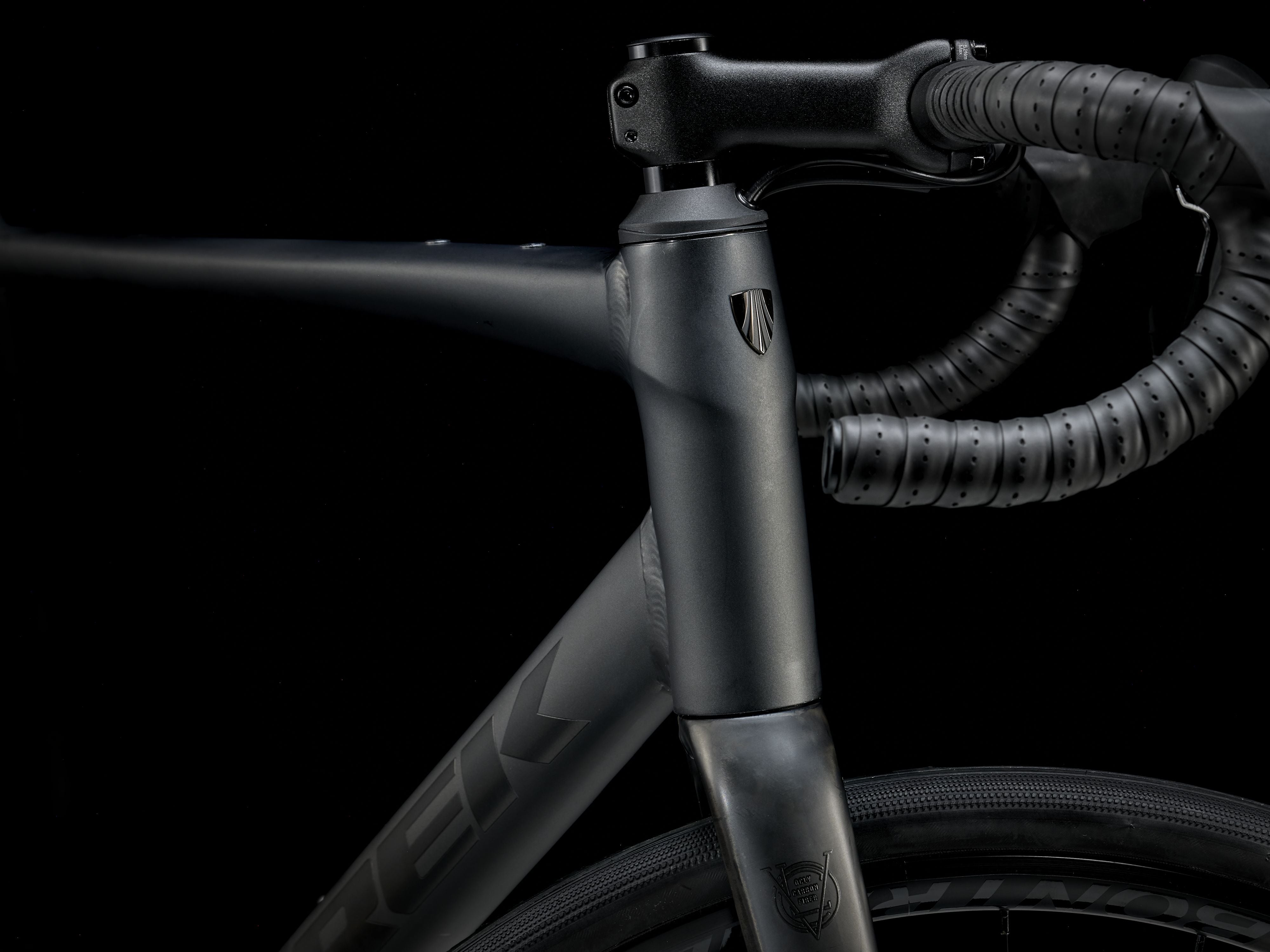

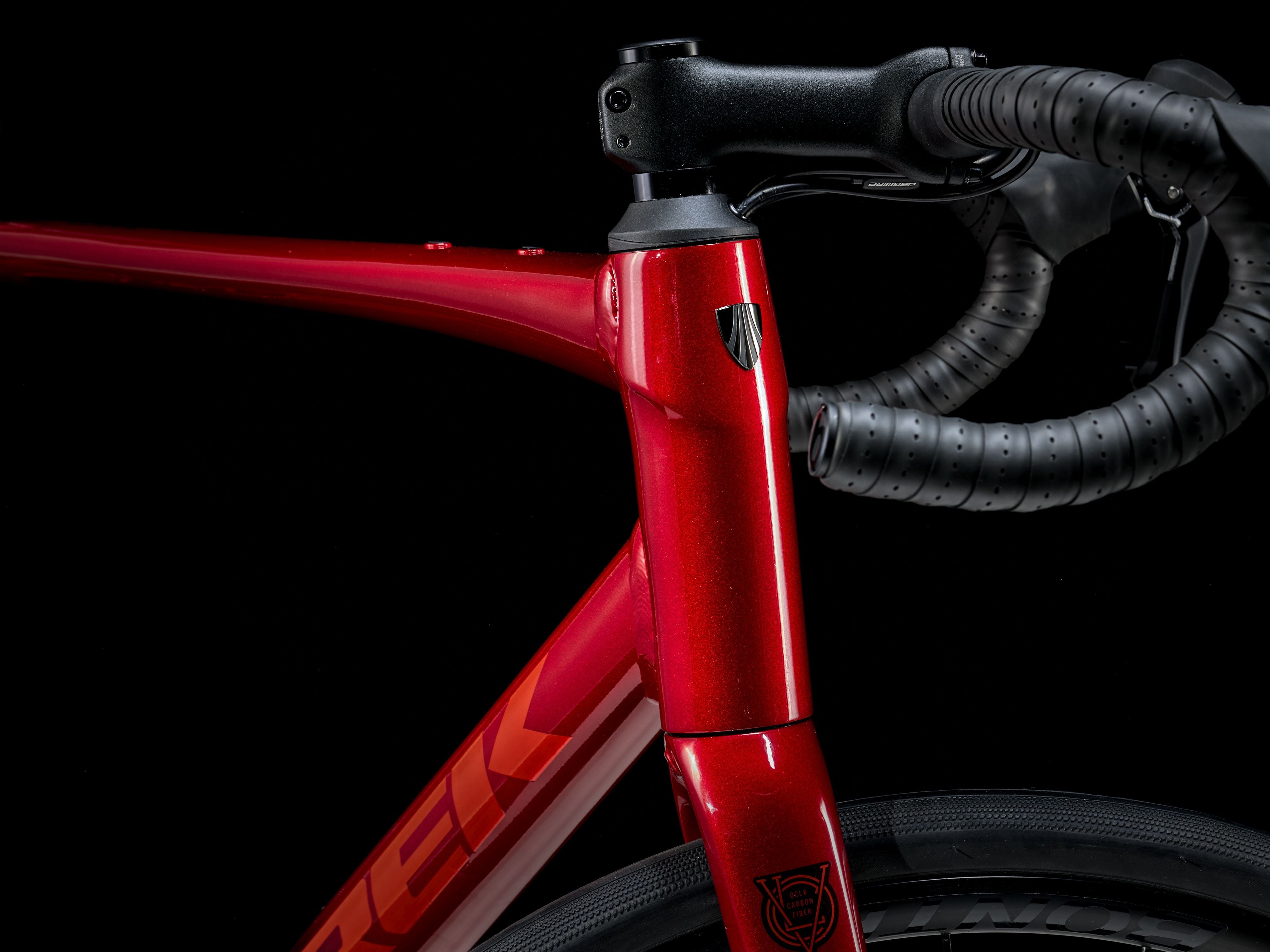

| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |

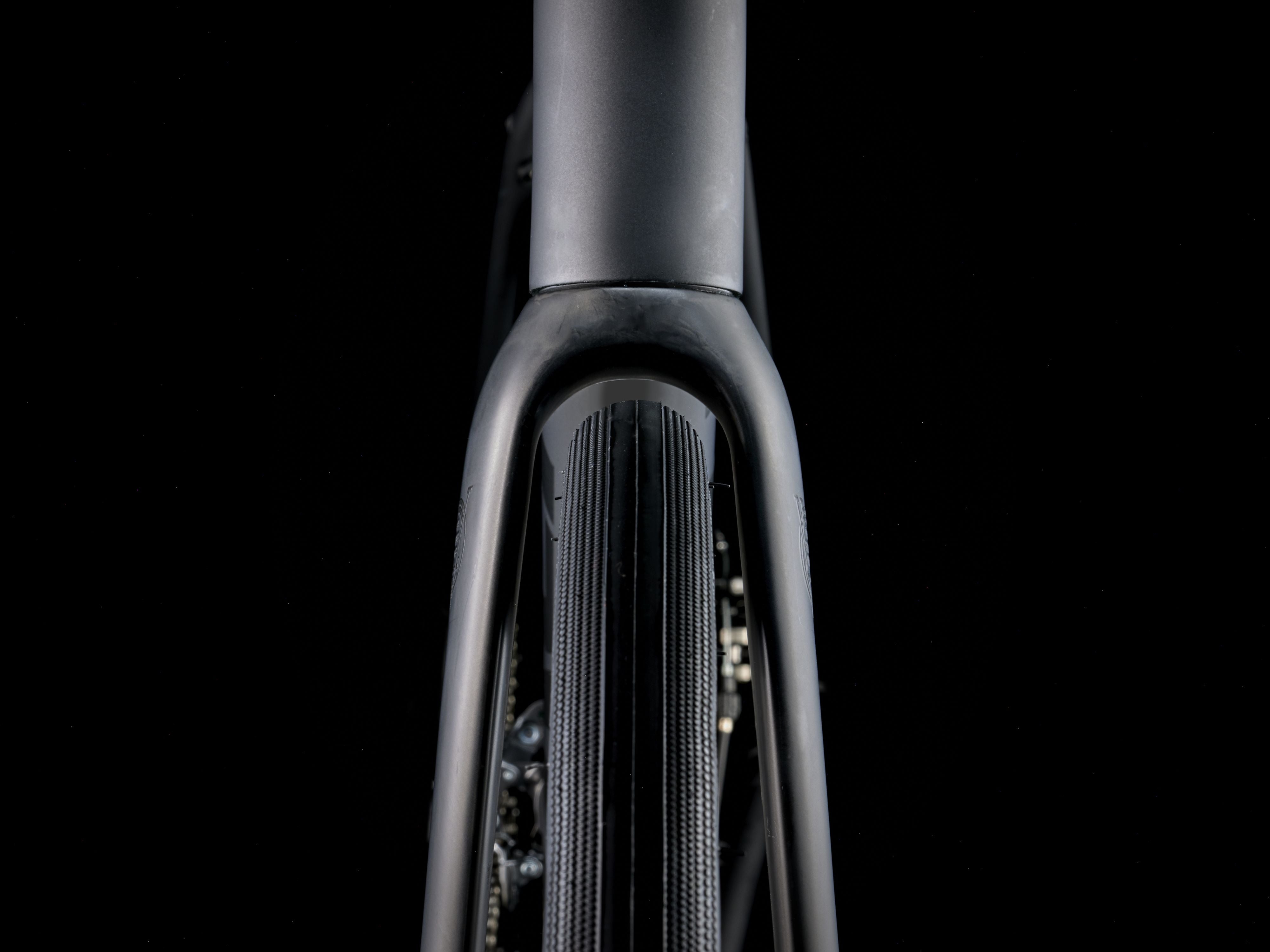

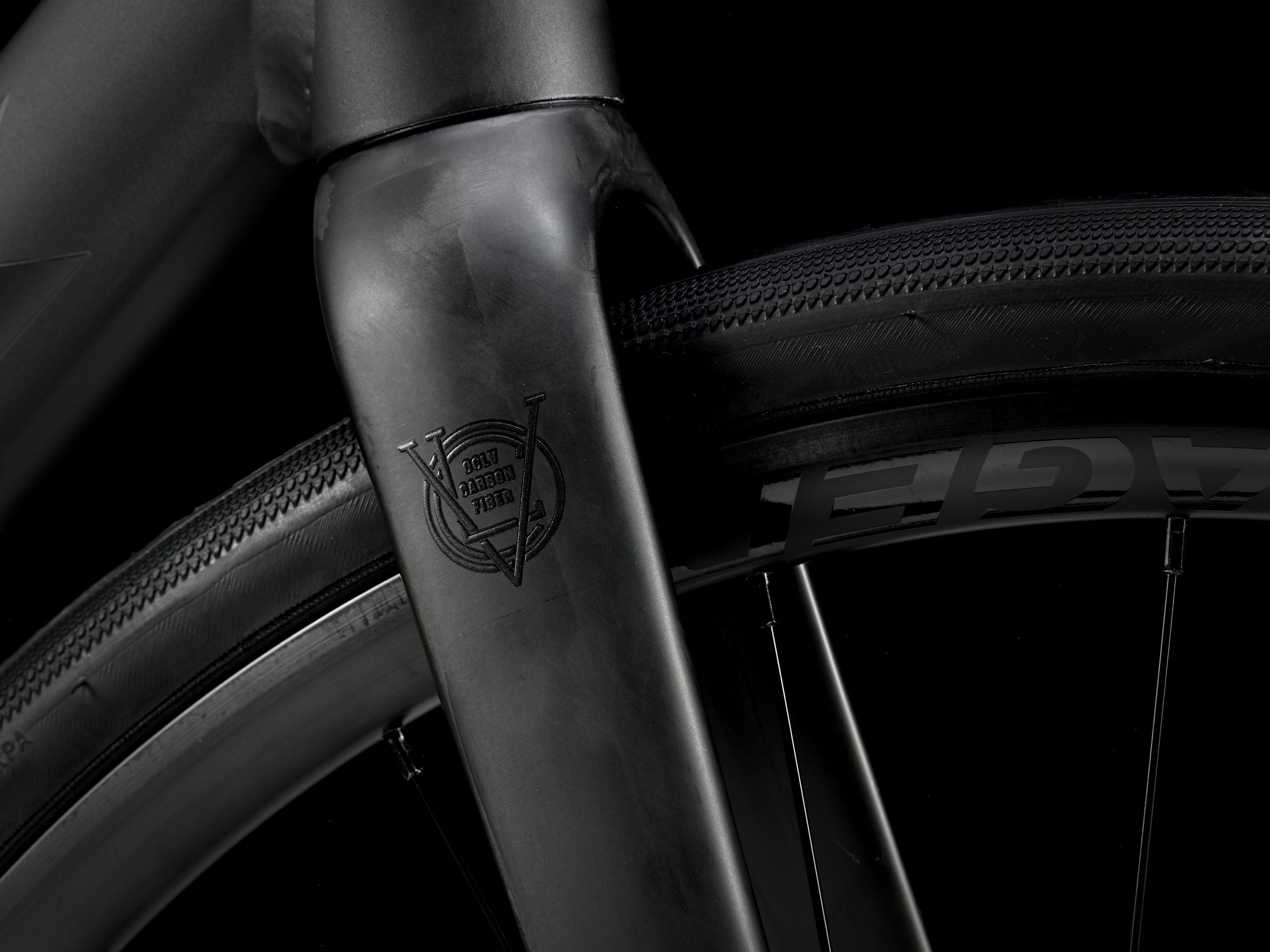

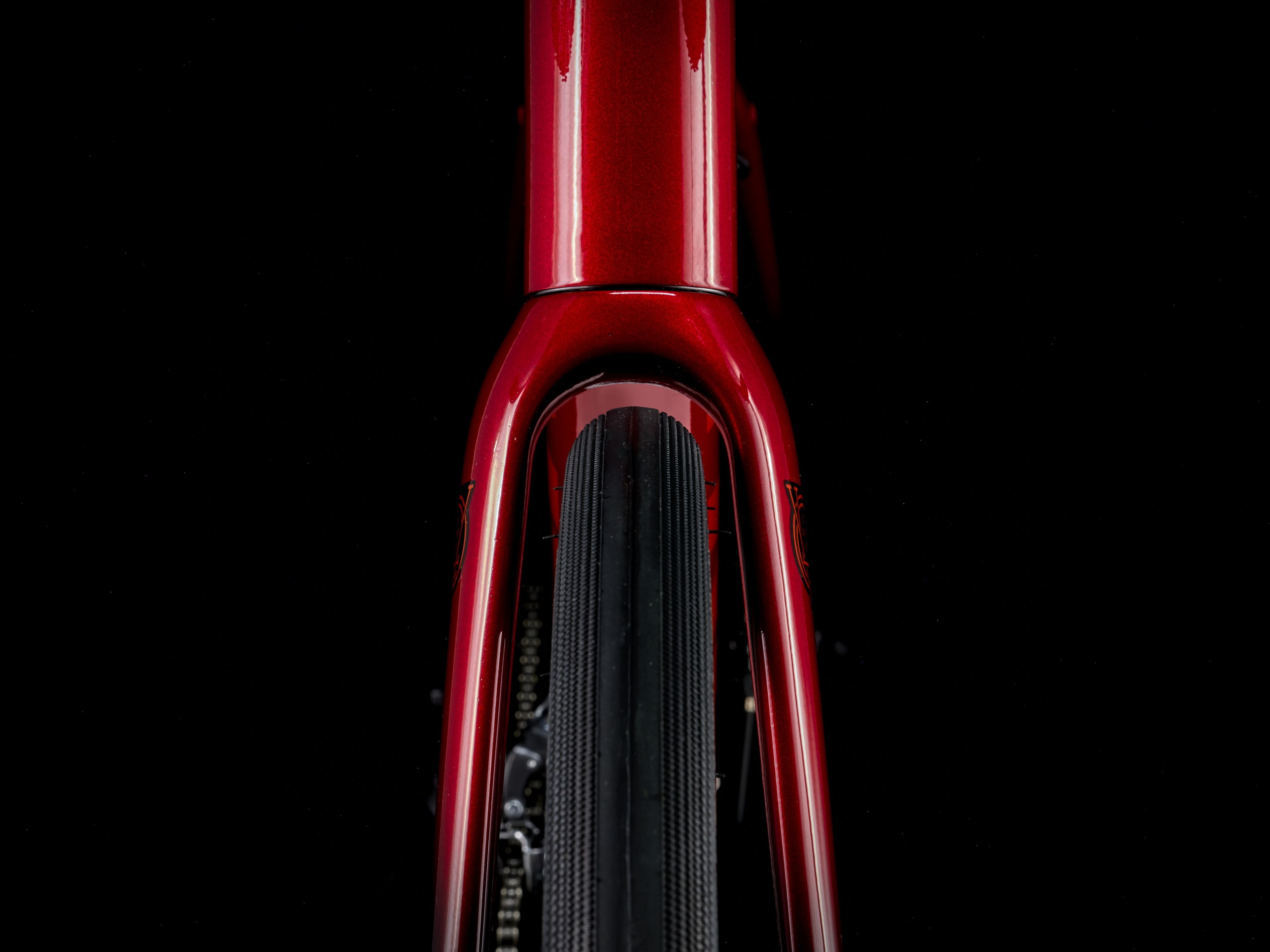

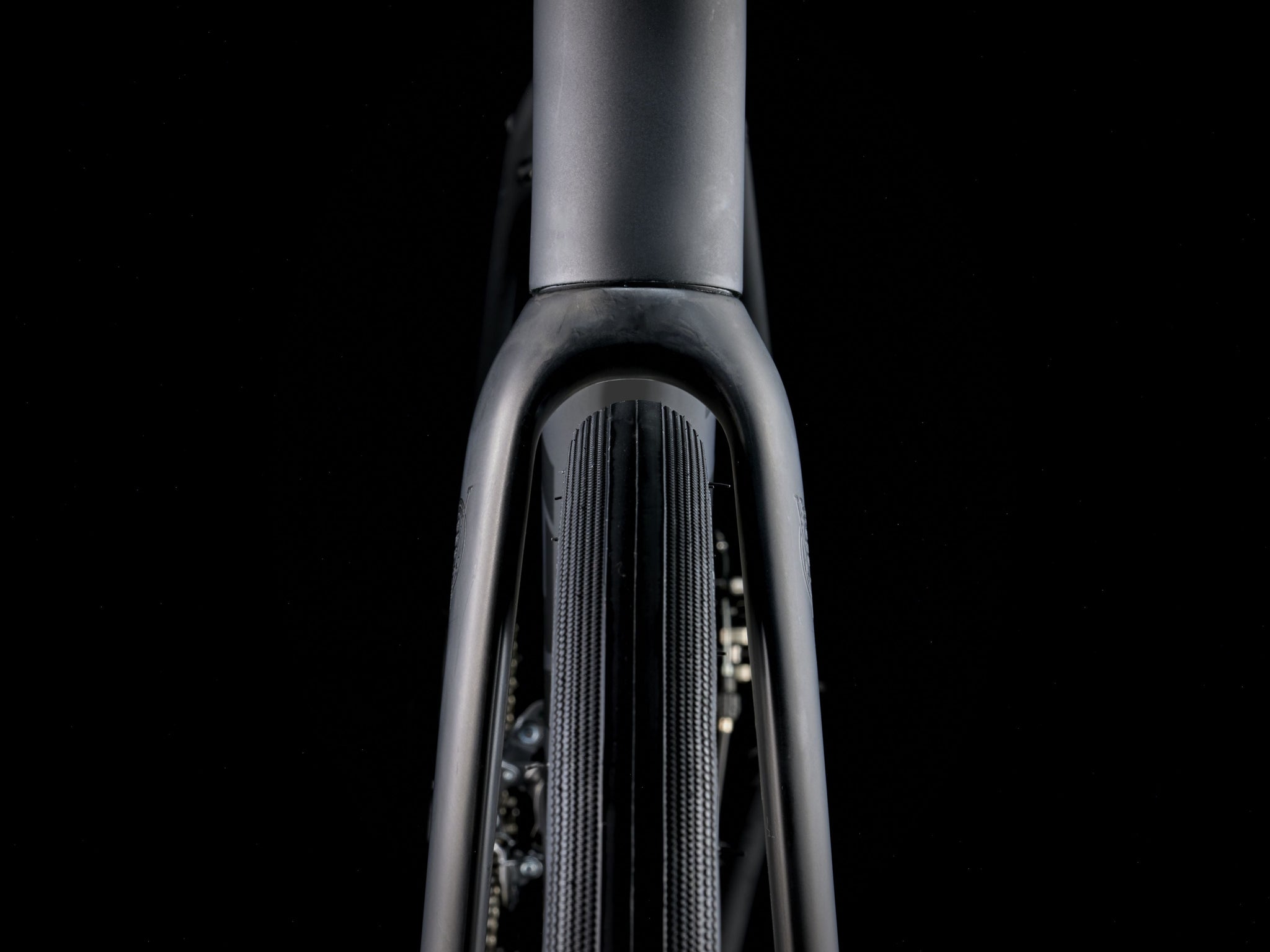

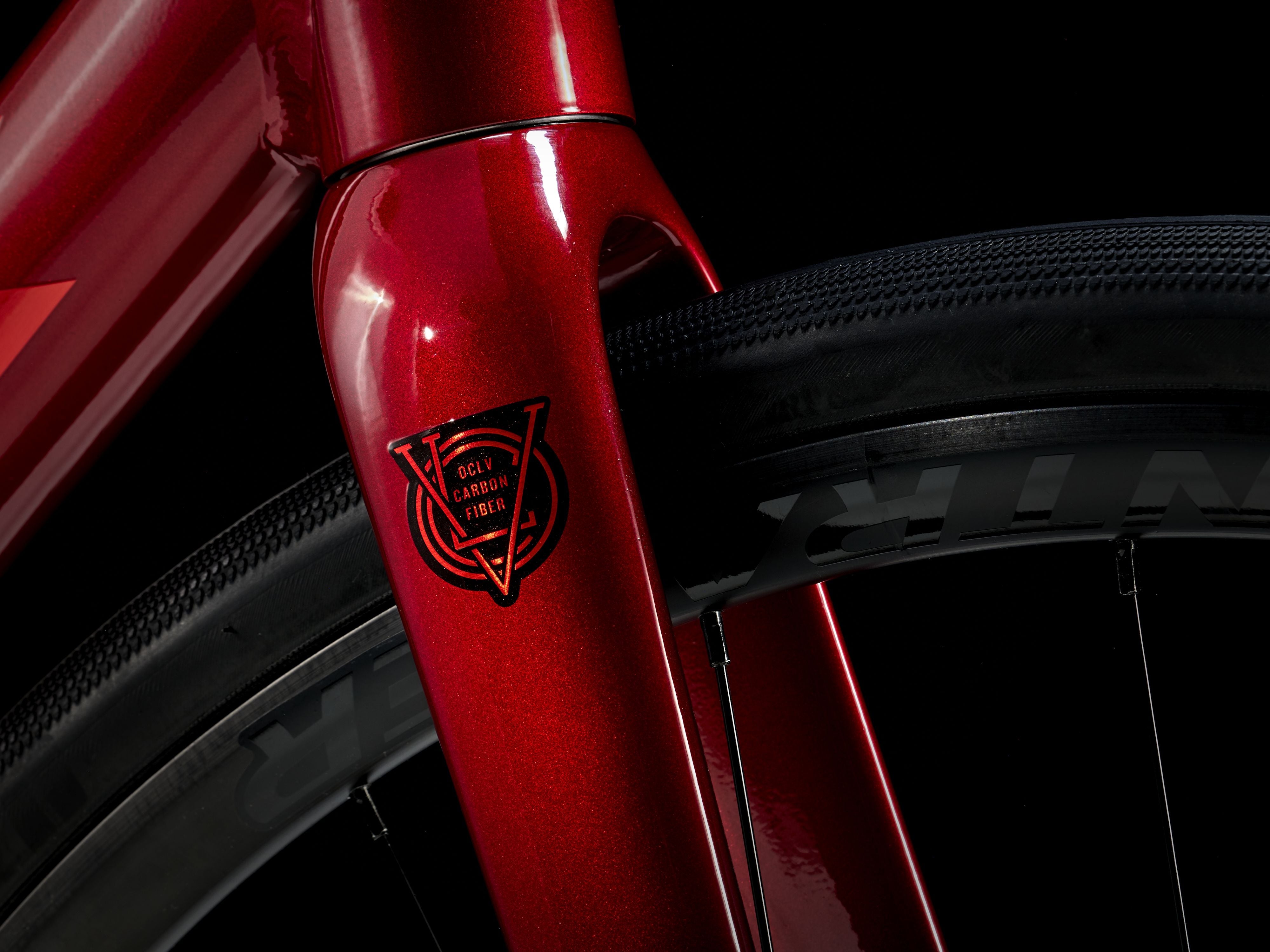

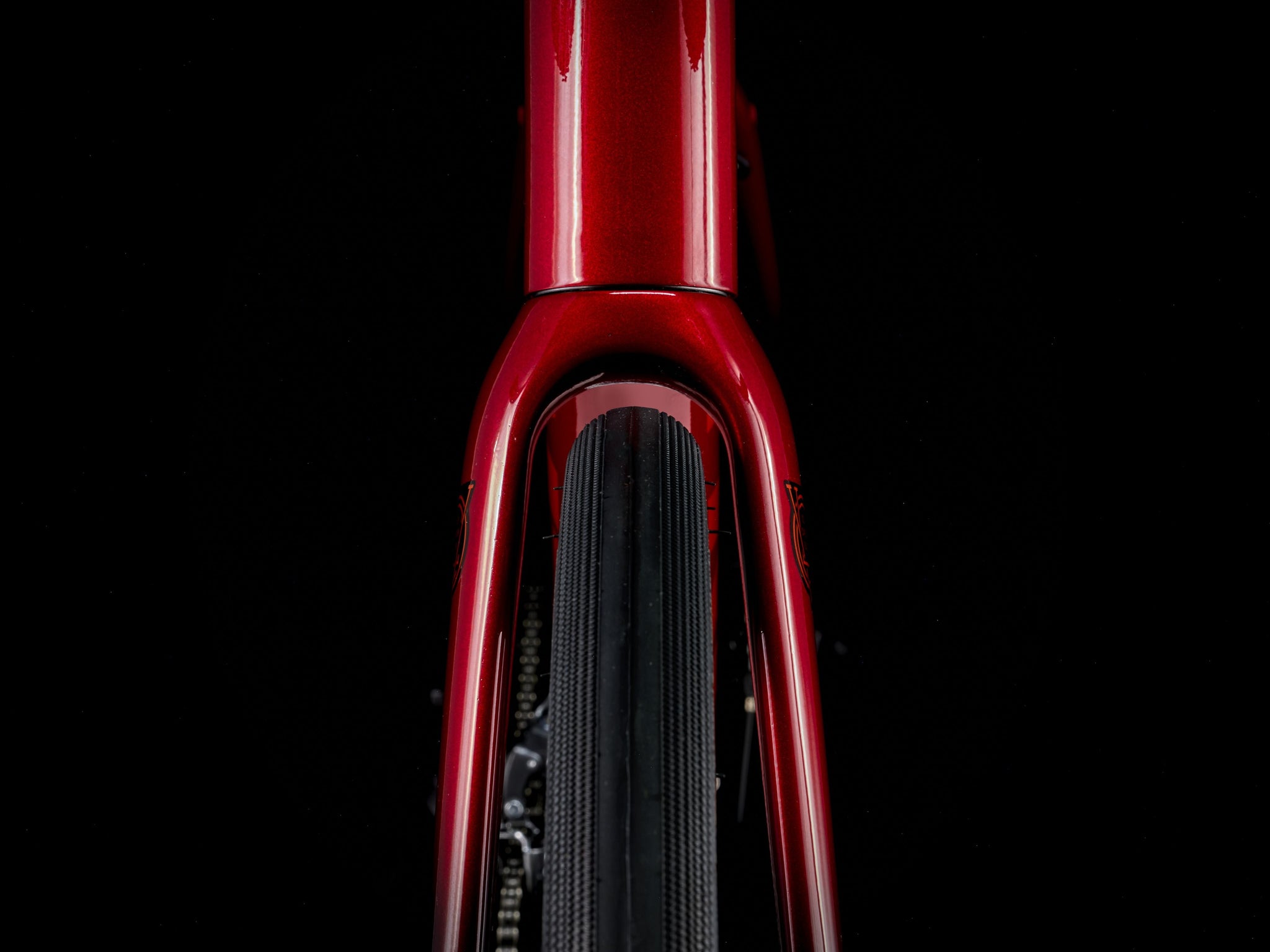

| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount dis |
| Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Hub Front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
| Hub Rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Shifter | Shimano |
| Derailleur Front | Shimano Claris R2000, 31.8 mm clamp |
| Derailleur Rear | Shimano Claris R2000, medium cage, 34T max cog |

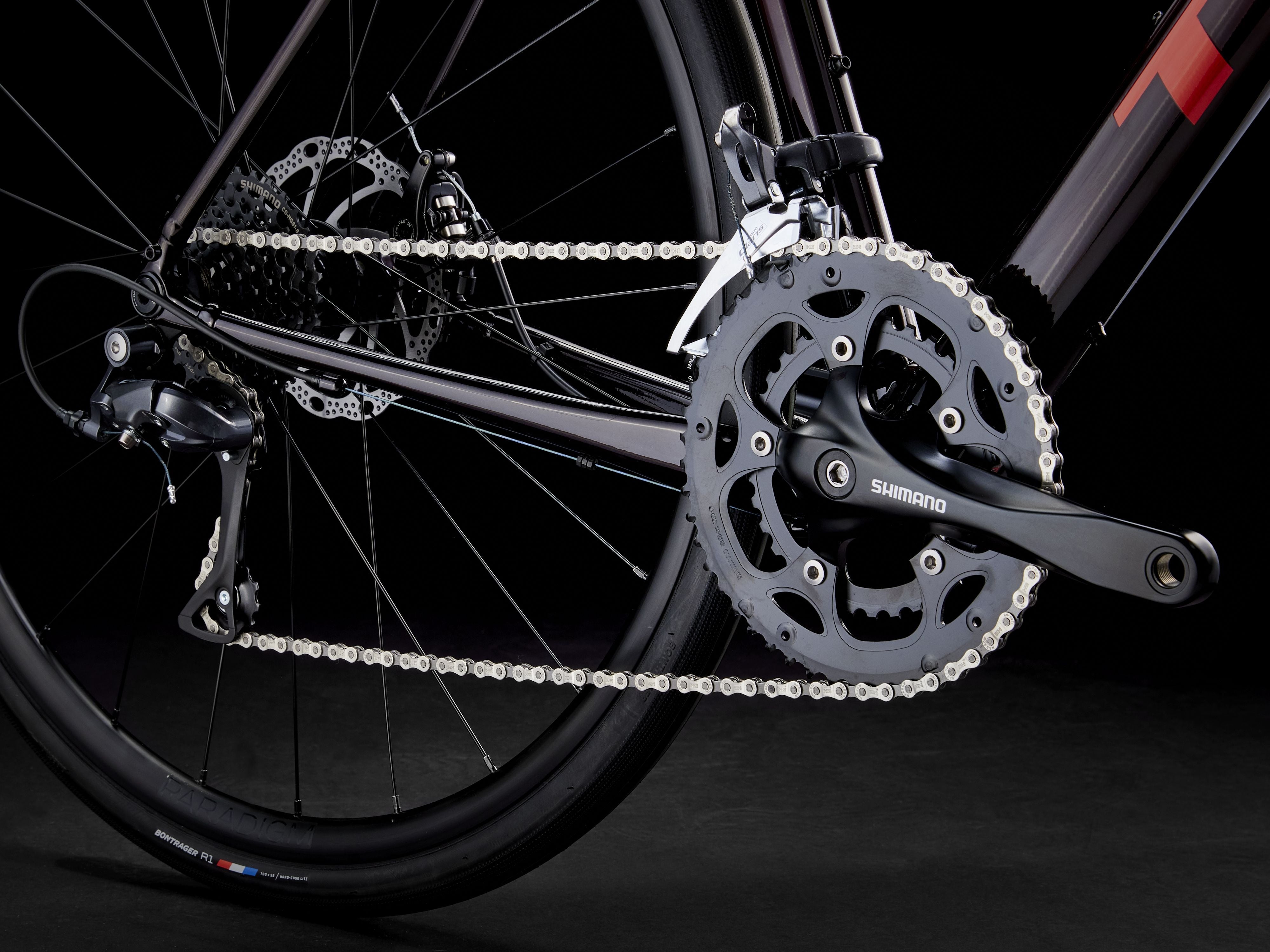

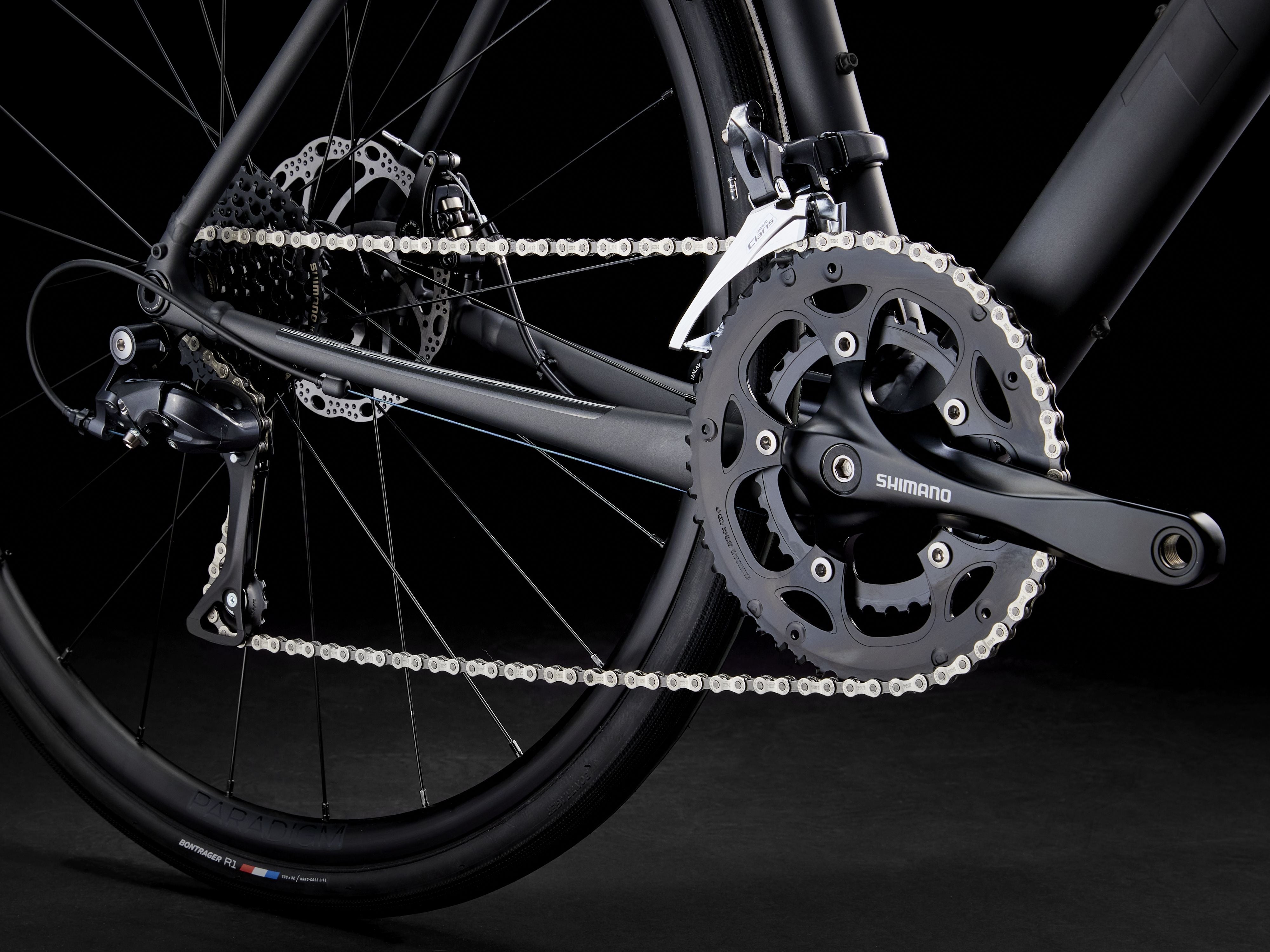

| Crank | Shimano RS200, 50/34 (compact), 170 mm length |
| Bottom Bracket | Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle |
| Cassette | Shimano HG31, 11-32, 8-speed |
| Chain | Shimano Sora HG71, 8 speed |
| Brake | Tektro |

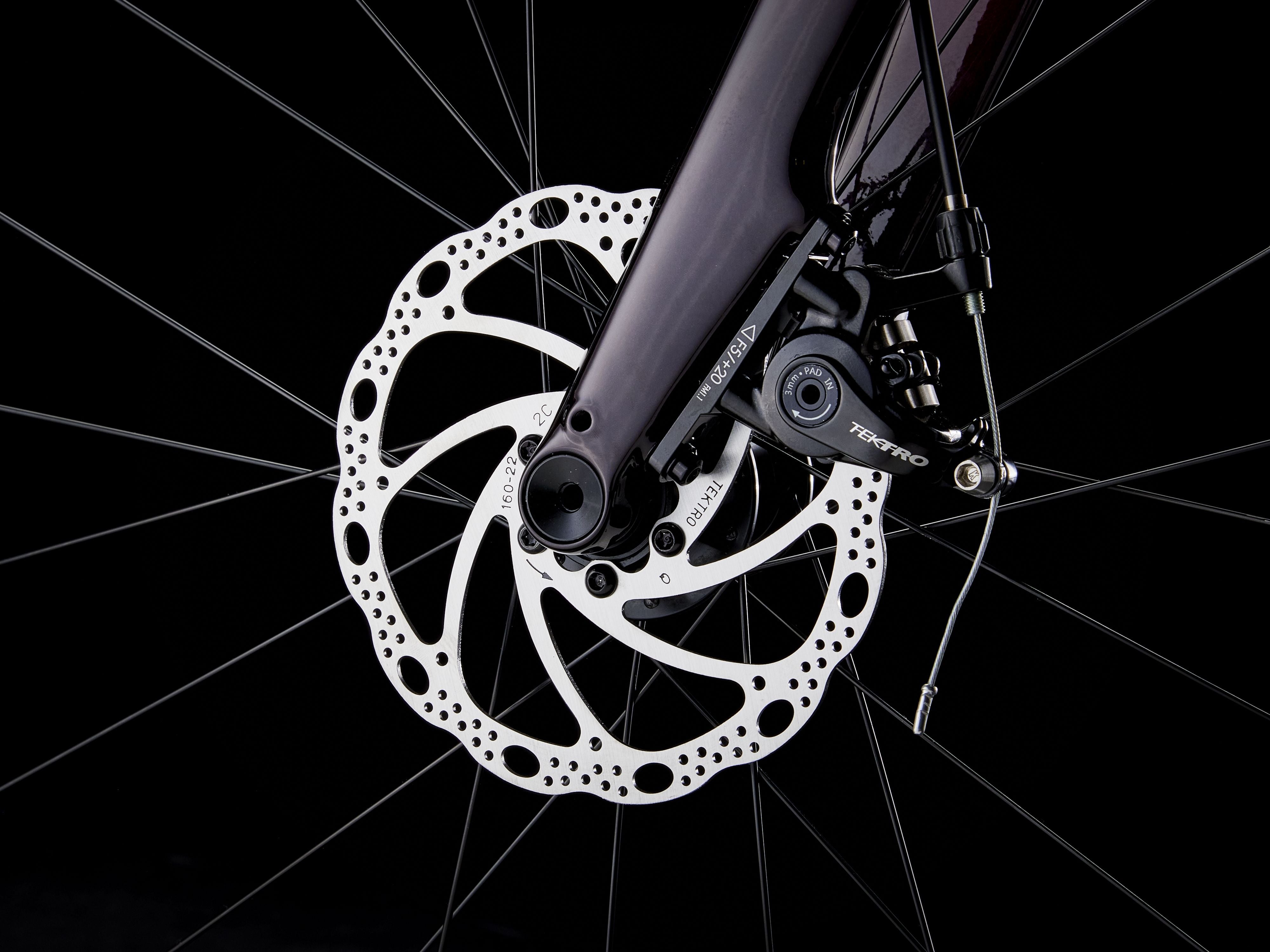

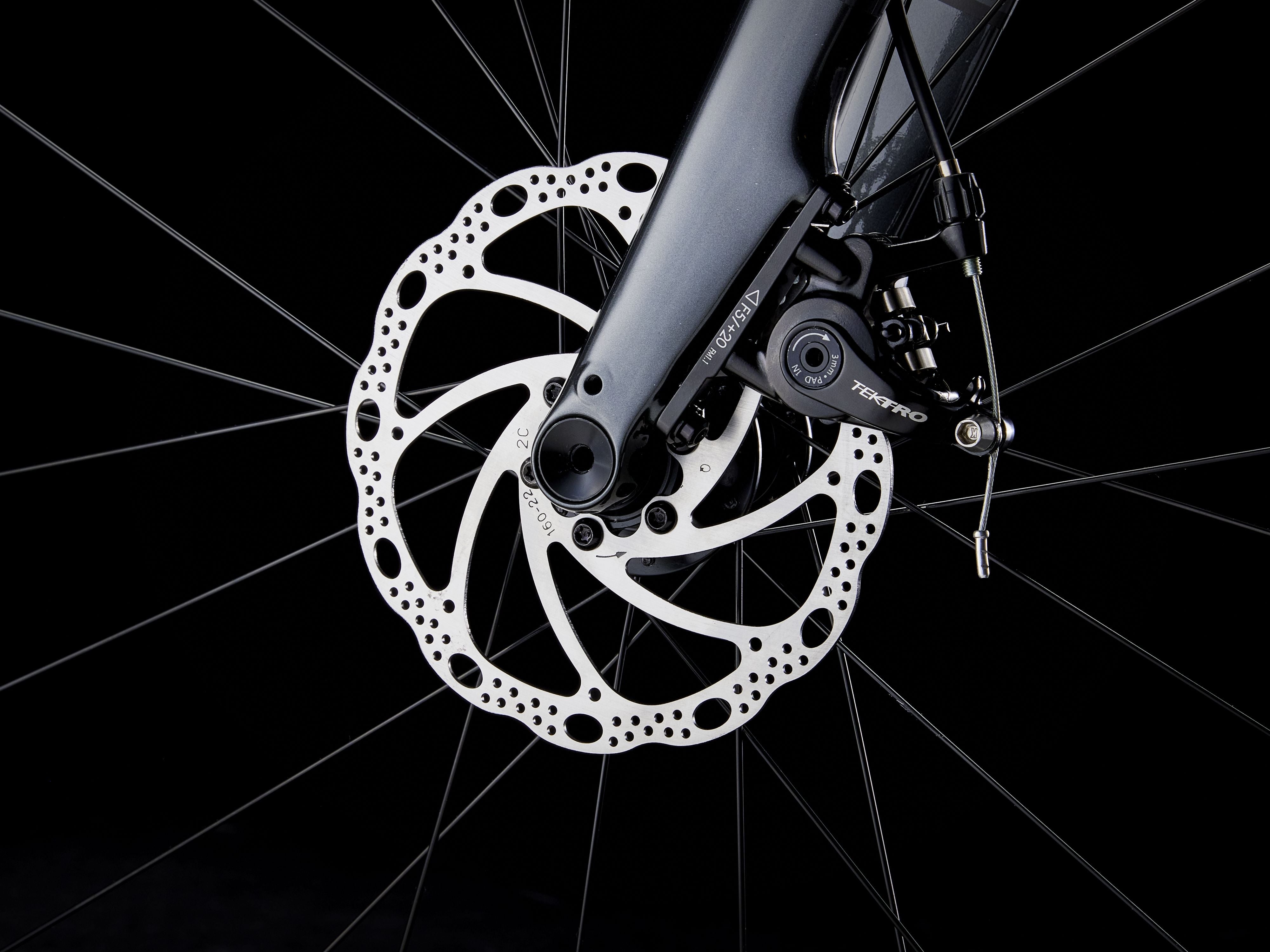

| Brakeset | Tektro C550 mechanical disc brake, dual piston, flat mount // Tektro C550 mechanical disc brake, dual piston, flat mount Tektro C550 mechanical disc brake, dual piston, flat mount // Tektro C550 mechanical disc brake, dual piston, flat mount |
| Brake Rotor | Tektro wave, 6-bolt, 160 mm |
| Saddle | Verse Short, steel rails, 145 mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |

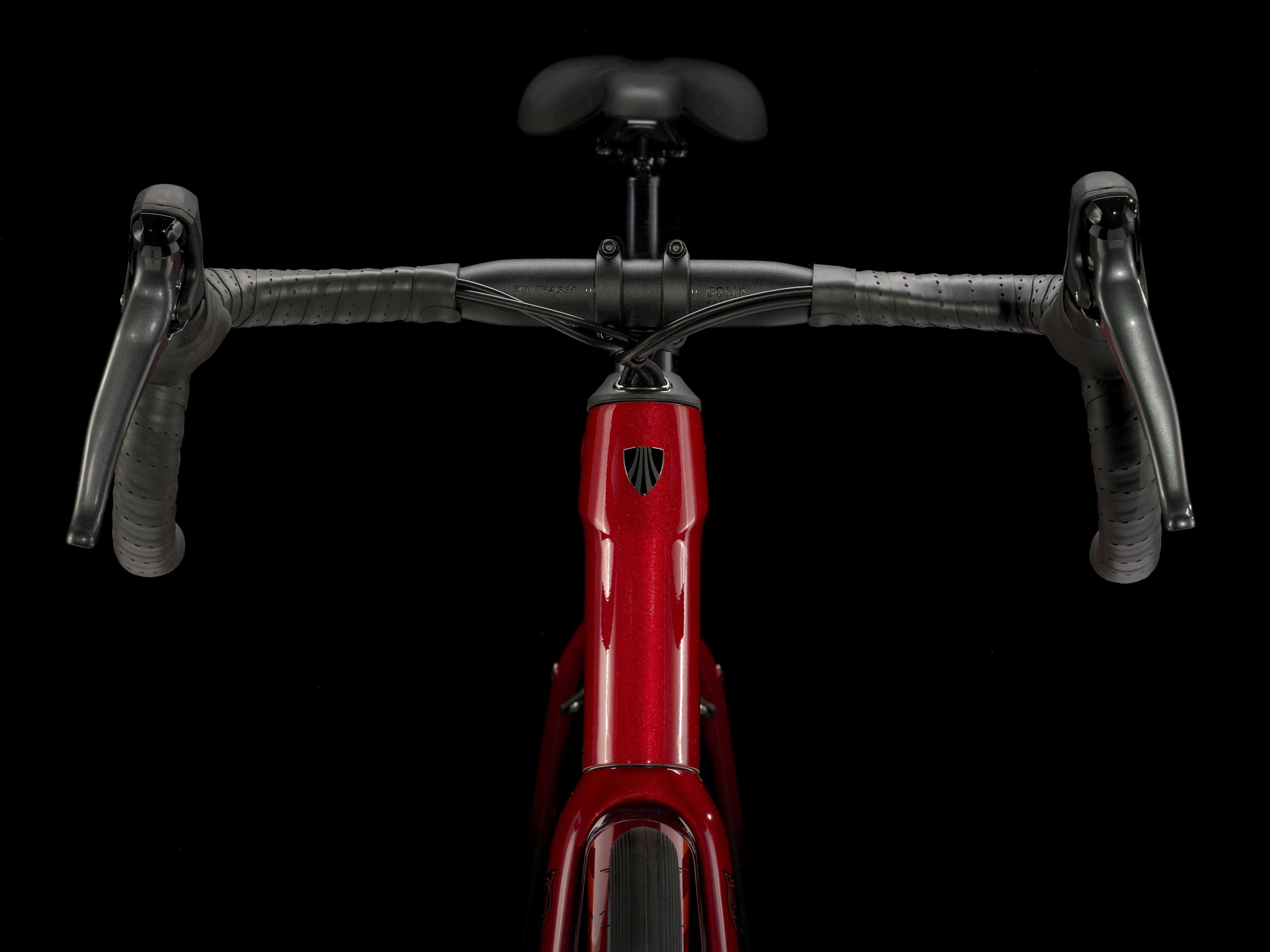

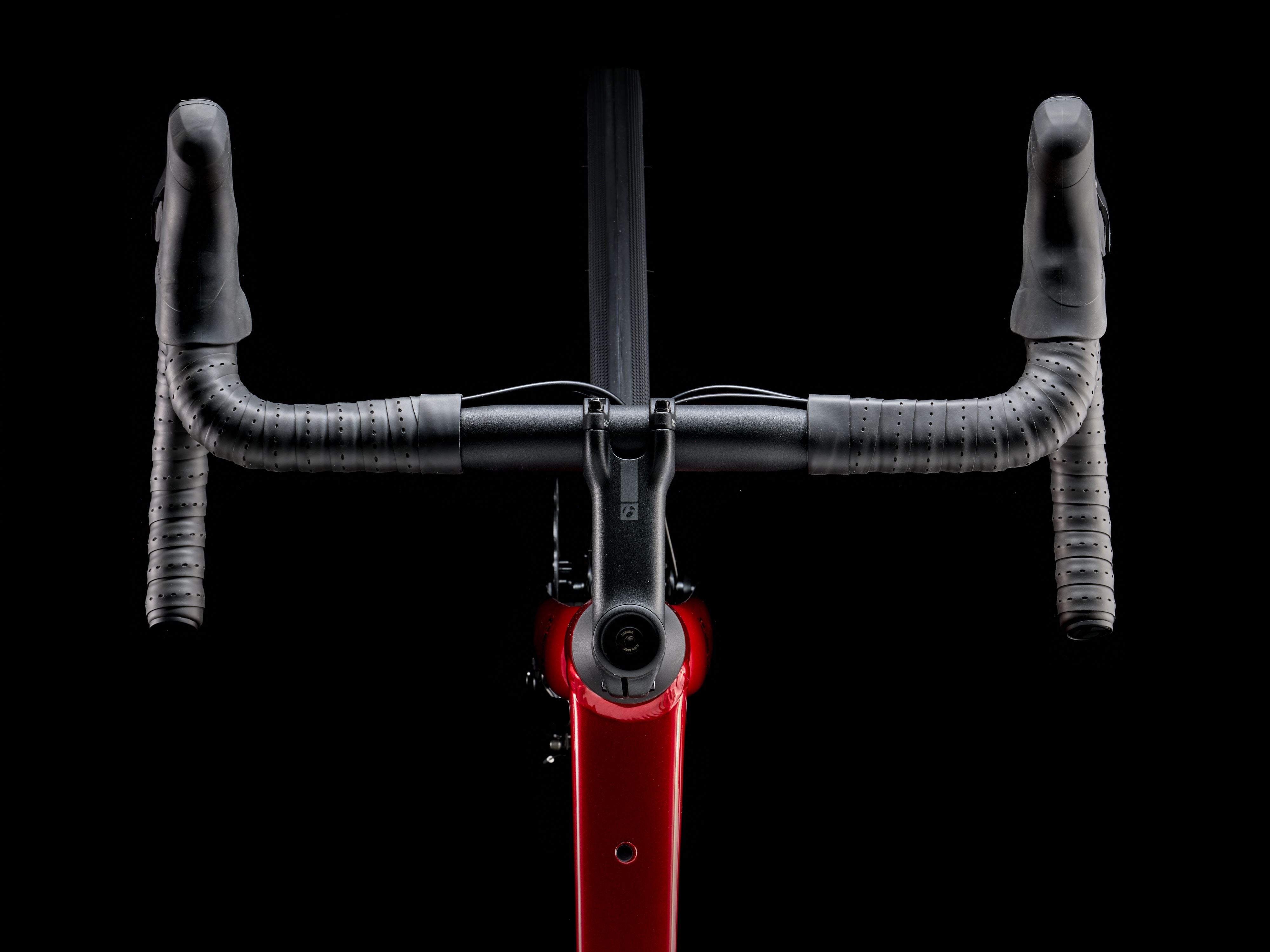

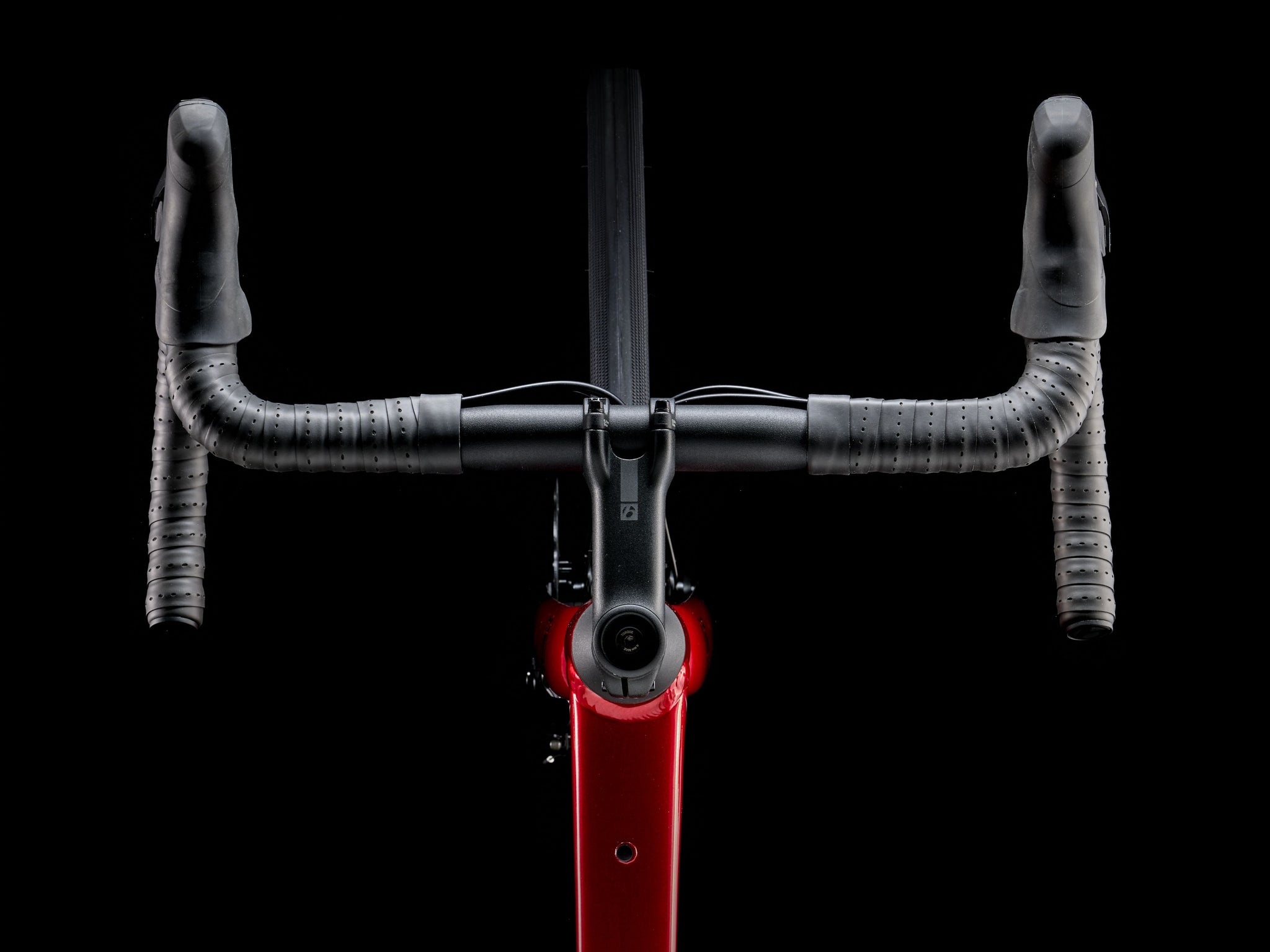

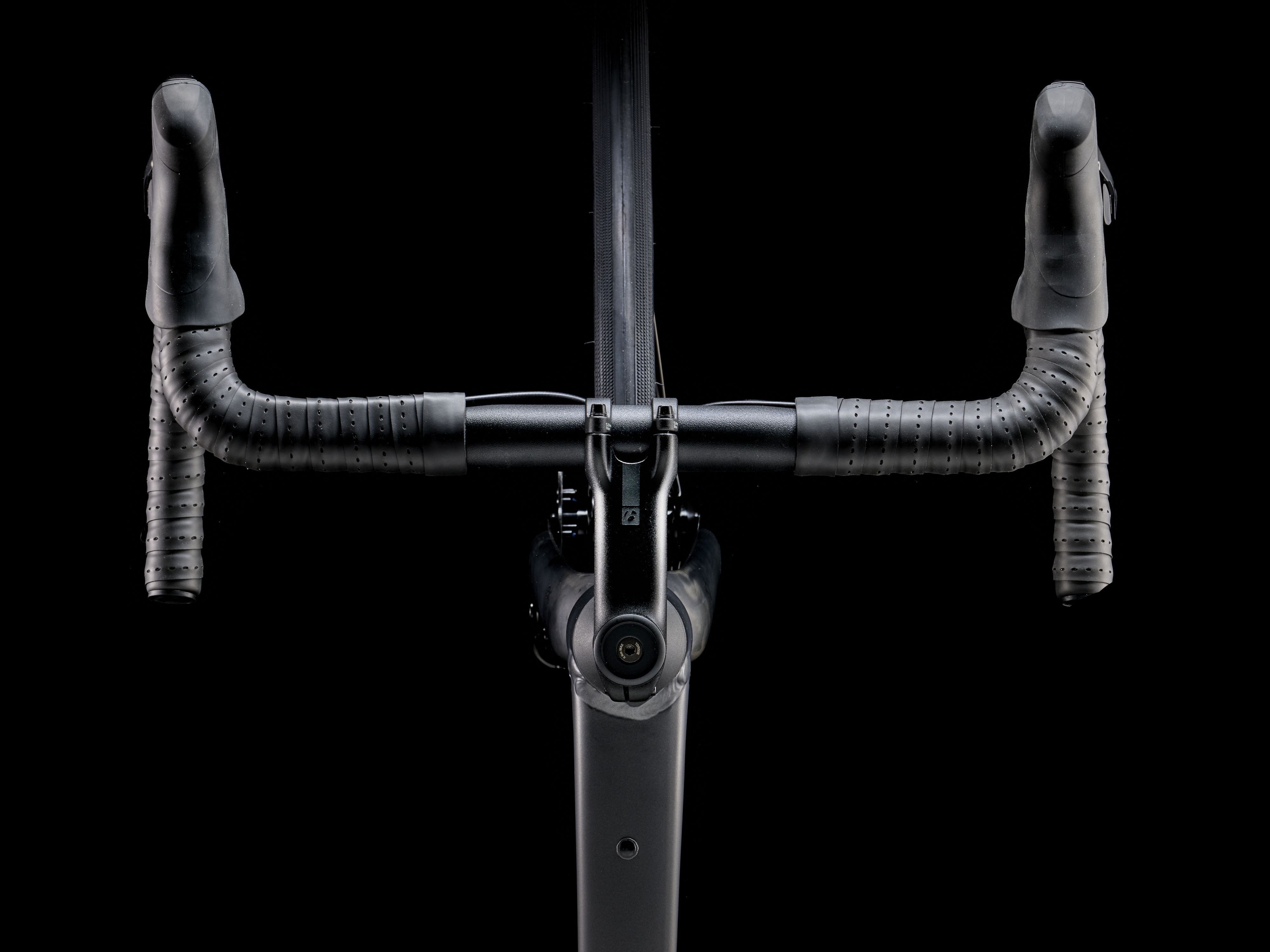

| Handlebar | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width // Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Size Chart Rider Height | Rider Height - 156.0 - 163.0 |
| Size Chart Rider Inseam | Inseam - 74.0 - 77.0 |
