Claymore Pro Build Ohlins x Shimano
Our PRO Build O is our original PRO Build offering with an Ohlins x Shimano mix. Specced to deliver top-class performance, reliability and durability.
View the full PRO Build range.
For UK customers, we also offer all major cycle to work schemes.
THIS IS A PRE-ORDER ITEM. PLEASE CHECK THE AVAILABILITY TABLE BELOW FOR EACH SIZE
Dispatch Timetable
| Medium Rowan Red | May 2024 |
| Medium Moss Green | May 2024 |
| Large Rowan Red | May 2024 |
| Large Moss Green | May 2024 |
| Extra Large Rowan Red | May 2024 |
| Extra Large Moss Green | May 2024 |
Where Precision Meets Performance

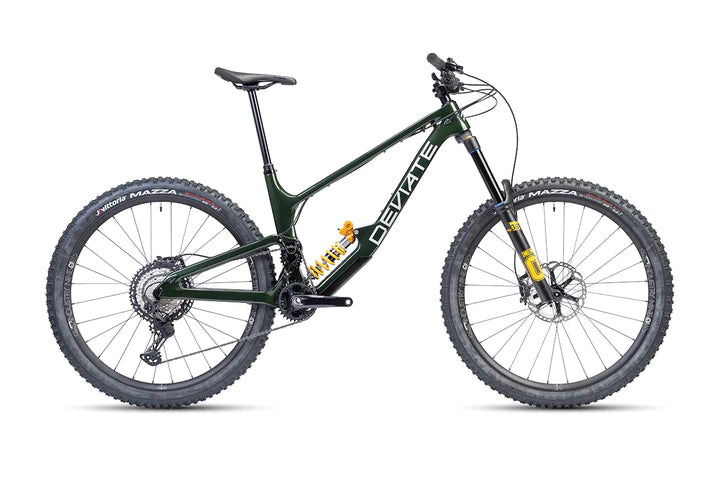

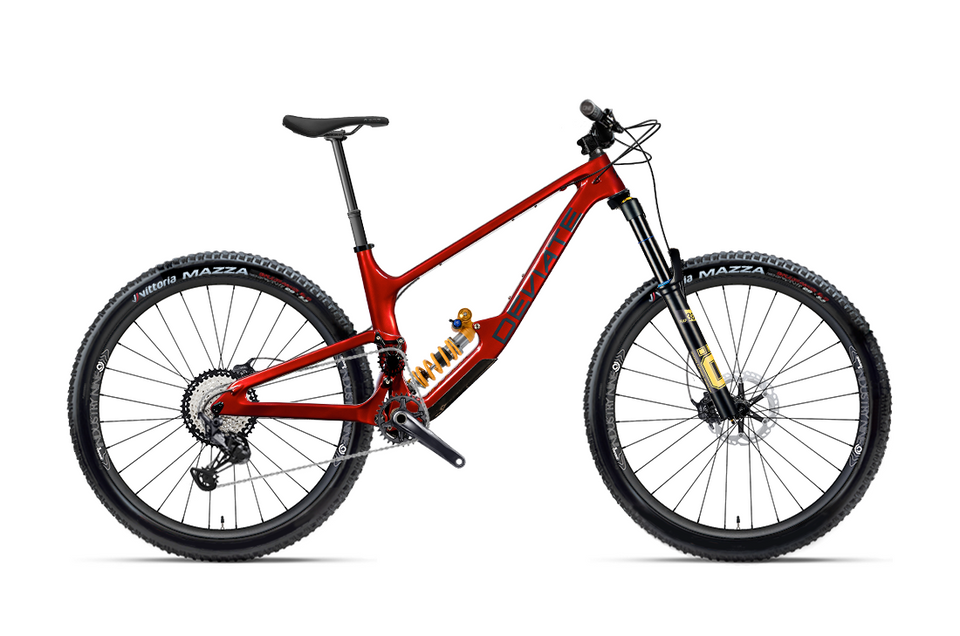

The 2024 Edition of the Deviate Claymore continues with its award winning design whilst now being fully UDH compatible. Designed to be the best handling, long-travel enduro bike in the market, the Claymore PRO build has been designed to deliver top-class performance, reliability and durability.
Details matter, which is why we also offer the option to customise your PRO build with different options of stem length, handlebar rise, dropper post size and spring rate.
With 165mm of rear travel, combined with our high pivot suspension platform, the Claymore is the bike of choice for taking on the most brutal terrain or hurtling between the tapes.
Build Spec
| Frame | Claymore : 165mm long-travel high pivot frame UDH Compatible |
| Rear Shock | Öhlins TTX22m.2 230x60 and SLS Coil Spring (in any weight) |
|
Fork |
Öhlins RXF38 m.2 Enduro Fork 29" Air 170mm |
| Brakes |
Shimano XT M8120 4-pot (Front - 203mm) (Rear - 203mm) |
| Rear Derailleur | Shimano XT RD-M8100 12 Speed |
| Shifter | Shimano XT M8100 12 Speed |
| Cassette |
Shimano XT M8100 12 Speed 51t |
| Chain | Shimano XT CN M8100 |
| Crankset | Shimano XT M8100 12 Speed Crankset, 32t, 170mm |
| Bottom Bracket | Shimano XT MT800 |
| Headset | Cane Creek Hellbender 70 |
| Rear Tyre | Vittoria Mazza Enduro Casing 29" 2.4 |
| Front Tyre | Vittoria Mazza Race Compound 29" 2.6 |
| Front/Rear Hub | i9 Hydra |
| Front/Rear Rim | i9 Enduro S 29" |
| Handlebars | OneUp Carbon 35D 800L (20R or 35R) |
| Stem | OneUp 35D (35 or 42mm) |
| Saddle | SDG Lux-Alloy Matte Black |
| Seatpost | OneUp V2 / V3 I-spec EV Lever (180, 210 or 240mm) |
| Grips | OneUp Lock on Grips (Black) |
The Claymore - A Long Travel Enduro Race Frame
The Deviate Claymore full-suspension mountain bike (MTB) frame features a full-carbon make-up, designed to work with 29" wheels front and rear. The frame is optimised for enduro racing where it offers an unrivalled balance of high-speed control and excellent pedalling efficiency for all-day riding comfort thanks to our meticulously tested high-pivot suspension design. The frame is compatible with both 180mm and 170mm long travel forks for the front travel and 165mm of travel for the rear wheel.
Key Details
Material: Full Carbon Construction
Colourways: Rowan Red or Moss Green
Suspension Platform: High Pivot System (18T Idler)
Wheel Size: 29”
Rear Wheel Travel: 165 mm
Front Travel: 170 mm
Frame Weight: 3.2 kg
Geometry
| Size | Medium | Large | X-Large |
| Head Angle (deg) | 64.3 | 64.3 | 64.3 |
| BB Drop (mm) | 30 | 30 | 30 |
| Wheel Base (mm) | 1233 | 1268 | 1303 |
| Seat Angle (deg) | 78 | 78 | 78 |
| Reach (mm) | 460 | 490 | 520 |
| Stack (mm) | 620 | 630 | 640 |
| Head Tube Length (mm) | 92 | 108 | 114 |
| Chainstay Length (mm) | 441 | 441 | 441 |
| Seat Post Length (mm) | 410 | 430 | 450 |
| Max Seat Post insertion (mm) | 300 | 325 | 340 |
| ETT Length (mm) | 592 | 622 | 656 |
Additional Features
- Twin lip wiper seals for all frame bearings
- Grease injection ports to keep your bike functioning better, for longer
- Threaded BB
- Downtube Protector
- Cable Gutter System
Your Order
Bikes will arrive partially assembled, and some basic assembly will need to be carried out. If you have any queries regarding this please contact us and we will be happy to assist.
Other Deviate Highlander 2 models are available for demo from the heart of Edinburgh ready to take on the Scottish mountain biking trails.
Deviate Cycles have modified a standard Dualco grease gun by changing the nozzle shape (not pictured) to make accessing the grease ports on Deviate Cycles bicycles easier..
We sell grease to suit these grease guns, and these are also recommended for use on Deviate frames.
