Checkpoint+ SL 7 AXS

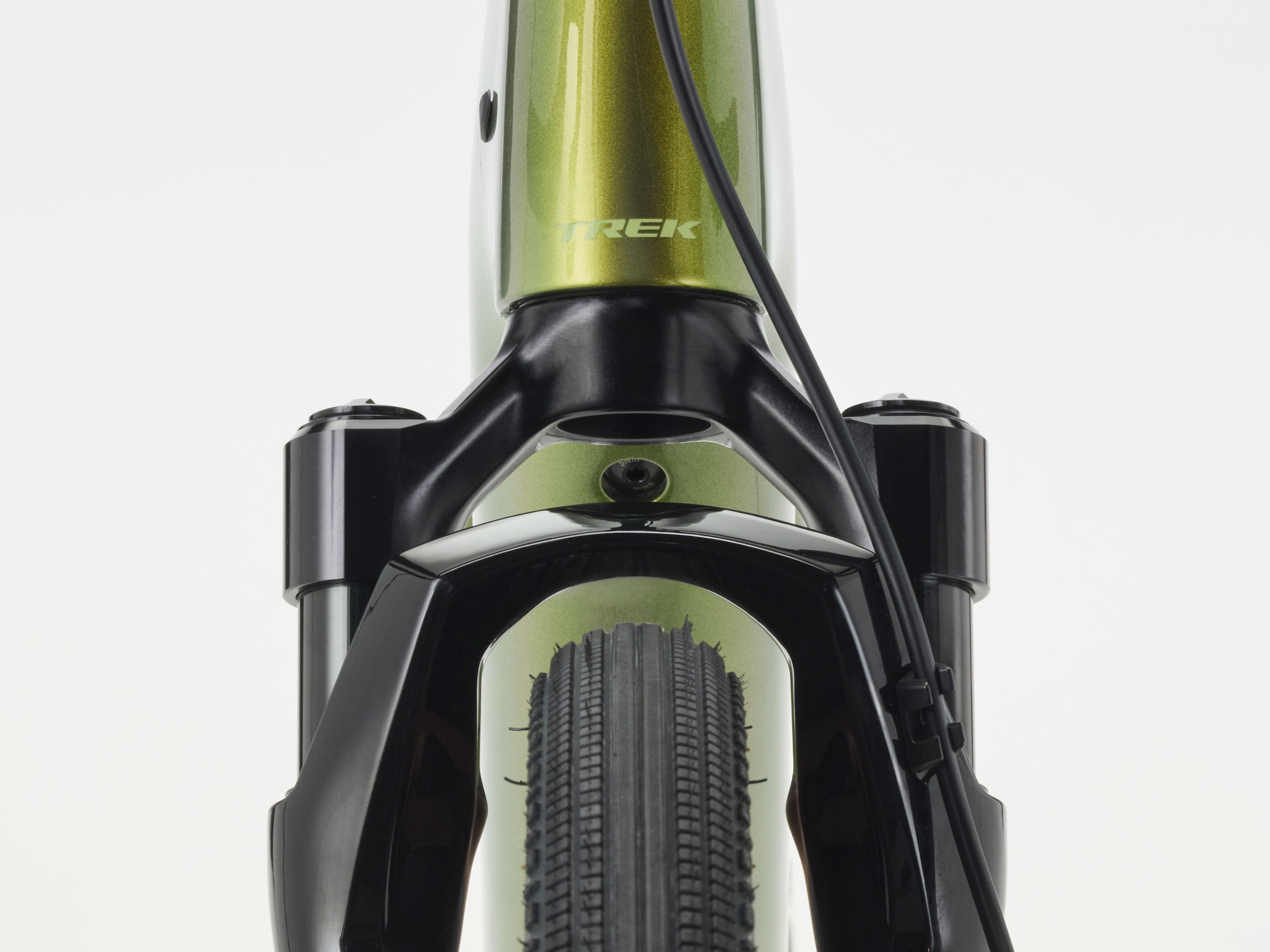

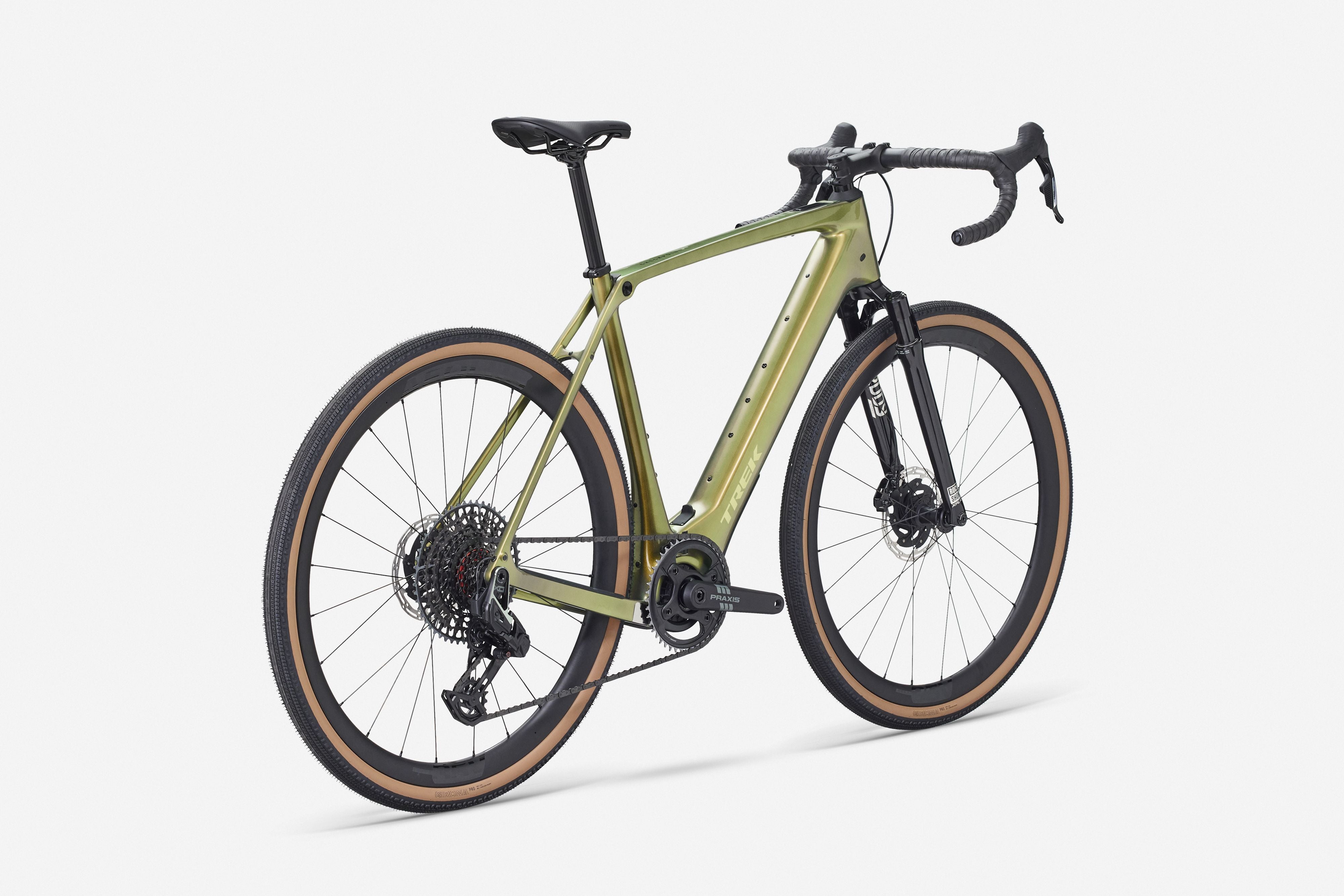

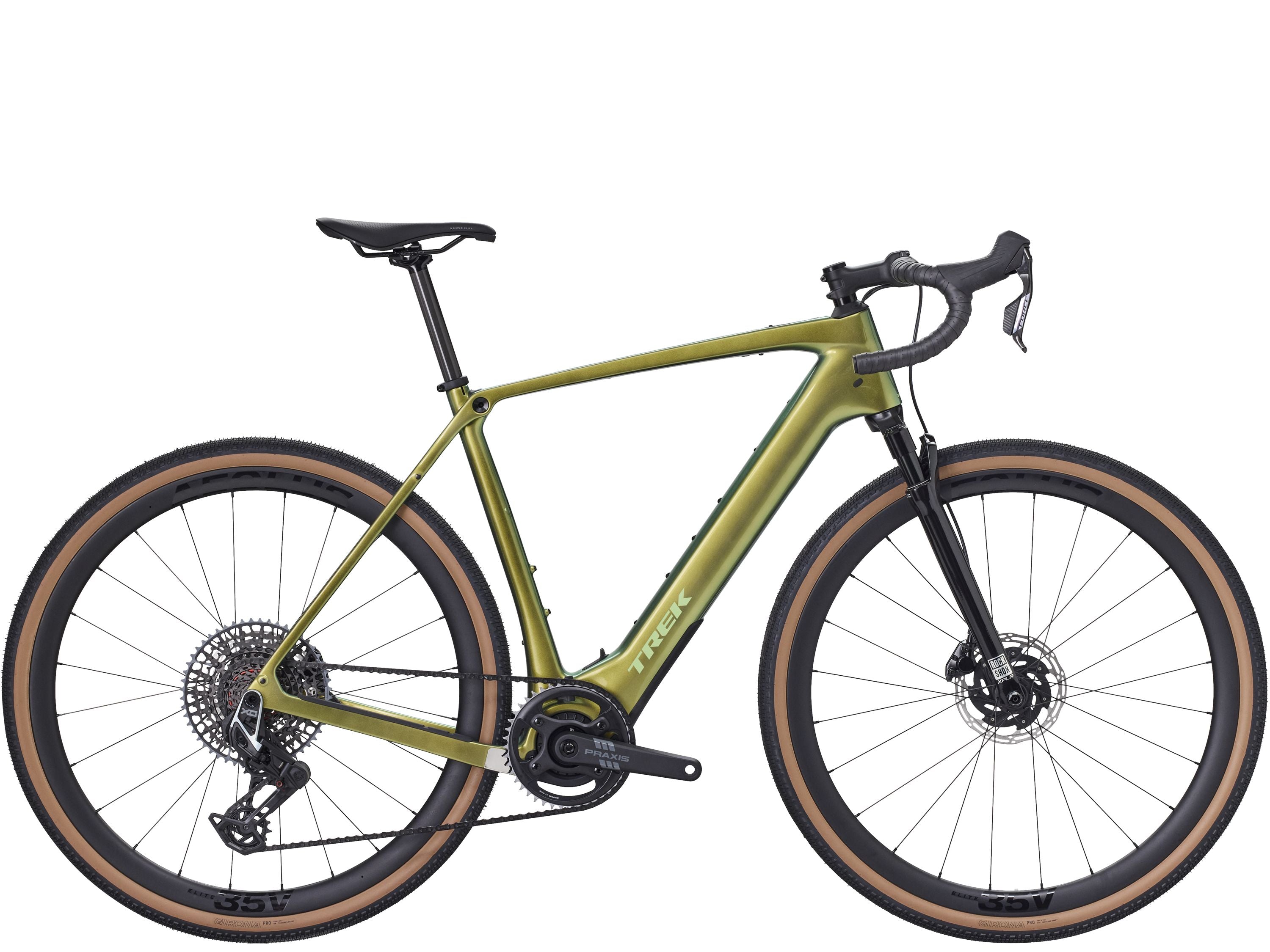

The Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most wide-ranging adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth and quiet boost, while a 40 mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. The SRAM's Force AXS E1 12-speed drivetrain delivers smooth, wireless shifting and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seat post dampen vibrations while keeping the weight down.
Technology

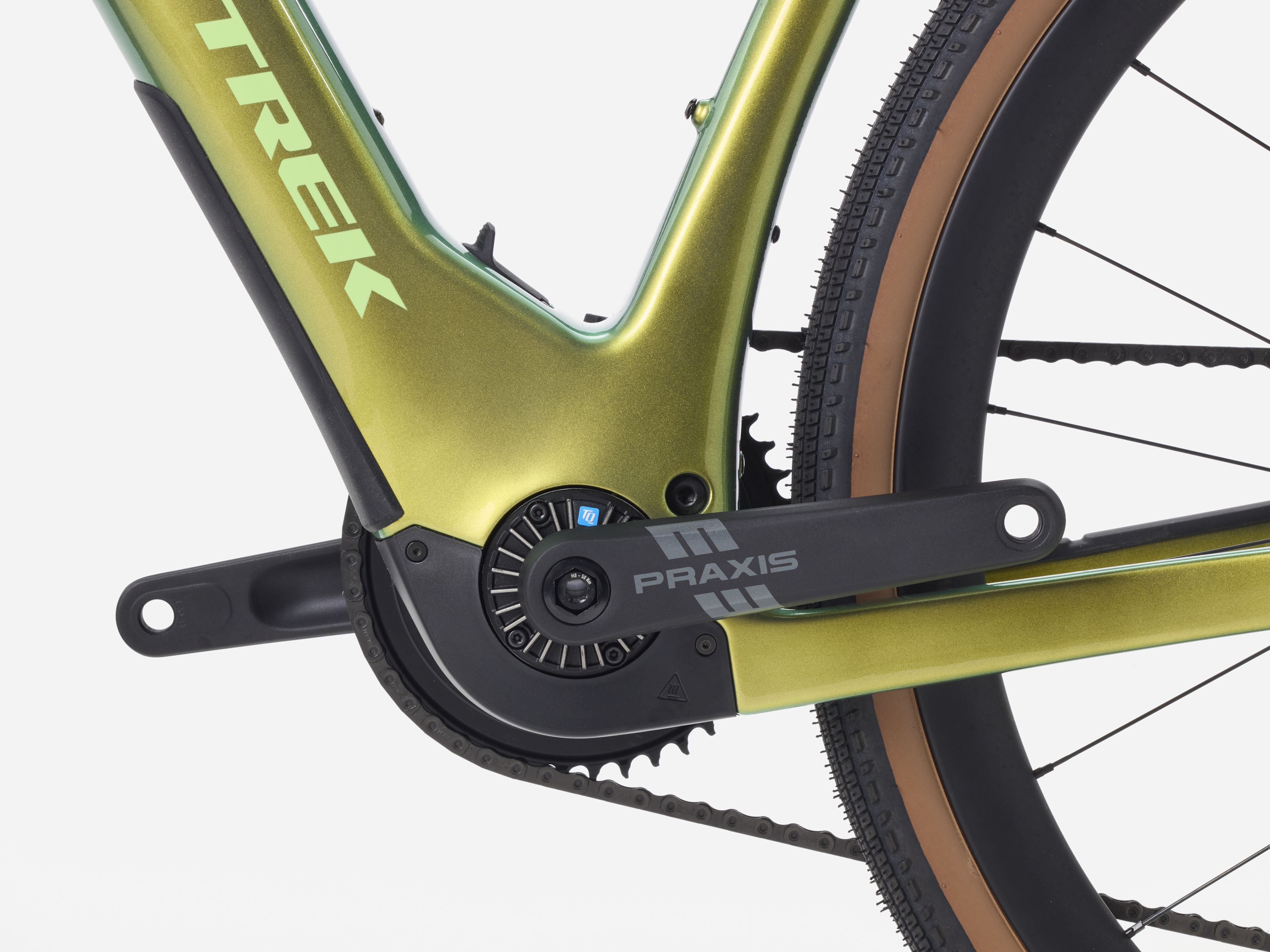

Powerful and discreet e-system - The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet and offers a natural-feeling assist up to 28 mph (25 kph in Europe) with 50 miles of range (in Eco mode). Plus, choose how much boost you get and when you get it with three assist modes.
Specification
| Frame | 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
|---|---|
| Frame Material | CARBON |
| Rim Size | 28 |
| Fork | RockShox |
| Fork | RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel |
| Wheels | Bontrager Aeolus Elite 35V |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Shifter | SRAM |
| Derailleur Rear | SRAM X0 Eagle AXS, T-Type |
| Crank | Praxis Alloy, 172.5 mm length |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Brake Rotor | SRAM Paceline X, rounded, CentreLock, 160 mm |
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar | Bontrager Pro Gravel, 44 cm width |
| Stem | Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length |
| Battery | TQ 360Wh TQ 360Wh |

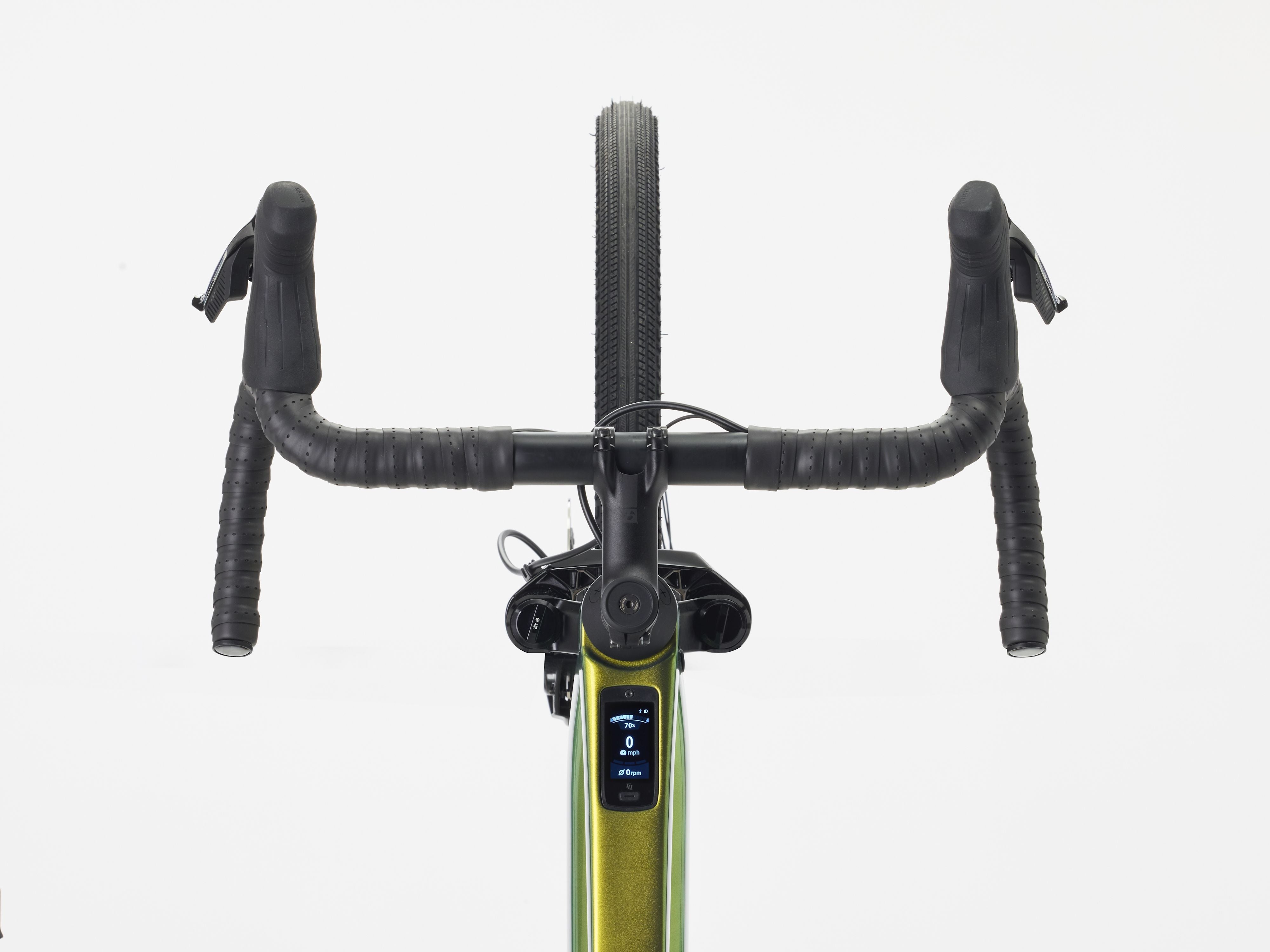

| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 188.0 - 194.0 |
| Size Chart Rider Inseam | Inseam - 88.0 - 91.0 |
