£4,500.00 GBP
Size

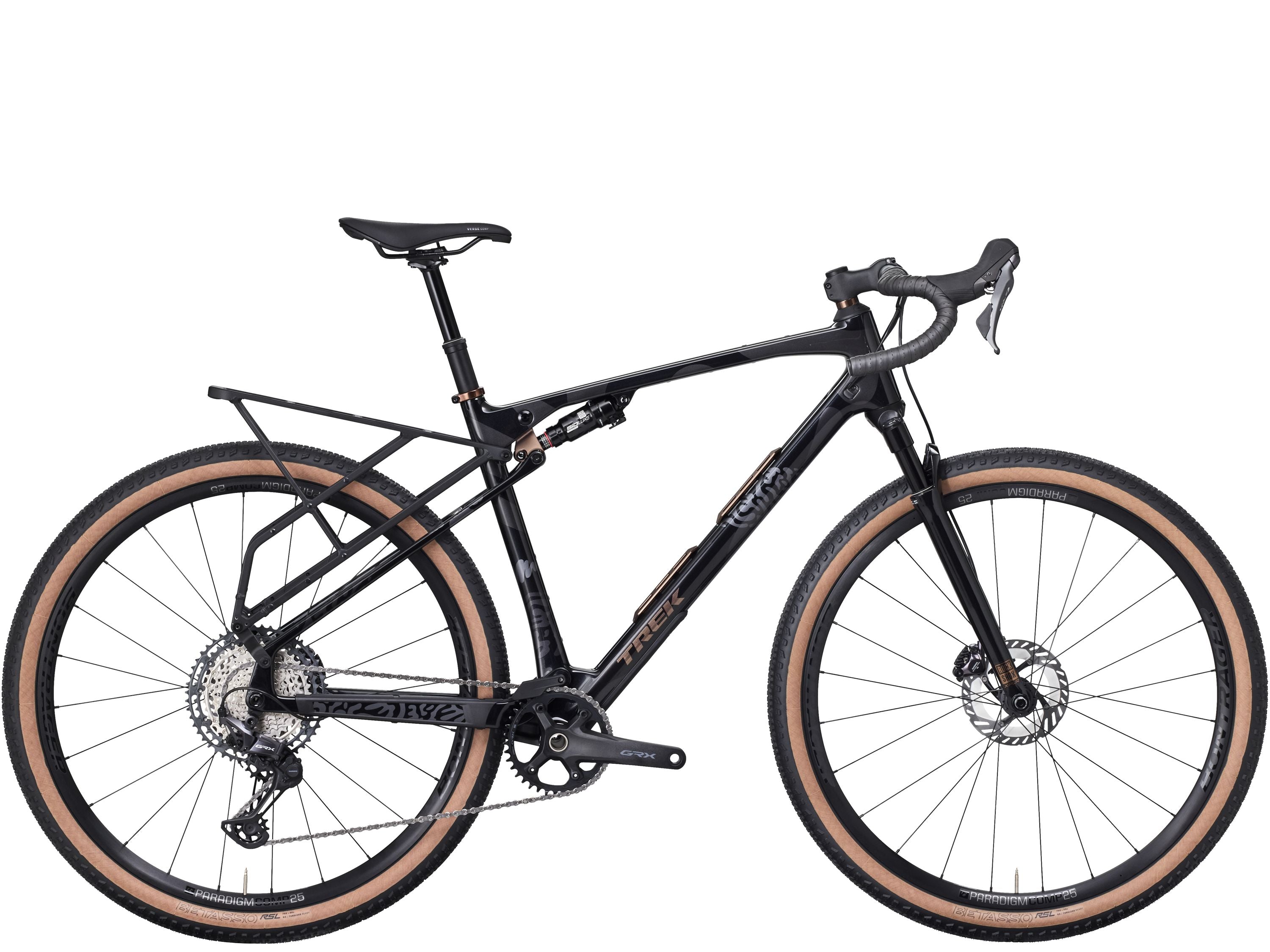

The Check-OUT SL 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post.

Technology

Ride-it-all suspension - 55 mm rear travel and a new 60 mm Rudy XL suspension fork designed in collaboration with RockShox help smooth out rough gravel roads and let you venture onto singletrack with more comfort and capability than a rigid gravel bike.

Specification

Frame 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
Frame Material CARBON
Rim Size 28
Fork RockShox
Fork RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm of
Rearsuspension RockShox
Suspension Rear RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm
Wheels Bontrager Paradigm Comp 25
Tires Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55 mm
Hub Rear Bontrager alloy, sealed bearing, CentreLock, Rapid Drive 108, 142x12, 12 mm thru-axle
Rims Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
Derailleur Rear Shimano GRX RX822, 51T max cog
Crank Shimano GRX RX610, 38T, 172.5 mm length
Bottom Bracket Praxis, T47 threaded, internal bearing
Cassette Shimano XT M8200, 10-51, 12-speed
Chain Shimano XT M8100, 12-speed
Saddle Verse Short Comp, steel rails, 145 mm width
Seatpost TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
Handlebar Bontrager GR Checkout, 46 cm
Stem Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Carrier Rear Checkout rear rack
Size Chart Rider Height Rider Height - 188.0 - 194.0
Size Chart Rider Inseam Inseam - 88.0 - 91.0
