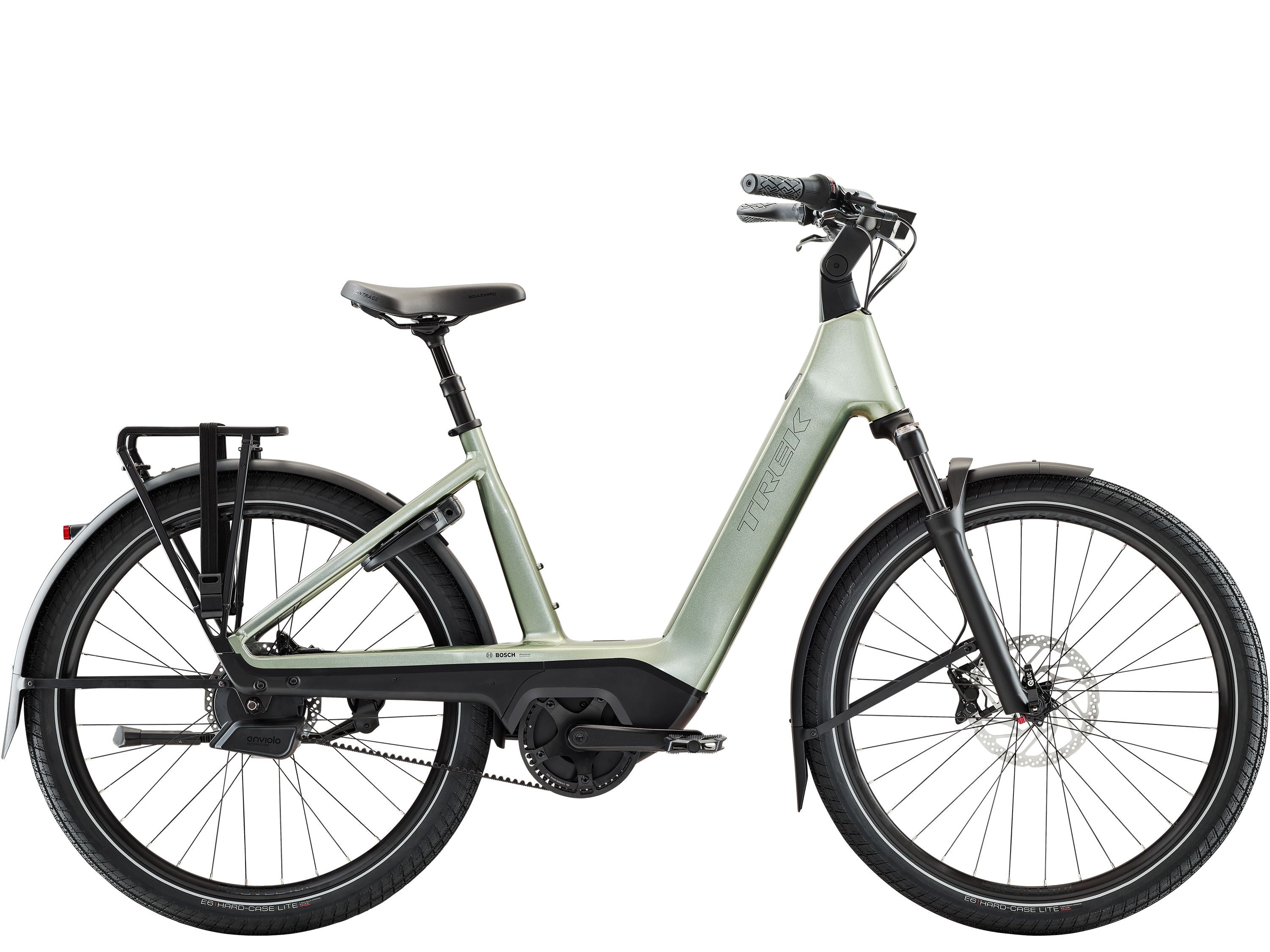

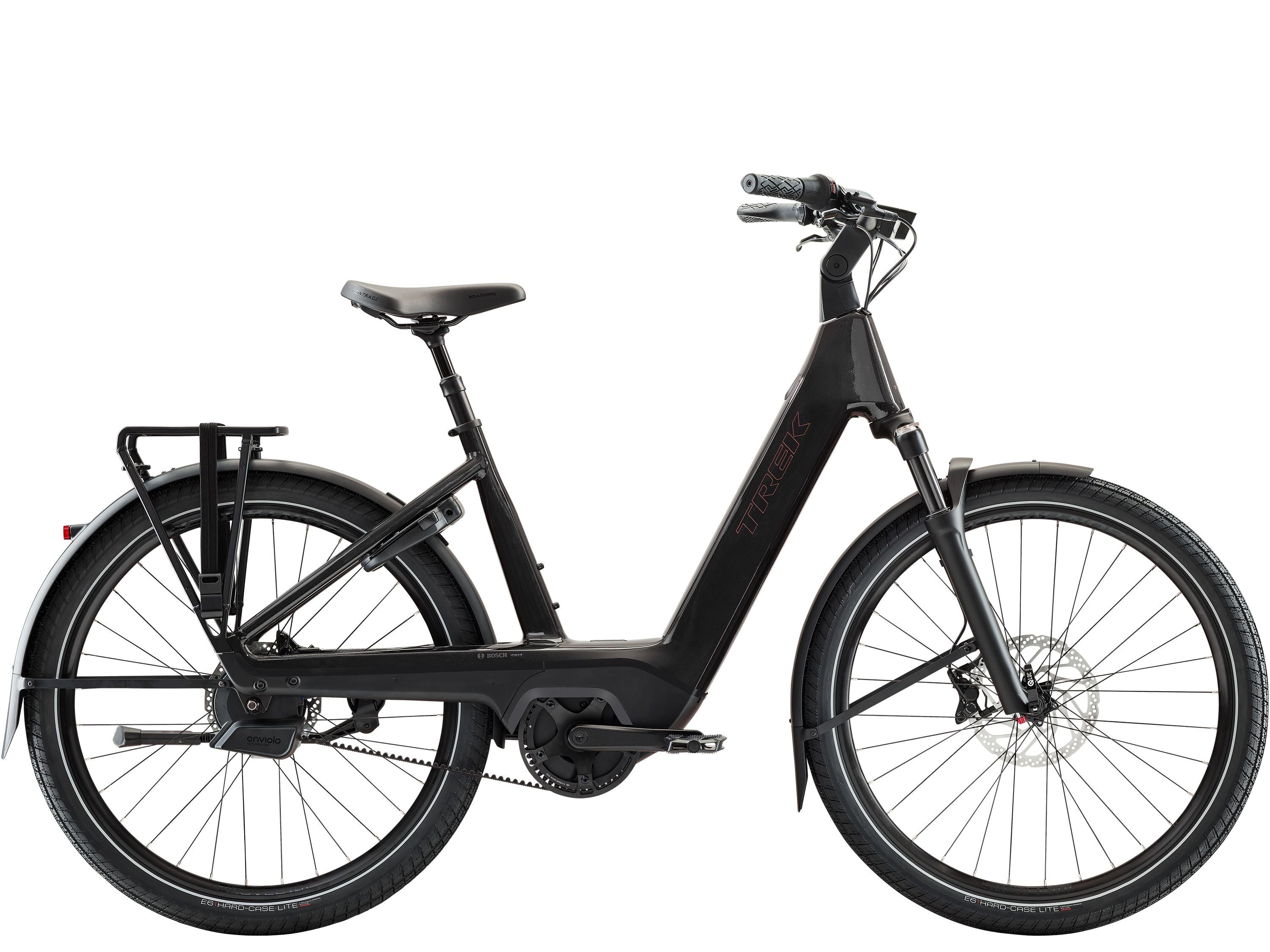

Charter+ 5 Auto 800 Wh Lowstep
The Charter+ 5 Auto 800 Wh low-step is an intuitive and adaptable city e-bike ready for commutes and weekend excursions. Its adjustable cockpit lets you customise feel from upright and comfortable to a more active position, while an air-sprung 80 mm fork keeps the ride smooth. It comes equipped with an auto-shifting internally geared Enviolo hub with Gates CDX belt drive for a low-maintenance, intuitive ride. A Bosch Performance Line PX motor with huge 800 Wh battery lets you explore way out there – and still have plenty of power for the ride back.
Technology
Assembled in Germany - Explore the factory in Saxony, Germany, where every European Trek, Electra, and Diamant bike is built.
Specification
| Frame | Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 27.5 |
| Fork | SR Suntour |
| Fork | SR Suntour Mobie 34, tapered steerer tube, air spring, adjustable rebound and compression, lockout, 100mm QR, 80mm travel |
| Tires | Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 27.5x2.4" |
| Hub Front | Shimano TC500, centerlock, 110x15 mm thru axle |
| Hub Rear | Enviolo Trekking, 32-hole, 6-bolt disc brake, 40T |
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
| Crank | ProWheel alloy, 170 mm length |
| Cassette | Gates CDX CenterTrack, 22T |
| Brake | Shimano |
| Brakeset | Shimano MT401 / MT420 hydraulic disc |
| Brake Rotor | Shimano RT26, 6-bolt, 180 mm // Shimano RT30, CentreLock, 203 mm |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Boulevard |
| Seatpost | Aluminium with suspension, 300 mm long, with adjustable spring rate |
| Handlebar | Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width |
| Stem | Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length |
| Grips | Trek ergonomic PRO, lock-on |
| Fenders | Trek Charter alloy mudguard |
| Kickstand | Pletscher Comp Flex 40 |
| Battery | Bosch PowerTube 800Wh, smart system |
| Controller | Bosch Kiox 500, smart system |
| Motor | Bosch Smart System PX, 90Nm, 250W, 28 mph / 45 km/h (25 km/h max assist in EU and APAC) |
| Size Chart Rider Height | Rider Height - 170.0 - 185.0 |
| Size Chart Rider Inseam | Inseam - 80.0 - 99.0 |
