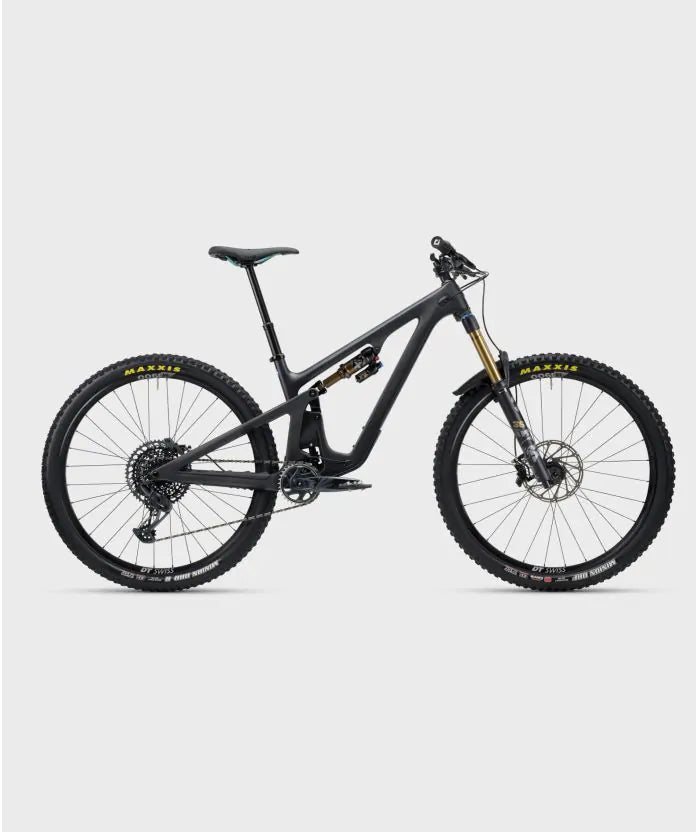

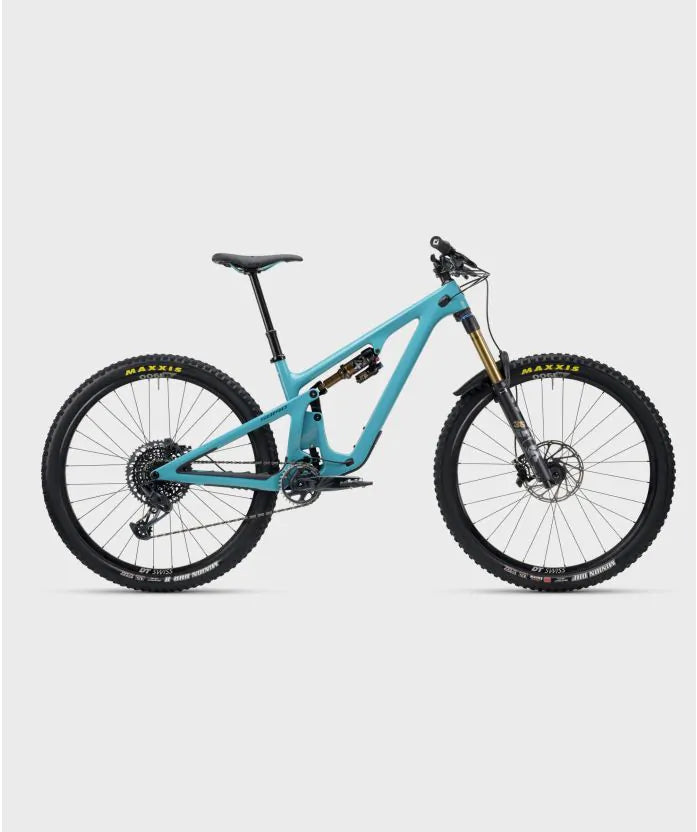

Yeti Cycles SB140 C-Series C2 Lunch Ride 29" Factory Bike
Yeti Cycles SB140 C-Series C2 Lunch Ride 29" Factory Bike
Yeti Cycles SB140 C-Series C2 Lunch Ride 29" Factory Bike
Yeti Cycles SB140 C-Series C2 Lunch Ride 29" Factory Bike
Yeti Cycles SB140 C-Series C2 Lunch Ride 29" Factory Bike
Yeti Cycles SB140 C-Series C2 Lunch Ride 29" Factory Bike

Yeti Cycles SB140 C-Series C2 Lunch Ride 29" Factory Bike

£6,699.00 GBP
Size
Color

SB140 LR


Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

140MM

FRAME TRAVEL



160MM

FORK TRAVEL



14%

LEVERAGE RATE



29"

WHEEL SIZE



65°

HEAD TUBE ANGLE



77°

EFF. SEAT ANGLE

HIGHLIGHTS

  • Lunch Ride (LR) builds featuring 160mm Fox Factory 36,
    Fox Float X, Maxxis DHF 2.5 & DHR II 2.4 EXO casing,
    and more powerful brakes
  • Fox Transfer dropper post
  • DT Swiss XM Wheels
  • 4 piston brakes
  • ODI Elite Pro grips
  • 200 front and 180 rear rotors

FRAME HIGHLIGHTS

  • NEW Threaded bot tom bracket
  • NEW High-clearance downtube
  • NEW Dual -density downtube protection
  • Universal Derailleur Hanger (UDH)
  • Secure, fully enclosed internal cable management
  • Compatible with long dropper posts
  • 100% standard sealed Enduro Max bearings
  • Floating collet axle pivot design
  • Compact-wishbone shock extender
  • Boost spacing
  • Sizes S -XXL

Trail Bike? Yes, And...

This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. Trail Bike is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what's on the other side.

SIZE GUIDE

SMALL 5'1" - 5'7"
MEDIUM 5'5" - 5'11"
LARGE 5'10" - 6'3"
X-LARGE 6'1" - 6'7"
XX-LARGE 6'5" - 6'11"

SPECIFICATION

C/Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.

FORK FOX FACTORY 36 GRIP X2 / 160MM
SHOCK FOX FACTORY FLOAT X
TYRE (F) MAXXIS MINION DHF 2.5 EXO
TYRE (R) MAXXIS MINION DHR II 2.4 EXO
ROTOR (F) SRAM CENTERLINE 200
ROTOR (R) SRAM CENTERLINE 180
HEADSET CANE CREEK 40 INTEGRATED
WHEELSET DT SWISS M1900 30MM
BB SRAM DUB BSA 73
GRIPS ODI ELITE PRO
BAR BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM 30MM RISE
STEM BURGTEC ENDURO MK3 35X50MM
CRANK SRAM GX EAGLE 30T 170MM
SEAT SILVERADO CUSTOM
BRAKES SRAM CODE R
DERAILLEUR SRAM GX EAGLE
CASSETTE SRAM GX EAGLE 1275 10-52
CHAIN SRAM GX EAGLE
SHIFTER SRAM GX EAGLE
SEATPOST ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM

Please note: Specifications are subject to change without notice.



GEOMETRY

All measurements are shown in millimetres.


160MM FORK SM MD LG XL XXL
A SEAT TUBE LENGTH 365 400 440 470 485
B EFF. TOP TUBE LENGTH 573 603 624 652 671
C HEAD TUBE ANGLE 65.0 65.0 65.0 65.0 65.0
D EFF. SEATTUBE ANGLE 77.0 77.0 77.0 77.0 77.0
E ACTUAL SEATTUBE ANGLE 71.8 72.2 72.4 72.8 73.3
F CHAINSTAY LENGTH 436 438 440 442 444
G WHEELBASE 1188 1221 1246 1277 1304
H ESTIMATED BB HEIGHT 342 342 342 342 342
I STANDOVER 726 733 737 739 744
J HEADTUBE LENGTH 92 95 100 112 134
K FORK (AXLE TO CROWN) 575 575 575 575 575
L FORK (OFFSET) 44 44 44 44 44
M STACK 617 620 625 635 655
N REACH 430 460 480 505 520
O FRONT CENTER 752 783 806 835 860
P VERTICAL FORK TRAVEL 145 145 145 145 145
