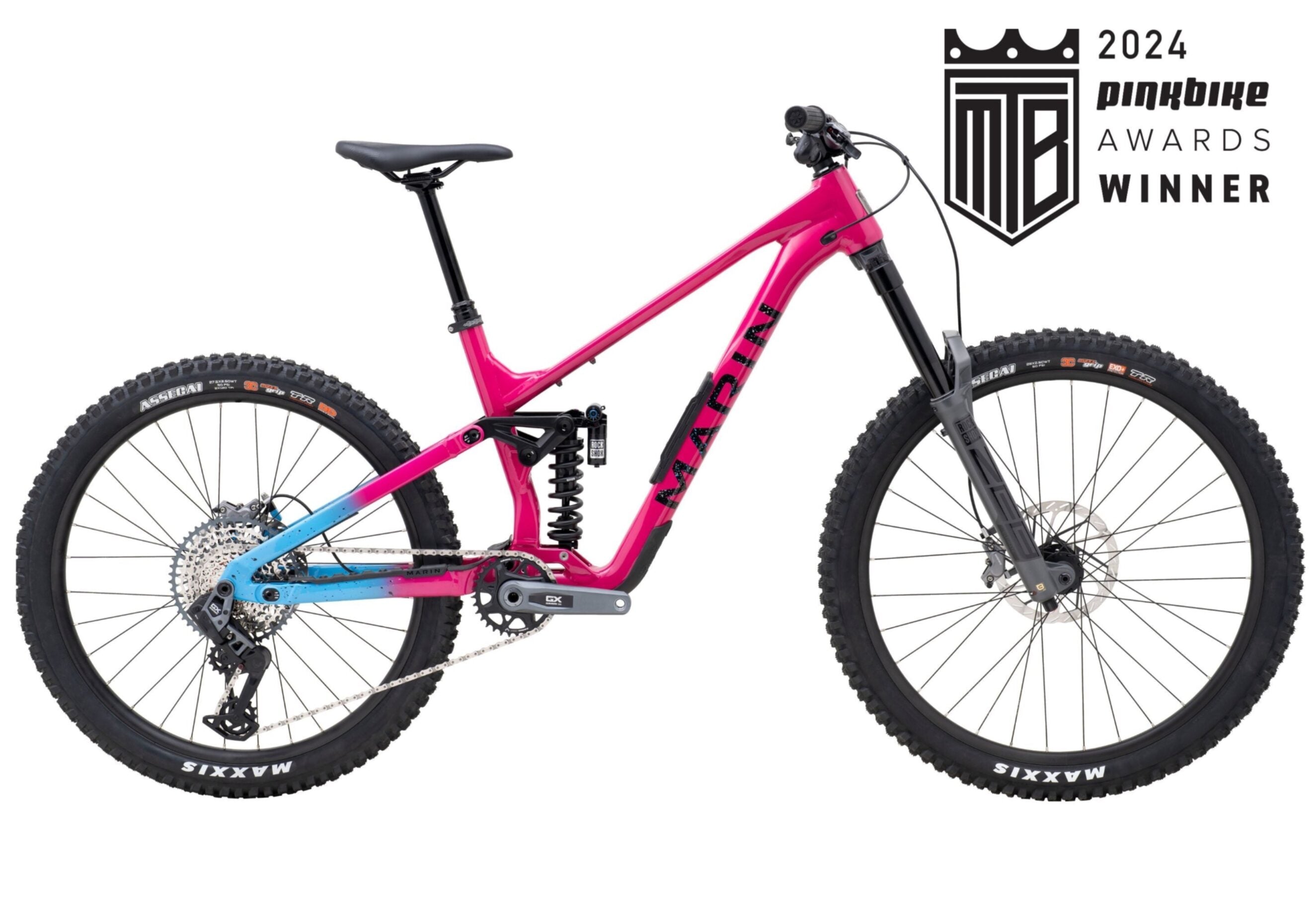

Marin Alpine Trail XR AXS
The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
"XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with SRAM's GX Eagle AXS wireless 12-speed drivetrain. SRAM's Code Bronze brakes provide tenacious stopping power with their 4-piston calipers and 203mm rotors.
Specifications
-
Frame
All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
-
Front Suspension
RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
-
Rear Suspension
RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350lbs, L/XL:450lbs
-
Rim
Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
-
Hub Rear
Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
-
Hub Front
Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
-
Spokes
14g Black Stainless Steel
-
Tires
Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible
-
Derailleur Rear
SRAM GX Eagle AXS T-Type
-
Derailleur Front
-
-
Shift Lever
SRAM AXS POD MMX
-
Crankset
SRAM GX Eagle, 32T, 55MM CL, 170MM Length
-
Bottom Bracket
SRAM DUB MTB 73
-
Chain
SRAM GX Eagle T-Type
-
Cassette
SRAM GX 1275 T-Type 10-52T
-
Brakes Front
SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor
-
Brakes Rear
SRAM Code Bronze 4-Piston Hydraulic, HSC 200mm Rotor
-
Brake Levers
SRAM Code Bronze Stealth Hydraulic
-
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
-
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
-
Grips
Marin Grizzly Lock-On
-
Headset
FSA Custom, Adjustable HTA Design
-
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
-
Saddle
Marin Speed Concept
-
Pedals
-
-
Extras
Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
-
Extras
Downtube Storage Bag
