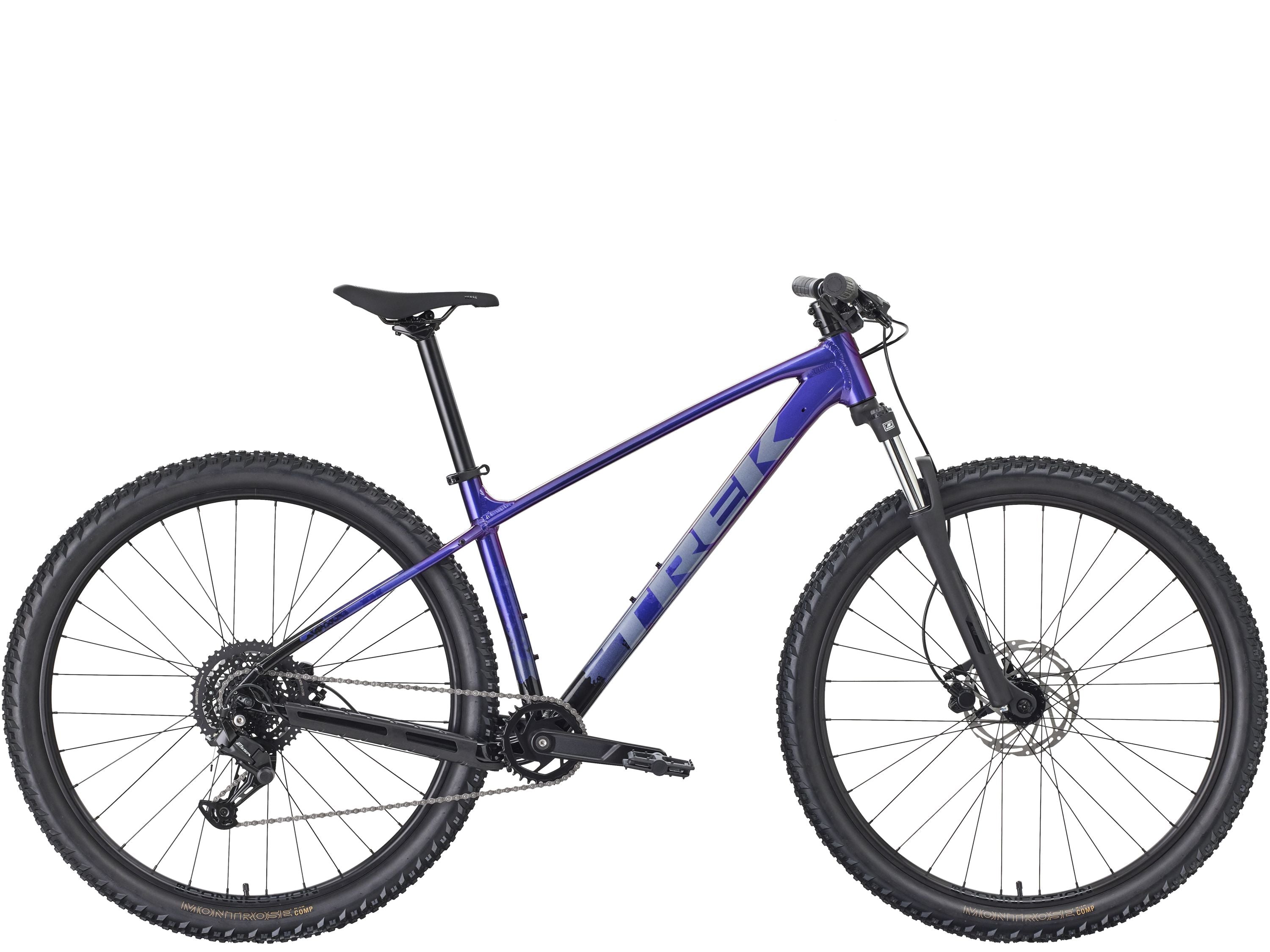

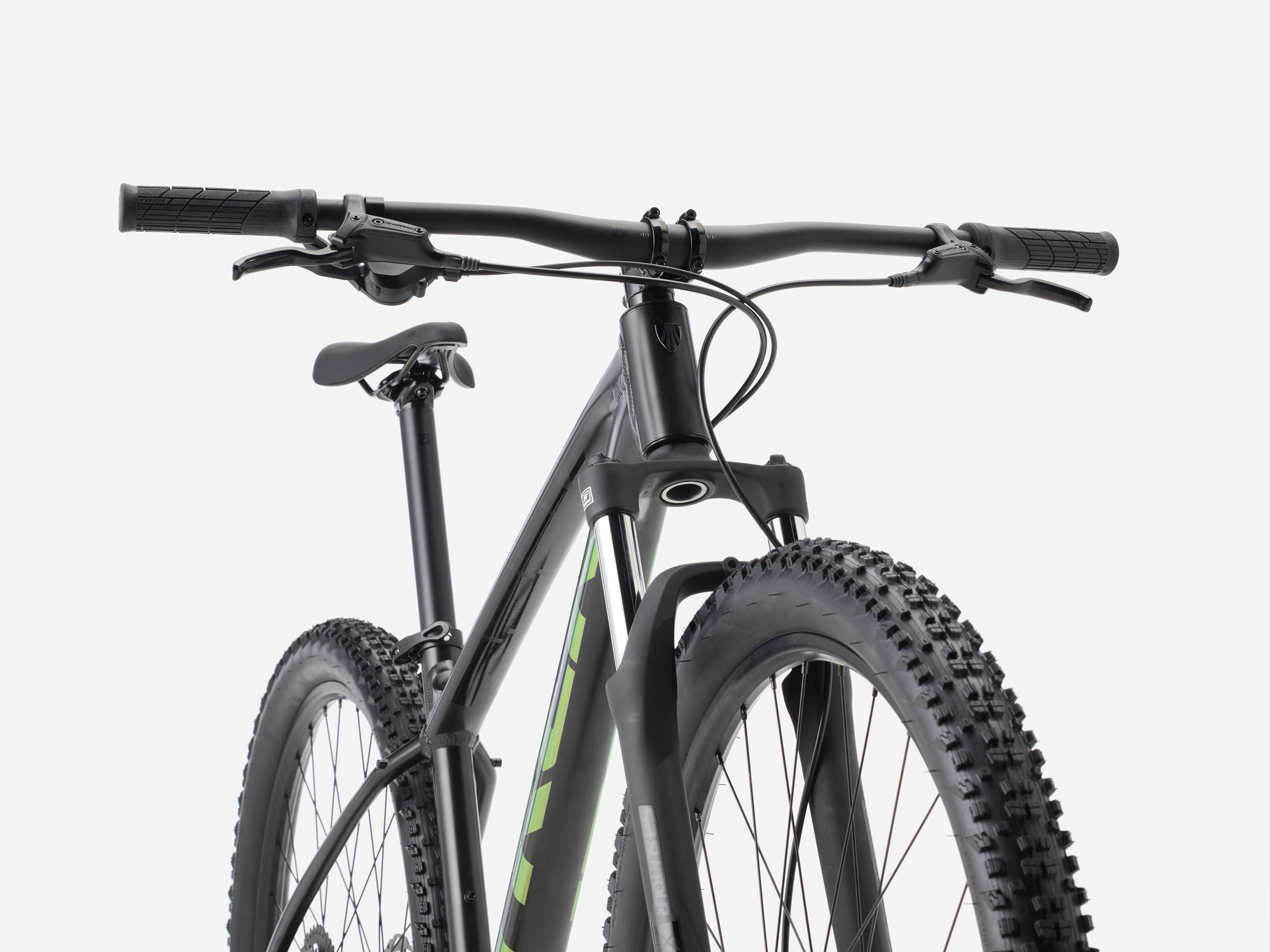

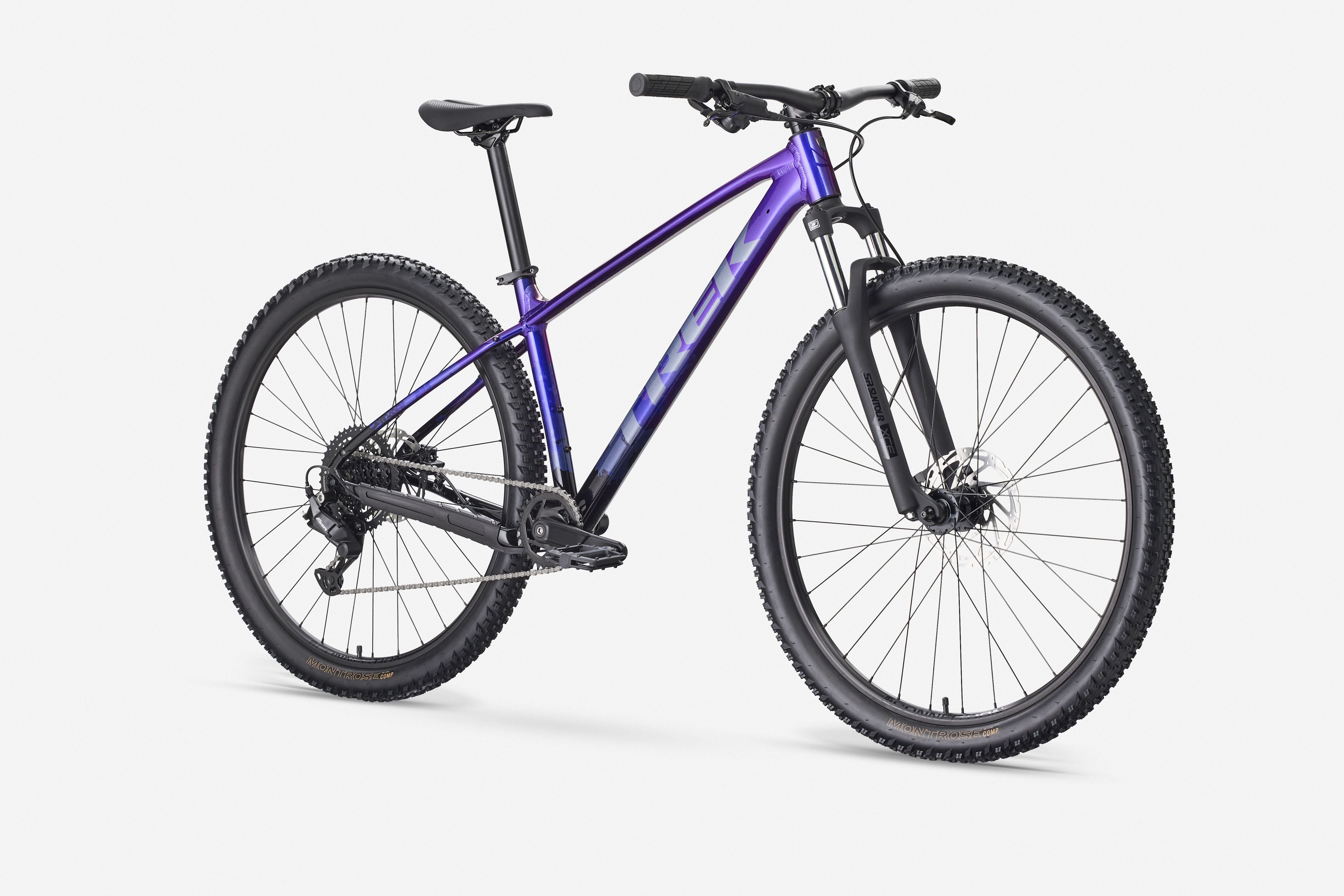

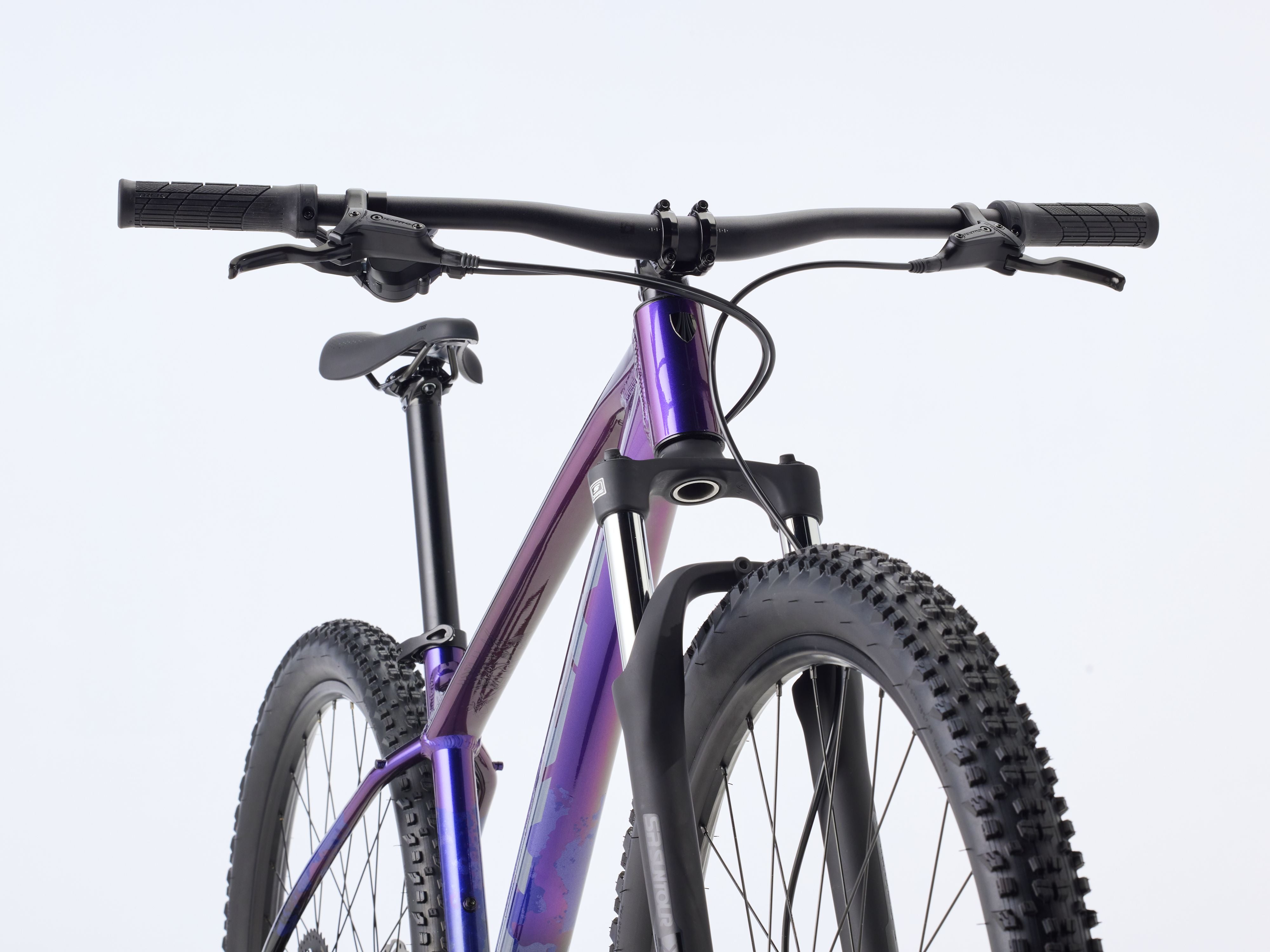

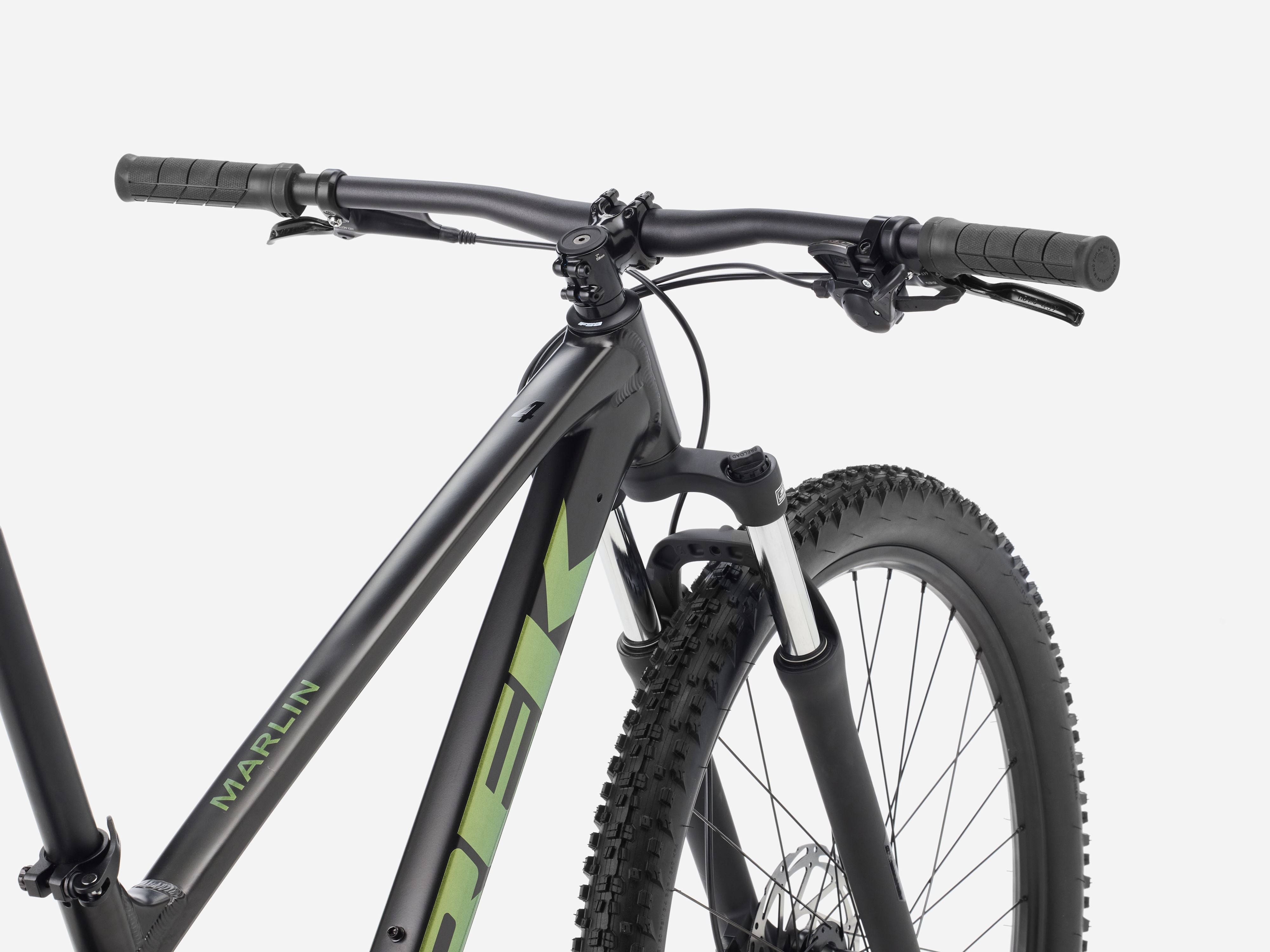

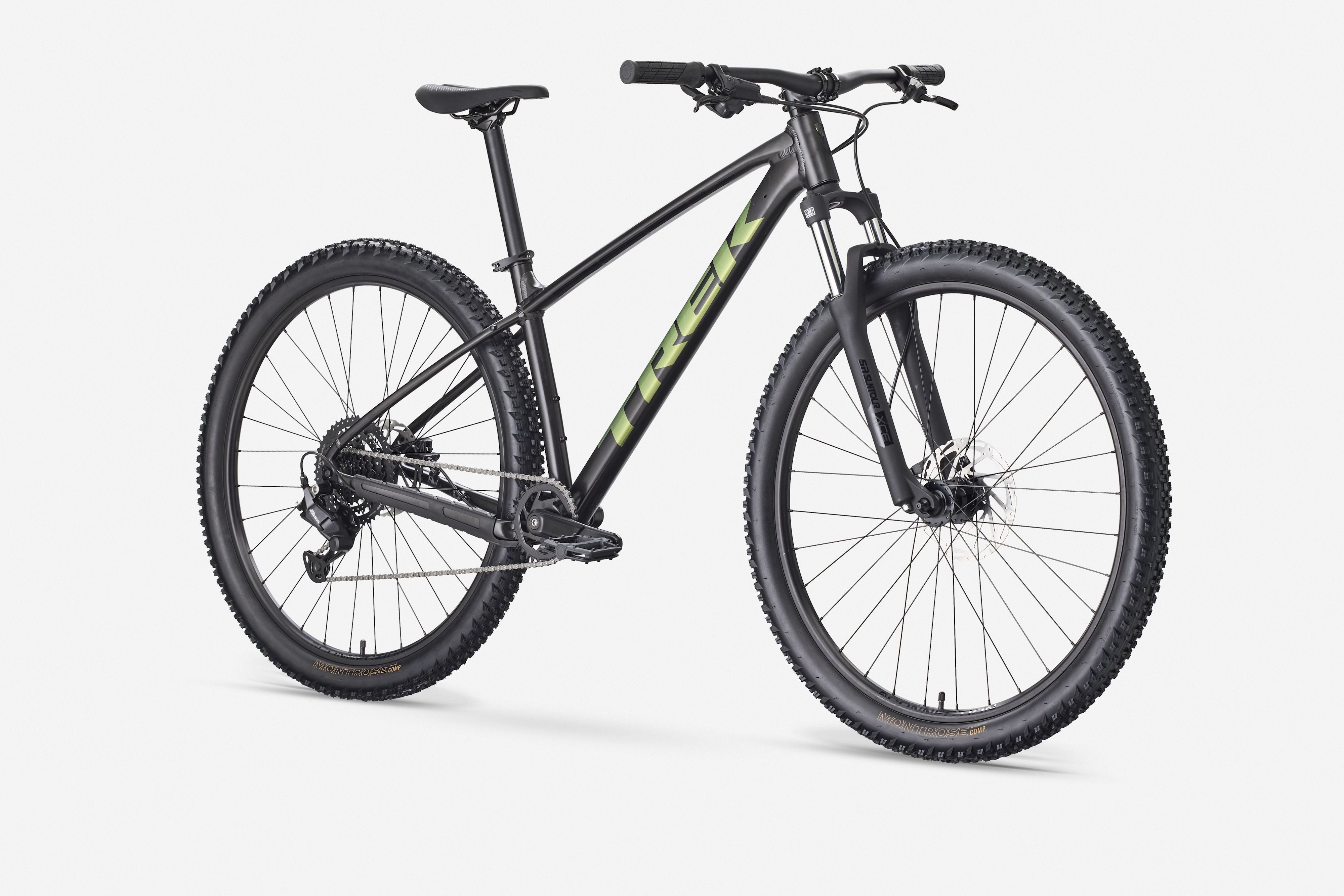

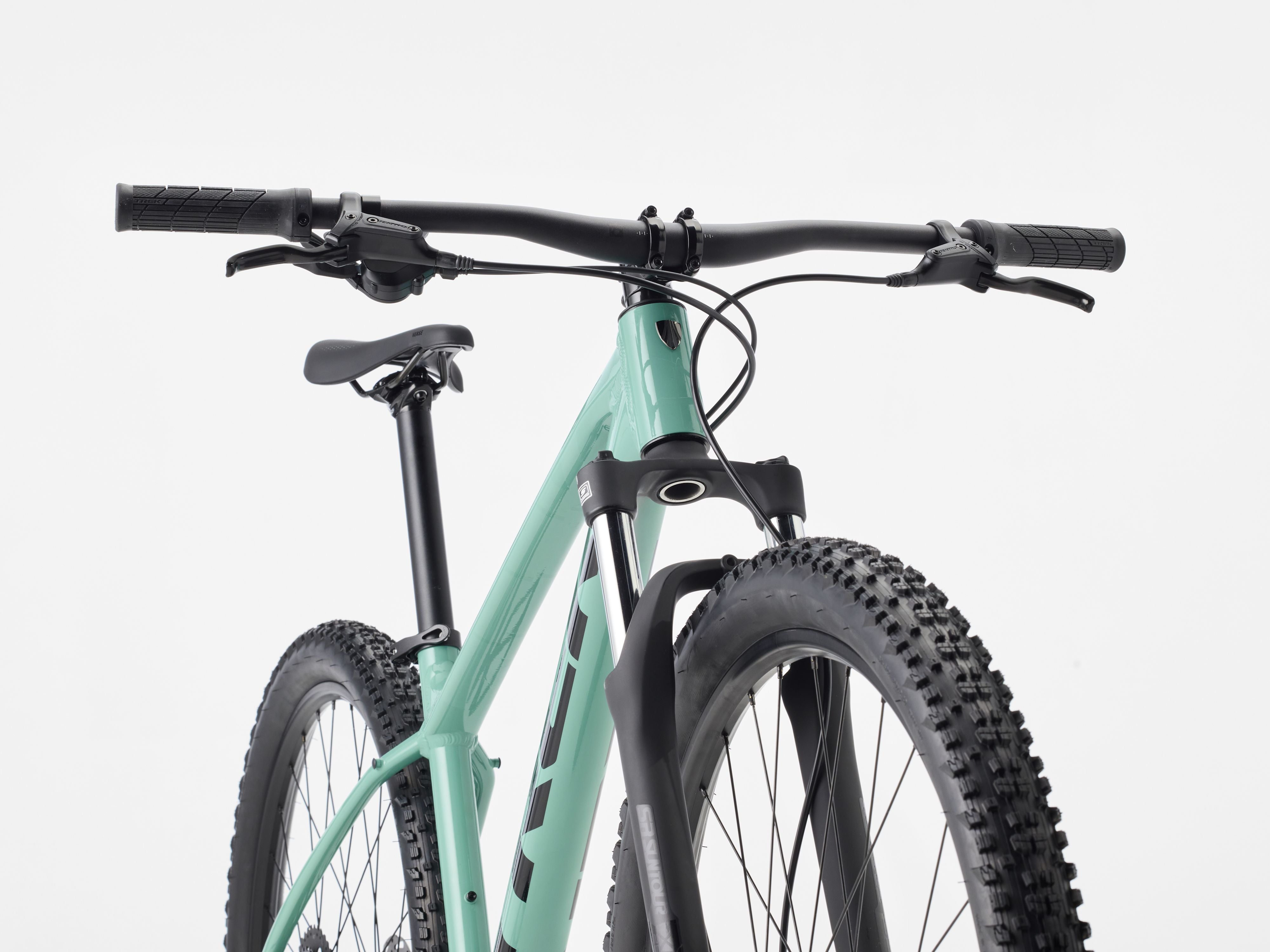

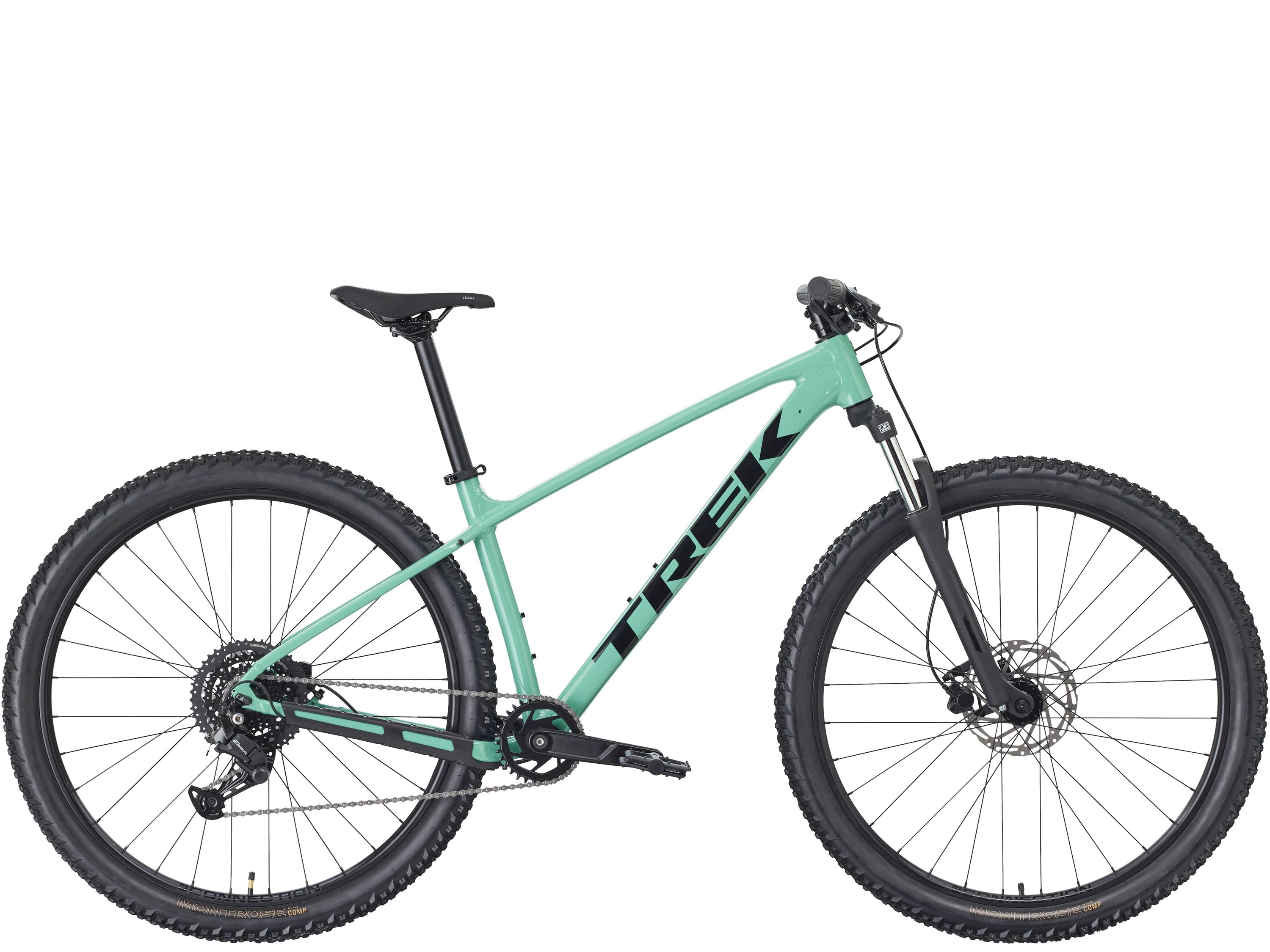

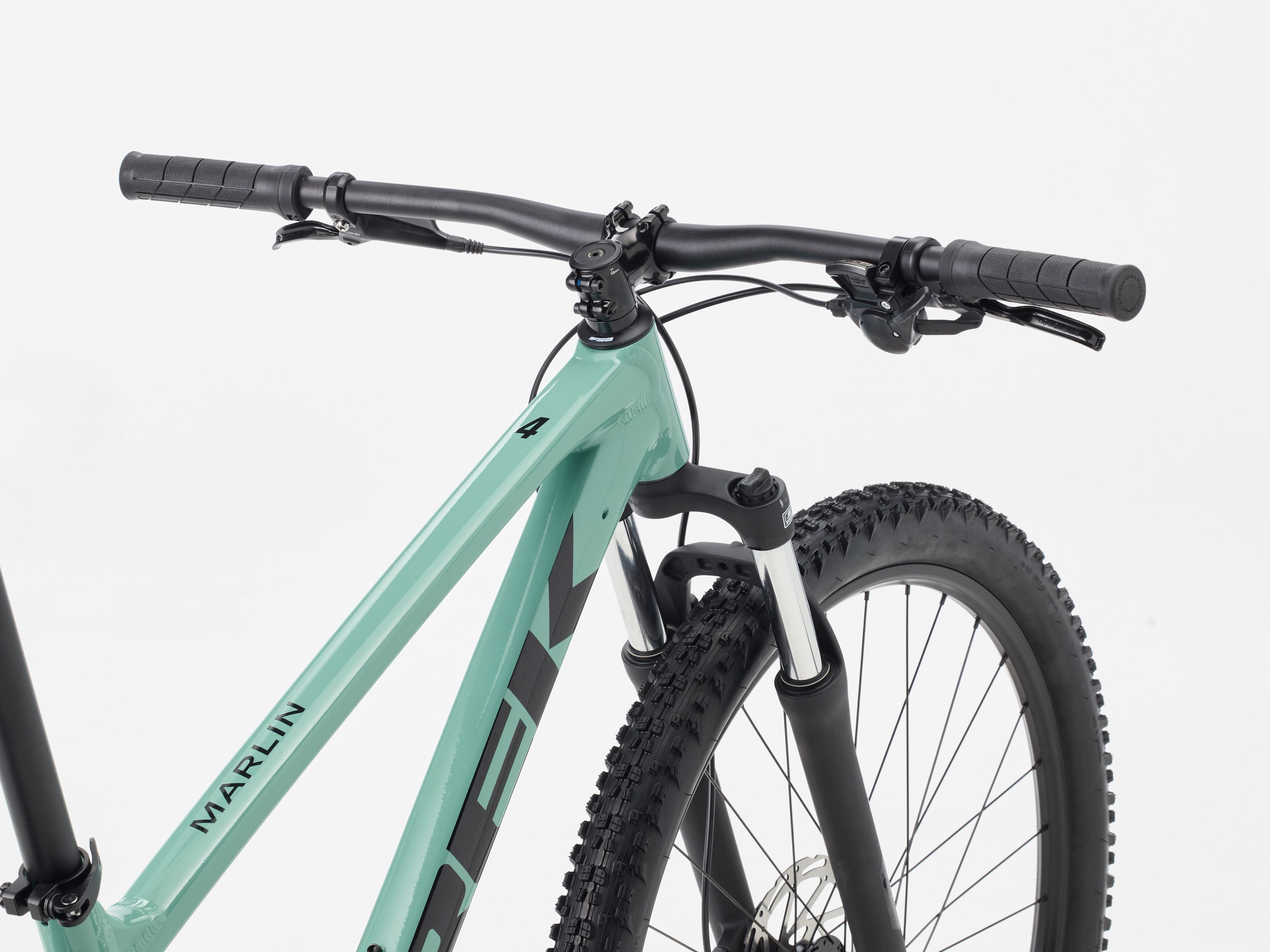

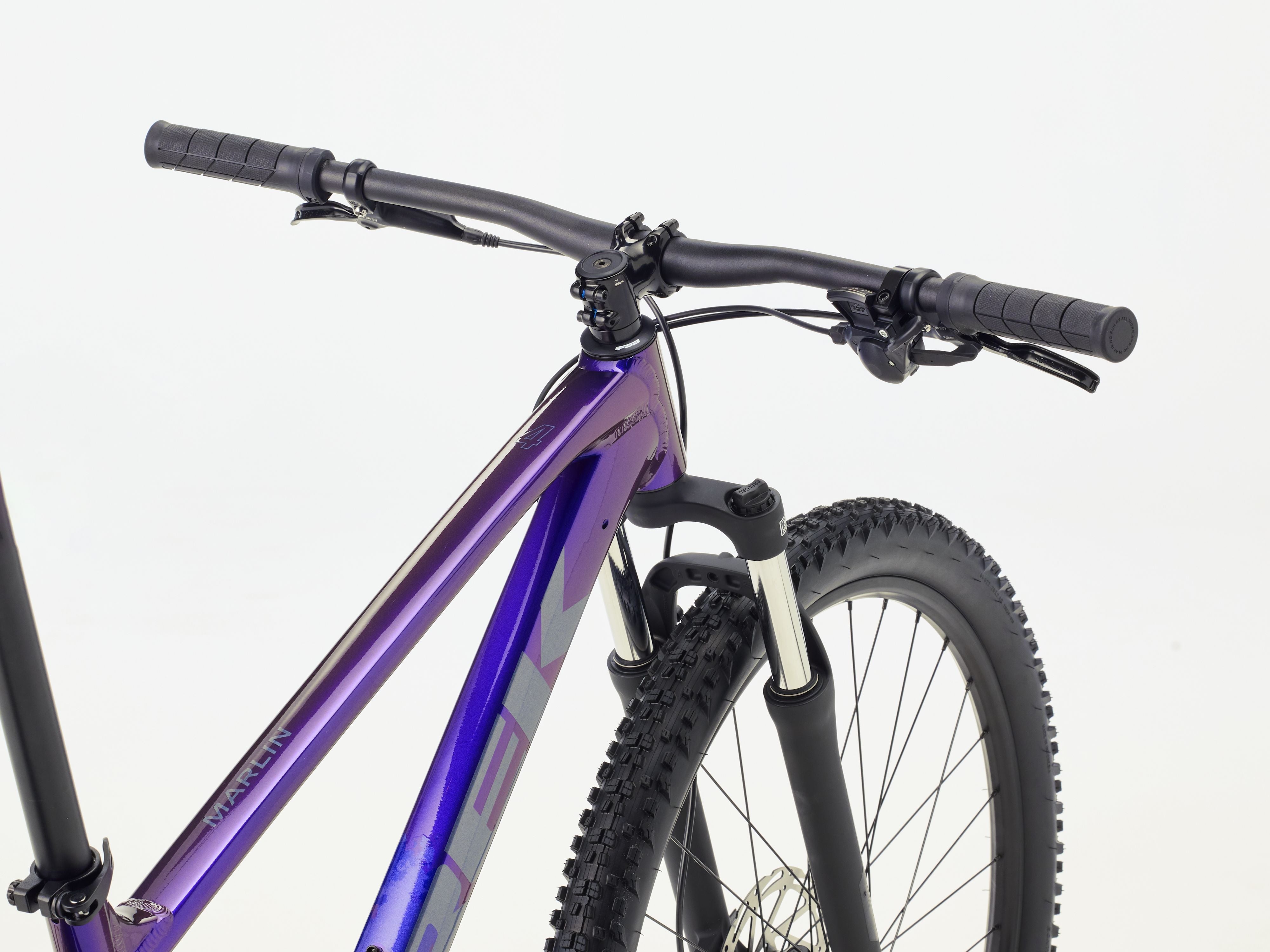

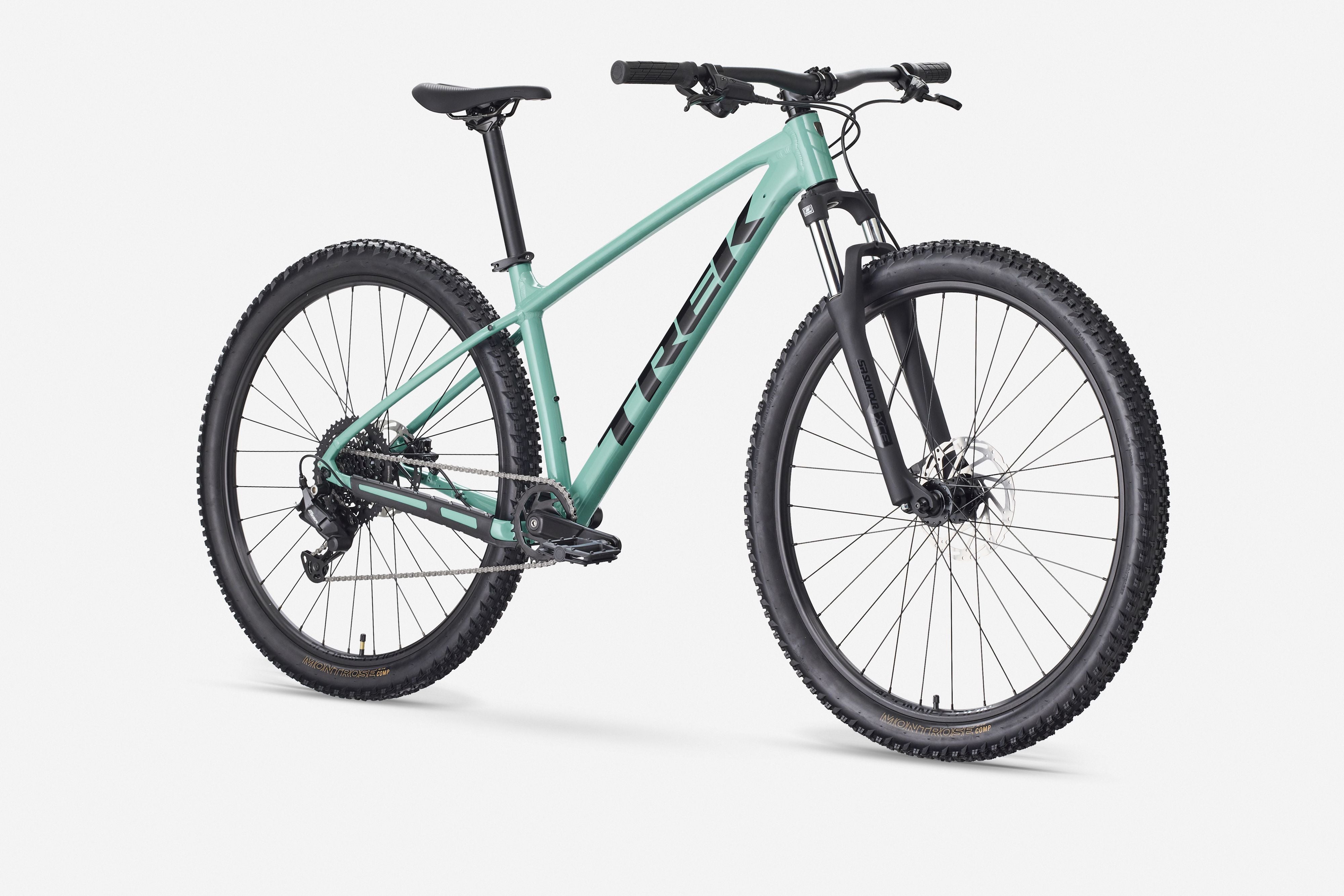

Marlin 4 Gen 3
Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Technology

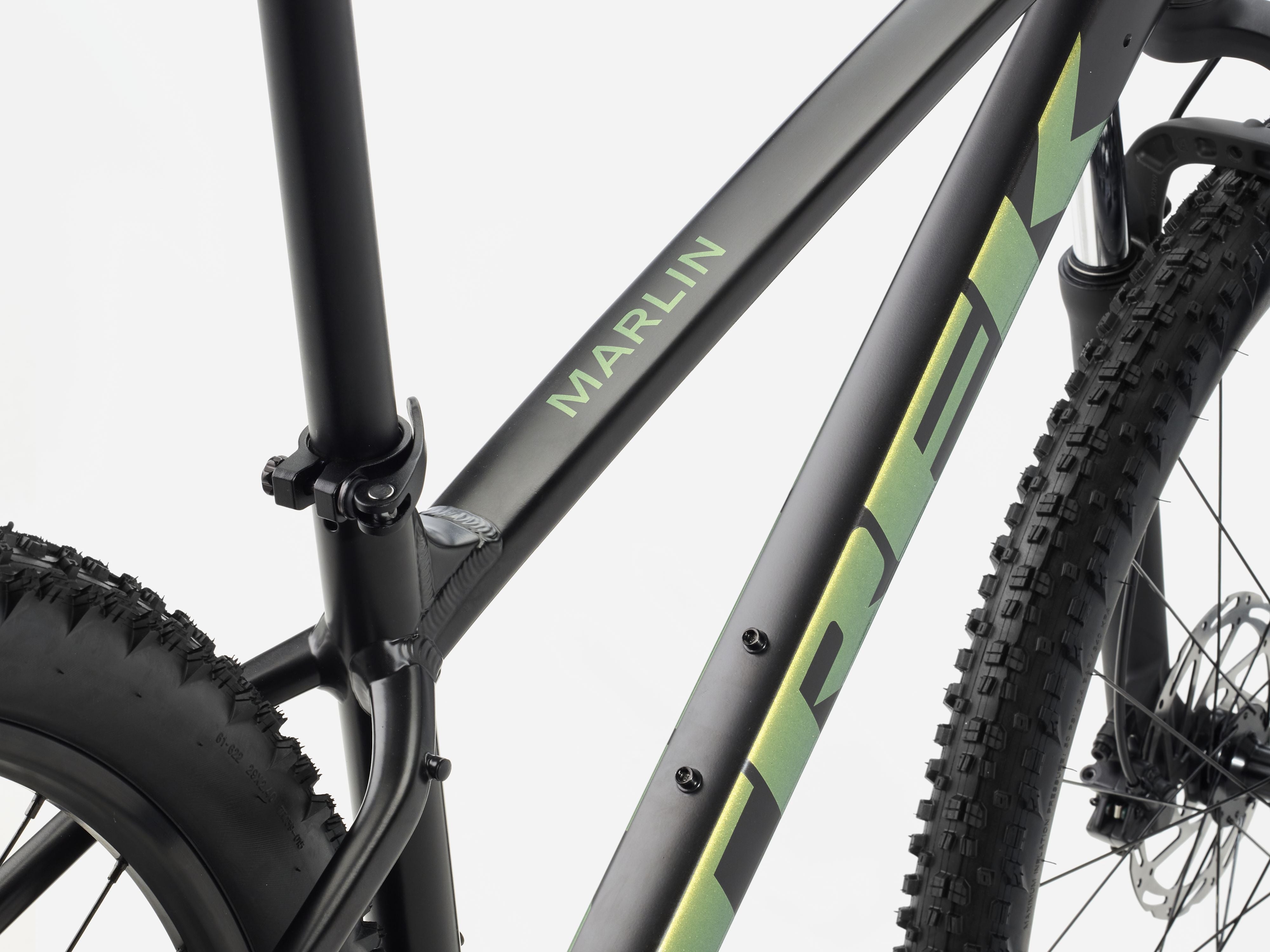

Will my bike have a curved top tube? - Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Specification
| Frame | Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | SR Suntour |
| Fork | SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Tires | Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40" |
| Hub Front | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Shifter | Shimano |

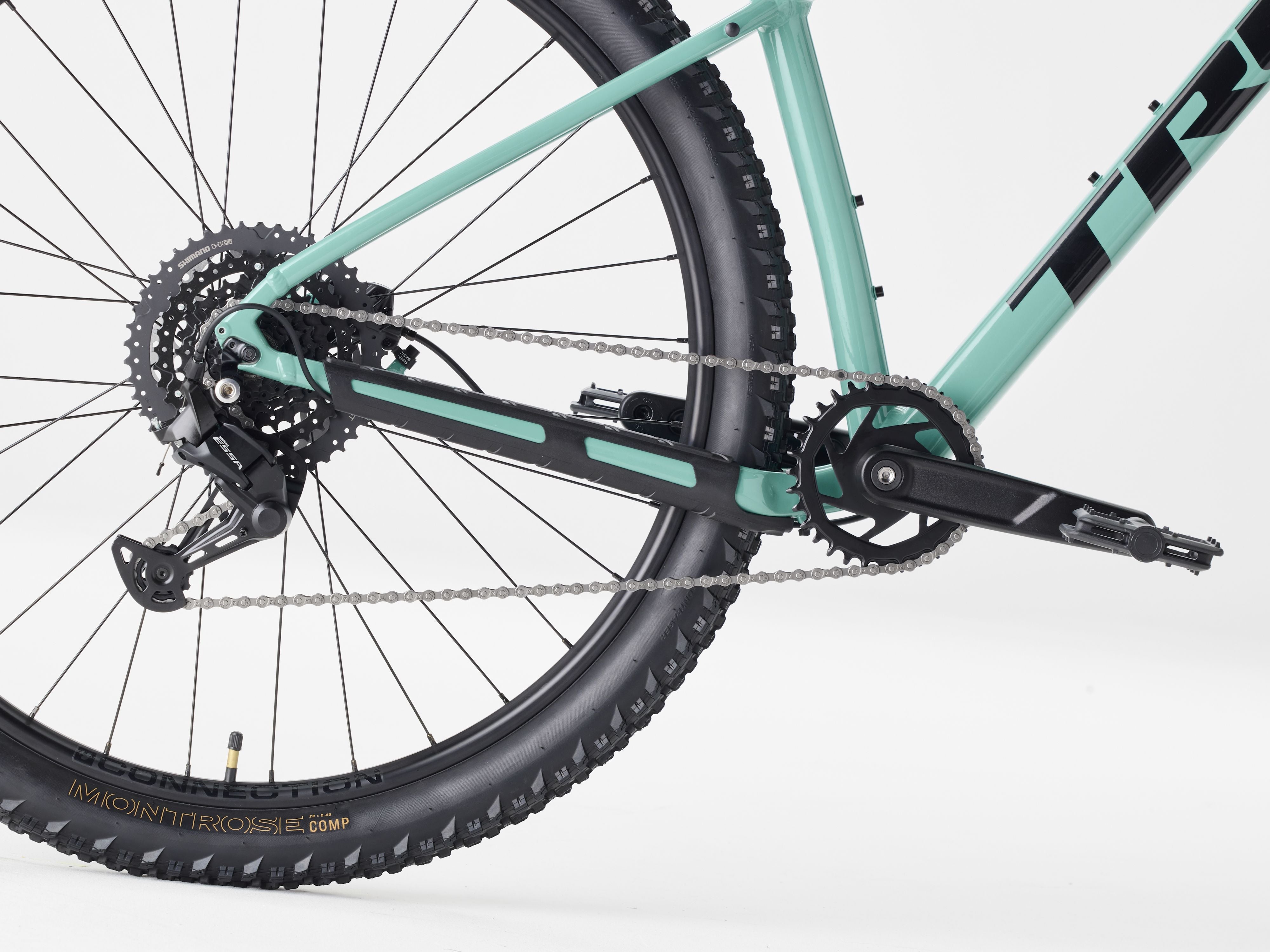

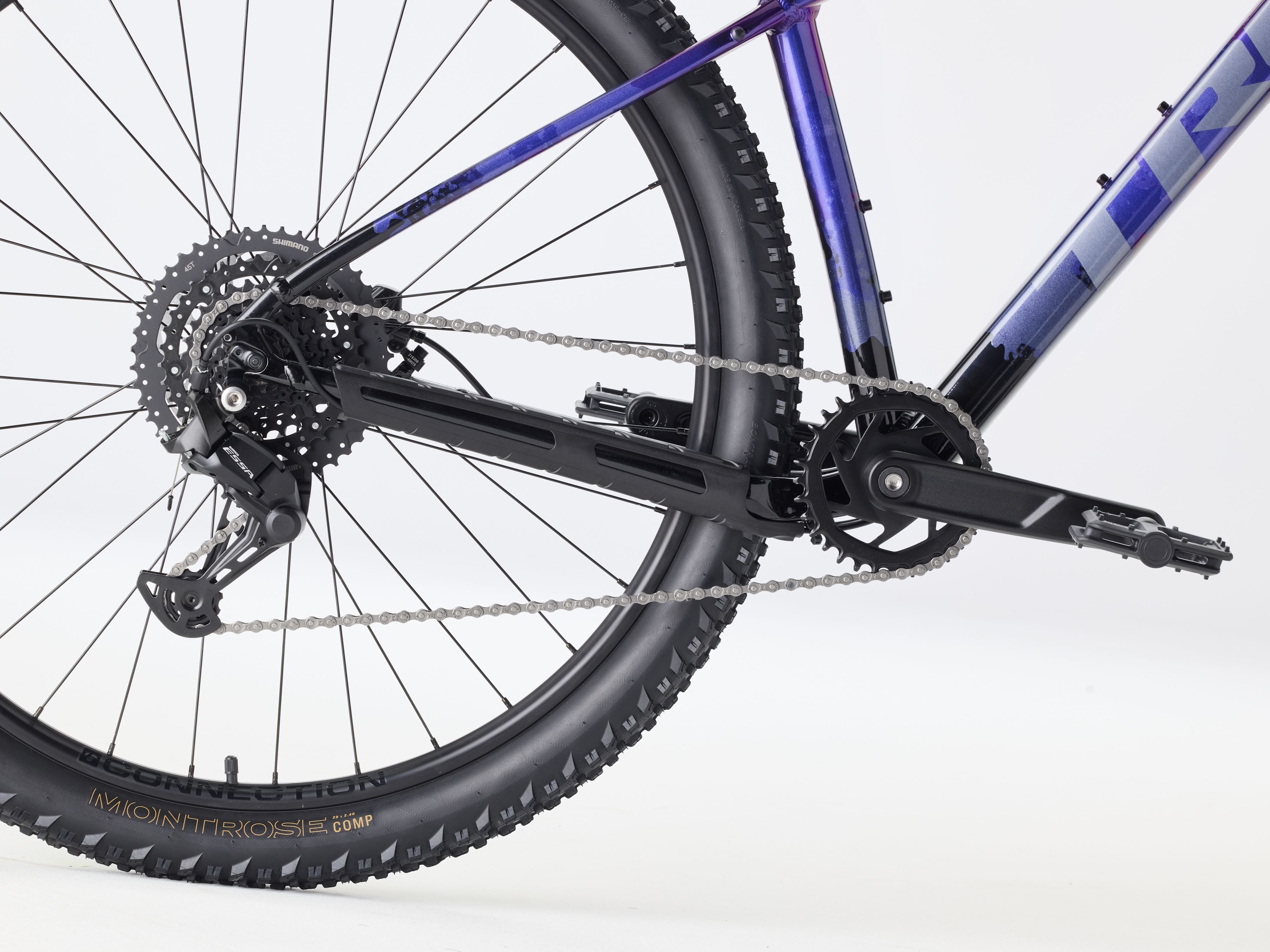

| Derailleur Rear | Shimano ESSA U2000 |
| Crank | ProWheel alloy, 30T narrow-wide steel ring, 175 mm length |
| Bottom Bracket | Threaded cartridge |
| Cassette | Shimano HG300, 11-45, 8-speed |
| Chain | KMC Z8.3, 8-speed |
| Brake | Tektro |
| Brakeset | Tektro HD-M275 hydraulic disc // Tektro HD-M275 hydraulic disc // Power BH-M286TF hydraulic disc, 180 mm rotor // Power BH-M286TF hydraulic disc, 160 mm rotor Tektro HD-M275 hydraulic disc // Tektro HD-M275 hydraulic disc // Power BH-M286TF hyd |
| Brake Rotor | Tektro, 6-bolt, 160mm // Tektro, 6-bolt, 180mm |
| Pedals | Nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Headset | Semi-integrated, 1-1/8'' |
| Grips | Trek Line Comp, nylon lock-on |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
