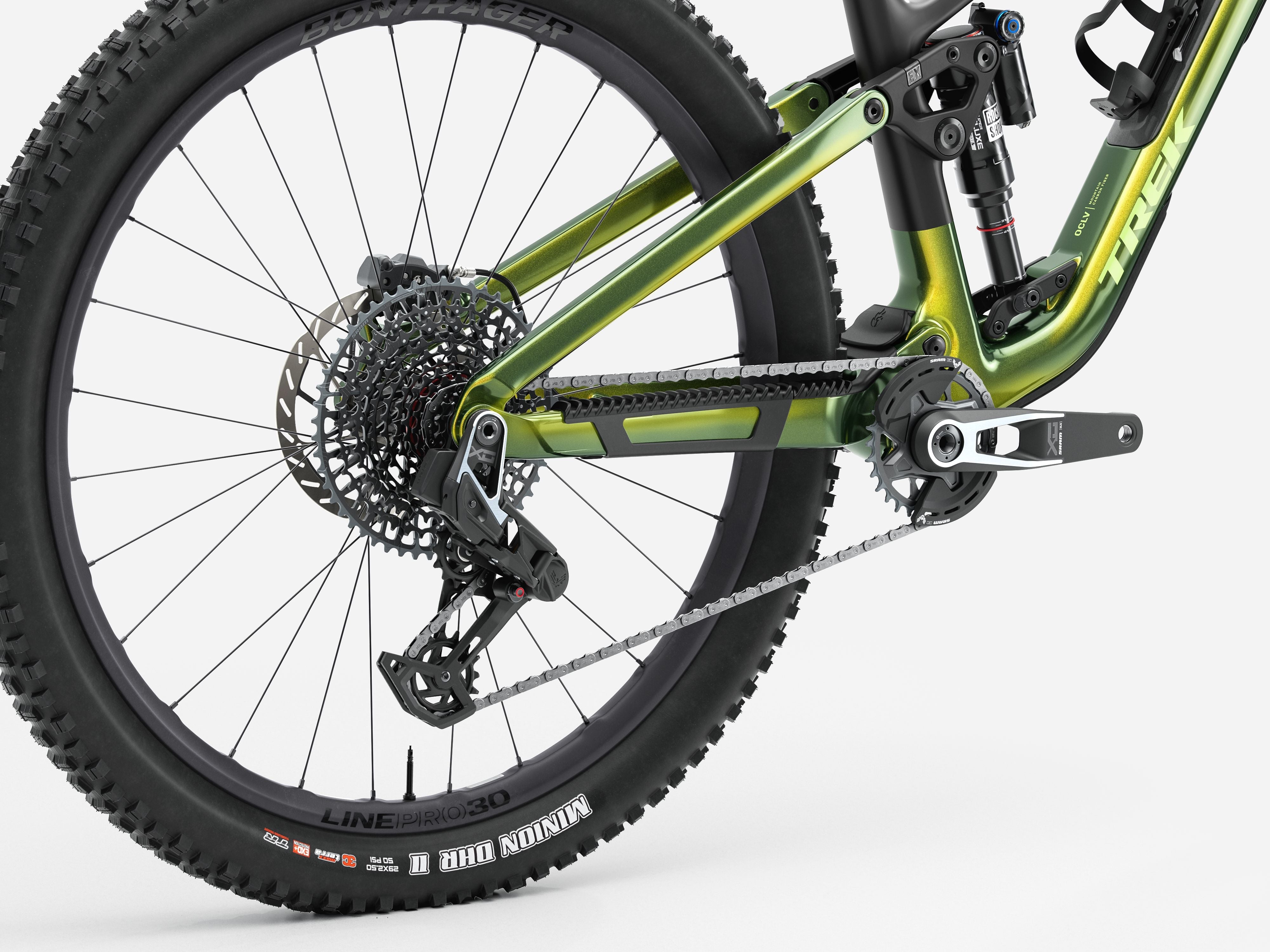

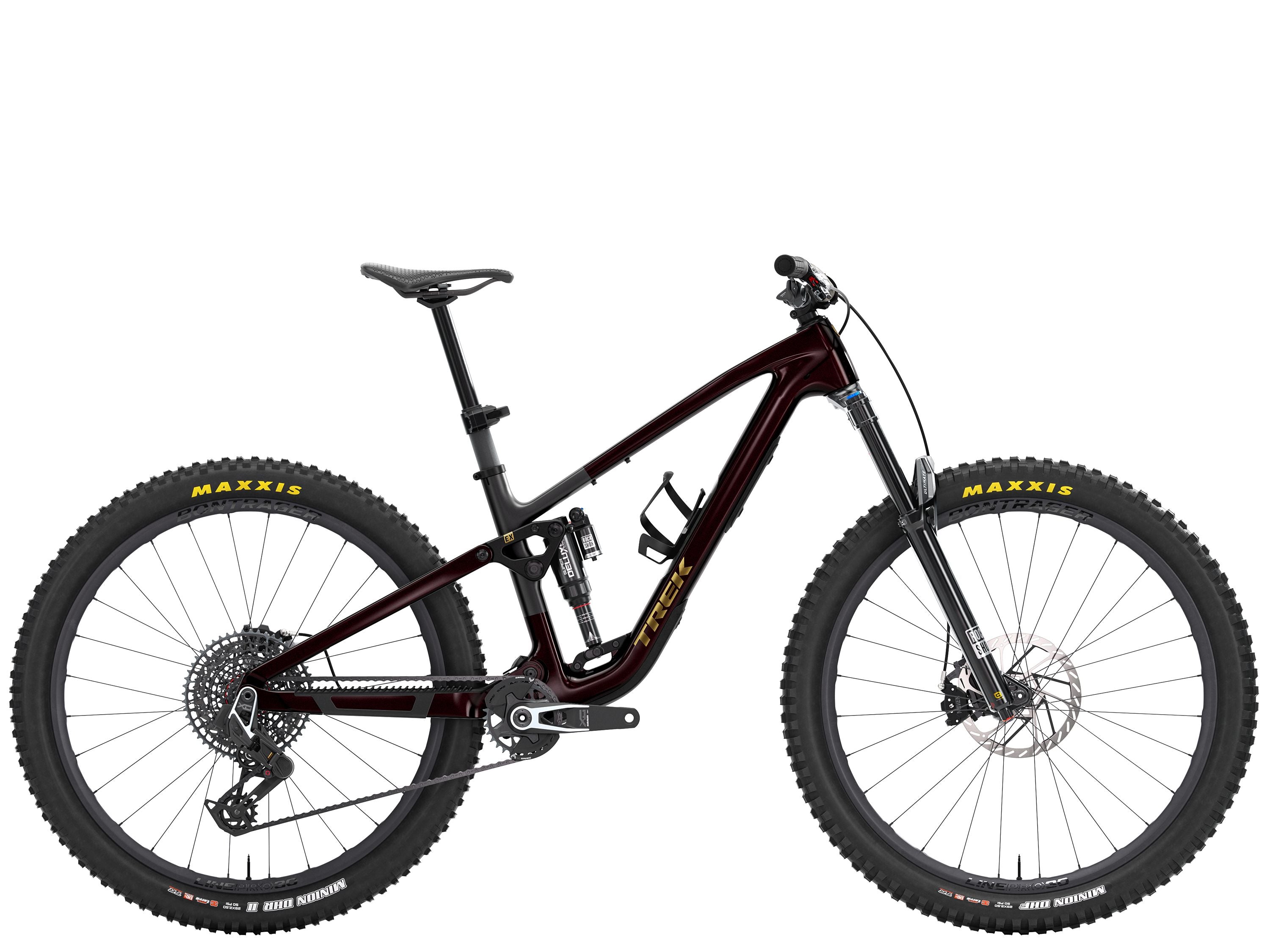

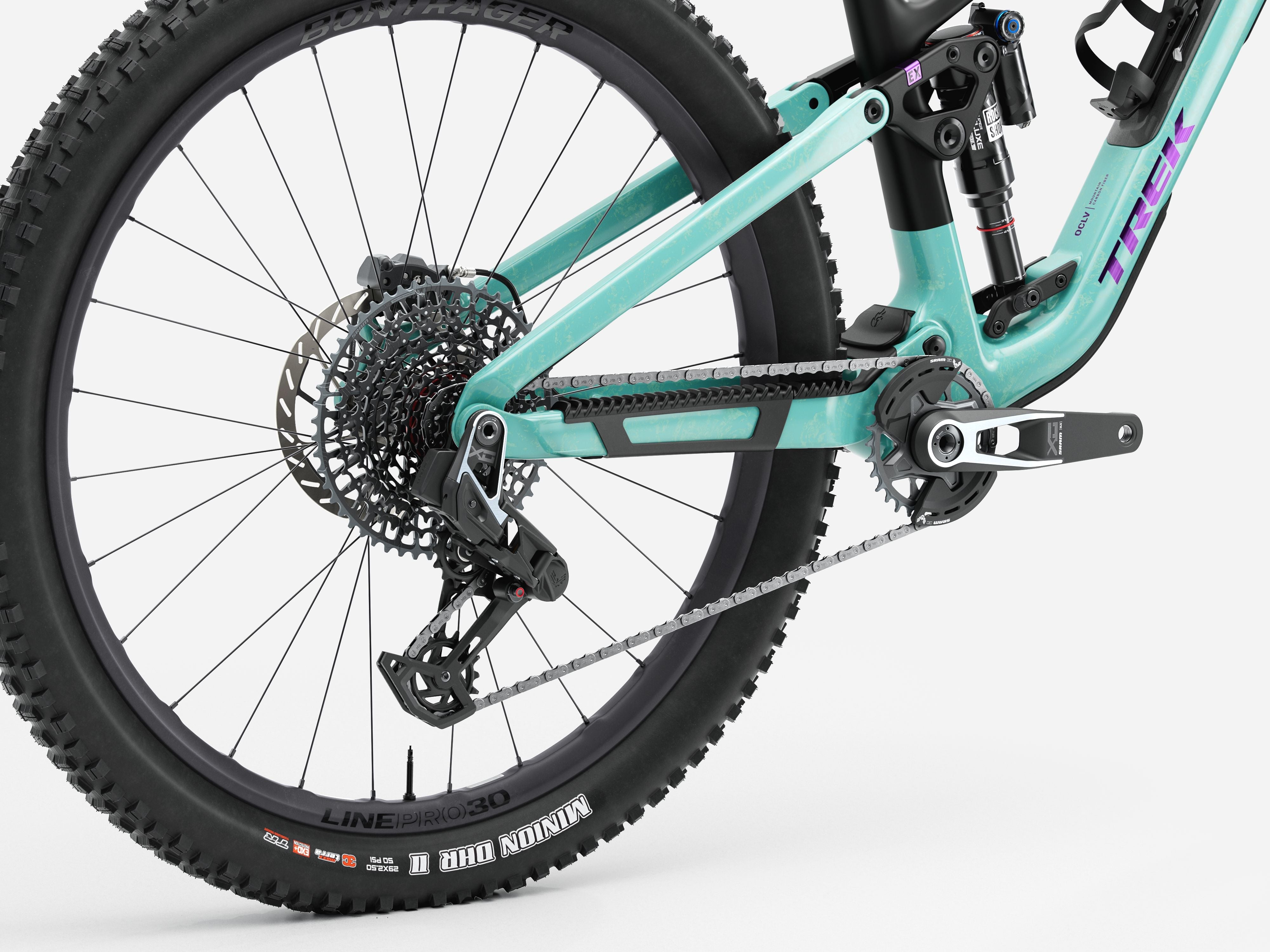

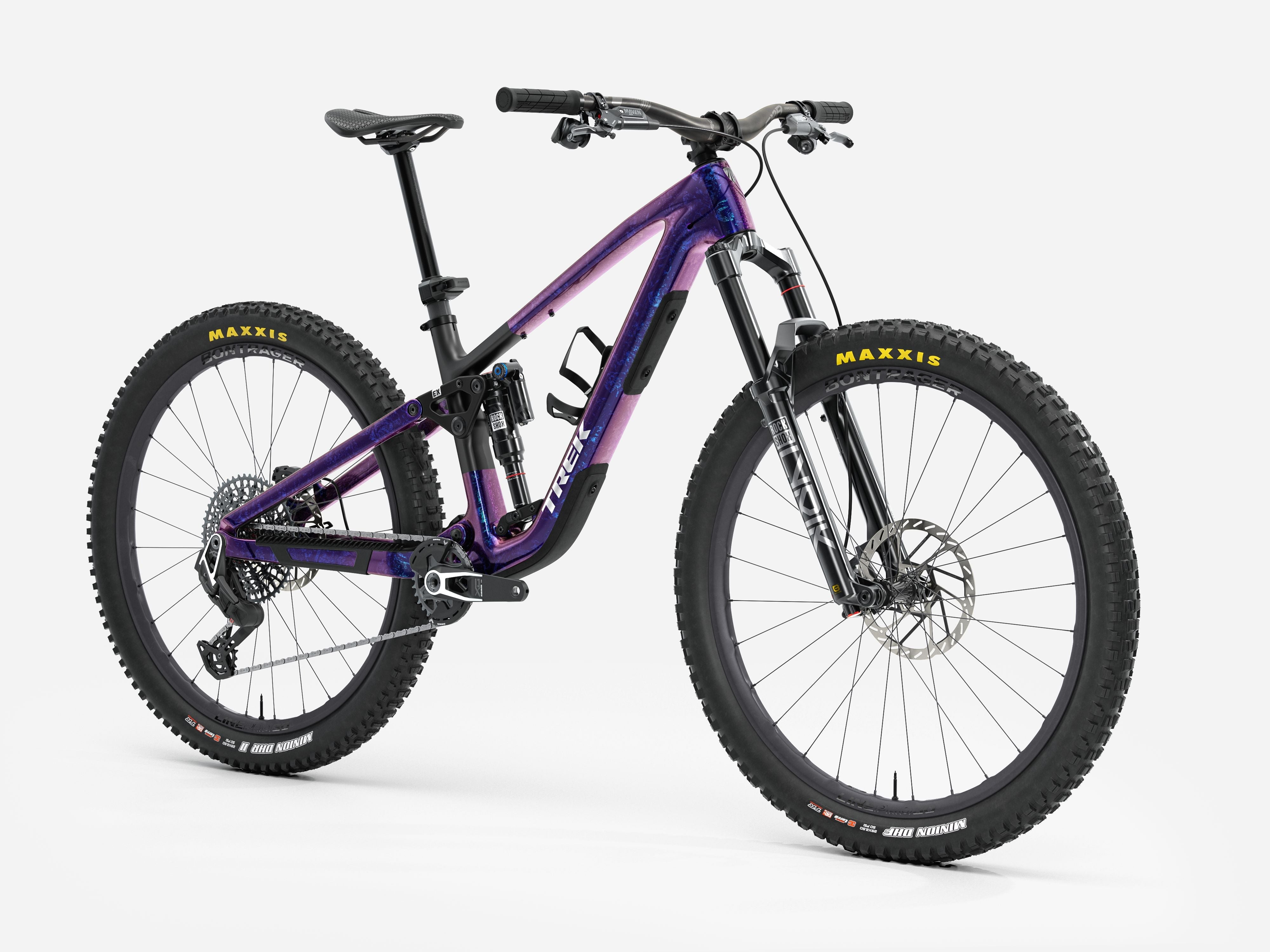

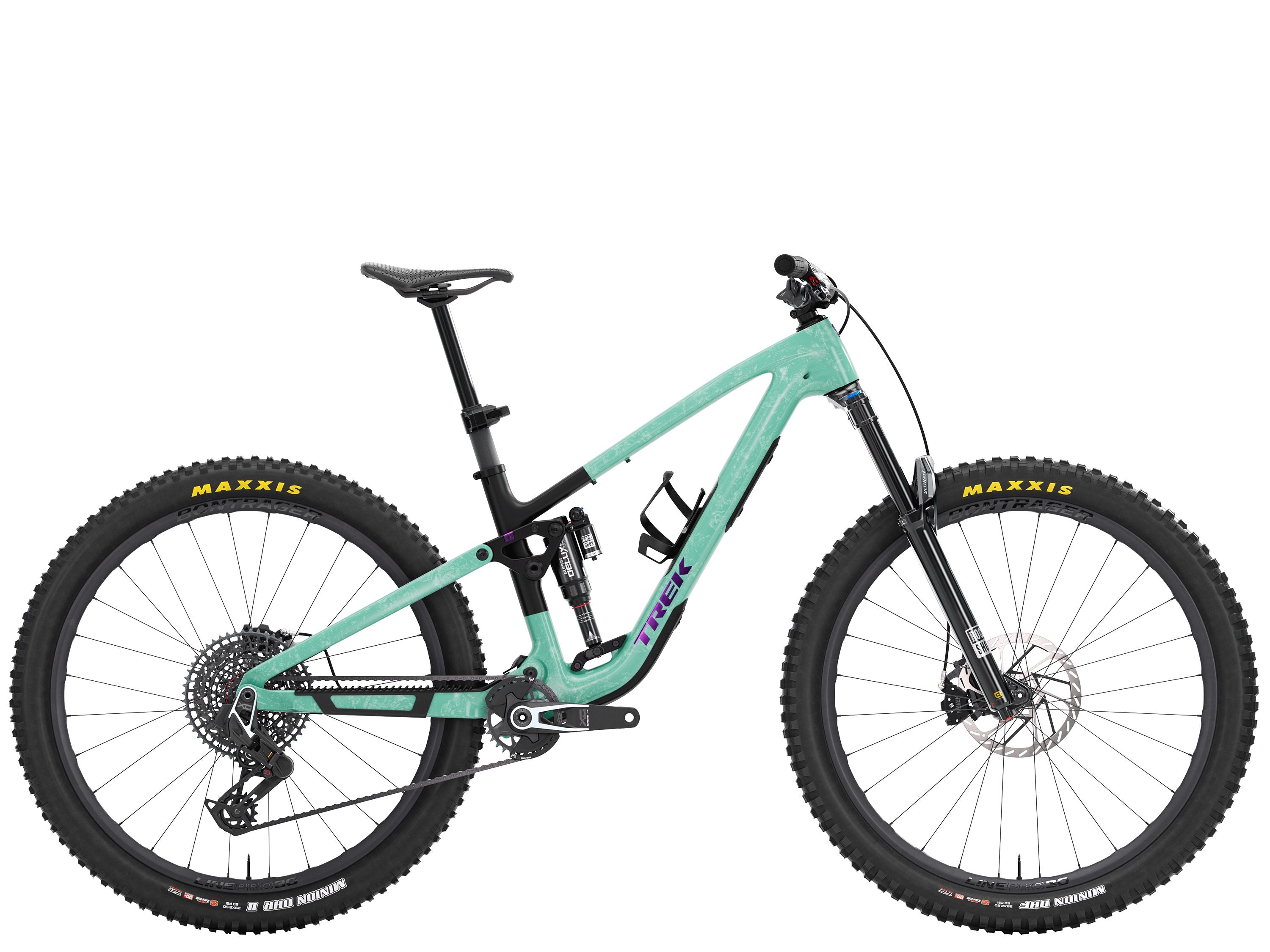

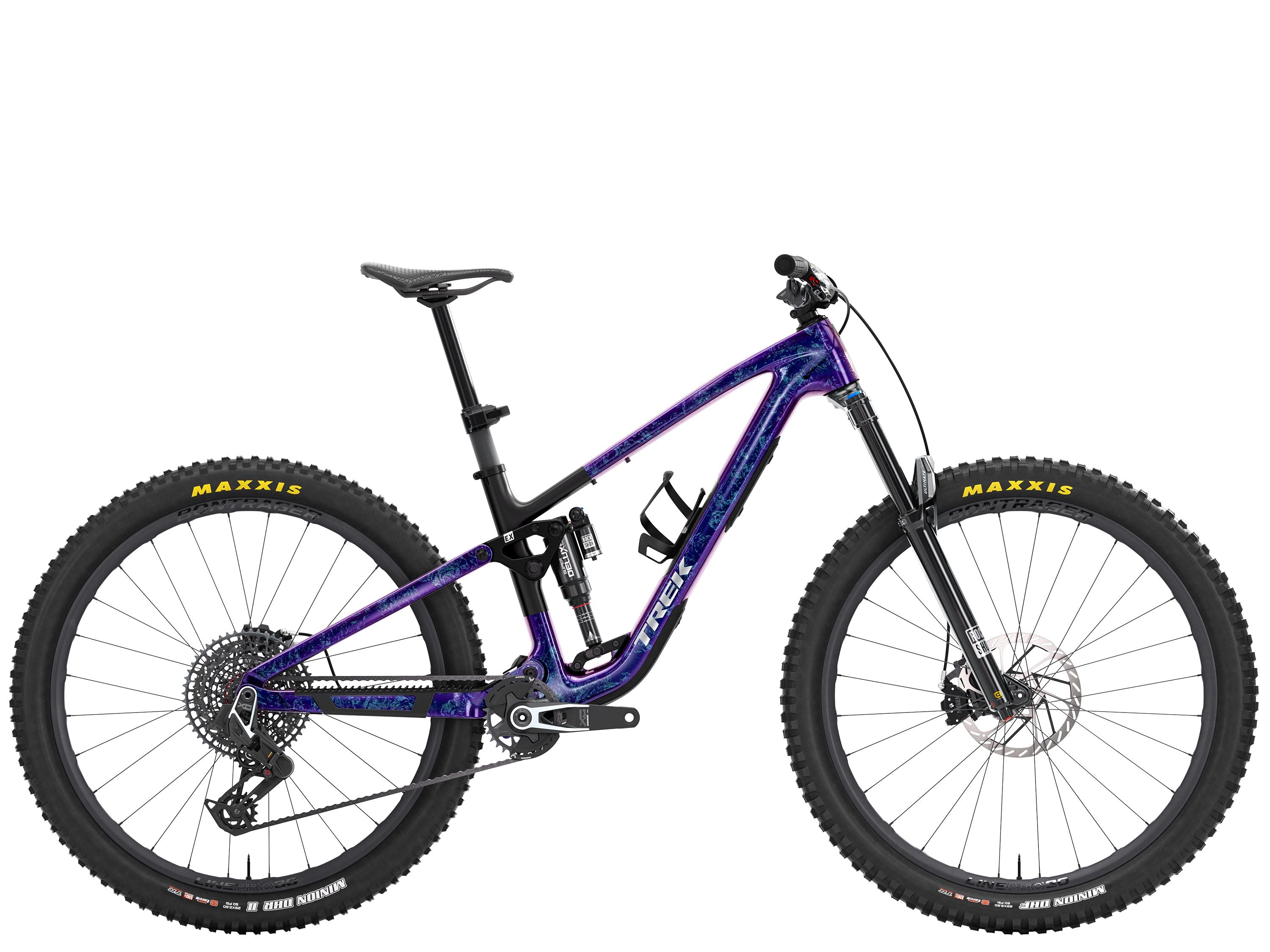

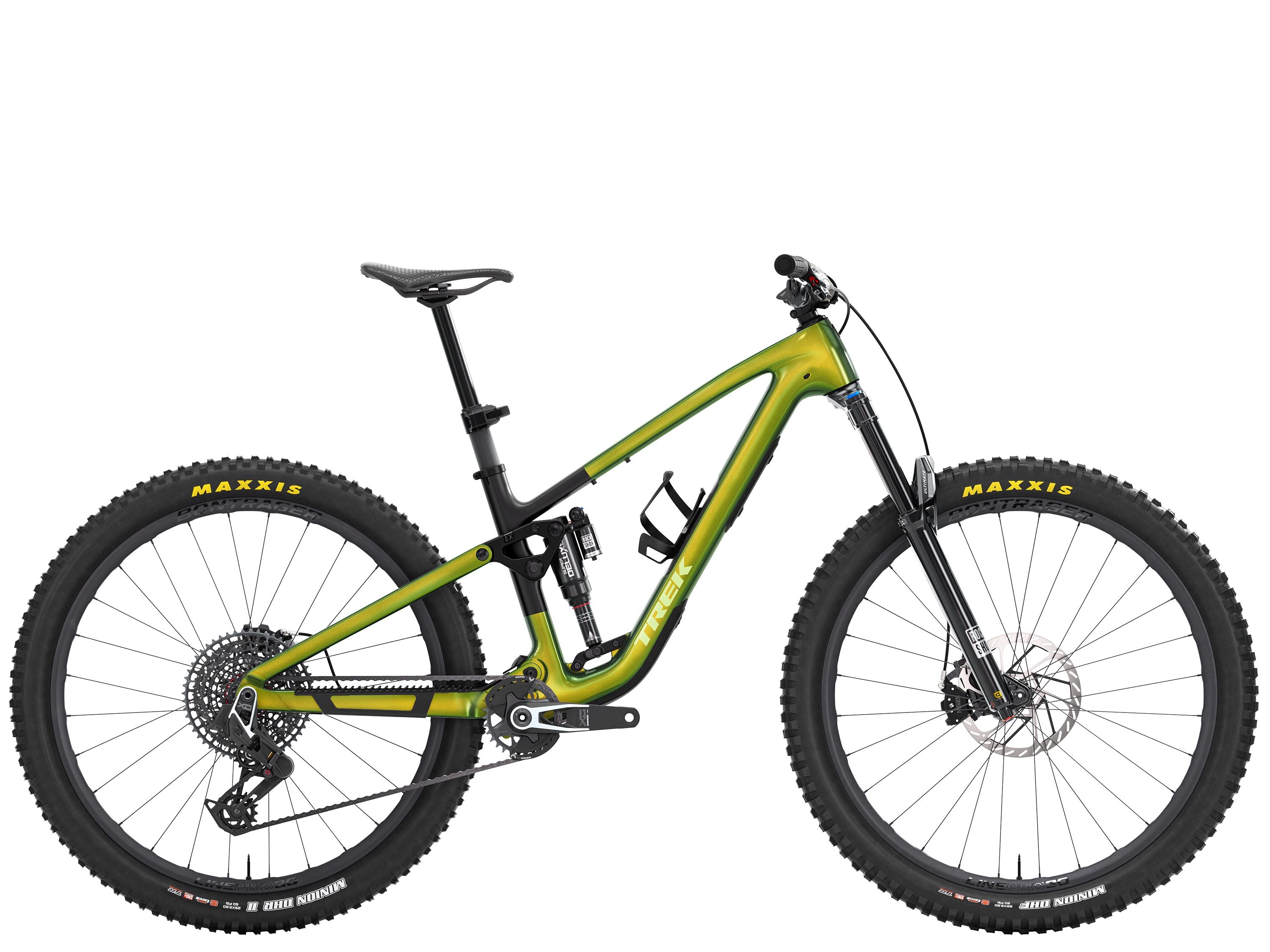

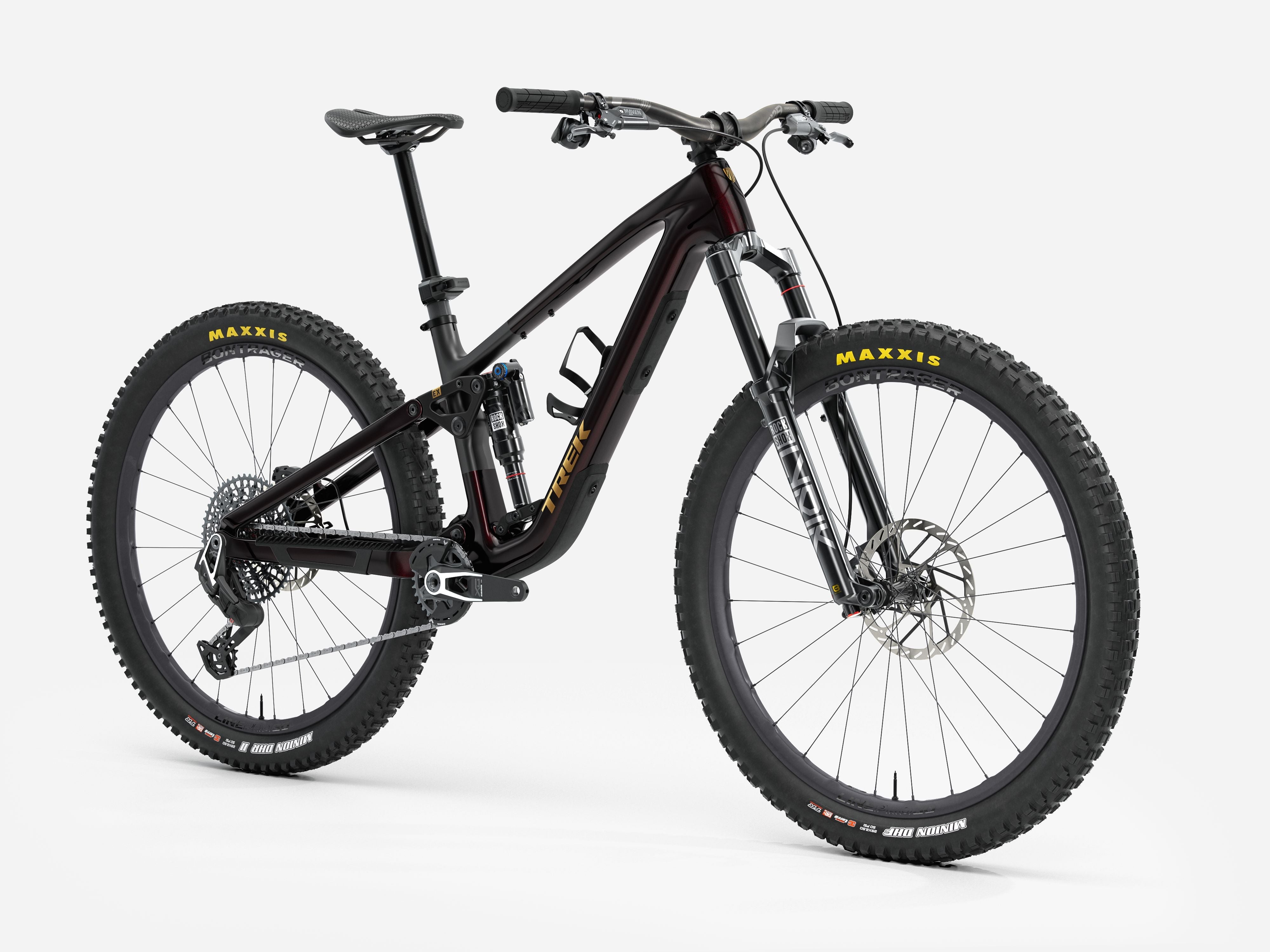

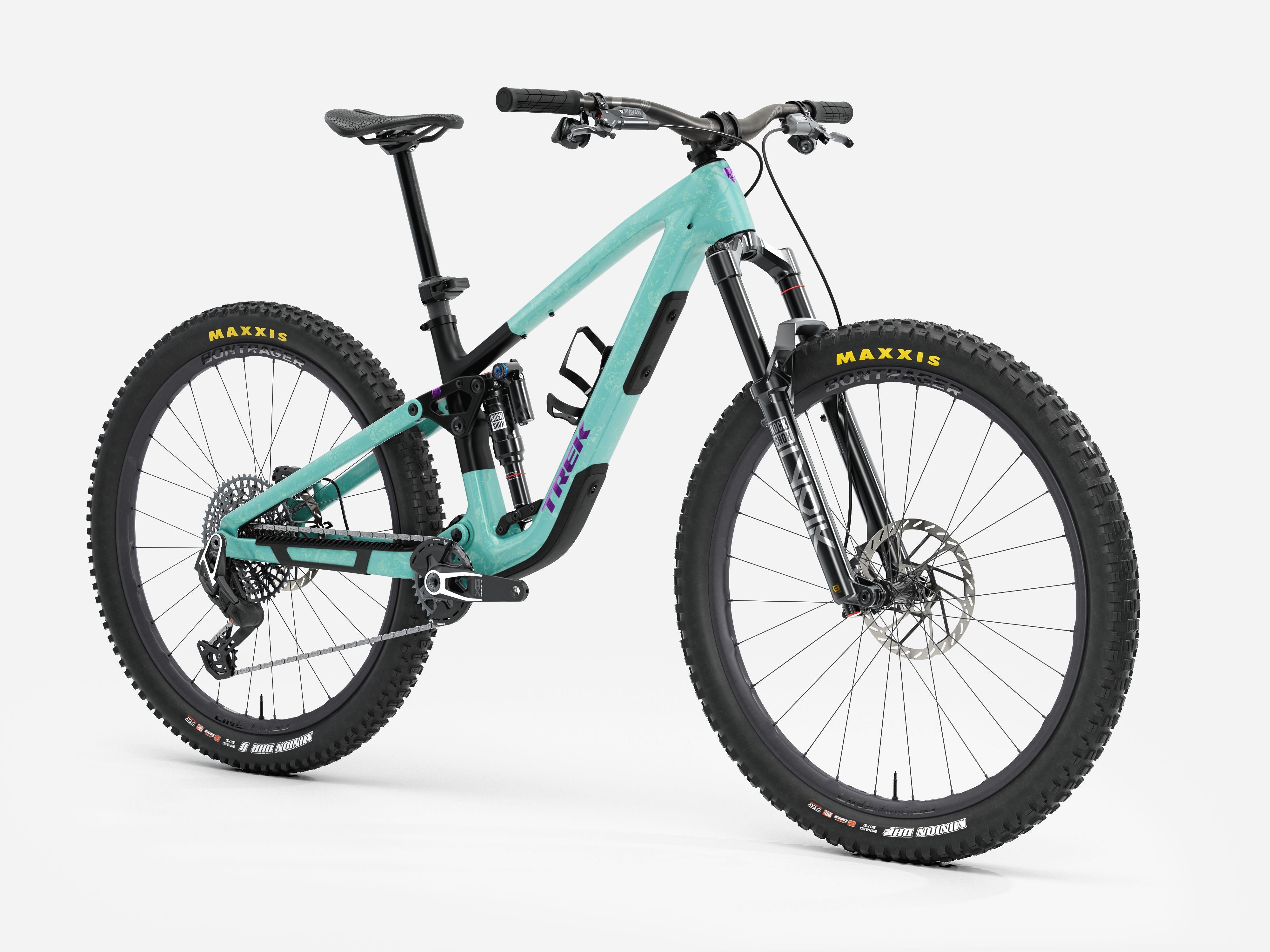

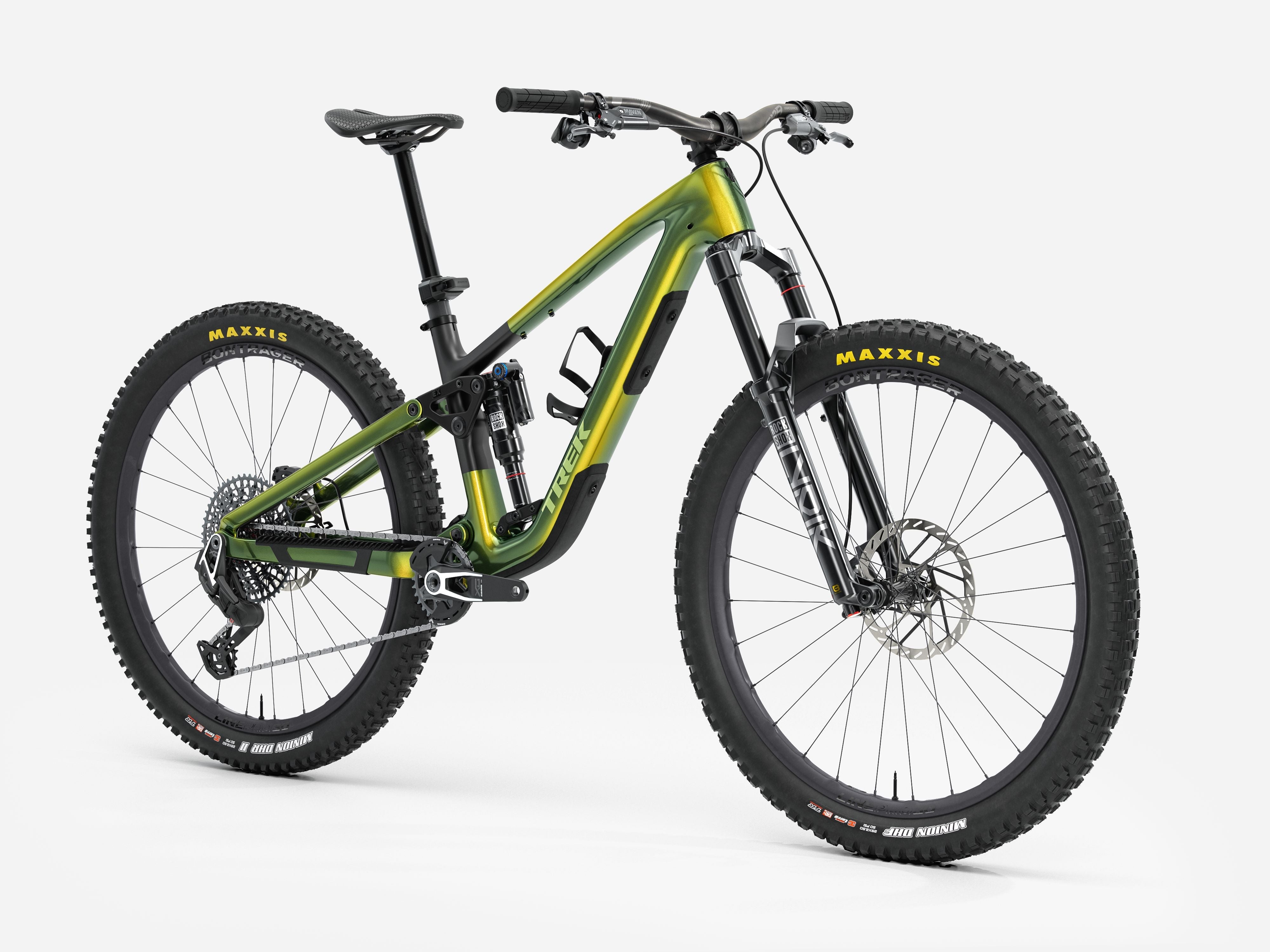

Fuel EX 9.9 X0 AXS
Fuel EX 9.9 X0 AXS is our cream-of-the-crop versatile trail bike, built for taking on any trail, any time. Its OCLV Mountain Carbon frame partners with a RockShox Deluxe Ultimate RC2T shock and Lyrik Ultimate fork (145mm rear, 150mm front) to give you the travel you need for rowdy roots and jump lines. For smooth shifts, it's spec’d with a wireless X0 Eagle AXS transmission, while SRAM Maven Silver 4-piston brakes keep you stopping on a dime. It's finished off with OCLV Mountain Carbon Bontrager Line Pro 30 wheels and an upgraded RockShox Reverb AXS wireless dr
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
|---|---|
| Frame Material | CARBON |
| Rim Size | 29 |
| Fork | RockShox |
| Fork | RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC d |
| Rearsuspension | RockShox |

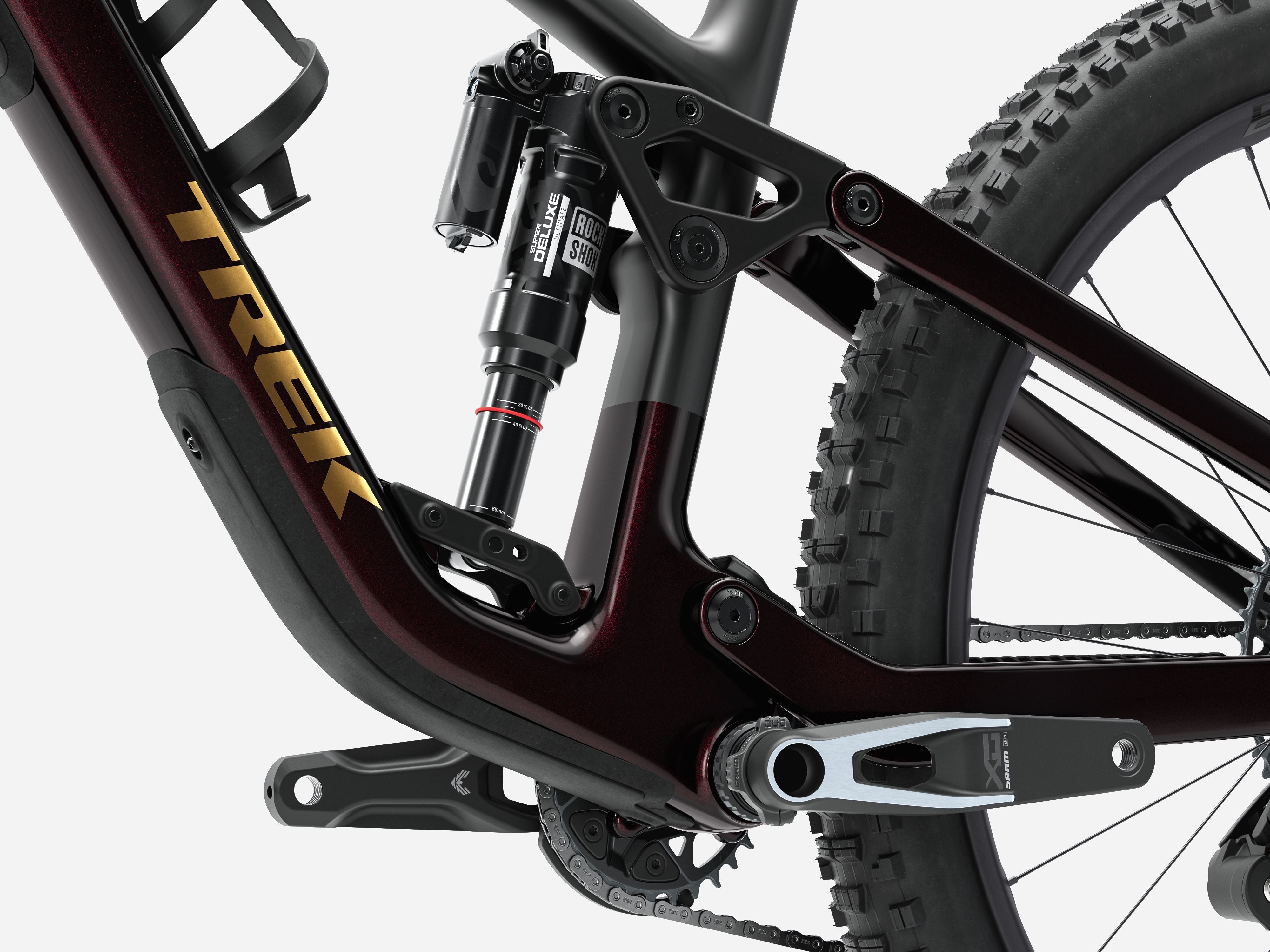

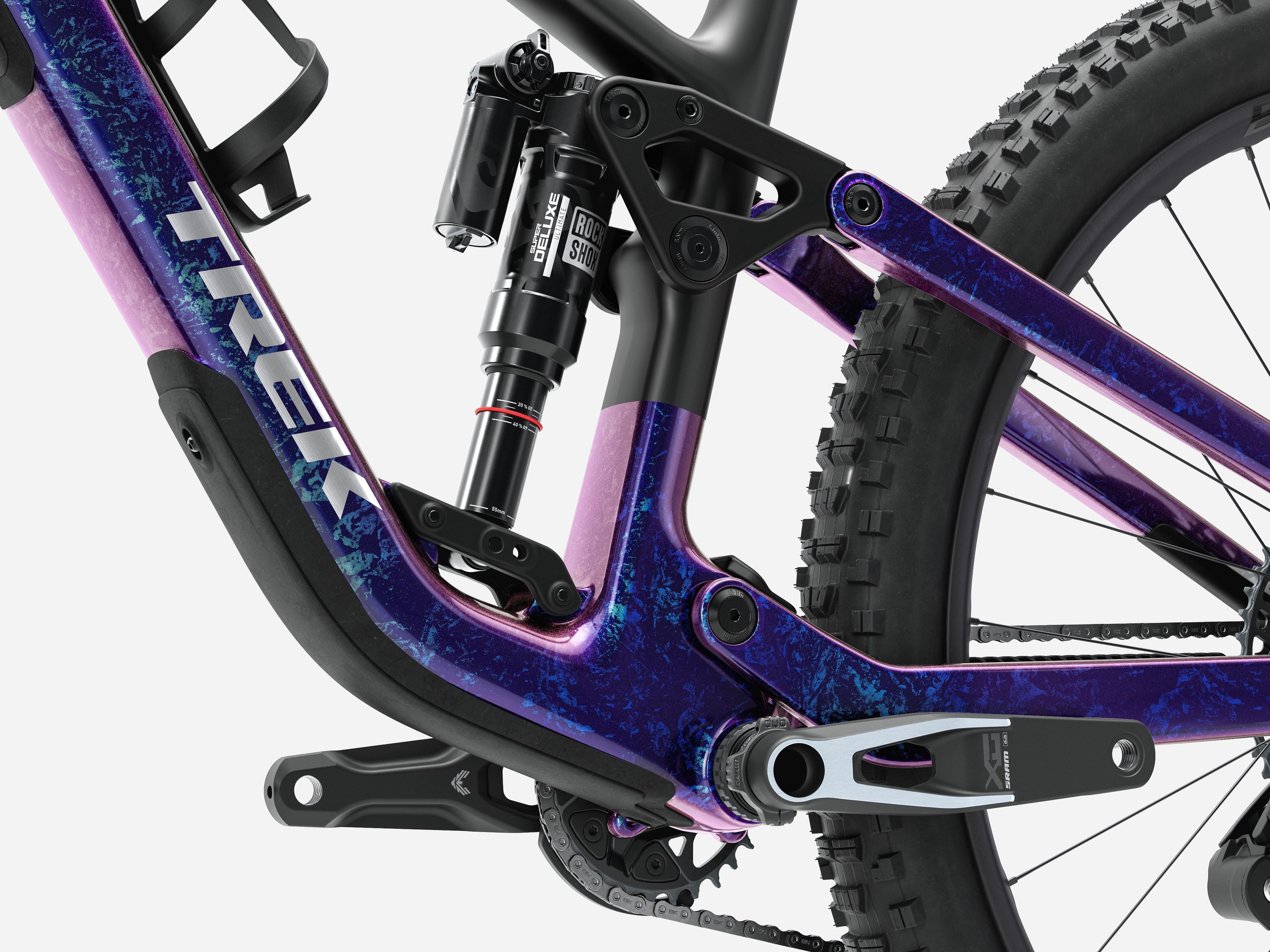

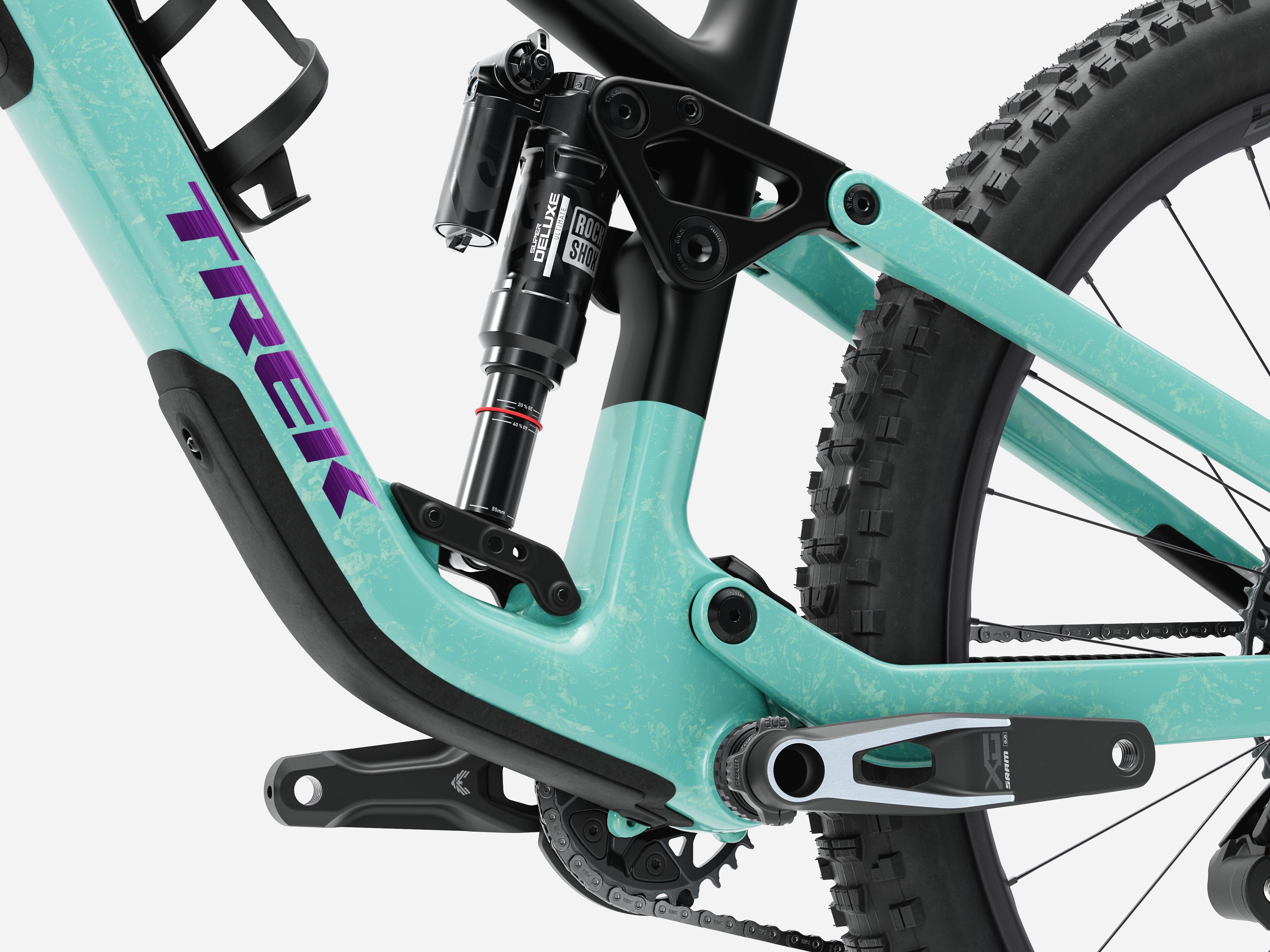

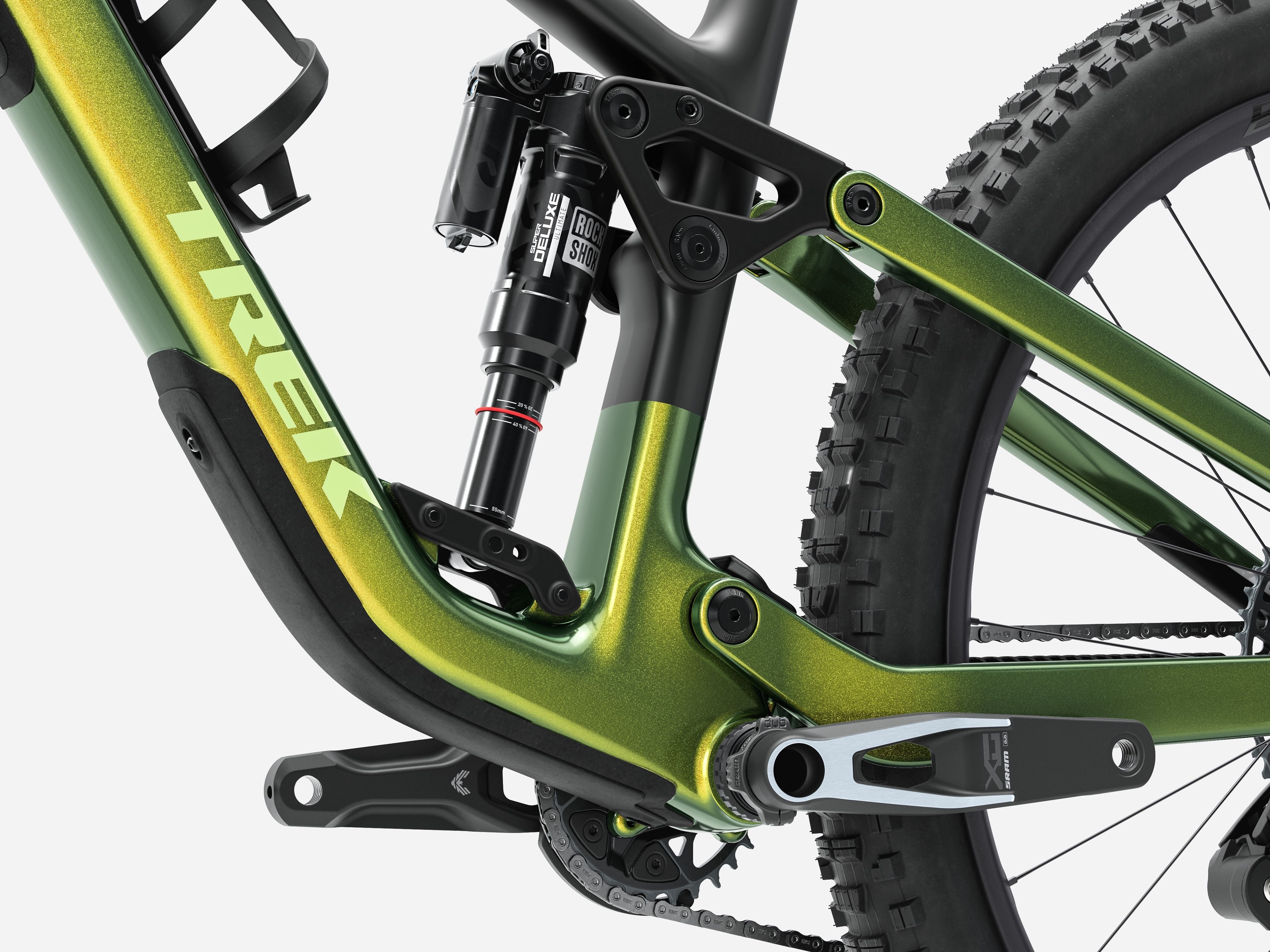

| Suspension Rear | RockShox Deluxe Ultimate RC2T, 205 mm x 60 mm |
| Wheels | Bontrager Line Pro 30 |
| Tires | Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" |
| Shifter | SRAM |
| Derailleur Rear | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170 mm length // SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 165mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 180mm // SRAM HS2, 6-bolt, 200mm |
| Saddle | Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width |
| Seatpost | RockShox Reverb AXS, 200 mm travel, wireless, 34.9 mm, 542 mm length |
| Handlebar | Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| Stem | Race Face Turbine R, 35mm, 0 degree, 40mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | SRAM AXS battery pack (with charger) SRAM AXS battery pack (with charger) |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
