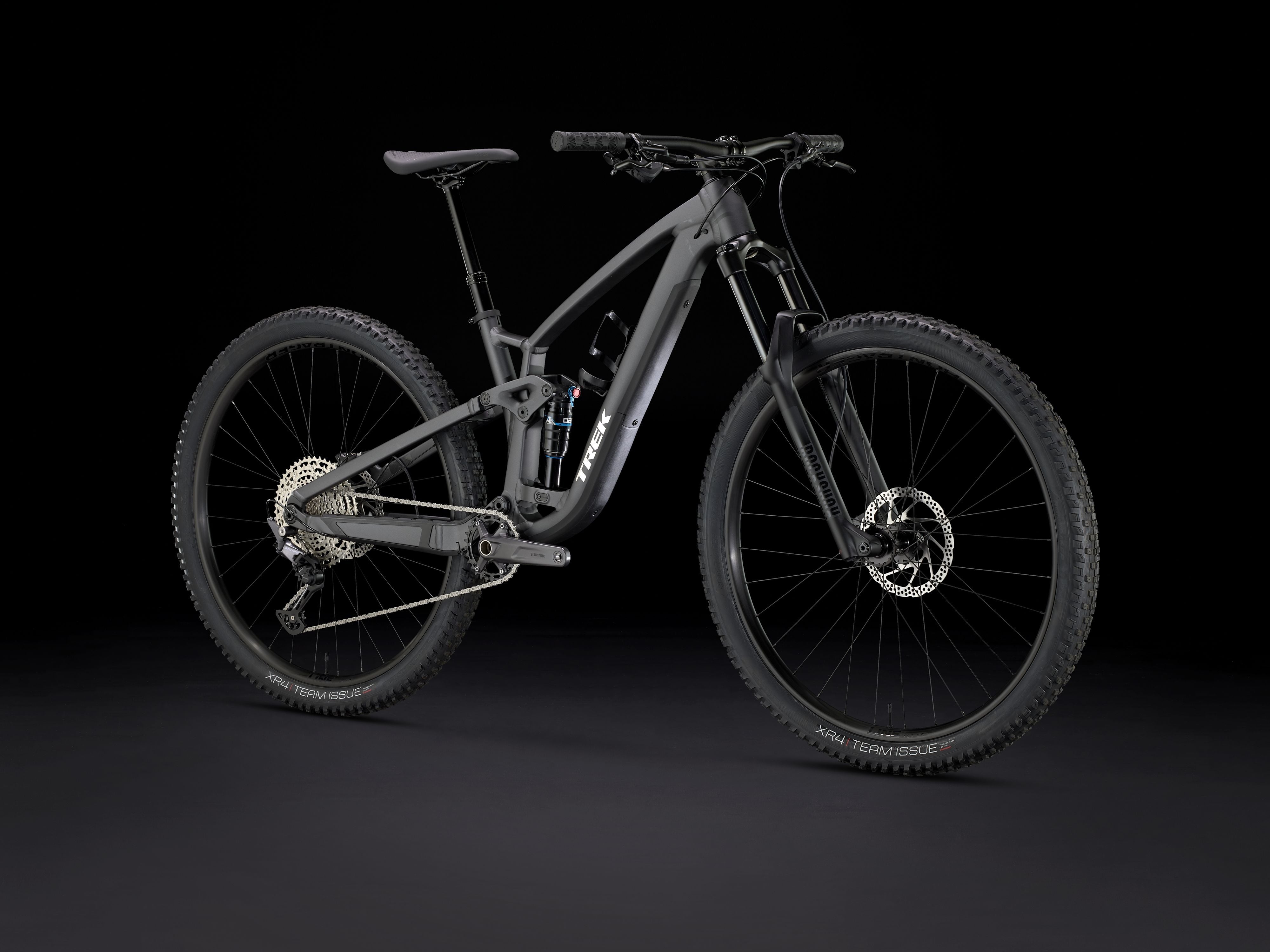

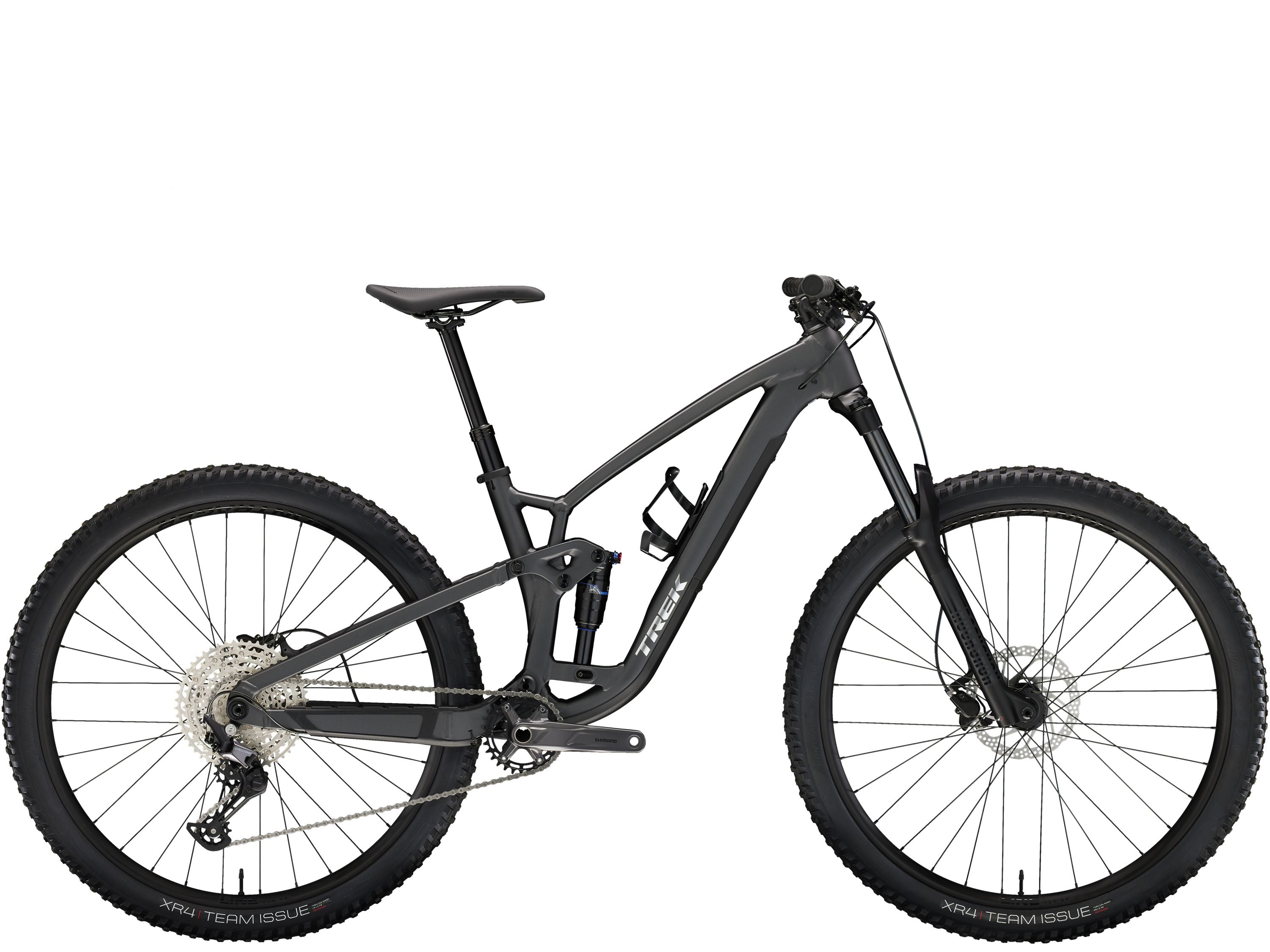

Fuel EX 5 Gen 6

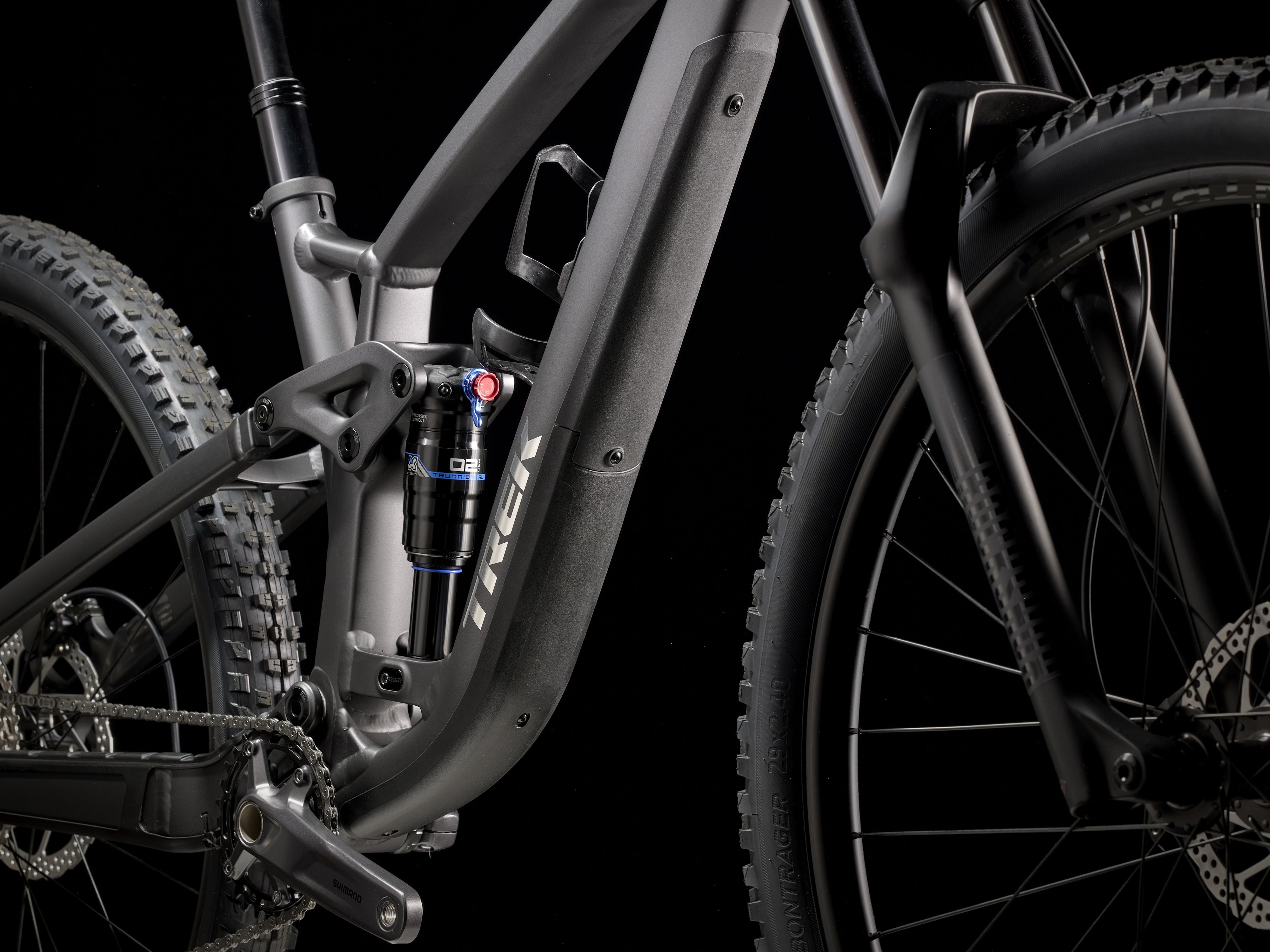

The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With 150 mm front and 140 mm rear trail-taming suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
Technology

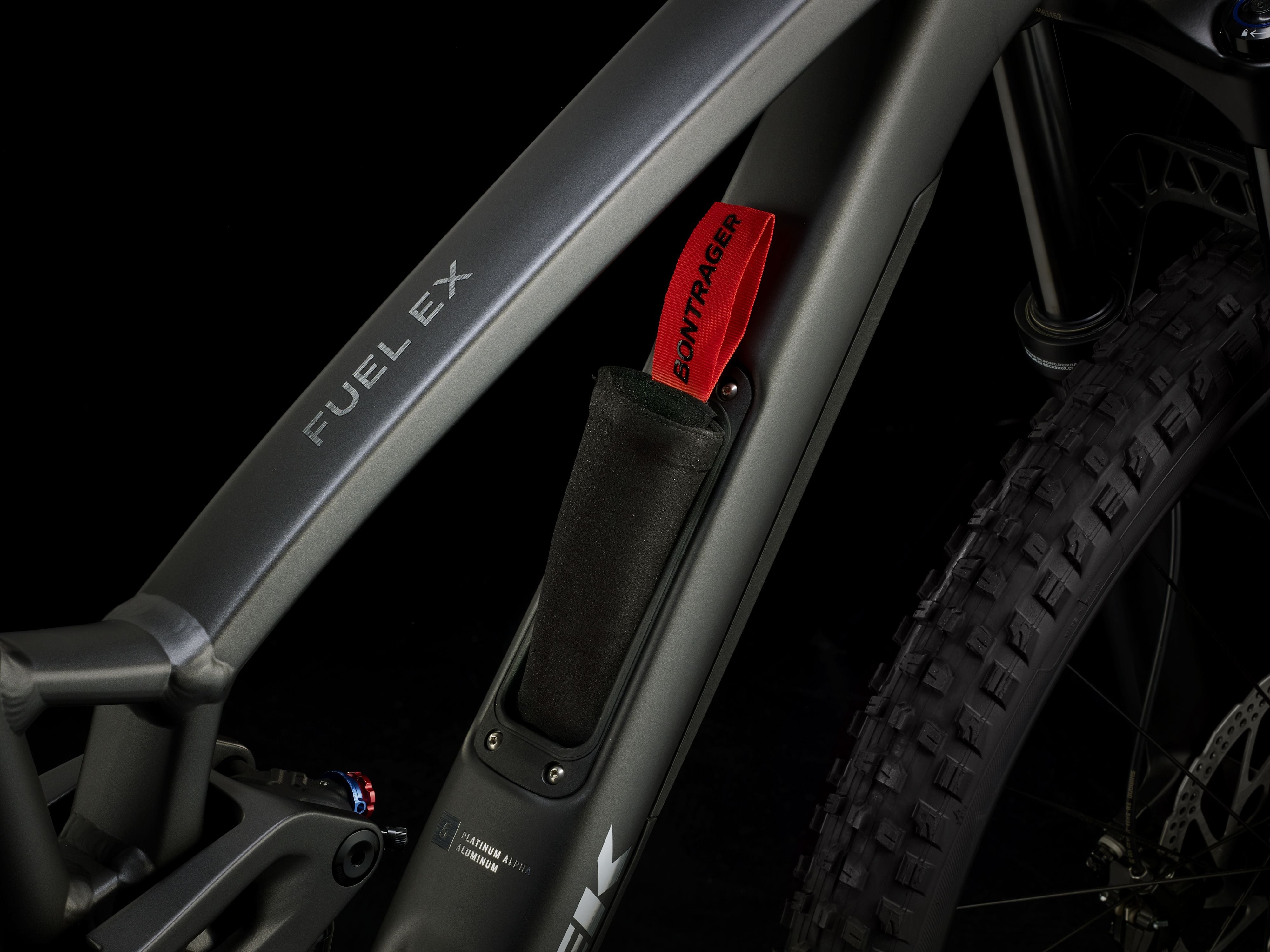

Internal Storage - Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
Specification

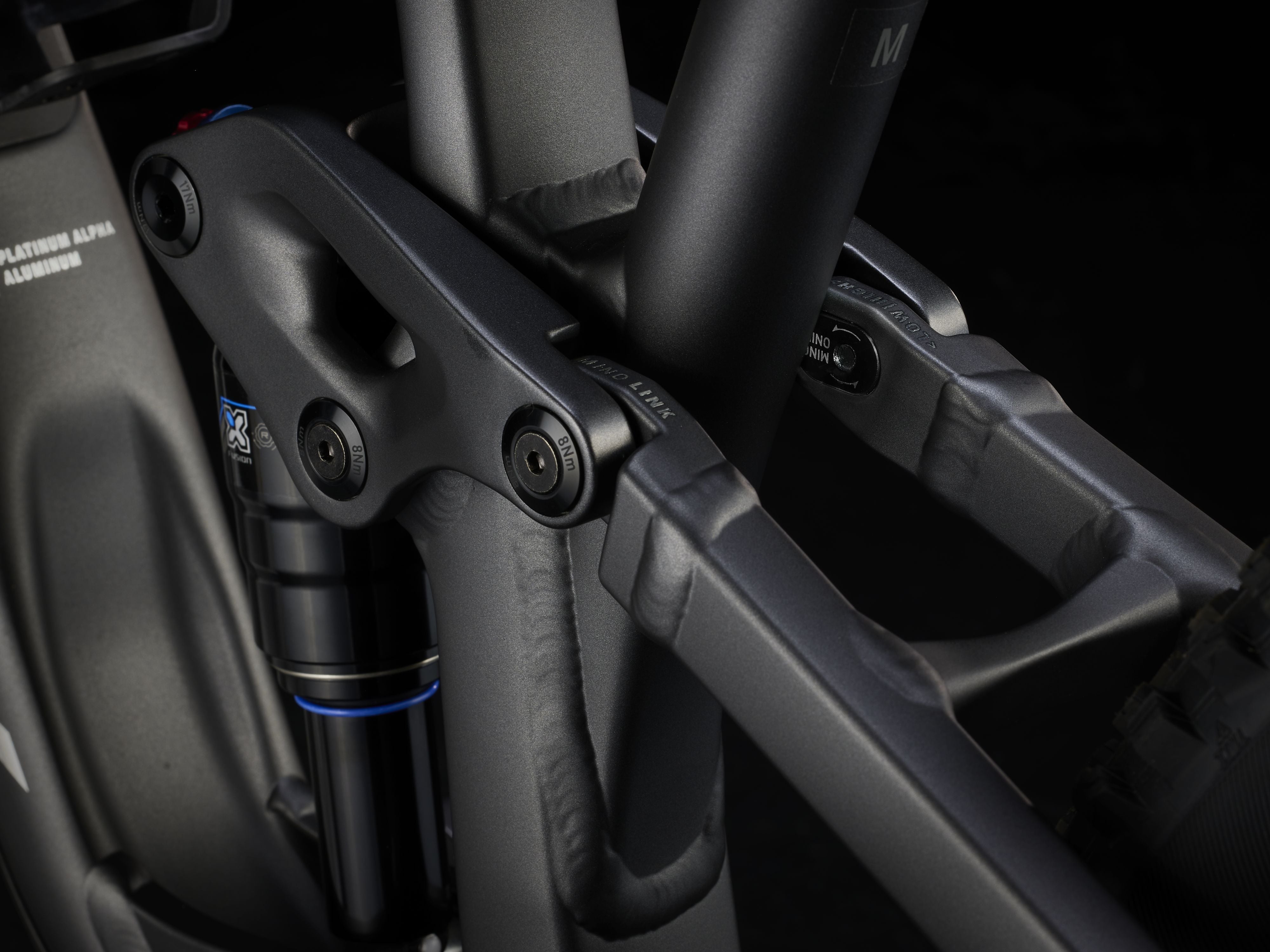

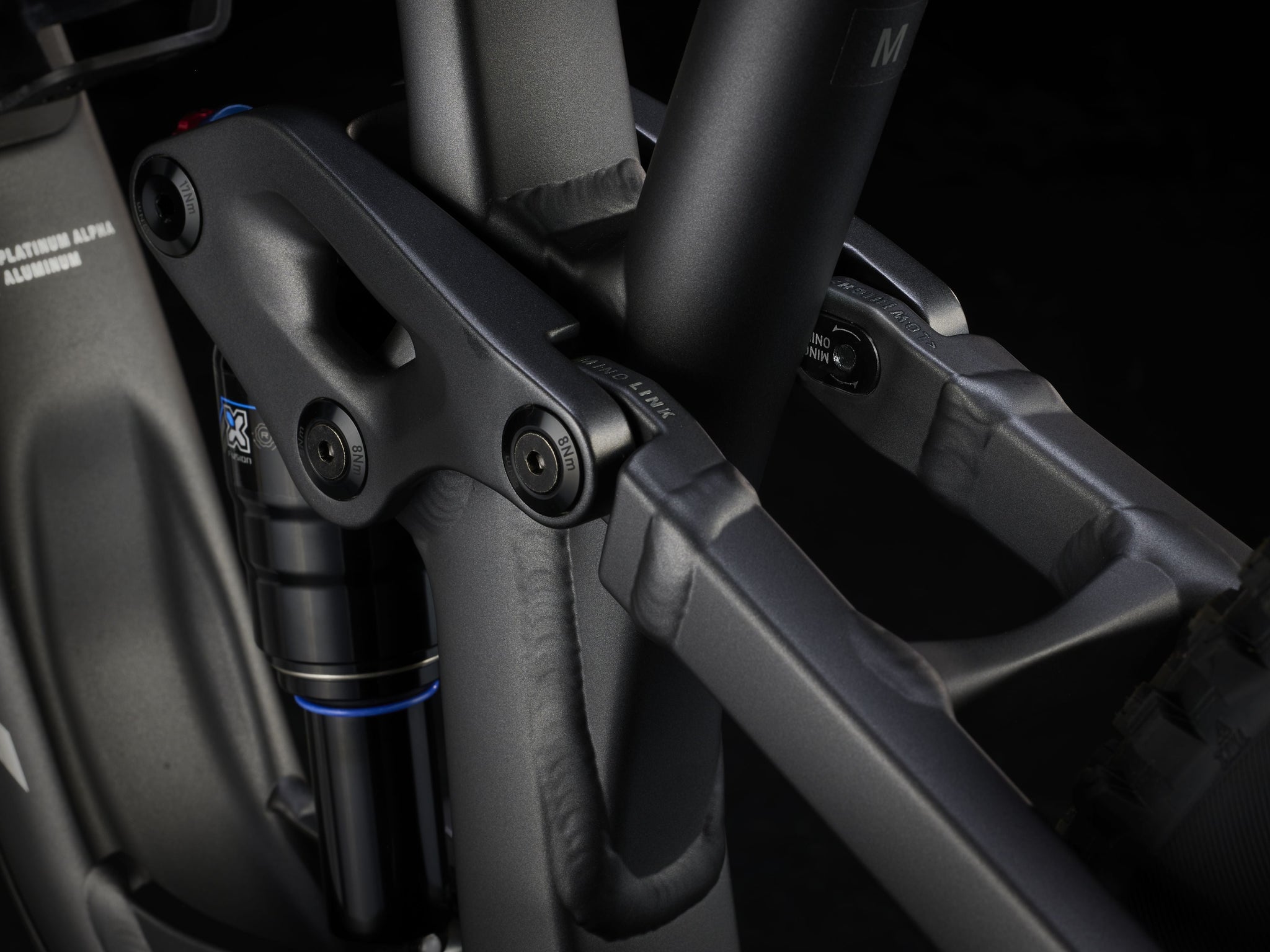

| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel Alp |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | RockShox |
| Fork | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, l |
| Rearsuspension | X-Fusion |

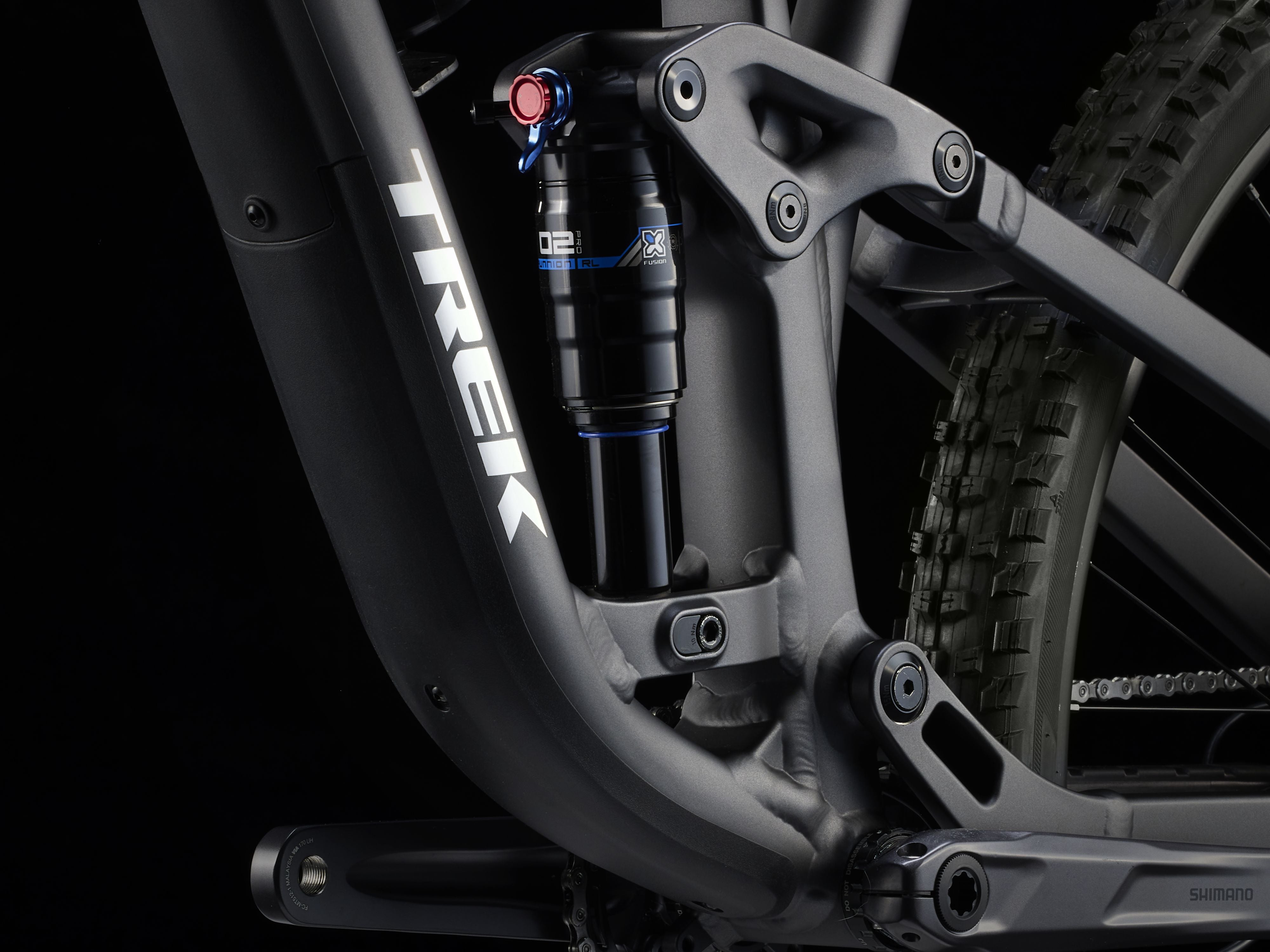

| Suspension Rear | X-Fusion Pro 2, 2-position damper, 185 mm x 55mm |
| Tires | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Hub Front | Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle |

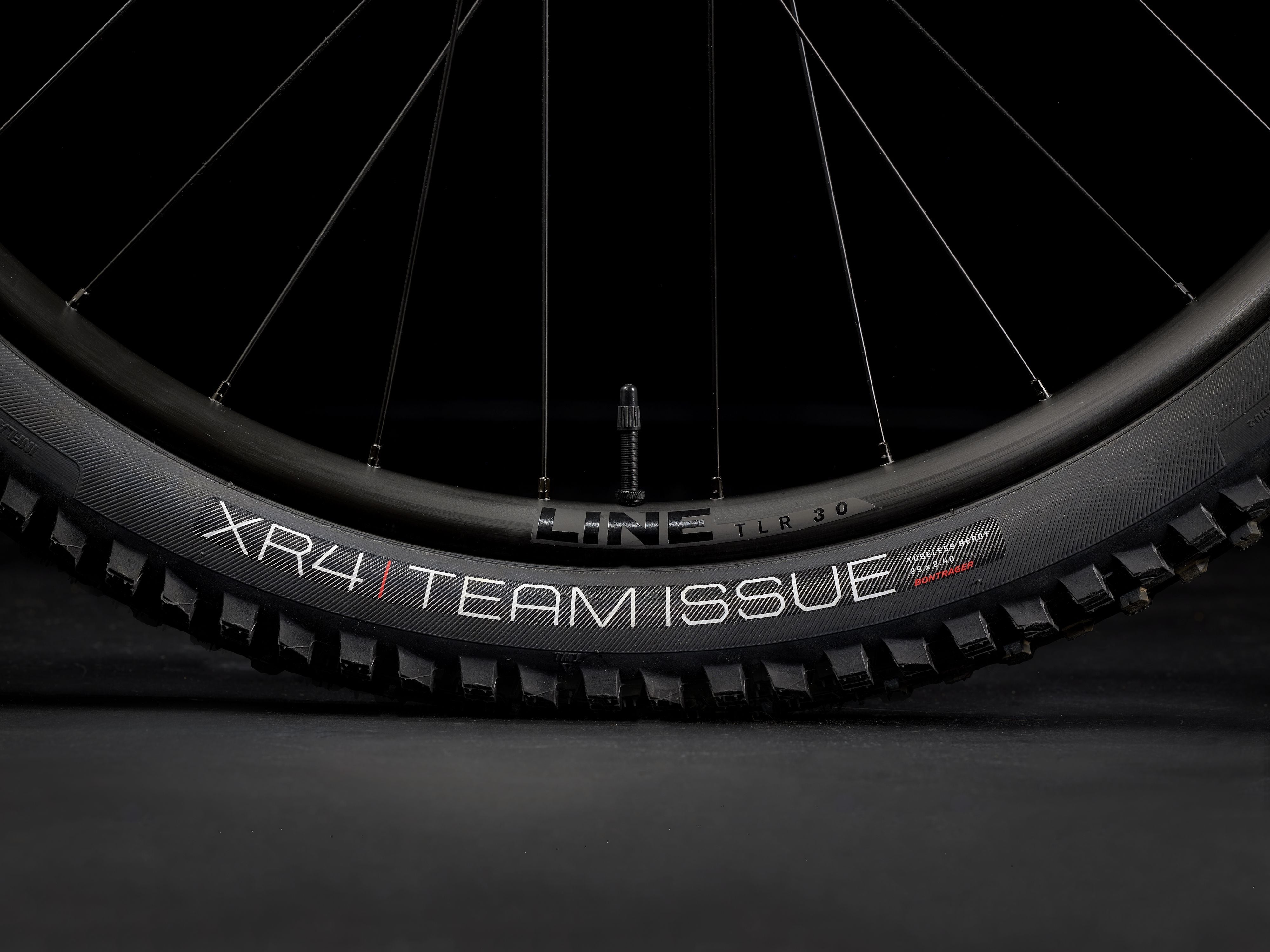

| Rims | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Shifter | Shimano |

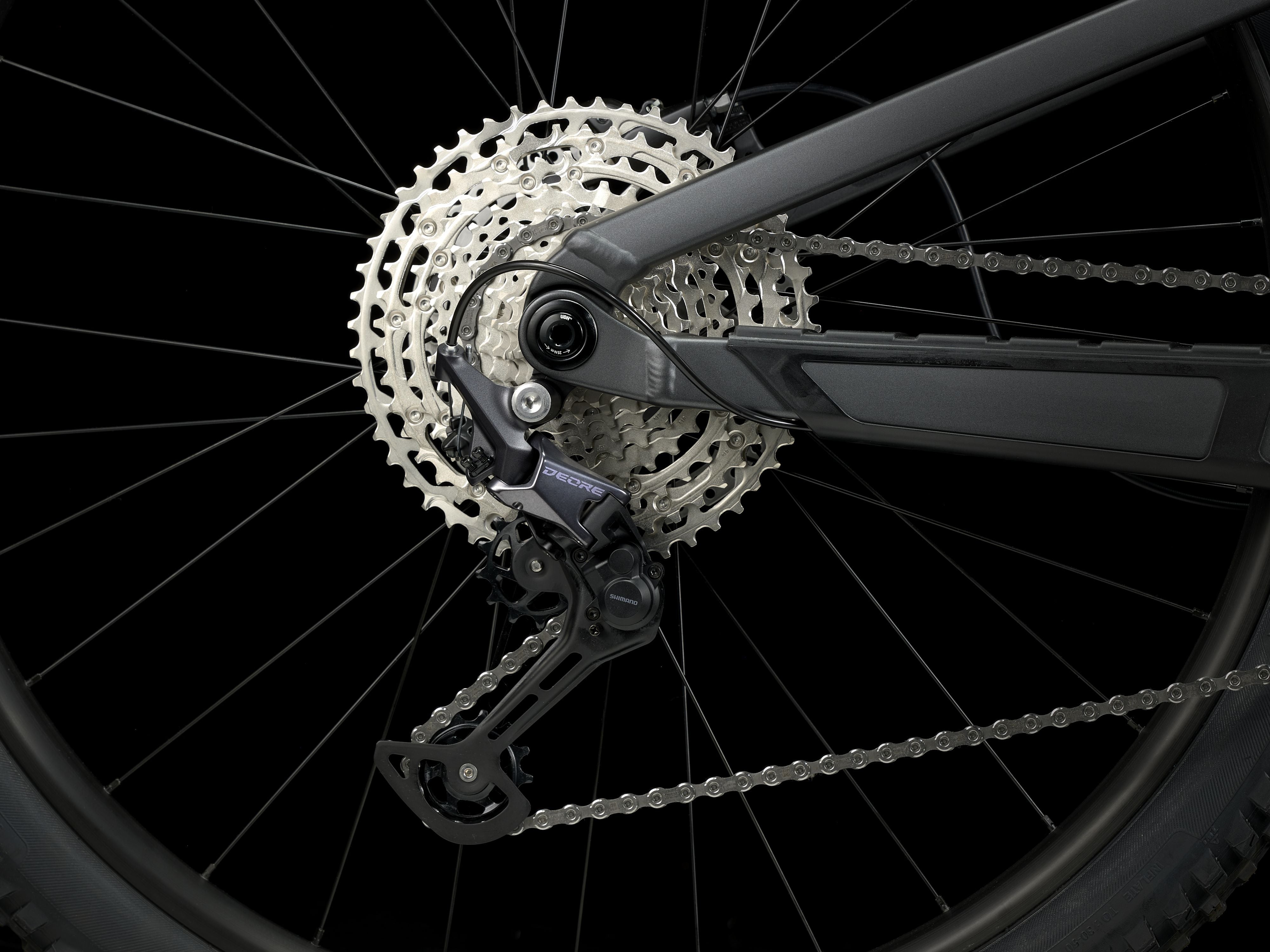

| Derailleur Rear | Shimano Deore M6100, long cage |
| Crank | Shimano MT512, 30T ring, 55 mm chain line, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Brake | Shimano |

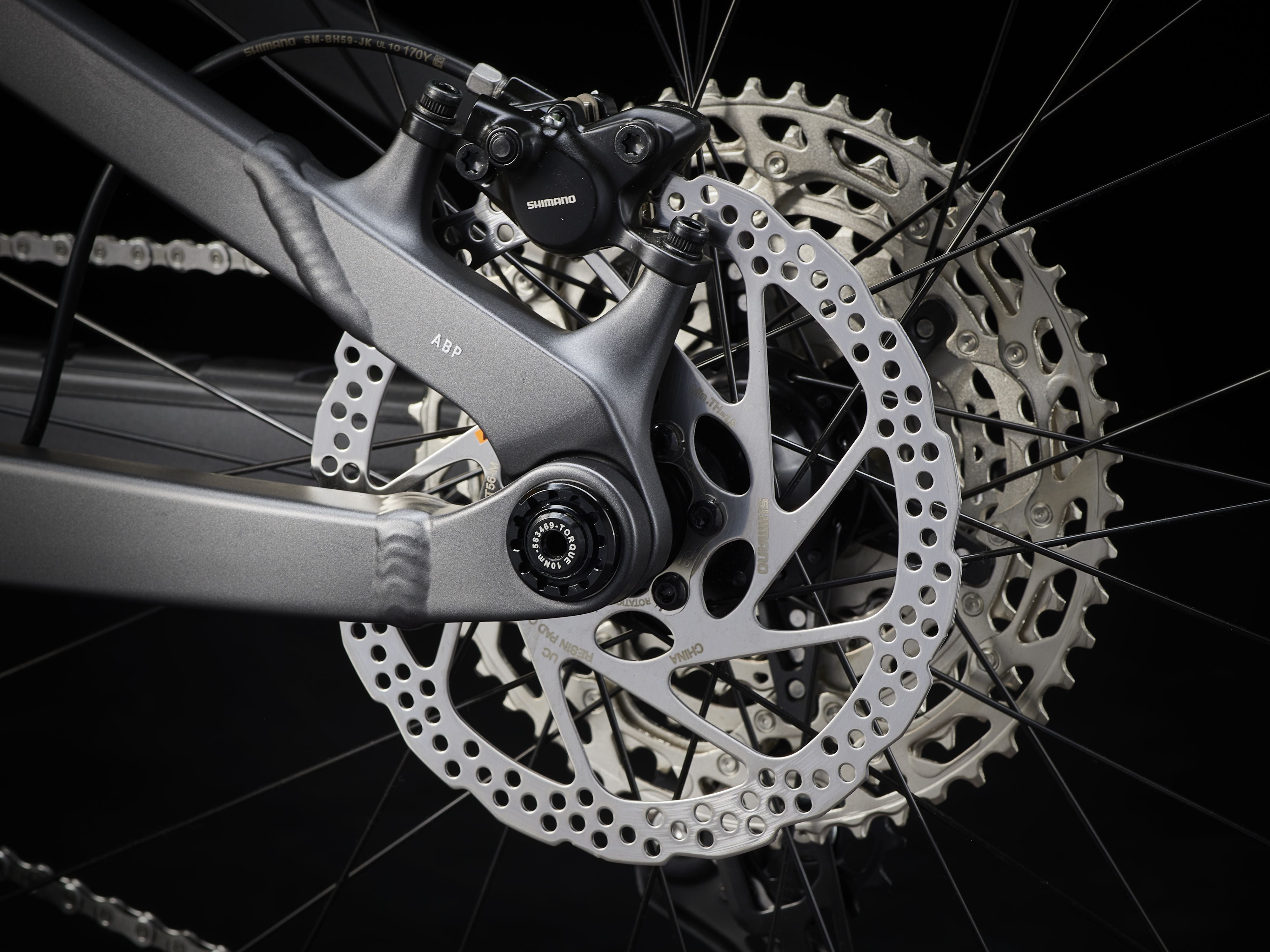

| Brakeset | Shimano hydraulic disc, MT201 lever, MT200 calliper // Shimano hydraulic disc, MT201 lever, MT200 calliper Shimano hydraulic disc, MT201 lever, MT200 caliper // Shimano hydraulic disc, MT201 lever, MT200 caliper |
| Brake Rotor | Shimano RT56, 6-bolt, 180 mm |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Size Chart Rider Height | Rider Height - 188.0 - 195.0 |
| Size Chart Rider Inseam | Inseam - 89.0 - 91.0 |
