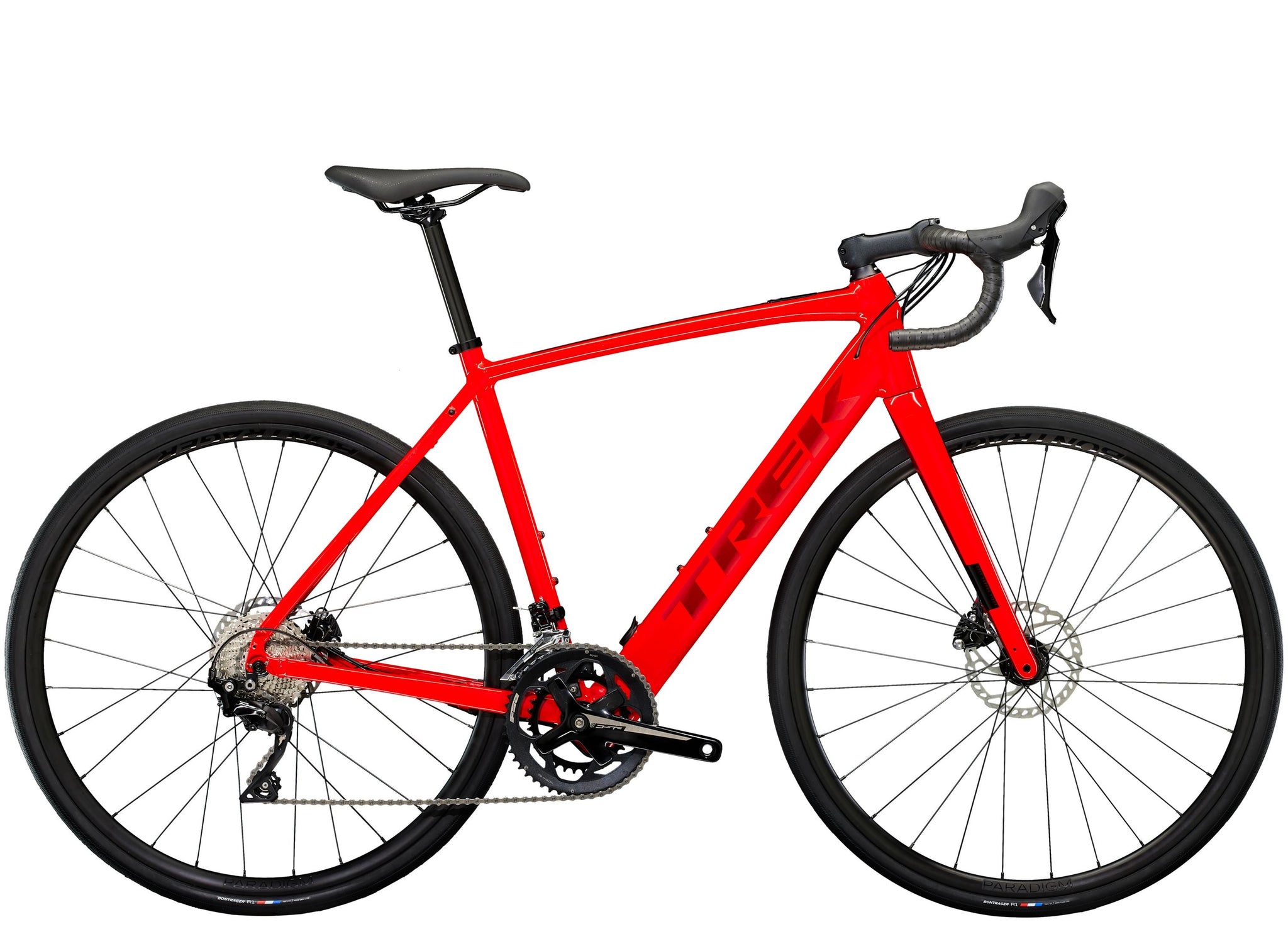

Domane+ AL 5

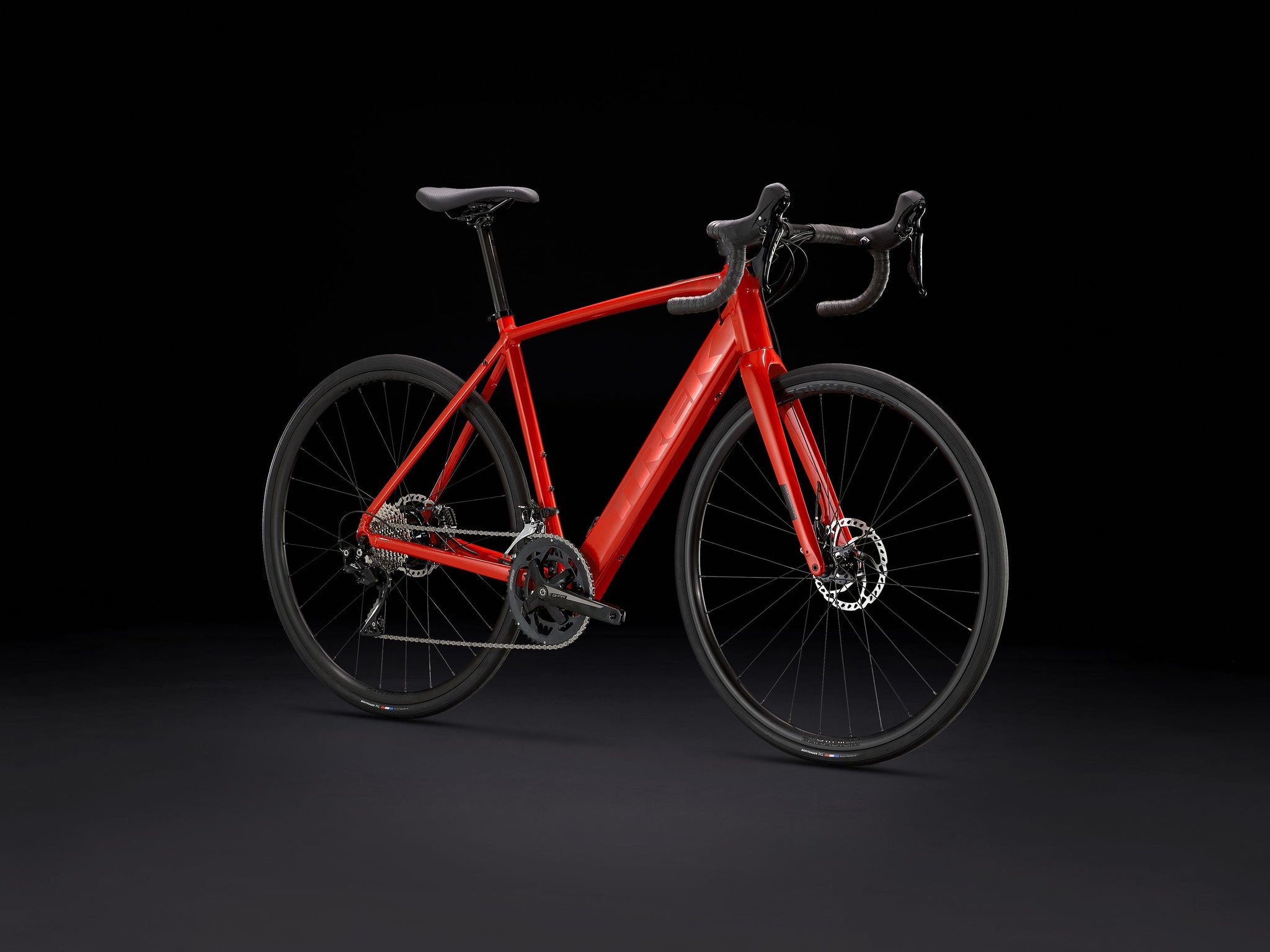

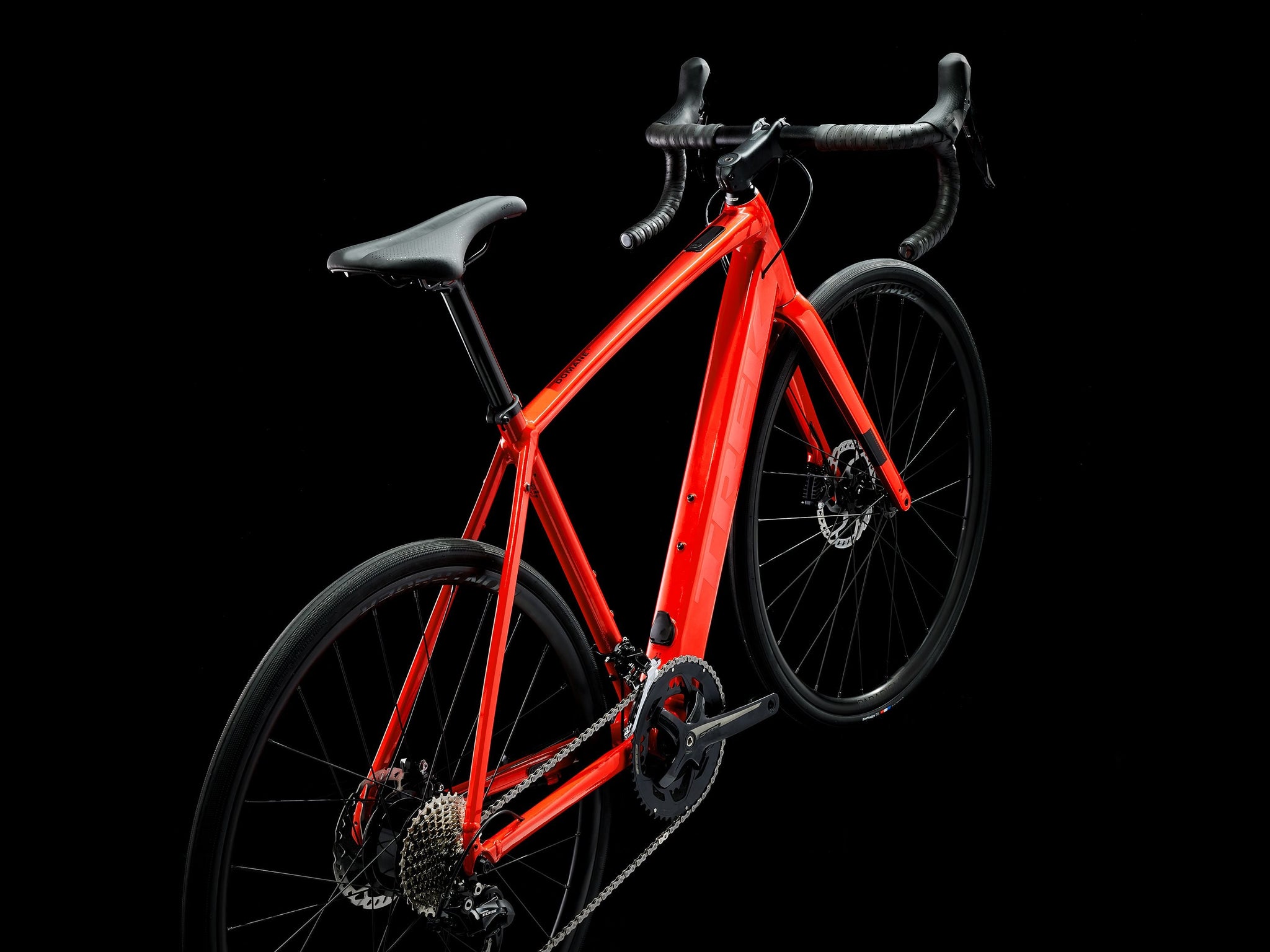

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.
Technology
Light, powerful, electric - An integrated 250 Wh battery is hidden in the downtube and a powerful yet lightweight rear hub motor gives you that extra boost on the road.
Specification

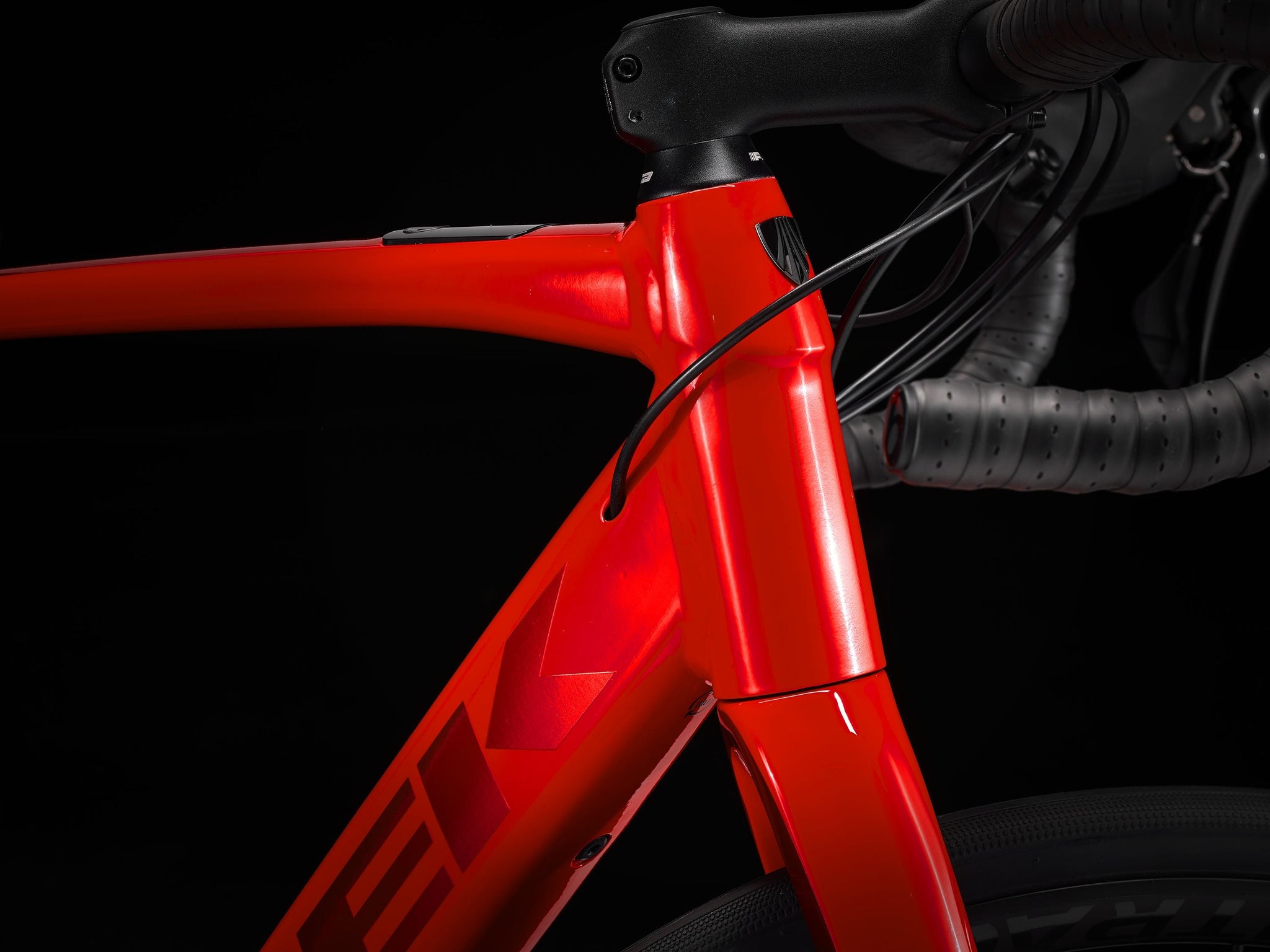

| Frame | 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |
| Fork | Domane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x |
| Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Hub Front | Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle |

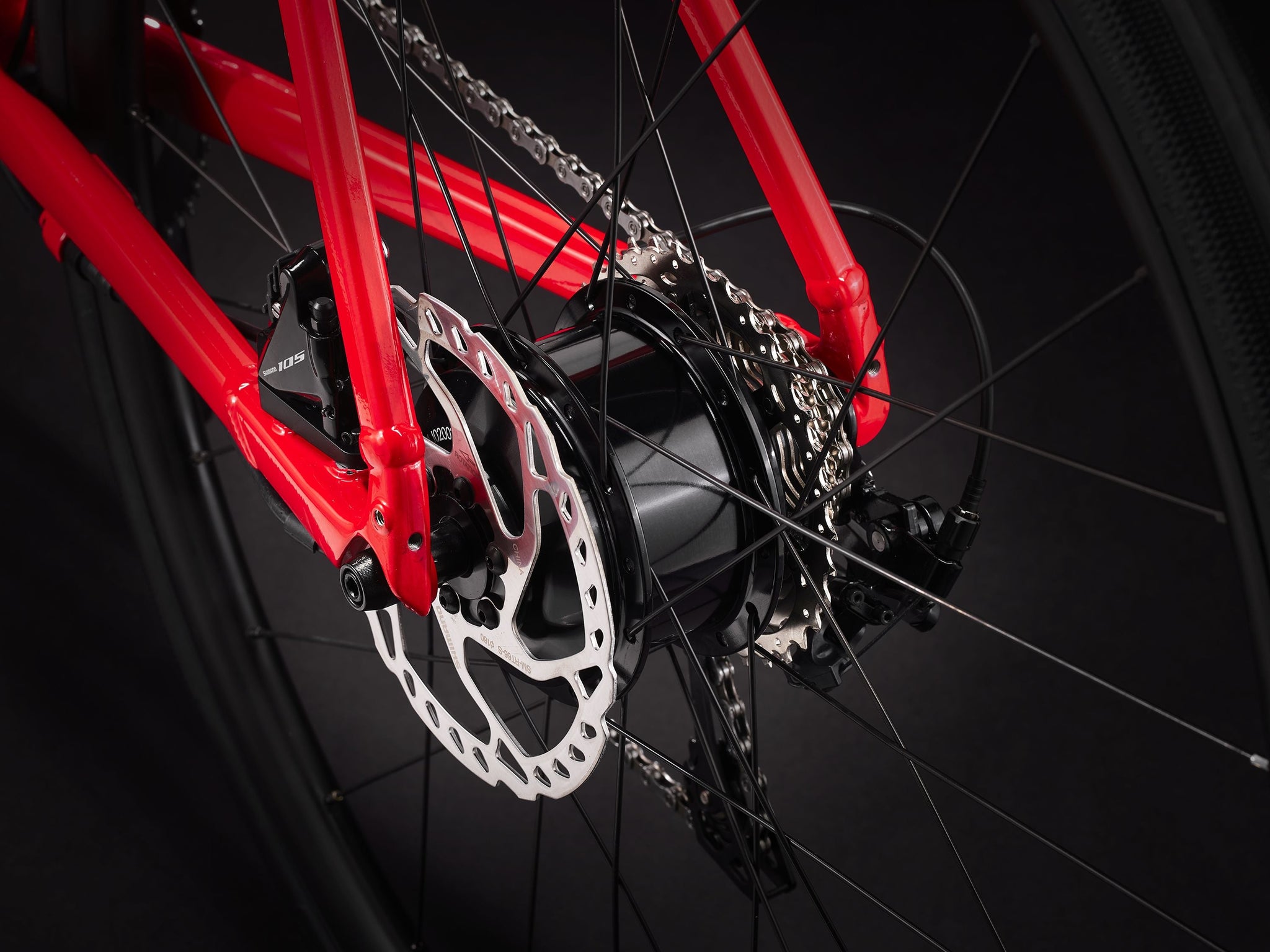

| Hub Rear | Hyena hub drive motor, 40 Nm, 250 W |
| Rims | Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve |
| Shifter | Shimano |

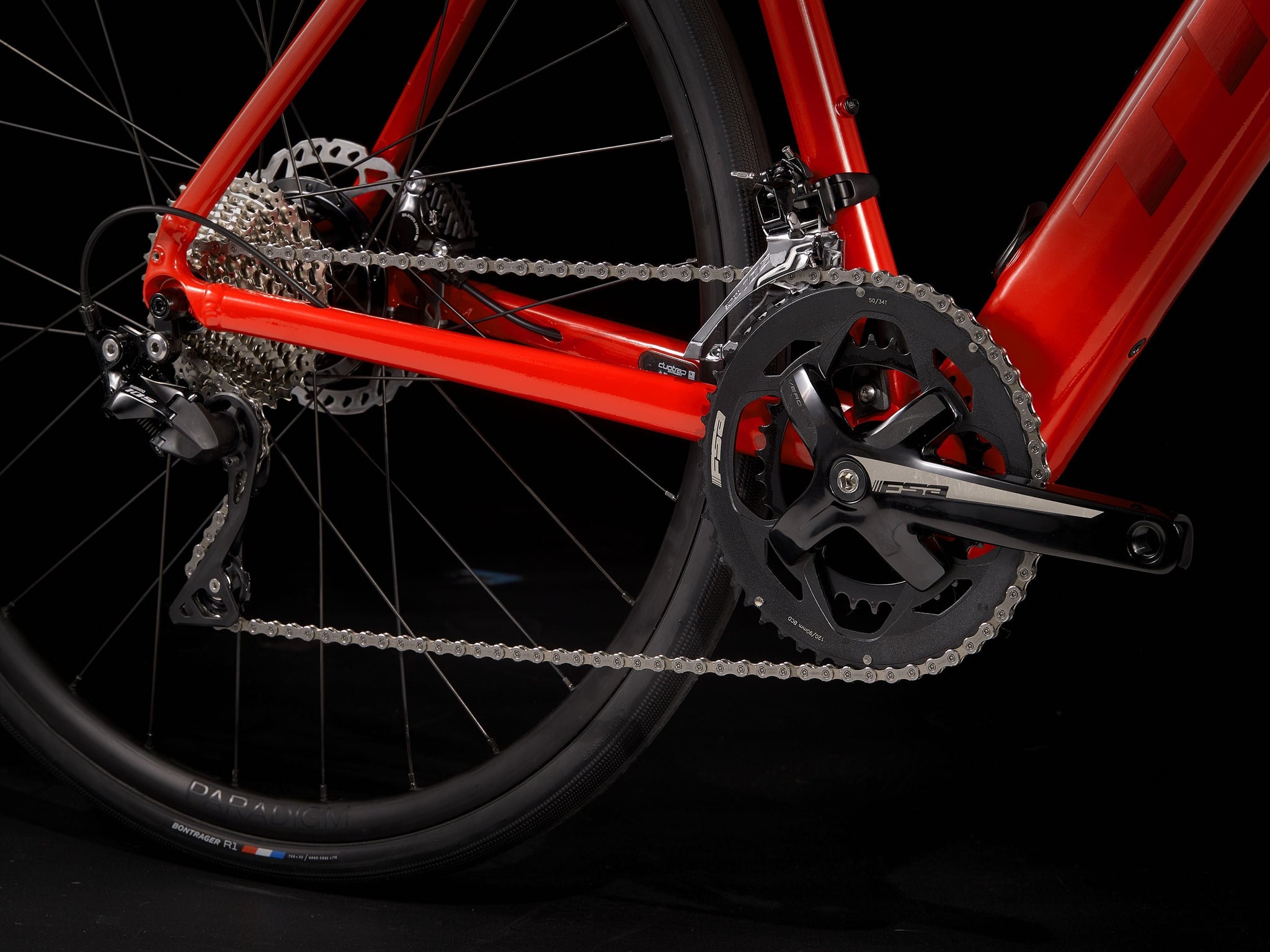

| Derailleur Front | Shimano 105 R7000, 31 mm clamp |
| Derailleur Rear | Shimano 105 R7000, long cage, 34T max cog |
| Crank | FSA Vero Pro, 50/34, 172.5 mm |
| Bottom Bracket | Torque sensor, threaded, 110 mm spindle |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
| Chain | Shimano 105 HG601, 11-speed |
| Brake | Shimano |

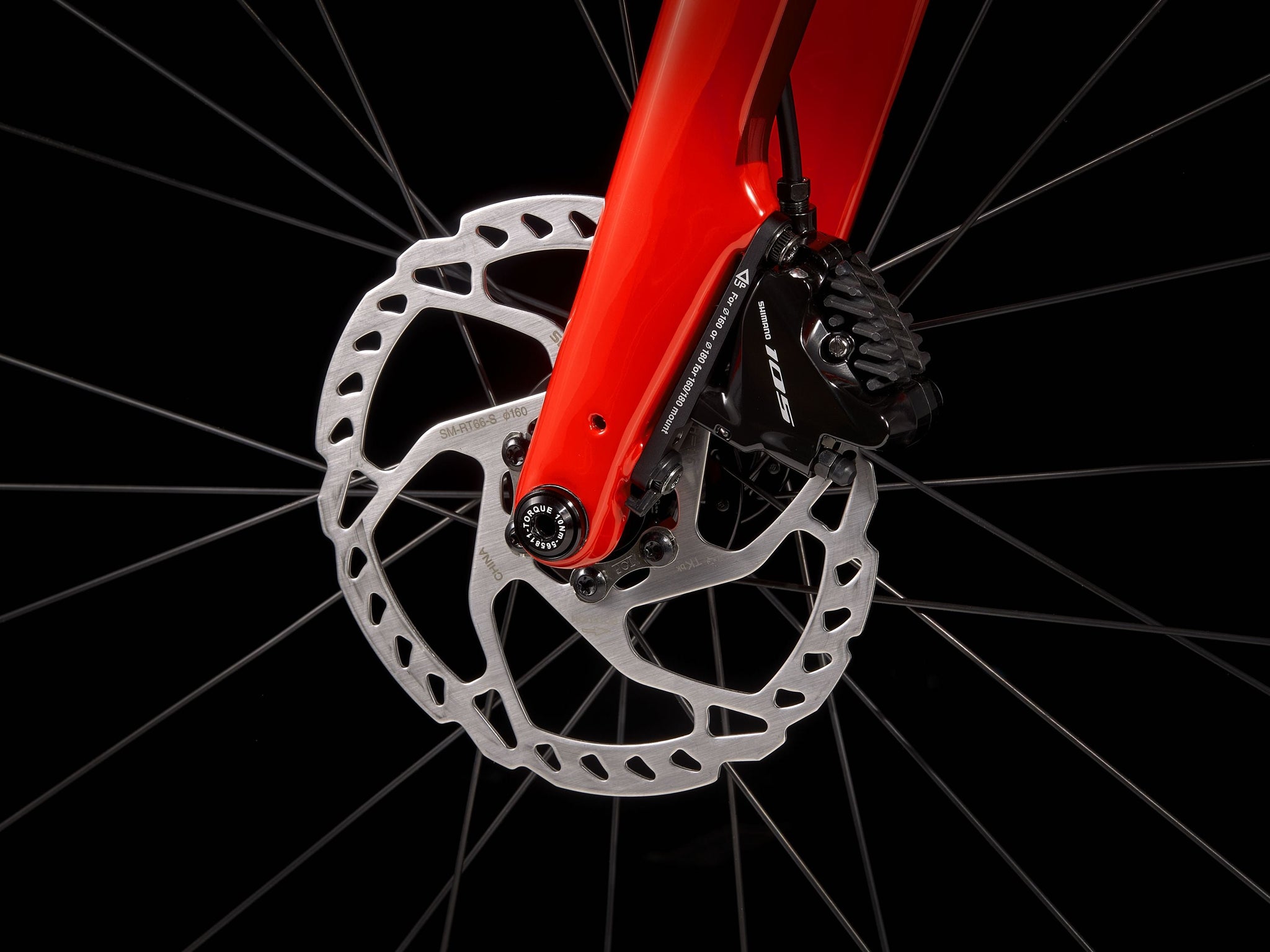

| Brakeset | Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin |
| Brake Rotor | Shimano RT66, 6-bolt, 160 mm |
| Saddle | Bontrager Verse Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

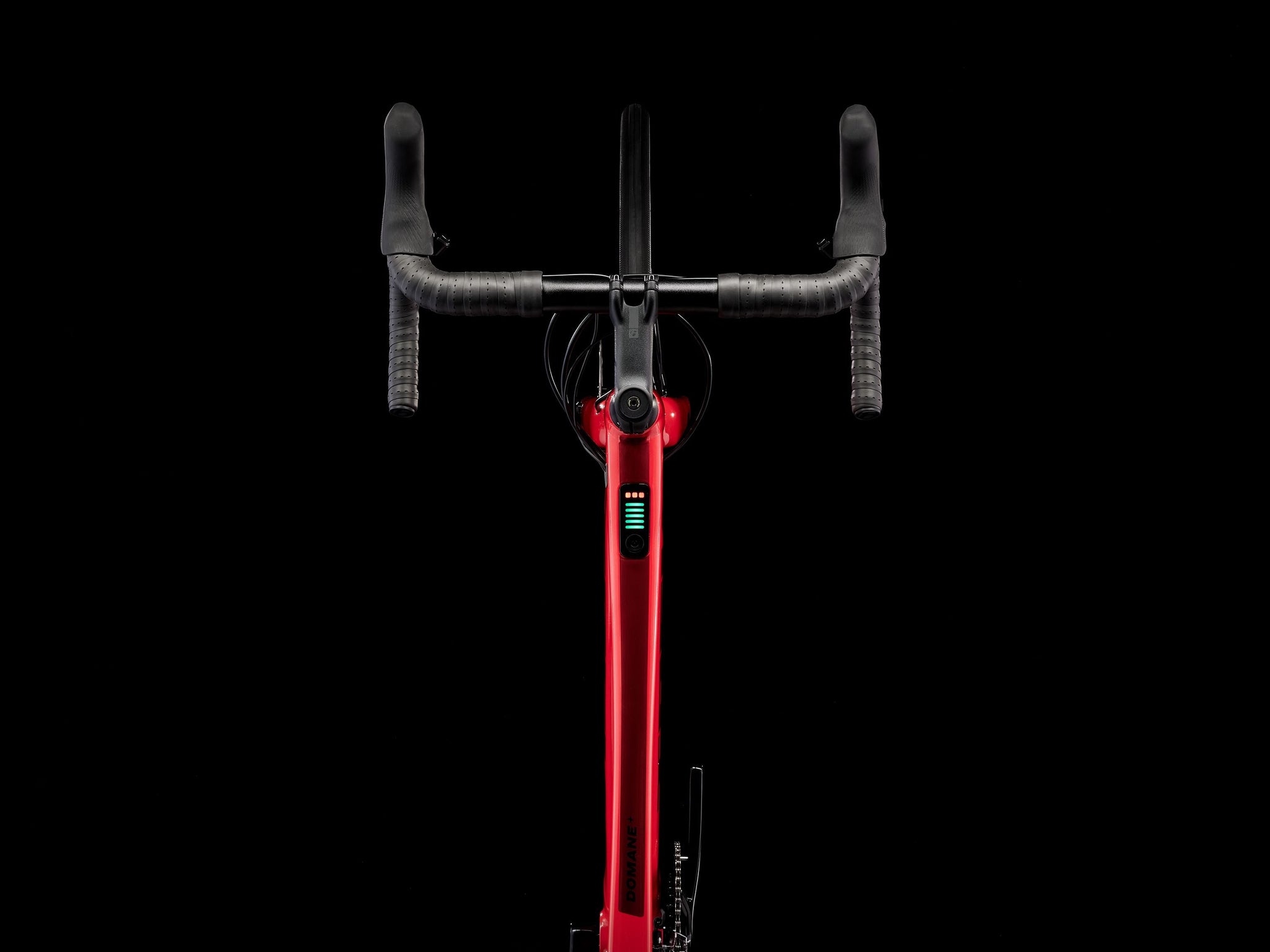

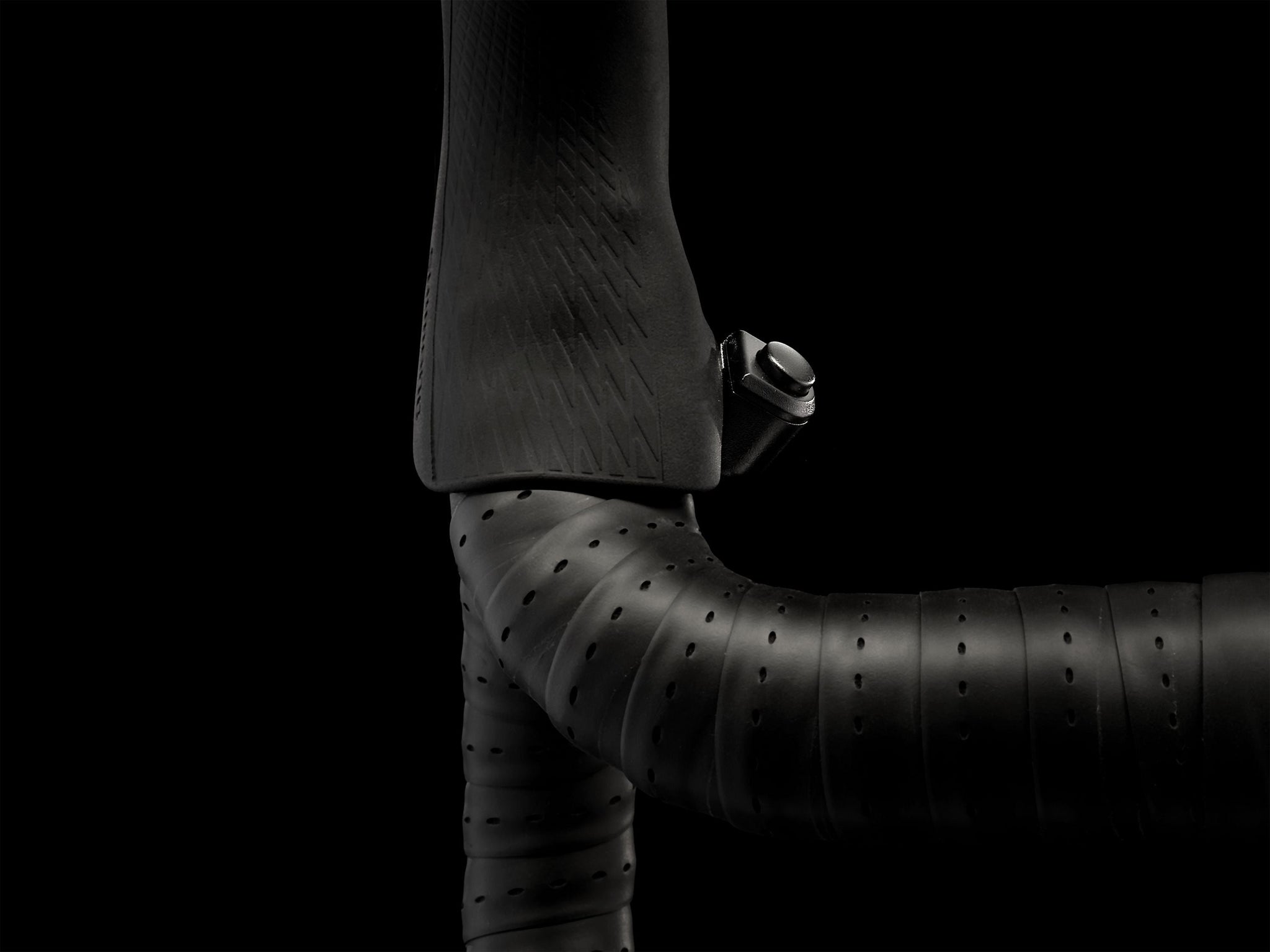

| Handlebar | Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |

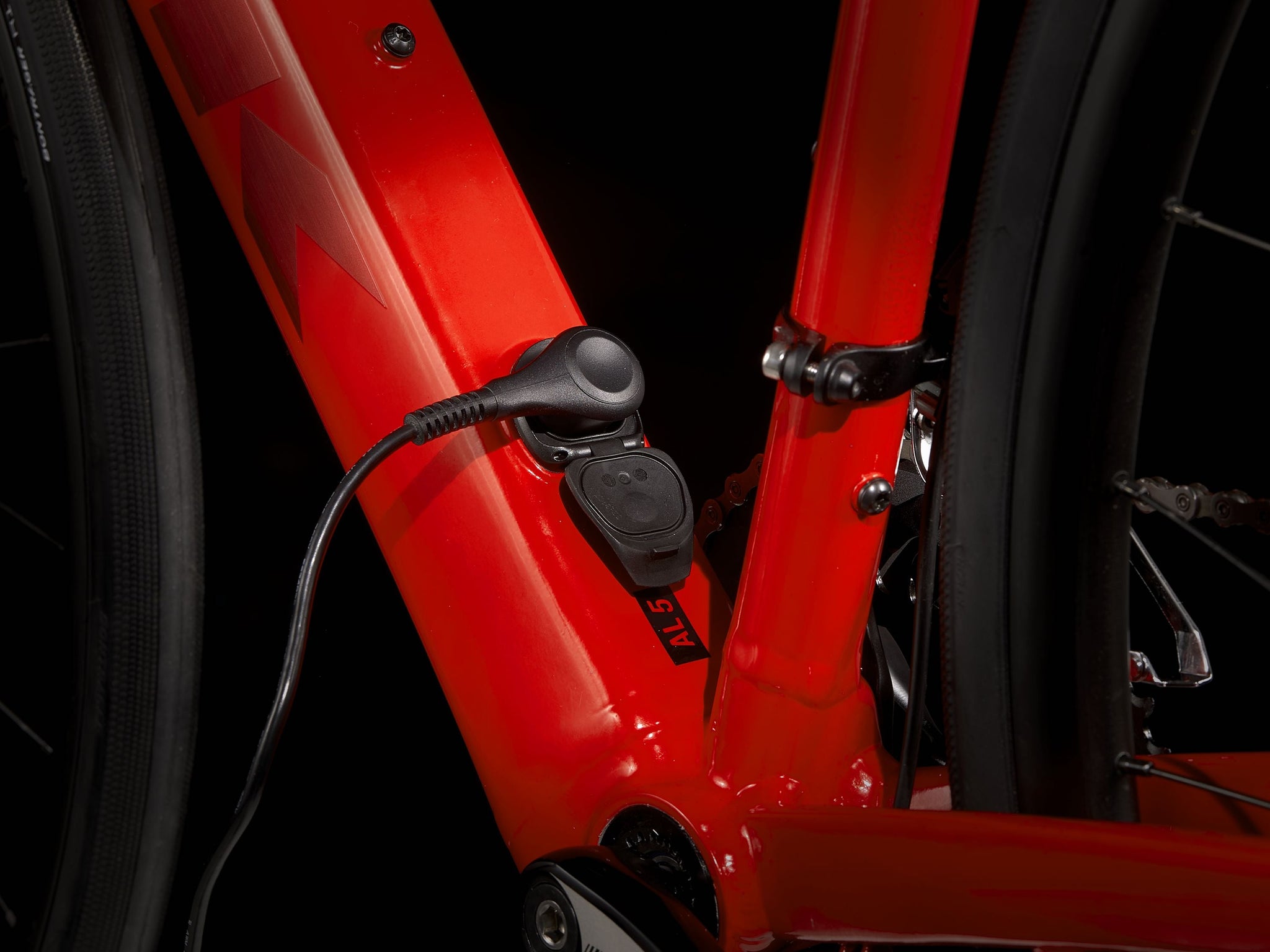

| Battery | 250 Wh, integrated in down tube 250Wh, integrated in down tube |
| Size Chart Rider Height | Rider Height - 174.0 - 180.0 |
| Size Chart Rider Inseam | Inseam - 81.0 - 85.0 |
