£8,450.00 GBP
Size
Color

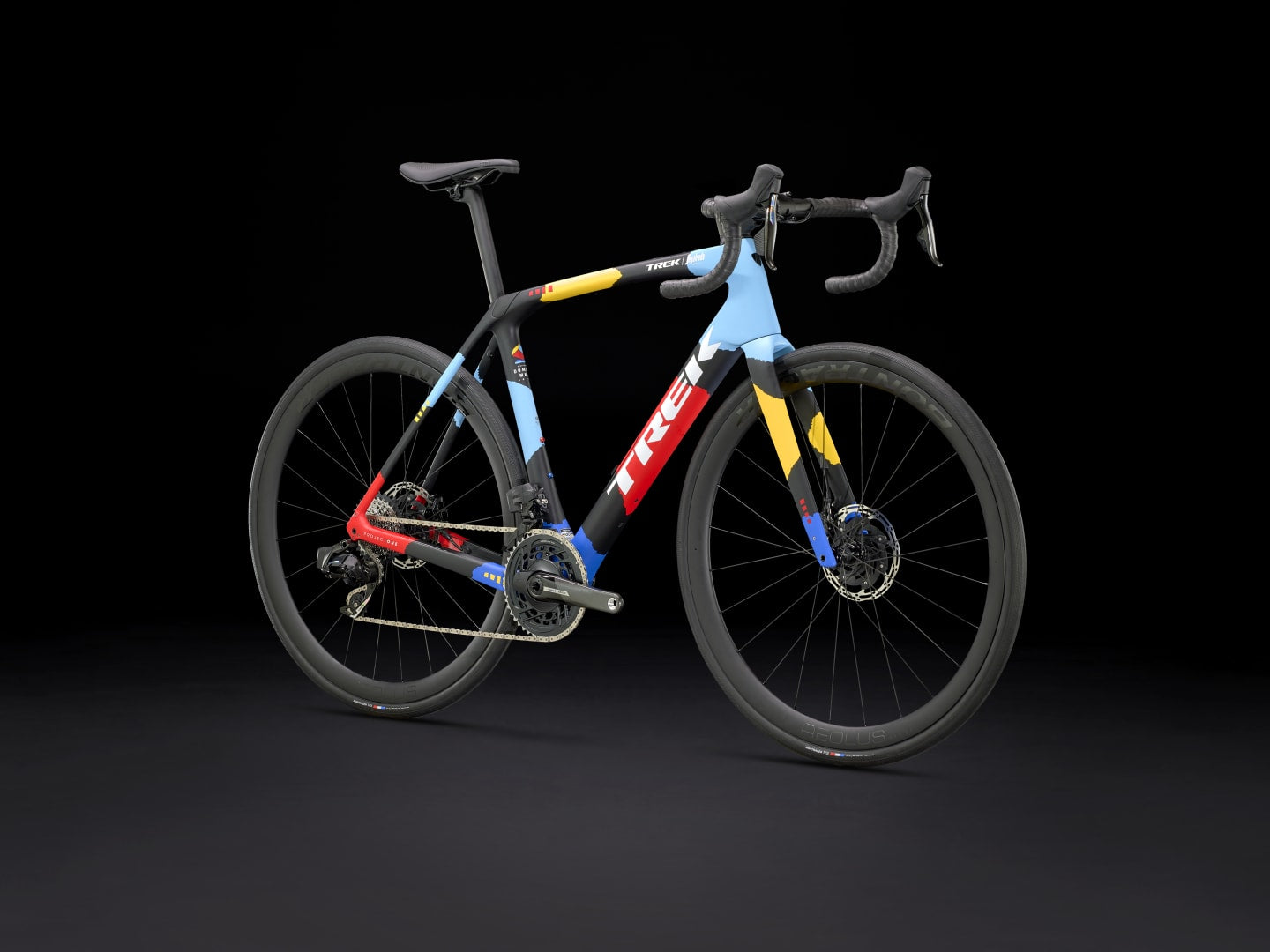

The Domane SLR 7 AXS is an ultra-light carbon endurance road bike decked out with the high-end parts made for long and fast, high-performance rides. You get our highest-level 800 Series OCLV Carbon frame with rear IsoSpeed, a wireless SRAM Force AXS D2 electronic drivetrain for precision shifting and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38 mm tyre clearance to keep you floating on rough roads and light gravel.

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Sizing

size-table
Size Rider Height Inseam
47

152 - 158 cm

5'0" - 5'2"

71 - 75 cm

28" - 30"
50

158 - 163 cm

5'2" - 5'4"

74 - 77 cm

29" - 30"
52

163 - 168 cm

5'4" - 5'6"

76 - 79 cm

30" - 31"
54

168 - 174 cm

5'6" - 5'9"

78 - 82 cm

31" - 32"
56

174 - 180 cm

5'9" - 5'11"

81 - 85 cm

32" - 33"
58

180 - 185 cm

5'11" - 6'1"

84 - 87 cm

33" - 34"
60

185 - 190 cm

6'1" - 6'3"

86 - 90 cm

34" - 35"
62

190 - 195 cm

6'3" - 6'5"

89 - 92 cm

35" - 36"

Geometry

All measurements provided in cm unless otherwise stated.


Sizing table
Frame size number Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack Saddle rail height min (w/short mast) Saddle rail height max (w/short mast) Saddle rail height min (w/tall mast) Saddle rail height max (w/tall mast)
47cm 700c 42.0 74.6° 11.0 71.0° 50.9 8.0 42.0 5.3 6.1 98.6 68.6 36.4 52.7 55.5 62.0 58.5 65.0
50cm 700c 45.0 74.6° 13.0 71.1° 51.9 8.0 42.0 5.3 6.0 99.6 71.6 36.8 54.6 58.5 65.0 61.5 68.0
52cm 700c 47.5 74.2° 14.5 71.3° 53.0 8.0 42.0 5.3 5.9 100.3 73.5 37.1 56.1 61.5 68.0 64.5 71.0
54cm 700c 50.0 73.7° 16.0 71.3° 54.2 8.0 42.0 5.3 5.9 101.0 75.4 37.4 57.5 64.0 70.5 67.0 73.5
56cm 700c 52.5 73.3° 17.5 71.9° 55.4 7.8 42.0 4.8 6.1 100.8 77.6 37.7 59.1 67.0 73.5 70.0 76.5
58cm 700c 54.8 73.0° 19.5 72.0° 56.7 7.8 42.5 4.8 6.0 102.2 79.6 38.0 61.1 69.0 75.5 72.0 78.5
60cm 700c 56.7 72.8° 22.0 72.1° 57.9 7.5 42.5 4.8 5.9 103.2 81.7 38.3 63.2 71.0 77.5 74.0 80.5
62cm 700c 58.6 72.5° 24.5 72.1° 59.3 7.5 42.5 4.8 5.9 104.2 83.5 38.6 65.6 73.0 79.5 76.0 82.5
