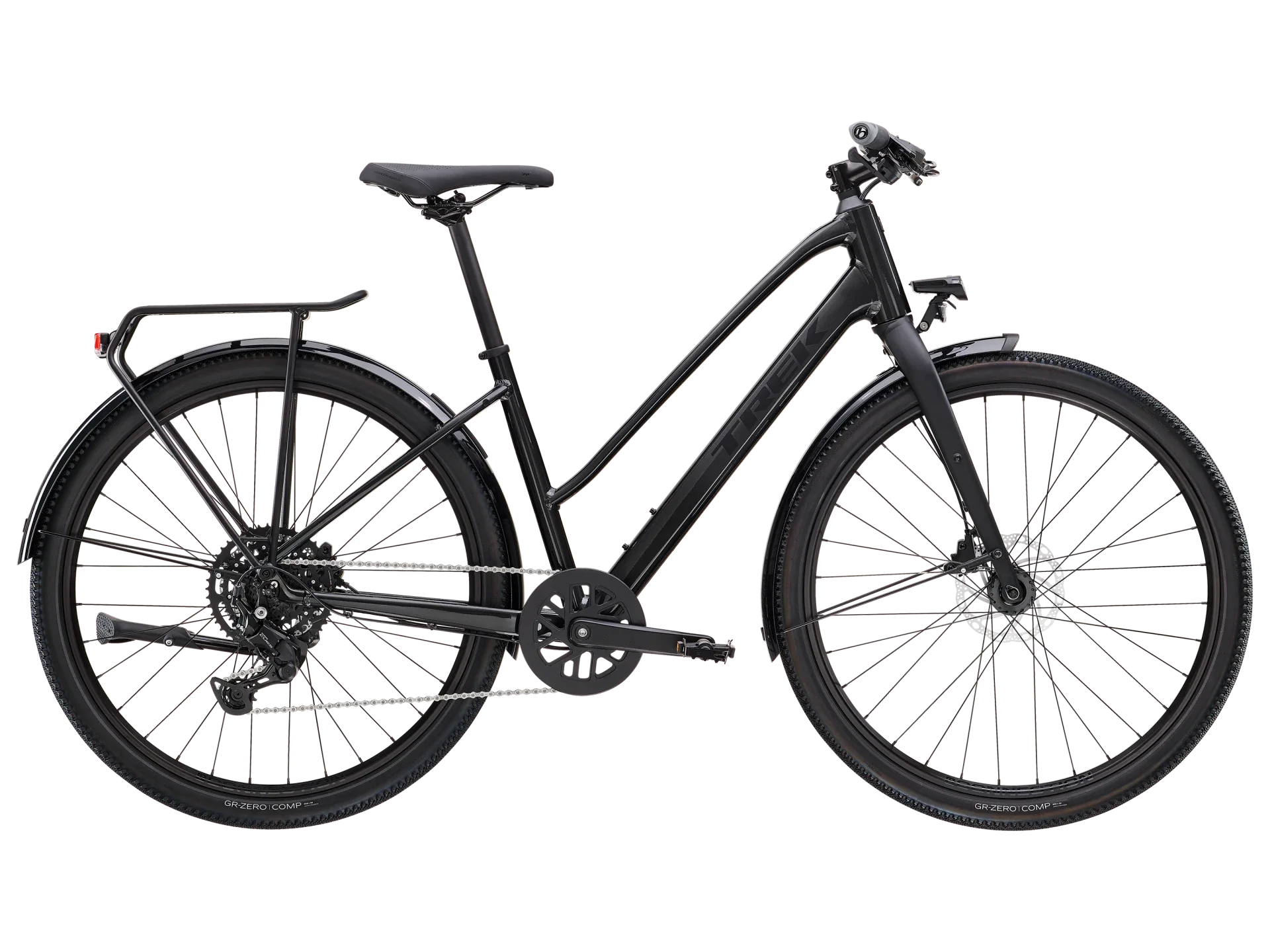

Trek Dual Sport 2 Midstep Gen 5
The Dual Sport 2 Midstep is a capable go-anywhere hybrid bike that's fun to ride on a variety of surfaces. It has a lightweight lowstep frame, a sturdy drivetrain and loads of ride-ready accessories like a rear rack and lights. Its wide wheels and tyres soak up bumps and rough-terrain for a comfortable, confident ride on the road, light gravel trails, bike paths and more.
*Please note – spec applies to all sizes unless listed separately
Frameset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | Dual Sport alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, reflective strip, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |
Drivetrain
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| Crank | ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | Wellgo nylon body, alloy cage |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components
| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
Size: M Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
|
Size: L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width |
|
| Grips | Bontrager Satellite |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
|
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
| Size: XL |
|
rSee More |
|
| Rotor sizeDeviate | Max brake rotor sizes: 160 mm front and rear |
| Weight | M - 14.30 kg / 31.53 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
WorkshopBike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
