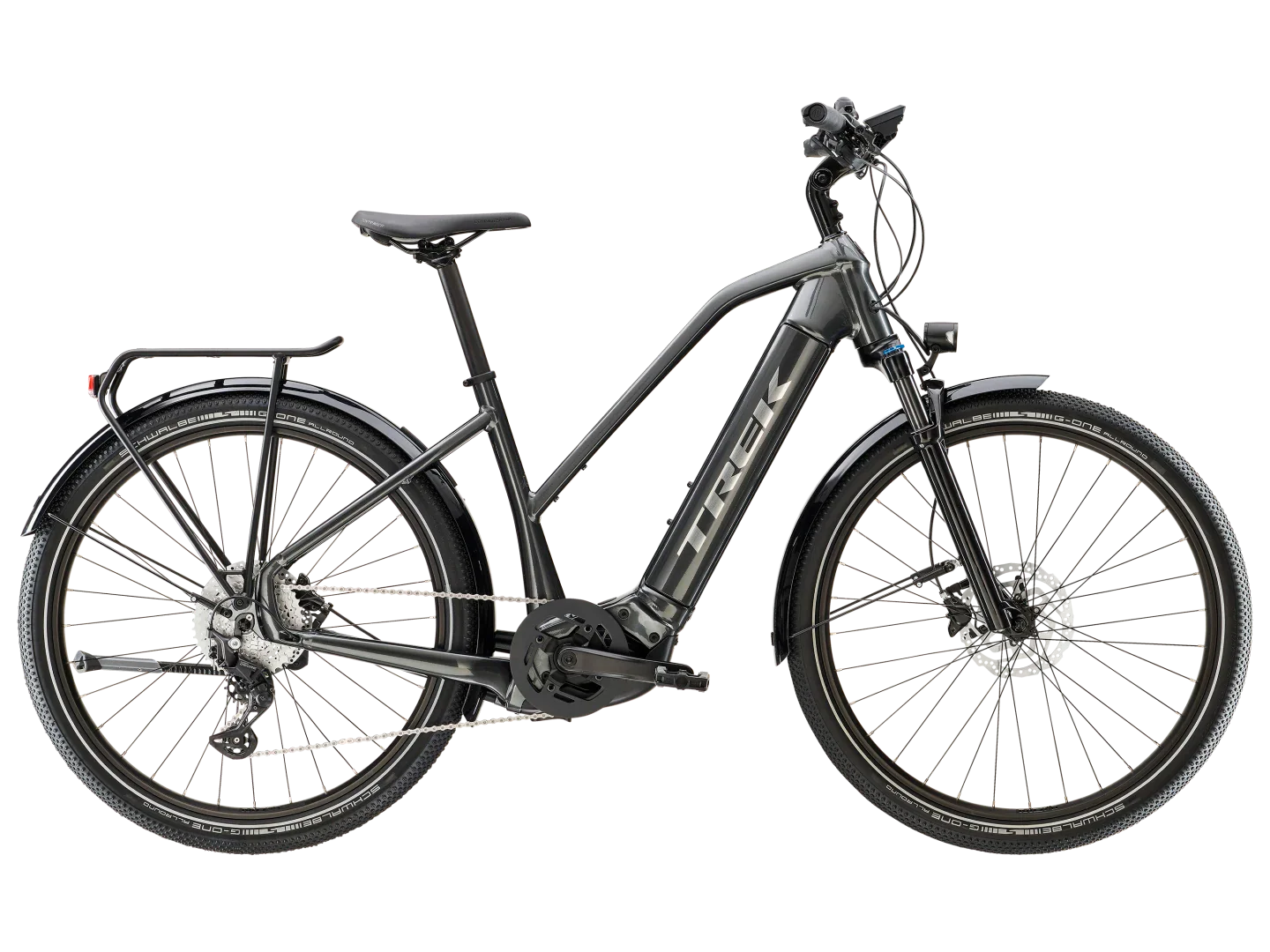

Trek Allant+ 7 Stagger
The Allant+ 7 Stagger is an award-winning e-bike built for riders and commuters who want a stylish, durable e-bike with the added road-smoothing benefits of a suspension fork. The powerful and connected Bosch smart system, quality parts and a wealth of thoughtful design details make this electric bike a smart solution for getting around town every day.
Specs
*Please note – spec applies to all sizes unless listed separately
Frameset
| Fork | SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel |
|---|---|
| Max compatible fork travel | 63mm |
Wheels
| Hub front | Shimano TX505, CenterLock |
|---|---|
| Hub rear | Shimano TX505, CenterLock |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve |
| Tyre | Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584 |
| Max tyre size | 27.5x2.40" |
E-system
| Battery | Bosch PowerTube 625Wh, smart system |
|---|---|
| Charger | Bosch standard 4A, 230V, smart system |
| *Computer |
Size: S, M, L Bosch Kiox 300, smart system |
|
Size: S, M, L Bosch LED remote, smart system |
|

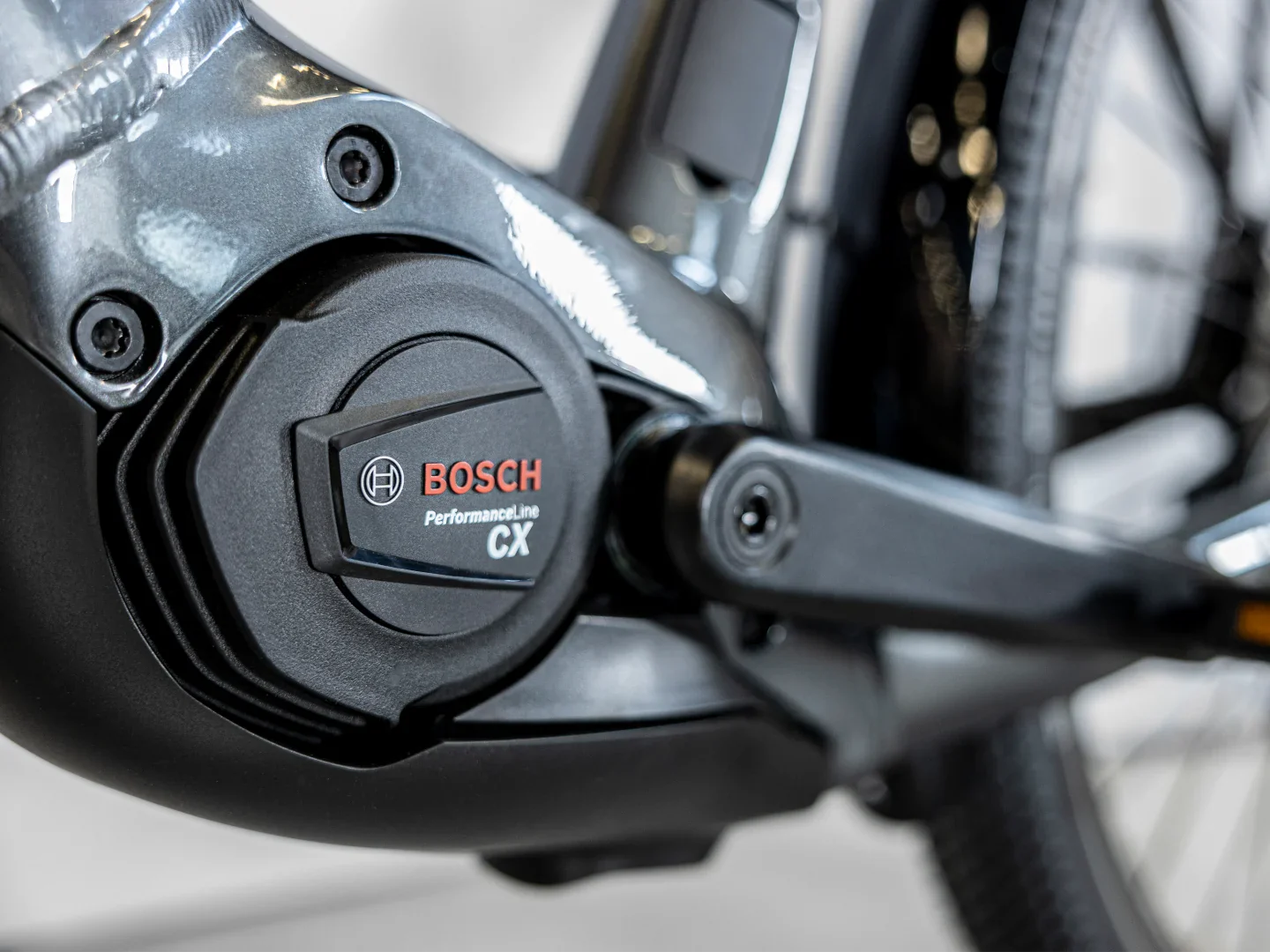

| Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm |
Drivetrain
| Shifter | Shimano Deore M5130, 10-speed |
|---|---|
| Rear derailleur | Shimano Deore M5130 |
| *Crank |
Size: S, M ProWheel alloy, 170 mm length |
|
Size: L ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LG400, 11-43, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | slip-proof pedals with reflectors |
| Max. chainring size | 1x: 48T |
Components
| Saddle | Bontrager Commuter Comp |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Herrmans Clik, ergonomic, lock-on |
| *Stem |
Size: S, M Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length |
|
Size:
LSkip to content Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length |
|
| Head set | |
